USER MANUAL VT7040 Concept

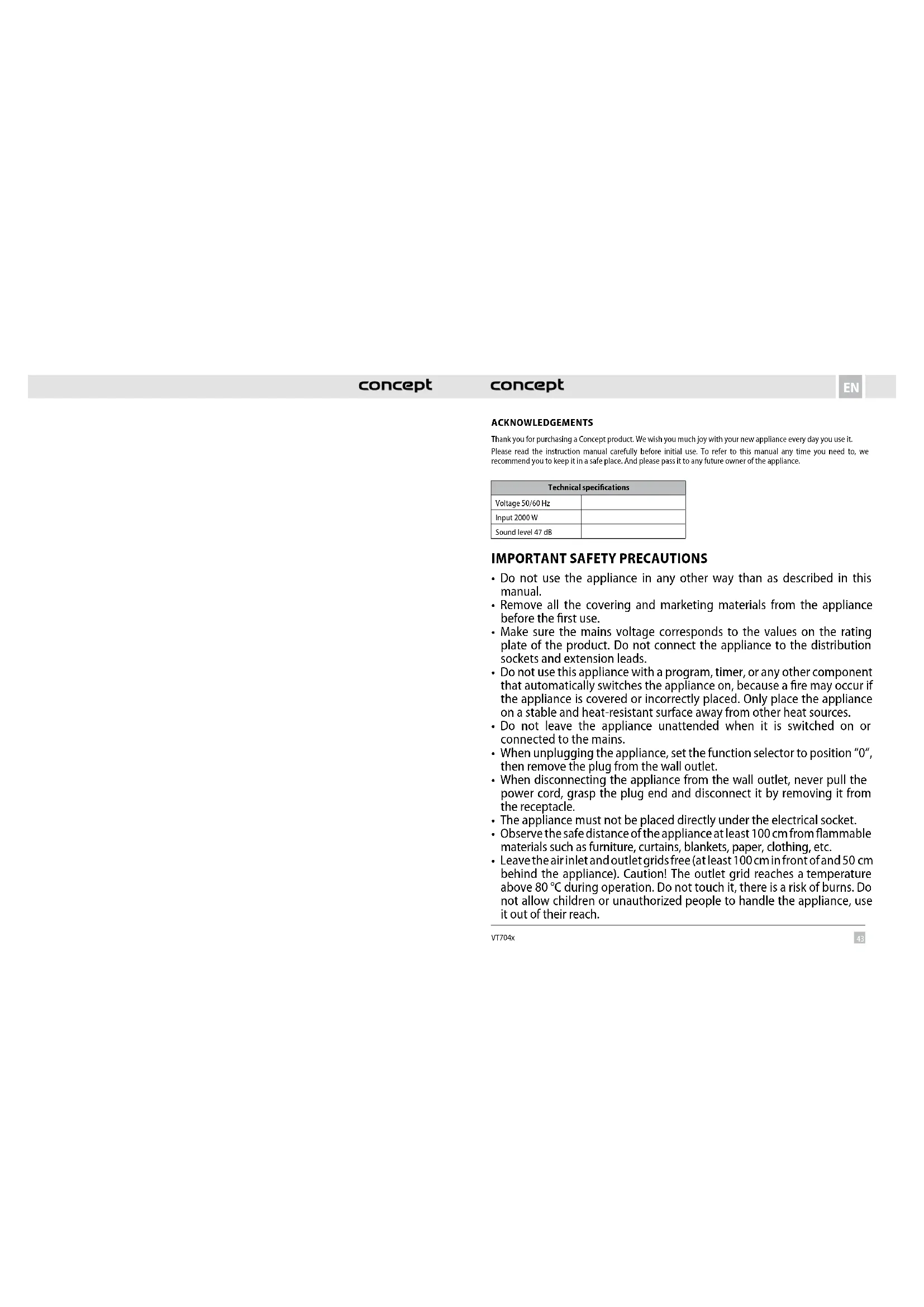

VT704x ACKNOWLEDGEMENTS Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance. Technical specifications Voltage 50/60 Hz Input 2000 W Sound level 47 dB

IMPORTANT SAFETY PRECAUTIONS

• Do not use the appliance in any other way than as described in this manual.

• Remove all the covering and marketing materials from the appliance before the first use.

• Make sure the mains voltage corresponds to the values on the rating plate of the product. Do not connect the appliance to the distribution sockets and extension leads.

• Do not use this appliance with a program, timer, or any other component that automatically switches the appliance on, because a fire may occur if the appliance is covered or incorrectly placed. Only place the appliance on a stable and heat-resistant surface away from other heat sources.

• Do not leave the appliance unattended when it is switched on or connected to the mains.

• When unplugging the appliance, set the function selector to position “0”, then remove the plug from the wall outlet.

• When disconnecting the appliance from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.

• The appliance must not be placed directly under the electrical socket.

• Observe the safe distance of the appliance at least 100 cm from flammable materials such as furniture, curtains, blankets, paper, clothing, etc.

• Leave the air inlet and outlet grids free (at least 100 cm in front of and 50cm behind the appliance). Caution! The outlet grid reaches atemperature above 80 °C during operation. Do not touch it, there is arisk of burns. Do not allow children or unauthorized people to handle the appliance, use it out of their reach.44 45 ENEN VT704x VT704x openings of the appliance may be blocked. Do not use the heater in the immediate vicinity of a bathtub, shower or swimming pool. Note: Do not use the appliance in rooms smaller than 4 m

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Cleaning and maintenance performed by the user must not be carried out by children unless they are at least 8 years old and under supervision. Children aged under 8 years of age must be kept away from the appliance and its power cord. Do not let children play with the appliance.

• Children aged under 3 years of age must be prevented from accessing the appliance unless they are permanently supervised.

• WARNING: Some parts of this product can be very hot and cause burns. Take special care in the presence of vulnerable persons or children.

• Children from the age of 3 and under 8 may switch the appliance on or off only if the appliance is in its place or installed in its normal operating position and they are supervised or instructed how to use the appliance safely and they understand the risks that are associated with it. Children from the age of 3 and under 8 may not connect, regulate or clean the appliance, or perform maintenance by the user.

• This product is only suitable for well-insulated rooms or occasional use. Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

• Persons with reduced mobility, reduced sensory perception, mental disadvantage or persons not familiar with the operation must use the appliance only under the supervision of responsible person, who is familiar with the instructions.

• Pay extra attention if the appliance is used near children.

• Do not cover the appliance, there is a risk of overheating. Do not use it to dry the laundry.

• Do not put anything on the appliance or place anything in front of it.

• The appliance must be positioned so that its plug is always accessible.

• The appliance must only be used in the upright position.

• Do not use the appliance near shower, bathtub, sink or pool.

• Do not use the appliance in an environment where there are explosive gases and flammable substances (solvents, varnishes, adhesives, etc.).

• Before cleaning and after use of the appliance, switch the appliance off, disconnect it from the mains and allow it to cool down. Keep the appliance clean, do not allow foreign objects to into the grid openings. It could cause short circuit, damage to the appliance or cause fire.

• Do not use coarse and chemically aggressive substances to clean the appliance.

• Do not use the appliance with a damaged cord or plug and have it repaired immediately by an authorized service centre.

• Do not use the appliance if it is not working properly, has been dropped, damaged or immersed in liquid. Have it checked and repaired by an authorized service centre.

• Do not use the appliance outdoors.

• The appliance is only suitable for home use and is not intended for commercial use.

• Do not touch the appliance with wet hands.

• Do not immerse the power cord, plug or appliance in water or any other liquid.

• The appliance is intended as an additional heater, it is not intended for main interior heating.

• The appliance must not be mounted on a wall.

• The appliance must not be used in vehicles.

• Do not repair the appliance yourself. Contact an authorized service centre.

• To prevent possible fire, do not cover the air inlet or outlet in any way. Do not place the appliance on soft surfaces such as a bed or where the46 47 ENEN VT704x VT704x

THERMOSTAT KNOB SETTING

The appliance is equipped with a built-in thermostat, which is used to maintain the required temperature in the room.

1. Set the switch (3) to high power level and the thermostat (2) to maximum.

2. When the desired temperature is reached, slowly turn the thermostat knob (2) counterclockwise until you hear

3. The set thermostat will automatically switch on/off the fan and heating coils to maintain the desired temperature.

1. The appliance is equipped with an anti-tip protection which automatically switches it off when it is accidentally

tipped over. When the appliance is returned to its normal operating position, it resumes operation.

2. The appliance is equipped with an overheat protection which switches it off if it is overheating. If this happens,

switch off the appliance and unplug it. Make sure that the air intake/air outlet openings are not blocked. Before putting the appliance back into operation, let it cool down to reset the overheat protection.

CLEANING AND MAINTENANCE

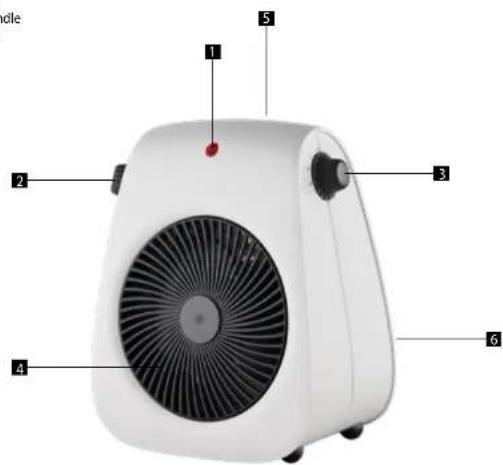

Caution! Before each cleaning of the appliance, unplug the power cord from the electrical outlet! Make sure the appliance has cooled before handling it! To clean the surface of the appliance, use only a damp cloth, no detergents or hard objects, as they can damage the surface of the appliance! Clean and inspect the inlet and outlet grids of the appliance frequently to ensure good operation of the appliance and to prevent overheating. The dust in the appliance can be blown or vacuumed. Never clean the appliance under running water, do not rinse it or immerse it in water! CAUTION for cleaning: Do not use gasoline, benzene, thinner, aggressive detergents, etc., as this may damage the heater. Never use alcohol or solvents. PRODUCT DESCRIPTION 1 Power light indicator 2 Rotary thermostat knob 3 Rotary power switch 4 Air outlet grid 5 Integrated handle 6 Air intake grid

INSTRUCTIONS FOR USE

1. Place the appliance in a suitable place and make sure that the air intake and air outlet openings are not blocked, the thermostat regulator is set to minimum and the switch is on the “0” position (Off).

2. Plug in the appliance, the light indicator lights up.

OPERATING MODE SETTING

0 Off . Airflow without heating (heating coils are switched off) .. Low power level 1000 W … High power level 2000 W

ENEN VT704x VT704x Table of local electric heater data P Model identification no.: VT704X_FH-P01 Parameter Symbol Value Unit Parameter Unit Rated heat output Rated heat output Pnom 1,8 - 2,0 kW Type of heat output / room temperature control (select one) Minimum heating capacity (indicated) Pmin 1,0 kW Single mode heat output without room temperature control [no] Maximum continuous heating power Pmax, c 2,0 kW Two or more modes set manually, without room temperature control [no] Electricity consumption With room temperature control by mechanical thermostat [yes] In standby mode Psm 0,00 W With electronic room temperature control [no] In the off state Po 0,00 W Electronic temperature room control with daily timer [no] In idle mode Pidle 0,00 W In mains standby mode Pnsm 0,00 W Standby mode with information or status display [no] Seasonal heating energy efficiency in active mode ns, on 85 % Electronic temperature room control with weekly timer [no] More control options (multiple choices) Room temperature control with person presence detection [no] Room temperature control with open window detection [no] With remote control [no] With adaptive on/off mode [no] With reduced operating hours [no] Thermal fuse [no] Learning function [no] Control accuracy [no] Contact: Jindrich Valenta – Concept Vysokomytska 1800, 565 01 Chocen, CZECH REPUBLIC Note: The measured seasonal energy efficiency of heating of local electric heaters shall not be lower than the declared value at the nominal heating capacity of the unit. Seasonal energy efficiency of all local heaters except commercial, ηs (%) 44,7 SERVICE Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by aqualified specialist or the service centre. ENVIRONMENTAL CONCERNS

• Packaging materials and old appliances should be recycled.

• Packaging materials may be disposed of as sorted waste.

• Dispose the plastic bags made of polyethylene (PE) of as sorted waste. Recycling of the appliance at the end of its lifespan: This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (Waste Electrical and Electronic Equipment - WEEE). The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The disposal of such material has to be done according to the recycling regulations. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance. The product meets all the necessary requirements of the EU directives applicable to the specific product. Changes in text, design, and technical specifications are subject to change without prior notice and we reserve the right to change them.51

• if the product installation, operation and service conditions stipulated in the product operating manual have not been adhered to,

• to malfunctions caused due to mechanical, heat or chemical damage, short circuit, over voltage or incorrect installation,

• to malfunctions caused by an inexpert third-party intervention,

• to malfunctions caused by natural disaster,

• to malfunctions caused by insufficient or inappropriate maintenance in violation of the operating manual, including malfunctions caused by water and other sediments,

• to changes in colour of the heating surface or to scratching of the surface caused as a result of using the products in an unusual manner,

• to appearance and functional changes caused by exposure to sunlight, thermal radiation of water and other sediments,

• if the service life of certain product parts expires, e.g. for accumulators, bulbs, etc. The warranty does not apply to any products and services provided along with the product (gifts, promotional articles, etc.). Filing a complaint A complaint against a product defect must be filed as soon as identified, yet no later than before the end of the warranty term. The customer must file a product complaint with the dealer from which they have purchased the product, or with any authorised service centre, a list of which is included in the product package, or available at www. my-concept.com. While filing a product complaint, the product must be duly cleaned and securely packed so as to prevent any damage during its transport to an authorised service centre, where relevant, unless the product is delivered in person. The customer must submit proof of having concluded a purchase contract for the product by producing the receipt. While filing their complaint, the customer must indicate the noted defect and identify the preferred complaint application method. Complaints processing As long as the noted defect may be removed, the user has the right to have the defect duly removed free of charge on a timely basis. Where such a procedure is not reasonable with regard to the nature of the defect, the user may require to be supplied a new defect-free product (replacement), or, where the defect applies to a part of the product only, replacement of the part concerned. However, if replacement of the product or any part thereof is not proportionate with regard to the nature of the defect, especially if the defect can be removed without undue delay, the customer has the right to have the defect removed free of charge.
