Product Type	Tower Heater
Model	VT-8020
Brand	Concept
Voltage	220-240 V ~ 50 Hz
Power Input	2200 W
Noise Level	49 dB(A)
Heating Modes	Heating 1 (Low), Heating 2 (Mid), Heating 3 (High), ECO, Ventilation, Anti-freeze
Temperature Control	Adjustable thermostat with ECO mode
Display	LED with temperature (Celsius/Fahrenheit)
Timer	24-hour digital timer for delayed on/off
Oscillation	Yes, left and right
Remote Control	Yes, with battery CR/2032/3V
Safety Features	Overheat protection, tip-over switch, audible alarm, thermal overload protector
Filter	Removable filter (H)
Construction	Vertical tower, freestanding
Placement	Floor only, not wall-mounted
Cleaning	Wipe with damp cloth; vacuum grilles; no solvents
Warranty	24 months
Service	Authorized service centers only

Frequently Asked Questions - VT-8020 Concept

How do I set the timer for delayed shut-off?

With the heater on, press the Timer button (D). The display shows the timer symbol. Use the + and - buttons (B) to set the desired time before shut-off. Wait a few seconds to confirm. The timer symbol remains on the display.

How can I change the temperature scale from Fahrenheit to Celsius?

Press and hold the + button for a few seconds to toggle between °F and °C. The display will show the selected scale.

What does the ECO function do?

The ECO function automatically adjusts the power level for optimal comfort while reducing energy consumption. It is available in Heating 1, 2, and 3 modes. The heater may switch to a lower power level automatically.

How do I reset the heater after it shuts off due to overheating?

Unplug the heater and wait 20 minutes for it to cool down. Then plug it back in and operate normally. Ensure no obstructions are blocking the air intake or outlet.

How should I clean the heater?

Always unplug and let it cool. Wipe the surface with a damp cloth. Clean the air inlet and outlet grilles frequently using a vacuum cleaner. Do not use detergents, solvents, or immerse in water.

What should I do if my heater shuts off unexpectedly?

Check if the tip-over switch was activated (blinking dot on display) or if the overheat protection engaged. Ensure the power cord is plugged in and the thermostat setting is above room temperature. If the problem persists, refer to the troubleshooting section.

Can I use this heater in a bathroom?

No. The manual warns not to use the unit near a shower, bathtub, sink, or swimming pool. It is designed for indoor domestic use only in dry areas.

How do I replace the remote control battery?

Remove the cover on the back of the remote. Insert a CR/2032 3V button battery with the positive (smooth) side up. Replace the cover. Dispose of old batteries according to local regulations.

What safety features does this heater have?

It includes an audible alarm for overheating, a thermal overload protector that shuts off the heater automatically, and a tip-over switch (safety switch against overturning).

How does the anti-freeze mode work?

In Anti-freeze mode (❄), the heater maintains a room temperature of approximately 7°C (45°F) to prevent freezing. The fan and heating operate minimally to save energy.

USER MANUAL VT-8020 Concept

Concept electric heater with a black tower and grid display, labeled 'VT 8020' at the bottom (no other text or symbols visible)

CZ SK PL LVEN DE

Three identical gray rectangular shapes arranged horizontally (no text or symbols)

PODĚKOVÁNÍ

Technical line drawing of a vertical stand with internal components, showing cross-sectional views (no text or symbols)

NÁVOD K OBSLUZE

Technical line drawing of a vertical stand with internal components, showing cross-section and labeled parts (H, I) without any readable text or symbols.

NÁVOD NA OBSLUHU

Technical line drawing of a vertical stand with internal components, showing cross-sections and labeled parts H and I (no text or symbols beyond labels)

INSTRUKCJA OBSŁUGI

Technical line drawing of a vertical stand with internal components, showing cross-sectional views (no text or symbols)

EKSPLUATĀCIJAS NORĀDĪJUMI

Thank you for purchasing a Concept product. We hope you will be satisfied with our product throughout its service life.

Please study the entire Operating Manual carefully before you start using the product. Keep the manual in a safe place for future reference. Make sure other people using the product are familiar with these instructions.

Technical parameters
Voltage 220 - 240 V ~ 50 Hz
Input	2200 W
Noise level 49 dB(A)

IMPORTANT SAFETY INSTRUCTIONS:

• Use the unit only as described in this operating manual.
- Remove all the covering and marketing materials from the unit before the first use.
- Make sure the mains voltage corresponds to the values stated on the product's rating plate. Do not connect the unit to adapter plugs or extension cables.
- Do not use this unit with any programmable device, timer, or any other product turning the unit on automatically; if the unit is covered or installed improperly, a fire may occur.
• Make sure to place the unit on a stable heat-resistant surface, out of the reach of other heat sources.
- Close supervision is necessary when the unit is on or plugged into the socket.
- Before unplugging the unit from the wall outlet, move the mode selector to the "O" position and then remove the plug from the wall outlet.
- Never pull the cord to disconnect the plug from the socket; hold the plug instead.
- Do not install the unit directly under the wall outlet.
- Keep the minimum safe distance of at least 100 cm between the unit and any flammable materials, such as furniture, curtains, lace, blankets, paper, clothing, and so on.
- Keep the air inlet grille and air outlet grille unobstructed (at least 100 cm in front of and 50 cm behind the unit). Warning! The outlet grille achieves an operational temperature of more than 80°C. Do not touch it; there is a danger of being burned!
- Do not allow children or unskilled people to handle the unit. Use the unit out of the reach of these individuals.
- Persons with limited movement capacity, reduced sensory perception, insufficient mental capacity or those who are unaware of the proper handling should use the product only under the supervision of a responsible person who is aware of these instructions.
• Pay the utmost attention when using the unit near children.
- Do not cover the unit. There is a risk of overheating. Do not use the unit for drying cloth.
- Do not hang anything above or in front of the unit.
• Use the unit only as described in this operating manual.
• The unit shall be installed in such a way that the plug remains accessible at all times.
• The unit may be operated in the upright position only.
• Do not use the unit near a shower, bathtub, sink, or swimming pool.
- Do not use the unit in an environment with explosive gases or flammable substances (solvents, varnishes, adhesives, etc.).

• Turn the unit off, disconnect the power cord from the wall outlet, and allow the unit to cool before cleaning.
• Keep the unit clean; prevent foreign bodies from entering the grille openings. This could cause a short circuit, damage to the unit, or fire.
• Do not use abrasive or chemically aggressive substances to clean the unit.
• Never use the appliance if the supply cord or plug is damaged. Immediately refer to an authorised service centre for repair.
• Do not use the unit if it does not operate properly, if it has been dropped, damaged or exposed to any liquids. Take the unit to an authorized service centre for testing and repair.
  • The unit is not designed for outdoor use.
  • The appliance is intended for domestic use only, not for commercial use.
  • Never operate the appliance with wet hands.
• Do not immerse the power cord, plug, or appliance in water or any other liquid.
• The unit is designed as an auxiliary heater, not for the purpose of overall heating of an interior.
  • The unit shall not be mounted on the wall.
  • The unit shall not be used in any means of transport.
  • Do not repair the appliance yourself. Refer to an authorized service centre instead.
• To prevent a possible fire, do not block air intakes or exhaust in any manner.
• Do not place heater on soft surfaces, like a bed, where openings may become blocked.
• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

Failure to follow the manufacturer's instructions may lead to refusal of warranty repair.

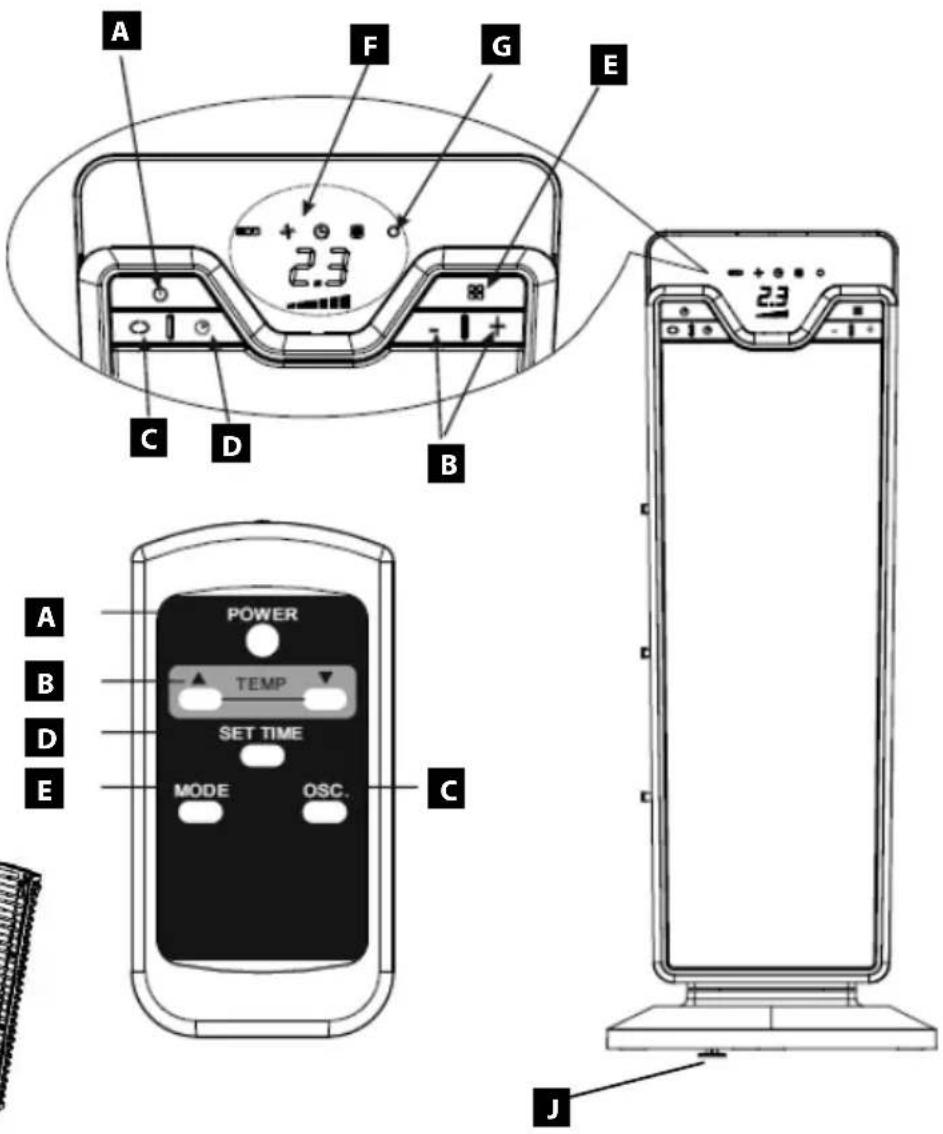

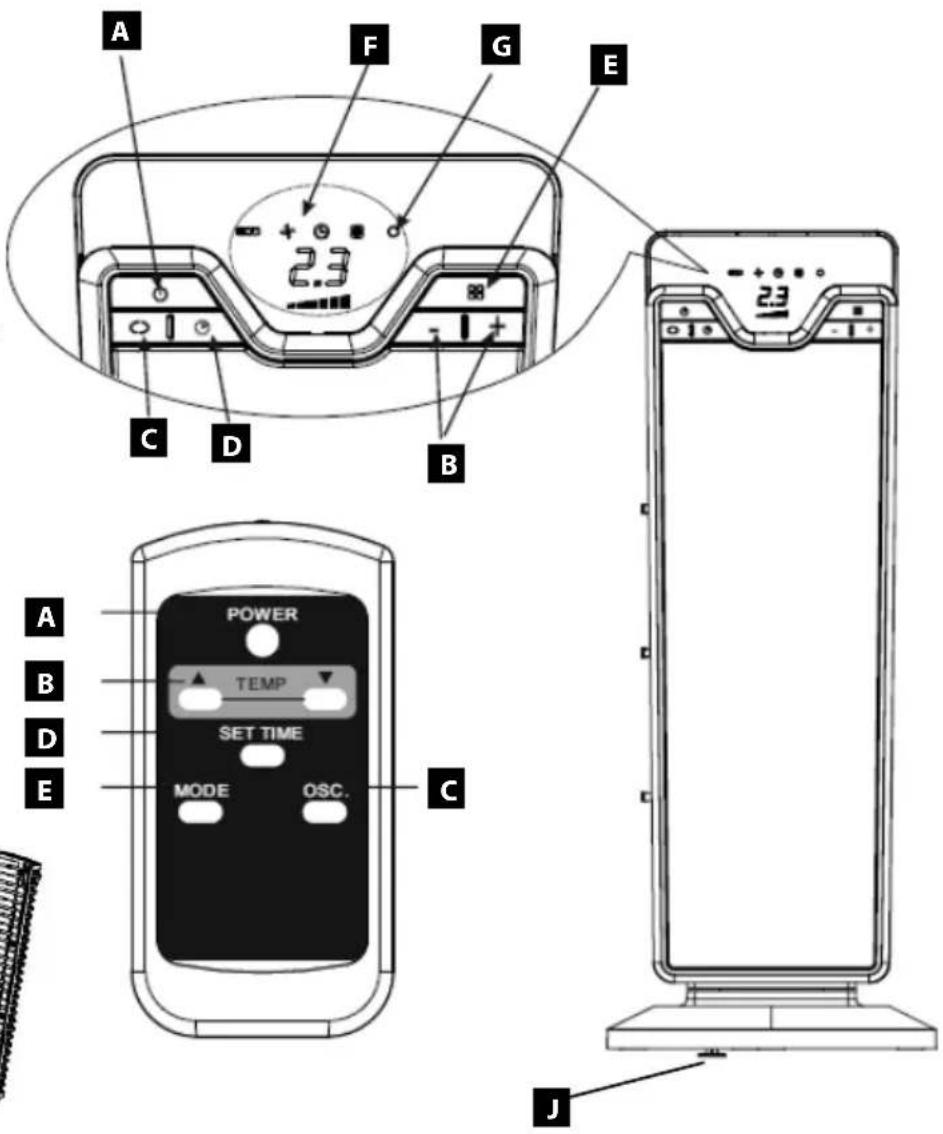

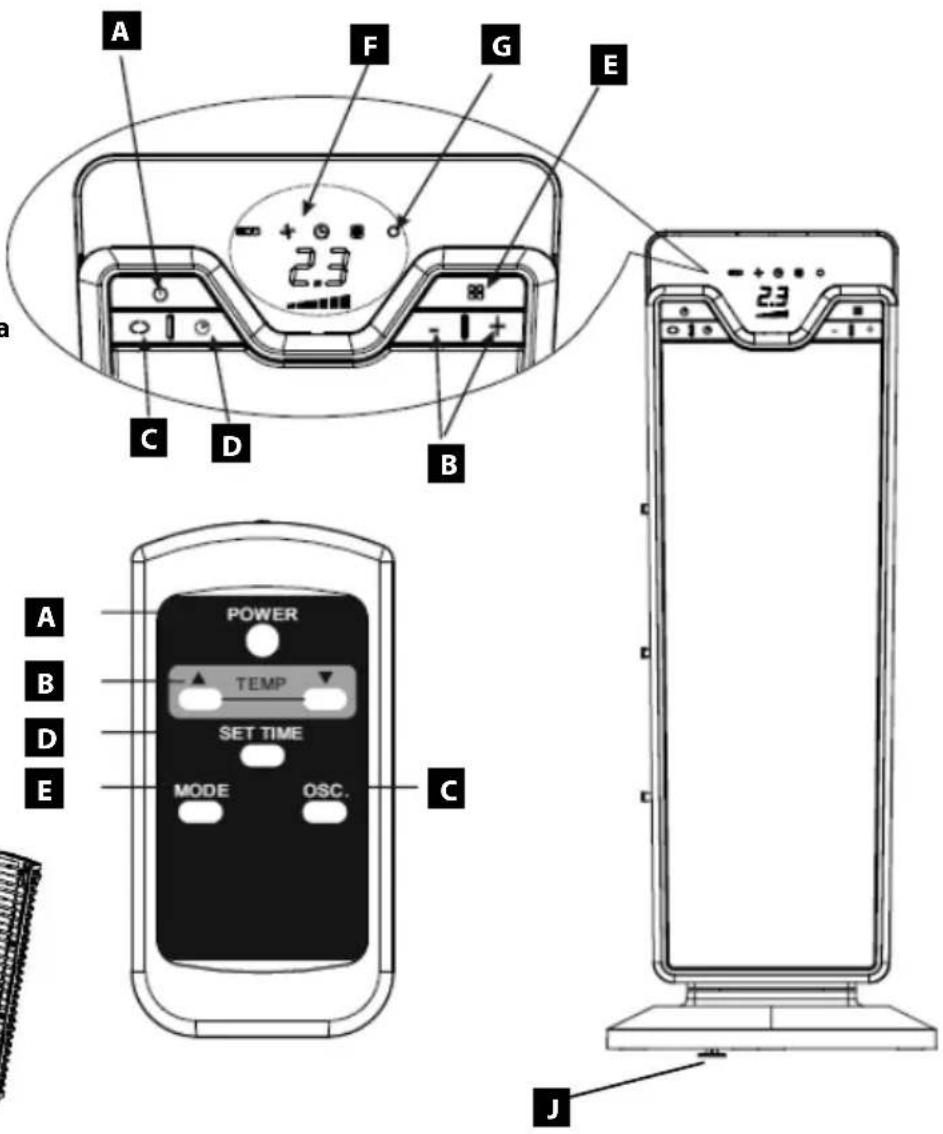

PRODUCT DESCRIPTION

A) Power on/off button
B) +/- Adjustment buttons
C) OSC. on/off buttons
D) Timer Setting button
E) Mode Setting buton
F) LED Display
G) Power indicator

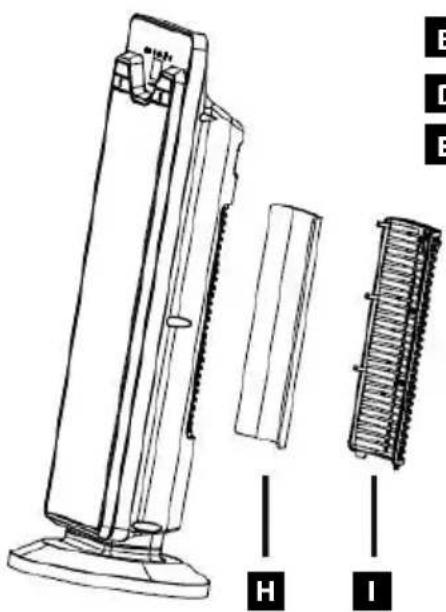

H) Filter
I) Back cover
J) Safety switch against over-turning

Technical line drawing of a vertical stand with internal components, showing cross-sections and labeled parts H and I (no text or symbols beyond labels)

OPERATION AND USE

1. Place the unit on a stable surface or floor to prevent it from tipping over.
2. Connect the appliance to the power outlet.
3. The appliance emits a beep and the power indicator light (G) comes on and remains on as long as the appliance is powered.
4. The appliance goes into OFF. If the display shows a blinking dot, it means that the tip over switch has been activated.
5. Press the ON/OFF button (A) to turn on the appliance. It will begin to heat with the predefined settings.
6. Press the MODE button (E) to select one of the following functions available: Heating 1 ■

Heating 2. Heating 3 ECO Ventilation () Anti-freeze ().

*

6.1 Ventilation (*) In this operating mode only the fan operates, so the appliance does not heat the room.
6.2 Anti-freeze (3) in this operating mode the appliance keeps the room at a temperature of 45^ F ( 7^ C) to prevent freezing temperatures.
6.3 Heating 1, Heating 2 and Heating 3

Heating 1 ■ (Min power)

The appliance operates at the minimum power, reducing noise and energy consumption to the minimum.

Heating 2 ■ (MID power)

The appliance operates at the middle power for rapid heating of the room.

Heating 3. (Mak power)

The appliance operates at the maximum power for rapid heating of the room.

6.4 The ECO function is available in Heating 1,2 and 3 modes only.

When this function is active, the appliance automatically sets the most appropriate power level to guarantee optimum comfort while reducing energy consumption.

While the "ECO" function is active, the appliance may switch automatically to a lower heating power than the one displayed.

1. If you want the appliance to distribute the airflow over a larger area, press the oscillation button (C)(☐). The appliance will then oscillate right and left. To stop the oscillation in the desired position, just press oscillation button (C) again.
2. To turn off the appliance press button ON/OFF (A). The display will show a countdown for about 6 seconds.

THERMOSTAT INSTRUCTIONS

1. Press the MODE button (E) until the Mode indicator lights in ECO mode.
2. To adjust set temperature, Press the button + to increase the desired temperature and the button - to decrease the desired temperature.
3. When the air temperature reaches the set temperature, the heater will stop to heat at once and stop to blow after 25 seconds.
4. When the air temperature is below the set temperature, the heater will come back on.

NOTE:

The display can show the temperature in both °F and °C. To change the temperature scale, press and hold the + key for a few seconds, then release.

Please be aware that as this display is for information purposes only and not a precision device. The displayed temperature may slightly vary from the actual temperature.

It is normal for the heater to cycle ON and OFF as it maintains the set temperature.

When adjusting temperature, the set temperature on display will flicker for 5 seconds. In 5 seconds, if no changes are made, LED lights will stop flickering, display room temperature again.

24-HOUR DIGITAL TIMER

This function can be activated from any operating mode.

Delayed switch-on: with the appliance in the OFF position, press the timer button (D)

The display shows the symbol ⏻ and the time remaining before switch-on.

To set the timer, use + and - adjustment buttons (B), then wait a few seconds for the programming to be set. The display shows the symbol ⏻ to indicate you have set the timer. When the programmed time has been reached, the appliance turns on with the same settings it had during the previous operation.

Delayed shut-off: with the appliance on, press the timer button (D) ⏻. The display shows the symbol ⏻ and the time remaining before shut-off.

To set the timer, use + and – adjustment buttons (B), then wait a few seconds for the programming to be set. The display returns to show the current settings and the symbol to indicate you have set the timer. When the programmed time has been reached the appliance shuts off automatically.

If you want to go back to operation without the timer, press the timer button (D) twice. The timer symbol disappears from the display.

USING THE REMOTE CONTROL

The remote control functions are identical to those on the control panel. See the section "Operation" on the previous page for a description of the functions.

INSERTING OR REPLACING BATTERIES

• Remove the cover on the rear of the remote control;
• Insert the button battery (model CR/2032/3V) into remote control with the positive pole (smooth side) facing up.
• Replace the cover.
• Old batteries must be removed and disposed of in accordance with current legislation as they are harmful to the environment.

Safety Features

1. This heater includes an audible alarm to warn that parts of the heater are getting excessively hot. If the alarm sounds, immediately turn the heater off and inspect for any objects on or adjacent to the heater that may cause high temperature.

DO NOT OPERATE THE HEATER WITH THE ALARM SOUNDING.

1. A thermal overload protector is built-in to prevent overheating.
2. When an overheat temperature is reached, the heater will be automatically shut off. It can only resume operation when the user resets the unit. (See RESET INSTRUCTIONS below)

Reset instructions

1. Unplug the heater and wait 20 minutes for the unit to cool down.

2. After the 20 minutes, plug the unit in again and operate normally.

Troubleshooting tips

If your heater shuts off unexpectedly or fails to operate, one of the above-mentioned safety features may have activated to prevent overheating.

1. Be sure the power cord is plugged into a working electrical outlet.
2. Check your thermostat setting. The heater may be off because it has reached the desired temperature setting.

MAINTENANCE AND CLEANING

Warning!

Before cleaning the unit, always disconnect the power cord from the wall outlet!

Prior to handling, make sure the unit has cooled down!

The surface of the unit may only be cleaned using a wet cloth. Do not use any detergents or hard objects, as they may damage the unit's surface!

The air inlet and outlet grilles should be cleaned frequently to ensure proper operation of the unit and to avoid overheating.

Dust accumulated in the unit may be blown out or removed by a vacuum cleaner.

Never clean the unit under running water, do not rinse it, and do not submerge it in water!

CAUTION: Do not use gasoline, benzene, thinner, harsh cleaners, etc. as they will damage the heater. NEVER USE ALCOHOL OR SOLVENTS.

TROUBLESHOOTING

The unit is equipped with a safety fuse that cuts off the power supply to the heater, and restores it after it cools down. If this happens in the course of ordinary operation, check the cleanliness of the inlet and outlet grilles, or change location of the unit to improve the air circulation in and around the unit.

SERVICING

Any extensive maintenance or repair that requires access to the inner parts of the product must be performed by an expert service centre.

ENVIRONMENTAL PROTECTION

• Packaging materials and obsolete appliances should be recycled.
• The transport box may be disposed of as sorted waste.
• Polyethylene bags shall be handed over for recycling.

Appliance recycling at the end of its service life:

A symbol on the product or its packaging indicates that this product should not go into household waste.

It must be taken to the collection point of an electric and electronic equipment recycling facility. By making sure this product is disposed of properly, you will help prevent the negative effects on the environment and human health that would otherwise result from inappropriate disposal of this product.

You can learn more about recycling this product from your local authorities, a household waste disposal service or in the shop where you bought this product.

Technical line drawing of a vertical stand with internal components, showing cross-section and exploded view (no text or symbols)

BEDIENUNGSANLEITUNG

Warranty Certificate

CZ

ZÁRUČNÍ PODMÍNKY

Model:
Production number:
Date of purchase:	Seal and signature of vendor:

The vendor is obliged to inform the consumer of the features and parameters of the product and fill in the Warranty Certificate fully and legibly on the day of purchase.

The Certificate is not valid without all the prescribed data correctly filled in!

The manufacturer (or importer) is responsible for the features of the product under the applicable technical standards and conditions for the warranty period.

The warranty period is 24 months from the date of purchase, unless stated otherwise by the manufacturer (or importer).

Under the warranty the consumer is entitled to the free, timely and duly executed remedy of faults (see below), or to receive a replacement of the defective part of the product, provided it is not disproportionate with regards to the nature of the fault. The right to replacement of the product or termination of the purchase contract can be exercised only if all the legal preconditions have been met, on the condition that the product was not excessively worn or damaged.

The validity of the guarantee is subject to:

• Observance of the instructions mentioned in the Operating Manual;
• A document proving payment including all the prerequisites, or a valid Warranty Certificate;

Any claims with regards to product liability shall be exercised by the consumer with the vendor where the product was purchased.

The right to repair can be exercised at the location where you purchased the product or at an authorized service centre; a list of the centres is included in the product package or you may find it on the website www.my-concept.com.

Notice for consumers

The consumer is obliged to keep the Warranty Certificate and cash voucher to demonstrate payment for the product. When exercising a claim on a product, it has to be cleaned and packed in order to prevent any damage during transport to an authorized centre. The manufacturer (or importer) reserves the right not to accept a product which is not cleaned duly. Additional cleaning of the product will be charged.

The manufacturer (or importer) reserves the right not to pay the cost of false claims and to require that the claiming party cover all the necessary costs related to the examination of the qualification and solution of the claim.

The right to free repair of the product, or refund, shall not be exercised in the following cases:

- The conditions of the installation, operation and handling of the product, mentioned in the Operating Manual, were not observed;

• The fault occurred due to mechanical, thermal or chemical damage, short circuit or overvoltage;
• The fault is due to the unauthorized intervention of a third party;
• The fault is due to force majeure;
• The fault is due to insufficient or undue maintenance in conflict with the Operating Manual, including faults caused by limescale and other sediments;
• Wear and tear of the product, or its part, caused by regular use;
• Change of the colour of heating surfaces, or scratched surfaces due to regular use;
• Changes of appearance and function due to sunshine, thermal radiation, or limescale and other sediments;
• Expired service life of some parts of the product, e.g. accumulators, bulbs etc.

The nature of the fault can be determined only by the manufacturer, importer, authorized centre, or authorized expert, not by the vendor or consumer.

The consumer shall have no claim to faulty spare parts replaced within a warranty repair.

In the case of termination of the purchase contract, the consumer is obliged to return the complete product, including the accessories and documents supplied.

There is no warranty related to promotional items supplied with the product, the price of which was not charged to the consumer.

The consumer has all the minimum rights under the applicable laws.

Note: Claims regarding products damaged during transport shall be governed by the complaint procedure of the freight forwarder.

Manufacturer:

Jindřich Valenta - ELKO Valenta, Vysokomýtská 1800, 565 01 Choceň, Czech Republic,

tel: [phone], fax: [phone], email: [e-mail], www.my-concept.com

Importer:

Jindřich Valenta - ELKO Valenta Czech Republic, Vysokomýtská 1800,

565 01 Choceň, Tel. [phone], Fax: [phone], www.my-concept.com

concept

CZ SEZNAM SERVISNÍCH MÍST

SK ZOZNAM SERVISNÝCH STREDISIEK

PL WYKAZ PUNKTÓW SERVISOVYCH

www.my-concept.com

concept

Česká republika

Jindřich Valenta – ELKO Valenta Czech Republic

Vysokomýtská 1800,565 01 Choceň

Tel. [phone], Fax: [phone]

www.my-concept.cz

ELKO Valenta – Slovakia, s.r.o.

Hurbanova 1563/23, 911 01 Trenčín

Tel.: [phone], Fax: [phone]

www.my-concept.sk

Elko Valenta Polska Sp. Z. o. o.
