| Product type | Immersion blender |
| Brand | Steba |
| Model | MX 40 |
| Maximum speed | 14,000 rpm |
| Minimum speed | 7,000 rpm |
| Speed adjustment | Variable via regulator, with normal and turbo buttons |
| Functions | Mix, grind, emulsify, whisk, puree, chop |
| Included accessories | Blender shaft, knives, whisk, potato masher, chopper with bowl, storage box |
| Housing material | Plastic |
| Blade material | Stainless steel (estimated) |
| Care | Housing cleaned with damp cloth; shaft and chopper parts dishwasher safe |
| Safety | Very sharp knives; do not immerse above rim; max duration 1 min; mandatory pause |
| Maximum operating time (heavy mixtures) | 1 minute, then 4 minutes pause |
| Maximum operating time (light mixtures) | 2 minutes, then 5 minutes pause |
| Maximum operating time (whisk) | 3 minutes, then 5 minutes pause |
| Water protection | Waterproof up to lower rim of handle; do not immerse beyond |
| Repairability | Repairs reserved to authorized after-sales service |
| Usage | Private and non-commercial; suitable for light professional kitchens |
Frequently Asked Questions - MX 40 STEBA
User questions about MX 40 STEBA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hand blender in PDF format for free! Find your manual MX 40 - STEBA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MX 40 by STEBA.
USER MANUAL MX 40 STEBA
Instructions for use 10
Mode d'emploi 17

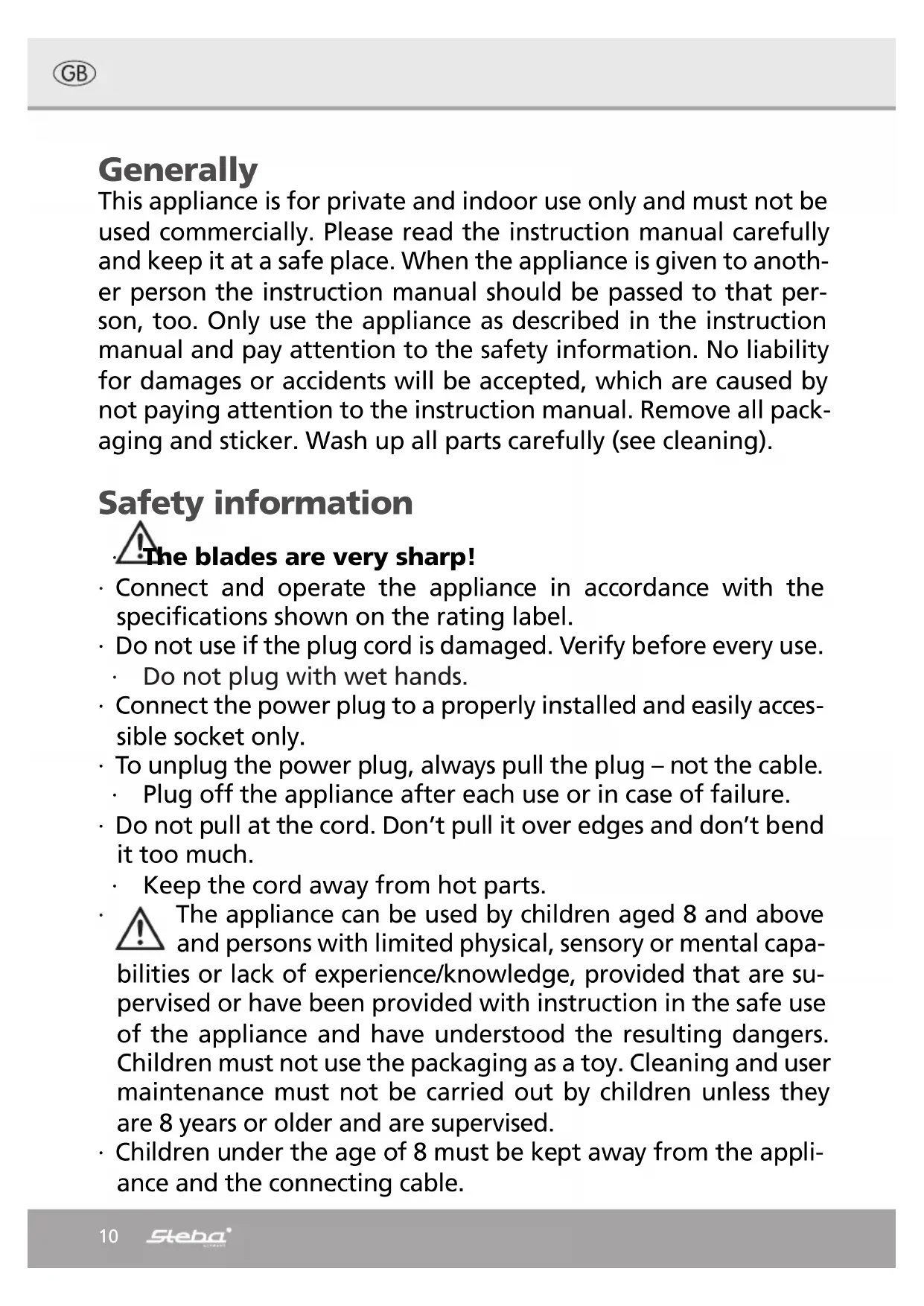

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual. Remove all packaging and sticker. Wash up all parts carefully (see cleaning).
Safety information
The blades are very sharp!
- Connect and operate the appliance in accordance with the specifications shown on the rating label.
-
Do not use if the plug cord is damaged. Verify before every use.
-
Do not plug with wet hands.
-
Connect the power plug to a properly installed and easily accessible socket only.
-
To unplug the power plug, always pull the plug – not the cable.
-
Plug off the appliance after each use or in case of failure.
-
Do not pull at the cord. Don't pull it over edges and don't bend it too much.
- Keep the cord away from hot parts.
The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.
- Children under the age of 8 must be kept away from the appliance and the connecting cable.
-
Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags).
-
The appliance must not be operated using a timer or a separate remote system!
-
Never leave the appliance unattended when in use.
- Do not leave the appliance outdoors or in a damp area.
- Never immerse the unit in water.
- Never use the device after a malfunction, e.g. if it felt down or has been damaged in any other manner.
- The manufacturer is not liable for damage which is occurring due to the usage of the appliance in a different way as described or a mistake in the handling has been made.
- To prevent injury, repairs such as replacing a damaged cord, should only be carried out by a customer service. Only original spare parts have to be used.
Only use the device as described in this manual. - This appliance is intended to be used in household and similar applications such as:
o staff kitchen areas in shops, offices and others working environments
o by clients in hotels, motels and other residential type environments
o bed and breakfast type environments.
- Before initial use: clean all parts – except the heating elements – carefully and leave to dry. Heat up the device for about 15 min, to eliminate the smell of newness.
- If an extension cable is used, it has to have a cross-section of 1.5mm^2 . A cable drum must always be unwound.
- If a GS-tested 16 A multi-pin extension is used, it may not be charged with more then 3680 watts due to fire hazard.
- Make sure that children do not tease the cable or that a trip hazard occurs.
-
The device must always be disconnected from the power supply if it is not supervised and before assembling, disassembling or cleaning.
-
The appliance is watertight up to the lower edge of the handle.
-
Never immerse the appliance deeper than the lower edge of the cone in any liquid. If this happens by accident, the appliance must not be used anymore and send to authorized service for repair.
-
Only switch the appliance on, when the mixing knife is in a bowl, jar or similar pot.
-
Avoid any contact of the knife to finger, hair, clothes, knives or other tools, because this can cause severe injuries.
-
If the appliance is on heavy duty, the housing can get warm. Most work is done in seconds. If the appliance gets more than hand-warm, let it cool down.
The maximum operating time is 1 minute.
Cleaning
tention! Pull the plug before cleaning.
-
Never immerse the unit into water.
-
Food residues must be removed for reasons of hygiene.
-
Attention! Blades are sharp!
-
Clean the housing with a damp cloth.
-
Turn the mixer stick from the motor part and put the mixing stick under hot water or put it into the dish washer.
-
Remove the knives only with the remover tool to avoid any injuries.
All parts of the chopper are dishwasher safe!
-
Remove the rubber feet of the chopper bowl to make the cleaning easier.
-
Some foods, such as carrots, can discolour the plastic. Rub with vegetable oil can help.
Workplace
Important:
Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a
even, stable and a heat resisting surface. It is important that no inflammable items are
near to the device. Do not place the device on the edge of the table so that it cannot be touched by children or fall down when touched.
| Chop: fresh fruits, Vegetables, Cereals, Onions, slightly frozen fruits (Attention: no fruits with stone) Mix: Soups, Sauces, Drinks, Pesto | Emulsions: Mayonnaise, Drinks Stir: light dough, Curd cheese | Chop: raw meat | Beater: white of egg, Cream, Sauces, Drinks | Grind: Nuts (at nuts do not fill the chopper to much, that the blades get not stuck), Cheese, Cereals, Meat, Garlic, Herbs Mash: Fish |
Assembly:
The mixer stick, including the intended knife, must be put on the motor set and turned until it fits perfectly. The blades are stored in the storage box.
Exchange of the knives:
The knives at the Mixer and at the chopper are very sharp! Danger of cuts! Always unplug the appliance!
- Put the knives vertical on the shaft that way that the pin of the shaft fits into the opening of the knife. To remove the knife, only use the remover. At the chopper put the motor part directly on the shaft.
Usage
- Mix small quantities in small bowls, large quantities in large bowls. Thin, tall bowls are better than wide low bowls.
Only switch the appliance on when the mixer stick is inside a bowl.
Large amounts of soup, sauce etc can be mixed directly in the pot. - Attention: Danger of splashes
- In the pot or a bowl, always move the mixer circular from the bottom at the edge. Always lift the mixer a little to start a circulation of the food. At more solid food do not press the mixer on it to avoid a overheating of the motor. If there is only little liquid inside a bowl, put the bowl in a slight angle to avoid excessive splashes.
- When making whipped cream or mayonnaise place the mixer stick at the bottom of the jar and then pull it slowly upwards. This should be repeated several times until the intended consistency is achieved.
- To avoid splashes put the speed dial on a lower speed and press the button for normal speed, after ca. 1 minute press "turbo" to go on with max.speed.
Attention: for the endurance of the appliance pay attention to the following while using the chopper and whisk:
| Operating time Pause | ||
| Heavy mixtures 1 minute 4 | Minutes | |
| Light mutes 2 minutes 5 M | minutes | |
| Whisk 3 minutes 5 Minutes |
Adjustment:
(rpm=rounds per minute)
Max 14.000rpm e.g. mincing of meat
Min 7.000rpm for whipped cream
The intermediate steps are + / - 1.000rpm
You will get experienced with the different speed over the time.
Press the button for normal speed or the "turbo" button to switch on the appliance.
By pressing the normal speed button it is possible to adjust the speed with the speed dial. The higher the speed is, the shorter the time.
When pressing the "Turbo" it is not possible to adjust the speed.
Chopper
- While handling and cleaning only touch the sharp blades on the handle with distance to the blades.
- Never place the device on or near a hot surface, but operate on a flat stable surface.
- The device is not suitable for crushing ice, coffee beans, spices, chocolate
It is suitable for crushing (about 10-15 sec. each): - Meat (without bones and sinews)
Hard cheese
Onions
Herbs
Potatoes
Nuts
Bread
Before using the device, make sure that no foreign objects are inside the bowl. Place the food into the bowl. Always lock the lid on the chopper with a rotary motion. Then place the motor part on the chopper and fasten as well with a rotary motion. Run the chopper for max. 2 minutes. Then, leave it to cool for about 5 minutes. Only remove the lid if the blades are in standstill.
Whisk
- Suitable for whipping lighter ingredients such as egg whites, cream and baking mixes.
It is not suitable for heavy mixtures such as margarine and sugar - the whisk might get damaged. - Whip not more than 4 egg whites or 400ml cream at once. Press the high-speed stage or turbo button. Move the whisk clockwise.
Potato-Masher
- Suitable for pureeing cooked vegetables, such as potatoes, beets, carrots used. Drain the cooking liquid, first.
- Never puree hard or uncooked food. Remove all peals, pits and other hard parts.
- Danger! Risk of burns! When pureeing in a pot pay attention to hot steam, never puree during cooking.
- Never puree by force.
Fix the potato-masher with a rotary motion on the motor part. - Select a low speed (2-3).
- Move the masher without great pressure up and down until the desired consistency is reached.
Correct Disposal of this product
This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return used device, please use the return and collection systems or contact the retailer the product was purchased. They can take this product for environmental safety.
Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.
Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.
Service and Repair:
If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
