Product type	Immersion blender with chopper
Brand	Steba
Model	AC 20
Category	Immersion blender
Power supply	Mains 220-240 V, standard power socket
Cup capacity	With maximum fill mark
Main material	Plastic for the housing and cup, stainless steel for the blades
Functions	Blend, chop, grind
Recommended uses	Chop meat without tendons or bones, hard cheese, onions, herbs, nuts, spices, bread
Maximum operating time	1 minute continuously
Safety	Very sharp blade – caution; do not immerse the appliance in water; supervised use for children
Cleaning of the housing	With a damp cloth
Cleaning of the cup and blades	Dishwasher safe
Cleaning of the lid	Do not wash in dishwasher
Maintenance	Avoid abrasive and acidic products; do not use steel wool
Included accessories	Cup, lid with gear, set of blades
After-sales service	Contact the manufacturer; repairs by qualified electrician
Intended use	Private domestic use, non-commercial
Disposal instructions	Do not dispose of with household waste, recycle via collection points
Cable length	Not specified, suitable for domestic use
Warranty	Not specified, refer to terms of sale

Frequently Asked Questions - AC 20 STEBA

What foods can I chop with the Steba AC 20?

You can chop meat without tendons or bones, hard cheese, onions, herbs, nuts, spices, and bread. Do not use frozen foods.

What is the maximum continuous operating time?

The maximum operating time is 1 minute. If you perform hard work, let the appliance cool down before reusing.

Are the cup and blades dishwasher safe?

Yes, the cup and blades can be washed in the dishwasher. However, the lid with gear should not be placed there.

How do I clean the blender housing?

Clean the housing with a damp cloth. Never immerse the appliance in water and avoid abrasive or acidic products.

What if the appliance does not work?

Check that the plug is plugged in and the cable is not damaged. If the problem persists, contact authorized after-sales service. Do not attempt to repair yourself.

Can I use an extension cord with the appliance?

Yes, but the extension cord must have a cross-section of 1.5 mm². If you use a power strip, do not exceed 3680 watts to avoid fire risk.

How do I remove the chopper?

Press the unlock button to detach the chopper from the motor part. Then remove the blades by holding them by the plastic stem.

Is the appliance safe for children?

The appliance can be used by children over 8 years old under supervision. Children under 8 years old must be kept away from the appliance and cord.

Can I chop frozen foods?

No, do not use frozen foods. They could damage the blades or the appliance.

Where can I find the complete manual?

The complete manual is available for free download on the website notice-facile.com in PDF format. You can also request a translation in your language.

USER MANUAL AC 20 STEBA

Instructions for use 10

Mode d'emploi 18

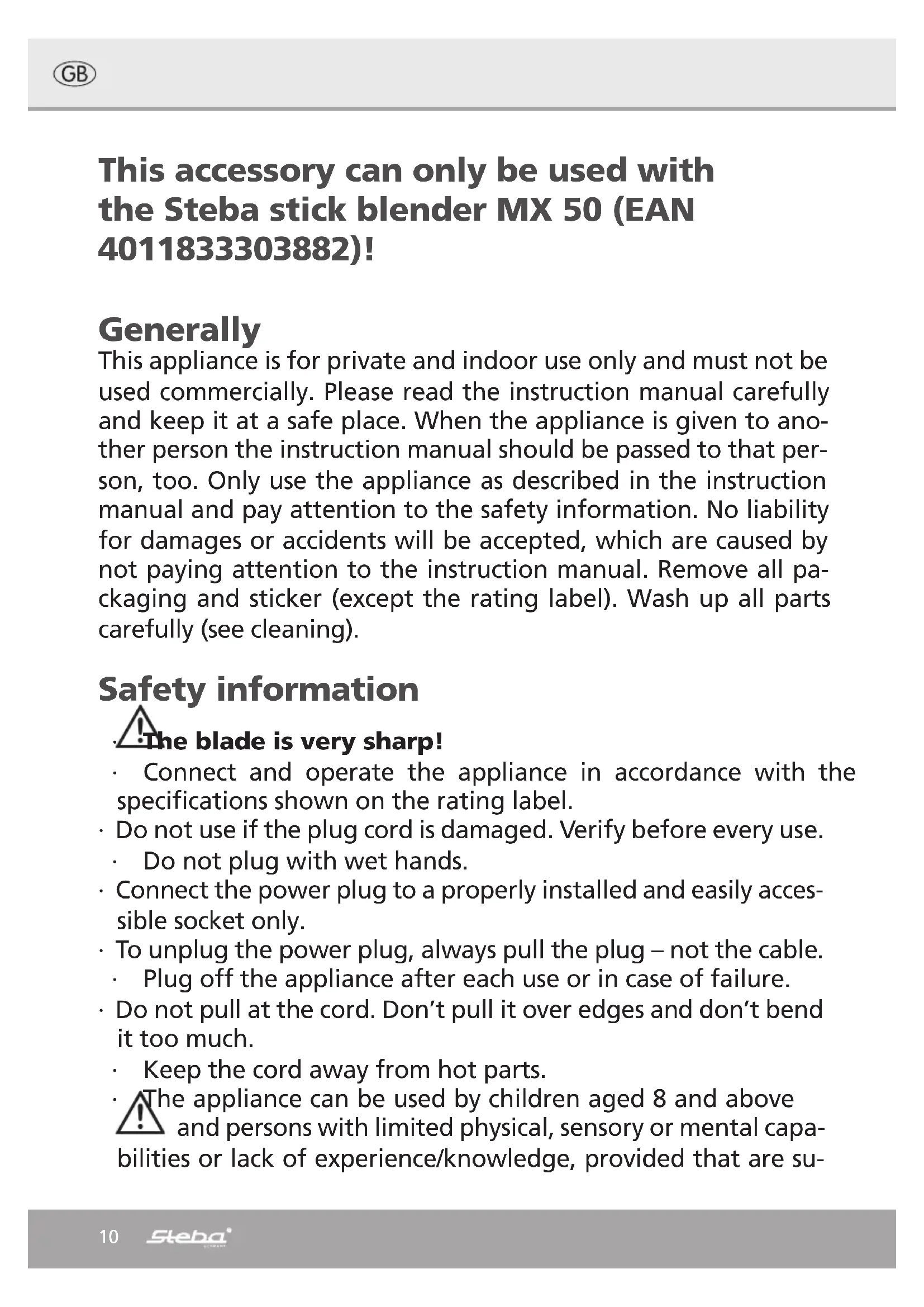

This accessory can only be used with the Steba stick blender MX 50 (EAN 4011833303882)!

Generally

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual. Remove all packaging and sticker (except the rating label). Wash up all parts carefully (see cleaning).

Safety information

The blade is very sharp!

• Connect and operate the appliance in accordance with the specifications shown on the rating label.

• Do not use if the plug cord is damaged. Verify before every use.

• Do not plug with wet hands.

• Connect the power plug to a properly installed and easily accessible socket only.

• To unplug the power plug, always pull the plug – not the cable.

Plug off the appliance after each use or in case of failure.

• Do not pull at the cord. Don't pull it over edges and don't bend it too much.

• Keep the cord away from hot parts.

The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are su

pervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

• Children under the age of 8 must be kept away from the appliance and the connecting cable.
• Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags).

• The appliance must not be operated using a timer or a separate remote system!

• Never leave the appliance unattended when in use.

• Do not leave the appliance outdoors or in a damp area.

- Never immerse the unit in water.

• Never use the device after a malfunction, e.g. if it felt down or has been damaged in any other manner.
• The manufacturer is not liable for damage which is occurring due to the usage of the appliance in a different way as described or a mistake in the handling has been made.

• To prevent injury, repairs such as replacing a damaged cord, should only be carried out by a customer service. Only original spare parts have to be used.

• Only use the device as described in this manual.

• This appliance is intended to be used in household and similar applications such as:

o staff kitchen areas in shops, offices and others working environments
o by clients in hotels, motels and other residential type environments
o bed and breakfast type environments.

• Before initial use: clean all parts carefully and leave to dry.
• If an extension cable is used, it has to have a cross-section of 1.5mm^2 . A cable drum must always be unwound.

• If a GS-tested 16 A multi-pin extension is used, it may not be charged with more than 3680 watts due to fire hazard.

• Make sure that children do not tease the cable or that a trip hazard occurs.

• The device must always be disconnected from the power supply if it is not supervised and before assembling, disassembling or cleaning.
• Hygiene: Please always clean the device to avoid bacteria and mould formation.

The maximum operating time is 1 minute. If the appliance is on heavy duty, the housing can get warm. Most work is done in seconds. If the appliance gets more than handwarm, let it cool down.

Cleaning

Attention! Pull the plug before cleaning.

• Never immerse the unit into water.

• Food residues must be removed for reasons of hygiene.

Attention! Blade is sharp!

Clean the housing with a damp cloth.
- Press the release button to pull the chopper off the motor part.
Take out the blades carefully by the plastic shaft.
- The mixing bowl and the blades can be cleaned in the dishwasher!
- The lid with gear box may not be cleaned in the dishwasher.
- Do not use abrasive or acidic cleaning agents or steel sponges.
- Some foods, such as carrots, can discolour the plastic. Rub with vegetable oil can help.

Workplace

Important:

Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a even, stable and a heat resisting surface. It is important that no inflammable items are near to the device. Do not place the device on the edge of the table so that it cannot be touched by children or fall down when touched.

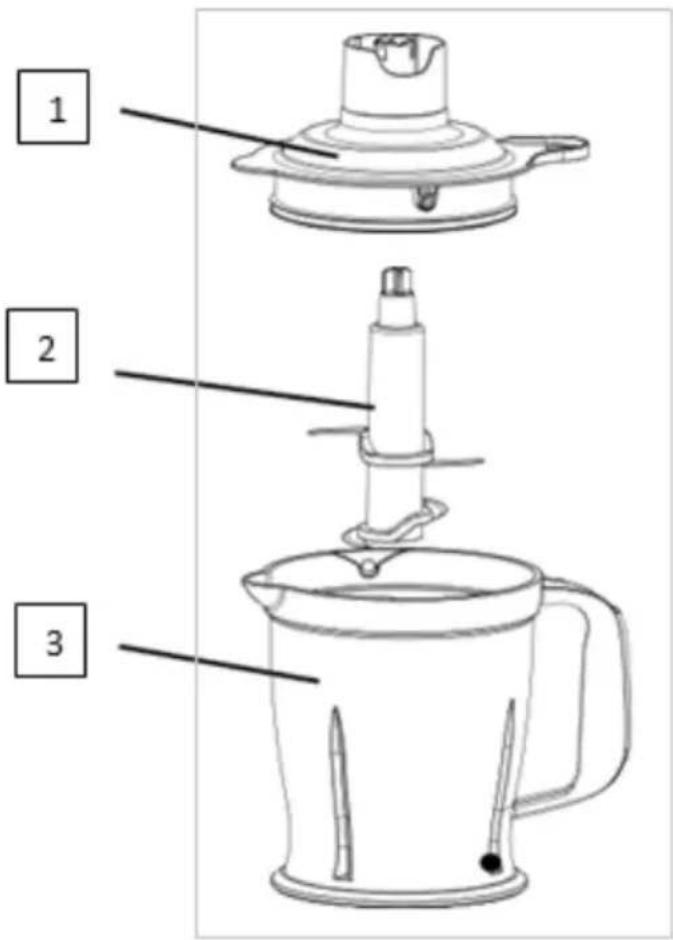

1) Lid with gear box
2) Blades
3) Mixing bowl

Usage

The chopper is suitable for shredding and chopping meat (without tendons and bones), hard cheese, onions, herbs, nuts, spices, bread, and much more.

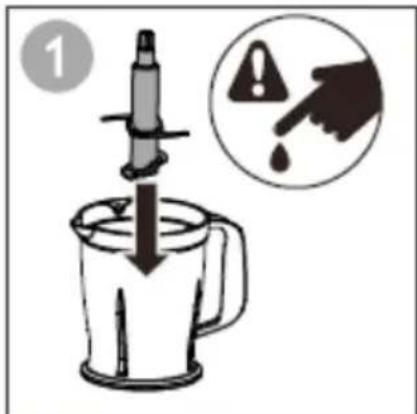

Caution! The blades are sharp! Put the set of blades into the bowl.

• Cut the food into small pieces and put them into the bowl with the knives. Observe the marking of the maximum filling quantity!

Do not use frozen food!

• Place the lid with gears on the bowl and press it firmly. Make sure that the lid is correctly positioned and that the silicone seal is not damaged, otherwise liquid may leak out during operation.

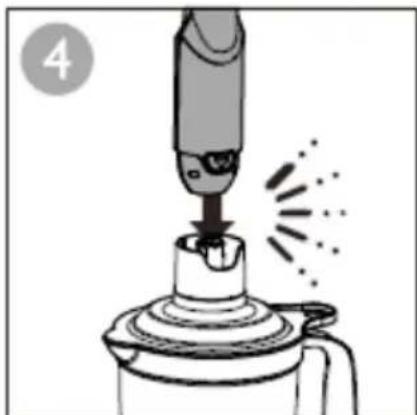

Now put the motor part of the blender onto the chopper.

• Blend for approx. 10 - 15 seconds at maximum speed.

• Repeat the process several times if necessary to achieve the desired degree of fineness.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return

your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

PS

PP

PE

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
