USER MANUAL VacuChef SlimLine CASO

17.3 Vacuum packaging with a bag in the vacuum chamber ................................ 43

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions. Your vacuum sealer system will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

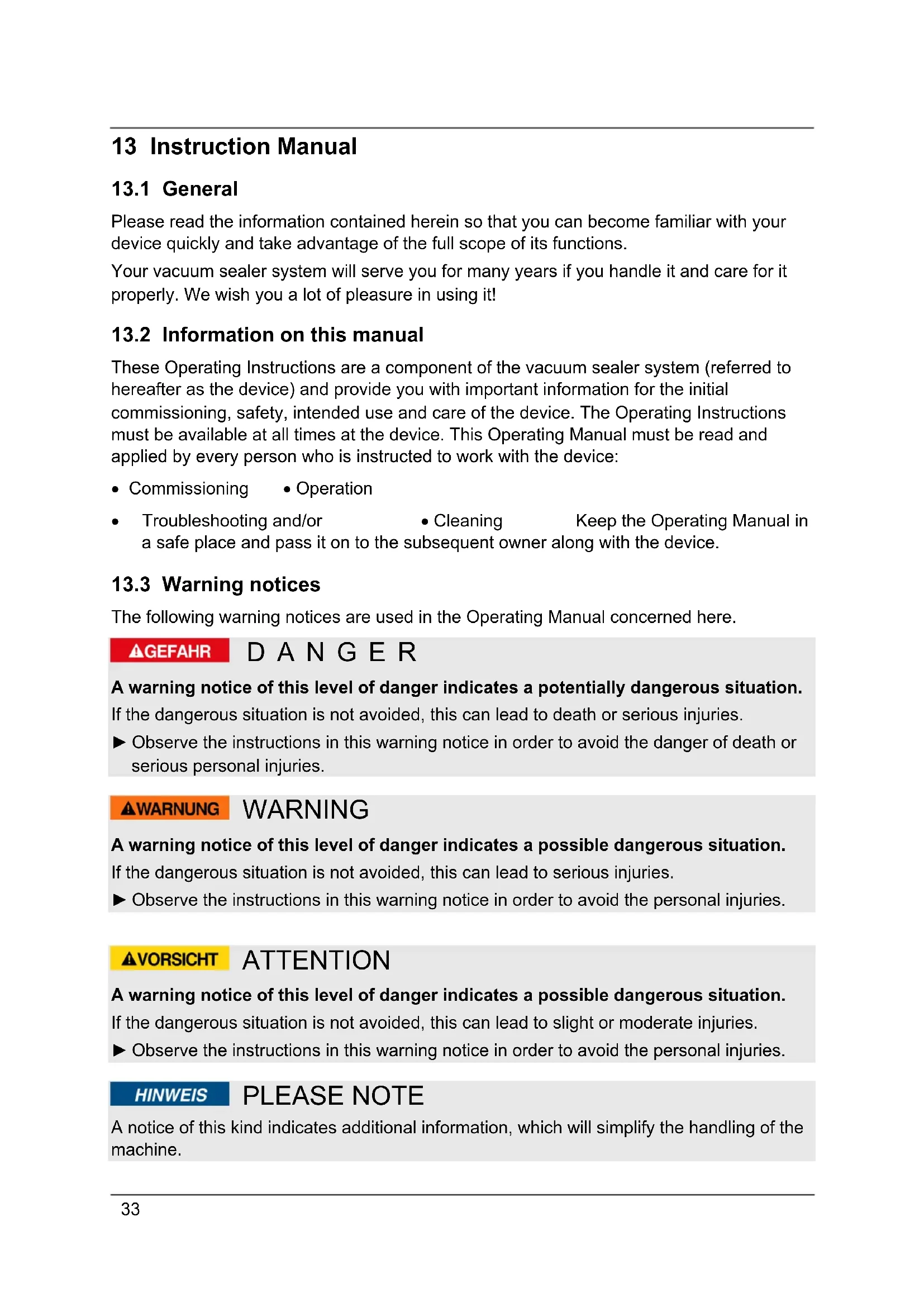

13.2 Information on this manual

These Operating Instructions are a component of the vacuum sealer system (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device: Commissioning Operation Troubleshooting and/or Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

13.3 Warning notices

The following warning notices are used in the Operating Manual concerned here. DANGER A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries. ► Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries. WARNING A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. ATTENTION A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. PLEASE NOTE A notice of this kind indicates additional information, which will simplify the handling of the machine.34

13.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following: Non-observance of the manual Uses for non-intended purposes Improper repairs Technical alterations, modifications of the device Use of unauthorized spare parts Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

13.5 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes. 14 Safety This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

This device is only intended for use in enclosed spaces for vacuuming bags & canisters as well as sealing vacuum foils. This devise is designed and built only for commercial use and operation by professional staff in restaurants, canteens and similar commercial establishments. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use. Warning Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use. ► Use the device exclusively for its intended use. ► Observe the procedural methods described in this Operating Manual. Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.35

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Please observe the following general safety notices with regard to the safe handling of the device. ► Examine the device for any visible external damages prior to using it. Never put a damaged device into operation. ► If the connection lead is damaged, you will need to have a special connection lead installed by an authorized electrician to avoid any hazard. ► Before plugging cord into wall outlet, or disconnecting, make sure that the cover of the machine is in unlocked condition, and unplug from outlet when not in use or before cleaning. ► This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. ► Children shall not play with the device. Children under the age of 8 years or unsupervised children may not clean the appliance or carry out any other work on the appliance. ► Keep the appliance and its power cable out of reach of children under the age of 8 years. ► The appliance should be cleaned regularly and all food residues removed after each use. ► Do not use or store the appliance outdoors. ► Do not leave the device unsupervised when it is in operation. ► Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user.36 Please note ► Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled. ► When disconnect, please unplug by grasp the plug and not the cord, do not carry the device at the cord. ► Do not immerse in water or any other liquids. ► For the correct storage, please slightly close the cover, do not lock, it will deform the gaskets and affect the machine function. ► Do not lift up the lid while moving the device. ► Do not put your hand into the device during vacuuming or sealing process. Do not move the device during vacuuming or sealing process.

► PLEASE READ THESE SAFETY INSTRUCTIONS

CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Warning Please observe the following safety notices in order not to burn or scald yourself or others. ► To avoid getting burned, never touch the sealing bar while the unit is operating.

14.3.2 Danger of fire

Warning There is a danger of fire due to the event the device is not used properly. Observe the following safety notices to avoid dangers of fire: ► Do not set up the device near flammable material. ► Keep this appliance away from sources of heat (gas, electric, burner, heated oven).37

14.3.3 Dangers due to electrical power

DANGER Mortal danger due to electrical power! Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power: ► Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard. ► Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur. ► Before plugging the appliance in or when you operate it, make sure your hands are dry.

14.4 Food storage safety information

This vacuum preservation system will change the way you purchase and store foods. Once you are accustomed to vacuum packing, it will become an indispensable part of your food preparation. Please note Please follow certain procedures when using this appliance to ensure food quality and safety. ► If perishable foods have been heated, defrosted or un-refrigerated, consume them immediately. ► Before vacuum sealing, it’s necessary to clean your hands, and all utensils and surfaces to be used for cutting and vacuum sealing foods. ► Refrigerate or freeze the perishable foods immediately, if you have vacuum-sealed them, and do not leave them sitting at room temperature. ► The shelf life of dry foods such as nuts, coconut or cereals will be extended in vacuum- sealed package, while storing them in dark place. Oxygen and warm temperature will cause high-fat content foods fat to rancidity. ► Before vacuum sealing some fruit and vegetables, such as apples, bananas, potatoes and root vegetables, peel them, this will extend their life span.38 Please note ► When vacuum seal some vegetables such as broccoli, cauliflower and cabbage fresh for refrigeration, they will emit gases, so it’s need to blanch and freeze these foods before vacuum sealing. 15 Getting Started This chapter will guide you through safely unpacking and setting up your new unit.

15.1 Packaging safety information

WARNING ► Do not allow children to play with packaging materials due to risk of suffocation.

15.2 What’s included

The vacuum sealer system VacuChef SlimLine includes the following components: vacuum sealer system vacuchef slimline instruction manual 30 top-quality bags (20 x 30 cm) 1 sealing bar vacuum hose + adapter PLEASE NOTE ► Examine the shipment to ensure the unit and manual are included and inspect the unit for any visible damage. ► Immediately notify the carrier and/or the supplier about an incomplete shipment or any damage as a result of inadequate packaging or mishandling.

15.3 Uses and advantages of vacuum sealing

Vacuum sealing foods prolongs shelf life while preserving food’s freshness, flavor and nutrients . Vacuum sealing can maintain a food’s freshness for up to eight times as long as standard storage methods. Below are just a few of the ways you can use your vacuum sealer: Cook in advance then vacuum seal and store individual portions or entire meals. Prepare foods in advance for picnics, camping trips and barbecues. Keep frozen food safe from freezer burn. Package foods, such as meat, fish, poultry, seafood and vegetables for refrigerated storage. Maintain the freshness of dry foods, such as beans, nuts, and cereals. Besides storing food, there are many other uses for vacuum sealing: Protect moisture- sensitive items such as camping supplies, matches, first aid kits, roadside flares and clothing. Protect prized collectibles from dust and moisture.

Carefully remove the packaging material and unit from the carton.39

15.5 Disposal of the packaging

Caso believes in the importance of recycling and has selected packaging materials that not only protect your unit from damage during transit, but can be recycled to minimize any ecological impact. Recycling the packaging materials preserves raw materials and reduces waste. Take any packaging materials that are no longer required to a recycling collection point for proper disposal. PLEASE NOTE ► If possible, keep the original packaging for the duration of the guarantee period in the event a return is necessary.

15.6.1 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfill the following prerequisites: The device must be set up on a solid, even, horizontal surface capable of supporting the vacuum sealer and any items to be vacuum-sealed. The device is not intended to be installed in a wall or a built-in cupboard. Select a setup location where children cannot reach the hot sealing strip of the device. Do not set up the unit in a hot or damp environment or near flammable material. Do not place the device near a gas or electric cooker or an oven To operate correctly, the unit requires sufficient air flow. Leave at least 10 centimeters (4 inches) of space on all sides when setting up the unit. Do not move the vacuum sealer when it is in operation. The electrical outlet must be easily accessible so that the plug can be quickly disconnected in the case of an emergency. The setup of this unit in non-stationary locations (e.g., boats, airplanes, motor homes) must be carried out by a qualified electrician, provided they guarantee the prerequisites for the safe use of the unit.

15.7 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection: Before plugging in the unit, compare the voltage and frequency data on the vacuum sealer’s rating plate (found on the bottom of the unit) with that of your electrical network. This data must be compatible. If in doubt consult a qualified electrician. The use of a multi-plug outlet adapter is not recommended due to fire danger. Inspect the power cord for damage and ensure it doesn’t run under the unit or over hot or sharp surfaces. The electrical outlet must be protected by a 16A safety cut-out switch.40 The electrical safety of the unit is only guaranteed if it is connected to a properly installed protective conductor system. If in doubt, consult a qualified electrician. The manufacturer cannot be made responsible for damages due to a missing or damaged protective conductor.

15.7.1 Extension cords

If an extension cord is used: ► The electrical rating of the extension cord should be at least as great as the electrical rating of the unit. ► The cord should be arranged so that it does not drape over a countertop or tabletop where it can be pulled on by children or tripped over. 16 Complete Overview This chapter provides you with an overview of your vacuum sealer and explains some of its key features.

1 Gasket 2 Sealing profile: Presses the bag against the sealing bar. 3 Vacuum chamber: Place the bag into the chamber 4 Vacuum Gauge:Shows the vacuum level inside the chamber. 5 On/Off power switch41

6 Fixation: Fix the bag during vacuum and sealing. Lift and clamp down to fix the bag. 7 Sealing bar: Contains a heating wire covered with Teflon which allows the bag to seal but not to stick to the strip.

Warning The sealing bar gets very hot. Please observe the following safety notice in order not to burn yourself or others. ► To avoid getting burned, never touch the sealing bar directly after sealing process.42

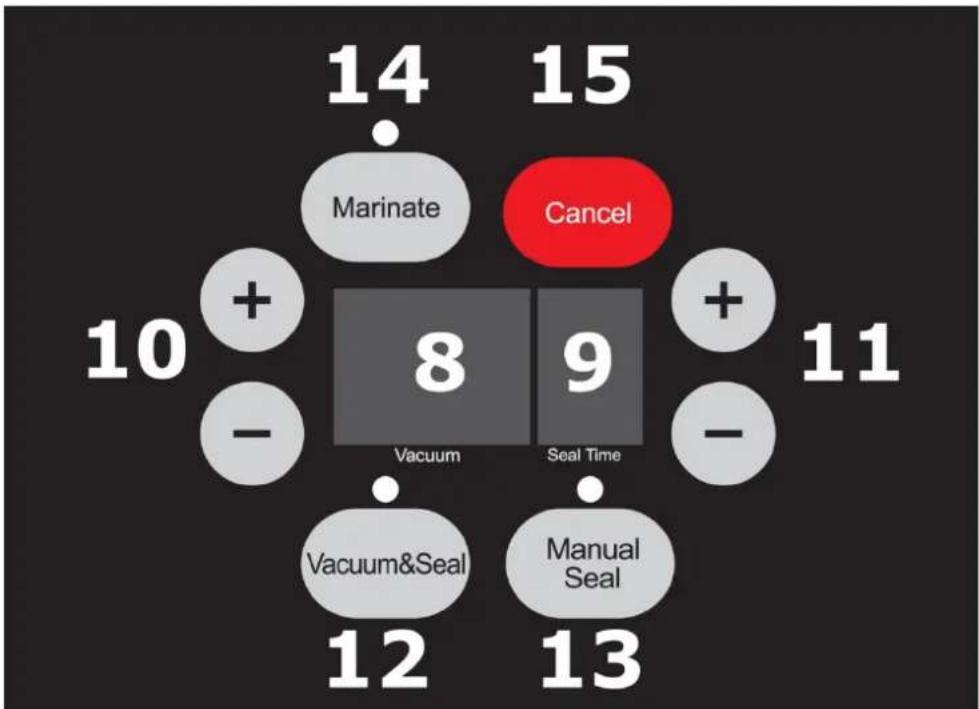

8 display vacuum time: numeric display with 2 functions - Shows the progress of vacuum process - Shows the set vacuum time 9 display sealing time: numeric display with 2 functions - Shows the progress of sealing process - Shows the set sealing time 10 + / - For increasing/decreasing of vacuum time 11 + / - For increasing/decreasing of sealing time 12 Vacuum & Seal button: In Standby-Mode automatic vacuuming and sealing of bag is started 13 Manual Seal: 2 different functions To seal the open end of a bag without vacuuming air function When the “Vacuum & Seal” function is in operation, this button stops the motor pump and immediately starts to seal the bag so that less vacuum pressure inside the bag can be controlled by the operator to avoid crushing for delicate items. 14 Marinate: For marination of vacuum canister (without lid). 15 Cancel: Stops the device during vacuum/sealing process

The rating plate with the connection and performance data can be found on back of the unit.43 17 Operation This chapter provides instructions on the proper operation of your vacuum sealer. Please follow the hints to prevent dangers and damages.

17.1 Setting of vacuum time

You can set the vacuum time with + / - (10). Different food and bag sizes require different vacuum time. Large, partially empty bags require longer vacuum time as small bags.

17.2 Setting of sealing time

You can set the sealing time with + / - (11). Sealing time depends on size and material of the bag, ambient temperature and type of food. Increase sealing time by 2 seconds in cold ambient temperatures and when you use wet bags.

17.3 Vacuum packaging with a bag in the vacuum chamber

Place the device on a dry surface. Take care that the working area in front of the device is free from other objects and large enough to place the bags with food inside. Place the food to be preserved inside the bag. Clean and straighten the open end of the bag--ensure there are no wrinkles or ripples. Please note ► Strike excessive air out of the bag for best vacuum result.

See drawing: 6 fixation Lift up the handle. Open the lid of the device and place the open end of the bag over the sealing bar and fixate it. The open end of the bag has to be inside the device. Plug in the power plug.44 Switch the device on. The display shows the set vacuum and sealing time. Adjust the vacuum and sealing time as desired. Close the lid and press Vacuum & Seal. After starting of the vacuum process press down the lid at the handle for 2 seconds. The device automatically vacuums and seals the bag. The vacuum time is counted down to 0, after this the sealing time is counted down to 0, the corresponding indicator lamps are flashing at the end of the process and then turn off. Please note ► The device creates a very high vacuum. Keep an eye on the food and the vacuum gauge to prevent sensitive food to be crushed. Stop the process by pressing Manual Seal, the bag will be sealed automatically. Lift up the handle. Open the lid of the device and take out the bag. Please note ► Remove excessive liquid or food residues from vacuum chamber after each vacuum process.

17.4 Vacuum with a bag of the bag roll

Place the device on a dry surface. Take care that the working area in front of the device is free from other objects and large enough to place the bags with food inside. Plug in the power plug. Switch the device on. The display shows the set vacuum and sealing time. Adjust the vacuum and sealing time as desired. Roll the film at desired length and cut it with a clean cut. Lift up the handle. Open the lid of the device and place one of the open ends of the bag over the sealing bar and fixate it. The open end of the bag has to be inside the device. Close the lid of the device. Press Manual Seal button. The bag will be sealed. The vacuum time flashes with 0. The pump is working for a short moment, then the sealing time is counted down to 0 and the corresponding indicator lamp is flashing. It turns off when the process is finished. Lift up the handle. Open the lid and take out the bag. Now you can use bag for vacuuming. PLEASE NOTE ► We suggest to vacuum seal one bag within 1 minute to let the appliance cool down enough. But it is also possible to seal several bags consecutively. ► Cut the bag at least 8 cm longer than needed. The sealed ends will take up the extra space. ► Do not overstuff the bag; leave enough empty length in the open end of the bag (at least a few inches) so that the bag can be properly placed in the vacuum chamber. ► Do not wet the open end of the bag. Wet bags may not seal properly. ► Clean and straighten the open end of the bag before sealing. Foreign matter or creases on the bag may result in a faulty seal. ► If the food you’re sealing has sharp edges (such as bones or shells) pack the edges with kitchen paper to avoid tearing the bag45 Please note ► When vacuum sealing liquid-based foods (such as soups or stew) freeze them first in a baking pan or tempered dish before bagging and vacuum sealing them. ► Blanch vegetables by cooking them briefly in boiling water. Allow them to cool then vacuum seal them in convenient portions. ► When vacuum sealing unfrozen food, allow at least two additional inches of bag length for expansion while freezing. Place unfrozen meat or fish on a paper towel and vacuum seal with the paper towel in the bag to absorb any extra moisture. ► Before storing foods such as tortillas, crepes or bread, use wax or parchment paper between them to stack the pieces. This will make it easier to remove an individual piece, reseal the rest and immediately replace them in the freezer.

17.5 Sealing a bag without vacuuming it

You can seal a bag without vacuuming it. Place the bag in the vacuum chamber as usual, press Vacuum & Seal and then immediately Manual Seal. If this does not provide a satisfactory result, then hang the bag outwards. To do this, place the bag over the sealing bar as shown on the drawing and clamp it under the fixation (6). Then close the lid and press Manual Seal. This works only with smooth sealed edge bags.

17.6 Vacuuming a bag outside the vacuum chamber

You can also vacuum a bag outside the vacuum chamber. . To do this, place the bag over the sealing bar as shown on the drawing and clamp it under the fixation (6). Then close the lid and proceed as described under "Vacuum packaging with a bag in the vacuum chamber". However, this works only with structured bags. For best results, use double- sided bags.

Please only use specified bags and rolls designed for vacuum sealing. Do not use other materials such as plastic wrap. All vacuum rolls and bags delivered by CASO are appropriate for cooking under vacuum (sous vide). Please make sure when vacuum rolls and bags of other producers are used, whether they are also microwaveable and suitable for cooking under vacuum.46

17.8 Vacuuming of canisters

1. Remove the sealing bar from the device by pulling it upwards.

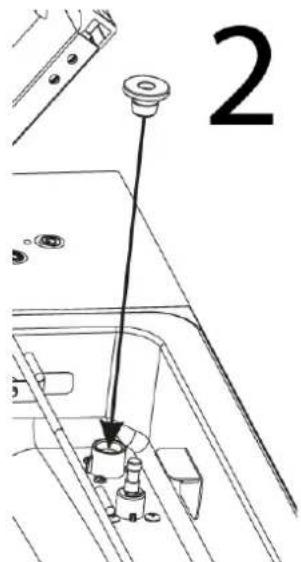

2. Remove the air filter above the connector for the vacuum hose

and place the adapter.

3. Place the food into the canister. Place the lid of canister.

Connect the vacuum hose at lid of canister and with adapter at the connector at the vacuum chamber of the device.

4. Press Vacuum/Seal for 3

seconds. Briefly press down the lid of canister. The canister will automatically. be vacuumed.

5. The device beeps when the

operation is completed.

6. Then remove the adapter

from the connector at the vacuum chamber and replace the air filter. Replace the sealing bar.

Place the food that you want to marinate into the vacuum canister. Lift up the handle. Open the lid of the device and place the canister without lid into the vacuum chamber. Close the lid of the device and press marinate. After starting of marinate process press down the lid at the handle for 2 seconds. The vacuum time is counted down to 0 and the indicator lamp Vacuum & Seal and Seal are flashing for a few seconds then they turn off. Lift up the handle. Open the lid. For best marinate results repeat this process 2-3 times. After each operation stir the food with a spoon. Lift up the handle. Open the lid and take out the canister.47

17.10 Opening a sealed bag

Cut the bag straight across with scissors or the cutter, just inside the seal.

Store the unit in its upright position, out of the reach of children. PLEASE NOTE ► Unplug the device after using. So you reduce the unnecessary energy consumption and ensure your safety. ► Always unplug the appliance from its outlet immediately after using and before cleaning. 18 Cleaning and Maintenance This chapter provides important information on properly cleaning and maintaining your vacuum sealer.

18.1 Safety information

ATTENTION Please observe the following safety notices, before cleaning the unit to avoid damage to the unit or personal injury: ► To ensure optimum performance, the unit must be cleaned regularly. Failure to clean the unit regularly can lead to potential malfunctions, as well as safety and health risks. ► Unplug the device before to cleaning. The sealing strip remains hot after use. Wait a few minutes until the strip has cooled before cleaning. ► Clean the unit after every use as soon as it has cooled. Leaving the unit uncleaned for long periods can make it very difficult to remove leftover food and grime and may even damage the unit. ► If moisture penetrates the unit’s housing, it can damage the electronic components. Please ensure that no moisture enters the device. ► Do not use any harsh or abrasive cleaning agents. ► Do not attempt to scrape off stubborn grime with hard or abrasive tools. ► Dry all parts thoroughly before using after cleaning. ► Never immerse the device in water or other liquids and do not place in the dishwasher.

Outside of the unit: Wipe with a damp cloth or sponge and mild dish soap. Inside of the unit: Wipe away any food or liquids with a paper towel. If you remove the gasket during cleaning, then dry it thoroughly and reinsert it correctly, otherwise the device cannot properly produce the vacuum. Cleaning bags for reuse Wash the bags in warm water with a mild dishwashing soap, then rinse them well and allow them to dry completely before reusing.48 ATTENTION ► Bags used to store raw meats, fish or greasy foods should never be reused due to risk of contamination. 19 Troubleshooting The following table may help you narrow down and address minor malfunctions:

ATTENTION ► Only qualified electricians, who have been trained by the manufacturer may carry out any repairs on electrical equipment. ► Improperly performed repairs may result in personal injury or damage to the device.

19.2 Troubleshooting table

Fault Possible Cause To Rectify Device does not turn

Power plug is not plugged in. Plug in the power plug. Defective power cord Send device to Customer Service Defect socket outlet Select other outlet A complete vacuum is not being created in the bag. The open end of the bag is not completely inside the vacuum chamber Position the bag correctly The bag is defective Select another bag There is residue on the welding and the seal Clean the welding / seals and retry once they are dry The bag is not being sealed correctly The sealing bar is overheating so that the bag melts Open the cover on the unit and let it cool down for a few minutes. Sealing bar needs to be replaced. Defect sealing bar. The bag does not hold the vacuum after it has been sealed The bag is defective Select another bag; wrap paper around any sharp edges within the bag. There are leaks along the welding seam as a result of creases, crumbs, grease or liquids. Open the bag again and clean the upper internal part of the bag. Remove any foreign matter that might be on the welding bar before sealing. Bag is melting The bag was sealed too long Check if the sealing time is too long.49 PLEASE NOTE ► In the event of technical troubles, faulty devices or missing parts, please contact Customer Service. 20 Disposal of the Old Device To protect the environment, it’s important to dispose of old electronic devices properly. Do not place your old unit in the non-recyclable waste under any circumstances. PLEASE NOTE ► Please take your old unit to the nearest recycling center for safe disposal. ► Until it can be disposed of properly, store your old unit away from children. 21 Guarantee We provide a 12 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults. Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements. This device is designed for use in commercial situations and has the appropriate performance levels. In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase). 22 Technical Data Device Chamber Vacuum Sealer Name VacuChef SlimLine Item No.: 1419 Mains data 220 V - 240 V; 50 Hz / 60 Hz Power consumption 400 W External measurements (W x H x D): 502 x 170 x 415 mm Net weight 13,80 kg Capacity 4,2 m3/h (70 L/min) Maximum bag width Suitable for 30 cm bags50
