USER MANUAL TWS1 Pro EDIFIER

Abstract gray brushstroke pattern on white background (no text or symbols)

EDIFIER

TWS1 Pro

True Wireless Stereo Earbuds

www.edifier.com

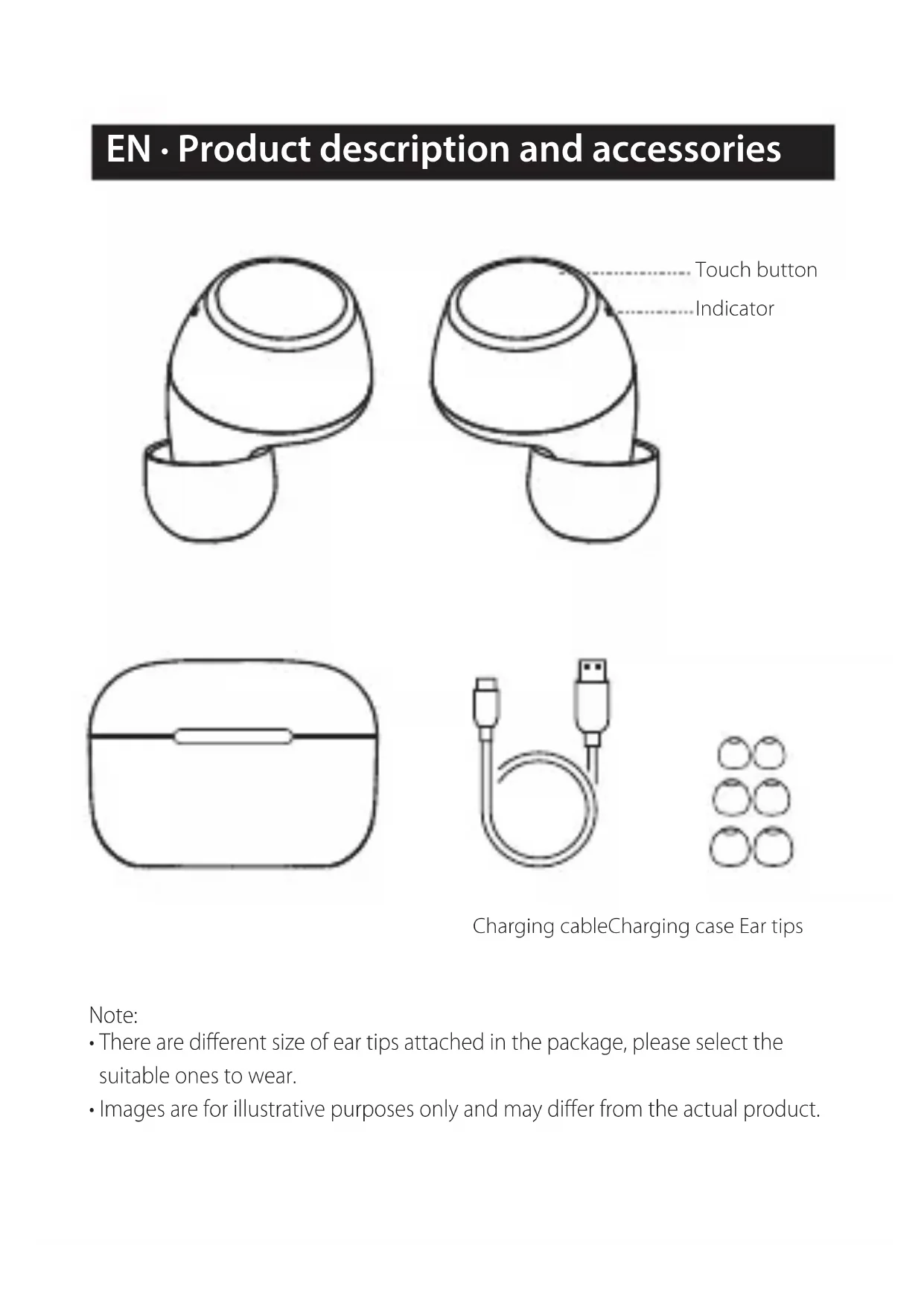

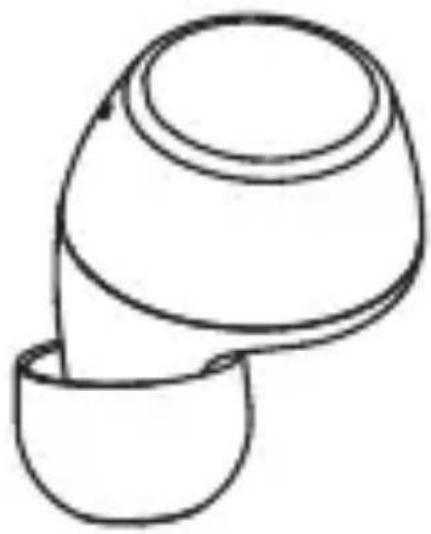

EN · Product description and accessories

Simple line drawing of a mechanical component with a curved base and circular top (no text or symbols)

Simple line drawing of a bowl-shaped container with a handle, no text or symbols present

Touch button

Indicator

Simple line drawing of a rounded rectangular shape with a horizontal line inside (no text or symbols)

Line drawing of a USB cable with two connectors (no text or symbols)

Six identical empty circular shapes arranged in a grid (no text or symbols)

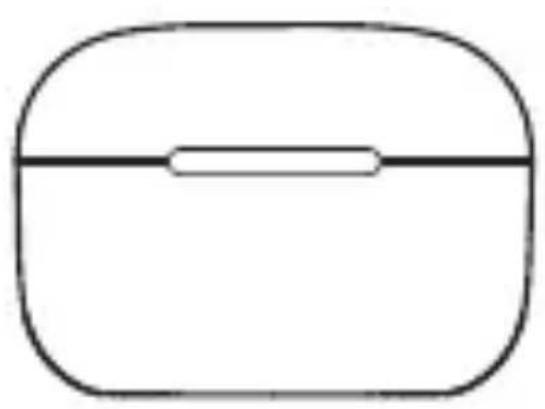

Charging cableCharging case Ear tips

Note:

• There are different size of ear tips attached in the package, please select the suitable ones to wear.
• Images are for illustrative purposes only and may differ from the actual product.

User guide

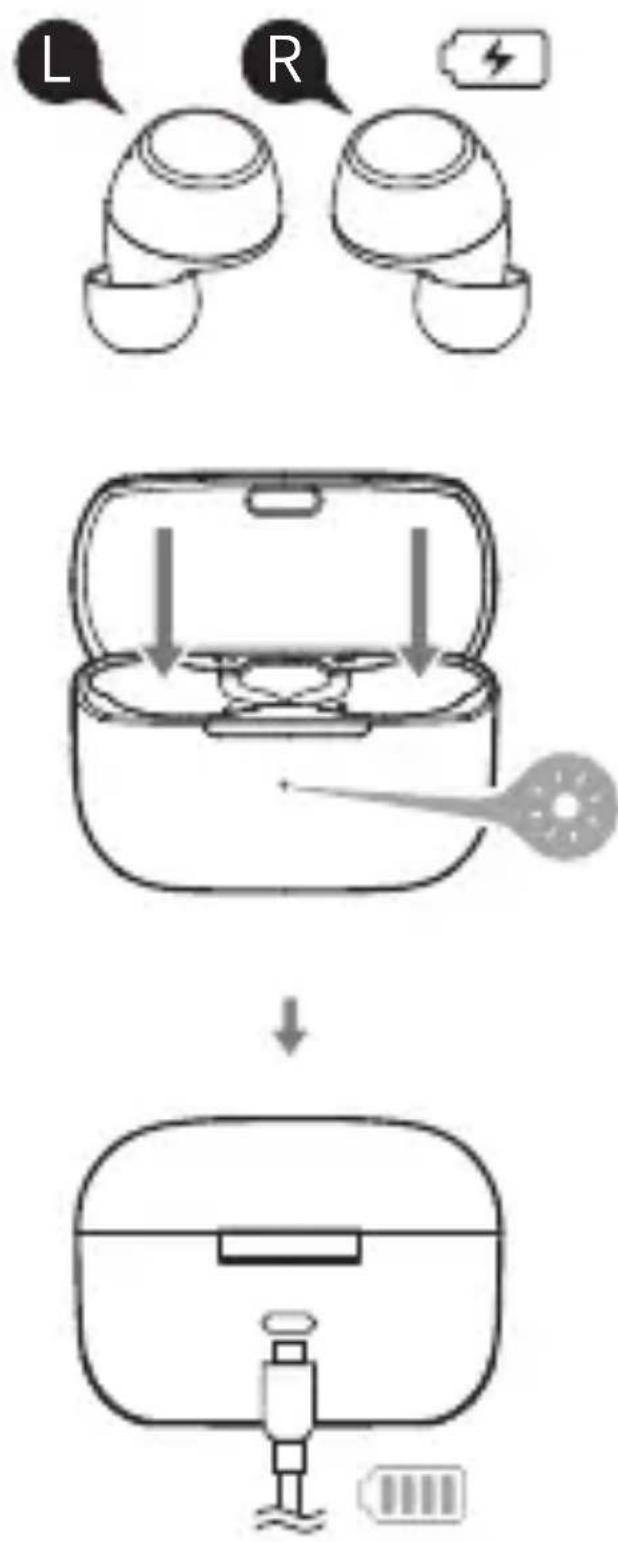

- Charge the earbuds

• You may hear a warning tone when the earbuds are at low battery level, please place the earbuds in the case for charging.
• Charging time: around 1.5 hours for a full charging

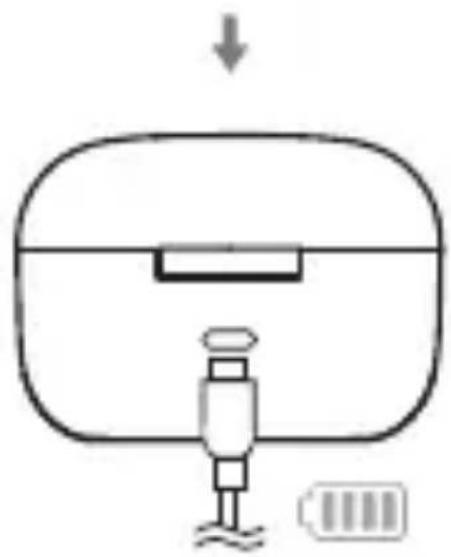

- Charge the charging case

• Indicator steady lit = charging Indicator off = fully charged
• Charging time: around 40 minutes for a full charging

- Indicator

When the charging case is opened/closed, the indicator will show the case's battery level; if the indicator flashes three times slowly: high battery level;

if the indicator flashes twice slowly: medium battery level;

if the indicator flashes once slowly: low battery level;

if the indicator flashes three times rapidly: excessively low battery level, please charge the case in time.

Input: 5V = 60mA(earbuds) 5V = 1.5A(charging case)

Warning: The rechargeable batteries that provide power for this product must be disposed properly for recycling. Do not dispose of batteries in fire to prevent an explosion.

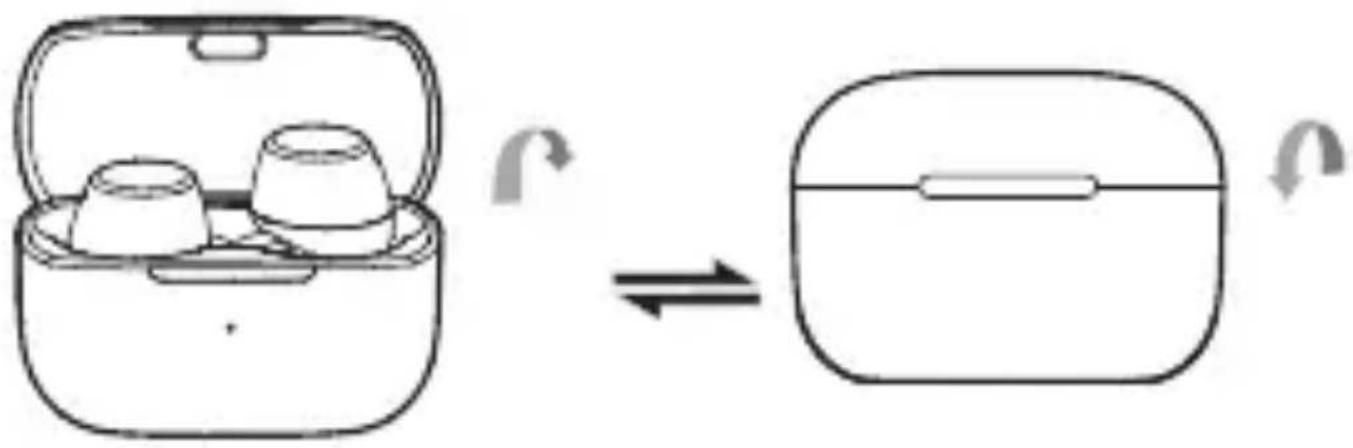

- Power on when taken out of the charging case.

• Power off when placed in the charging case.

Diagram illustrating the equivalence between an open and closed electronic device with a battery, showing rotation and internal mechanism.

- Bluetooth connection

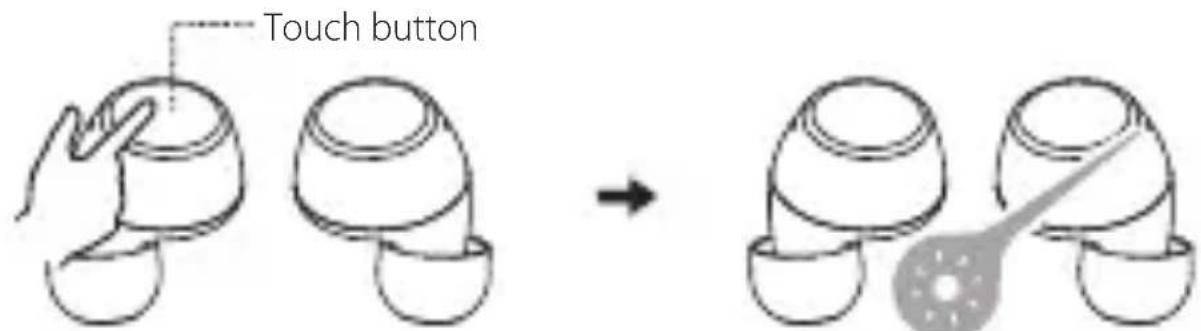

Touch button

- For initial connection, the earbuds will auto-enter the pairing mode after taken out;

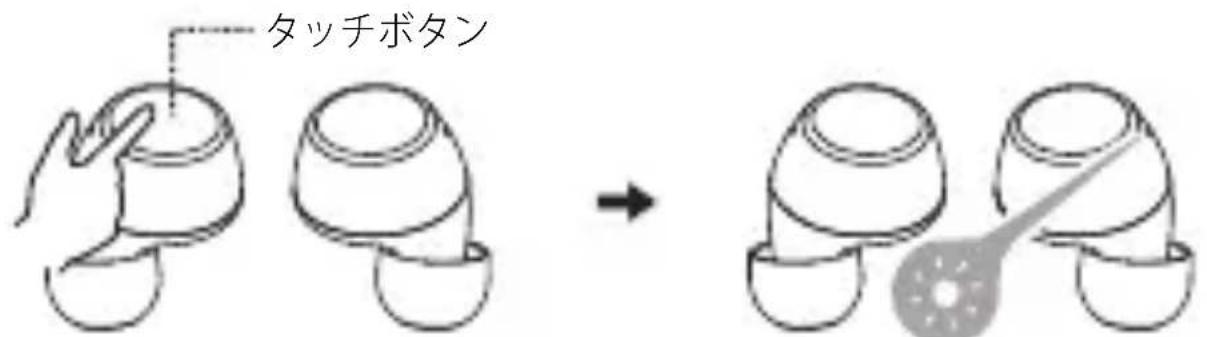

- When connected to other mobile phones, take the earbuds out and press and hold the touch button of the left or right earbud for around 2-3 seconds to enter Bluetooth pairing.

- Bluetooth pairing: red and blue lights flash rapidly


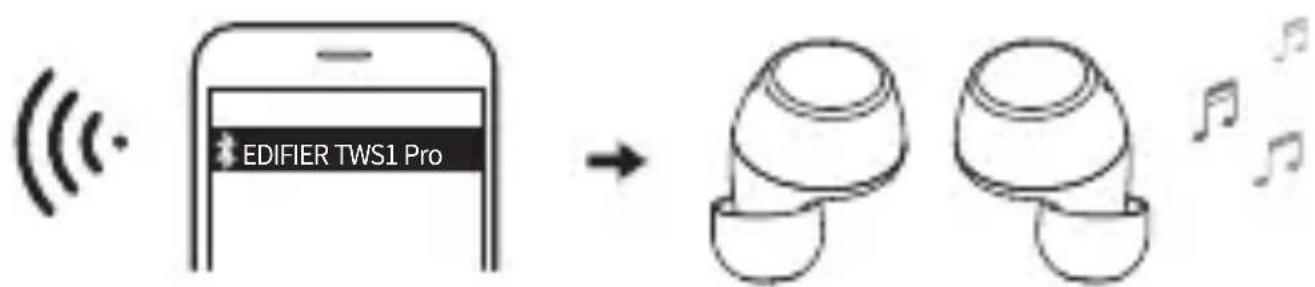

- Search for and connect to "EDIFIER TWS1 Pro", after pairing is successful, the blue light will flash slowly.

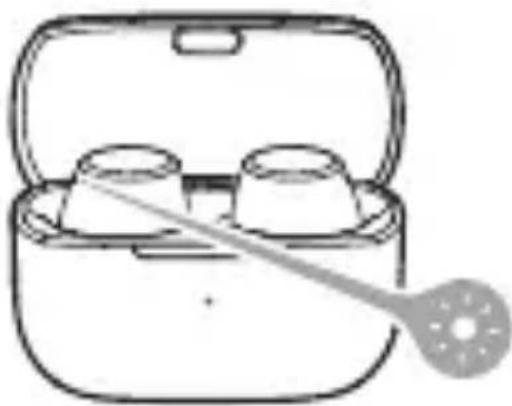

• TWS pairing of the left and right earbuds

Line drawing of a closed open box containing three small cups, with a diagonal line extending from the cup to the right (no text or symbols)

• The left and right earbuds have finished TWS pairing before leaving factory.
- When the earbuds are in the charging case, respectively click the touch buttons of the left and right earbuds five times to enter TWS pairing mode, the blue light will flash rapidly.
• After pairing is done, the blue light will flash rapidly and then the red light will be steady lit.

- Clear pairing records

Simple line drawing of two cups with one holding the other, no text or symbols present

- When the earbuds are powered on and interconnected, and not connected with any Bluetooth device, press and hold the touch button of the left or right earbuds for 8 seconds to clear pairing records of both earbuds.

- Functional operation

Accept a call: single click the left or right earbud

Decline/end a call: press and hold the left or right earbud

Pause/play: single click the left or right earbud

Previous track: double click the left earbud

Next track: double click the right earbud

Volume up: press and hold the right earbud

Volume down: press and hold the left earbud

FAQs

When charging the charging case, the indicator is off.

- Please ensure the charging case is correctly connected with power source.

No sound

• Check if the earbuds are operating.
• Check if the earbuds volume are at an appropriate level.
• Check if the earbuds are correctly connected with mobile phone.
• Check if the earbuds are operating within a normal working range.

The call quality of the earbuds are not good.

• Check if mobile phone is in an area with strong signal.
• Please ensure the earbuds are within effective distance (10m) and no obstacle between the earbuds and mobile phone.

When playing music, cannot control pause/play/previous track/next track via the earbuds.

- Please ensure the paired device support AVRCP (Audio/Video Remote Control Profile) profile.

Maintenance

• If it is not used for long periods of time, please charge the product with lithium battery every three months.
• Keep the product away from humid places to avoid affecting internal circuit. Do not use the product during intense exercise or with much sweat to prevent sweat from dropping into the product to make damage.
• Do not put the product in places exposed to sun or with high temperature. High temperature will shorten service life of electronic components, damage battery and make plastic components deformed.
• Do not put the product in cold places to avoid damaging internal circuit board.
• Do not dismantle the product. Non-professional personnel may damage the product.
• Do not drop, strongly vibrate, strike the product with hard object to avoid damaging internal circuit.
• Do not use drastic chemicals or cleaner to clean the product.
• Do not use sharp objects to scratch product surface to avoid damaging shell and affecting facade.

Model: EDF200017

Edifier International Limited

P.O. Box 6264

General Post Office

Hong Kong

www.edifier.com

©2021 Edifier International Limited. All rights reserved.

Printed in China

NOTICE:

For the need of technical improvement and system upgrade, information contained herein may be subject to change from time to time without prior notice.

Products of EDIFIER will be customized for different applications. Pictures and illustrations shown on this manual may be slightly different from actual product. If any difference is found, the actual product prevails.

Diagram of a food container with lid and side arm, showing internal components and a spoon-like object (no text or symbols)

Simple line drawing of a device with a sensor and battery, no text or symbols present

- Indicateur

Diagram showing the equivalence between an open and closed electronic device with a resistor, indicating a change in internal structure.

- Connexion Bluetooth

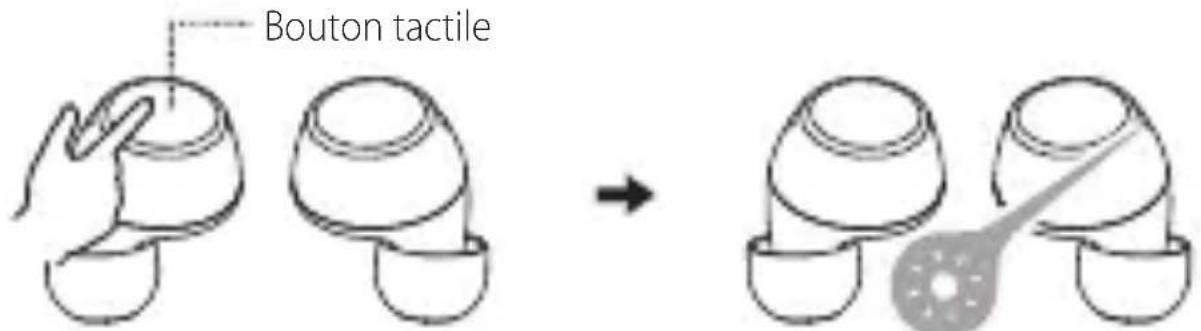

Bouton tactile

Line drawing of an open wireless earbuds with a spoon extending from the cup (no text or symbols)

Simple line drawing of two identical objects with a hand touching one (no text or symbols)

Diagram illustrating the equivalence between an open and closed wireless earbuds, showing a double-headed arrow indicating rotation.

- Conexión Bluetooth

Line drawing of an open electronic device with two cylindrical components and a handle (no text or symbols)

Two line drawings of a cup with different shapes, one being held by a hand (no text or symbols)

Simple line drawing of a bowl with a lid, no text or symbols present

Simple line drawing of a bowl-shaped container with a handle, no text or symbols present

Touch-Schaltfläche

Anzeige

Simple rounded rectangle shape with a horizontal line inside, no text or symbols present.

Line drawing of a USB cable with two connectors (no text or symbols)

Six identical empty circles arranged in two rows (no text or symbols)

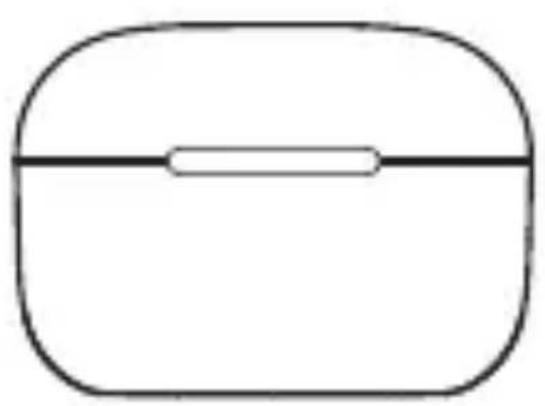

LadekabelLadekoffer Ohradapter

Hinweis:

Diagram illustrating the equivalence between an open and closed electronic device, showing a double-headed arrow indicating rotation.

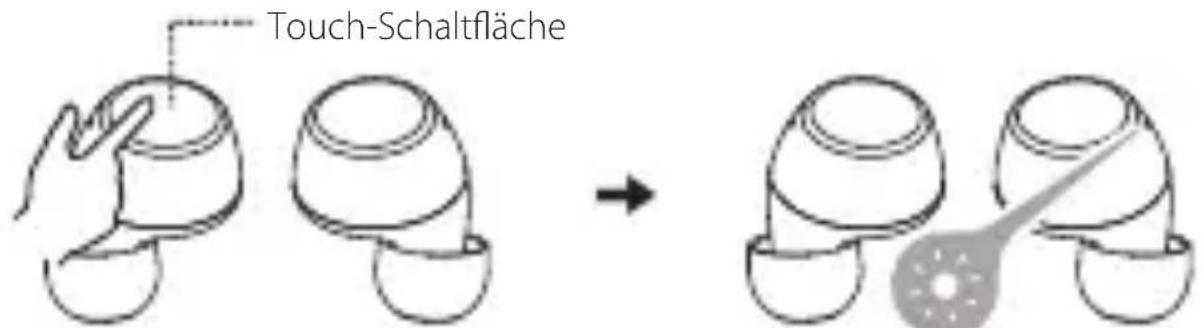

- Bluetooth-Kopplung

Line drawing of a box containing two cups with a spoon extending from it (no text or symbols)

Simple line drawing of two cups with one pointing at the cup (no text or symbols)

Diagram illustrating the equivalence between a closed box containing two cups and an open box, with arrows indicating rotation.

Line drawing of an open airbus with two cylindrical containers and a handle, no text or symbols present

Simple line drawing of two cups with one being turned to the other (no text or symbols)

Simple line drawing of a bowl with a lid, no text or symbols present

Simple line drawing of a bowl-shaped container with a handle, no text or symbols present

Simple line drawing of a rounded rectangular shape with a horizontal line inside (no text or symbols)

Line drawing of a USB cable with two ports (no text or symbols)

Six identical simple oval shapes arranged in two rows (no text or symbols)

Diagram of a closed electronic device with internal components and directional arrows indicating motion (no text or symbols)

Simple line drawing of a device with a sensor and indicator lights, no text or symbols present.

Diagram illustrating the equivalence between an open and closed electronic device, showing a double-headed arrow indicating rotation.

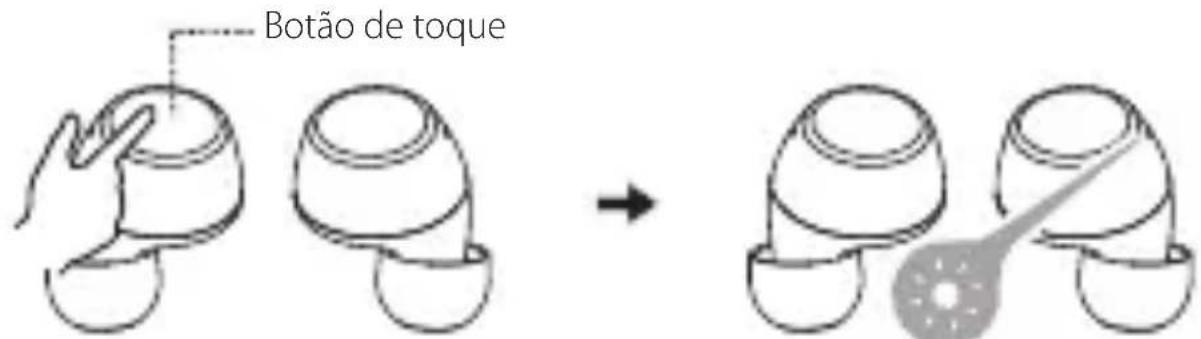

- Ligação Bluetooth
