USER MANUAL PWD 25 A1 PARKSIDE

PDF ONLINE www.lidl-service.com

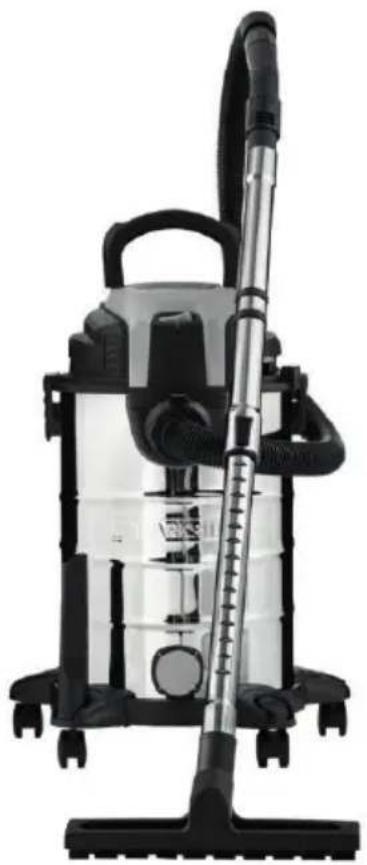

Black and white photo of a vacuum cleaner with handle and control panel (no visible text or symbols)

Wet & Dry Vacuum Cleaner

Translation of the original instructions

NL BE

Nat-/droogzuiger

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB / IE Translation of the original instructions Page

Service-Center......14

Importeur 14

Fehlersuche....15

Original-EG-

Application ......16

General Description......17

Delivery contents......17

Overview....17

Pictograms regarding

the use of nozzles and filters....18

Description of operation....18

Technical Data....18

Safety Information......18

Symbols used in the instructions .....18

Graphical symbols on the device .....19

General notes on safety 19

Assembly....20

Operation 21

Switching on/off....21

Dry vacuuming 21

Wet vacuuming 22

Blow function....22

Filter cleaning button 22

Cleaning/Maintenance ......22

Cleaning the device 23

Maintenance 23

Storage....23

Disposal/Environmental

Protection 23

Spare Parts/Accessories......24

Trouble Shooting......25

Guarantee 26

Repair Service....27

Service-Center......27

Importer 27

Translation of the original EC declaration of conformity....95

Exploded Drawing ......101

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed. In some cases, residual amounts of water may be present on or in the device or in hose lines. This is not a flaw or a defect and is no cause for concern.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal.

Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.

Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Application

The appliance is intended for domestic wet and dry vacuuming in, for example, the house, work room, car or garage.

This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee.

Vacuuming of flammable or explosive materials or those which endanger health is prohibited. The manufacturer will not be held responsible for injuries resulting from use which does not comply with the directions, or from incorrect use.

General Description

The illustration of the principal functioning parts can be found on the front and back foldout pages.

Delivery contents

Unpack the equipment and check that it is complete.

The equipment is supplied with the motor head on (see A 3). To remove the motor head and take out the accessories, open the fastening clips (A 10).

• Motor housing
• Stainless steel container

- 5 steering castors with accessory holders

- Telescopic suction pipe

- Suction hose

- Handle with air regulation

- Foam filter

- Fluted filter with filter cover (already mounted)

- Paper filter bag

- Crevice nozzle

- Floor nozzle with brush

- Floor nozzle with rubber lip

- Instruction Manual

Dispose of the packaging material in a proper manner.

Overview

Housing

1 Carry handle

2 Motor housing
3 On/off switch
4 Suction connection
5 Stainless steel container
6 Drainage outlet
7 5 steering castors
8 Anti-static chain
9 5 accessory holders at steering castors

10 Fastening clips

11 Mains lead

12 Blow connection

13 2 accessory holders at motor housing

Accessories

14 Telescopic suction pipe

15 Vacuum tube holder

16 Suction hose

17 Handle with air regulation

Filter

18 Foam filter for wet vacuuming
19 Cover plate
20 Fluted filter for dry vacuuming
21 Paper filter bag for vacuuming both large dirt particles

Nozzles

22 Floor nozzle with brush
23 Floor nozzle with rubber lip

24 Crevice nozzle

25 Filter basket

26 Filter cleaning button

Pictograms regarding the use of nozzles and filters

Nozzle to vacuum carpets.

Nozzle to vacuum smooth surfaces and hard floor surfaces.

Nozzle to vacuum dust and dirt from joints and cracks.

Specific nozzle to vacuum cushions and mattresses.

Specific nozzle to clean the car.

Filter to absorb liquids.

Filter not suitable to absorb liquids.

Filter to absorb dry dirt from the house, garage and workshop.

Filter to absorb fine dust e.g. stone dust or wood dust.

Description of operation

The equipment is fitted with a stable stainless steel container to hold liquid and dust. The steering castors allow for maximum mobility of the device. For wet vacuuming, the suction airflow is switched off by a float when the stainless steel container is full. The equipment also has a blow function.

To prevent electrostatic charging during vacuuming, an anti-static chain is fitted on the bottom of the equipment.

The following describes the function of the operating parts.

Technical Data

Wet & Dry

Vacuum Cleaner........PWD 25 A1

Rated voltage .....220-240 V\~, 50/60 Hz

Rated power input

(Power consumption)....1400 W

Cable length....4 m

Safety class ...... □ II

Protection category.....IPX4

Suction force ....220 Airwatt .... 17 kPA; (170 mbar); 2.2 m³/min

Stainless steel container capacity

(gross) approx. 25

useful volume......approx. 15 l

Weight (incl. all accessories) ..approx. 6.4 kg

Safety Information

This device can be used by children aged 8 and over and by people with reduced physical, sensory or mental capacities or with a lack of experience or knowledge, if they are supervised or have been instructed regarding safe use of the device and understand the resulting risks. Children are not permitted to play with the device. Cleaning and user maintenance are not to be undertaken by children without supervision.

Symbols used in the instructions

Hazard symbols with information on prevention of personal injury and property damage.

Precaution symbol with information on prevention of harm / damage.

Notice symbol with information on how to handle the device properly.

Graphical symbols on the device

Protection class II double insulation)

Read the instruction manual

Button for filter cleaning sys- tem

Electrical devices must not be disposed of with domestic waste

For cold ash only*! There is a risk of fire if the suction material exceeds a temperature of 40 °C (104 °F)!

* "Cold ash" is ash that has cooled down for a sufficient amount of time and no longer contains any embers. This can be determined by combing the ashes with a metal tool before using the device. There will no longer be noticeable heat radiating from the cold ash.

General notes on safety

Caution! When using electrical machines, observe the following basic safety measures for the prevention of electric shocks and the risk of injury and fire:

To avoid accidents and injuries:

• Never leave a machine which is ready for operation unattended at the workplace.
  • People and animals must not be vacuumed with the machine.
• Do not aim the suction hose and nozzle at yourself or others during use, particularly not at the eyes and ears; there is a risk of injury.
• Do not vacuum any hot, incandescent, flammable, explosive materials, or those which endanger health. This includes hot ashes, petrol, solvents, acids or caustic solutions. Personal injury could occur.
• Nozzles and suction tubes must not reach head level whilst in use. Personal injury could occur.

To avoid accidents and injuries from electric shocks:

• Ensure that the mains cable is not damaged by being pulled over sharp edges, by jamming, or by pulling on the cable.
• Before each use, check the power supply lead and the extension cable for damage and ageing. Do not use the equipment if the cable is damaged or worn. Danger of electric shock hazard.
• If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualified person in order to prevent hazards.
• Switch the machine off and pull the plug under the following circumstances:

GB IE

• when you are not using the device,
• transporting it or leaving it unattended;
• when you are checking the device, cleaning it or removing blockages;
• when you are carrying out cleaning or maintenance work or replacing accessories;

• when the power or extension cable is damaged; after contact with foreign bodies or in case of abnormal vibration.

• Never use the mains lead to pull the plug out of the socket or to pull the appliance. Protect the mains lead from heat, oil and sharp edges.

• Make sure that the mains voltage corresponds with the information on the rating plate.
• The device must only be connected to a mains socket via a residual-current circuit breaker (RCD) with a rated leakage current of not more than 30 mA.

The following states how damage to the appliance and possible injury to people can be avoided:

• Ensure that the machine is correctly assembled and the filters are in the correct position.
• Do not use without the filter. This could damage the machine.
• Only use Spare parts and accessories delivered and recommended by our Service Centre (see "Spare parts/Accessories"). The use of parts by other manufacturers immediately ren-

ders the guarantee void.

• Only have repairs carried out at our authorised customer service points.
• Observe the instructions for cleaning and maintenance of the machine.
• Store the appliance in a dry place and out of reach of children.

B Assembly

Pull out the mains plug. Danger of electric shock.

The appliance is supplied with the folded filter (20) fitted.

1. Place the 5 steering castors (7) onto the mounts on the stainless steel container (5).
2. Place the motor head (2) on the stainless steel container (5).
3. Lock the stainless steel container (5) using the fastening clips (10).
4. Fit the accessories:
5. Connect the suction hose (16).
6. Fit the handle (17)
7. Fit the telescopic suction pipe (14). (Press the knob on the telescopic suction pipe in the direction and separate to the desired length).
8. Fit the desired nozzle (22/23/24).
   Never vacuum without a filter!

To store the suction set during breaks, push together the telescopic suction hose (17) and plug the suction pipe holder (18) into the socket on the motor housing (see illustration B, detailed illustration on right).

Operation

Fully unwind the suction hose (16) before commencing work.

Switching on/off

Connect the mains plug.

Do not vacuum without a filter! to insert the filter is described in the chapters "dry vacuuming" and "wet vacuuming").

Switching On:

On/Off Switch (A 3) In position "I".

Switching Off:

On/Off Switch (A 3) In position "O".

Dry vacuuming

The appliance is supplied with the folded filter (20) fitted.

Vacuuming with a fluted filter:

1. For dry vacuuming, fit the fluted filter (23) onto the filter basket (27) on the motor head (3)

If the sealing lip of the folded filter (20) does not spontaneously touch the motor head (2), turn the cover plate (19) a little without force until the inside latch of the cover plate (19) releases the folded filter (20). You can now lightly push the folded filter (20) onto the motor head (2).

1. Lock the folded filter (20) by turning the cover plate slightly (19) in a clockwise direction:

Locking the cover plate

Unlocking the cover plate

Vacuuming with the paper filter bag:

To avoid the fluted filter becoming clogged, we recommend the additional use of the brown paper filter bag.

1. Fit the fluted filter (20).
2. Fold the side flaps on the paper filter bag (21) down on the perforation.
3. Completely unfold the paper filter bag (21) and pull it over the internal suction nozzle (4) in the stainless steel container (5). The connector on the suction nozzle must be completely enclosed by the sealing ring on the filter bag opening.

A fine dirt filter bag made of micro filter fleece is also optionally available, which can be used in place of the included paper filter bag (see "Spare parts/Accessories").

Vacuuming with the dry filter (fabric filter bag, optionally available):

The anti-tear fabric filter bag, which is optionally available (see "Spare parts/Accessories"), is suitable for vacuuming large dirt particles.

1. Place the foam filter (D 18) on the filter basket (D 25) (see "Wet Vacuuming").
2. Pull the fabric filter bag over the filter basket.

Vacuuming fine dust:

Specific suction processes (e.g. grinding of paints and lacquers, milling or drilling walls, grinding or drilling hard wood) can pose a risk from hazardous dust.

We recommend using the following optional filter combination, which is available, for fine dust (see "Spare parts/Accessories"):

1. Fluted filter (20).
2. Fine dust filter bag made of fleece (optionally available see "Replacement parts/Accessories"), which is used in stead of the paper filter bag (21) included in the scope of delivery.

Wet vacuuming

1. For wet vacuuming or to vacuum water, fit the foam filter (18) to the filter basket (25) on the motor head (2).
   To avoid tearing the foam filter (18):
2. Use only a dry filter;

3. Before inserting, twist the edge of the filter slightly and then roll it back.

4. Suctioning up (draining) water: place the suction hose (A 16) on the handle (A 17) into the water tank and suction up the water.

5. Empty the stainless steel container immediately after suction cleaning because it is not designed to store liquids (see „Cleaning/Maintenance“).

Never reach into the water to be suctioned up. Danger of electric shock.

When the container (5) is full, the suction opening is shut off by a float, and suction is then cut off.

Switch the appliance off, remove the plug from the socket and empty the container (see "Cleaning/Maintenance").

If foam or liquid exits, switch off the machine immediately.

Blow function

Operation without the use of a filter is recommended.

- Connect the suction hose (16) to the connecting blower (12) on the motor head (2).

Filter cleaning button

Insert the mains plug of the device and turn the device on.

If the suction power decreases, you can improve it by pressing the filter cleaning button (D 26).

1. Turn the device on.
2. Close the suction opening of the suction hose by hand.
3. Press the filter cleaning button (D 26).

Cleaning/Maintenance

Pull out the mains plug. Danger of electric shock.

Always check the appliance before use for any obvious faults such as a defective mains cable, and have these repaired or replaced.

Cleaning the device

Never hose the device down with water. Never use aggressive cleaning agents or solvents. This could damage the appliance.

- After use, empty the stainless steel container (5):

- Opening the drain plug to allow the vacuumed liquid to drain out (A 6). A liquid residue remains in the container.

- To remove all residual liquid, open the fastening clips (10) and pour the residual liquid out.

- Clean the waste tank with a damp cloth.

- Wash the foam filter ( A 18) with lukewarm water and soap, and allow to dry.

- Beat the dust out of the fluted filter (A 20) and clean it with a paint brush or hand brush.

- Replace the paper filter bag (21) when full (see "Spare parts/Accessories" for reordering)

- Knock the optional dry filter (fabric bag) out. Where necessary, wash with lukewarm water and soap, and allow to dry.

Maintenance

• The equipment is maintenance free.

Storage

1. Wind up the mains connection cable (11).
2. The accessory holders (9/13) are used to store the accessories.
3. Store the appliance in a dry place and out of reach of children.

Disposal/Environmental Protection

Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them.

Machines must not be disposed of with household refuse.

Take the machine to a recycling point. The waste plastic and metal parts can be separated, accurately graded and passed on for recycling. Contact our Service Centre for more details. Defective units returned to us will be disposed of for free.

Spare Parts/Accessories

Spare parts and accessories can be obtained at www.grizzly-service.eu

If you have issues ordering, please use the contact form. If you have any other questions, contact the service centre (see page 27).

Position Position Description Use Order No. instruction exploded manual drawing

A 1/2 19 Motor housing + carry handle
	EU		72079311
	UK		72079312
A 5 21 Stainless steel container			91105845
A 6 7 Drainage outlet			91104186
A 7 9 2 steering castors			91105502
A 8 10 Anti-static chain			91105503
A 14 25 Telescopic suction pipe			91105849
A 16 22 Suction hose			91105846
A 17 13 Handle with air regulation			91104782
A 18 18 Foam filter, pack of 3			91105506
A 19/20 16 Fluted filter with filter cover			91105505
A 21 17 Paper filter bags, 30 l, pack of 5			30250137
A 24 14 Crevice nozzle			91099005
A 22 23 Floor nozzle with brush			91105847
A 23 24 Floor nozzle with rubber lip			91105848

Optionally available:

Description	Design	Use	Product No.
Fine dirt filter bag30 l, pack of 5	2-layer micro filter fleece, white		30250110
Cushion nozzle			72800040
Car nozzle			91096445

Trouble Shooting

Problem Possible cause Fault correction
Device does not start	Mains voltage is not present	Check plug socket, cable, line, plug and fuse, where appropriate, repair through electrical specialist
	Defective on/off switch (A 3)	Repair by Customer Care
	Worn carbon brushes
	Defective motor
Low or lack of suction	Hose system (A 16) or jets (A 22/23/24) blocked	Remove obstructions and blockages
	Suction pipe (A 14) assembled incorrectly	Assemble suction pipe correctly
	Container (A 5) open	Close container
	Container (A 5) full	Empty container
	Filter (A 18/20/21) full or clogged	Empty, clean or replace filter
	Float in the filter basket (C 25) does not move	Release float
	Float in the filter basket (C 25) faulty	Repair by Customer Care
Float does not switch the appliance off	Float in the filter basket (C 25) does not move	Release float
	Float in the filter basket (C 25) faulty	Repair by Customer Care
Dust or dirt is blow out of the device	Filter (A 18/20/21) is not or not correctly assembled	Use missing filters or check the correct position of the filter

Guarantee

Dear Customer,

This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. filters or attachments) or to cover damage to breakable parts (e.g. switches). This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure efficient handling of your query, please follow the directions below:

• Please have the receipt and identification number (IAN 328642_2001) ready as proof of purchase for all enquiries.
• Please find the item number on the rating plate.
• Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.

- After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

GB Service Great Britain Tel.: [phone]

E-Mail: [e-mail]

IAN 328642_2001

IE Service Ireland Tel.: [phone] (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: [e-mail] IAN 328642_2001

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Service Réparations ....41

Service-Center......41

Importateur 41

Service-Center......68

Importer 68

Service-Center......80

Dovozce....80

Service-Center....92

Dovozca....92

We hereby confirm that theWet & Dry Vacuum Cleanermodel PWD 25 A1Serial number 202008147305 - 202008162595conforms with the following applicable relevant version of the EU guidelines:
2014/30/EU • 2014/35/EU • 2011/65/EU*
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 60335-1:2012/A2:2019 • EN 60335-2-2:2010/A1:2013EN 55014-1:2017 • EN 55014-2:2015 • EN 61000-3-2:2014EN 61000-3-3:2013 • EN 62233:2008 • EN 62321-1:2013
This declaration of conformity (20)** is issued under the sole responsibility of the manufacturer:
CE Grizzly Tools GmbH & Co. KGStockstädter Straße 2063762 Großostheim, GERMANY20.08.2020	Christian Frank(Documentation Representative)

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

** The last two digits of the year in which the CE marking was affixed.

FSC® www.fsc.org MIX Paper from responsible sources FSC® C140878

FSC www.fsc.org MIXTE Papier issu de sources responsables FSC® C140878

IAN 328642_2001
