| Product Type | Portable table circular saw |
| Brand | Parkside |
| Model | PMTS 210 A1 |
| Category | Electric saw |
| Power supply | 220-240 V~, 50 Hz |
| Power consumption | 1200 W (S1) / 1500 W (S6 25%) |
| No-load speed | 4800 min⁻¹ |
| Saw blade | Hard metal, Ø 210 x 30 x 2.6 mm, 24 teeth |
| Blade tilt | 0° to 45° to the left |
| Max. cutting height | 48 mm (0°) / 45 mm (45°) |
| Table dimensions (with extension) | 485 x 630 mm |
| Device dimensions (with extension) | 485 x 630 x 440 mm |
| Weight | Approx. 14 kg |
| Dust extraction connection | Ø 35 mm |
| Sound pressure level | 87.5 dB(A) (uncertainty K=3 dB) |
| Sound power level | 100.5 dB(A) (uncertainty K=3 dB) |
| Protection class | II (double insulation) |
| Main functions | Rip cuts, cross cuts, bevel cuts; adjustable cutting depth; parallel and cross stop; blade guard; riving knife |
| Maintenance and cleaning | Clean after each use with a damp cloth; oil rotating parts monthly; check and replace carbon brushes if necessary |
| Safety | Auto-retracting blade guard, riving knife, overload switch, emergency stop, anti-restart system |
| Spare parts and repairability | Wear parts: saw blade, table insert, push stick, carbon brushes. Repairs by a qualified electrician |
| Warranty | 3 years |
Frequently Asked Questions - PMTS 210 A1 PARKSIDE
User questions about PMTS 210 A1 PARKSIDE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Electric saw in PDF format for free! Find your manual PMTS 210 A1 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PMTS 210 A1 by PARKSIDE.
USER MANUAL PMTS 210 A1 PARKSIDE
Operating and Safety Instructions
Translation of Original Operating Manual
DEARTH
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
GB Operating and Safety Instructions Page 49
Inhalt:
Seite:
Günzburger Straße 69
D-89335 Ichenhausen
Verehrter Kunde,
service.AT@scheppach.com
service.CH@scheppach.com
Service-Adresse (DE): Service-Adresse (AT): Service-Adresse (CH):
Günzburger Straße 69
D-89335 Ichenhausen
Cher client,
Nosyou'recommendons:
Chere CLIENT, Cher Client
Scheppach France Strassburg
2, Impasse Jean Millot
FR-6700 Strasbourg
Service Adresse (CH):
Klaus-Haberling AG
Industriestraße 6
CH-8610 Uster
Günzburger Straße 69
89335 Ichenhausen, Germania
Egregio cliente,
service.IT@scheppach.com
Table of contents: Page:
- Explanation of the symbols on the device 50
- Introduction 51
- Device description (fig. 1-26) 51
- Scope of delivery 52
- Proper use 52
- Safety instructions 52
- Technical data 56
- Before commissioning 57
- Assembly 57
- Handling 58
- Operation 59

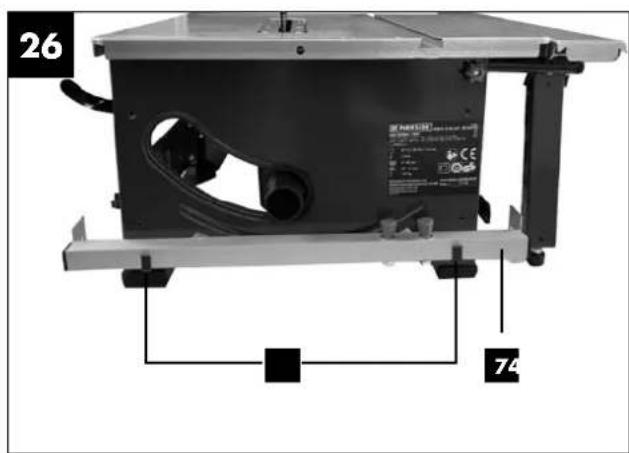

- Transport (fig. 25, 26) 60
- Maintenance 60
- Storage 61
- Electrical connection 61
- Disposal and recycling 61
- Troubleshooting 62
- Warranty certificate 63

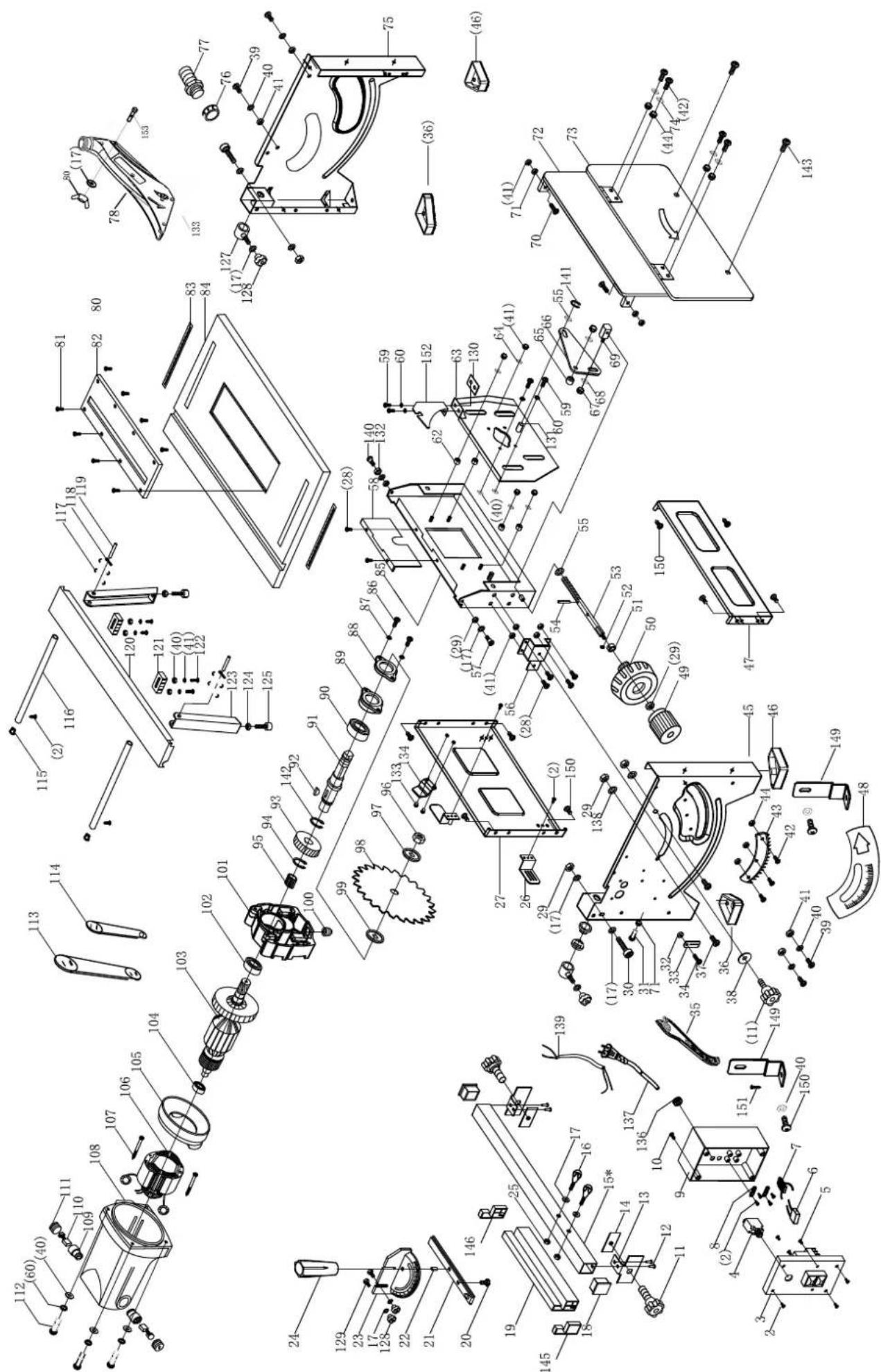

- Exploded view 65
- Declaration of conformity 67

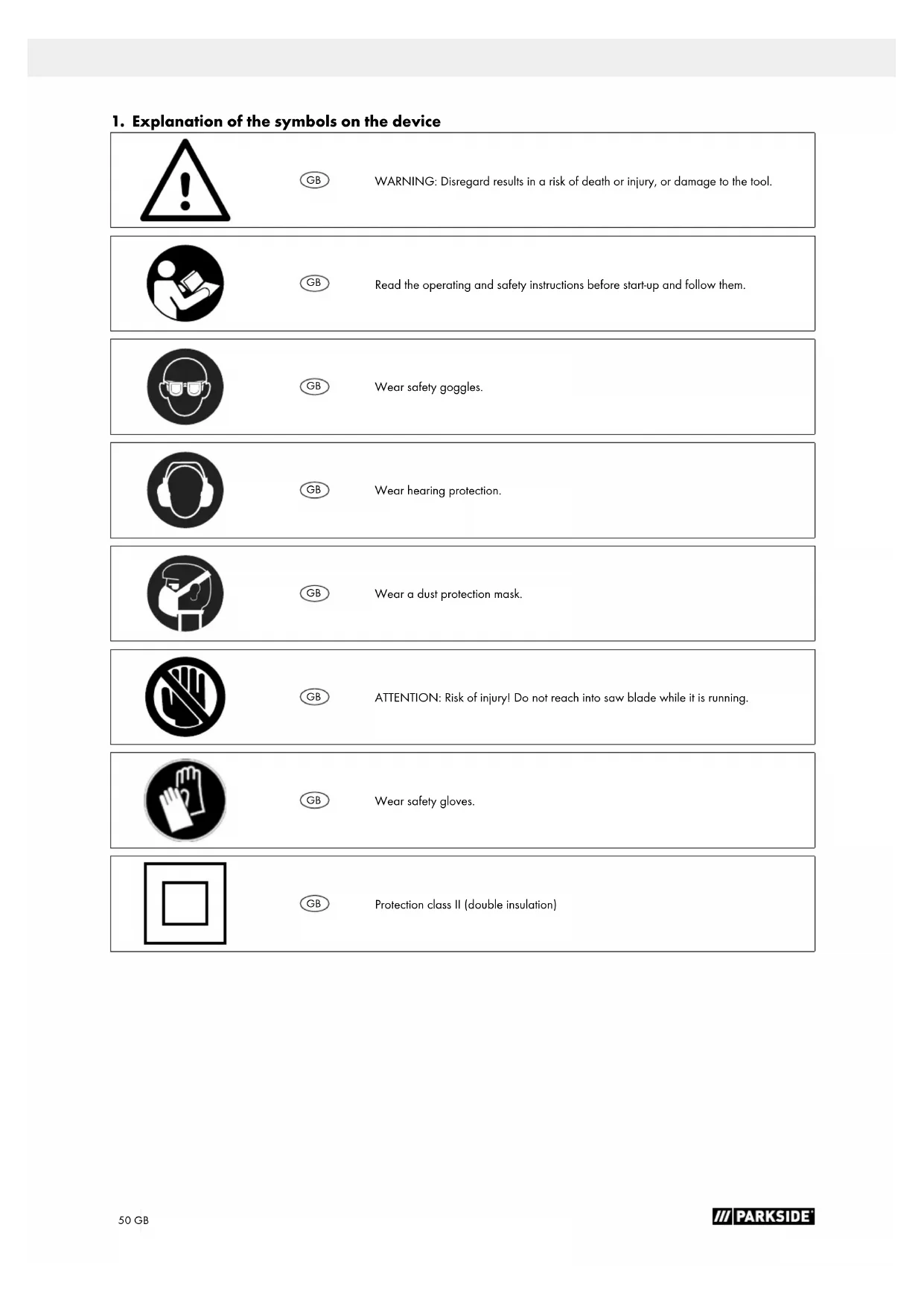

1. Explanation of the symbols on the device
GB
WARNING: Disregard results in a risk of death or injury, or damage to the tool.
GB
Read the operating and safety instructions before start-up and follow them.
GB
Wear safety goggles.
GB
Wear hearing protection.
GB
Wear a dust protection mask.
GB
ATTENTION: Risk of injury! Do not reach into saw blade while it is running.
GB
Wear safety gloves.
GB
Protection class II (double insulation)
2. Introduction
Manufacturer:
scheppach
Günzburger Straße 69
D-89335 Ichenhausen
Dear Customer,
We hope your new tool brings you much enjoyment and success.
Note:
In accordance with the applicable product liability laws, the manufacturer of this device assumes no liability for damage to the device or caused by the device arising from:
- Improper handling
- Failure to comply with the operating manual,
- Repairs carried out by third parties, unauthorised specialists.
- Installing and replacing non-original spare parts,
- Improper use
- Failures of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE0113 not being observed.
Note:
Read the whole text of the operating manual before assembly and commissioning.
This operating manual should help you to familiarise yourself with your device and to use it for its intended purpose.
The operating manual includes important instructions for safe, proper and economic operation of the device, for avoiding danger, for minimising repair costs and downtimes, and for increasing the reliability and extending the service life of the device.
In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the device in your country.
Keep the operating manual at the device, in a plastic sleeve, protected from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work.
The device may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards. The required minimum age must be observed.
In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such machines must also be observed.
We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

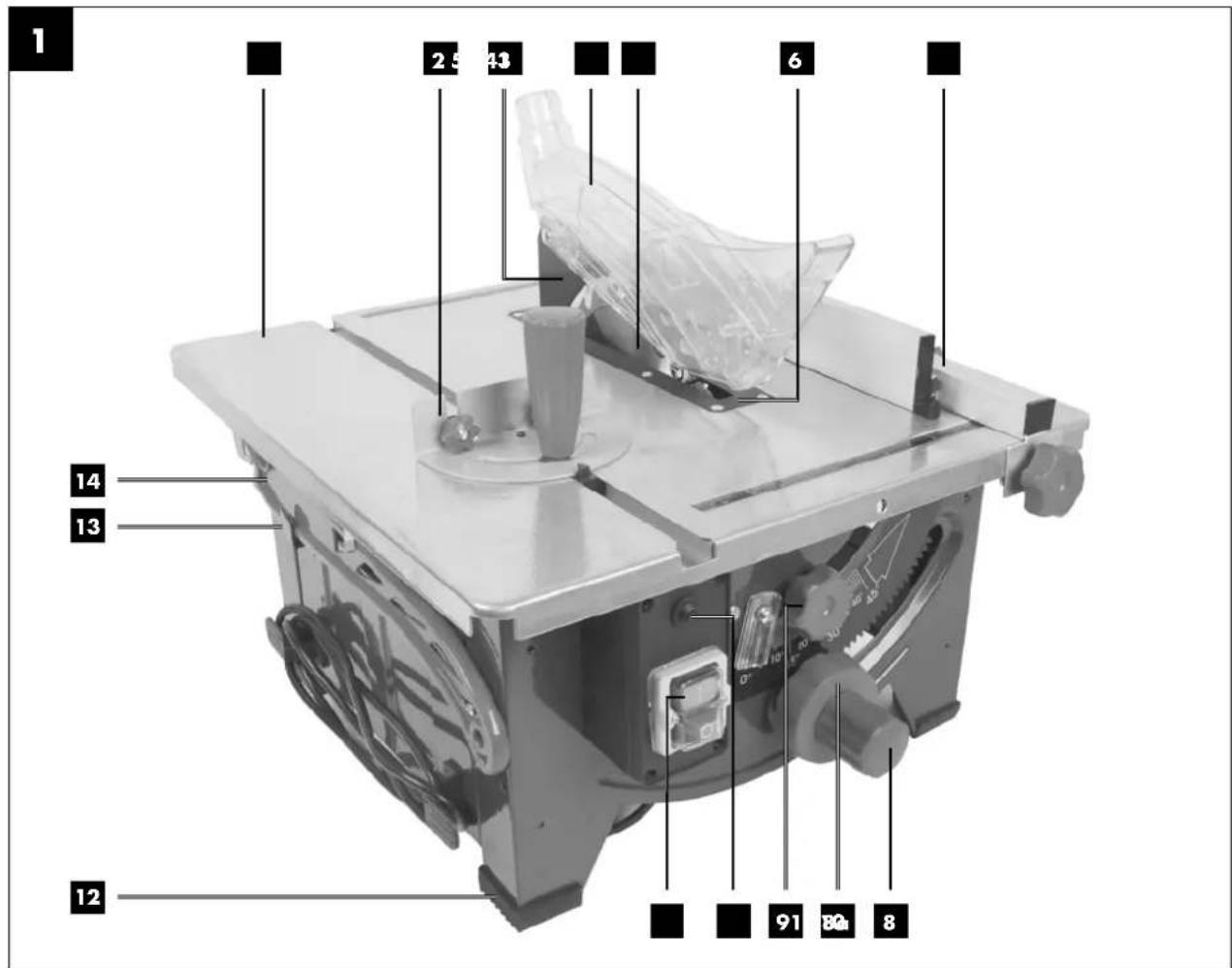

3. Device description (fig. 1-26)
- Saw table

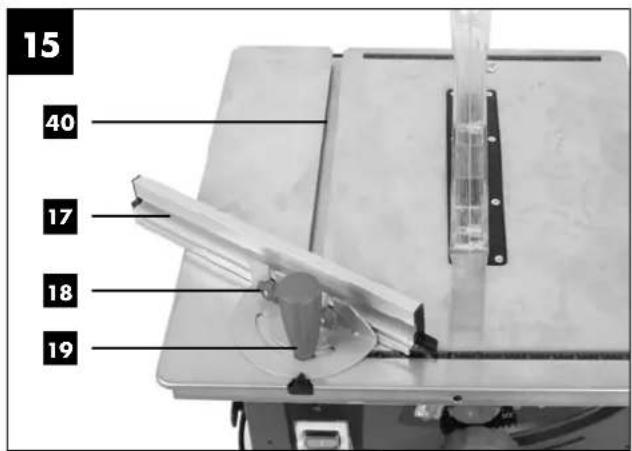

- Transverse stop
- Riving knife

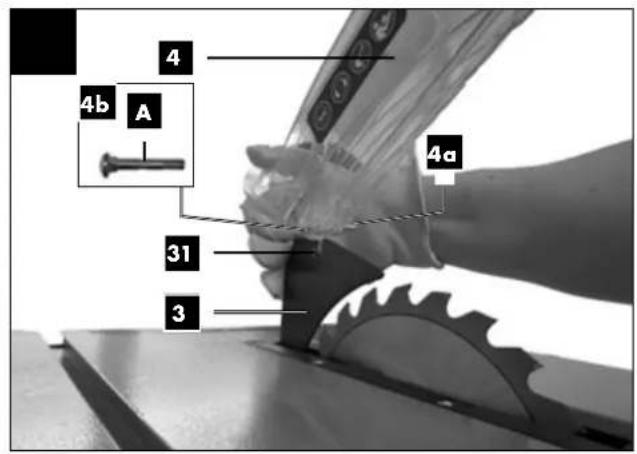

- Saw blade guard
4a. Wing nut with washer (saw blade guard)
4b. Carriage bolt (saw blade guard)
4c. Extraction port (saw blade guard) - Saw blade

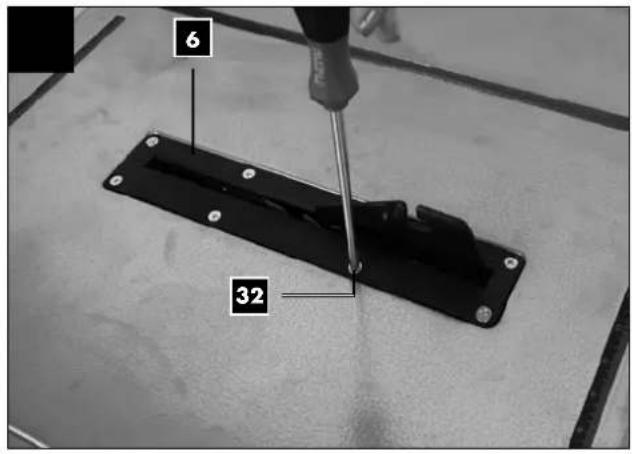

- Table inlay

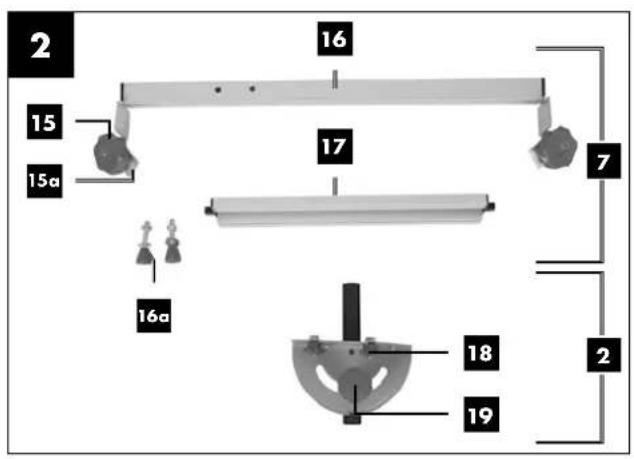

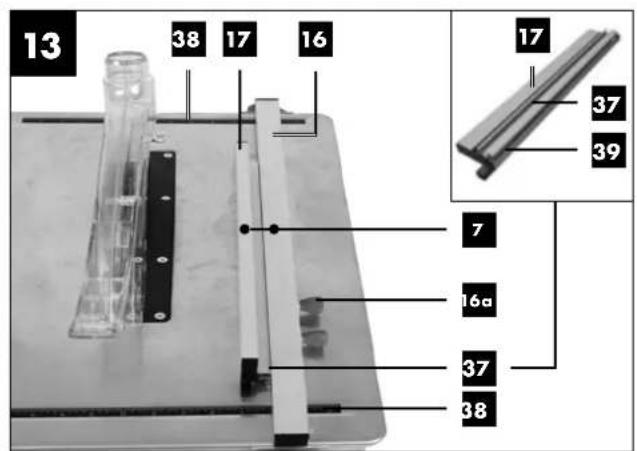

- Parallel stop, complete
- Handwheel (cutting depth adjustment)
8a. Handwheel (cutting angle adjustment) - Locking screw (cutting angle adjustment)
- Overload switch
- On/off switch
- Rubber foot (4x)
- Tool hook

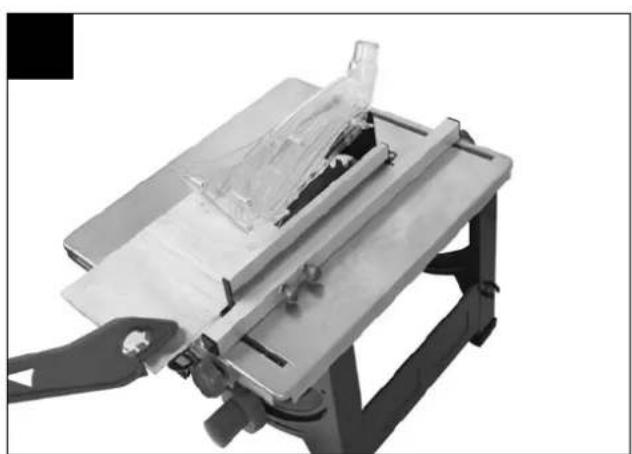

- Push stick
- Locking screw (parallel stop) (2x)
15a. Clamping plate (parallel stop) (2x) - Holder (parallel stop)
16a. Screw (parallel stop) - Stop rail (for parallel stop or transverse stop)
- Knurled screw (transverse stop)
- Turning handle (parallel stop)

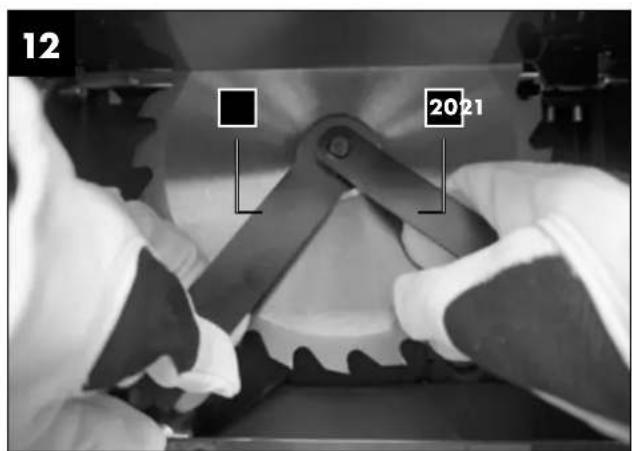

- Ring spanner 7 / 8mm
- Ring spanner, 19 / 10mm

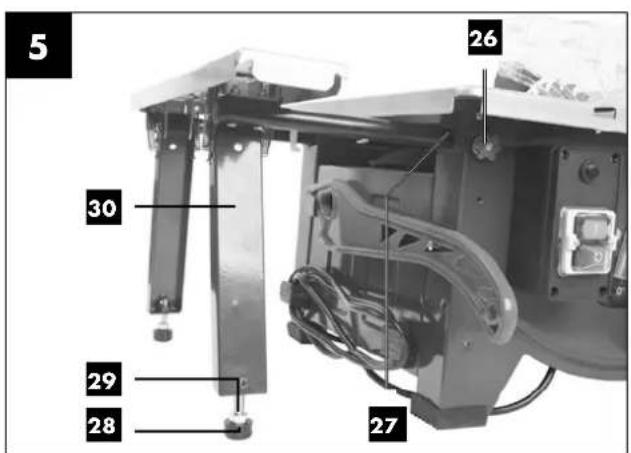

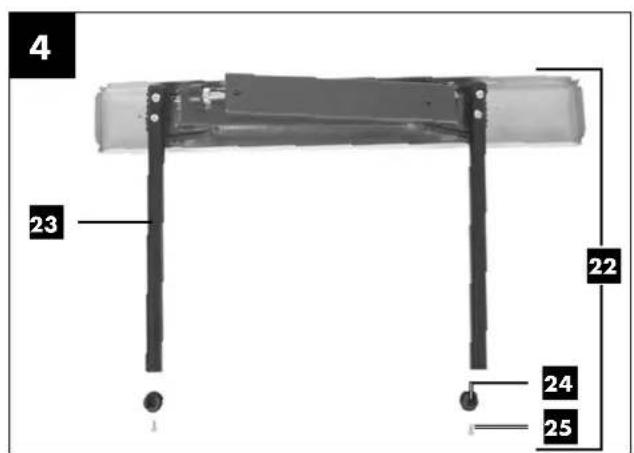

- Table width extension
- Guide tube (table width extension)
- End piece (table width extension) (2x)
- Screw (for end piece of table width extension; 2 × M3 × 8 self-tapping)
- Knurled screw (table width extension)
- Guide bushing (table width extension)
- Height adjustment screw (table width extension)
- Counternut (height adjustment screw)
- Support foot (table width extension)
- Hole (riving knife)
- Screw (table inlay)

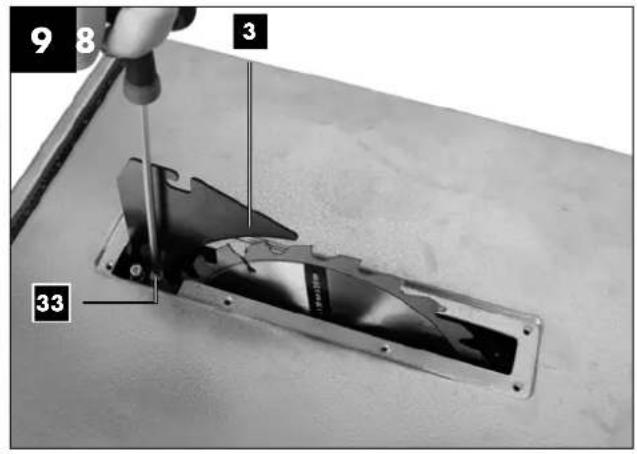

- Fixing screw (riving knife)
- Screw (saw blade cover)
- Saw blade cover

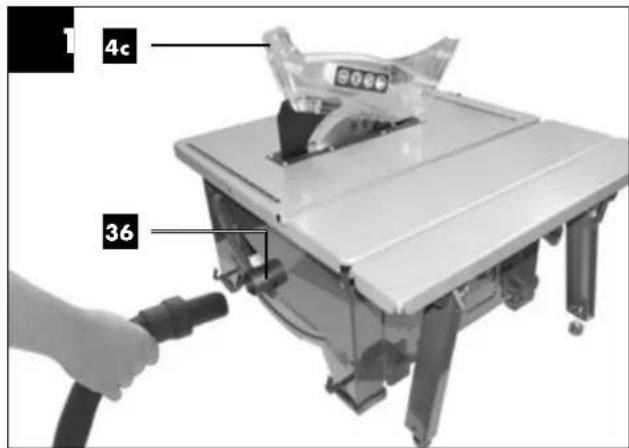

- Extraction port
- Groove (stop rail for thick material)
- Scale
- Groove (stop rail for thin material)
- Groove (saw table)
- Mains cable

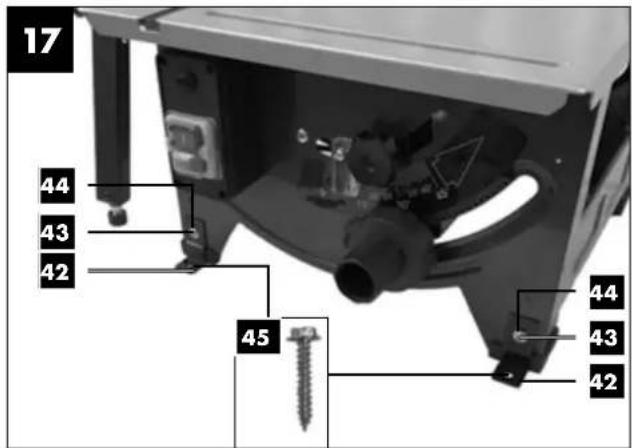

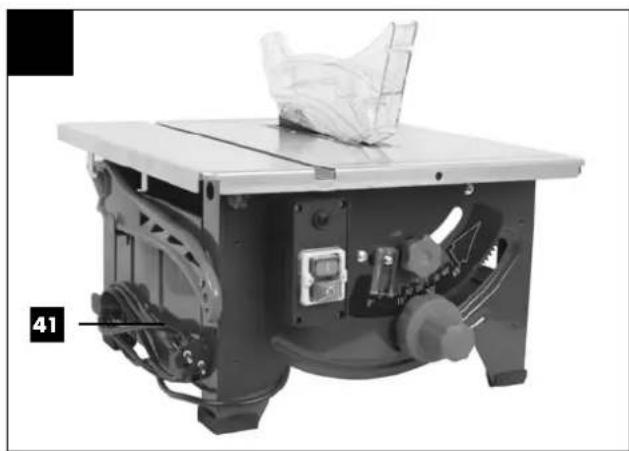

- Bracket for workbench mounting (2x)
- Screw (2x; M3x8 self-tapping)
- Washers (2x; d 4mm)
- Wood screw (for workbench mounting)
- Holder (parallel stop)

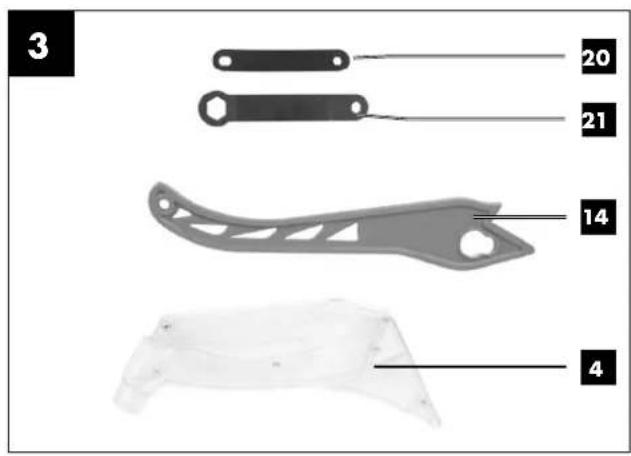

4. Scope of delivery
- Saw blade guard (4)
- Push stick (14)
- Parallel stop (7)
Transverse stop (2)
Table width extension (22)
End piece of table width extension (24) 2x - Screw for end piece of table width extension (25) 2x M3x8 self-tapping
Ring spanner 19 / 10mm (21)
Ring spanner 7 / 8mm (20) - Bracket for workbench mounting (42) 2x
- Screw M3x8 self-tapping (43) 2x
- Washers d 4mm (44) 2x
Wooden screw for workbench mounting (45) 2x - Operating manual
5. Proper use
The circular table saw is used for the longitudinal and transverse cutting (only with the transverse stop) of all types of timbers and plastic, in accordance with the machine size. It is not permitted to cut any type of round timber.
The machine may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.
Only suitable saw blades (HM or CV saw blades) may be used for the machine. The use of HSS saw blades and any type of cutting wheels is prohibited.
An element of the proper intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.
Persons who operate and maintain the machine must be familiar with the manual and must be informed about potential dangers. In addition, the applicable accident prevention regulations must be strictly observed.
Other general occupational health and safety-related rules and regulations must be observed.
ATTENTION
When using equipment, several safety warnings must be observed to prevent injuries and damage. For this reason, please carefully read this operating manual / safety instructions. Keep them in a safe place so that the information is available at all times. If you hand the device over to another person, please hand over this operating manual / safety instructions as well. We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.
The liability of the manufacturer and resulting damages are excluded in the event of modifications of the machine.
Despite use as intended, specific risk factors cannot be entirely eliminated. Due to the design and layout of the machine, the following risks remain:
- Contact with the saw blade in the exposed sawing area.
- Reaching into the running saw blade (cutting injury)
- Kick-back of workpieces and workpiece parts
- Saw blade breakage
- Ejection of faulty carbide parts of the saw blade
- Hearing damage when the necessary hearing protection is not used.
- Harmful emissions of wood dusts during use in enclosed areas.
Please note that our equipment was not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the device is used in commercial or industrial applications, or for equivalent work.
6. Safety instructions
General power tool safety warnings
WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool.
Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep your work area clean and well-lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed surfaces, such as pipes, heaters, ovens and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of elec tric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Using a fault-current circuit breaker reduces the risk of an electric shock.
3) Personal safety
4) Power tool use and care
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
WARNING
This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.
Safety instructions for table saws
Guarding related warnings
a) Keep guards in place. Guards must be in working order and be properly mounted. A guard that is loose, damaged, or is not functioning correctly must be repaired or replaced.
b) Always use saw blade guard and riving knife for every through-cutting operation. For through-cutting operations where the saw blade cuts completely through the thickness of the workpiece, the guard and other safety devices help reduce the risk of injury.
c) Immediately reattach the guarding system after completing an operation (such as rabbeting, dodoing or resawing cuts) which requires removal of the saw blade guard and/or riving knife. The guard and riving knife help to reduce the risk of injury.
d) Make sure the saw blade is not contacting the guard, riving knife or the workpiece before the switch is turned on. Inadvertent contact of these items with the saw blade could cause a hazardous condition.

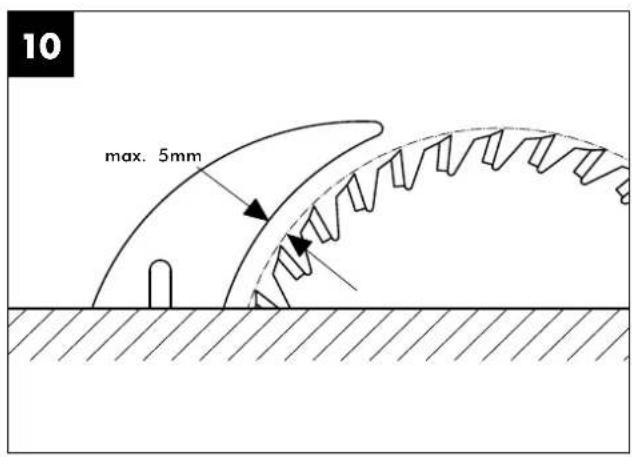

e) Adjust the riving knife as described in this instruction manual. Incorrect spacing, positioning and alignment can make the riving knife ineffective in reducing the likelihood of kickback.
f) For the riving knife to work, they must be engaged in the workpiece. The riving knife is ineffective when cutting workpieces that are too short to be engaged with the riving knife. Under these conditions a kickback cannot be prevented by the riving knife.
g) Use the appropriate saw blade for the riving knife. For the riving knife to function properly, the saw blade diameter must match the appropriate riving knife and the body of the saw blade must be thinner than the thickness of the riving knife and the cutting width of the saw blade must be wider than the thickness of the riving knife.
Cutting procedures warnings
a) DANGER: Never place your fingers or hands in the vicinity or in line with the saw blade. A moment of inattention or a slip could direct your hand towards the saw blade and result in serious personal injury.
b) Feed the workpiece into the saw blade or cutter only against the direction of rotation. Feeding the workpiece in the same direction that the saw blade is rotating above the table may result in the workpiece, and your hand, being pulled into the saw blade.
c) Never use the mitre gauge to feed the workpiece when ripping and do not use the rip fence as a length stop when cross cutting with the mitre gauge. Guiding the workpiece with the rip fence and the mitre gauge at the same time increases the likelihood of saw blade binding and kickback.
d) When ripping, always apply the workpiece feeding force between the fence and the saw blade. Use a push stick when the distance between the fence and the saw blade is less than 150~mm , and use a push block when this distance is less than 50~mm . "Work helping" devices will keep your hand at a safe distance from the saw blade.
e) Use only the push stick provided by the manufacturer or constructed in accordance with the instructions. This push stick provides sufficient distance of the hand from the saw blade.
f) Never use a damaged or cut push stick. A damaged push stick may break causing your hand to slip into the saw blade.
g) Do not perform any operation "freehand". Always use either the rip fence or the mitre gauge to position and guide the workpiece. "Freehand" means using your hands to support or guide the workpiece, in lieu of a rip fence or mitre gauge. Freehand sawing leads to misalignment, binding and kickback.
h) Never reach around or over a rotating saw blade. Reaching for a workpiece may lead to accidental contact with the moving saw blade.
i) Provide auxiliary workpiece support to the rear and/or sides of the saw table for long and/or wide workpieces to keep them level. A long and/or wide workpiece has a tendency to pivot on the table's edge, causing loss of control, saw blade binding and kickback.
j) Feed workpiece at an even pace. Do not bend or twist the workpiece. If jamming occurs, turn the tool off immediately, unplug the tool then clear the jam. Jamming the saw blade by the workpiece can cause kickback or stall the motor.
k) Do not remove pieces of cut-off material while the saw is running. The material may become trapped between the fence or inside the saw blade guard and the saw blade pulling your fingers into the saw blade. Turn the saw off and wait until the saw blade stops before removing material.
1) Use an auxiliary fence in contact with the table top when ripping workpieces less than 2 mm thick. A thin workpiece may wedge under the rip fence and create a kickback.
Kickback - causes and corresponding safety instructions
Kickback is a sudden reaction of the workpiece due to a pinched, jammed saw blade or misaligned line of cut in the workpiece with respect to the saw blade or when a part of the workpiece binds between the saw blade and the rip fence or other fixed object.
Most frequently during kickback, the workpiece is lifted from the table by the rear portion of the saw blade and is propelled towards the operator.
Kickback is the result of saw misuse and/or incorrect operating procedures or conditions. And can be avoided by taking proper precautions as given below.
a) Never stand directly in line with the saw blade. Always position your body on the same side of the saw blade as the fence. Kickback may propel the workpiece at high velocity towards anyone standing in front and in line with the saw blade.
b) Never reach over or in back of the saw blade to pull or to support the workpiece. Accidental contact with the saw blade may occur or kickback may drag your fingers into the saw blade.
c) Never hold and press the workpiece that is being cut off against the rotating saw blade. Pressing the workpiece being cut off against the saw blade will create a binding condition and kickback.
d) Align the fence to be parallel with the saw blade. A misaligned fence will pinch the workpiece against the saw blade and create kickback.
e) Use a featherboard to guide the workpiece against the table and fence when making nonthrough cuts such as rabbeting, dodoing or resawing cuts. A featherboard helps to control the workpiece in the event of a kickback.
f) Use extra caution when making a cut into blind areas of assembled workpieces. The protruding saw blade may cut objects that can cause kickback.
g) Support large panels to minimise the risk of saw blade pinching and kickback. Large panels tend to sag under their own weight. Support(s) must be placed under all portions of the panel overhanging the table top.
h) Use extra caution when cutting a workpiece that is twisted, knotted, warped or does not have a straight edge to guide it with a mitre gauge or along the fence. A warped, knotted, or twisted workpiece is unstable and causes misalignment of the kerf with the saw blade, binding and kickback.
i) Never cut more than one workpiece, stacked vertically or horizontally. The saw blade could pick up one or more pieces and cause kickback.
j) When restarting the saw with the saw blade in the workpiece, centre the saw blade in the kerf so that the saw teeth are not engaged in the material. If the saw blade binds, it may lift up the workpiece and cause kickback when the saw is restarted.
k) Keep saw blades clean, sharp, and with sufficient set. Never use warped saw blades or saw blades with cracked or broken teeth. Sharp and properly set saw blades minimise binding, stalling and kickback.
Table saw operating procedure warnings
a) Turn off the table saw and disconnect the power cord when removing the table insert, changing the saw blade or making adjustments to the riving knife or saw blade guard, and when the machine is left unattended. Precautionary measures will avoid accidents.
b) Never leave the table saw running unattended. Turn it off and don't leave the tool until it comes to a complete stop. An unattended running saw is an uncontrolled hazard.
c) Locate the table saw in a well-hit and level area where you can maintain good footing and balance. It should be installed in an area that provides enough room to easily handle the size of your workpiece. Cramped, dark areas, and uneven slippery floors invite accidents.
d) Frequently clean and remove sawdust from under the saw table and/or the dust collection device. Accumulated sawdust is combustible and may self-ignite.
e) The table saw must be secured. A table saw that is not properly secured may move or tip over.
f) Remove tools, wood scraps, etc. from the table before the table saw is turned on. Distraction or a potential jam can be dangerous.
g) Always use saw blades with correct size and shape (diamond versus round) of arbour holes. Saw blades that do not match the mounting hardware of the saw will run off-centre, causing loss of control.
h) Never use damaged or incorrect saw blade mounting means such as flanges, saw blade washers, bolts or nuts. These mounting means were specially designed for your saw, for safe operation and optimum performance.
i) Never stand on the table saw, do not use it as a stepping stool. Serious injury could occur if the tool is tipped or if the cutting tool is accidentally contacted.
j) Make sure that the saw blade is installed to rotate in the proper direction. Do not use grinding wheels, wire brushes, or abrasive wheels on a table saw. Improper saw blade installation or use of accessories not recommended may cause serious injury.
Safety instructions for the handling of saw blades
- Only use insertion tools if you have mastered their use.
- Observe the maximum speed. The maximum speed specified on the insertion tool may not be exceeded. If specified, observe the speed range.
- Observe the motor / saw blade direction of rotation.
- Do not use any insertion tools with cracks. Sort out cracked insertion tools. Repairs are not permitted.
- Clean dirt, grease, oil and water off of the clamping surfaces.
- Do not use any loose reducing rings or bushes to reduce holes on circular saw blades.
- Make sure that fixed reducer rings for securing the insertion tool have the same diameter and have at least 1/3 of the cutting diameter.
- Make sure that fixed reducer rings are parallel to each other.
- Handle insertion tool with caution. They are ideally stored in the originally package or special containers. Wear protective gloves in order to improve grip and to further reduce the risk of injury.
- Prior to the use of insertion tools, make sure that all protective devices are properly fastened.
- Prior to use, make sure that the insertion tool meets the technical requirements of this power tool and is properly fastened.
- Only use the supplied saw blade for cutting wood, never for the processing of metals.
- Use the correct saw blade for the material to be processed.
-
Use only a saw blade with a diameter that matches the specifications on the saw.
-
Use only saw blades that are marked with an equal or higher rotational speed than that marked on the power tool.
- Use only saw blades recommended by the manufacturer which conform to EN 847-1, if intended for cutting wood or similar materials.
-
Wear suitable personal protective equipment, such as:
-
Hearing protection;
-
Protective gloves when handling saw blades.
-
Only use saw blades recommended by the manufacturer which conform to EN 847-1. Warning! When changing the saw blade, ensure that the cutting width is not smaller and the width of the saw blade disc is not greater than the thickness of the riving knife!
- When sawing wood and plastics, avoid the saw teeth overheating. Reduce the feed speed in order to avoid the plastic melting.
- Please note that complex non-through cutting operations and tapered cuts are not permitted.
- Avoid bevel ripping on bevelling side of the saw blade.
Residual risks
The power tool is state-of-the-art and has been built according to the recognised technical safety regulations. However, individual residual risks can arise during operation.
- Health hazard due to electrical power, with the use of improper electrical connection cables.
- Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
- Residual risks can be minimised if the "safety instructions" and the "Proper use" are observed along with the whole of the operating instructions.
- Do not unnecessary stress the machine: too much pressure when sawing will damage the saw blade quickly. This results in reduced output of the machine in the processing and in cut precision.
- Avoid accidental starting of the machine: Do not press the on/off switch when inserting the plug into the socket.
- Use the tool that is recommended in this manual. In doing so, your saw provides optimal performance.
- Keep your hands away from the working area when the machine is in operation.
- Before performing setting or maintenance work, switch the device off and unplug the mains plug.
7. Technical data
AC motor. 220-240 V~50 Hz
Power consumption. 1200 watts (S1*)
1500 watts (S6 25 % **)
Idle speed _0 4800 rpm
Hard metal saw blade. 210 x 30 x 2.6 mm
Number of teeth 24
Riving knife thickness. 2.0 mm
Min. size of workpiece W x L x H 10 x 50 x 1 mm
Table size without table width extension. 485× 445mm
Min. table size with table width extension 485 x 515 mm
Max. table size with table width extension.....485 x 630 mm
Max. cutting height at 45^ 45 mm
Max. cutting height at 0^ 48 mm
Tilting saw blade. 0-45° left
Extraction connection. 35 mm
Weight approx. 14 kg
Machine size (with extension)
W×L×H. 485×630×440mm
- S1: Continuous operation with constant load
**S6 25%
Continuous duty with intermittent loading (operating time 10 min.) In order to avoid impermissible overheating of the motor, the motor should be driven for only 25% of the operating time with the stipulated nominal power and must then continue to run with no load for the remaining 75% of the operating time.
Noise
The noise values have been determined in accordance with EN 62841.
Sound pressure level L_pA 87.5 dB(A)
Uncertainty K 3 dB
Sound power level L_WA 100.5 dB(A)
Uncertainty K. 3 dB
Wear hearing protection.
Excessive noise can result in a loss of hearing. Total vibration values (vector sum of three directions) determined according to EN 62841.
NOTE:
The specified device emissions values have been measured in accordance with a standardised test procedure and can be used for comparison of one power tool with another.
The specified device emissions values can also be used for an initial estimation of the load.
WARNING:
The noise emission values can vary from the specified values during the actual use of the power tool. This depends on the type and the manner in which the power tool is used, and in particular the type of workpiece being processed. Implement measures to protect against noise nuisance. In doing so, take into account the complete working process, including the times when the power tool is working without load or switched off.
Suitable measures include regular maintenance and care of the power tool and the insertion tools, regular breaks as well as proper planning of the working process.
8. Before commissioning
- Open the packaging and carefully remove the device.
- Remove the packaging material, as well as the packaging and transport safety devices (if present).
- Check whether the scope of delivery is complete.
- Check the device and accessory parts for transport damage.
If possible, keep the packaging until the expiry of the warranty period.
WARNING
The device and the packaging are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!
- The machine must be securely installed (see 9.9).
- Prior to commissioning, all covers and safety devices must be mounted correctly.
- The saw blade must be able to run freely.
- In case of previously machined wood, be aware of any foreign bodies, such as nails or screws, etc.
- Before pressing the on/off switch, make sure that the saw blade is correctly fitted, and that moving parts run smoothly.
- Before connecting the machine, make certain that the data on the type plate matches with the mains power data.
- Only connect the machine to a correctly installed protective contact socket, with fuse protection of at least 16 A.
9. Assembly
WARNING:
Remove the mains plug before maintaining, modifying or assembling the circular table saw.
9.1 Fitting the table width extension (fig. 4-6)
- Loosen the knurled screws (26) (fig. 5).
ATTENTION:
Do not unscrew the knurled screws (26) too far.
- Feed the guide tubes (23) of the table width extension (22) into the guide bushings (27) (see fig. 4/5).
NOTE:
To do this, lay the saw on its side.
- Slide the end pieces (24) into the guide tubes (23) of the table width extension (22) as shown in fig. 6. Make sure that one of the two wings of the end pieces (24) can be clamped by the screw (25) via the screw hole in the guide tube (23).
- Fasten the end pieces (24) with the screws (25) as shown in Fig. 6.
- Pull the table width extension (22) out completely and fasten it with the knurled screws (26) (fig. 5).
- Now fold out the support feet (30).
-
Align the table width extension (22) horizontally with the table saw.
-
Loosen the counternut (29) on the respective support foot (30) and adjust the height adjustment screw (28) as required.
- Then, fighten the counternut (29) again.
If you do not need the table width extension (22), fold the support feet (30) in. In addition, push the table width extension (22) all the way in.
9.2 Saw blade guard
WARNING:
Pull out the mains plug and wear protective gloves.
9.2.1 Fitting/removing the saw blade guard (fig. 7)
- Undo the wing nut (4a) of the saw blade guard (4). Slide the coach bolt (4b) in the guide until the groove (A) of the pin is visible in the opening.
- Place the saw blade guard (4) onto the riving knife (3) from above so that the pin sits firmly in the recess of the riving knife (31).
- Slide the pin into the guide so that the carriage bolt (4b) engages in the opening provided for it.
- Turn the wing nut (4a) clockwise to secure the saw blade guard in the correct position.
- Ensure that the saw blade guard (4) can move freely.
- Disassembly takes place in reverse order.
WARNING
Danger of injury due to incorrectly mounted saw blade guard
- Before starting sawing, ensure that the saw blade guard (4) lowers automatically onto the material to be sawn.
9.2.2 Checking the saw blade guard
After fitting, check that the saw blade guard (4) is functioning properly.
- Lift the saw blade guard (4) and then release it.
- The saw blade guard should automatically move back to its starting position.
9.3 Fitting/removing the table inlay (fig. 8)
WARNING:
Pull out the mains plug and wear protective gloves. In the event of wear or damage the table inlay (6) must be replaced; otherwise there is an increased danger of injury.
- Move the saw blade into the bottom position (see 10.2).
- Remove the saw blade guard (4) (see 9.2.1).
- Remove the screws of the table inlay (32).
- Remove the table inlay (6).
- Installation of the table inlay (6) takes place in reverse order.
If the table inlay (6) is damaged, it can be reordered calling the service number provided in the warranty certificate.
Article number of the table inlay (6):3901309092
9.4 Adjusting the riving knife (fig. 9, 10)
WARNING:
Pull out the mains plug and wear protective gloves.
WARNING:
The setting of the saw blade (5) must be checked after every saw blade replacement.
- Remove the saw blade guard (4) (see 9.2.1).
- Remove the table inlay (6) (see 9.3).
- Set the saw blade (5) to the max. cutting depth (see 10.2).
- Move the saw blade (5) to the 0^ position and lock it in place (see 10.3).
- Loosen the fixing screws (33) on the riving knife.
- Align the riving knife (3) such that a) the distance between the saw blade (5) and the riving knife (3) is max. 5 mm (fig. 10) and b) the saw blade (5) is parallel to the riving knife (3).
- Tighten the fixing screws (33) on the riving knife again.
- Fit the table inlay (6) again (see 9.3).
- Fit the saw blade guard (4) again (see 9.2.1).
9.5 Fitting/replacing the saw blade (fig. 11, 12)
WARNING:
Pull out the mains plug and wear protective gloves.
- Set the saw blade (5) to the maximum cutting depth (see 10.2).

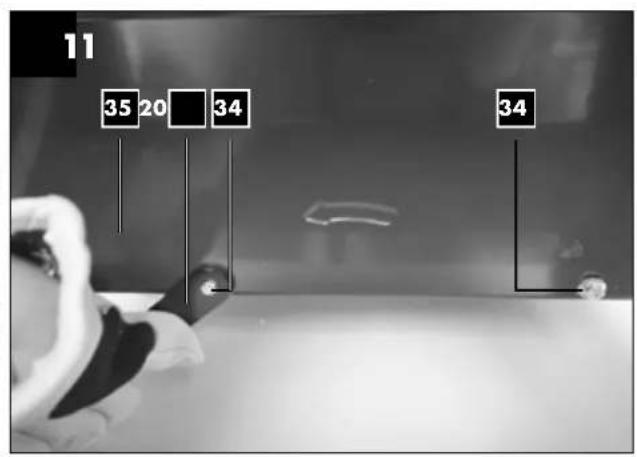

- Undo the screws (34) of the bottom saw blade cover (35) (fig. 11). Do not remove the screws completely.
- Push the saw blade cover (35) upwards and open it.
- Place a 19mm ring spanner (21) on the nut. Hold against the motor shaft with another 8mm ring spanner (20) (fig. 12). To loosen, turn the nut in the rotation direction of the saw blade.
- Take off the outer flange and pull the old saw blade down and off the inner flange at an angle.
- Clean the saw blade flange carefully with a wire brush before installing the new saw blade.
- Put the new saw blade back in reverse order and tighten it.
WARNING:
Pay attention to the running direction. The cutting angle of the teeth must point in the running direction, i.e. forwards (see arrow on the saw blade cover (35) or the saw blade guard (4)).
- Close the lower saw blade cover (35) and re-tighten the screws (34).
WARNING:
Check the protective devices before working with the saw again.

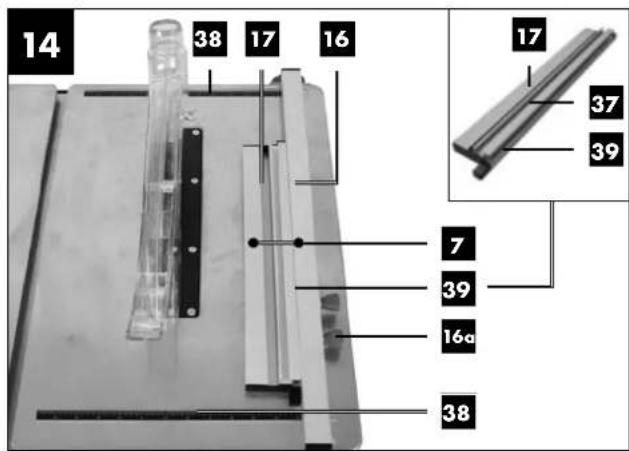

9.6 Fitting the parallel stop (7) (fig. 2, 13-14)
- Fasten the holder (16) to the table with the help of the locking screws (15) and the clamping plates (15a).
- Make sure that the holder (16) is aligned parallel to the saw blade (5). If necessary, readjust it with the aid of the scales (38).
- Fasten the stop rail (17) to the holder (16) with the help of the screws (16a). Note the use of the stop rail (17) for thick and thin workpieces (see 10.4)
9.7 Fitting the transverse stop (fig. 15)
As an alternative to the parallel stop (7), the transverse stop (2) can be mounted:
- Slide the transverse stop (2) into the groove (40) of the saw table (1).
- Loosen the turning handle (19).
- Turn the transverse stop (2) until the arrow points to the desired angle.
- Tighten the turning handle (19) again.
- Fasten the stop rail (17) with the help of the knurled screws (18) on the transverse stop (2). Note the use of the stop rail (17) for thick and thin workpieces (see 10.4)
9.8 Chip extraction (fig. 16)
ATTENTION:
Only operate the device with an extraction system.
Connect a suitable chip extraction system (not included in the scope of delivery) to the extraction port (36).
A household vacuum cleaner is not suitable for use as an chip extraction system.
ATTENTION:
Check and clean the extraction channels at regular intervals.
NOTE:
To use both extraction nozzles (36 and 4c) at the same time, use the accessory extraction hose with T-adapter.
Article number: 7901301701 (not included in the scope of delivery)
9.9 Stable fastening (fig. 17)
The machine must be securely installed, i.e. it must be bolted down on a workbench, machine stand or similar, as shown in fig. 17.
- Attach the two brackets for workbench mounting (42) to the front of the machine. Therefore use the screws (43) and the washers (44).
- Use the wood screws (45) to screw the machine on the workbench.
10. Handling
10.1 Switch (fig. 1)
10.1.1 On/off switch (11)
- It is possible to switch the saw on by pressing the green "1" button. Before starting sawing, wait until the saw blade has reached its maximum speed.
- In order to switch the saw off again, it is necessary to press the red "0" button.
10.1.2 Overload switch (10)
In the event of overloading, the motor will switch itself off. After a cool-down period (time varies) the motor can be switched back on again.
- Allow the product to cool.
- Press the overload switch (10).
- Switch on the machine as described in 10.1.1.
10.2 Setting the cutting depth (fig. 1)
The saw blade (5) can be adjusted to the required cutting depth by turning the hand wheel (8).
- Counterclockwise: Greater cutting depth
- Clockwise: Smaller cutting depth
Check the setting with a test cut.

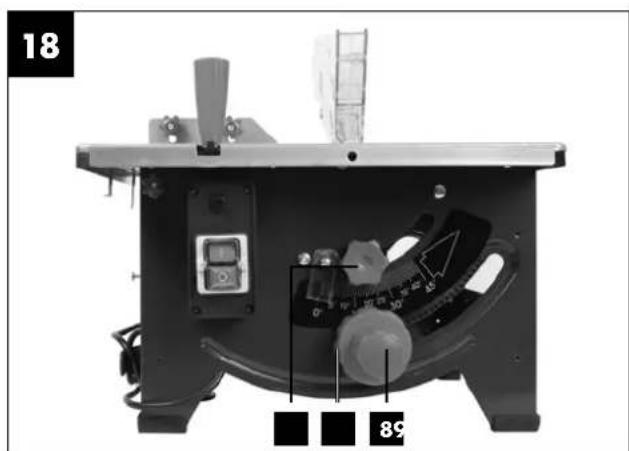

10.3 Setting the angle (fig. 18)
Angled cuts of 0^ - 45^ to the left of the parallel stop (7) can be carried out with the circular table saw.
Before making every cut, check that no collision can occur between the stop rail (17), transverse stop (2) and the saw blade (5).
- Loosen the locking screw (9).
- Set the desired angle on the scale by turning the hand wheel (8a).
- Lock the locking screw (9) at the desired angle setting.
10.4 Using the stop rail (17) on the parallel stop (7) or transverse stop (2) (fig. 2, 13-14) (see 9.6 and 9.7)
10.4.1 Stop heights (fig. 13-14)
The stop rail (7) has two guide surfaces at different heights.
- Depending on the thickness of the materials to be cut, the stop rail (17) must be used as follows:
- for thick material with a workpiece thickness of more than 25mm see fig.13
- for thin material with a workpiece thickness of less than 25 mm, see fig. 14
10.4.2 Shifting the stop rail (fig. 13-14)
- To move the stop rail (17) to the lower guide surface, loosen the two screws (16a). Then loosen the stop rail (17) from the holder (16).
- Pull out the stop rail (17) along the groove.
- Turn the stop rail (17) and slide the sliding block along the second groove (39).
- Shifting to the higher guide surface must be carried out in the same way.
10.4.3 Cutting width (fig. 13-14)
- The parallel stop (7) must be used when cutting sections of wood lengthways.
- The parallel stop (7) can be mounted on both sides of the saw table (1).
- With the help of the scales (38) on the saw table (1), the parallel stop (7) can be set to the required dimension with the stop rail (17).
- Tighten the two locking screws (15) to fasten the parallel stop (7) in place.
- Perform a test cut to measure the width before cutting the real workpiece. In this way you avoid inaccuracies with the scale or the setting.

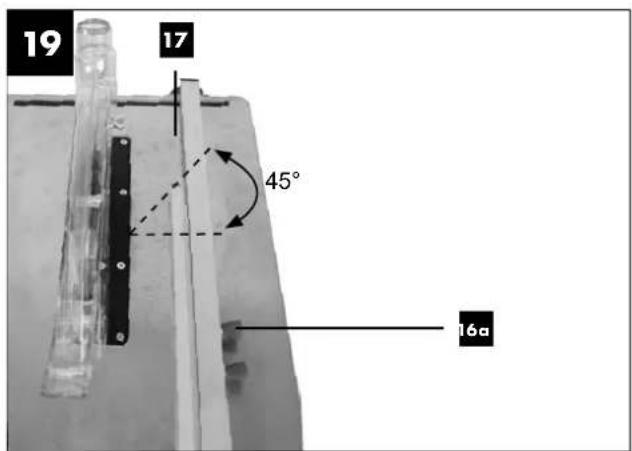

10.4.4 Setting the stop length (fig. 13-14, 19)
In order to avoid the material to be cut becoming jammed, the stop rail (17) can slide in a longitudinal direction.
Rule of thumb: The rear edge of the stop should intersect an imaginary line that starts roughly at the centre of the saw blade and runs to the rear at 45^ .
- Set the required cutting width.
- Loosen the screws (16a) and push the stop rail (17) forward until the imaginary 45^ line is touched.
- Tighten the screws (16a) again.
10.5 Using the transverse stop (fig. 15)
When trimming, the transverse stop (2) must be extended from the parallel stop (7) with the stop rail (17) (fig. 15).
10.5.1 Extending the transverse stop
- Remove the stop rail (17) from the parallel stop (7). To do so, loosen the screws (16a) and release the stop rail (17) from the holder (16).
- Slide the sliding block along the groove in the stop rail (17).
- Fasten the stop rail (17) with the help of the knurled screws (18) on the transverse stop (2).
ATTENTION:
Do not slide the stop rail too far in the direction of the saw blade. The distance between the stop rail (17) and the saw blade (5) needs to be approx. 2cm .
11. Operation
Working instructions
After every new setting, we recommend performing a test cut, in order to check the dimensional settings.
- After switching on the saw, wait until the saw blade has reached its max. speed before making the cut.
- Be careful when cutting in.
- Only operate the device with an extraction system.
- Check and clean the extraction channels at regular intervals.

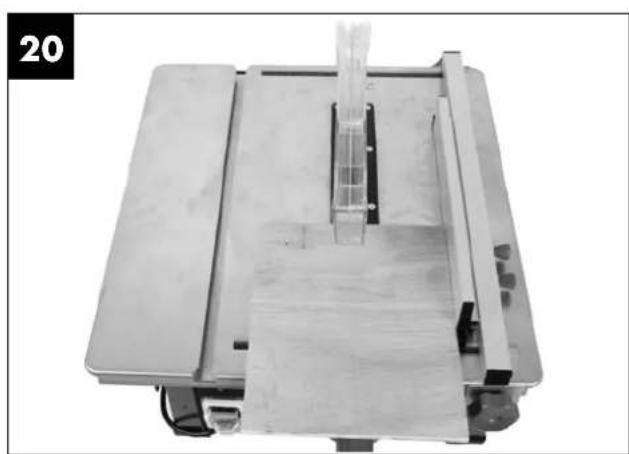

11.1 Performing longitudinal cuts (fig. 20)
Here, a workpiece is cut in its longitudinal direction. Hold the edge of the workpiece against the parallel stop (7), whilst the flat side lies on the saw table (1).
Ensure that the saw blade guard (4) always lowers onto the workpiece. The working position for the longitudinal cut must never be in line with the cutting process.
- Adjust the parallel stop (7) according to the workpiece height and the desired width (see 10.4).
- Switch the saw on.
- Place your hands flat on the workpiece with your fingers closed and slide the workpiece along the parallel stop (7) into the saw blade (5).
- Lateral guidance with the left or right hand (depending on the position of the parallel stop) only up to the front edge of the saw blade guard (4).
- Always push the workpiece through to the end of the riving knife (3).
- The cutting waste remains on the saw table (1) until the saw blade (5) has completely stopped.
Attention:
To remove the cutting waste, first switch off the saw and wait for the saw blade (5) to stop.
- Secure larger workpieces against tipping after the cutting process (for example a reel-off stand etc.).
ATTENTION:
The parallel stop must be set parallel with the saw blade (see 9.6). Check the alignment. Ensure that the parallel stop is firmly seated at regular intervals during use and after longer periods not in use. Tighten the screw again and adjust the parallel stop (see 10.4.3) if necessary. Vibrations can loosen screws and change the position of the parallel stop.
11.1.1 Cutting narrow workpieces (fig. 21)
Be sure to use a push stick (14) when making longitudinal cuts in workpieces smaller than 120mm in width. The push stick (14) is included in the scope of delivery! Replace worn or damaged push stick (14) immediately.
- Adjust the parallel stop (7) according to the predefined workpiece width (see 10.4).
- Push the workpiece with both hands. Always use a push stick (14) in the area of the saw blade as a pushing aid.
- Always push the workpiece through to the end of the riving knife (3).
WARNING:
With short workpieces, use the push stick (14) from the beginning.

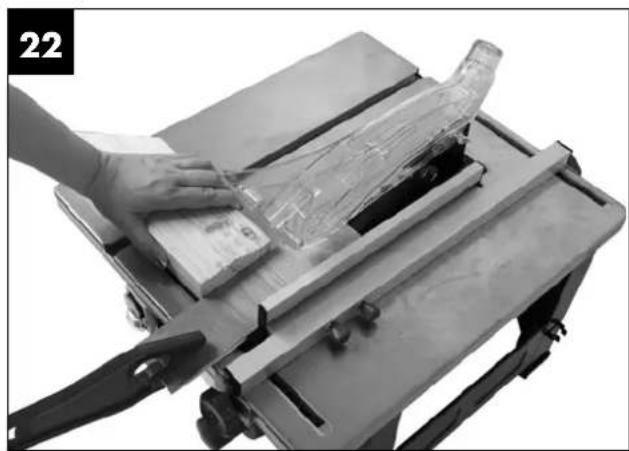

11.1.2 Cutting extremely narrow workpieces (fig. 22)
Be sure to use a wooden push block when making longitudinal cuts in very narrow workpieces with a width of 30mm and less. The wooden push block is not included in the scope of delivery! (Available from your specialist dealer) Replace the wooden push block without delay when it becomes worn.
During sawing, workpieces can become jammed between the parallel stop and the saw blade, caught by the saw blade and then ejected at speed. For this reason, the lower guide surface of the parallel stop should be favoured (see fig. 14). Shift the stop rail if required (see 10.4.2).
- Adjust the parallel stop according to the cutting width of the workpiece.
- Use the wooden push block to press the workpiece against the stop rail and use the push stick (14) to push the workpiece through to the end of the riving knife.
Never use the wooden push block to press the workpiece against the saw blade (5). There is a risk of jamming or kickback.

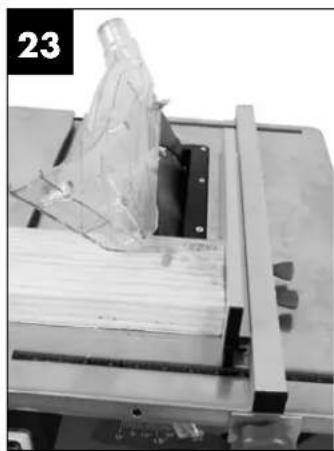

11.1.3 Performing angled cuts (fig. 23)
Angled cuts are always made using the parallel stop (7). The parallel stop (7) must always be fitted to the right of the saw blade. Otherwise, workpieces can become jammed between the parallel stop and the saw blade during sawing and ejected at speed.
- Set the saw blade (5) to the desired angle (see 10.3).
- Adjust the parallel stop (7) according to the workpiece height and the desired width (see 10.4).
- Make the cut according to the workpiece width (see 11.1).

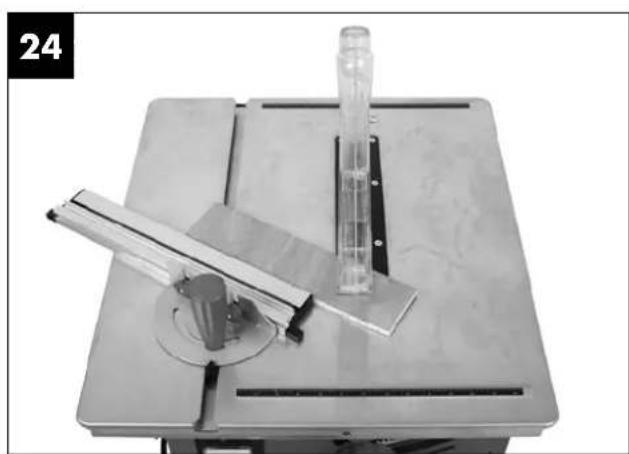

11.2 Performing longitudinal cuts (fig. 24)
- Slide the transverse stop (2) into the groove (40) of the saw table and set it to the required angle (see 10.5).
- Use the stop rail (17)
- Firmly press the workpiece against the transverse stop (2).
- Switch the saw on.
- To make the cut, slide the transverse stop (2) and the workpiece in the direction of the saw blade (5).
WARNING: Always firmly hold the guided workpiece firmly, never the workpiece that has been cut off.
- Push the transverse stop (2) until the workpiece has reached the end of the riving knife (3).
- Switch the saw off again.
- Do not remove the cutting waste until the saw blade has returned to its resting position.
11.3 Cutting chipboard
The saw blade (5) must not be set higher than 5mm above the thickness of the workpiece (see also 10.2). This prevents the cutting edges from breaking when cutting chipboards.
12. Transport (fig. 25, 26)
- Always switch off the electrical tool before transport and disconnect it from the power supply.
- Lower the saw blade (5) as far as possible.
- Wind up the mains cable (41).
- Place the parallel stop (7) in the holder (46) provided.
- Carry the power tool with both hands by the fixed saw table (1). Never use the table width extension to carry the power tool.
- Protect the electrical tool from impacts, shocks and severe vibrations, e.g. during vehicular transport.
- Secure the power tool against toppling and slipping.
- Never use protective devices for handling or transport.
13. Maintenance
WARNING:
Pull out the mains plug before carrying out any adjustments, maintenance or repair work!
13.1 General maintenance tasks
- Keep protective devices, air vents, extraction openings and the motor housing as free of dust and dirt as possible. Remove shavings and dust with a vacuum cleaner and a brush. In addition, blow it out with low-pressure compressed air.
- We recommend that you clean the device directly after every use.
- Clean the device at regular intervals using a damp cloth and a little soft soap. Do not use aggressive cleaning agents or solvents; they could attack the plastic parts of the device. Make sure that no water can penetrate the device interior.
- Oil the rotating parts once monthly to extend the life of the tool. Do not oil the motor.
13.2 Carbon brushes
- If excessive sparks are generated, have an electrician check the carbon brushes. Attention! The carbon brushes must only be replaced by an electrician.
Service information
With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.
Wearing parts*: carbon brushes, table inlay, push stick, saw blade
- may not be included in the scope of supply!
14. Storage
Store the device and its accessories in a dark, dry and frost-free place that is inaccessible to children. The optimum storage temperature is between 5 and 30^ .
Store the power tool in its original packaging.
Cover the power tool to protect it from dust or moisture.
Store the operating manual with the power tool.
15. Electrical connection
The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions. The customer's mains connection as well as the extension cable used must also comply with these regulations.
Important information
In the event of overloading, the motor will switch itself off. After a cool-down period (time varies) the motor can be switched back on again.
Damaged electrical connection cable
The insulation on electrical connection cables is often damaged.
This may have the following causes:
- Pressure points, where connection cables are passed through windows or doors.
- Kinks where the connection cable has been improperly fastened or routed.
- Places where the connection cables have been cut due to being driven over.
Insulation damage due to being ripped out of the wall outlet. - Cracks due to the insulation ageing.
Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.
Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnected from electrical power when checking for damage.
Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables with designation "H05VV-F".
The printing of the type designation on the connection cable is mandatory.
If it is necessary to replace the connection cable, this must be done by the manufacturer or their representative to avoid safety hazards.
AC motor
The mains voltage must be 220 - 240V
- Extension cables up to 25m long must have a cross-section of 1.5mm^2
Connections and repair work on the electrical equipment may only be carried out by electricians.
Please provide the following information in the event of any enquiries:
- Type of current for the motor
Machine data - type plate
16. Disposal and recycling
The device is supplied in packaging to avoid transport damages. This packaging is raw material and can thus be used again or can be reintegrated into the raw material cycle.
The device and its accessories are made of different materials, such as metal and plastic. Take defective components to special waste disposal sites. Check with your specialist dealer or municipal administration!
The packaging is wholly composed of environmentally-friendly materials that can be disposed of at a local recycling centre.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out electrical devices.
Old devices must not be disposed of with household waste!
This symbol indicates that this product must not be disposed of together with domestic waste in compliance with the Directive (2012/19/EU) pertaining to waste electrical and electronic equipment (WEEE). This prod
uct must be handed over at the intended collection point. This can be done, for example, by returning it when purchasing a similar product or delivering it to an authorised collection point for the recycling of old electrical and electronic devices. Improper handling of waste equipment may have negative consequences for the environment and human health due to potentially hazardous substances that are often contained in electrical and electronic equipment. By properly disposing of this product, you are also contributing to the effective use of natural resources. You can obtain information on collection points for waste equipment from your municipal administration, public waste disposal authority, an authorised body for the disposal of waste electrical and electronic equipment or your waste disposal company.
17. Troubleshooting
| Fault Possible cause Remedy | ||
| Saw blade is loose after the motor is switched off | Fixing nut not tight enough Tighten fixing nut, right-hand thread | |
| Motor does not start Mains | fuse blown Check mains fuse | |
| Extension cable defective Replace the extension cable | ||
| Connection to the motor or switch not OK Have this checked by an electrician | ||
| Motor or switch faulty Have this checked by an electrician | ||
| Motor not supplying power, fuse tripping | Cross section of the extension cable insufficient See "Electrical connection" | |
| Overload due to blunt saw blade Replacing the saw blade | ||
| Burnt areas on the cutting surface | Blunt saw blade Have an authorised sharpening service sharpen the saw blade or replace it | |
| Incorrect saw blade Replace saw blade | ||
18. Warranty certificate
Dear Customer,
All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under the service number printed below. Please note the following terms under which guarantee claims can be made:
These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.
- Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device.
The guarantee is rendered null and void if any attempt is made to tamper with the device.
- The guarantee is valid for a period of 3 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.
In order to assert your guarantee claim, please contact the service partner shown below. If the complaint is within the guarantee period, we will provide you with a return slip, with which you can return your defective device free of charge to us. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.
Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.
Service-Hotline (GB):
+80040034003
(0,00 EUR/Min.)
Service-Email (GB):
service.GB@scheppach.com
Service Address (GB):
Forest Park & Garden
Coed Court, Taffsmead Road
Treforest, Ind. Estate, Pontypridd CF375SW
At www.lidl-service.com you can download this and many more manuals, product videos plus installation software.
The QR code takes you directly to the Lidl service page (www.lidl-service.com) and you can open your operat-ing manual by entering the article number (IAN) 367465_2101.
Standard references:
EN 62841-1:2015; EN 62841-3-1:2014/A11:2017; EN 55014-1:2017; EN 55014-2:2015; EN 61000-3-2:2014; EN 61000-3-3:2013
Subject to change without notice
Documents registrar: Thomas Schuster Gunzburger Str. 69, D-89335 Ichenhausen
