Product Type	Rechargeable lithium-ion battery
Brand	Parkside
Model	PAPK 12 B1
Technology	Lithium-ion
Rated voltage	12 V (DC)
Actual voltage	10.8 V
Capacity	4000 mAh / 48 Wh
Number of cells	6
Compatible charger	X12V Team series fast charger (PLGK 12 A1/B2, not included)
Charging time (with suitable charger)	Approximately 60 minutes
Charging temperature range	10 °C to 40 °C
Storage temperature range	0 °C to 50 °C
Recommended storage humidity	Cool and dry
Optimal charge level for long-term storage	50% to 80%
Intended use	For Parkside tools and X12V Team chargers, private use
Warranty	3 years (see conditions in the manual)
Package contents	1 battery, 1 instruction manual
Protection rating	IP not specified

Frequently Asked Questions - PAPK 12 B1 PARKSIDE

Which chargers can I use with the PAPK 12 B1 battery?

Use only Parkside X12V Team series fast chargers, such as PLGK 12 A1 or B2. Chargers are sold separately.

What is the charging time of the battery?

With the suitable fast charger (e.g., PLGK 12 B2), charging time is approximately 60 minutes.

Can I use this battery with tools from other brands?

No, this battery is designed exclusively for Parkside X12V Team tools. Use with other brands may pose risks.

How should I store the battery if I don't use it for a long time?

Store it in a clean, dry place away from sunlight. The optimal charge level for storage is between 50% and 80%, and the ideal temperature is between 0 °C and 50 °C.

What is the warranty of this battery?

The battery comes with a 3-year warranty from the date of purchase, subject to the conditions described in the manual.

Can I dispose of the battery with household waste?

No, used batteries must be recycled in accordance with Directive 2006/66/EC. Dispose of them at a suitable collection point.

What should I do if the battery does not charge?

Check the ambient temperature (must be between 10 °C and 40 °C), the condition of the charger and contacts. If the problem persists, contact customer service.

Is the battery suitable for professional use?

No, this battery is intended for private use only. Professional use voids the warranty.

How do I know when the battery is fully charged?

The green charge control LED on the charger lights up when charging is complete.

Can I order a replacement battery?

Yes, you can order a replacement battery via the website www.kompernass.com or by phone from customer service.

USER MANUAL PAPK 12 B1 PARKSIDE

Black cylindrical battery with a base, no visible text or symbols on the body

AKKU 4 Ah / 4 Ah BATTERY BATTERIE 4 Ah PAPK 12 B1

DE AT CH

AKKU 4 Ah

Bedienungsanleitung

FR BE

BATTERIE 4 Ah

Mode d'emploi

PL

AKUMULATOR 4 Ah

Instrukcja obstugi

SK

AKUMULÁTOR 4 Ah

Návod na obsluhu

GB IE

4 Ah BATTERY

Operating instructions

NL BE

ACCU 4 Ah

Gebruiksaanwijzing

CZ

AKUMULÁTOR 4 Ah

Návod k obsluze

IAN 331417_1907

GB/IE Operating instructions Page 21

A

LadezeitenChargingtimesTempsde charge	2 AhAkkuPAPK 12 A1Battery packBatterie	2 AhAkkuPAPK 12 A2Battery packBatterie	4 AhAkkuPAPK 12 B1Battery packBatterie
LadeströmeChargingcurrentsCourantsde charge
max. 2,4 ALadegerätPLGK 12 A1ChargerChargeur	60 min2,4 A	60 min2,4 A	120 min2,4 A
max. 4,5 ALadegerätPLGK 12 B2ChargerChargeur	60 min2,4 A	45 min3,5 A	60 min4,5 A

All Parkside tools and the chargers PLGK 12 A1/B2 of the X12V Team series are compatible with the PAPK 12 A1/A2/B1 battery pack.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Entsorgung

Simple line drawing of a three chasing recycling symbol (no text or labels)

Silhouette of a person disposing of trash into a bin (no text or symbols)

Symbolic icon of a person walking with arrows, enclosed in a circle (no text or symbols)

Black industrial battery pack with visible model number X126Y-TUAN (no text or symbols on body)

HINWEIS

General safety instructions ..... 25

Extended safety guidelines....27

Charging the battery pack (see fig. A) 28

Maintenance and storage ..... 29

Kompernass Handels GmbH warranty 30

Service....34

Importer 34

Disposal....35

Notes on the EC Declaration of Conformity .... 37

Ordering a replacement battery.....38

Telephone ordering 39

Introduction

Congratulations on the purchase of your new appliance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Intended use

This rechargeable battery is suitable for:

This rechargeable battery is not intended for commercial use. Any other usage of or modification to the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage attributable to misuse.

Features

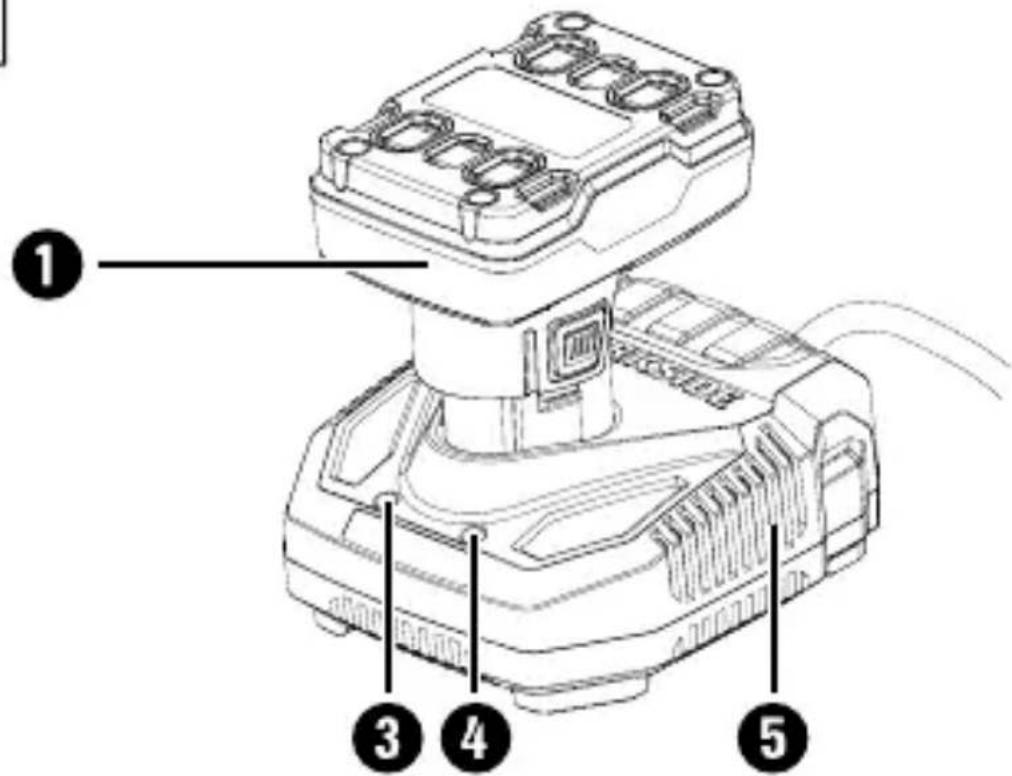

①Batterypack
② Releasebuttons
3 Red charge control LED
4 Green charge control LED
5 High-speed charger (not supplied)

Package contents

1 battery
1 set of operating instructions

Technical specifications

PAPK 12 B1

TypeLITHIUMION

Rated voltage 12 V

= (DC)

Capacity 4000 mAh/48 Wh

Cells 6

Use only X12V Team Series high-speed battery chargers to charge the battery pack:

(not supplied)

High-speed battery charger PLGK 12 B2

INPUT

Rated current 220 - 240 V \~,

50 - 60 Hz

(AC)

Rated power consumption 75 W

OUTPUT

Rated voltage 12 V

= (DC)

Rated current 4500 mA

Charging time approx. 60 min

Fuse (internal) 3.15 A

ProtectionclassII/ (double insulation)

ATTENTION!

This charger can only charge the following batteries: PAPK 12 A1/PAPK 12 A2, PAPK 12 B1.
▶ A current list of battery compatibility can be found at www.lidl.de/Akku.

General safety instructions

WARNING!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

a) Charge a rechargeable battery unit using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is the danger of fire if other types of rechargeable battery units are used.

b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire.

c) When they are not being used, store rechargeable battery units away from paperclips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire.

d) Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns.

ON! RISK OF EXPLOSION! Never charge non-rechargeable batteries.

ct the rechargeable battery from heat; for example, from continuous exposure to sunlight, fire, water and moisture.

There is a risk of explosion.

Extended safety guidelines

• Do not use a damaged or modified battery. Damaged or modified batteries may behave unexpectedly and cause fires, explosions or pose a risk of injury.
• Do not expose a battery to fire or excessively high temperatures. Fire or temperatures in excess of 130°C (265°F) can cause an explosion.
  ■ Follow all instructions regarding charging and never charge the battery or the cordless tool outside the temperature range given in the operating instructions.

Incorrect charging or charging outside of the permissible temperature range can destroy the battery and increase the risk of fire.

Charging the battery pack (see fig. A)

CAUTION!

▶ Always unplug the appliance before you remove the battery pack from or connect the battery pack to the charger.

NOTE

▶ Never charge the battery pack if the ambient temperature is below 10^ C or above 40^ C. If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The storage climate should be cool and dry and the ambient temperature should be between 0^ C and 50^ C.

◆ Insert the battery pack① into the high-speed charger ⑤
◆ Insert the power plug into the socket. The charge control LED ③ lights up red.
- The green charge control LED ^4 indicates that charging is complete and the battery pack is ready for use.

◆ Push the battery pack1 into the appliance.

Switch the high-speed charge 5 off for at least 15 minutes between successive charging processes. Also disconnect the power plug from the mains power socket.

Maintenance and storage

If you do not intend to use the battery for an extended period, remove it from the appliance and store it in a clean, dry place out of direct sunlight.

If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80% . The optimum storage environment is cool and dry.

■ Never try to repair damaged batteries.

Maintenance of batteries should only be carried out by the manufacturer or an approved customer service centre.

KompernassHandelsGmbH warranty

Dear Customer,

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred. If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

The warranty period does not apply to

■ Normal reduction of the battery capacity over time
■ Commercial use of the product
■ Damage to or alteration of the product by the customer
■ Non-compliance with safety and maintenance instructions, operating errors
■ Damage caused by natural hazards

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.

- You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 123456.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 331417_1907

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Disposal

Simple line drawing of a three chasing recycling symbol (no text or labels)

The packaging protects the appliance from damage during transport. The packaging materials have been selected for their environmental friendliness and disposal attributes, and are therefore recyclable.

Returning the packaging into the material cycle conserves raw materials and reduces the amount of waste generated. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

Do not dispose of batteries in your normal household waste!

Defective or worn-out rechargeable batteries must be recycled according to Directive 2006/66/EC. Take the battery pack and/or appliance to a nearby collection facility.

Please consult your local authorities regarding suitable disposal of worn-out power tools/battery packs.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: plastics,

20- 22: paper and cardboard,

80-98: composites.

Silhouette of a person disposing of trash into a bin (no text or symbols)

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Symbolic icon of a person walking inside a circular arrow, with no text or numbers present.

The product is recyclable, subject to extended producer responsibility and is collected separately.

Notes on the EC Declaration of Conformity

This appliance complies with the essential requirements and other relevant provisions of the RoHS Directive 2011/65/EU*.

The complete original Declaration of Conformity is available from the importer.

CE

* The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.

Ordering a replacement battery

If you want to order a replacement battery for your appliance, you can do so easily via the Internet on www.kompernass.com or by telephone.

Due to limited stocks, this item may sell out in a relatively short time.

Black industrial battery with visible model number X12V (no text or symbols on body)

NOTE

▶ Online ordering of replacement parts might not be possible in some countries. If this is the case, please contact the Service hotline.

Telephone ordering

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

To ensure fast processing of your order, have the article number of your appliance to hand (e.g.

IAN 331417) in case of questions. The article number can be found on the type plate or the title page of these instructions.

Table des matières

Introduction....42

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Recyclage

Simple line drawing of a three chasing recycling symbol (no text or labels)

Silhouette of a person disposing of trash into a bin (no text or symbols)

Abstract black-and-white icon depicting a person walking with arrows, enclosed in a circle (no text or symbols)

Black industrial battery pack with visible model number X12V (no text or symbols on body)

REMARQUE

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Afvoeren

Simple line drawing of a three chasing recycling symbol (no text or labels)

Silhouette of a person sorting trash into a bin (no text or symbols)

Symbolic icon of a person walking inside a circular arrow, with no text or numbers present.

Black industrial battery with visible model number X12V on top (no text or symbols on body)

OPMERKING

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Utylizacja

Simple line drawing of a three chasing recycling symbol (no text or labels)

Silhouette of a person sorting trash into a bin (no text or symbols)

Symbolic icon of a person walking with arrows, enclosed in a circle (no text or symbols)

Black electronic device labeled 'X12V TEUS' with no visible text or symbols on its body

WSKAZÓWKA

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

Likvidace

Simple line drawing of a three chasing recycling symbol (no text or labels)

Silhouette of a person disposing of trash into a bin (no text or symbols)

Symbolic icon of a person moving with arrows, enclosed in a circle (no text or symbols)

Black electronic device with visible model number X12V and branding (no readable text or symbols beyond branding)

UPOZORNĚNÍ

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

Likvidácia

Simple line drawing of a three chasing recycling symbol (no text or labels)

Silhouette of a person disposing of trash into a bin (no text or symbols)

Symbolic icon of a person walking with arrows, enclosed in a circle (no text or numbers)

Black industrial battery with visible model number X12V on base (no text or symbols on body)

UPOZORNENIE

Symbolic icon of a person walking with arrows, enclosed in a circle (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Stand der Informationen · Last Information Update · Version des informations · Stand van de informatie · Stan informacji · Stav informaci Stav informácií: 12 / 2019 Ident.-No.: PAPK12B1-112019-1
