USER MANUAL PK0 270 A1 PARKSIDE

Operation and Safety Notes

Original operating instructions

IAN 89564

CH

PARKSIDE PK0 270 A1 - 1

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

GB Operation and Safety Notes Page 45

-2-

PARKSIDE PK0 270 A1 - DE AT CH - 1

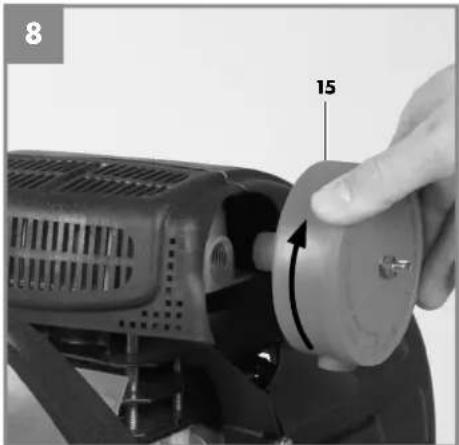

text_image 1 1 2 3 4 5 6 7 13 12 11 9 810 14 G H

PARKSIDE PK0 270 A1 - DE AT CH - 2

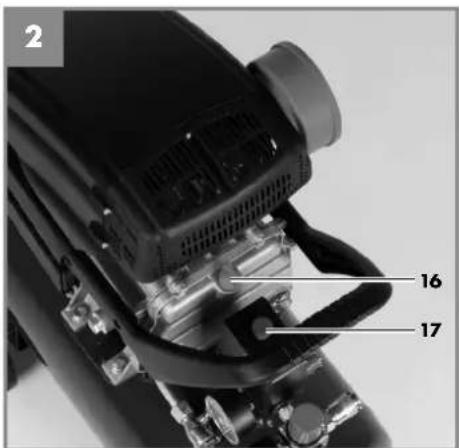

text_image 2 16 17

PARKSIDE PK0 270 A1 - DE AT CH - 3

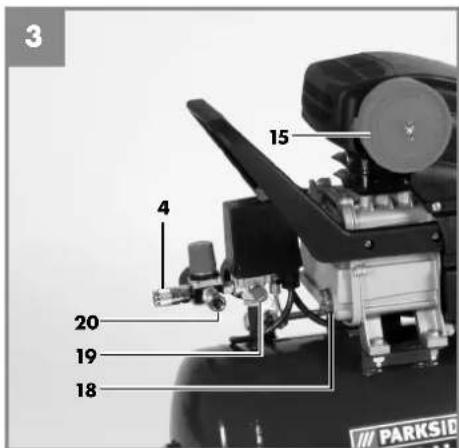

text_image 3 15 4 20 19 18 PARKSID

PARKSIDE PK0 270 A1 - DE AT CH - 4

PARKSIDE PK0 270 A1 - DE AT CH - 5

PARKSIDE PK0 270 A1 - DE AT CH - 6

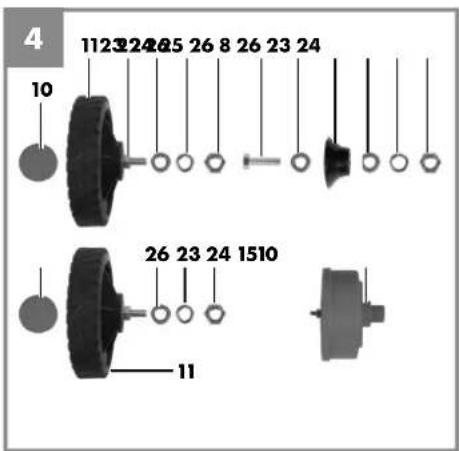

text_image 4 10 1123245 26 8 26 23 24 26 23 24 1510 11

PARKSIDE PK0 270 A1 - DE AT CH - 7

text_image 5 10 11 24 22 23 26

PARKSIDE PK0 270 A1 - DE AT CH - 8

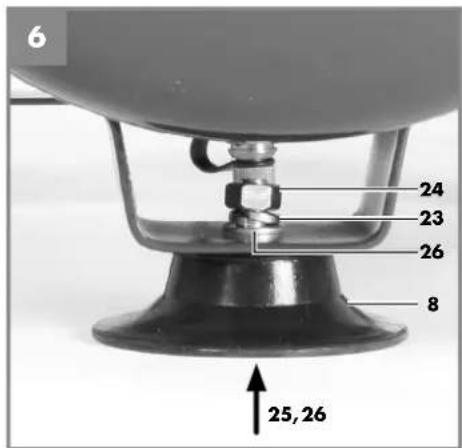

text_image 6 24 23 26 8 25,26

PARKSIDE PK0 270 A1 - DE AT CH - 9

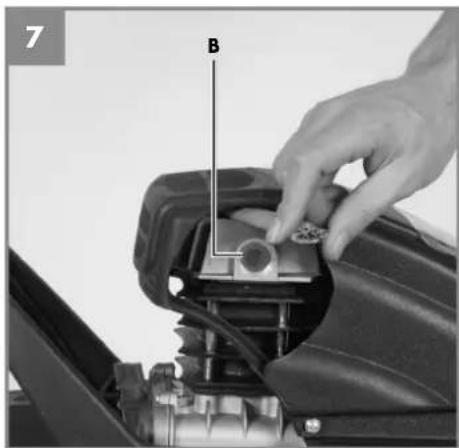

text_image 7 B

PARKSIDE PK0 270 A1 - DE AT CH - 10

natural_image Close-up of a hand operating a mechanical device with a knob labeled '15' (no text or symbols beyond the label)

PARKSIDE PK0 270 A1 - DE AT CH - 11

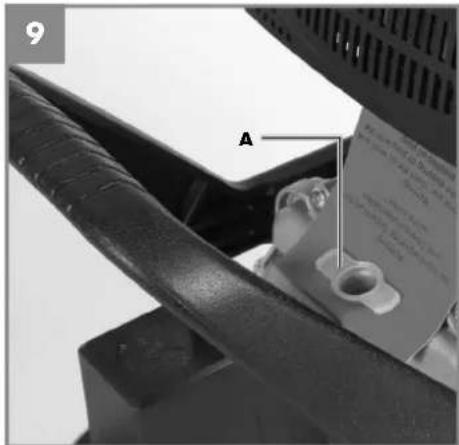

text_image 9 A

-4-

PARKSIDE PK0 270 A1 - DE AT CH - 12

PARKSIDE PK0 270 A1 - DE AT CH - 13

PARKSIDE PK0 270 A1 - DE AT CH - 14

text_image 1011 16 21

PARKSIDE PK0 270 A1 - DE AT CH - 15

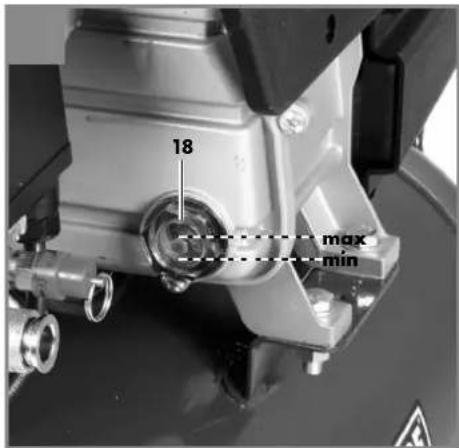

text_image 18 max min

PARKSIDE PK0 270 A1 - DE AT CH - 16

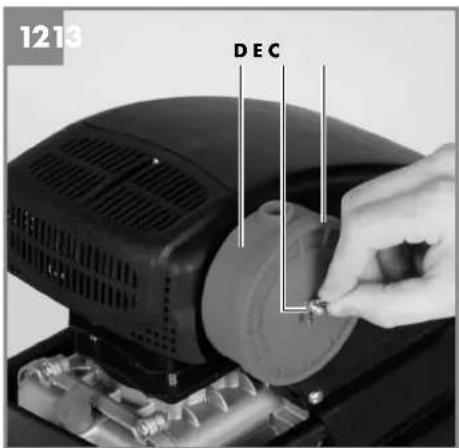

text_image 1213 DEC

PARKSIDE PK0 270 A1 - DE AT CH - 17

text_image CDF

-5-

DE/AT/CH

Inhaltsverzeichnis

X 2000/14/EC_2005/88/EC

Annex V

X Annex VI

Noise measured: L_ A = 90 dB (A); guaranteed L_ A = 94 dB (A)

P = 1.8 KW; L/∅ = cm

Notifi ed Body: TÜV Rheinland

2004/26/EC

Emission No.:

Standard references: EN 1012-1; EN 60204-1; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3

Yu Feng Quing/Product-Management/Weichselgartner/General-Manager

First CE: 12

Art.-No.: 40.103.67 I.-No.: 11022

Subject to change without notice

Archive-File/Record: NAPR007096

Documents registrar: Siegfried Rolder

Wiesenweg 22, D-94405 Landau/Isar

DE/AT/CH

13. Garantieurkunde

X 2000/14/EC_2005/88/EC

Annex V

X Annex VI

Noise measured: L_ A = 90 dB (A); guaranteed L_ A = 94 dB (A)

P = 1.8 KW; L/∅ = cm

Notifi ed Body: TÜV Rheinland

2004/26/EC

Emission No.:

Standard references: EN 1012-1; EN 60204-1; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3

Subject to change without notice

Archive-File/Record: NAPR007096

Documents registrar: Siegfried Rolder

Wiesenweg 22, D-94405 Landau/Isar

FR/CH

13. Bon de garantie

Chère Cliente, Cher Client,

X 2000/14/EC_2005/88/EC

Annex V

X Annex VI

Noise measured: L_ A = 90 dB (A); guaranteed L_ A = 94 dB (A)

P = 1.8 KW; L/∅ = cm

Notifi ed Body: TÜV Rheinland

2004/26/EC

Emission No.:

Standard references: EN 1012-1; EN 60204-1; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3

Yu Feng Quing/Product-Management/Weichselgartner/General-Manager

First CE: 12

Art.-No.: 40.103.67 I.-No.: 11022

Subject to change without notice

Archive-File/Record: NAPR007096

Documents registrar: Siegfried Rolder

Wiesenweg 22, D-94405 Landau/Isar

IT/CH

  1. Introduction......47
  2. Safety regulations....47
  3. Layout and items supplied....49
  4. Proper use....50
  5. Technical data....50
  6. Before starting the equipment 50
  7. Assembly and starting 51
  8. Replacing the power cable....51
  9. Cleaning, maintenance, ordering of spare parts and storage....52
  10. Disposal and recycling....53
  11. Possible causes of failure....55
  12. Declaration of conformity....56
  13. Warranty certificate....57

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.

Subject to technical changes

GB

PARKSIDE PK0 270 A1 - GB - 1

Caution - Read the operating instructions to reduce the risk of inquiry

PARKSIDE PK0 270 A1 - GB - 2

Wearear-muffs. The impact of noise can cause damage to hearing.

PARKSIDE PK0 270 A1 - GB - 3

Beware of electrical voltage!

PARKSIDE PK0 270 A1 - GB - 4

Beware of hot parts!

PARKSIDE PK0 270 A1 - GB - 5

Warning! The equipment is remote-controlled and may start-up without warning.

PARKSIDE PK0 270 A1 - GB - 6

Caution! Before using for the first time, check the oil level and replace the oil sealing plug!

GB

1. Introduction

Congratulations on your new purchase.

You have decided in favor of a high-quality product. The operating instructions are a part of this product. They contain information of importance for your safety, for the use of the product and for its disposal. Before you use the product, acquaint yourself with all the information concerning its operation and safety. Use the product only as described and only for the listed areas of application. If you hand on the product to other people, give them all the documentation as well.

2. Safety regulations

Caution!

Read all safety regulations and instructions.

Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

2.1 Safety information

⚠️ Important! The following basic safety actions must be taken when using this compressor in order to protect the user from electric shocks and the risk of injury and fire. Read and follow these instructions before using the equipment.

- Keep your work area tidy

Untidy work areas can result in accidents.

• Check the ambient conditions

Do not expose the compressor to rain. Never use the compressor in damp or wet locations. There is a risk of electric shock! Provide good lighting. Do not use the compressor near flammable liquids or gases. There is a risk of explosion!

- Protect yourself against electric shocks

Avoid bodily contact with earthed parts, e.g. pipes, radiators, cookers and refrigerators.

- Keep children away!

Do not allow other persons to touch the compressor or cable, keep them away from your work area.

- Keep your compressor in a safe place When unused, the compressor must be stored in a dry, locked room out of children's reach.

- Do not overload your compressor It will run better and safer within its quoted capacity range.

• Wear suitable work clothes

Never wear loose fitting clothes or jewellery. They may get caught in moving parts. Rubber gloves and non-slip shoes are recommended when working outdoors. Wear a hair net if you have long hair. Risk of injury!

- Do not use the cable for purposes other than that for which it is designed

Do not carry the compressor by its cable and do not use the cable to pull the plug out of the socket. Protect the cable from heat, oil and sharp edges. The cable/plug could become damaged.

• Take care of your compressor

Keep your compressor clean in order to work well and safely. Follow the maintenance instructions. Check the power plug and cable on a regular basis and have them replaced by an authorized specialist if they are damaged. Check the extension cable regularly and replace it if damaged.

• Pull out the power plug

When not in use and before carrying out any maintenance work.

- Avoid unintentional starting

Make sure that the switch is turned off when connecting to the power supply.

- When using an extension cable outdoors

Check that it is approved for outdoor duty and is marked accordingly.

• Be alert at all times

Watch what you are doing. Use common sense when working. Never use the compressor when you are distracted.

• Check your compressor for damage

Before using the compressor again, carefully check the safety devices and any slightly da-

GB

maged parts to ensure that they are in good working order. Check that the moving parts are working correctly, that they do not jam, and that no parts are damaged. Make sure that all parts are fitted correctly to ensure that the equipment remains safe to use. Unless otherwise stated in the operating instructions, damaged guards and parts have to be repaired or replaced by a customer service workshop. Damaged switches have to be replaced by a customer service workshop. Never use an electric power tool with a switch that cannot be turned on and off.

- Important!

For your own safety you must only use the accessories and additional units listed in the operating instructions or recommended or specified by the manufacturer. The use of mounted tools or accessories other than those recommended in the operating instructions or catalog may place your personal safety at risk.

- Leave all repairs to a qualified electrician

Repairs must be left strictly to qualified electricians or the user might suffer an accident.

Noise

Wear ear muffs when you use the compressor.

• Replacing the power cable

To prevent hazards, leave the replacement of damaged power cables strictly to the manufacturer or a qualified electrician. There is a risk of electric shock!

• Inflatingtires

Directly after inflating tires, check the pressure with a suitable pressure gauge, for example at your filling station.

• Roadworthy compressors for building site operations

Make sure that all lines and fittings are suitable for the maximum permissible operating pressure of the compressor.

• Place of installation

Set up the compressor on an even surface.

2.2 Safety instructions for working with compressed air and blasting guns

  • The compressor pump and lines can become very hot during operation. Touching these parts will burn you.
  • The air which is sucked in by the compressor must be kept free of impurities that could cause fires or explosions in the compressor pump.
  • When releasing the hose coupling, hold the hose coupling piece with your hand. This way, you can protect yourself against injury from the rebounding hose.
  • Wear safety goggles when working with the blow-out pistol. Foreign bodies or blown off parts can easily cause injuries.
  • Do not blow at people with the blow-out pistol and do not clean clothes while being worn. Risk of injury!

2.3. Safety information for paint spraying

  • Do not process any paints or solvents with a flash point below 55^ C. There is a risk of explosion!
  • Do not heat up paints or solvents. There is a risk of explosion!
  • If hazardous liquids are processed, wear protective filter units (face guards). Also, adhere to the safety information provided by the manufacturers of such liquids.
  • The details and designations of the Ordinance on Hazardous Substances, which are displayed on the outer packaging of the processed material, must be observed. Additional protective measures are to be undertaken if necessary, particularly the wearing of suitable clothing and masks.
  • Do not smoke during the spraying process and/or in the work area. There is a risk of explosion! Paint vapors are easily combustible.
  • Never set up or operate the equipment in the vicinity of a fire place, open lights or sparking machines.
  • Do not store or eat food and drink in the work area. Paint vapors are harmful to your health.
  • The work area must exceed 30 m ^3 and sufficient ventilation must be ensured during

GB

spraying and drying. Do not spray against the wind. Always adhere to the regulations of the local police authority when spraying combustible or hazardous materials.

- Do not process media such as white spirit, butyl alcohol and methylene chloride with the PVC pressure hose. These media will destroy the pressure hose.

2.4 Operating pressure vessels

  • You must keep your pressure vessel in good working order, operate the vessel correctly, monitor the vessel, carry out necessary maintenance and repair work immediately and meet the relevant safety precautions.
    • The supervisory authority may enforce essential control measures in individual cases.
  • A pressure vessel is not allowed to be used if it has faults or deficiencies that can endanger workers or third parties.
  • Check the pressure vessel for signs of rust and damage each time before using. Do not use the compressor with a damaged or rusty pressure vessel. If you discover any damage, then please contact the customer service workshop.

Do not lose these safety instructions

3. Layout and items supplied

3.1 Layout

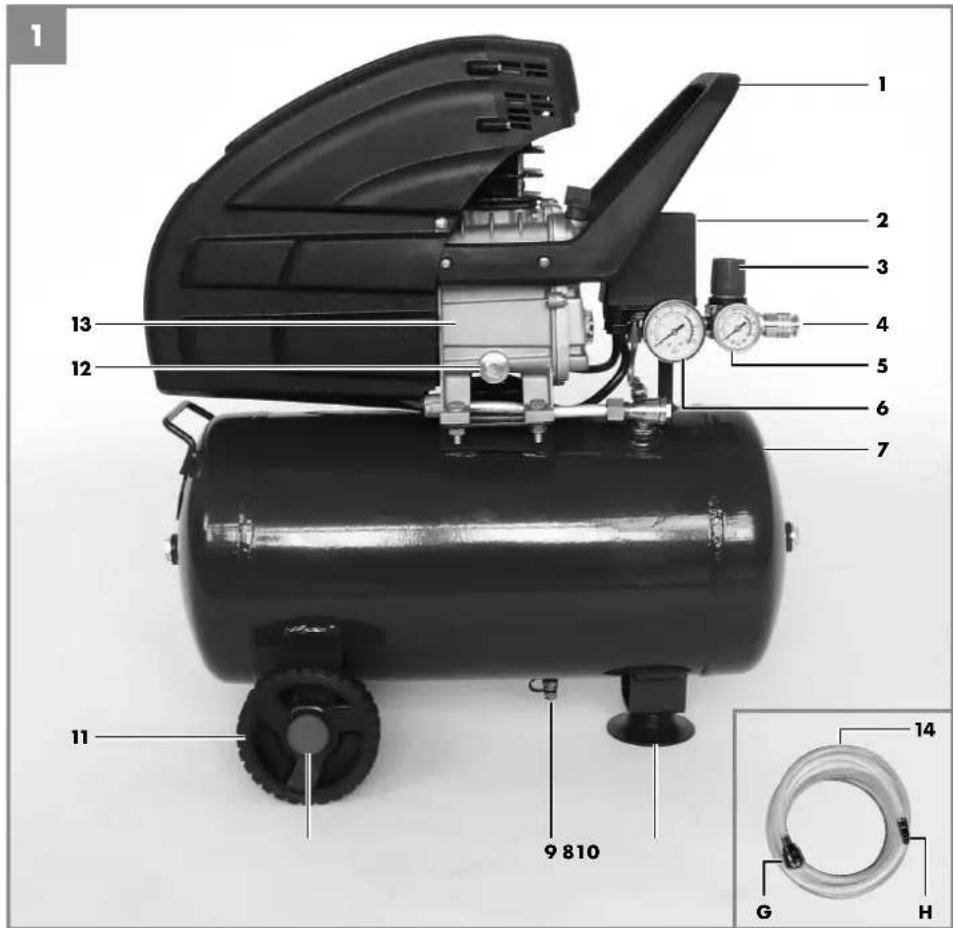

  1. Transporthandle
  2. Pressure switch
  3. Pressure regulator
  4. Quick-lock coupling (regulated compressed air)
  5. Pressure gauge (for reading the preset vessel pressure)
  6. Pressure gauge (for reading the vessel pressure)
  7. Pressure vessel
  8. Supporting foot
  9. Drain plug for condensation water

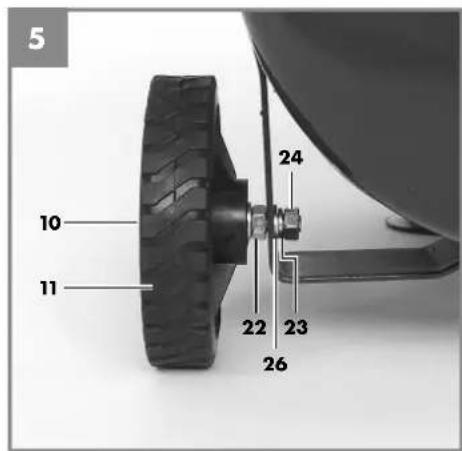

  10. Hub cap
  11. Wheel
  12. Oil drain plug

  13. Compressor pump

  14. Compressed air hose
  15. Air fi Iter

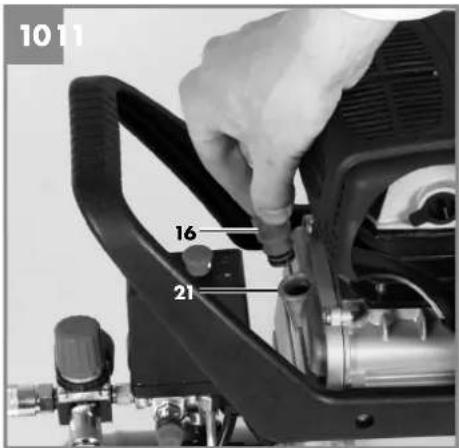

  16. Oil sealing plug
  17. ON/OFF switch
  18. Oil - level window
  19. Safety valve
  20. Quick-lock coupling (unregulated compressed air)
  21. Oil filler opening
  22. Nut (self-locking)
  23. Spring washer
  24. Nut
  25. Screw
  26. Washer

3.2 Items supplied

  • Open the packaging and take out the equipment with care.
  • Remove the packaging material and any packaging and/or transportation braces (if available).
    • Check to see if all items are supplied.
  • Inspect the equipment and accessories for transport damage.
  • If possible, please keep the packaging until the end of the guarantee period.

Important!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

GB

4. Properuse

The compressor is designed to generate compressed air for compressed-air driven tools which can be driven with an air volume of up to approx. 270 l/min (e.g. tire inflator, blow-out pistol and paint spray gun). Due to the limited air output it is not possible to use the compressor to drive tools with very high air consumption (for example orbital sanders, rod grinders and hammer screwdrivers).

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

5. Technical data

Mains connection: 230 V \~ 50 Hz

Motor rating kW: 1.8 kW

Operating mode: S1

Compressor speed min ^-1 : 2850

Operating pressure bar: ....max. 8

Pressure vessel capacity (in liters): 24

Theoretical intake capacity (l/min): . approx. 270

Sound power level L_WA in dB: .....94

K_WA uncertainty: 4 dB

Protection type: IP20

Weight of the unit in kg: 26

Oil (15W 40): 0.3 l

The noise emission values were measured in accordance with EN ISO 2151.

6. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

  • Check the equipment for damage which may have occurred in transit. Report any damage immediately to the transport company which was used to deliver the compressor.
    • Install the compressor near the point of consumption.
  • Avoid long air lines and supply lines (extension cables).
    • Make sure that the intake air is dry and dust-free.
  • Do not install the compressor in a damp or wet room.
  • The compressor may only be used in suitable rooms (with good ventilation and an ambient temperature from +5 °C to 40 °C). There must be no dust, acids, vapors, explosive gases or inflammable gases in the room.
  • The compressor is designed to be used in dry rooms. It is prohibited to use the compressor in areas where work is conducted with sprayed water.
  • The oil level in the compressor pump has to be checked before putting the equipment into operation (see 9.4).

GB

7. Assembly and starting

⚠️ Important!

Remove the transportation braces (between the compressor pump and cladding, see Fig. 7) prior to initial start-up. If the transportation braces are not removed, heat can build up and cause the compressor to ignite.

⚠️ Important!

You must fully assemble the appliance before using it for the first time!

You will require the following tools for assembly and installation:

2 x open-ended wrench size 13 mm (not included)

7.1 Fitting the wheels (11)

Fit the supplied wheels as shown in Figure 5.

7.2 Fitting the supporting foot (8)

Fit the supplied supporting foot as shown in Figure 6.

7.3 Fitting the air fi Iter (15)

Remove the transportation stop (B) and screw the air filter (15) to the equipment. (Fig. 7, 8).

7.4 Changing the transportation cover (A)

Remove the transportation cover from the oil filler opening (21) and insert the supplied oil sealing plug (16) into the oil filler opening. (Fig. 9, 10.)

7.5 Mains connection

  • The compressor is equipped with a mains cable with shock-proof plug. This can be connected to any 230V \~ 50 Hz shock-proof socket which is protected by a 16 A fuse.
  • Before you use the machine, make sure that the mains voltage is the same as the operating voltage (see the rating plate).
  • Long supply cables, extensions, cable reels etc. cause a drop in voltage and can impede motor start-up.
  • At low temperatures below +5°C, sluggishness may make starting difficult or impossible.

7.6 ON/OFF switch (Fig. 2)

Pull the ON/OFF switch (17) upwards to switch on the compressor. To switch off the compressor, press the ON/OFF switch down.

7.7 Setting the pressure (Fig. 1-3)

• Use the pressure regulator (3) to set the pressure on the pressure gauge (5).
- The set pressure can be drawn from the quick-lock coupling (4).
- The vessel pressure can be read off the pressure gauge (6).
- The vessel pressure is drawn from the quick-lock coupling (20).

7.8 Setting the pressure switch (Fig. 1)

The pressure switch (2) is set at the factory. Cut-in pressure approx. 6 bar Cut-out pressure approx. 8 bar

7.9 Fitting the compressed air hose (Fig. 1, 3)

Use the compressed air hose (14) if you intend to carry out work at a greater distance from the compressor. To do so, connect the nipple (H) on the compressed air hose to one of the quick-release couplings (4, 20). Then attach the compressed air tool to the quick-release coupling (G) on the compressed air hose.

8. Replacing the power cable

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

GB

9. Cleaning, maintenance, ordering of spare parts and storage

⚠️ Important!

Pull out the power plug before doing any cleaning and maintenance work on the equipment. Risk of injury from electric shock!

⚠️ Important!

Wait until the equipment has cooled down completely! Risk of burns!

⚠️ Important!

Always depressurize the equipment before carrying out any cleaning and maintenance work! Risk of injury!

9.1 Cleaning

  • Keep the equipment free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it down with compressed air at low pressure.
    • We recommend that you clean the equipment immediately after you use it.
  • Clean the equipment regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents; these may be aggressive to the plastic parts in the equipment. Ensure that no water can get into the interior of the equipment.
  • You must disconnect the hose and any spraying tools from the compressor before cleaning. Do not clean the compressor with water, solvents or the like.

9.2 Maintenance work on the pressure vessel (Fig. 1)

Important! To ensure a long service life of the pressure vessel (7), drain off the condensed water by opening the drain valve (9) each time after using. Release the vessel pressure first (see 9.7.1). Open the drain screw by turning counter-clockwise (looking at the screw from the bottom of the compressor) so that all the condensed water can run out of the pressure vessel. Then close the drain

screw again (turn it clockwise). Check the pressure vessel for signs of rust and damage each time before using. Do not use the compressor with a damaged or rusty pressure vessel. If you discover any damage, then please contact the customer service workshop.

⚠️ Important!

The condensed water from the pressure vessel will contain residual oil. Dispose of the condensed water in an environmentally compatible manner at a suitable collection point.

9.3 Safety valve (Figure 3)

The safety valve (19) has been set for the highest permitted pressure of the pressure vessel. It is prohibited to adjust the safety valve or remove its seal. Actuate the safety valve from time to time to ensure that it works when required. Pull the ring with sufficient force until you can hear the compressed air being released. Then release the ring again.

9.4 Checking the oil level at regular intervals (Figure 11)

Place the compressor on a level and straight surface. The oil level must be between the MAX and MIN marks on the oil level window (Fig. 18). Oil change: we recommend SAE 15W 40 or equivalent. The original oil fi lling must be changed after 100 hours in operation; thereafter the oil must be drained and replaced with new oil after every 500 hours in operation.

9.5 Changing the oil (Figure 1, 10, 11)

Switch off the engine and pull the mains plug out of the socket. After releasing any air pressure you can unscrew the oil drain plug (12) from the compressor pump (13). To prevent the oil from running out in an uncontrolled manner, hold a small metal chute under the opening and collect the oil in a vessel. If the oil does not drain out completely, we recommend tilting the compressor slightly. When the oil has drained out, refi t the oil drain plug (12).

GB

Dispose of the old oil at a drop-off point for old oil.

To fill in the correct quantity of oil, make sure that the compressor stands on an even surface. Fill new oil through the oil filler opening (21) until it comes up to the maximum level. This is marked with a red dot on the oil level window (18) (Figure 11). Do not exceed the maximum filling quantity. Overfilling the equipment may result in damage. Reinsert the oil sealing plug (16) into the oil filler opening (21).

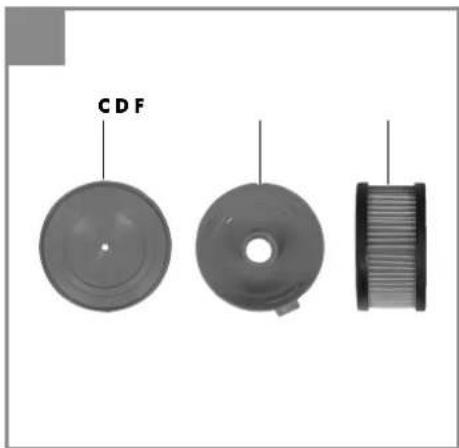

9.6 Cleaning the intake filter (Fig. 3, 12, 13)

The intake fi liter prevents dust and dirt being drawn in. It is essential to clean this fi liter after at least every 300 hours in service. A clogged intake fi liter will decrease the compressor's performance dramatically. Open the thumb screw (E) to the remove the intake fi liter. Then pull off the fi liter cover (C). Now you can remove the air fi liter (F) and the fi liter housing (D). Carefully tap out the air fi liter, fi liter cover and fi liter housing. Then blow out these parts with compressed air (approx. 3 bar) and reinstall in reverse order.

9.7 Storage

⚠️ Important!

Pull out the mains plug and ventilate the equipment and all connected pneumatic tools. Switch off the compressor and make sure that it is secured in such a way that it cannot be started up again by any unauthorized person.

⚠️ Important!

Store the compressor only in a dry location which is not accessible to unauthorized persons. Always store upright, never tilted! Oil may leak out!

9.7.1 Releasing excess pressure

Release the excess pressure by switching off the compressor and using the compressed air which is still left in the pressure vessel, e.g. with a compressed air tool running in idle mode or with a blow-out pistol.

9.8 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

• Type of machine
• Article number of the machine
• Identification number of the machine

For our latest prices and information please go to www.isc-gmbh.info

10. Disposal and recycling

The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system.

The unit and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

GB

PARKSIDE PK0 270 A1 - Disposal and recycling - 1

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request: As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

GB

11. Possible causes of failure

ProblemCauseSolution
Thecompressor does not start.1. No supply voltage.2. Insuffi cient supply voltage.3. Outside temperature is too low.4. Motor is overheated.1. Check the supply voltage, the power plug and the socket-outlet.2. Make sure that the extension cable is not too long. Use an extension cable with large enough wires.3. Never operate with an outside temperature of below +5°C.4. Allow the motor to cool down. If necessary, remedy the cause of the overheating.
Thecompressor starts but there is no pressure.1. The non-return valve leaks.2. The seals are damaged.3. The drain plug for condensation water (9) leaks.1. Have a service center replace the non-return valve.2. Check the seals and have any damaged seals replaced by a service center.3. Tighten the screw by hand. Check the seal on the screw and replace if necessary.
Thecompressor starts, pressure is shown on the pressure gauge, but the tools do not start.1. The hose connections have a leak.2. A quick-lock coupling has a leak.3. Insuffi cient pressure set on the pressure regulator (3).1. Check the compressed air hose and tools and replace if necessary.2. Check the quick-lock coupling and replace if necessary.3. Increase the set pressure with the pressure regulator.

12. Declaration of conformity

X 2000/14/EC_2005/88/EC

Annex V

X Annex VI

Noise measured: L_ A = 90 dB (A); guaranteed L_ A = 94 dB (A)

P = 1.8 KW; L/∅ = cm

Notifi ed Body: TÜV Rheinland

2004/26/EC

Emission No.:

Standard references: EN 1012-1; EN 60204-1; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3

Subject to change without notice

Archive-File/Record: NAPR007096

Documents registrar: Siegfried Rolder

Wiesenweg 22, D-94405 Landau/Isar

GB

13.Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under the service number printed below. Please note the following terms under which guarantee claims can be made:

  1. These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.
  2. Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device. This applies in particular to rechargeable batteries for which we nevertheless issue a guarantee period of 12 months. The guarantee is rendered null and void if any attempt is made to tamper with the device.
  3. The guarantee is valid for a period of 3 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.
  4. In order to assert your guarantee claim, please send your defective device postage-free to the address shown below. Please enclose either the original or a copy of your sales receipt or another dated proof of purchase. Please keep your sales receipt in a safe place, as it is your proof of purchase. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

IAN 89564

PARKSIDE PK0 270 A1 - 13.Warranty certifi cate - 1

PARKSIDE PK0 270 A1 - 13.Warranty certifi cate - 2

PARKSIDE PK0 270 A1 - 13.Warranty certifi cate - 3

PARKSIDE PK0 270 A1 - 13.Warranty certifi cate - 4

PARKSIDE PK0 270 A1 - 13.Warranty certifi cate - 5

PARKSIDE PK0 270 A1 - 13.Warranty certifi cate - 6

PARKSIDE PK0 270 A1 - 13.Warranty certifi cate - 7

natural_image Two horizontal grayscale color swatches with no text or symbols, showing contrast between dark and light shades (no text or symbols)

PARKSIDE PK0 270 A1 - 13.Warranty certifi cate - 8

-60-

PARKSIDE PK0 270 A1 - 13.Warranty certifi cate - 9

natural_image Two horizontal grayscale color swatches with no text or symbols, showing contrast between dark and light shades (no text or symbols)

PARKSIDE PK0 270 A1 - 13.Warranty certifi cate - 10

-61-

PARKSIDE PK0 270 A1 - 13.Warranty certifi cate - 11

PARKSIDE PK0 270 A1 - 13.Warranty certifi cate - 12

PARKSIDE PK0 270 A1 - 13.Warranty certifi cate - 13

IAN: 89564 PKO 270 A1

Einhell Germany AG

Wiesenweg 22

D-94405 Landau/Isar

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : PARKSIDE

Model : PK0 270 A1

Category : Air compressor
