CA 08190 IN - Range hood Orbegozo - Free user manual and instructions

Product type	Built-in extractor hood
Brand	Orbegozo
Model	CA 08190 IN
Drilling dimensions (W x D)	715 mm x 265 mm
Minimum distance from cooking surface (gas)	65 cm
Recommended distance from cooking surface	65-75 cm
Power supply	220-240 V ~ 50 Hz
Lighting power	LED 2 W
Suction speeds	3 speeds (I, II, III)
Grease filter type	Washable aluminum filter
Charcoal filter (optional)	Not supplied, to be purchased separately
Charcoal filter replacement frequency	Every 3 to 6 months depending on use
Grease filter cleaning	Every month by hand or in dishwasher (60°C)
External cleaning	Every 2 months with warm water and non-abrasive detergent
Installation mode	External extraction or recirculation (with charcoal filter)
Allowable negative pressure	≤ 4 Pa
Bulb type	LED 2 W (replacement by professional)
Approximate weight	8 kg
Protection class	Class I
Standards	Directives 2014/35/EU and 2014/30/EU

Frequently Asked Questions - CA 08190 IN Orbegozo

How to install the Orbegozo CA 08190 IN hood?

Drill a hole of 715 x 265 mm in the base of the cabinet, remove the aluminum filter and the two screws from the front panel, fix the hood to the cabinet with the provided screws (4 mm x 18 mm), then reassemble the front panel and filter. The hood must be 65-75 cm above the cooking surface, and at least 65 cm for gas.

How to clean the aluminum filter?

Press the locking button and pull the filter downwards. Soak it in water with detergent for 2-3 minutes, brush gently without pressing too hard (aluminum is fragile). You can also wash it in the dishwasher at 60°C. Do not use aggressive cleaners that could corrode it. Clean it at least once a month.

Is a charcoal filter necessary?

The charcoal filter is not supplied. It is necessary if you use the hood in recirculation mode (without external extraction). Install it by removing the aluminum filter, then turning the charcoal filter counterclockwise on each side of the motor. Replace it every 3 to 6 months.

How to change the LED bulb?

Turn off and unplug the hood. Wait for the bulb to cool down. Use an identical 2 W LED bulb. Replacement must be done by a qualified technician.

What to do if the fan does not spin but the lights come on?

The fan may be blocked or the motor damaged. Turn off the hood and have it repaired by a professional.

Can I use the hood with a gas stove?

Yes, but keep a minimum distance of 65 cm between the cooking surface and the bottom of the hood. Ensure good room ventilation to avoid excessive negative pressure (≤ 4 Pa). Never flambé under the hood.

How to use the suction speeds?

Use switch (2) with positions I (low), II (medium) and III (high). Position 0 to turn off. Switch (1) controls the lighting (I on, 0 off).

Is the hood noisy?

The noise level depends on the speed. At speed I, it is quieter, at speed III, louder. Exact values are not specified in the manual, but expect moderate to loud noise depending on the speed.

How to maintain the exterior of the hood?

Every 2 months, clean the exterior with a damp cloth soaked in warm water and non-abrasive detergent. Avoid wetting the motor and internal parts to avoid damaging the hood.

What to do in case of power failure or malfunction?

First check that the plug is properly connected and the fuse has not blown. If the lights do not come on and the fan does not work, the LED bulb may have burned out (replace it with an identical one). For any other problem, contact an approved technical service.

USER MANUAL CA 08190 IN Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

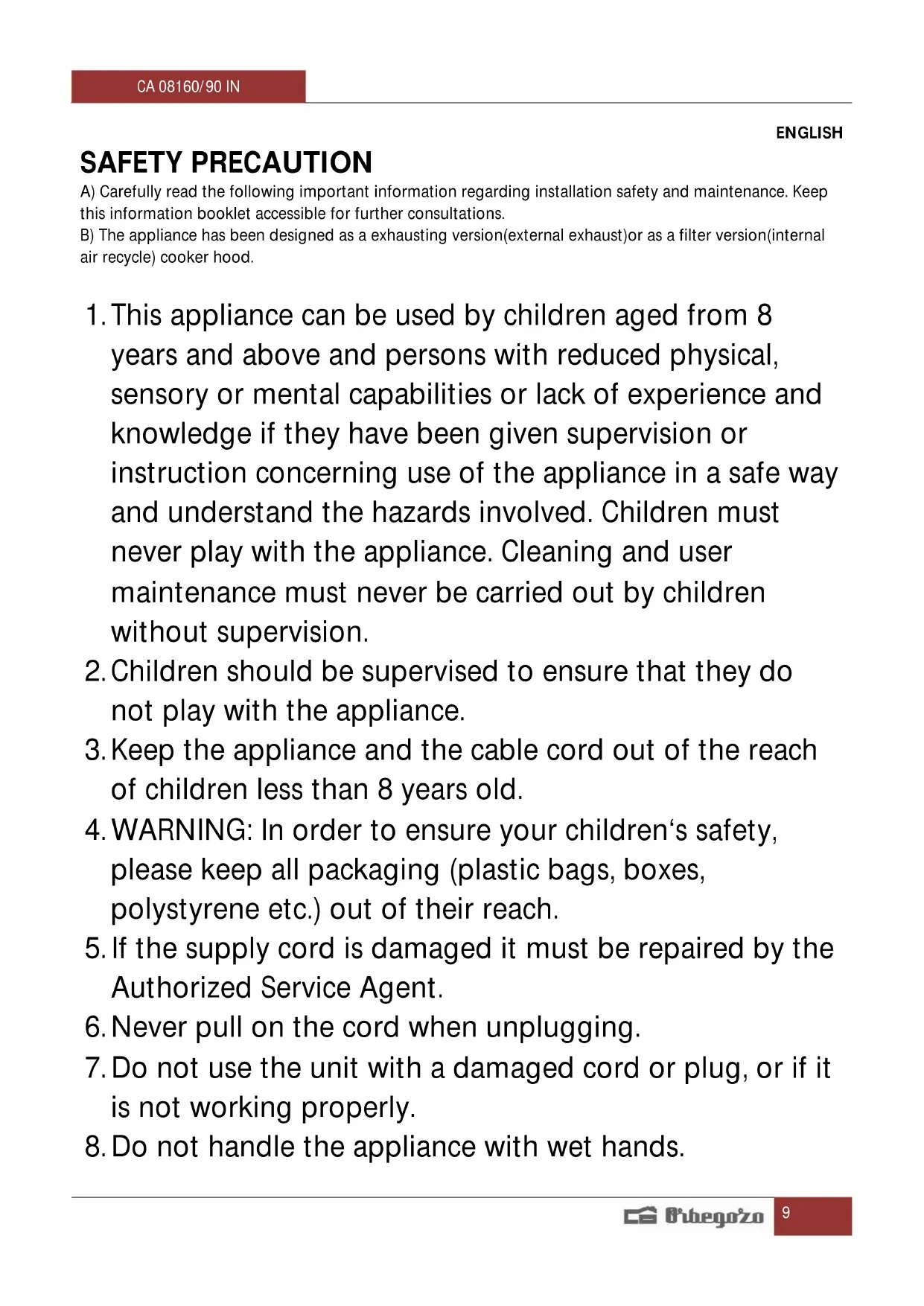

A) Carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations.
B) The appliance has been designed as a exhausting version(external exhaust) or as a filter version(internal air recycle) cooker hood.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]

14. WARNING: In case of misuse, there is a risk of possible injury.

15. Take care when the cooker hood is operating simultaneously with an open fireplace or burner that depend on the air in the environment and are supplied by other than electrical energy, as the cooker hood removes the air from the environment which a burner or fireplace need for combustion.

16. Risk of fire if the cleaning is not carried out according to instructions.
17. Do not flambe under the hood.
18. CAUTION: Accessible parts may become hot when used with cooking appliances.

19. Exhaust air should not be sent by conductors used to evacuate fumes from equipment powered by gas or other fuel.

20. The minimum distance between elements of cooking and the bottom of the hood must be at least 65cm if the hood is installed on a gas cooking element. If installation instructions gas cooking element indicate a greater distance should be taken into account. 65cm distance cannot be reduced.

21. The regulations regarding air evacuation must be respected.
22. The negative pressure in the environment must not exceed 4 Pa (4*10-5 bar).
23. Provide adequate ventilation in the environment for a safe operation of the cooker hood.
24. Follow the local laws applicable for external air evacuation. Appliance shall only be used with rated voltage and frequency.
25. Do not check the status of the filters while the cooker hood is operating.
26. Do not touch the light bulbs after appliance use.
27. Flame cooking is prohibited underneath the cooker hood.
28. Constantly check food frying to avoid that the overheated oil may become a fire hazard.

WARNING

The lamps of this cooker hood are designed as supplementary illumination when cooking. They are not suitable for household illumination

SUPPLIED PARTIES

Description	Picture	Quantity
Cooker hood		1
Screws (4 mm x 18 mm)		8
Valve		2
Reducer		1

INSTALLATION

If you have an air outlet to the outside, your hood can be connected as the figure below with a pull-out tube.

1. Before installation, make sure the Hood is unplugged from the mains.
2. The hood should be placed at a distance of 65 - 75cm on the kitchen surface for better performance.

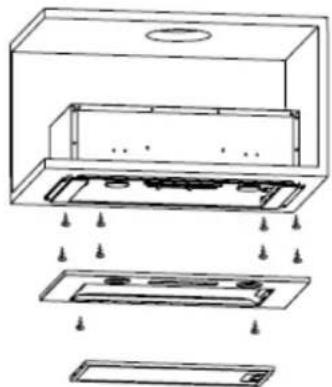

1. Drill a hole in the base of the cabinet, 490^265mm for the model CA 08160 IN and 715^265mm for the model CA 08190 IN.
2. Remove the aluminum filter and remove the two front panel screws.
3. Use a screwdriver to secure the screws to the cabinet.
4. Replace the front panel with the two screws and replace the filter.

CARBON FILTER (NOT SUPPLIED)

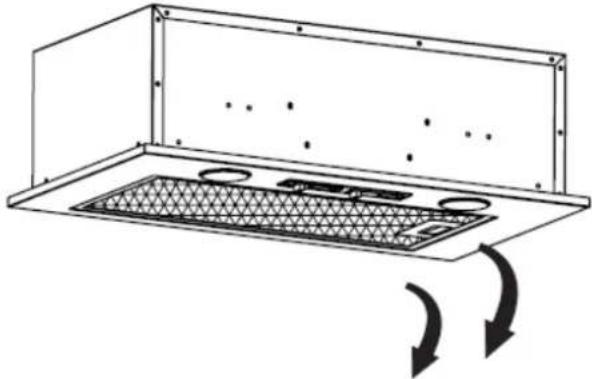

1. Remove the aluminum filter.

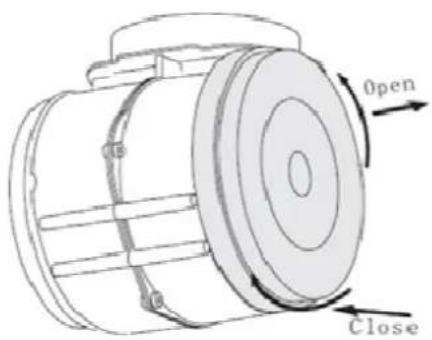

2. Place the activated carbon filter on one side of the engine and turn counterclockwise. Repeat the same operation on the other side.

NOTICE:

• Make sure that the filter is correctly positioned. Otherwise, it may loosen to damage the motor of the hood.
• When the carbon filter is in place, suction power will be reduced.
• This filter cannot be washed or reused. It should be changed every 3 to 6 months depending on usage.

UTILIZATION

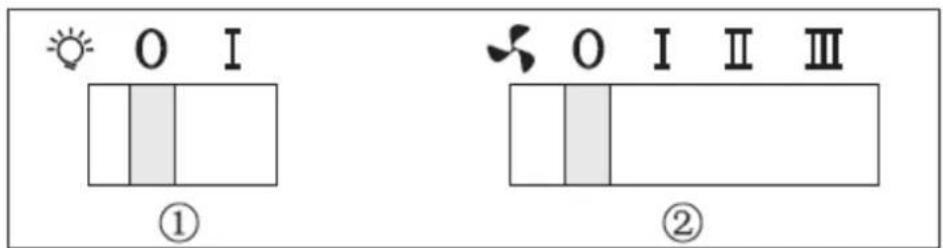

1. Set the switch (1) to position I to turn on the hood light, in position 0 it will turn off.
2. Set the switch (2) to position I, II or III to select the suction speed (low, medium or high). In position 0 it will turn off.

CLEANING AND MAINTENANCE

Disassembly and cleaning of aluminum filters

• Follow this guide correctly to clean the filters.

• Press the filter lock button and pull down.

• Dip the filter into water, add detergent and leave it for 2-3 minutes. After cleaning with a brush, do not apply too much pressure, the filter is delicate and could easily be damaged.

• You can also wash the filters in the dishwasher at 60^ .
• The filter is made of aluminum so it is advisable not to use aggressive cleaners that can corrode it.
• Make sure the hood is switched off when cleaning.

Regular cleaning

• Clean the aluminum filters monthly. This will prevent the risk of fire. As the filters collects grease, smoke and dust, it affects the efficiency of the hood. If the filters are not cleaned the grease can clog them.

Cleaning the hood

• To protect the hood body from corrosion, you should clean the outside of the hood with hot water and non-abrasive detergent every 2 months. To do this, moisten a cloth with that water and clean the hood.
• Take care not to wet the engine and other interior parts, this could damage the hood.

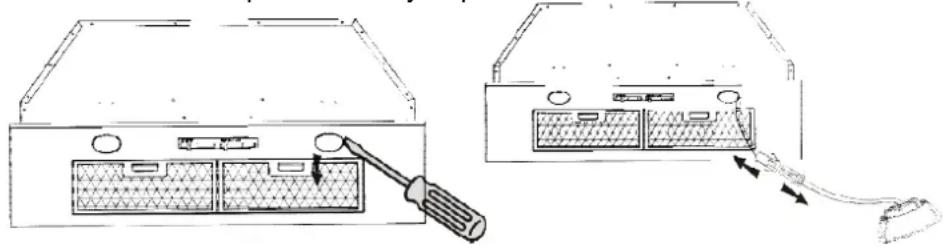

Changing the bulb.

1. Turn off and unplug the hood.
2. Wait until the bulb has cooled before changing it.
3. Use the same type of bulb, LED 2W.
4. The bulb replacement should be performed by a qualified technician.

TROUBLESHOOTING

PROBLEM	CAUSE	SOLUTION
The lights come on but the fan does not work.	The fan is jammed	Turn off the Hood and have it serviced by a professional
	Engine is damaged
No lights or fan work.	The LED bulb has blown	Change the bulb for one exactly the same

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and

recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.
