HG06657 - Electric mower SILVERCREST - Free user manual and instructions
Find the device manual for free HG06657 SILVERCREST in PDF.
| Product type | Nose and ear hair trimmer with comb attachment for eyebrows |
| Brand | SilverCrest |
| Model | HG06657 |
| Power supply | 1 AA 1.5 V alkaline battery (included) |
| Protection rating | IPX5 (protected against water jets) |
| Sound pressure level | < 72 dB(A) (K = 3 dB(A)) |
| Blade material | Stainless steel blades |
| Main functions | Removal of nose and ear hair; eyebrow trimming with adjustable comb attachment (long: approx. 6 mm, short: approx. 3 mm) |
| Package contents | 1 trimmer, 1 comb attachment, 1 cleaning brush, 1 storage case, 1 instruction manual |
| Cleaning and maintenance | Cutting head washable under running water; brush with the provided brush; do not immerse |
| Safety | Stop by rotating battery compartment cover; protection against water jets; do not insert too deeply |
| Warranty | 3 years from date of purchase |
| Customer service | France: 0800904879, owim@lidl.fr; Belgium: 080071011, owim@lidl.be |
| Conformity standards | EU: 2006/42/EC, 2014/30/EU, 2011/65/EU |
| Manufacturer reference | IAN (see rating plate or instruction manual) |
Frequently Asked Questions - HG06657 SILVERCREST
User questions about HG06657 SILVERCREST
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Electric mower in PDF format for free! Find your manual HG06657 - SILVERCREST and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HG06657 by SILVERCREST.
USER MANUAL HG06657 SILVERCREST
DE AT CH
NASEN-UND
OHRHAARTRIMMER
Operation and safety notes
Translation of the original instructions
NL BE
NEUS- EN OORHAARTRIMMER
Simple line drawing of a person's face with a small object near the mouth (no text or symbols)
Introduction......Page 26
Intended use......Page 26
Description of parts......Page 27
Technical data......Page 27
Scope of delivery......Page 27
Safety instructions......Page 28
Safety instructions for batteries / rechargeable batteries......Page 30
Operation Page 34
Inserting / replacing the battery ...... Page 34
Removing nose and ear hair ...... Page 34
Cutting eyebrows....Page 35
Cleaning, care and storage ....Page 36
Troubleshooting Page 37
Disposal Page 38
Warranty Page 40
Warranty claim procedure......Page 41
Service Page 42
EC Declaration of conformity....Page 43

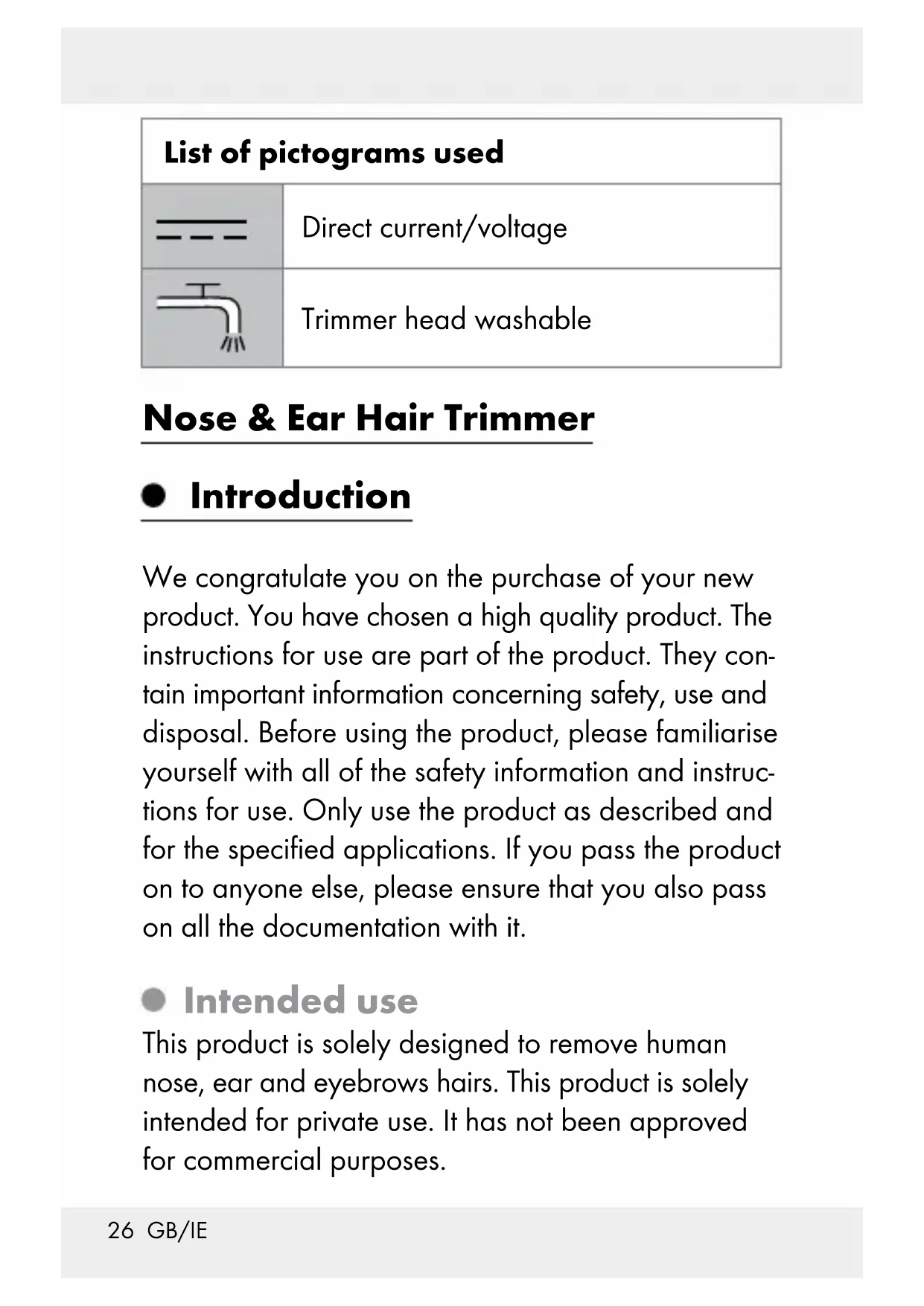

| List of pictograms used | |
 | Direct current/voltage |
 | Trimmer head washable |

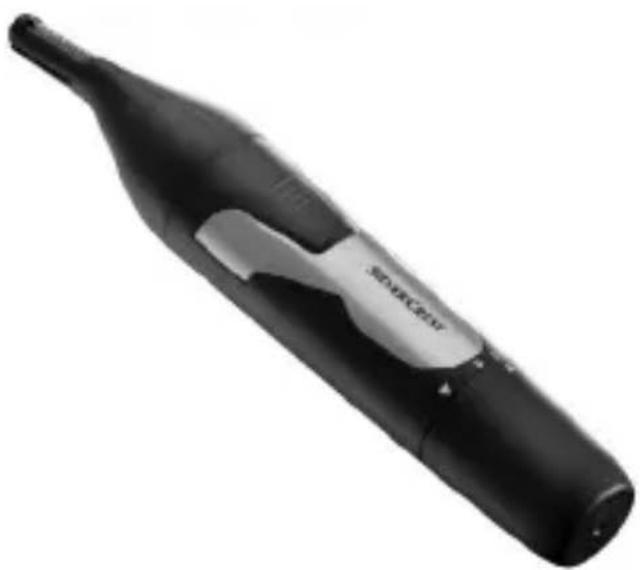

Nose & Ear Hair Trimmer
- Introduction
We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
- Intended use
This product is solely designed to remove human nose, ear and eyebrows hairs. This product is solely intended for private use. It has not been approved for commercial purposes.
• Description of parts
1 Blade
2 Trimmer head
3 Handle
4 "OFF" indicator
5 "ON" indicator
6 Setting indicator
7 "OPEN" indicator
8 Battery compartment cover
9 Comb attachment for both sides (Long / short)
10 Protective cap
11 Battery
12 Double-sided cleaning brush
13 Storage bag
- Technical data
Battery: 1.5V, AA, alkaline battery
Degree of protection: IPX5 (water-jet proof)
Emissions sound
pressure level: <72 dB(A), K=3 dB(A)
- Scope of delivery
1 Nose and ear hair trimmer
1 double-sided cleaning brush
1 Storage bag
1 Operating instructions
Safetyinstructions
KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!
■ CAUTION!This product is not a toy for children! Keep out of the reach of children. Children are not aware of the dangers associated with handling electrical products.
This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way
and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.
Do not use the product if you notice any signs of damage, otherwise you may get hurt.
- Do not expose the product to high temperature or moist areas, otherwise the product may be damaged.
■ Prevent strong impact or stress on the product to avoid damages!
In the event of damage, repairs or other problems with the product, please contact an electrician.
WARNING!
Keep the product dry. Never immerse the product into water.
WARNING!
Danger of cutting blade! Do not touch the cutting blade on the trimmer head, otherwise you may get hurt.
Safetyinstructions for batteries /
rechargeable batteries
DANGER TO LIFE! Keep batteries/rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.
■ Swallowing may lead to burns, perforation of soft tissue, and
death. Severe burns can occur within 2 hours of ingestion.
DANGER OF EXPLO-
SION! Never recharge
non-rechargeable batteries. Do not short-circuit batteries/rechargeable batteries and/or open them. Overheating, fire or bursting can be the result.
■ Never throw batteries / rechargeable batteries into fire or water.
Do not exert mechanical loads to batteries/rechargeable batteries.
Risk of leakage of batteries / rechargeable batteries
- Avoid extreme environmental conditions and temperatures, which could affect batteries /
rechargeable batteries, e.g.
radiators / direct sunlight.
If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!
WEAR PROTECTIVE
GLOVES! Leaked or
damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.
In the event of a leakage of batteries / rechargeable batteries,
immediately remove them from the product to prevent damage.
Only use the same type of batteries/rechargeable batteries. Do not mix used and new batteries/rechargeable batteries.
■ Remove batteries / rechargeable batteries if the product will not be used for a longer period.
Risk of damage of the product
Only use the specified type of battery/rechargeable battery!
- Insert batteries / rechargeable batteries according to polarity marks (+) and (-) on the battery / rechargeable battery and the product.
Use a dry lint-free cloth or cotton swab to clean the contacts on the battery/rechargeable battery and in the battery compartment before inserting!
■ Remove exhausted batteries / rechargeable batteries from the product immediately.
Operation
Note: Remove all packaging materials from the product.
- Inserting / replacing the battery
☐ To insert / replace the battery 11, proceed as shown in Figure B. - Removing nose and ear hair
Take off the protective cap 10. Switch the product on by twisting the battery compartment cover 8 until the setting indicator 6 is aligned to the "ON" indicator 5.
■CAUTION! DANGER OF INJURY! Be careful not to insert the product too deep into the nose or ears. Carefully insert only the tip of the blade into the front area of your nostril or ear. Remove the nose or ear hair with small circular movements.
After using the trimmer, switch the product off by twisting the battery compartment cover 8 until the setting indicator 6 is aligned to the "OFF" indicator 4.
Cuttingeyebrows
☐ Switch the product on. Move the comb in the opposite direction to the hair growth, and from the outer tip of the eyebrow towards the nose.
☐ To trim hair just above the skin surface, remove the comb attachment 9 and guide the blade 1 directly over the skin in the desired area.
Note: To trim only individual hairs, adjust the angle of the blade 1 and guide this against the individual hairs.
- Cleaning, care and storage
Note: Always switch off the product before cleaning it.
Do not use any corrosive or abrasive cleaning agents. This might damage the surface of the product.
□ Clean the housing with a dry cloth.

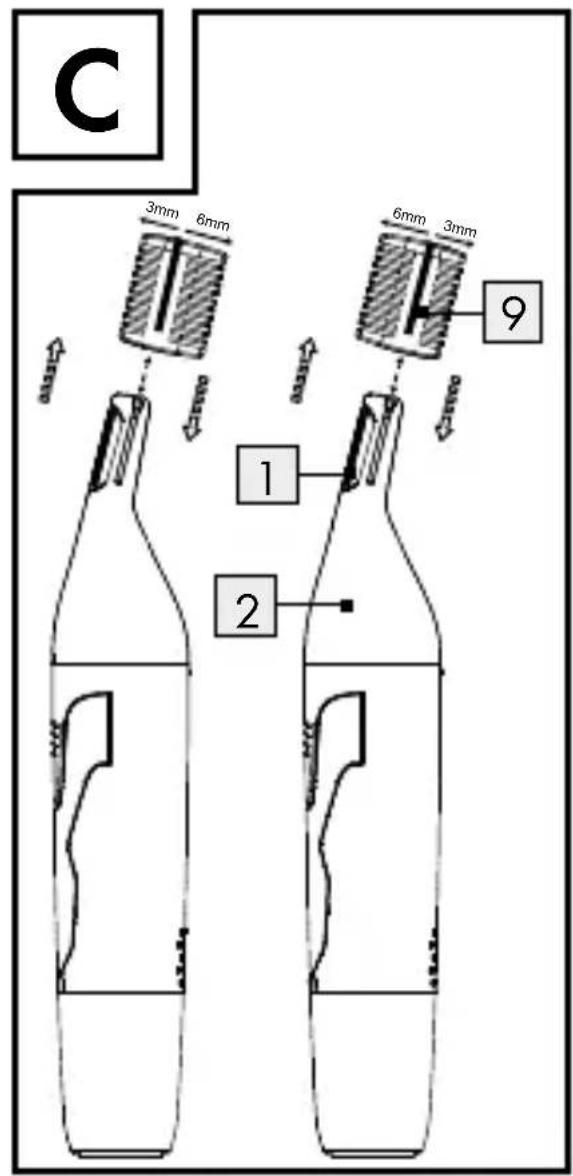

Take off the comb attachment 9 (see Fig. C) and clean the blade 1 carefully under the running water (see Fig. D). Then fully dry the blade 1 before using the product again.
Attention: The product is only protected against from splash water. Never immerse it in the water. Otherwise, irreparable damage may results.

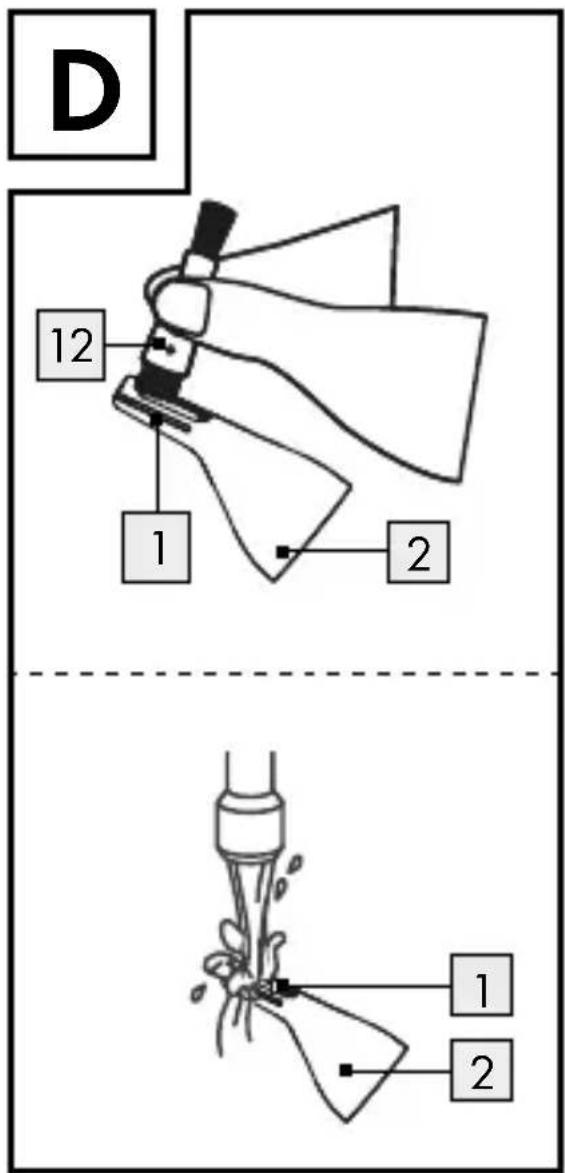

☐ If there are still hair on the blade 1, clean it with the double-sided cleaning brush 12 (see Fig. D).
☐ To store the product, always put on the protective cap 10.
□ Keep the product in a cool, dry location.
●Troubleshooting
| Error Cause Solution | ||
| The stainless steel blade moves slowly. | The battery 11 is empty. | Exchange the battery 11 (see Fig. B). |
| The product does not turn on when twisting the battery compartment cover 8 until the setting indicator 6 is aligned to the to “ON” indicator 5. | The battery 11 is empty or inserted incorrectly. | Exchange the battery 11 (see Fig. B) or insert it correctly. |
| The product pulls on the hairs. | You move the product too fast. | Do not move the product too fast. |
| The product does not work properly. | There may be hair stuck in blades/ the blades are blocked and should be cleaned. | Clean the blades carefully under running water (see Fig. D). Use the included double-sided cleaning brush 12, if you notice that some hairs are blocking the blades. |
●Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.
The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.
Environmental damage through incorrect disposal of the batteries / rechargeable batteries!
Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.
- Warranty
The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.
The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.
Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of
charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.
The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
- Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase. You will find the item number on the rating plate, an engraving on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till
receipt) and information about what the defect is and when it occurred.
Service
Service Great Britain
Tel.: 08000569216
E-Mail: owim@lidl.co.uk
Service Ireland
Tel.:1800200736
E-Mail: owim@lidl.ie
• EC Declaration of conformity
EC DECLARATION OF CONFORMITY
IAN:
355175_2004
Product identification:
"Silvercrest" NOSE & EAR HAIR TRIMMER
Model Number:
HG06657
The object of the declaration described above is in conformity with the relevant Community harmonisation legislation:
Directive 2006/42/EC
Directive 2014/30/EU
Directive 2011/65/EU
References to the relevant harmonised standards used or references to the specifications in relation to which conformity is declared:
N° / Parts
Directive 2006/42/EC
EN 60335-1:2012/A2:2019
EN 60335-2-8:2015/A1:2016
EN ISO 12100:2010
Directive 2014/30/EU
The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment:
N° / Parti
Directive 2011/65/EU
EN 50581:2012-09
Additional information - Further related standards
N° / Parts
EN 62233:2008
EN 55014-1:2017
EN 55014-2:2015
Name and address of the manufacturer:
This declaration of conformity is issued under the sole responsibility of the manufacturer.
Original declaration of conformity
Neckarsulin
Place
23.09.2020
Date
Peter Fischer
Managing Director
Dr. Thorsten Male
Authorised Signatory
Line drawing of a person holding an object, no text or symbols present
IAN :
155175_2004
Symbol of a hand pressing down inside a circle (no text or numbers present)DRAAG VEILIGHEIDS- HANDSCHOENEN!
Line drawing of a person holding a small object, possibly a tool or device, with no visible text or symbols.
Peter Fischer Managing Director Dr. Thorston Maier Authorised Signatorynatural_image
Symbol of two gloves inside a black circle, no text or numbers presentZAKŁADAĆ RĘKA- WICE OCHRONNE!
Line drawing of a person holding an object, no text or symbols present
IAN:
355175_2004
Nazwa produktu:
"Silvercrest" TRYMER DO NOSA I USZU
Oznaczenie modelu:
HG06657
Warning sign with explosion effect inside triangle, likely indicating hazard or safety warningNEBEZPEČÍ VÝBUCHU
Line drawing of a person's hand holding a small object (no text or symbols)
mecko Peter Fischer Managing Director Dr. Thorsten Mayer Authorised Signatorytext_image
Warning sign with explosion effect inside triangle, likely indicating hazard or safety warningNEBEZPEČENSTVO
EXPLÓZIE! Nenabíja-
tel'né batérie nikdy znova nenabí- jajte. Batérie / akumulátorové
NOSTE OCHRANNÉ RUKAVICE! Vytečené
Simple line drawing of a person's face with a small object near the mouth (no text or symbols)
Peter Fischer Managing Director Dr. Thorsten Maier Authorised Signatory
Stiftsbergstraße 1
74167 Neckarsulm
GERMANY
Model-No.: HG06657
Version: 11/2020
