Product type	Angled spray lance for high-pressure cleaner
Brand	Parkside
Model	PWSR 1 A1
Length	Approximately 95 cm
Test pressure (p)	11.5 MPa / 115 bar
Max. admissible pressure	170 bar
Max. flow rate	450 l/h
Max. inlet temperature	60 °C
Compatibility	Parkside high-pressure cleaners series PHD 100*, PHD 110, PHD 135, PHD 150, PHD 170 (except PHD 100 year 2009); other brands with adapter
Scope of delivery	Two-part lance, adapter, user manual
Connection	Bayonet coupling directly onto Parkside gun; adapter for other brands
Intended use	Cleaning hard-to-reach areas (private use)
Material	Steel/metal and plastic
Approximate weight	0.5 kg
Maintenance and cleaning	Clean with clear water, dry with a soft cloth; no cleaning agents
Storage	In a frost-free place
Safety	Do not direct jet at people, animals, electrical equipment; wearing protective goggles recommended
Warranty	3 years (subject to warranty conditions)
Customer service	Phone France: 0800 919270, Belgium: 070 270 171, e-mail: [e-mail] / [e-mail]

Frequently Asked Questions - PWSR 1 A1 PARKSIDE

Which high-pressure cleaners are compatible with the Parkside PWSR 1 A1 lance?

The lance is suitable for Parkside cleaners of series PHD 100* (except 2009 model), PHD 110, PHD 135, PHD 150 and PHD 170. It can also be used with other brands thanks to the supplied adapter.

How to assemble the angled spray lance PWSR 1 A1?

Screw the two parts of the lance together (1+2). Connect it to the cleaner's gun via the bayonet coupling. If your cleaner is not Parkside, use the adapter (3) by clicking it onto the lance and then screwing the nut onto the gun.

What is the maximum pressure supported by this lance?

The maximum admissible pressure is 170 bar. The test pressure is 11.5 MPa (115 bar). Do not exceed 170 bar.

Can I use the lance with hot water?

Yes, but the inlet water temperature must not exceed 60 °C.

How to clean and maintain the lance?

Before any cleaning, disconnect the high-pressure cleaner. Clean the lance with clear water and dry it with a soft cloth. Do not use cleaning agents.

Where should I store the lance?

Store it in a frost-free place to prevent damage.

What are the important safety instructions?

Never direct the jet at people, animals, operating electrical equipment. Wear protective goggles. Children under 16 must not use the device.

Is the lance suitable for cleaning windows?

No, the manual indicates it is not suitable for cleaning windows.

What warranty does the product have?

The warranty is 3 years from the date of purchase. Keep the receipt as proof. For claims, contact customer service.

Where can I get spare parts or accessories?

Essential spare parts are available during the warranty period. For additional accessories, visit www.grizzly-service.eu or contact customer service.

USER MANUAL PWSR 1 A1 PARKSIDE

Pure mechanical lever diagram without any text, numbers, or symbols

PDF ONLINE www.lidl-service.com

Winkelsprührohr / Angled Pressure Washer Lance / Lance de pulvérisation coudée PWSR 1 A1

DE AT CH

Winkelsprührohr

Translation of the original instructions

NL BE

Haakse sproeibuis

Service-Center......6

Importeur 6

Einleitung

General description......7

Scope of delivery....7

Description of functions......8

Technical data 8

Safety information 8

Initial start-up......9

Cleaning 9

Storage....9

Disposal/environmental protection 9

Accessories 9

Guarantee 10

Service-Center 10

Importer 10

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal. Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.

Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

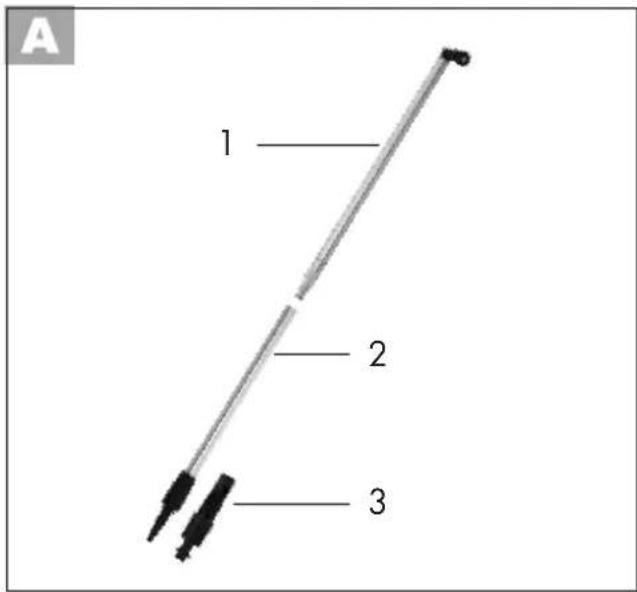

A 1 2 3

Proper use

The angled spray pipe is a pressure washer accessory. The angled flat jet is suitable for cleaning areas that are difficult to reach.

The manufacturer is not liable for damage caused by improper use or incorrect operation.

This product is only intended for private use and not for commercial use. The operator or user is responsible for any accidents or personal injury and/or material damage to third parties or their property.

General description

Scope of delivery

Unpack the device and check for completeness:

• A 1+2 Angled spray pipe (two-piece)
• A 3 Adapter
• Instruction manual

Dispose of the packaging material properly.

Description of functions

The adapter is suitable for connecting to other common pressure washers made by other manufacturers.

Please refer to the descriptions below for the functions of the operating elements.

Technical data

Angled Pressure Washer Lance....PWSR 1 A1

Suitable for pressure washer with the following performance data:

Rated pressure (p) ..... 11,5 MPa / 115 bar Permissible pressure (p max) ..... 170 bar Max. flow rate (Q max.....450 l/h max. intake temperature.....60 °C Length.....ca. 95 cm

The angled spray pipe is suitable for pressure washers with a permissible pressure (p max) of 9-17 MPa (90-170 bar).

Suitable for pressure washers of the series PHD 100*, PHD 110, PHD 135, PHD 150 and PHD 170.

* Not suitable for Parkside pressure washer PHD 100 (manufactured in 2009).

Safety information

Please also note the safety information of your pressure washer.

CAUTION. pressure washers can be dangerous if they are not operated correctly! The jet must never be directed at people, animals, electric equipment connected to the power supply or against the actual pressure washer.

This device is not intended for use by people (including children) with restricted physical, sensory or mental capabilities, or those who do not have sufficient experience and/or knowledge of using it unless they are supervised by an individual responsible for their safety, or receive instructions from this person on how to use the device.

• Children should be supervised to ensure that they do not play with the device.
• Operation of the device is not permitted for persons under the age of 16 years.
- Wear protective goggles as protection against dissolved dirt while working.
- Never leave the device unattended at the workplace when it is ready for use.
- The maximum water temperature must not exceed 60°C.
- Do not direct the jet at yourself or others in order to clean clothes and shoes.
- Do not operate the pressure washer when other people are in the immediate vicinity, other than they are also wearing protective clothes..
- Take appropriate measures to keep children away from the equipment whilst it is running

• Do not use the equipment in the vicinity of flammable liquids or gases.
  Nonobservance will result in a risk of fire or explosion.
• Do not work with damaged or incomplete equipment, or with equipment that has been converted without the approval of the manufacturer.
• Follow the security tips of your high-pressure washer.
• Do not use for cleaning windows.

Initial start-up

Caution: Make sure that the technical data of the angled spray pipe matches the technical data of the used pressure washer! If disregarded, there is a risk of injury!

Connection without adapter

1. Screw together both parts (1+2) of the angled spray pipe.
2. To connect to the PARKSIDEpressure washer, snap the bayonet mount into the PARKSIDE-pressure washer's jet gun.

Connection with adapter

1. Attach the adapter (3) to the angled spray pipe (2) and turn it through 90° until it locks into place (bayonet fitting). Screw the coupling nut of the angled spray pipe (2) against the adapter (1).
2. Connect the spray gun (bayonet locking device) and screw the cap nut of the adapter (3) against the spray gun.

Cleaning

Always remove the mains plug of the pressure washer before working. Danger of electric shock..

• Clean the angled spray pipe with water and dry it with a soft cloth.
• Do not use any cleaning agents.

Storage

Store the device in a frost-proof room.

Disposal/environmental protection

• The device, accessories and packaging should be properly recycled.
  • Take the device to a recycling plant.
• Please contact our service centre for more information.

Accessories

Accessories can be obtained at www.grizzly-service.eu

If you have issues ordering, please use the contact form. If you have any other questions, contact the „Service-Center“.

Guarantee

This equipment is provided with a 3-year guarantee from the date of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. adapter) or to cover damage to breakable parts.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

Please have the receipt and item number (IAN 310978_1904) ready as proof of purchase for all enquiries.

Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.

Service-Center

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IAN 310978_1904

IF Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 310978_1904

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.
