5KD94190GB - Microwave BLAUPUNKT - Free user manual and instructions

Product type	Steam combination microwave oven
Brand	Blaupunkt
Model	5KD94190GB
External dimensions	595 x 525 x 454 mm
Net weight	Approximately 33 kg
Capacity	34 L
Rated voltage	230 V ~ 50 Hz
Microwave power	900 W
Grill power	3 levels
Convection power	1750 W
Steam power	1500 W
Maximum power	3300 W
Cooking functions	Microwave, grill, convection, steam, combined, defrost
Automatic programs	80 programs (40 steam + 40 without steam)
Installation type	Built-in
Child safety	Yes (key lock)
Automatic descaling	Yes
Recommended cleaning	Damp cloth, no abrasive cleaners
Included accessories	Rack, glass drip tray

Frequently Asked Questions - 5KD94190GB BLAUPUNKT

How to clean the oven interior after use?

Clean the cooking compartment with a slightly damp cloth. For stubborn residues, place half a lemon in 300 ml of water and heat for 10 minutes at maximum power, then wipe. Do not use abrasive cleaners or metal scrapers.

How to use the steam function?

Press the m button to select steam mode. Set the temperature (50-100°C) and cooking time (max 90 min). Ensure the water tank is filled. Steam cooking can be combined with microwave or convection.

Which utensils can I use in the microwave?

Use microwave-safe containers: glass, ceramic, microwave-safe plastic, parchment paper. Avoid metal, aluminium, metal ties, and wood. Test by heating a glass of water next to the utensil for 1 minute: if it heats up, do not use it.

How to activate child safety?

In standby mode, press the l button for 3 seconds. A long beep confirms activation and the symbol lights up. To deactivate, press the same button again for 3 seconds.

What to do if error code E-06 or E-05 appears?

Code E-06 indicates the water tank is not properly closed. Check and reinsert it. Code E-05 indicates a malfunction of the water system (sensor, pump, hose); contact a qualified technician.

How to set the clock?

After power-on, the time flashes. Use + or - to set the time (00:00-23:59), then press L to confirm. To change later, press and hold L for 3 seconds.

Is it normal for condensation to form on the door?

Yes, it is normal. During cooking, steam condenses on cold surfaces like the door glass. Simply wipe with a cloth after use.

Can you heat hard-boiled eggs in the microwave?

No, eggs in shell or whole hard-boiled eggs should not be heated in the microwave as they can explode, even after cooking.

How to perform automatic descaling?

Fill the water tank with 1000 ml of water and sodium citrate descaling agent. In standby mode, press @/A several times until CLE is displayed, then start. After 1 minute, empty and rinse the tank, then repeat with clean water.

What to do if the oven does not start?

Check that the cable is properly plugged in, that the fuse or circuit breaker has not tripped, and that the door is properly closed. If the problem persists, test the socket with another appliance or contact a technician.

USER MANUAL 5KD94190GB BLAUPUNKT

Combination steam oven 5KD94190GB

Mikrowellenleistung Dankpfanteil
100W 10%, 20%, 30%
300W 10%, 20%, 30%,	40%, 50%, 60%
450W 10%, 20%, 30%,	40%, 50%, 60%, 70%
700W 10%, 20%, 30%,	40%, 50%, 60%, 70%
900W 10%, 20%, 30%,	40%, 50%, 60%, 70%, 80%,90%, 100%

1. Child safety lock

IMPORTANT INFORMATION ABOUT INSTALLING 40

PLACEMENT 41

INSTALLATION DIMENSIONS 41

BUILDING IN 41-42

BEFORE FIRST USE 43

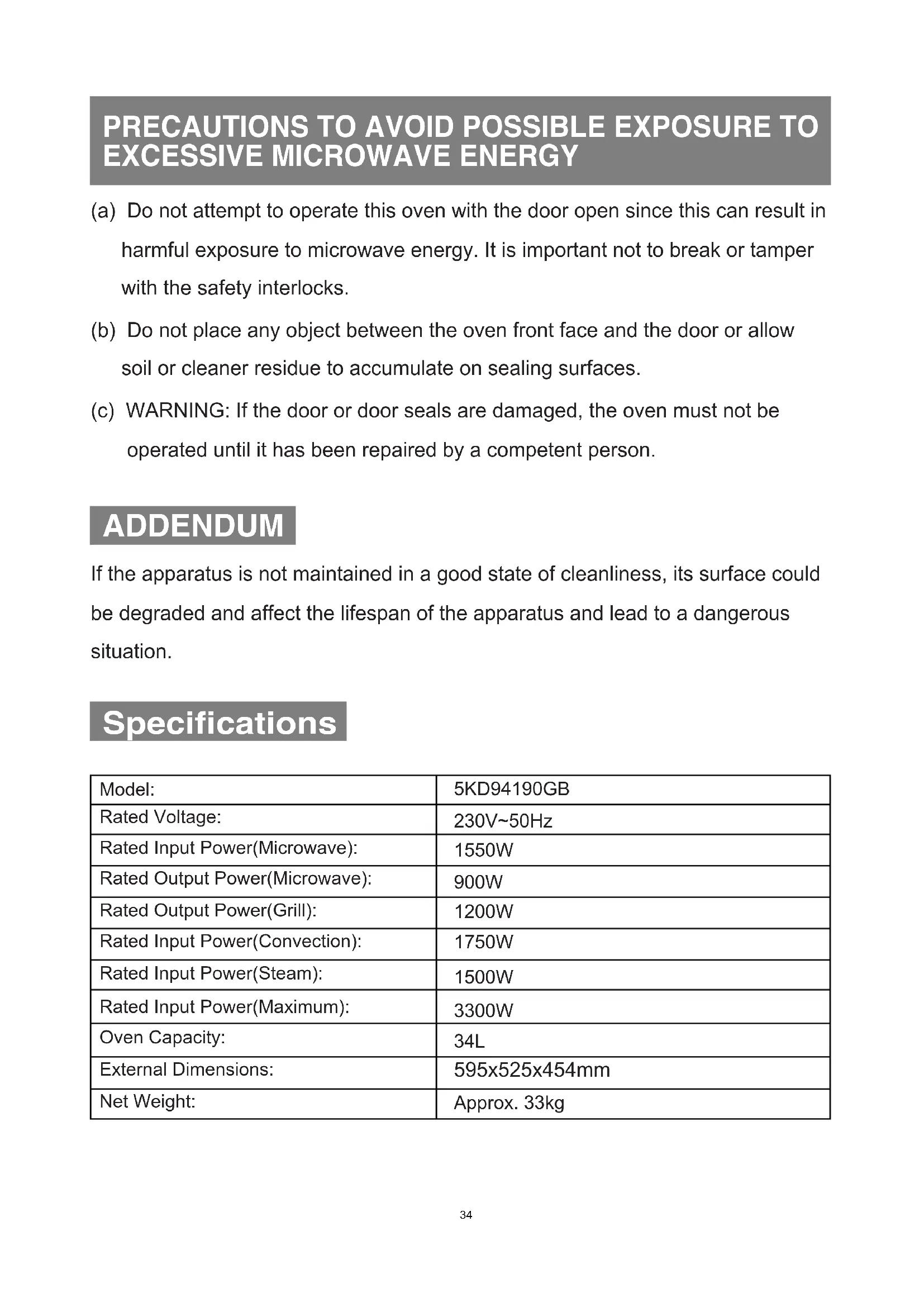

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	5KD94190GB
Rated Voltage:	230V~50Hz
Rated Input Power(Microwave):	1550W
Rated Output Power(Microwave):	900W
Rated Output Power(Grill):	1200W
Rated Input Power(Convection):	1750W
Rated Input Power(Steam):	1500W
Rated Input Power(Maximum):	3300W
Oven Capacity:	34L
External Dimensions:	595x525x454mm
Net Weight:	Approx. 33kg

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. Only use utensils suitable for use in microwave ovens.
6. The oven should be cleaned regularly and any food deposits should be removed.
7. Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames. 10. Do not overcook food.
10. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
11. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
12. Install or locate this oven only in accordance with the installation instructions provided.
13. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended. 15. This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -by clients in hotels, motels and other residential type environments; -farm houses; -bed and breakfast type environments.
14. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
15. Do not store or use this appliance outdoors.
16. Do not use this oven near water, in a wet basement or near a swimming pool.
17. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any vents on the oven.
18. Do not let cord hang over edge of table or counter.
19. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
20. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
21. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
22. Children should be supervised to ensure that they do not play with the appliance.
23. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
24. Accessible parts may become hot during use. Young children should be kept away.
25. Steam cleaner is not to be used.
26. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
27. Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)
28. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
29. The microwave oven must be operated with the decorative door open. (For ovens with a decorative door.)
30. Surface of a storage cabinet can get hot.
31. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
32. WARNING: When moving the oven, do not carry it by the handle. (The oven is overweight; handles are easily broken.)
33. The water in the receiving tank, inside the oven, and in the water tank should be cleaned up after each use.
34. Do not use paper cups and plastic containers with a melting temperature below 120 degrees. Glass, ceramic, and stainless steel utensils can be used.
35. Steam is the main heating function for this product.

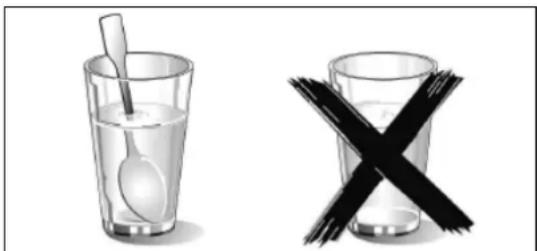

If you are heating liquid in the microwave, you must also place a teaspoon in the container. This will ensure that the liquid does not boil suddenly after being removed from the microwave cavity.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious internal injury or death.

Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until the appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used: 1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance. 2) The extension cord must be a grounding-type 3-wire cord. 3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip--For easier cleaning of the cavity walls that the food cooked can touch:

Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes.

Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks

Browning dish Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Makeslits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattendedwhile cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic Microwave-safe only. Follow the manufacturer's instructions. Should be labeled „Microwave Safe“. Some plastic containers soften, as the food inside gets hot. „Boiling bags“ and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).

Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks

Aluminum tray May cause arcing. Transfer food into microwave-safe dish.

Food carton with metal handle

May cause arcing. Transfer food into microwave-safe dish.

Metal or metal- Metal shields the food from microwave energy. Metal trim may cause arcing.

metal-trimmed

utensils

Metal twist ties May cause arcing and could cause a fire in the oven.

Paper bags May cause a fire in the oven.

Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.

Wood Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity

Your oven comes with the following accessories:

Instruction Manual 1

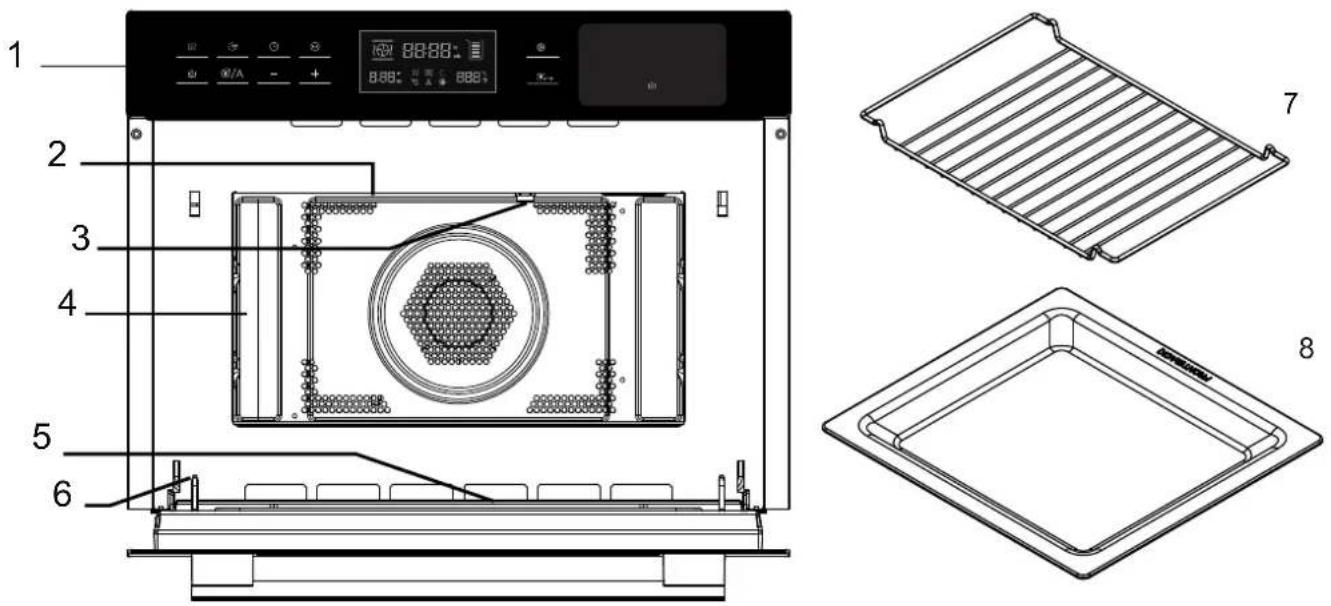

1. Control panel
2. Grill Rack
3. Grill element
4. Glass Pan
5. Light
6. Cavity
7. Door glass
8. Hinge

IMPORTANT INFORMATION ABOUT INSTALLING

• This appliance is NOT intended for use in a commercial environment.
• Please observe the installation instructions provided and note that this appliance should only be installed by a qualified technician.
• The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
• In case a new socket is needed, installation and cable connection must only be done by a qualified electrician. If the plug is no longer accessible following installation, a pole disconnecting device must be present on the installation site with a contact gap of at least 3 mm. Adapters, multiway strips and extension cords must not be used. Overloading can result in fire.
• If the appliance is not fitted with a supply cord and a plug, the connection equipment must have a contact separation in all poles that provide full disconnection, and the appliance must be incorporated in the fixed wiring in accordance with the wiring rules.

The accessible surface may be hot during operation.

Fitted units

This appliance is only intended to be fully fitted in a kitchen. - This appliance is not designed to be used as a tabletop appliance or inside a cupboard. - The fitted cabinet must not have a back wall behind the appliance. - A gap of at least 35 mm must be maintained between the wall and the base or back panel of the unit above. - The fitted cabinet must have a ventilation opening of 250 cm² on the front. To achieve this, cut back the base panel or fit a ventilation grille. - Ventilation slots and intakes must not be covered. - The safe operation of this appliance can only be guaranteed if it has been installed in accordance with these installation instructions. - The fitter is liable for any damage resulting from incorrect installation. - The units into which the appliance is fitted must be heat-resistant up to 90°C.

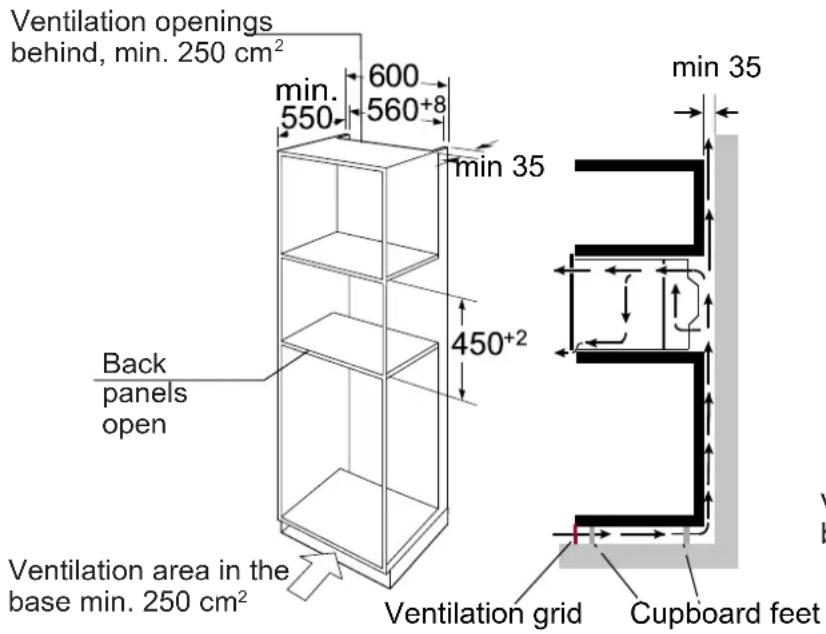

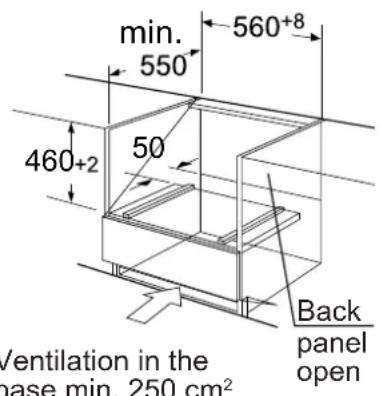

Installation dimensions

Note: There should be a gap above the oven.

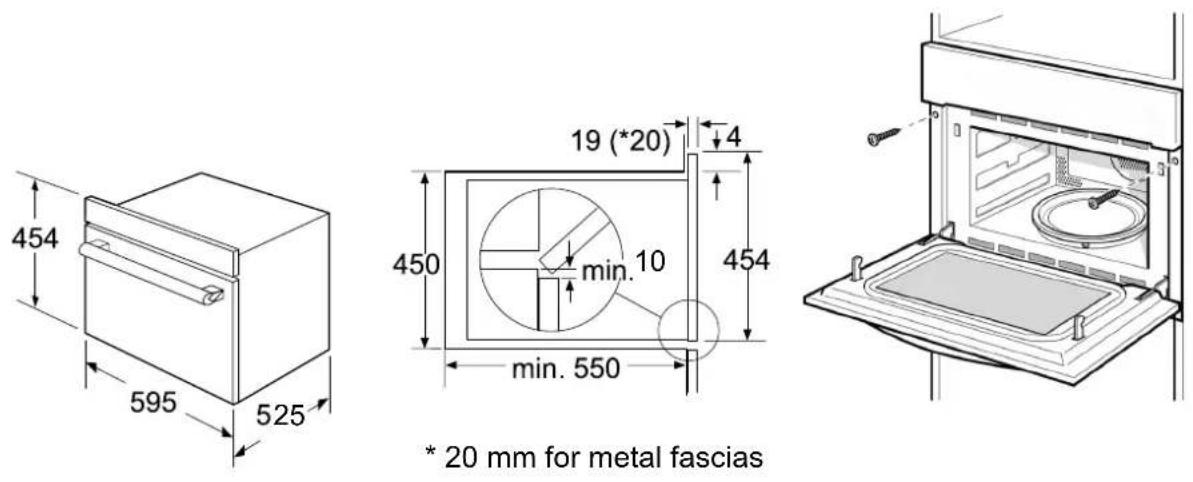

Building in

• Do not hold or carry the appliance by the door handle. The door handle cannot hold the weight of the appliance and may break off.
• Carefully push the oven into the box, making sure that it is in the centre.
• Open the door and fasten the oven with the screws that were supplied.

Fully insert the appliance and centre it. Do not kink the connecting cable. Screw the appliance into place. The gap between the worktop and the appliance must not be closed by additional battens.

Important information

Electrical connection

The appliance is fitted with a plug and must only be connected to a properly installed earthed socket. Only a qualified electrician who takes the appropriate regulations into account may install the socket or replace the connecting cable. If the plug is no longer accessible following installation, an all-pole isolating switch must be present on the installation side with a contact gap of at least 3 mm. Contact protection must be ensured by the installation.

BEFORE FIRST USE

Initial cleaning and heating

Remove all of the protection foil on the front of the microwave oven.

For more information see the "CLEANING". Before the first use of the appliance,

• To remove the new cooker smell, heat up the oven when it is empty and closed. One hour with hot air at 230 °C is ideal. Ensure that no packaging remnants have been left in the cooking compartment.
• Before heating, it is best to wipe the microwave oven interior with a damp cloth.
• Touch keys. When the appliance is turned on, the main menu appears in the display.
• Touch the key to set the hot air function.
• Touch the ↔ and ,- + " keys to set the temperature to 230°C.
• Touch the \ L key. Touch the ,- + " key to set the cooking time to 60 minutes.
• Touch the key. The oven begins to heat up.
• Let the appliance cool down to room temperature. Then use a solution of neutral detergent mixed with hot water to clean the inside of the microwave oven, then wipe dry with a clean soft cloth. Keep the door open until the oven is completely dry.

Control Panel

Touch keys and display

The touch keys are used to set the various additional functions. On the display, you can read the values that you have set.

Symbol	Function
m	Steam
°C	Non-Steam
°C	Clock
Θ	Parameters
\( \text{出} \)	Water tank door key
6/4	Preheat/Auto-programs
- +	Parameter adjustment
®	Start
\( \overline{\mathbf{u}} -\mathbf{o} \)	Stop/Cancel

Function and screen display

Use the function keys to set the type of heating.

Function (symbol flash when operating)	Use
Microwave	Defrost,reheat and cooking.
Grill	Select between the levels high, medium or low. This is ideal if you wish to grill several steaks, sausages, pieces of fish or slices of bread.
Convection	For baking sponge cakes in baking tins, flans and cheeses as well as cakes, pizza and small baked items on the baking tray.
Fan Grill	Poultry goes brown and crispy. Baked casseroles and grilled dishes work out best using this setting.
Microwave+Grill	Use this function to cook meals quickly and at the same time give the meal a brown crust.
Microwave+Convection	Use this function to roast meal quickly.
Microwave+Fan Grill	Poultry goes brown and crispy. Baked casseroles and grilled dishes work out best using this setting. And use the function to roast meals evenly.
Steam	Use this function to cook Trout,Salmon Fillet,Pikeperch,Prawns,Halibut filet, Herring.
Microwave+Steam	Use this function to cook potato without skin.

Function		Use
Steam+Convection		Add steam during convection and make the food relatively moist.
Auto Menu		80 cooking programmes
*Defrost		2 defrosting programmes

Parameter adjustment

Use the adjusting keys to set the parameters.

parameter	function
Auto menu	Select 80 automatic programmes.
Temperature	Select the temperature of cooking(°C).
	35,100,105,110...230
	35,100,105...180
	100,105,110...180
	100,90,80,70,60,50
	180,190,200,210,220
Weight	Set the weight of cooking.
Time	Set the time of cooking.
Microwave	Select microwave power.100W,300W450W,700W and 900W

Cooling fan

Your appliance has a cooling fan. The cooling fan switches on during operation. The hot air escapes above the door.

The cooling fan continues to run for a certain time after operation.

Caution!

Do not cover the ventilation slots. Otherwise, the appliance will overheat.

Notes

The appliance remains cool during microwave operation. The cooling fan will still switch on. The fan may run on even when microwave operation has ended. Condensation may appear on the door window, interior walls and floor. This is normal and does not adversely affect microwave operation. Wipe away the condensation after cooking.

1. Clock Setting

When the microwave oven is connected with power, "00:00" will blink, buzzer will ring once.

1) Press "-" or "+" to set the right time (between 00:00 and 23:59). 2) After you have set the right time, press L. The clock has been set.

Note: 1) If you want to change the time, you have to press and hold the L button for 3 seconds. The actual time disappears and then the time will blink in the display. Press "-" or "+" to set the new time and press the "," button to confirm the setting. 2) When you set the clock, long press "-" or "+" when adjusting 10MIN, short press time (each time you adjust 1MIN).

NOTE: When press "≈" you could choose Microwave, Grill, Convection, Grill+Fan, MW+Convection, MW+Grill function, Microwave+Grill+Fan.

1. Microwave Cooking

1) Press the "≈" button to activate the microwave function. "01:00" will light in the display and the microwave icon appears. 2) Press "+" or "-" to select cooking mode. 3) Press "↔" then press "+" or "-" to set the microwave power (900W, 700W, 450W, 300W, 100W). The default power is 900W. 4) Press "L" then press "+" or "-" to set the cooking time. The max. cooking time depends on the power that has been set. When the power is 900W, the MAX. time is 30 minutes and other powers are 90 minutes. 5) Press "O" button to start cooking.

Microwave Power Chart

Microwave Power	100% 80% 50%		30%	20%
Display	900W 700W 450W		300W	100W

You can see from the table below from which power levels you can choose and for which foods the power levels are suitable.

Power level Food
900 W - Boiling water, reheating - Cooking chicken, fish, vegetables
700 W - Reheating - Cooking mushrooms, shell fish - Cooking dishes containing eggs and cheese
450 W - Cooking rice, soup
300 W - Defrosting - Melting chocolate and butter
100 W - Defrosting sensitive/delicate foods - Defrosting irregularly-shaped foods - Softening ice cream - Allowing dough to rise

3. Grill Cooking

1) Press the button to activate the microwave function. 01:00 displays and the microwave icon appears. 2) Press or to select grill mode. The default grill power is the third level. 3) Press to choose the grill level. 4) Press - or + to select the level 3 (the MAX.), level 2 or level 1 (the MIN.). 5) Press to select the time setting mode. The default time is 10 minutes. Press or to select the cooking time of grill. The MAX time is 90 minutes. 6) Press button to start cooking.

1. Convection Cooking

1) Press the button to activate the microwave function. 01:00 displays and the microwave icon appears. 2) Press or to select convection mode. The default temperature is 180 degrees. 3) Press to enter to the temperature mode. 4) Press or + to select temperature. The temperature is from 50 to 230 degrees. (50, 100, 105, 110, 115, 120, 125, 130, 135, 140, 145, 150, 155, 160, 165, 170, 175, 180, 185, 190, 195, 200, 205, 210, 215, 220, 225, 230) 5) Press to select the time setting mode. The default time is 10 minutes. Press or + to select the cooking time. The MAX time is 5 hours. 6) Press button to start cooking.

1. Grill Fan Cooking

1) Press the button to activate the microwave function. 01:00 displays and the microwave icon appears. 2) Press or or to select grill fan mode. The default temperature is 180 degrees. 3) Press enter to the temperature selection. 4) Press or + to select the temperature. The temperature is from 35 to 180 degrees. (35, 100, 105, 110, 115, 120, 125, 130, 135, 140, 145, 150, 155, 160, 165, 170, 175, 180) 5) Press to select the time setting mode. The default time is 10 minutes. Press or to select the cooking time. The MAX time is 5 hours. 6) Press button to start cooking.

1. Microwave + Grill Cooking

1) Press the button to activate the microwave function. 01:00 displays and the microwave icon appears. 2) Press the or button to select the MW + GRILL combination mode. 3) Press the button to enter the grill level selection. 4) Press the or button to select the level 3 (the MAX.), level 2 or level 1 (the MIN.). 5) Press the button to enter the microwave power level selection. 6) Press the or button to select the microwave power (700W, 450W, 300W, 100W). The default power is 300W. 7) Press the button to select the time setting mode. The default time is 10 minutes. 8) Press the or button to select the cooking time. The MAX time is 90 minutes. 9) Press the button to start cooking. 7. Microwave + Convection Cooking 1) Press the button to activate the microwave function. 01:00 displays and the microwave icon appears. 2) Press the or button to select the MW + CONV. combination mode. 3) Press the button to enter the temperature selection. The default temperature is 180 degrees. 4) Press the - or + button to select the temperature between 50 to 230 degrees. (50, 100, 105, 110, 115, 120, 125, 130, 135, 140, 145, 150, 155, 160, 165, 170, 175, 180, 185, 190, 195, 200, 205, 210, 215, 220, 225, 230) 5) Press the button to enter the microwave power level selection. 6) Press the -, or + button to select the microwave power (700W, 450W, 300W, 100W).

The default power is 300W.

7) Press the button to select the time setting mode. The default time is 10 minutes.

8) Press the -, or button to select the cooking time. The MAX time is 90 minutes. 9) Press the button to start cooking. 8. Microwave + Grill Fan Cooking

1) Press the button to activate the microwave function. 01:00 displays and the microwave icon appears. 2) Press the or button to select the MW + GRILL + FAN combination mode. 3) Press the button to enter the temperature selection. The default temperature is 180 degrees. 4) Press the - or + button to select the temperature. The temperature is from 100 to 180 degrees. (100, 105, 110, 115, 120, 125, 130, 135, 140, 145, 150, 155, 160, 165, 170, 175, 180) 5) Press the button to enter the microwave power level selection. 6) Press the -, or + button to select the microwave power (700W, 450W, 300W, 100W). The default power is 300W. 7) Press the button to select the time setting mode. The default time is 10 minutes. 8) Press the or button to select the cooking time. The MAX time is 90 minutes. 9) Press the button to start cooking.

9. Auto Cook

1) In standby mode, press the button once. The display lights up and you enter the defrost menu mode. Press the key more than once to switch between different cooking types such as d01, P01, S01. At this point, you can press the - or + keys to choose between defrost, non-steam menu, and steam menu. When the display shows A, it enters into Menu Mode automatically with a default weight and a default cooking time setting. It will display either P01 or S01, which represent microwave oven function or steaming function respectively. 2) Press the ↔ key and the display will flash showing P01 or S01. At this point, you can press - or + to select the menu type (P01-P40 or S01-S40).

Note:

1) For non-steam menus (P01-P40), press ↔ to switch to your preferred menu and key in the weight of food manually. Press - or + to set cooking time. 2) For the steam menu, if you need to adjust the default cooking time, you can press the L key, then the default cooking time starts flashing on the display. At this point, press - or + to adjust the cooking time.

3) Press the Θ button to start cooking.

NOTE:

1) After the steam auto menu, the water pump will withdraw the water back to the water tank, and there will be some noise. 2) After the steam auto menu, you need to clean the water on the cavity and door panel. 3) If the menu requires preheating, do not put food in the oven during preheating. Only when the temperature is reached can you put in the food to start cooking.

1. Defrost

1) In standby mode, press the button once to activate the defrosting function by switching to defrost mode. You will see the display light up and flash in defrost mode. d01 will be displayed with a default weight setting. 2) Press ↔ to confirm the selected defrost mode, and at the same time you can select the required weight setting by pressing - or +.

3) Press the ▶ button to start cooking.

1. Preheating Function

The preheating function can be activated after you have set the functions: Convection, Grill fan, MW-convection, MW-Grill fan.

1) Press the button. When the preheat icon appears on the display. 2) Press the button to start preheating. When the right temperature is reached, you will hear three beeps. You can stop the preheating by opening the oven door or by pressing the button.

Note: The preheating function only works if you have already chosen one of the modes above. During preheating, the microwave function is switched off. During preheating, do not put food in the oven. Only when the temperature is reached can you put in the food to start cooking.

12. Steam Function

1) In standby mode, press the button to enter steam mode. The time lights up by default at 10:00. The icon is displayed, signs light up, and there is no parallax. The display shows "10:00", "Min" and °C symbols lit. The tank icon on the right shows the current water level (water, lack of water). The default temperature 100 lights up. 2) Press the ↔ key to switch to temperature selection; the temperature flashes. At this point, press - or + to select a temperature (50, 60, 70, 80, 90, 100). 3) Press to select the time setting mode. The default time is 10 minutes. 4) Press - or + to select the cooking time. The MAX time is 90 minutes. 5) Press the start button to begin cooking.

13. Convection + Steam Function

1) In standby mode, press the button to enter steam mode. The time lights up by default at 10:00. Press the mode button or - or + repeatedly to select Conv. + Steam mode. The icon is displayed, and the default temperature is 180 degrees. 2) Press ↔ to enter temperature selection. 3) Press - or + to select temperature (180, 190, 200, 210, 220 degrees). 4) Press ↔ to adjust the steam (10, 20, 30), and the steam light will flash. Press - or + to set the steam level (default 30 percent). 5) Press "L" to select the time setting mode. The default time is 10 minutes. 6) Press - or + to enter the cooking time. The MAX time is 90 minutes. 7) Press the start button to begin cooking.

14. Microwave + Steam Function

1) In standby mode, press the button to enter steam mode. The time lights up by default at 10:00. Press the mode button or - or + to select the MW + Steam mode. The icon is displayed, then displays 300W. 2) Press to enter microwave power level selection. 3) Press - or + to select the microwave power (900W, 700W, 450W, 300W, 100W). The default power is 300W. 4) Press ↔ to adjust the steam, and the steam light will flash. Press - or + to set the steam level (default 30 percent). 5) Press "L" to select the time setting mode. The default time is 10 minutes. 6) Press - or + to select the cooking time. The MAX time depends on the power that has been set. When the power is 900W, the MAX time is 30 minutes; for other powers, it is 90 minutes. 7) Press the start button to begin cooking.

The ratio of steam under different microwave power:

Microwave Power Steam Ratio
100W	10%, 20%, 30%
300W	10%, 20%, 30%,	40%, 50%, 60%
450W	10%, 20%, 30%,	40%, 50%, 60%, 70%
700W	10%, 20%, 30%,	40%, 50%, 60%, 70%
900W	10%, 20%, 30%,	40%, 50%, 60%, 70%, 80%,90%, 100%

15. Lock-out Function for Children

Lock: In standby mode, press for 3 seconds. There will be a long "beep" denoting entering into the children-lock state, and the indicator will light.

Unlock: In locked mode, press for 3 seconds. There will be a long "beep" denoting that the lock is released, and the indicator will disappear.

1. Display Specification

(1) By default, all settings will be set automatically after 10 seconds once the option has been selected. (2) During the setting program, after adjustment for 3 seconds, it will confirm automatically. Except for the auto menu, it will confirm after adjustment for 10 seconds. (3) When the oven is in the setting state or pause state, including auto menu and defrost program, if there is no operation for 5 minutes, it will enter the off state. (4) The oven lamp will light all the time if the door is open. (5) The oven lamp will light all the time if the oven is paused. (6) The button must be pressed to continue cooking if the oven door is open during the cooking process. (7) The button can be pressed in any state to open the water tank.

Steam note:

1. Before steam cooking:

When starting the steam cooking mode, there will be an alert beeping sound when there is a shortage of water in the water tank. The icon that shows the water level will also light up to remind you to add water.

2. During steam cooking:

During the operation of the steam cooking mode, there will also be an alert beeping sound when there is a shortage of water in the water tank. The icon that shows the water level will also light up to remind you to add water.

3. After steam cooking:

1. After the steam function is finished, the water in the boiler will be withdrawn to the water tank. This process lasts for about 1 minute.

2. During the process of withdrawing the water back to the water tank, if the water tank is full, the system will beep 10 times to remind you to empty the tank. After the water tank is empty, the system will continue to withdraw water.

Note: After steam cooking, please remove the water from the water tank.

Defect codes

The following defect codes may occur during steam functions:

E-06: 1. The water tank is not closed properly.

E-05: Water system abnormal, need to contact an engineer for checking. Below are the possibilities:

1. The water sensor is abnormal. 2. The water pipe is abnormal. 3. The water pump is abnormal. 4. The water tank is abnormal.

Add water to here

17. Auto Scale Removal Function

For best cleaning results, we recommend that you use detergent sodium citrate, for descaling steam microwave oven. Follow the manufacturer's instructions on the packaging. It is suggested that descending function should be used after the steam function has been run for 20 hours.

1) Power up the system, remove the water tank, inject 1000ml of fresh water into the water tank, adding a suitable amount of descaling agent. 2) Push the water tank into the appropriate location of the appliance. 3) In standby mode, press the W/An button, the display lights up and it will show the default setting on weight, cooking time and so on under the d01 mode. 4) Press repeatedly, when CLE indicator lightens it means to enter Scale Removal function. "Min" and default time 20:00 lighten, tank icon shows the current water level (Water, lack of water, full of water), other icons disappear. 5) Press start to begin the program. 6) Wait for a minute after the program has finished, remove the water tank and thoroughly clean the water tank. 7) Replace with fresh water, repeat steps 3 to 6.

Note: the descaling process shall not be closed. If the descaling process shuts down before the end, the entire program must be started from step 3.

STEAM MENU

AUTO-MENU	DISPLAY WEIGHT	POWER
Trout S01		200	Steam100°C+300W
		300
		400
		500
		600
Salmon Fillet S02		200	Steam100°C+100W
		300
		400
		500
		600
Pikeperch S03		200	Steam100°C+300W
		300
		400
		500
		600
Prawns S04		200	Steam100°C
		300
		400
		500
		600
Halibut filet S05		200	Steam100°C+300W
		300
		400
		500
		600
Cockles S06		200	Steam100°C+100W
		300
		400
		500
		600
Cod filet S07		200	Steam100°C+300W
		300
		400
		500
		600
Herring S08		200	Steam100°C+300W
		300
		400
		500
		600
Tuna filet S09		200	Steam100°C+100W
		300
		400
		500
		600
Crab S10		2	Steam100°C+300W
		3
		4
		5
		6
Chicken leg S11		200	Steam100°C+300W
		300
		400
		500
		600
		700
		800
Chicken breast S12		200	Steam100°C+300W
		300
		400
		500
		600
		700
		800
Meatball S13		200	Steam100°C+300W
		300
		400
		500
		600
Turkey escalope	S14	400	Steam100°C+300W
		500
		600
		700
		800
Pork filet, whole	S15	200	Steam100°C+300W
		300
		400
		500
		600
Sausages S16		200	Steam100°C+100W
		300
		400
		500
		600
Runny Eggs	S17	1	Steam100°C
		3
Eggs, hard S18		1	Steam100°C
		3
Eggs, soft S19		1	Steam100°C
		3
Brown rice + water	S20	200g+400mL	Steam100°C+450W/Steam100°C+300W
		400g+800mL
Rice + water S21		200g+300mL	Steam100°C+450W/Steam100°C+300W
		400g+600mL
Eggplant/Aubergine	S22	200	Steam100°C+300W
		300
		400
		500
		600
Beans S23		200	Steam100°C +300W
		300
		400
		500
		600
Broccoli S24		200	Steam100°C
		300
		400
		500
		600
Cauliflower S25		200	Steam100°C +300W
		300
		400
		500
		600
Peas S26		200	Steam100°C +300W
		300
		400
		500
		600
Potatoes with skin (whole, small)	S27	1	Steam100°C+ 300W
		2
		3
		4
Potatoes with skin (whole, big)	S28	1	Steam100°C+ 300W
		2
		3
		4
Potatoes without skin (pieces)	S29	200	Steam100°C+ 300W
		300
		400
		500
		600
Carrots S30		200	Steam100°C+300W
		300
		400
		500
		600
Corn cobs S31		2	Steam100°C+300W
		3
		4
		5
		6
Bell peppers S32		200	Steam100°C
		300
		400
		500
		600
Hot peppers S33		200	Steam100°C
		300
		400
		500
		600
Mushrooms S34		200	Steam100°C+300W
		300
		400
		500
		600
Leeks S35		200 Steam100°C+300W
		300
		400
		500
		600
Brussels sprouts	S36	200 Steam100°C
		300
		400
		500
		600
Celery S37		200 Steam100°C+300W
		300
		400
		500
		600
		700
		800
Asparagus S38		200 Steam100°C+100W
		300
		400
		500
		600
Spinach S39		200 Steam100°C+300W
		300
		400
		500
		600
Courgette S40		200 Steam100°C+300W
		300
		400
		500
		600

NO-STEAM MENU

AUTO-MENU	DISPL LAY	WEIGHT PC	WER
Melt chocolate P01		100 450W
		150 450W
		200 450W
Melt butter P02		100 450W
		150 450W
		200 450W
Sweet potato P03		200 100W+220	°C
		400 100W+220	°C
		600 100W+220	°C
Chicken Whole P04		800 100W+220	°C
		1000 100W+220	°C
		1200 100W+220	°C
Chicken leg	P05	200 450W+220	°C
		300 450W+220	°C
		400 450W+220	°C
		500 450W+220	°C
		600 450W+220	°C
		700 450W+220	°C
		800 450W+220°C
Chicken Wings	P06	200 300W+220	°C
		300 300W+220	°C
		400 300W+220	°C
		500 300W+220	°C
		600 300W+220	°C
		700 300W+220	°C
		800 300W+220	°C
Fish Whole P07		1 100W+220	°C
		2 100W+220	°C
		3 100W+220	°C
Fish Steak P08		200 100W+220	°C
		300 100W+220	°C
		400 100W+220	°C
		500 100W+220	°C
		600 100W+220	°C
Fresh pizza P09		200 Pre-heat/200	°C conv.
		300 Pre-heat/200	°C conv.
		400 Pre-heat/200	°C conv.
		500 Pre-heat/200	°C conv.
		600 Pre-heat/200	°C conv.
Frozen Pizza P10		200 100W+220	°C
		300 100W+220°C
		400 100W+220	°C
Cake P11		400 Pre-heat/150	°C
		500 Pre-heat/150	°C
		600 Pre-heat/150	°C

Roast Pork P12		400 450W-220°C
		500 450W-220°C
		600 450W-220°C
		700 450W-220°C
		800 450W-220°C
		900 450W-220°C
		1000 450W+220°C
Chicken kabobs P13	P13	200 100W-220°C
		300 100W-220°C
		400 100W-220°C
		500 100W-220°C
		600 100W-220°C
Shrimp	P14	200 Pre-heat/220°C
		400 Pre-heat/220°C
		600 Pre-heat/220°C
Beef steak P15		400 100W-220°C
		500 100W-220°C
		600 100W-220°C
		700 100W-220°C
		800 100W-220°C
		900 100W-220°C
		1000 100W+220°C
Barbecued spareribs	P16	200 100W-220°C
		400 100W-220°C
		600 100W-220°C
Chocolate cookies	P17	500 Pre-heat/180°C
Lemon cookies P18	400	Pre-heat/200°C
Sausage P19		200 Pre-heat/220°C
		400 Pre-heat/220°C
		600 Pre-heat/220°C
Finger food P20		200 Pre-heat/220°C
		300 Pre-heat/220°C
		400 Pre-heat/220°C
Reheat P21		200 900W
		300
		400
		500
		600
Potato	P22	1 900W
		2 900W
		3 900W
Beverage	P23	1 900W
		2 900W
		3 900W

Pasta P24		100(+800ml cold water)	700W
		150(+1000ml cold water)
		200(+1200ml cold water)
Soup	P25	1	900W
		2
		3
Pizza P26		1	900W
		2
		3
Muffin P27		1	900W
		2
		3
		4
Oatmeal P28		50+500ml water	900W/450W
		100+1000ml water
		150+1500ml water
Baked Apple P29		2	700W
		3
		4
Sandwich P30		1	900W
		2
		3
Popcorn P31		50	900W
		100
Fudge Brownies	P32	800	100W+180°C
Bread P33		100	Grill Level3
		150
		200
Chick nuggets P34		200	100W+220°C
		300
		400
		500
		600
French Fries	P35	200	100W+220°C
		300
		400
		500
Oatmeal raisin cookies	P36	600	Pre-heat/180°C
pecan crisps P37	500		Pre-heat/180°C
Peanut chocolate cookies	P38	500	Pre-heat/180°C
Hamburger P39		2	100W+220°C
		4
		6
Muffin P40		840 (70g*12)	Pre-heat/180°C

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim Oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble Possible	Cause Remedy
Oven can not be started.	(1) Power cord not plug-ged in tightly.	Unplug. Then Plug again after 10 seconds.
	(2) Fuse blowin or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat. (4) Door not closed well. Close door well.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

GROUNDING THE INSTALLATION TO REDUCE

THE RISK OF PERSONAL INJURY 68-70

CONFIGURING YOUR OVEN 70

IMPORTANT INSTALLATION INFORMATION 71

INFORMATION ON MOUNTING THE APPLIANCE 72

INSTALLATION DIMENSIONS 72

BUILT-IN INSTALLATION 72-73

BEFORE FIRST USE 74

OPERATING INSTRUCTIONS 75-82

TROUBLESHOOTING 94

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE RADIATION

Puisance du micro-ondes	Ratio de vapeur
100W 10%, 20%, 30%
300W 10%, 20%, 30%, 40%, 50%, 60%
450W 10%, 20%, 30%, 40%, 50%, 60%, 70%
700W 10%, 20%, 30%, 40%, 50%, 60%, 70%
900W 10%, 20%, 30%, 40%, 50%, 60%, 70%, 80%,90%, 100%

Magnetronvermogen Sto	ompercentage
100W 10%, 20%, 30%
300W 10%, 20%, 30%,	40%, 50%, 60%
450W 10%, 20%, 30%,	40%, 50%, 60%, 70%
700W 10%, 20%, 30%,	40%, 50%, 60%, 70%
900W 10%, 20%, 30%,	40%, 50%, 60%, 70%, 80%,90%, 100%

13/14

6

+

8.88:

∴ m = 3/11

BBB

∴ m = 3/11

图一

Potenza del microonde	% vapore
100W 10%, 20%, 30%
300W 10%, 20%, 30%,	40%, 50%, 60%
450W 10%, 20%, 30%,	40%, 50%, 60%, 70%
700W 10%, 20%, 30%,	40%, 50%, 60%, 70%
900W 10%, 20%, 30%,	40%, 50%, 60%, 70%, 80%,90%, 100%

INSTRUCTIONS FOR USE OF THE PRODUCT 167

USER MANUAL 168-175

TROUBLESHOOTING 187

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

Mikrovågseffekt Ångivå
100W 10%, 20%, 30%
300W 10%, 20%, 30%,	40%, 50%, 60%
450W 10%, 20%, 30%,	40%, 50%, 60%, 70%
700W 10%, 20%, 30%,	40%, 50%, 60%, 70%
900W 10%, 20%, 30%,	40%, 50%, 60%, 70%, 80%,90%, 100%

15. Child lock function

Potencia del microondas	Porcentaje de vapor
100W 10%, 20%, 30%
300W 10%, 20%, 30%,	40%, 50%, 60%
450W 10%, 20%, 30%,	40%, 50%, 60%, 70%
700W 10%, 20%, 30%,	40%, 50%, 60%, 70%
900W 10%, 20%, 30%,	40%, 50%, 60%, 70%, 80%,90%, 100%

Mikrovalna snaga Mikrovalna snaga
100W	10%, 20%, 30%
300W	10%, 20%, 30%,	40%, 50%, 60%
450W	10%, 20%, 30%,	40%, 50%, 60%, 70%
700W	10%, 20%, 30%,	40%, 50%, 60%, 70%
900W	10%, 20%, 30%,	40%, 50%, 60%, 70%, 80%,90%, 100%

∴ m = 3/11

13/14

Therefore, m = 3/11

88:

(1)

12/12

13/14

12/12

(

10

Touch screen and display

Moč mikrovalovne pečice	Razmerje pare
100W 10%, 20%, 30%
300W 10%, 20%, 30%,	40%, 50%, 60%
450W 10%, 20%, 30%,	40%, 50%, 60%, 70%
700W 10%, 20%, 30%,	40%, 50%, 60%, 70%
900W 10%, 20%, 30%,	40%, 50%, 60%, 70%, 80%,90%, 100%
