USER MANUAL 5DB66253 BLAUPUNKT

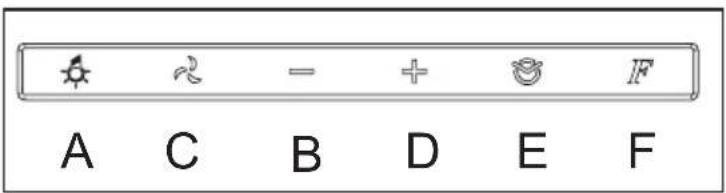

With the hood switched o, pressing any key will activate the control panel in stand-by mode. The symbols are backlit by a white light, allowing you view and select the desired function. Pressing one of the keys again will start the corresponding function, and its symbol will light up. After all functions have been switched o, the control panel will remain in stand-by mode for around 30 seconds and then switch o automatically. A: Light ON/OFF key: press this touch sensor to switch on or o the lights of the hood. C: Motor ON/OFF key (4 speed): press this touch sensor to switch on the hood extractor fan at the same speed as it was when last switched o. Use the „D“ and „B“ keys to vary the speed (power) of extraction. B: Decrease extraction speed (power) key: press this touch sensor to reduce the extraction speed of the hood. D: Increase extraction speed (power) key: press this touch sensor to increase the extraction speed of the hood. E: Timer key: when this touch sensor is pressed, independently of the extraction speed selected, the timer function will be activated. Press once to set the timer for 5 minutes, press a second time for 10 minutes and a third time for 20 minutes. During this phase, the „E“ symbol will ash. To reset the timer, press the motor key, „C“ F: Reset lters key: press this touch sensor to reset the signal that warns that the metal grease lter (1) is saturated and the charcoal lter (2) should be replaced. (1) After 40 hours of using the hood, the „F“ symbol will ash to indicate the necessity of cleaning the metal grease lters. (2) After 120 hours of using the hood, the „F“ symbol will light up to indicate the necessity of replacing the activated charcoal lters. Sensor function: pressing the „B“ and „D“ keys at the same time will activate the sensor. In this mode the extraction speed sets itself automatically and the „B+D“ key ashes intermittently. To return to manual operation, press either the „B“ or the „D“ key. Note: 4 hours after the last key touch, the fan will automatically turn o. All hoods with capacities exceeding 650 m3/h have the last timed speed; It lasts for 7 minutes, after which it automatically returns to the last non-timed speed.1718 AVVERTENZE

Titolo OPERATIONGB Maintenance Prior to any maintenance operation ensure that the cooker hood is disconnected from the electrical outlet. Cleaning The hood must be cleaned frequently both inside (apart from the area behind the grease lter) and outside. Use a cloth moistened with denatured alcohol or neutral liquid detergents. Never use products containing abrasives. Warning Failure to carry out the basic standards of the cleaning of the cooker hood and replacement of the lters may cause re risks. Therefore we recommend observing these instructions. Anti-grease Filter must be cleaned once a month, with non abrasive detergents, by hand or in dishwasher on low temperature and short cycle. When washed in a dishwasher, the grease lter may discolour slightly, but this does not aect its ltering capacity. Charcoal Filter - (only for lter version) The active charcoal lters F are not washable nor regenerative. It should be changed every 6 months in normal use. The active charcoal lters capture unpleasant cooking odours. Replacing lightbulbs Warning! Prior to touching the light bulbs ensure they are cooled down. Led Light If the lighting group LED does not work, please contact the technical service center in order to replace the whole group. Reducing environmental impact: To reduce energy consumption, we recommend you always use the lowest suction speed among those suitable for the cooking mode currently active, avoid leaving the appliance running for more than 15 minutes after burner shutdown and switch o the lights if you leave the cooking area.1920
