USER MANUAL 5B36N0250GB BLAUPUNKT

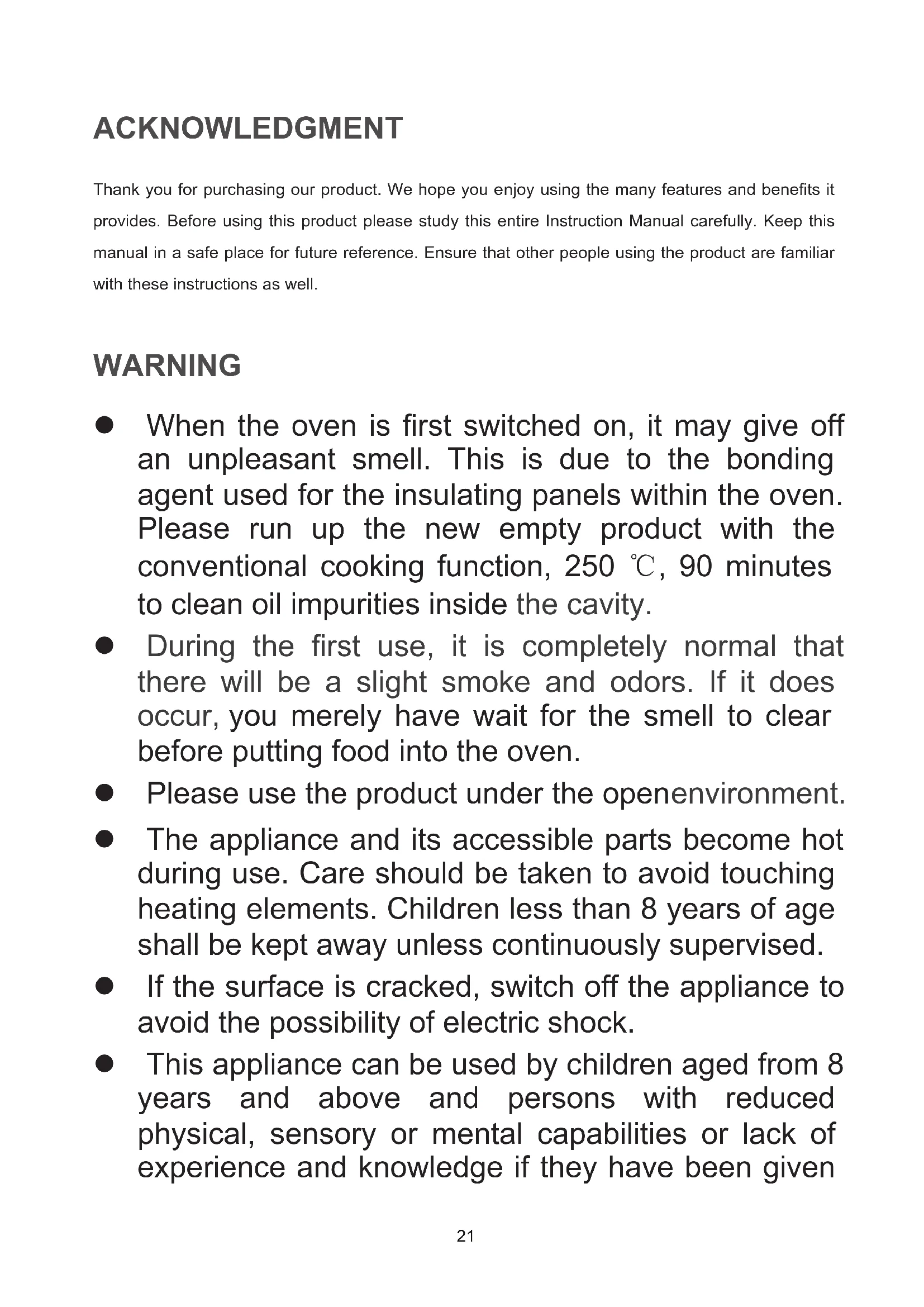

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. During use, the appliance becomes very hot. Care should be taken to avoid touching heating elements inside the oven. Do not allow children to go near the oven when it is operating, especially when the grill is on. Ensure that the appliance is switched off before replacing the oven lamp to avoid the possibility of electric shock. The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring specifications. Children should be supervised to ensure that they do not play with the appliance. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by person responsible for their safety. Accessible parts may become hot during use. Young children should be kept away. An all-pole disconnection means must be incorporated in the fixed wiring in accordance with the wiring rules.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. A steam cleaner is not to be used. The appliances are not intended to be operated by means of an external timer or separate remote- control system. The instructions for ovens that have shelves shall include details indicating the correct installations of the shelves.

SAFETY HINTS Do not use the oven unless you are wearing something on your feet. Do not touch the oven with wet or damp hands. For oven: Oven door should not be opened often during the cooking period. The appliance must be installed by an authorized technician and put into use. The producer is not responsible for any damage that might be caused by defective placement, and installation by unauthorized personnel. When the door or drawer of oven is open do not leave anything on it, you may unbalance your appliance or break the door. Some parts of appliance may keep its heat for a long time; it is required to wait for it to cool down before touching onto the points that are exposed to the heat directly. If you will not use the appliance for a long time, it is advised to plug i off. FITTING THE OVEN INTO THE KITCHEN UNIT Fit the oven into the space provided in the kitchen unit; it may be fitted underneath a work top or into an upright cupboard. Fix the oven in position by screwing into place, using the two fixing holes in the frame. To locate the fixing holes, open the oven door and look inside. To allow adequate ventilation, the measurements and distances adhered to when fixing the oven. IMPORTANT If the oven is to work properly, the kitchen housing must be suitable. The panels of the kitchen unit that are next to the oven must be made of a heat resistant material. Ensure that the glues of units that are made of veneered wood can with stand temperatures of at least 120 ºC. Plastics or glues that cannot withstand such temperatures will melt and deform the unit, once the oven has been lodged inside the units, electrical parts must be completely insulated. This is a legal safety requirement. All guards must be firmly fixed into place so that it is impossible to remove them without using special tools. Remove the back of the kitchen unit to ensure an adequate current of air circulates around the oven. The hob must have a rear gap of at least 35 mm.

DECLARATION OF COMPLIANCE

When you have unpacked the oven, make sure that it has not been damaged in any way. If you have any doubts at all, do not use it: contact a professionally qualified person. Keep packing materials such as plastic bags, polystyrene, or nails out of the reach of children because these are dangerous to children.

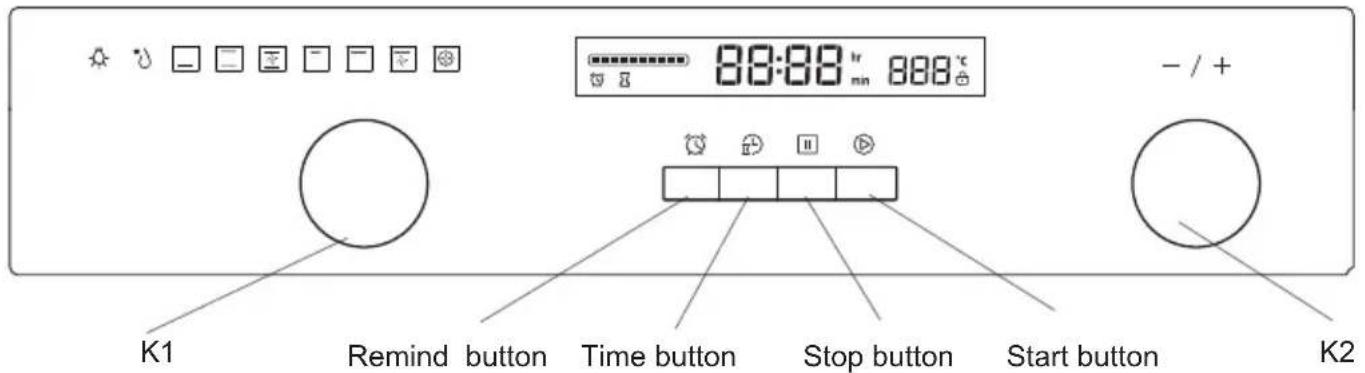

Time button Stop button Symbol Function description Oven Lamp: Which enables the user to observe the progress of cooking without opening the door. Oven lamp will light for all cooking functions Deforst: The circulation of air at room temperature enables quicker thawing of frozen food, (without the use of any heat). It's a gentle but quick way to speed up the defrosting time and thawing of ready-made dishes and cream filled produce etc. Bottom heater: A concealed element in the bottom of the oven provides a more concentrative heat to the base of food without browning. This is ideal for slow cooking dishes such as casseroles, stews, pastries and pizzas where a crispy base is desired. The temperature can be set within the range of 60-120 °C. The default temperature is 60 °C. Conventional cooking: The top and bottom work together to provide convectional cooking. The temperature can be set within the range of 50-250 °C. The default temperature is 220 °C. Convention with fan: Combination of the fan and both heating element provides more even heat penetration,saving up to30-40 % of energy. Dishes are lightly browned on the outside and still moist on the inside. Note:This function is suitable for grilling or roasting big pieces of meat at a higher temperature. The temper ature can be set within the range of 50-250 °C. The default temperature is 220 °C. Radiant grilling: The inner grill element switches on and off to maintain temperature. The temperature can be set within the range of 180-240 °C.The default temperature is 210 °C. Double grill with fan: The radiant heating element and top heating element are working with fan. The temperature can be set within the range of 180-240 °C. The default temperature is 210 °C. Convection: An element around the convection fan provides an additional source of heat for convection style cooking. In convenction mode the fan automatically comes on to improve air circulation within the oven and creates an even heat for cooking. The temperature can be set within the range of 50-240 °C. The default temperature is 180 °C. Double grill: The radiant heating element and the top heating element are working. The temperature can be set within the range of 180-240 °C.The default temperature is 210 °C. This is an energy-saving heating function that allows you to gently cook meat, fish and baked items. The appliance optimally controls the supply of energy to the cooking compartment. Depending on the method of preparation and the type of food, it is possible to save energy. except for ECO function.26

1> Rotate " K1 " to choose the cooking function you require. The related symbol will illuminated .2> Rotate " K2 " to adjust the temperature.3> Press " " to confirm the start of cooking. 4> If step 2 is ignored, Press " " to confirm the start of cooking and the default time is 9 hours,the default temperature will display on the LED.NOTE:1>The step quantities for the adjustment time of the knobs are as follow:0--0:30min: step 1 minute 0:30--9:00hour :step 5 minutes 2>The step quantities for the adjustment of temperature is 5 C, and the grill function is 30 C. O O 3>Rotate " K1" to adjust the cooking time when cooking begins. Then press " " to confirm.If " " not pressed within 3 seconds,the oven will revert back to the previous time to continue cooking.4>Rotate"K2 " to adjust the temperature when cooking begins.The related indicator will be illuminated. Then press" " to start cooking. If " " not pressed in 3seconds, the oven will revert back to the previous temperatrue to continue cooking. 3.Lamp Setting 1> Rotate"K1" to select the relevant function, then the corresponding icon will be on. 4.Inquiring function

5. Child lock function

To Lock : press " " and " " simultaneously for 3 seconds, there will be a long "beeping" sound and the " " will be illuminated. Lock quitting : press " " and " " simultaneously for 3 seconds, there will be a long "beeping" sound indicating the child-lock is released.Note: During working mode, if you want to stop cooking,press stop button quickly. Do not need to longpressing on stop button,it is invalid. OPERATION INSTRUCTIONS

After connectiong the unit to the power, the symbols "0:00" will be visible on the display.1> Press " ", the hour figures will flash.2> Rotate " K2" to adjust the hour figures, (time should be within 0--23).3> Press " ", the minutes will flash.4> Rotate "K2 " to adjust the minutes setting, (time should be within 0--59). 5> Press " " to finish the clock settings. ":" will flash, and the time will be illuminated. Note: The clock is 24 hours. After power on, if not set, the clock will show "0:00". 2> Press " " button to start, "0:00" and lamp icon" " will light up, " : " will flash.

In the following states, you can use inquiring function, after 3 seconds return to the current state. 1> During working state, if the clock was set, press " " button to see the current time; if the reminder function was set, press " " button to see the time of reminder. 2> In reminding state, if the clock was set, press " " button to see the current time. 3> In clock display state, if the reservation function was set, press " " button to see the time of reservation.27

6. Reminder Function:

This function will help to remind you to start cooking in a certain time from 0:01 to 9:59.Only when oven in standby mode, the reminder can be set. Follow below to set the reminder:1> Press reminder setting button " ";2> Rotate " K2 " to set the hour time of reminder. (Time should be within 0--9).3> Press reminder setting button " " again;4> Rotate "K2 " to set minute time of reminder. (Time should be within 0--59).5> Press " " to confirm setting. The time will count down.Note: The oven buzzer will sound for 10 times after the time back to the zero hour. You can cancel the reminder during setting by pressing the " " button; After the reminder has beenset, you can cancel it by pressing stop button twice.

7. Start/Pause/Cancel Function

1> If the cooking time has been set, press " " to start cooking. If the cooking is paused, press " " to resume cooking. 2> During cooking process, press " " once to pause the cooking. Press " " twice to cancel the cooking.

8. Energy-Saving Function

1> In waiting state and reminding state , press " " for three seconds, the LED display will go off and set to energy-saving mode. 2> If no operation in10 minutes under waiting state, the LED display will go off and go into energy-saving mode.3> Under the energy-saving mode, press any key or rotate any can quit the energy-saving mode.

2> Press " " button to set cooking time and temperature. Then turn knob "K1" to adjust time, and " K2 " to adjust temperature.3> Press the " " button to finish cooking setting, and the clock will be on the screen with reservation sign "

" always lighting. But no other function signals are presented. Reservation time can be checkedby pressing " ", 3 seconds later the screen will show clock again. 4> At the time of reservation, cooking will start automatically after a buzzing sound. The reservationsymbol " " will put out, and other indicating signs will work normally. 1>To use reservation function, clock must be set in advance. Then, in the way of setting the clock,reserved time that oven starts to cook must be set (a> Press reservation setting button" "

> Rotate "K2" to set the hour time of reservation. Time should be within 0--23. c> Press reservation setting button " " again; d> Rotate "K2" to set minute time of reservation. Time should be within 0--59.), but don't press clock this time. Next, turn knob "K1" to chosse function.28

1> The oven lamp will be on for all functions. 2> Once the cooking programme has been set and the" " button is not pressed within 5 minutes, the current time will be displayed or turn back to waitting state. The setting program will be invalid. 3> The buzzer will sound once when effectively pressed, if not effectively pressed there will be no response. 4> The buzzer will sound five times to remind you when cooking has finished. Note:

Lamp, defrost, probe can't be reserved.

2. During the status of reservation, press cancel button once, time and temperature of reservation menu

will be shown with menu icon lighting constantly. Press again, screen returns to clock, or press start button to return to reservation status.

3. Reminder function is invalid during reservation status.29

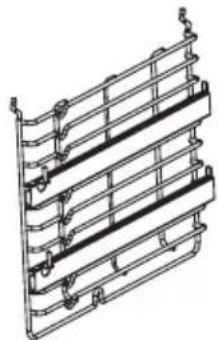

Wire shelf : For grill .dishes, cake pan with items for roasting and grilling. Slider bracket : These shelf support rails on the right and left sides of the oven can be removed for cleaning oven walls. Universal pan: For cooking large quantities of food such as moist cakes, pastries, frozen food etc,or for collecting fat/ spillage and meat juices. Telescopic runner: Some of models might with telescopic runners to facilitate the use of oven. cleaning by unscrew the screws use to fix it. These telescopic runners could be disassembled for ACCESSORIES (only for specific modles) (only for specific modles)

BULB REPLACEMENT For replacement, process as follows: 1>.Disconnect power from the mains outlet or switch off the circuit breaker of the unit's mains outlet. 2>.Unscrew the glass lamp cover by turning it counter-clockwise (note, it may be stiff) and replace the bulb with a new one of the same type. 3>.Screw the glass lamp cover back in place. NOTE: Only use 25-40W/220V-240V , T300°C halogen lamps.

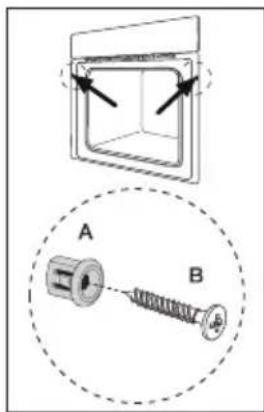

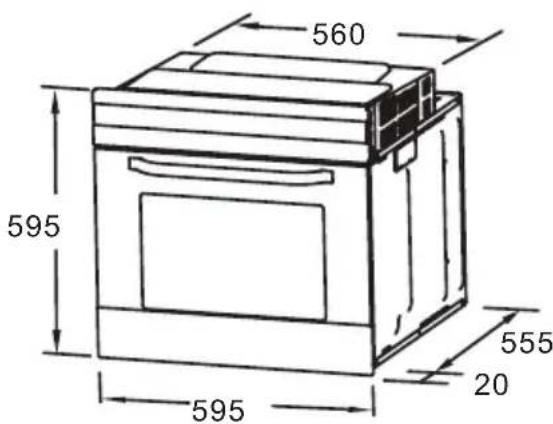

SECURING THE OVEN TO THE CABINET

1. Fit oven into the cabinet recess.

2. Open the oven door.

3. Secure the oven to the kitchen cabint with two distance

holders "A" which fit the holes in the oven frame and fit the two screws "B". SHELF PLACEMENT WARNING: To ensure the oven shelves operate safely, correct placement of the shelves between the side rail is imperative. This will ensure that during careful removal of the shelf or tray, hot food items should not slide out.31

NOTE: The number of accessories included depends on the particular appliance purchased. INSTALLATION

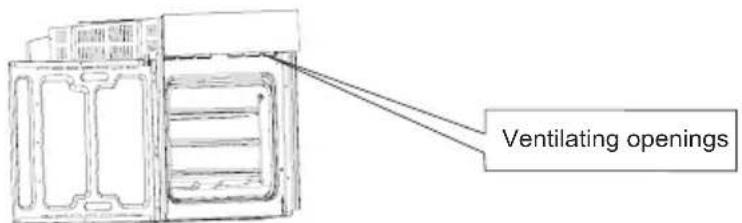

VENTILATING OPENINGS When cooking is finished or in pause state or in waiting state, if the oven's center temperature is over 75 degree, the cooling fan will continue working for 15 minutes. Or when the oven's center temperature becomes lower than 75 degree, the cooling fan will stop in advance. Ventilating openings

NOTE: The number of accessories included depends on the particular appliance purchased. INSTALLATION

VENTILATING OPENINGS When cooking is finished or in pause state or in waiting state, if the oven's center temperature is over 75 degree, the cooling fan will continue working for 15 minutes. Or when the oven's center temperature becomes lower than 75 degree, the cooling fan will stop in advance. Ventilating openings

For the sake of a good appearance and reliability, keep the unit clean. The modern design of the unit facilitates maintenance to a minimum. The parts of the unit which come into contact with food have to be cleaned regularly. Before any maintenance and cleaning, disconnect the power. Set all controls in the OFF position. Wait until the inside of the unit is not hot but only slightly warm- cleaning is easier than when warm. Clean the surface of the unit with a damp cloth, soft brush or fine sponge and then wipe dry. In case of heavy soiling, use hot water with non- abrasive cleaning product. For cleaning the glass of the oven door,do not use abrasive cleaners or sharp metal scrapers, these can scratch the surface or lead to the glass being damaged. Never leave acidic substances (lemon juice, vinegar) on stainless steel parts. Do not use a high pressure cleaner for cleaning the unit. The baking pans may be washed in mild detergent.

CLEANING AND MAINTENANCE

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment(WEEE). By ensuring this product is disposed correctly, you will help prevent potential negative consequences household waste. Instead it shall be handed over to the applicable collection point for the recycling of regulations for waste dispoasl.For more detailed information about treatment, recovery and recycling where you purchased the product. for the environment and human health,which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as electrical and electronic equipment.Disposal must be carried out in accordance with local environmental of this product, please contact your local city office, your household waste disposal service or the shop

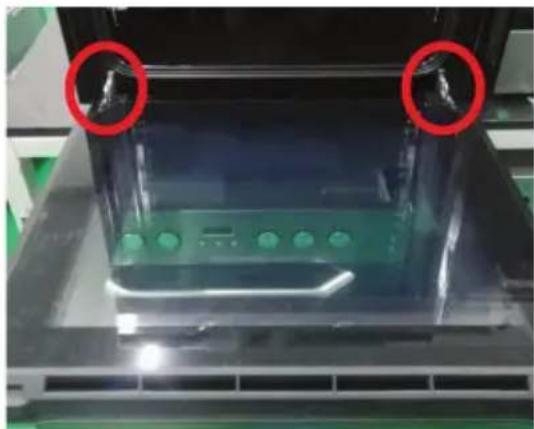

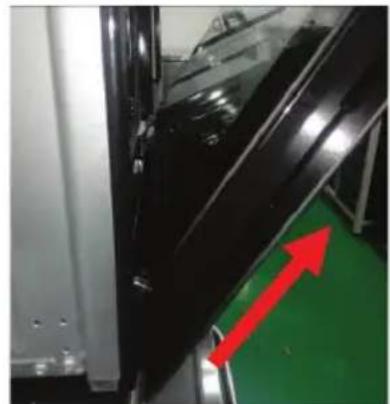

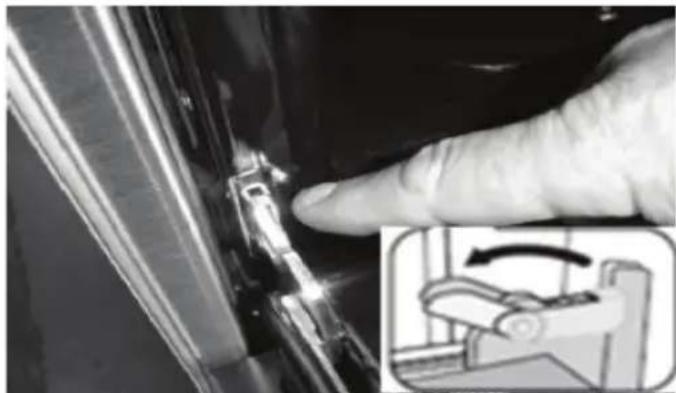

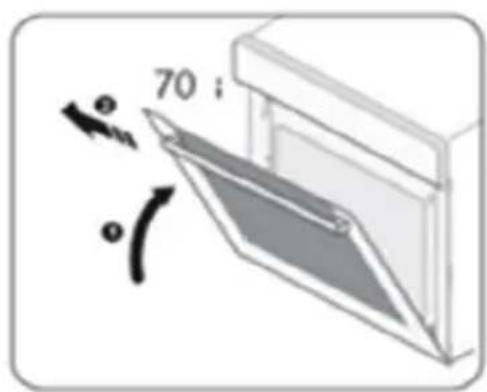

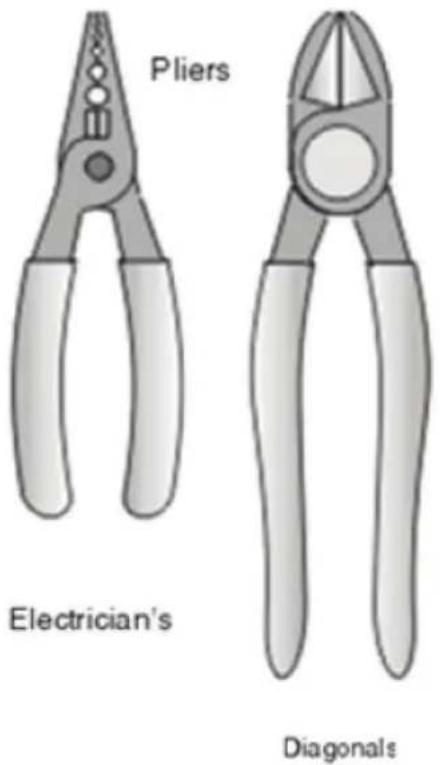

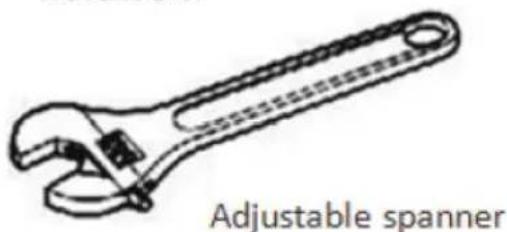

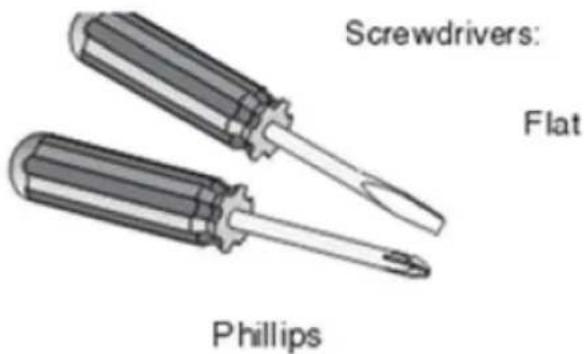

Step 2: Open the door rotation bracket assembly, refer the action in the following picture. Step 3: Raise the doo r so that it is at a 30° angle from the front of the oven. Hold the door with one hand on each side. Lift the door up an d out.

Warning: Don’t forcibly pulled out the door and prevent the glass

breakage during the dismantling process .

Warning: The hinge springs could release, causing personal injury.

Warning: Do not lift or carry the oven door by the door handle .

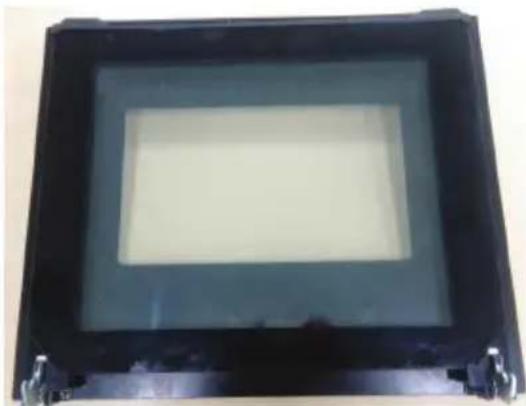

The oven door components’ disassembly. Step 1: Disassemble the door from the oven, then put it on the ben ch horizontally, see 2.1.

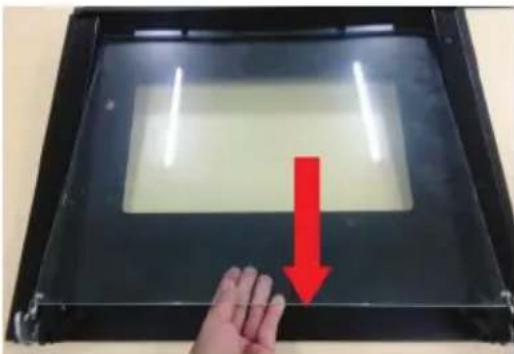

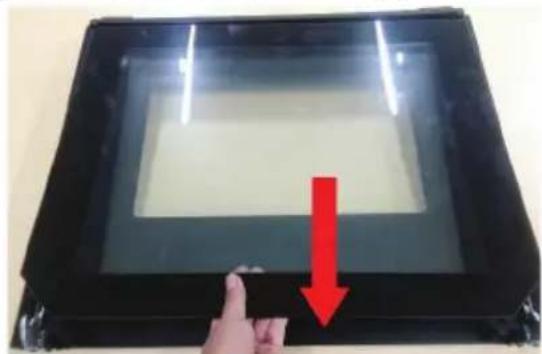

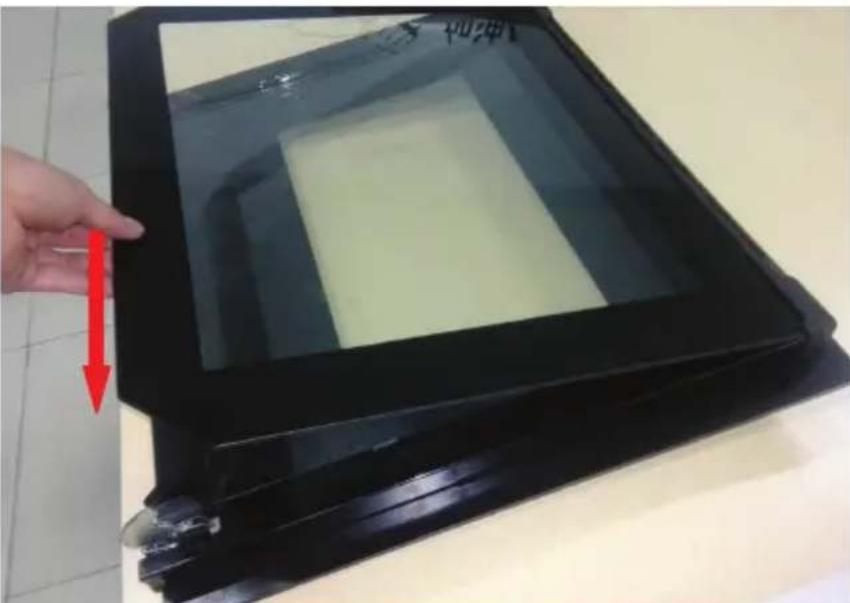

Step 3: Lift up the door outer gla ss and pul lit out, then take the door middle glass out as the same way

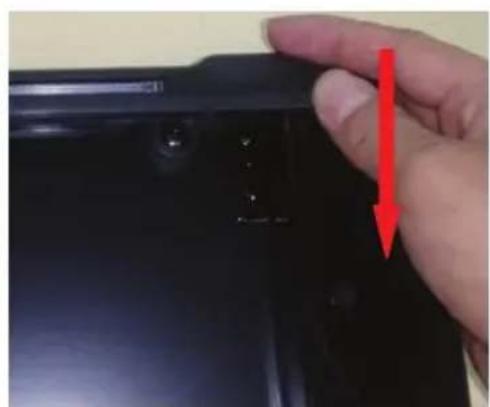

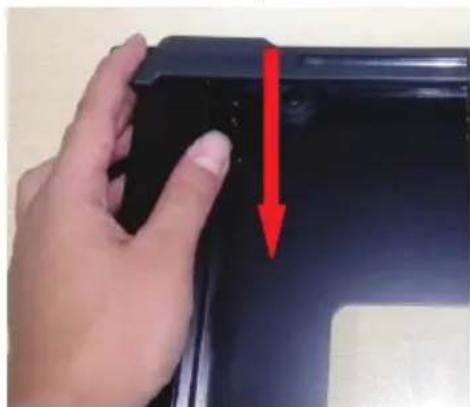

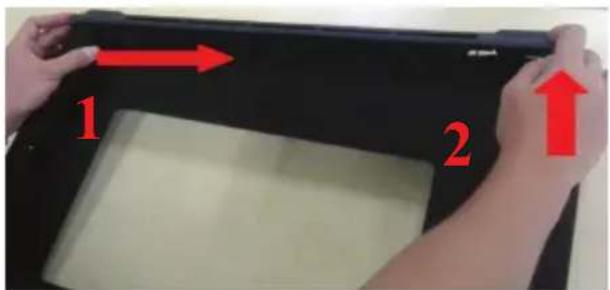

Step 4 : Use one hand to push the door frame up cover towar d middle pa rt (1), then lift up the cover with the another hand (2);

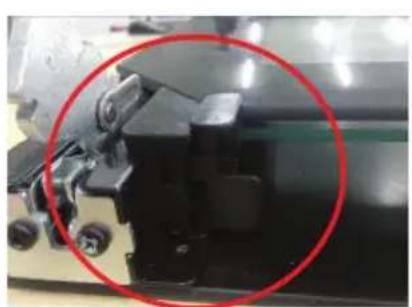

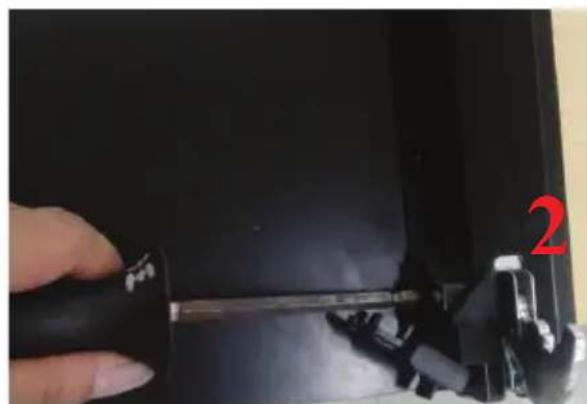

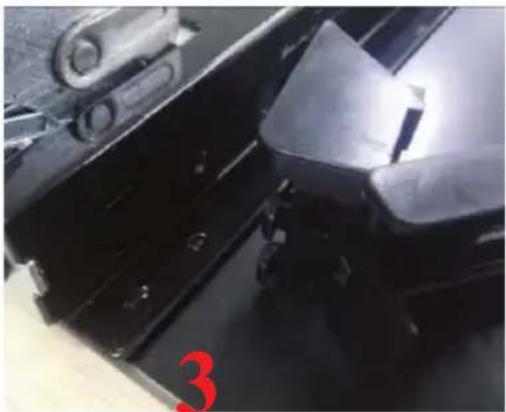

Step 5 : See the screwdriver to disassemble the rotation bracket assemblies , then take out it from the door brac ket; Step 6: Change the new rotation bracket assemblies and insert it into the snap joints, then fix it with screw.

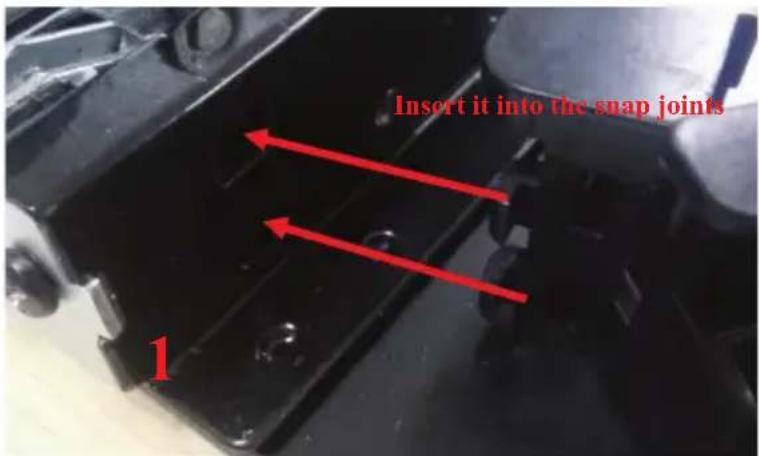

Insert it into the snap joints

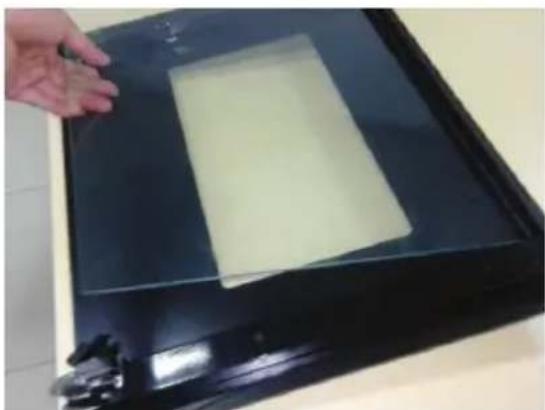

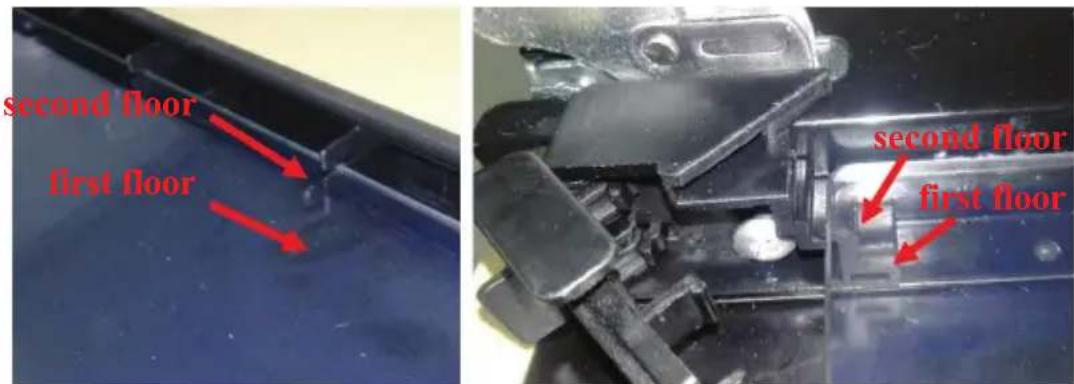

Step 7: Assemble the new door frame up cover on the bracket and make sure it be stable; Step 8: Assemble the door middle glass and pay attention that it should be put at the second floo r of door frame up cov er for 3-layer glass door, and for 4-layer glass door, another middle glass should be place at the first floor;

Step 9: Assemble the outer glass and accomplish the replacement work. second floor first floor

second floor first floor

second floor first floor
