USER MANUAL TLCompact HONEYWELL

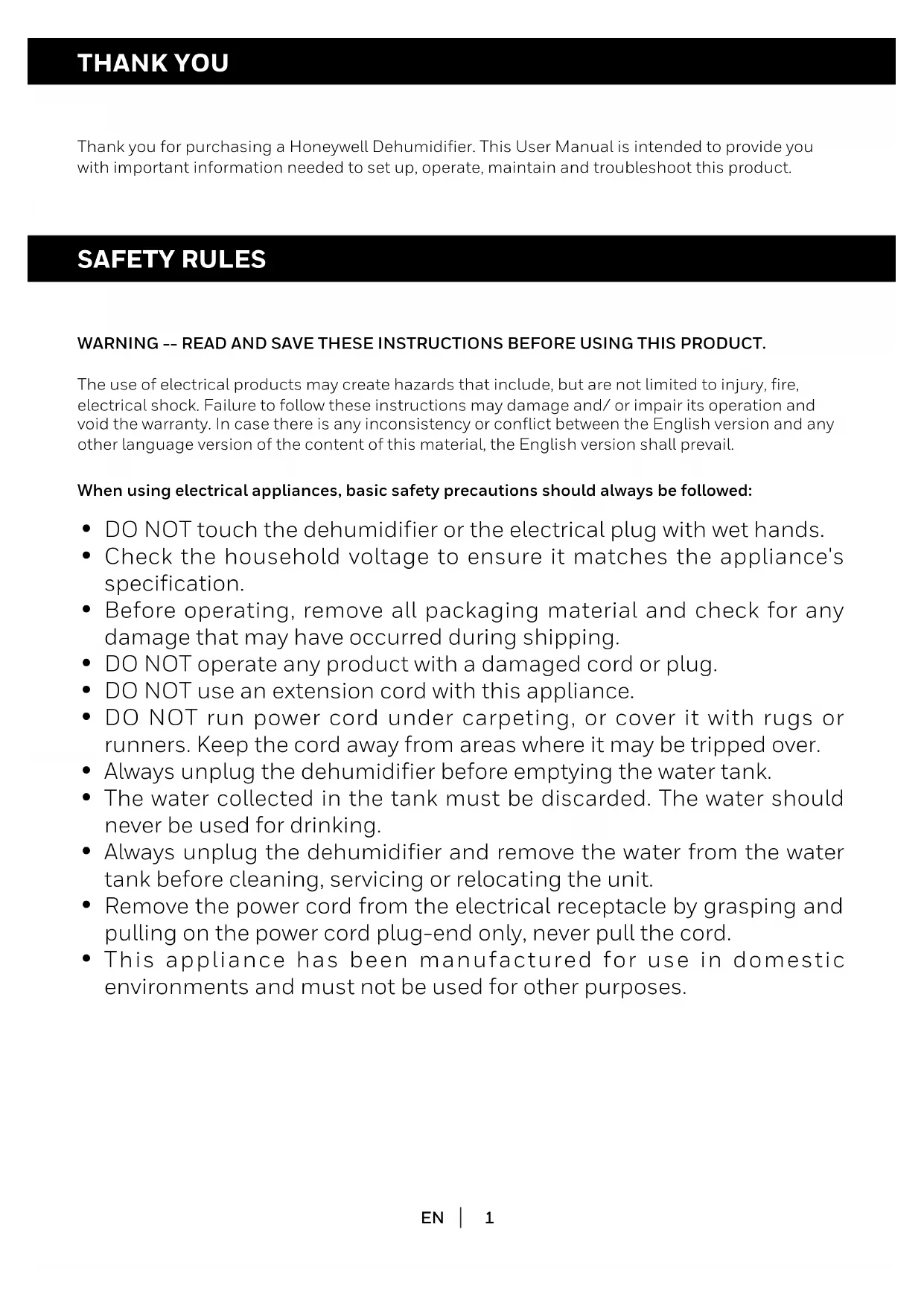

Avfuktare Luftkylare Användarmanual Läs och spara dessa instruktioner innan användning SE1 THANK YOU SAFETY RULES Thank you for purchasing a Honeywell Dehumidifier. This User Manual is intended to provide you with important information needed to set up, operate, maintain and troubleshoot this product. WARNING -- READ AND SAVE THESE INSTRUCTIONS BEFORE USING THIS PRODUCT. The use of electrical products may create hazards that include, but are not limited to injury, fire, electrical shock. Failure to follow these instructions may damage and/ or impair its operation and void the warranty. In case there is any inconsistency or conflict between the English version and any other language version of the content of this material, the English version shall prevail. When using electrical appliances, basic safety precautions should always be followed:

DO NOT touch the dehumidifier or the electrical plug with wet hands. Check the household voltage to ensure it matches the appliance's specification. Before operating, remove all packaging material and check for any damage that may have occurred during shipping. DO NOT operate any product with a damaged cord or plug. DO NOT use an extension cord with this appliance. DO NOT run power cord under carpeting, or cover it with rugs or runners. Keep the cord away from areas where it may be tripped over. Always unplug the dehumidifier before emptying the water tank. The water collected in the tank must be discarded. The water should never be used for drinking. Always unplug the dehumidifier and remove the water from the water tank before cleaning, servicing or relocating the unit. Remove the power cord from the electrical receptacle by grasping and pulling on the power cord plug-end only, never pull the cord. This appliance has been manufactured for use in domestic environments and must not be used for other purposes.

DO NOT use the product in areas where gasoline, paint or other flammable goods and objects are used or stored. This dehumidifier is designed for indoor residential applications only. It should not be used for commercial or industrial applications. DO NOT attempt to repair or adjust any electrical or mechanical functions of the dehumidifier, as this may cause danger and void the warranty. DO NOT cover the air inlet or outlet on the appliance as this may cause the unit to fail. DO NOT insert or allow objects to enter any ventilation or exhaust opening as this may damage the product and could cause electrical shock or fire. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. DO NOT let children play with this appliance, packaging or included plastic bag. If the unit is damaged or it malfunctions, do not continue to operate it. Unplug the product from the electrical outlet. Refer to the troubleshooting section and contact the customer support center. Always place the dehumidifier on a leveled floor. Never install the product near a bathtub or any water container. Store in a dry area, away from direct sunlight, when not in use. This appliance and its packaging materials are not intended for use by persons (including children or elderly) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety. Always grip the top handle and keep the unit upright when transporting from room to room – DO NOT tilt the product on its side or upside- down.

SAFETY RULES (CONTINUED) EN3 If the dehumidifier was transported tilted on its side, you must position it upright again and wait at least 4 hours before using it.

WARNING: To reduce the risk of fire or electric shock, do not use this

appliance with any solid state speed control device.

SAFETY RULES (CONTINUED) This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Caution: Risk of electric shock! Do not attempt to disassemble or modify the unit or its accessories. In case any part is damaged, immediately power off the unit and seek the assistance of a specialist. In the event that the power cable should become damaged, it should only be replaced by the manufacturer, its service facility or similarly qualified personnel.4 REGULATION STATEMENT

WARNING This symbol shows that this appliance uses a flammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire. CAUTION This symbol shows that the operation manual should be read carefully. CAUTION This symbol shows that a service personnel should be handling this equipment with reference to the installation manual. CAUTION This symbol shows that information is available such as the operating manual or installation manual. Caution, risk of fire, R2905

REGULATION STATEMENT (CONTINUED) Read the instruction carefully before using the appliance. When defrosting or cleaning, do not use any method other than those recommended by the manufacturer. Do not place the appliance in a room with continuous sources of ignition (e.g. open flame, operating gas appliance or working electrical heater). Do not pierce and do not burn. Do not perforate any part of the refrigerant circuit. Refrigerant gas may be odorless. The appliance must be installed, used and stored in an area that is greater than 4 m

Accumulation of possible refrigerant leaks in an unventilated room could lead to fire or explosion should the refrigerant come in contact with electric heaters, stoves or other sources of ignition. The appliance must be stored in a way to prevent mechanical damage. Only individuals authorized by an accredited organization certifying their competence to handle refrigerants in compliance with industry legislation should work on the refrigerant circuit. R290 refrigerant gas complies with European environmental directives. This appliance contains a certain number of grams (see rating label at the back of the unit) of R290 refrigerant gas. The maximum refrigerant charge amount is 0.05 kg. Additional warnings for appliances with R290 refrigerant gas.

Repair must be performed based on the recommendations from the manufacturer. Maintenance and repair that requires the assistance of other qualified personnel must be performed under the supervision of specialists in the use of flammable refrigerants.6

HOW A DEHUMIDIFIER WORKS

When the dehumidifier is switched ON, a fan pulls moisture-laden air into the dehumidifier where it passes through dehumidifying coils inside the unit. These coils condense moisture from the air and collect it in the Water Tank. The dry air is then exhausted from the dehumidifier. The air flows through the air vents of the dehumidifier into the room as dry, warm air. IMPORTANT: The dehumidifier is designed to operate between 45°F (7°C) and 95°F (35°C). The dehumidifier’s performance may be greatly reduced if room temperature is beyond this temperature range.

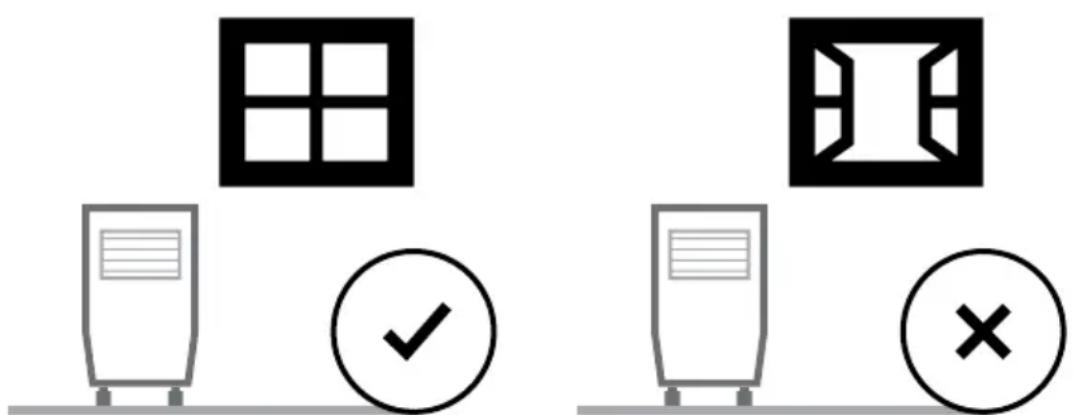

Before using the dehumidifier, place the unit UPRIGHT for at least 1 hour before use to allow the refrigerant to stabilize. If the unit was tilted on its side or upside-down during transportation, set the unit upright for 4 hours before use. For optimal efficiency, the dehumidifier must be operated in an enclosed area. Keep all doors, windows and other outside entrances to the room closed.

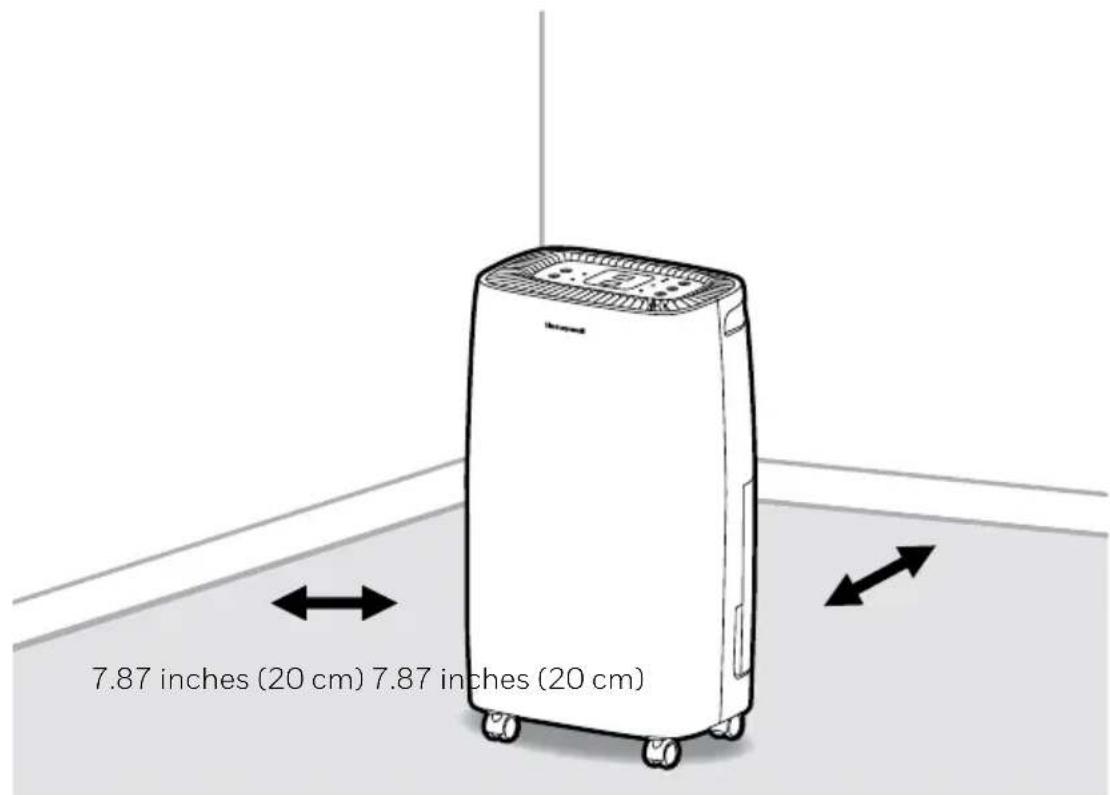

Place the dehumidifier in an area where the temperature will not drop below 45°F (7°C) Place the dehumidifier at least 7.87 inches (20 cm) away from other objects (e.g. curtains or furniture) that may restrict airflow from the back or through the air vents of the unit. The dehumidifier must be positioned on a level floor.

IMPORTANT: The effectiveness of the dehumidifier can be influenced by different factors. One factor is the rate at which new, moisture-laden air enters the room and the amount of air circulating in and out of the area to be dehumidified. For example, if a door to a basement is constantly opened, letting new, moisture-laden air into the room, dehumidification will take longer than if the door was kept closed. If the dehumidifier is in a room with a storage closet or cabinets, it will have little or no effect in drying the inside of the storage closet or cabinets unless there is adequate circulation of air in and out of these spaces. To dehumidify these spaces, open the storage door or cabinet doors to allow air circulation. You may find that installing a second dehumidifier may be required for larger enclosed areas. EN8EN

UNPACKAGING THE DEHUMIDIFIER

There is a Float inside the Water Tank that senses the water level to automatically stop dehumidification when the Water Tank is full. Make sure the Float is positioned correctly inside the Water Tank by ensuring it lies level with the top edge of the Water Tank. DO NOT REMOVE THIS FLOAT. This Dehumidifier is packaged with a colored or transparent tape to secure some parts during transportation. Remove the colored or transparent packaging tape from the unit.

Gently pull the Water Tank from out of the dehumidifier. Remove the power plug, drain hose and other accessories, which is placed inside the tank of the dehumidifier. Once all accessories have been removed, replace the Water Tank. Make sure that the tank is properly positioned. Float

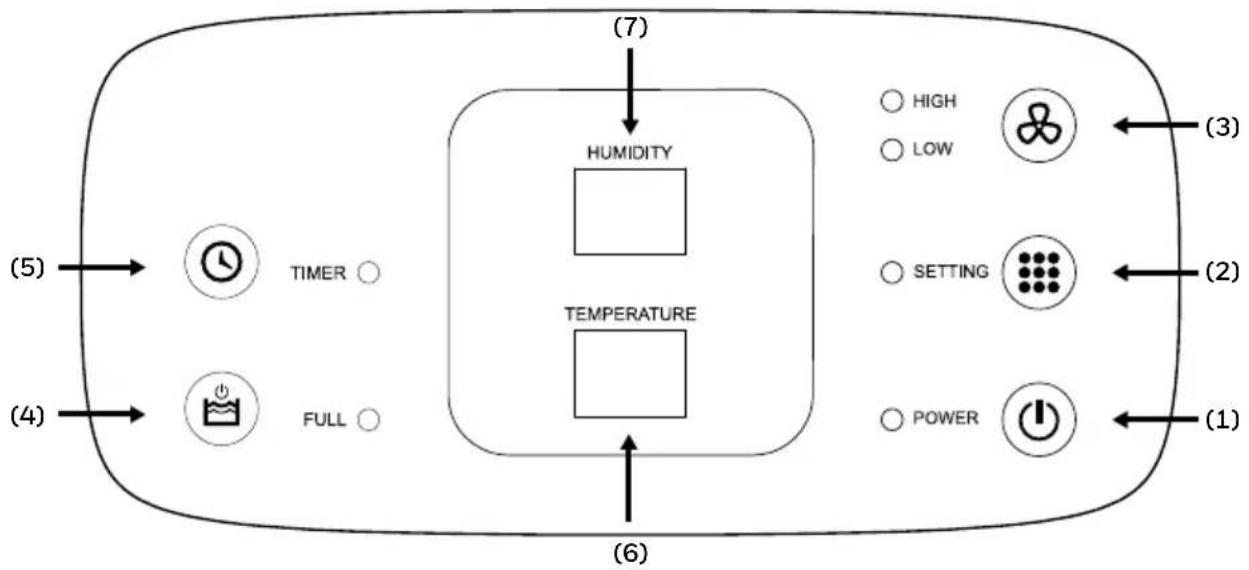

When the unit is switched ON, the Humidity Display shows the current humidity percentage. When current humidity is lower than 35% RH, the Humidity Display will show "Lo" . When current humidity is higher than 95% RH, the Humidity Display will show "Hi". Press to select your preferred humidity level. The humidity is adjusted in increments of 5% by pressing . The adjustable Relative Humidity (RH) range is between 40% RH to 80% RH. Five seconds after setting the preferred humidity setting, the display will revert back to displaying the current humidity. Recommended Settings: It is recommended to leave the unit running at 40% humidity at High Fan Speed during the first 2 to 3 days until damp odors are removed. After a few days when the Relative Humidity has been reduced to a more comfortable level, press to choose a higher RH% that maintains a comfortable humidity level thereafter. A recommended healthy humidity level is between 40% and 50%. NOTE: The humidity sensor senses current humidity in the surrounding area. It is normal for a few degrees of variance to the humidity sensitivity from the sensor. FUNCTION BUTTONS USE & OPERATION (CONTINUED)

POWER CONTROL Press to switch the dehumidifier ON or OFF. TEMPERATURE DISPLAY When the unit is switched ON, the Temperature Display show the current Temperature (°C).12 Auto-On Timer: When unit is in Standby Mode, press , the indicator light will illuminated the Temperature Display will flash. Press to select the number of hours (1-24 hours) you want the unit to turn on. In 5 seconds without further operation, the Timer will start to function. The previous fan speed and humidity setting will be maintained. The unit will turn on and continue running until the Water Tank is full or until you switch it off manually. Timer must be set again after each use. NOTE: To cancel any Timer settings, simply press again, and the timer indicator light will disappear. NOTE: The Power indicator light will illuminated, it indicates the unit is on Standby Mode. Auto-Off Timer: While the unit is running, press , the indicator light will illuminated and the Temperature Display will flash, press to select the number of hours (1-24 hours) you want the unit to run before it switches off. In 5 seconds without further operation, the Timer starts function. Timer must be set again after each use. TIMER CONTROL The dehumidifier can be set to automatically switch ON or OFF for a selected period of time (between 1-24 hour intervals). The Timer hours selection is displayed on the Temperature Display. NOTE: Before setting the Timer control, make sure there is power to the unit. FUNCTION BUTTONS (CONTINUED) USE & OPERATION (CONTINUED)

When the Water Tank is full, the indicator will be illuminated. The unit will beep within 15 seconds. The compressor will shut off. To switch off the indicator light, empty the Water Tank and when replacing it ensure the tank is secured properly in place. IMPORTANT: Do not place the Water Tank on the floor when full. In case of an uneven base which may cause the tank to spillover.13

There are two fan speeds - High and Low. When, the high indicator light is illuminated, the unit is operating on High speed. When the Low Indicator Light is illuminated, the unit is operating on Low speed. FUNCTION BUTTONS (CONTINUED)

AUTOMATIC DEFROST This unit is equipped with an Auto Restart feature. When there is a power outage, the dehumidifier will automatically resume all its previous settings upon regaining power. Frost may build up on the internal coils of the unit. When there is frost build up, the internal compressor will turn off and the fan will continue to run until the frost has melted. Once the internal coils have defrosted and dried, the compressor and fan will automatically restart and dehumidifying will resume.14 The condensed water can be collected directly into the Water Tank. When the Water Tank is full, the dehumidifier will automatically shut OFF and the indicator will illuminate on the control panel followed by a beeping sound. IMPORTANT: Do not move the dehumidifier when the Water Tank is full as it may heavy and can cause water spillage. USE & OPERATION (CONTINUED)

WARNING: Always drain and discard water collected from dehumidification.

The water is not clean and cannot be used for drinking. IMPORTANT: Improper alignment or positioning of the Water Tank will cause the unit to pause operation, the warning light on top of the dehumidifier will illuminate followed by a beeping sound, until the Water Tank is fitted properly. NOTE: There is a Float inside the Water Tank that senses the water level to automatically stop dehumidification when the Water Tank is full. Make sure the Float is positioned correctly inside the Water Tank by ensuring it lies level with the top edge of the Water Tank. DO NOT REMOVE THIS FLOAT. Locate the Water Tank at the front of the dehumidifier. Gently pull the water tank out. Carry the Water Tank to a sink to empty. Replace the empty Water Tank back into the front of the dehumidifier. Please make sure that the tank is properly positioned. The safety feature ensures that any misalignment of the tank and the unit will prevent the unit from turning back on.

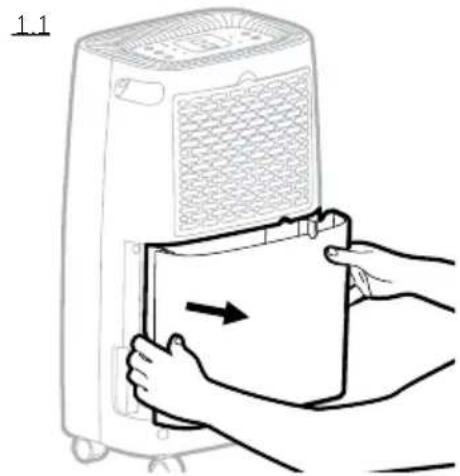

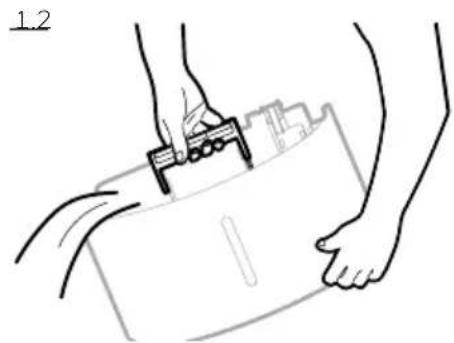

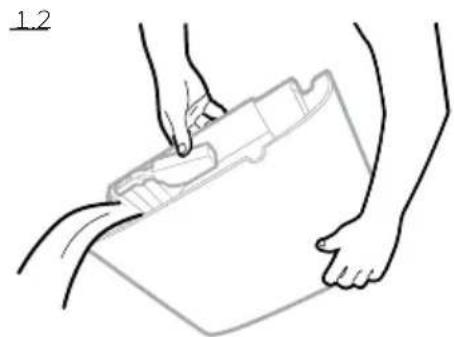

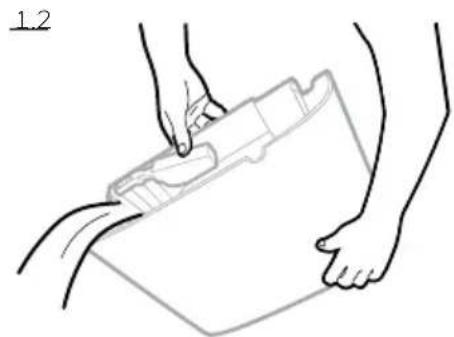

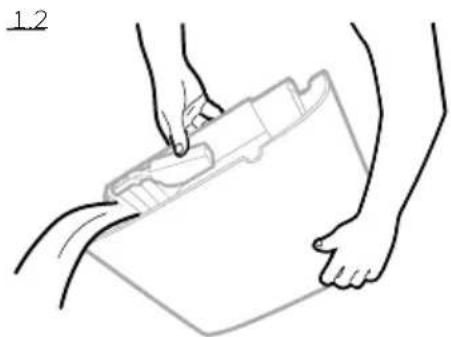

1. Draining water collected in the Water Tank

A Continuous Water Drain Tube is included with this unit. To activate the continuous water draining function, you will require a suitable water drain (e.g. sink or drain hole at floor level) near the dehumidifier.

2. Continuous Water Drainage – Using a Continuous Water Drain Tube

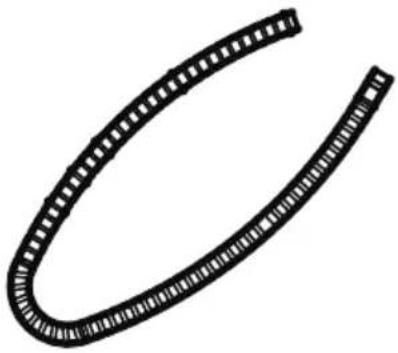

Continuous Water Drain Tube

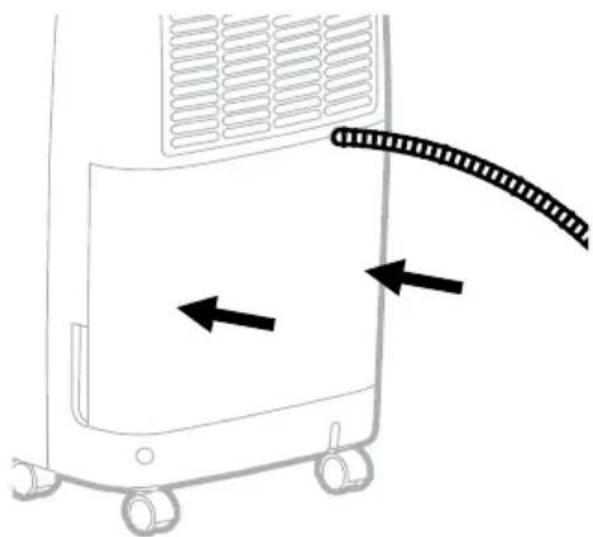

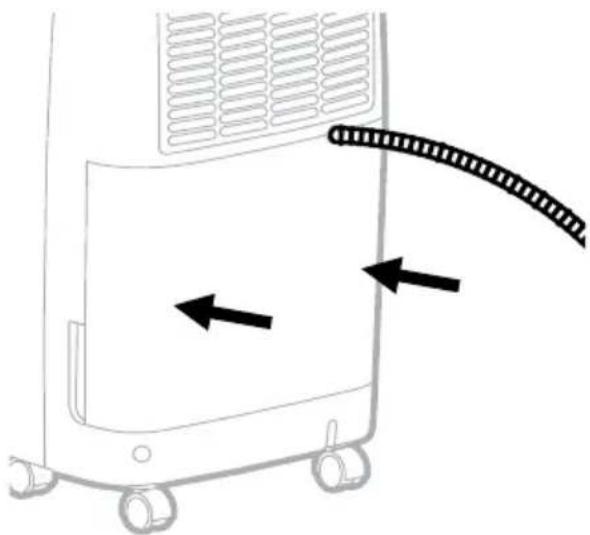

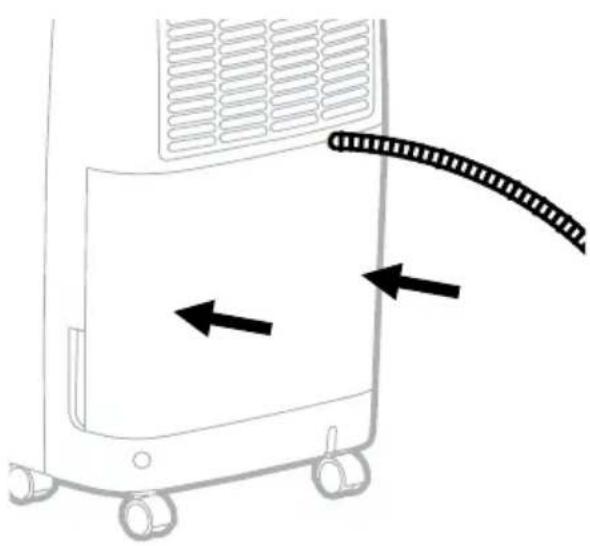

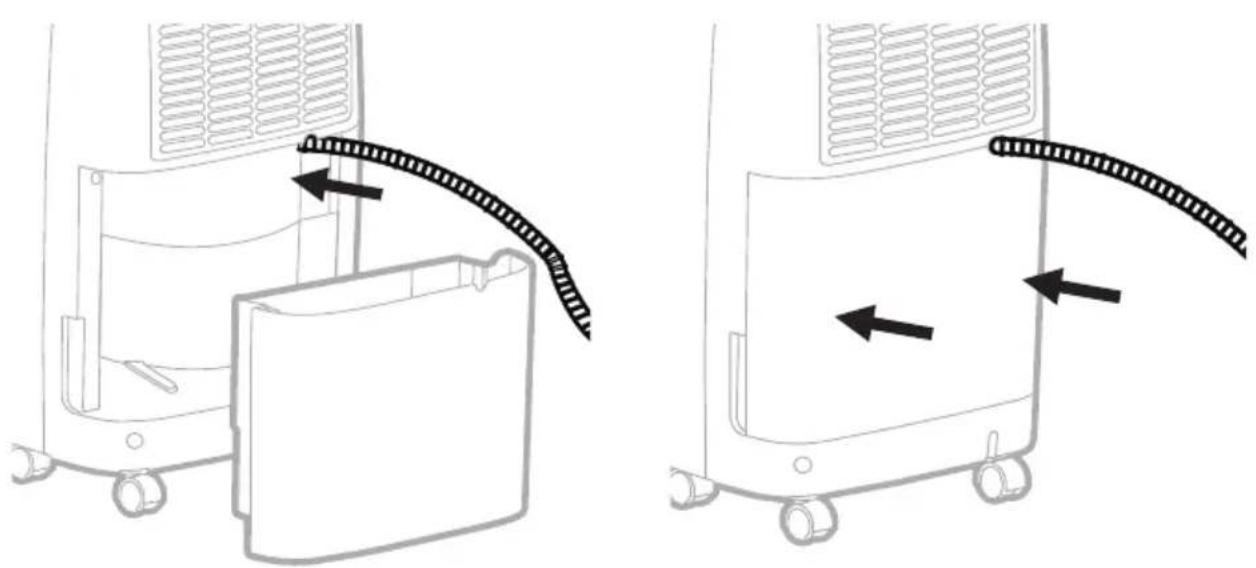

Insert the Continuous Water Drain Tube into the drain port. Make sure the Continuous Water Drain Tube is secured to ensure there will be no leaks. If there are leaks, the tube and drain port may not be connected properly. Disconnect, replace and tighten again.

Position the other end of the Continuous Water Drain Tube in the sink or drain. Make sure the tube is not bent or kinked which might stop the water flow. Make sure the tube is secured over the drain and will not fall out of place causing unwanted water spillage.

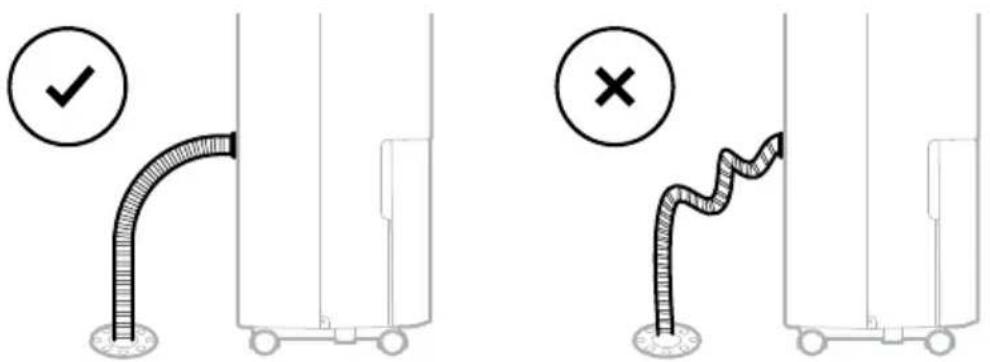

IMPORTANT: Make sure water can flow down the Continuous Water Drain Tube by keeping the tube angled down and free of bends or kinks. IMPORTANT: If the unit is placed on uneven ground, or the Continuous Water Drain Tube is installed incorrectly, the water may fill the Water Tank and stop running. Please check whether the ground is uneven and reinstall the Drain Tube.

CLEANING & MAINTENANCE USE & OPERATION (CONTINUED) Switch off and unplug the dehumidifier from the electrical outlet. Carefully pull out the Grill and Dust Filter from the dehumidifier. Rinse the Grill and Dust Filter under running water, or vacuum away the dust with a vacuum cleaner. After cleaning the Grill and Dust Filter, dry in a cool, shaded place, then carefully reinstall into the unit.

WARNING: Always switch OFF the dehumidifier and unplug it from the electrical outlet before

attempting any cleaning or maintenance of this product. Appliance Maintenance:

• Switch OFF the appliance before disconnecting the power supply.

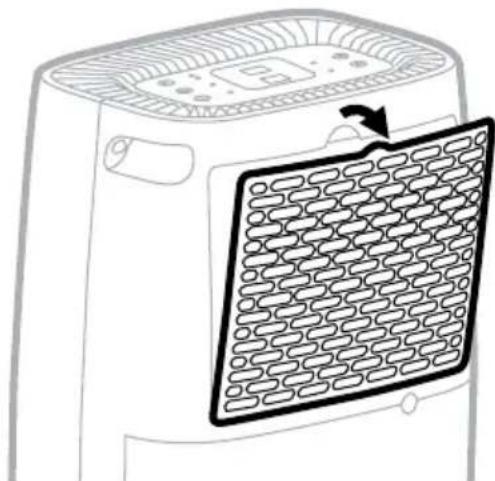

• Only use a soft cloth to clean the appliance. Dust Filter Maintenance: The Dust Filter located at the back of the unit. A dirty filter clogged by dust particles can reduce the efficiency of the dehumidifier. For optimum dehumidification, it is recommended to clean the dust filter every 2 weeks: End of Season Storage & Maintenance: Switch OFF the unit and unplug from the electrical power outlet. Empty the Water Tank and let it dry. If your dehumidifier is connected to the continuous drain tube, you must disconnect the drain tube. Remove the dust filter and clean with water. Let the dust filter dry and reinstall back into the unit. Make sure all parts of the dehumidifier and accessories are dry before storage. Cover the dehumidifier with a cloth/ plastic bag before storage, to protect the surface from dust and scratches. It is recommended to coil the power cord and store it off the floor to ensure it is protected from bends and kinks. Store the unit upright in a dry location, away from direct sunlight.

If the appliance will not be used for an extended period of time:18

TROUBLESHOOTING GUIDE The following troubleshooting guide addresses the most common problems. If problems persist, call customer service.

PROBLEM POSSIBLE CAUSE SOLUTION

Dehumidifier does not start No electricity. Check for power. The power cord is not properly plugged in. Remove and reconnect the power cord. The safety switch activated on the electrical plug. Reset the safety switch and wait for 3 minutes to pass. Contact customer service if problem persists. The Water Tank is not in the correct position. Position the Water Tank correctly into the unit. Unit will not operate until the Water Tank is secure in place. Unit runs but the humidity level does not decrease The humidity level setting is too high. Decrease the humidity level setting. A door or window is open, letting in new moisture. Make sure all windows or doors to the outside are closed and tightly sealed. There are other sources of humidity in the room (e.g. boiling water in pot). Switch on the dehumidifier when these sources are not present. The temperature in the room is too low. The dehumidifier is designed to operate between 45°F (7°C) and 95°F (35°C). Moisture removal is greatly reduced if room temperatures exceed this temperature range. The Dust Filter is dirty/ blocked. Clean the Dust Filter. Air outlet or intake is blocked. Remove blockage.19 TROUBLESHOOTING GUIDE (CONTINUED)

PROBLEM POSSIBLE CAUSE SOLUTION

Unit runs but the humidity level does not decrease Insufficient time for the dehumidifier to remove moisture. After initial installation, allow 24 hours to maintain desired dryness. Dehumidifier runs constantly/ does not stop Area to be dehumidified is too large. The capacity of your dehumidifier may not be adequate for the room it is used in. It is recommended to add an extra dehumidifier for large areas. A door or window is open, letting in new moisture. Make sure all windows or doors to the outside are closed and tightly sealed. Water Tank Full is illuminated and the unit is beeping The Water Tank is full. Empty the Water Tank. The Water Tank is not in the correct position. Position the Water Tank correctly into the unit. Unit will not operate until the Water Tank is secure in place. The unit is blowing cold air out of the top vent The purpose of the top air vent is to distribute air into the room. The temperature of the air from the vent depends on the room environment and other factors. It can fluctuate and this is normal. No action required. Frost appears on the coils Dehumidifier has been recently turned on in low room temperatures (usually below 45°F (7°C)). This is normal. Frost will disappear in an hour or so after the dehumidifier is switched OFF. Connected the continuous drain but the water condensation is not draining out the tube Some floors may have an uneven surface which may affect the continuous drainage function Raise the front of the Dehumidifier ½ to 1 inch (1.27 cm to 2.54 cm) from the floor. The water condensation will drain out the back hose and not into the bucket.20 TROUBLESHOOTING GUIDE (CONTINUED)

PROBLEM POSSIBLE CAUSE SOLUTION

Water on the floor The drain hose may be loose. Check the connections between the hose and the drain outlet on the unit. See Continuous Water Drainage section. You intended to use the Water Tank to collect water but the continuous drain hose is still connected. Disconnect the hose if using the Water Tank to collect water. See Continuous Water Drainage section. Noise Fan is working. Wind from the fan can create sounds during operation. This is a normal sound.1 MERCI
