Product Type	Docking Station / Bluetooth Speaker
Brand	Braven
Model	710
Bluetooth Connectivity	Bluetooth, NFC compatible
NFC Pairing	Yes, via the NFC logo on the speaker
True Wireless Technology	Allows stereo pairing of two BRAVEN 710 speakers
Bluetooth Receiver Mode	Yes, via OUT 3.5mm port (aux cable included)
Speakerphone Function	Yes, with noise cancellation
Water Resistance	IPX5 (resistant to water jets)
Power Supply	Rechargeable battery, charging via micro-USB port
External Device Charging	USB port (0.3A to 1A), power bank function
Battery Indicator	5 LED capacity indicators
Automatic Power Off	After 30 minutes without active Bluetooth connection
Care and Cleaning	Close the water cap tightly after use in wet environment
Spare Parts and Repairability	Not specified by manufacturer
General Information	Manual available in several languages at notice-facile.com

Frequently Asked Questions - 710 BRAVEN

How do I pair my BRAVEN 710 with my phone?

Enable Bluetooth on your phone. On the speaker, press and hold the Play button until you hear the pairing tone. Select 'BRAVEN 710' from your phone's Bluetooth list. If a password is requested, enter 0000.

How do I use NFC pairing?

Make sure NFC is enabled on your device. Place your device on the NFC logo at the base of the BRAVEN 710 speaker until a pairing prompt appears. Adjust position if necessary.

How do I set up True Wireless (stereo) mode with two speakers?

Disconnect all Bluetooth connections. On each speaker, press and hold the battery control button for 5 seconds until you hear a sonar. Within 30 seconds, a second beep confirms the connection. Then pair only one speaker to your device via Bluetooth.

How do I use the BRAVEN 710 as a Bluetooth receiver for another audio system?

Connect a 3.5mm cable from the 'OUT' port of the BRAVEN to the 'AUDIO IN' port of your audio system. Then pair the BRAVEN to your phone. Audio will play from both devices. To mute the BRAVEN, press and hold Volume+ and Volume- simultaneously.

How do I charge the BRAVEN 710?

Connect the included micro-USB cable to a wall adapter (not included) or a computer USB port. The 5 LED indicators will stay on continuously when charging is complete (about 2 to 3 hours).

Can I charge my phone with the BRAVEN 710?

Yes, the speaker acts as a power bank. Connect your device's USB cable to the USB port on the BRAVEN. Note: only devices consuming between 0.3A and 1A are supported (most smartphones, but not 2A tablets).

Is the BRAVEN 710 waterproof?

It is water-resistant to IPX5, meaning it can withstand water jets and splashes. Do not submerge it. After use in wet conditions, close the water cap tightly to maintain sealing.

How do I use the speakerphone for calls?

When a call comes in, press the Answer/End button to answer. Press again to end the call. The noise suppression feature improves quality.

What should I do if my BRAVEN won't connect via Bluetooth?

Check that the speaker is on and in pairing mode (Play button pressed). Remove the device from your phone's Bluetooth list and re-pair. If the problem persists, turn the speaker off and then on again.

How do I reset the BRAVEN 710?

The manual does not mention a specific reset. In case of malfunction, turn off the speaker, wait a few seconds, and turn it back on. For persistent issues, visit www.BRAVEN.com/tutorials.

USER MANUAL 710 BRAVEN

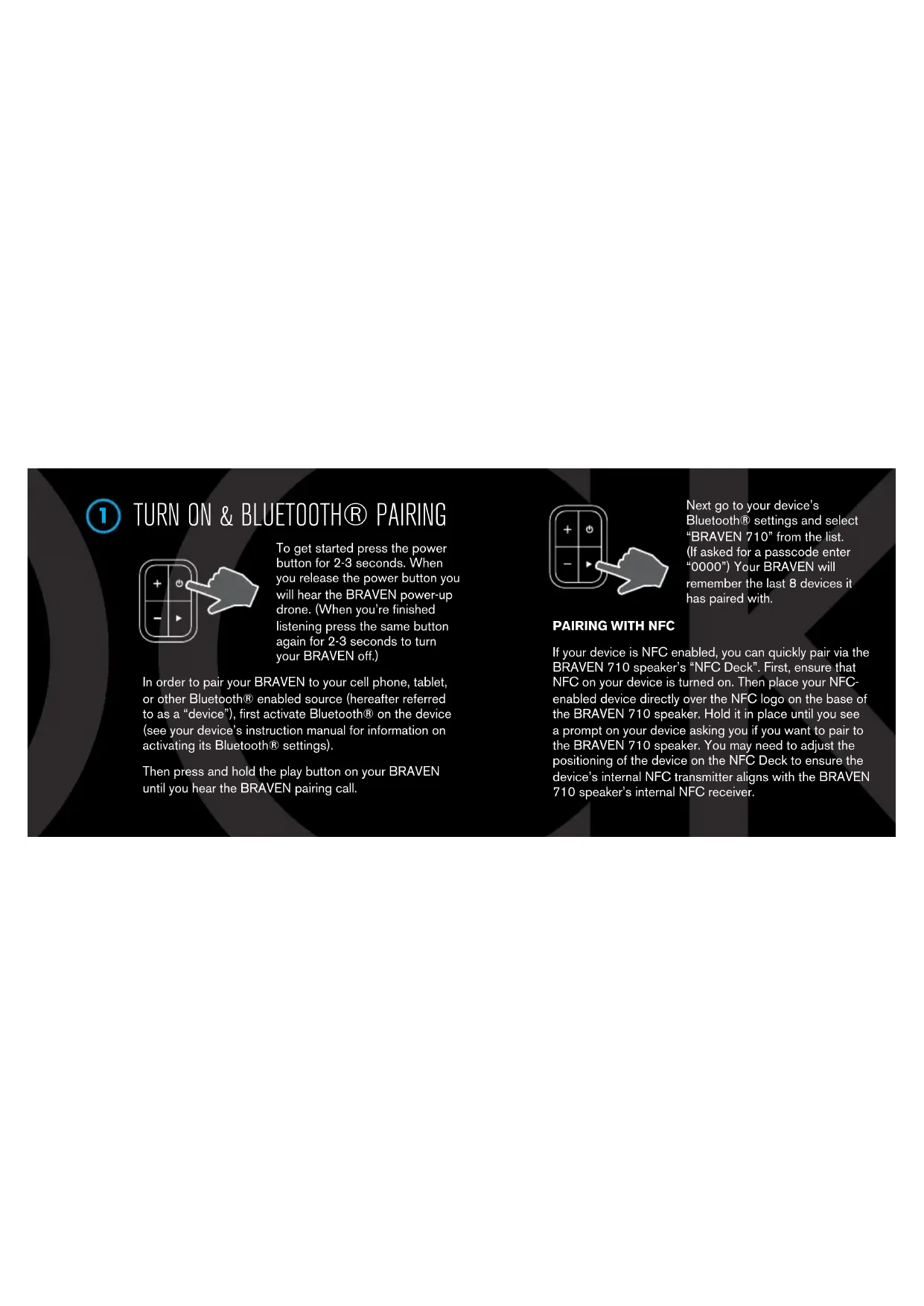

To get started press the power button for 2-3 seconds. When you release the power button you will hear the BRAVEN power-up drone. (When you're finished listening press the same button again for 2-3 seconds to turn your BRAVEN off.)

In order to pair your BRAVEN to your cell phone, tablet, or other Bluetooth® enabled source (hereafter referred to as a "device"), first activate Bluetooth® on the device (see your device's instruction manual for information on activating its Bluetooth® settings).

Then press and hold the play button on your BRAVEN until you hear the BRAVEN pairing call.

Next go to your device's Bluetooth® settings and select "BRAVEN 710" from the list. (If asked for a passcode enter "0000") Your BRAVEN will remember the last 8 devices it has paired with.

PAIRING WITH NFC

If your device is NFC enabled, you can quickly pair via the BRAVEN 710 speaker's "NFC Deck". First, ensure that NFC on your device is turned on. Then place your NFC-enabled device directly over the NFC logo on the base of the BRAVEN 710 speaker. Hold it in place until you see a prompt on your device asking you if you want to pair to the BRAVEN 710 speaker. You may need to adjust the positioning of the device on the NFC Deck to ensure the device's internal NFC transmitter aligns with the BRAVEN 710 speaker's internal NFC receiver.

NOTE: If your BRAVEN does not have an active Bluetooth® connection and is left on, it will shut itself off after 30 minutes to preserve the battery. To restart your BRAVEN you will need to press and hold the power button for 2-3 seconds.

PAIRING TWO TOGETHER – WIRELESS STEREO-PAIRING

Want even bigger sound? If you have two BRAVEN 710 units (yeah, you should probably get two), you can pair them together for left and right stereo using "True Wireless" technology. Here's how you do it:

First be sure to disconnect all Bluetooth® connections (if any) on your device and remove any previously paired BRAVEN 710 speakers from your device.

Next, press and hold the battery check button on both BRAVEN speakers for 5 seconds until you hear a sonar sound from both speakers. Within 30 seconds, a second beep will indicate a True Wireless connection between the BRAVEN 710 speakers.

Now that the speakers are talking to one another, you need to get them talking to your device, follow the steps in section 1 to pair your device with one (not both) of your BRAVEN 710 units.

When you turn off either of the BRAVEN 710 speakers while connected in True Wireless, both speakers will turn off. When you're ready to rock again in True Wireless, press the power button on both BRAVEN 710 speakers within 5 seconds of each other. Wait approximately 15 seconds. The BRAVEN 710 speakers will automatically reconnect to each other and to the previously connected device. You will hear two beeps indicating True Wireless is reestablished.

Note: True Wireless technology only supports one active Bluetooth® connection to your device at the same time. If any other Bluetooth® device (other than the paired BRAVEN 710 speakers) is simultaneously connected to your device, the BRAVEN 710 audio will distort. If distortion occurs, power down all other Bluetooth® devices in range of your phone/tablet, other than the Braven 710. Refresh the Bluetooth® connections on your phone/tablet by turning Bluetooth® off and then back on. True Wireless is now reestablished.

For troubleshooting and tutorial videos, please go to www.BRAVEN.com/TrueWireless

USING AS A BLUETOOTH® RECEIVER

The BRAVEN 710 has the unique ability to act as a "Bluetooth Receiver" for other home or audio speaker

systems that are not natively equipped for Bluetooth connectivity.

Simply connect one end of a 3.5mm/aux cable to the "AUDIO IN" port of your home or audio speaker system, and plug the other end of the cable into the 3.5mm "OUT" port on the BRAVEN 710 speaker. Then pair your BRAVEN 710 speaker to your phone or tablet via Bluetooth.

The audio will play over both the BRAVEN 710 and your home or audio speaker system. If you only want the audio to play over your other speakers (not through the BRAVEN 710), press and hold the BRAVEN 710 volume up (+)

and volume down (-) buttons simultaneously while the audio is playing, until the Braven 710 audio stops.

WATER RESISTANT FEATURES

The BRAVEN 710 is IPX5 Water Resistant. BRAVEN 710 speakers are not intended to be submerged in water, but are resistant to rainfall, water jets, and water splashing.

IMPORTANT - To ensure your BRAVEN 710 speaker is prepared for use in a wet environment, remove all cable connections and tightly close the end water cap. If the water cap is not properly closed, the BRAVEN 710 will not be water resistant.

Abstract black and white geometric pattern with no text or symbols

+ TALK

USING AS A SPEAKERPHONE

SEE MORE ONLINE WWW.BRAVEN.COM/TUTORIALS

USING AS A SPEAKERPHONE

To use your BRAVEN as a noise cancelling speakerphone, all you have to do is press the answer-end button on the BRAVEN when you have an incoming phone call. When you're done, simply press the answer-end button again to end the call.

+CHARGE

6 TRUE WIRELESS PAIRING
⑦ BLUETOOTH® RECIEVER
SEE MORE ONLINE WWW.BRAVEN.COM/TUTORIALS

Diagram showing a device connected to two power outlets (no text or symbols present)

Before using your BRAVEN for the first time, charge the unit until all 5 battery capacity

lights are solid (not flashing), indicating a full charge (typically 2 to 3 hours).

When juice is running low, all you need to do is plug the included USB-to-Micro-USB cable into a wall power adapter (not included) or into a powered USB port on a computer. Plug the Micro-USB connector end of the cable into the BRAVEN charging port. Soon you'll be ready to rock on.

CHARGING EXTERNAL DEVICES

Diagram showing a device connected to a smartphone with a lightning bolt symbol (no text or labels)

BRAVEN is designed to keep the party going. Your BRAVEN serves as a portable power bank allowing you to charge USB devices that draw from

0.3A - 1A (most cell phones & mp3 players; tablets and other 2A devices cannot be charged by your BRAVEN 710 speaker). Here's how to charge an external device:

Make sure your BRAVEN is on. Plug the USB power cable that came with your phone, mp3 player, or other mobile device into the USB port on your BRAVEN speaker.

Plug the other end of the cable into your mobile device, and charging will commence.

FRA

① MISE SOUS TENSION & APPARIEMENT BLUETOOTH®

APPARIEMENT AVEC NFC
