USER MANUAL 750 BRAVEN

BATTERY CHECK BUTTON 3.5 MM AUDIO-IN JACK 3.5 MM AUDIO-OUT JACK (DAISY-CHAIN) EXTERNAL USB CHARGING PORT BRAVEN CHARGING PORT BATTERY INDICATOR LIGHTS •20% •40% •60% •80% •100%

Diagram of a control panel with plus, minus, and power button symbols arranged in a grid layout

VOLUME UP / SKIP TRACK (PRESS AND HOLD)
POWER BUTTON
PAIRING / ANSWER-END CALL / PAUSE-RESUME MUSIC
VOLUME DOWN / SKIP BACK (PRESS AND HOLD)

+ROCK

① TURN ON & PAIR VIA BLUETOOTH®
2 PAIR TWO SPEAKERS TOGETHER FOR LEFT & RIGHT STEREO SOUND
③ USE AS A BLUETOOTH® RECEIVER
4 WATER-RESISTANT EXTERIOR
SEE MORE ONLINE YOUTUBE.COM/BRAVENPRODUCTS

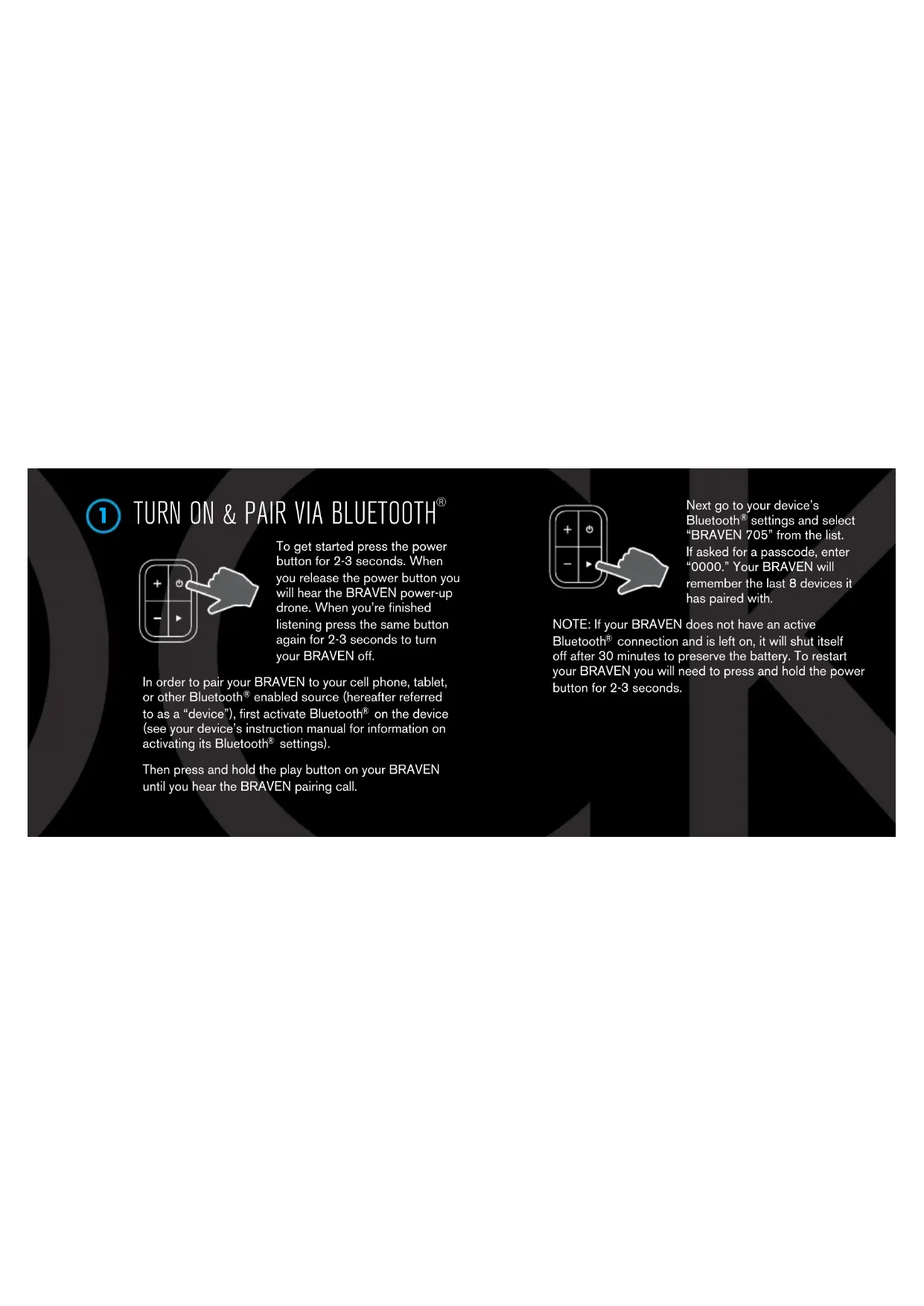

TURN ON & PAIR VIA BLUETOOTH®

To get started press the power button for 2-3 seconds. When you release the power button you will hear the BRAVEN power-up drone. When you're finished listening press the same button again for 2-3 seconds to turn your BRAVEN off.

In order to pair your BRAVEN to your cell phone, tablet, or other Bluetooth ^® enabled source (hereafter referred to as a “device”), first activate Bluetooth ^® on the device (see your device’s instruction manual for information on activating its Bluetooth ^® settings).

Then press and hold the play button on your BRAVEN until you hear the BRAVEN pairing call.

Next go to your device's Bluetooth® settings and select "BRAVEN 705" from the list. If asked for a passcode, enter "0000." Your BRAVEN will remember the last 8 devices it has paired with.

NOTE: If your BRAVEN does not have an active Bluetooth® connection and is left on, it will shut itself off after 30 minutes to preserve the battery. To restart your BRAVEN you will need to press and hold the power button for 2-3 seconds.

PAIR TWO SPEAKERS TOGETHER FOR LEFT & RIGHT STEREO SOUND

Want even bigger sound? If you have two Braven speakers (Braven 705, Braven 710, Braven 770, Braven LUX), you can pair them together for left and right stereo using TrueWireless™ Technology. Here's how you do it:

First be sure to disconnect all Bluetooth® connections (if any) on your device and remove any previously paired BRAVEN speakers from your device.

Next, press and hold the battery check button on both BRAVEN speakers for 5 seconds until you hear a sonar sound from each speaker. Within 30 seconds, a second beep will indicate a Bluetooth ^® connection between the BRAVEN speakers.

Now that the speakers are talking to one another, you

need to get them talking to your device. Follow the steps in section one to pair your device with one (not both) of your BRAVEN speakers.

When you turn off either of the BRAVEN speakers while connected, both speakers will turn off. When you're ready to rock

again in TrueWireless™ Technology, press the power button on both BRAVEN speakers within 5 seconds of each other. Wait approximately 15 seconds. The BRAVEN speakers will automatically reconnect to each other and to the previously connected device. You will hear two beeps indicating Bluetooth® is reestablished.

Note: TrueWireless™ Technology only supports one active Bluetooth® connection to your device at the same time. If any other Bluetooth® device (other than the paired BRAVEN 705 speakers) is simultaneously connected to your device, the BRAVEN 705 audio will distort. If distortion occurs, power down all other Bluetooth® devices in range of your phone/tablet, other than the Braven 705. Refresh the Bluetooth® connections on your phone/tablet by turning Bluetooth® off and then back on. TrueWireless™ Technology is now reestablished.

For troubleshooting and tutorial videos, please go to www.BRAVEN.com/TrueWireless

USE AS A BLUETOOTH® RECEIVER

The BRAVEN 705 has the unique ability to act as a Bluetooth ^® Receiver for other home or audio speaker systems that are not natively equipped for Bluetooth ^® connectivity.

Simply connect one end of a 3.5mm/aux cable to the AUDIO IN port of your home or audio speaker system, and plug the other end of the cable into the 3.5mm OUT port on the BRAVEN 705 speaker. Then pair your BRAVEN 705 speaker to your phone or tablet via Bluetooth ^® .

The audio will play over both the BRAVEN 705 and your home or audio speaker system. If you only want the audio to play over your other speakers (not through the BRAVEN 705), press and hold the BRAVEN 705 volume up (+) and volume down (-) buttons simultaneously while

the audio is playing, until the Braven 705 audio stops.

WATER-RESISTANT FEATURES

The BRAVEN 705 is IPX5 water-resistant. BRAVEN 705 speakers are not intended to be submerged in water, but are resistant to rainfall, water jets, and water splashing.

IMPORTANT - To ensure your BRAVEN 705 speaker is prepared for use in a wet environment, remove all cable connections and tightly close the end water cap. If the

water cap is not properly closed, the BRAVEN 705 will not be water-resistant.

+ TALK

USING AS A SPEAKERPHONE

SEE MORE ONLINE YOUTUBE.COM/BRAVENPRODUCTS

USING AS A SPEAKERPHONE

To use your BRAVEN as a noise cancelling speakerphone, all you have to do is press the answer-end button on the BRAVEN when you have an incoming phone call. When you're done, simply press the answer-end button again to end the call.

+CHARGE

TRUEWIRELESS™ PAIRING

BLUETOOTH® RECIEVER

SEE MORE ONLINE YOUTUBE.COM/BRAVENPRODUCTS

Diagram showing a device connected to two power outlets (no text or symbols present)

Before using your BRAVEN for the first time, charge the unit until all 5 battery capacity

lights are solid (not flashing), indicating a full charge (typically 2 to 3 hours).

When juice is running low, all you need to do is plug the included USB-to-Micro-USB cable into a wall power adapter (not included) or into a powered USB port on a computer. Plug the Micro-USB connector end of the cable into the BRAVEN charging port. Soon you'll be ready to rock on.

CHARGING EXTERNAL DEVICES

Simple line drawing of a device connected to a smartphone with a lightning bolt (no text or symbols)

BRAVEN is designed to keep the party going. Your BRAVEN serves as a portable power bank allowing you to charge USB devices that draw from

0.3A - 1A (most cell phones & mp3 players; tablets and other 2A devices cannot be charged by your BRAVEN 705 speaker). Here's how to charge an external device:

Make sure your BRAVEN is on. Plug the USB power cable that came with your phone, mp3 player, or other mobile device into the USB port on your BRAVEN speaker.

Plug the other end of the cable into your mobile device, and charging will commence.

FRA

① MISE SOUS TENSION & APPARIEMENT BLUETOOTH®

Diagram showing a device connected to an electrical outlet with two power plugs (no text or symbols present)

YOUTUBE.COM/BRAVENPRODUCTS

FRA

Diagram showing a device connected to a smartphone with a lightning bolt symbol (no text or labels)

YOUTUBE.COM/BRAVENPRODUCTS

ESP

YOUTUBE.COM/BRAVENPRODUCTS

ESP

CARGA DE SU BRAVEN

Simple line drawing of a connected device with two power outlets (no text or symbols)

CARGA DE DISPOSITIVOS EXTERNOS

Simple line drawing of a device connected to a smartphone showing a battery symbol (no text or labels)

YOUTUBE.COM/BRAVENPRODUCTS

DEU

EINSCHALTEN & BLUETOOTH®-KOPPELN

Simple line drawing of a device connected to an electrical outlet (no text or symbols)

YOUTUBE.COM/BRAVENPRODUCTS

DEU

EXTERNE GERÄTE AUFLADEN

Simple line drawing of a device connected to a smartphone with a lightning bolt (no text or symbols)

YOUTUBE.COM/BRAVENPRODUCTS

ITA

ACCENSIONE E ACCOPPIAMENTO BLUETOOTH®

Simple line drawing of a device connected to an electrical outlet (no text or symbols)

YOUTUBE.COM/BRAVENPRODUCTS

ITA

RICARICA DI DISPOSITIVI ESTERNI

Diagram showing a device connected to a smartphone with a lightning bolt symbol (no text or labels)

YOUTUBE.COM/BRAVENPRODUCTS

POR

ACTIVAR E EMPARELHAR DISPOSITIVO COM BLUETOOTH®

Simple line drawing of a device connected to a power outlet (no text or symbols)

CARREGAR O SEU BRAVEN

YOUTUBE.COM/BRAVENPRODUCTS

POR

Diagram showing a device connected to a smartphone with a lightning bolt (no text or symbols present)

POR

YOUTUBE.COM/BRAVENPRODUCTS

简体中文

Pure diagram of a cable connecting two outlets (no text or symbols)

YOUTUBE.COM/BRAVENPRODUCTS

简体中文

⑦ 为外部设备充电

Simple line drawing of a device connected to a smartphone showing a lightning bolt (no text or symbols)

简体中文

YOUTUBE.COM/BRAVENPRODUCTS

日本語

電源/BLUETOOTH®ベアリング

Icon showing a hand pointing at a keypad with plus, minus, and control buttons (no text or symbols)

Pure electrical connection diagram showing a device connected to an output terminal (no text or symbols)

Diagram showing a device connected to a smartphone with a lightning bolt symbol (no text or labels)

YOUTUBE.COM/BRAVENPRODUCTS

한국어

Icon showing a hand pointing at a control panel with plus, minus, and function buttons (no text or symbols)

Simple line drawing of a device connected to an electrical outlet (no text or symbols)

BRAVEN 충전

YOUTUBE.COM/BRAVENPRODUCTS

한국어

주변 장치 충전

Simple line drawing of a device connected to a battery (no text or symbols)

한국어

YOUTUBE.COM/BRAVENPRODUCTS

BRAVEN
