USER MANUAL Midi Takata

Defi nitions Key points in these instructions are highlighted as follows: WARNING! Indicates when incorrect use may lead to a fatality or serious injuries. CAUTION! Indicates when incorrect use may lead to injuries. NOTE! Highlights practical tips for using the TAKATA MIDI.

Indicates permitted usage.

Indicates non-permitted usage. CAUTION! Please read these instructions carefully before using your TAKATA MIDI child car seat. Keep the manual in a safe place (e.g. in the special compartment at the back of the TAKATA ISOFIX BASE), so that you always have it to hand. Also follow the instructions provided by your vehicle manufacturer, and drive care- fully at all times. CAUTION! Please remember that in the case of an accident, the TAKATA MIDI cannot always prevent your child from injury. © Copyright 2012 [308 05 09 10 _ 04.12] TAKATA AG. Information subject to change without prior notice. TAKATA AG cannot be held responsible for any technical errors or omissions. All text and images are property of TAKATA AG and cannot be copied or used in any other way without the approval of TAKATA AG. The product purchased may differ in part from the description given in these instructions. For the latest version of the manual, contact TAKATA customer services (see Section 8 – Service) or visit our website at www.takata-childseats.com.

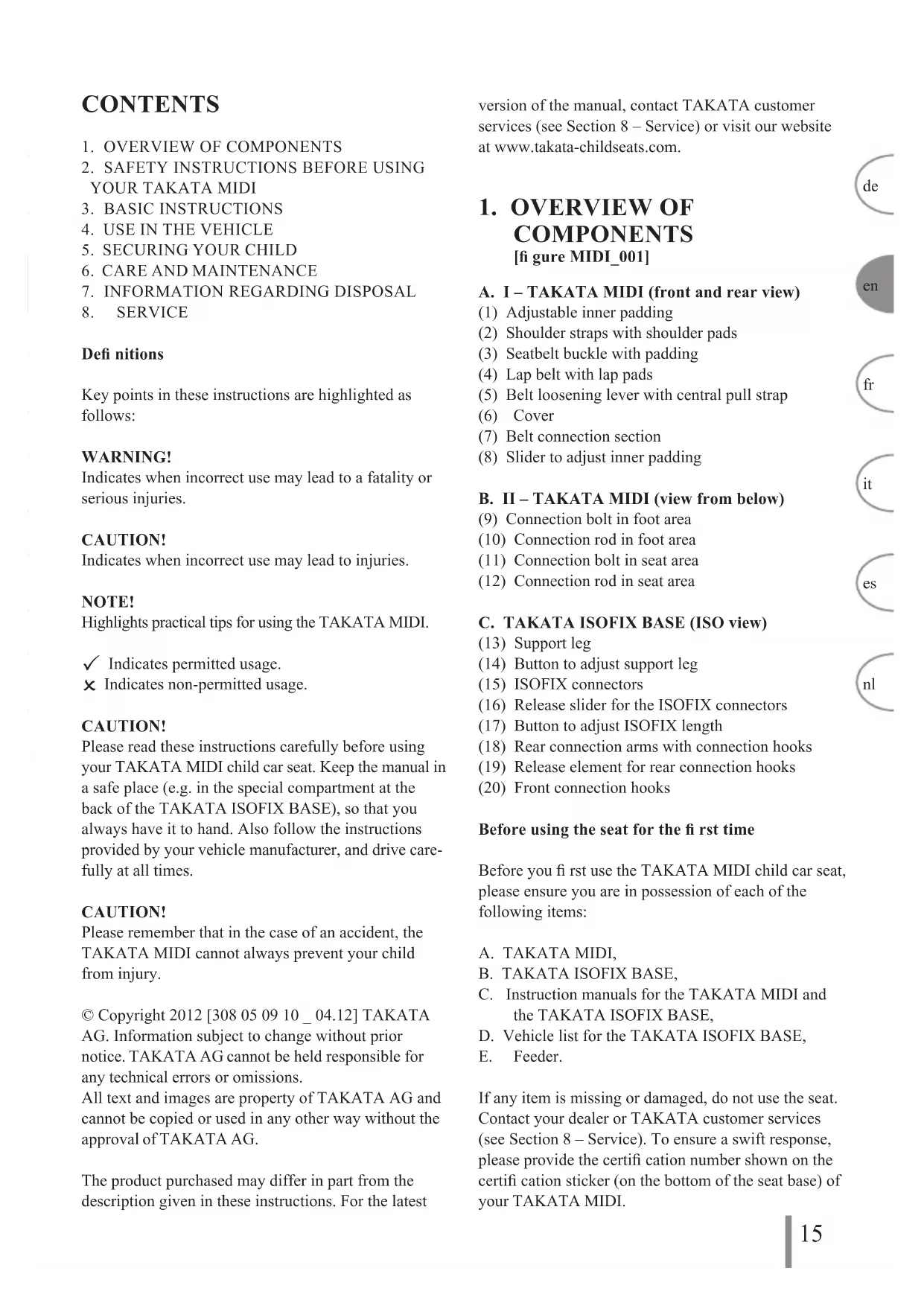

COMPONENTS [fi gure MIDI_001] A. I – TAKATA MIDI (front and rear view) (1) Adjustable inner padding (2) Shoulder straps with shoulder pads (3) Seatbelt buckle with padding (4) Lap belt with lap pads (5) Belt loosening lever with central pull strap (6) Cover (7) Belt connection section (8) Slider to adjust inner padding B. II – TAKATA MIDI (view from below) (9) Connection bolt in foot area (10) Connection rod in foot area (11) Connection bolt in seat area (12) Connection rod in seat area C. TAKATA ISOFIX BASE (ISO view) (13) Support leg (14) Button to adjust support leg (15) ISOFIX connectors (16) Release slider for the ISOFIX connectors (17) Button to adjust ISOFIX length (18) Rear connection arms with connection hooks (19) Release element for rear connection hooks (20) Front connection hooks Before using the seat for the fi rst time Before you fi rst use the TAKATA MIDI child car seat, please ensure you are in possession of each of the following items: A. TAKATA MIDI, B. TAKATA ISOFIX BASE, C. Instruction manuals for the TAKATA MIDI and the TAKATA ISOFIX BASE, D. Vehicle list for the TAKATA ISOFIX BASE, E. Feeder. If any item is missing or damaged, do not use the seat. Contact your dealer or TAKATA customer services (see Section 8 – Service). To ensure a swift response, please provide the certifi cation number shown on the certifi cation sticker (on the bottom of the seat base) of your TAKATA MIDI.

en16 In case of an emergency [MIDI_002] In emergencies such as accidents, keep calm and try not to panic. Remove your child from the vehicle as follows:

1. Press the release button on the seatbelt buckle, and

take the strap off the child.

2. Carefully remove your child from the TAKATA

MIDI. NOTE! If the strap is not released when the button is pressed, cut through it, before removing your child from the TAKATA MIDI.

TAKATA ISOFIX BASE, is an ISOFIX CHILD RESTRAINT SYSTEM. It is approved to Regulation No 44, 04 series of amendments for general use in vehicles fi tted with ISOFIX anchorage systems.

2. It will fi t vehicles with positions approved as ISOFIX

positions (as detailed in the vehicle handbook), depending on the category of the child seat and of the fi xture.

3. The mass groups and the ISOFIX size classes for

which this device is intended are: A, B, B1, C and D. CAUTION! The TAKATA MIDI child car seat has only been tested and approved to the ECE R44/04 European standard for child restraint systems, when used in con- junction with the TAKATA ISOFIX BASE. NOTE! Securing the TAKATA MIDI via the TAKATA ISOFIX BASE and the vehicleʼs ISOFIX points, is classed as a „semi universal“ installation, and is only suitable for certain seats in certain vehicles. The vehicle list supplied provides an overview of all suitable vehicles and seats at the time of going to print. For an updated list, please see our website, www.takata-childseats.com. CAUTION! Please note that ECE R44/04 certifi cation ceases to apply if any changes are made to the TAKATA MIDI or TAKATA ISOFIX BASE without approval from TAKATA AG. The certifi cation sticker, featuring a symbol (the letter E in a circle) and certifi cation number, is found on the exterior of the TAKATA MIDI and on the underside of the TAKATA ISOFIX BASE [ECE]. The TAKATA MIDI meets the following ISOFIX size classes: CLASS 1 WEIGHT 9 - 18 kg AGE approx. 9 months to 3.5 years DIRECTION Backwards-facing (until approx. 1.5 - 2 years) ISOFIX size classes C, D DIRECTION Forwards-facing ISOFIX size classes A, B, B1 NOTE! The ages stated here are intended as a guide only. Please always follow the instructions given in Section 5 – Securing your child (Step 1 – Adjusting and fastening the inner padding and strap). WARNING! The TAKATA MIDI must only be secured via the TAKATA ISOFIX BASE and the vehicleʼs ISOFIX points. The seat has not been designed to be used with a three-point seatbelt and should not be secured in this way. Failure to observe this notice may seriously risk your child’s safety, and the safety of other passengers, in the event of an accident. NOTE! The ISOFIX points installed in the vehicle are metal brackets positioned between the base and back of the seat. They may be covered by the seat cover or plastic caps. Please see your vehicleʼs manual for further information on where the points are found, and how they can be uncovered. WARNING! Children sitting in the TAKATA MIDI must always be secured via the integrated strap system. CAUTION! The TAKATA MIDI may not be used on the front17 passenger seat in a backwards-facing position with the airbag activated. If the passenger airbag has been deactivated and the vehicleʼs manufacturer has approved the seat as suitable for use with child car seats of class 1, you may use the TAKATA MIDI in this position. When using the TAKATA MIDI in this way, always follow the vehicle manufacturerʼs instructions regarding:

• Deactivating the passenger airbag

• The suitability of the passenger seat

• Whether the seat is fi tted with ISOFIX points. The TAKATA MIDI child seat may not be distributed or used for commercial purposes in the USA, Canada, Australia or the UK. Checklist – installation in the vehicle [MIDI_003] Vehicle seat

Labeled by the vehicle manufacturer as suitable for this class of child car seat

Not labeled by the vehicle manufacturer as suitable for this class of child car seat Vehicle seat direction

Sideways Vehicle safety system for securing the TAKATA ISOFIX BASE

Three-point safety belt

Two-point safety belt Child seat direction

Against the direction of travel

With the direction of travel WARNING NOTES: [MIDI_004] Never leave your child unattended in the vehicle. [MIDI_005] Always seat your child in the TAKATA MIDI before the start of your journey – never during travel. Never remove your child from the seat while the vehicle is in motion. [MIDI_006 + MIDI_007] Check that the safety straps have not become twisted, and that they lie snug to the childʼs shoulders and lap, when fastening your child into the TAKATA MIDI. Pull the lap belt down as far as possible, so that the lap area of your child is protected. If the lap belt runs across your child’s stomach, there is a risk of internal injuries in the event of an accident. [MIDI_008] Check that the top of your child’s head is lower than the top edge of the headrest. If the headrest is too low, there is a greater risk of injury in the case of an accident. As soon as the top of your childʼs head reaches or exceeds the top edge of the seat, when the inner padding is at its highest point, you should switch to the TAKATA MAXI child car seat. [MIDI_041] Always ensure that the AIRPADS are positioned correctly in the inner pockets of the adjustable inner padding. Failure to observe this notice may seriously risk your child’s safety in the event of an accident. [MIDI_009] Secure your TAKATA MIDI in place whenever it is in the vehicle, regardless of whether a child is using it. This prevents the seat from fl ying forwards in the event of an accident or when braking sharply. [MIDI_010] Take care not to damage the vehicleʼs seatbelts, or the straps of the TAKATA MIDI, with knives or other sharp objects. The TAKATA MIDI cannot properly protect children from injury if the straps have been cut or in some way damaged. [MIDI_011] Using the TAKATA MIDI in any way other than described in these instructions can cause serious injury. Do not remove any components or replace them with parts that have not been approved by TAKATA AG. [MIDI_012] After an accident, replace the TAKATA MIDI with a new seat. Accidents can cause damage to the seat that may not be visible to the naked eye. Failure to observe this notice may seriously risk your child’s safety in the event of an accident. [MIDI_013] The TAKATA MIDI can heat up when placed in direct sunlight. To prevent burns, ensure that an adult checks all plastic and metal parts of the seat before use. [MIDI_014] Position the TAKATA MIDI so that static parts (plastic elements, etc.) do not get stuck in vehicle doors during normal use of the vehicle.

en18 [MIDI_015] Do not leave any sharp, pointy or heavy objects around the vehicle. In the case of an accident, these objects may fl y around the cabin, injuring child- ren or other passengers. Luggage and other potentially dangerous items should also be secured in place. Always secure your child with the TAKATA MIDI straps, even if you are not using the seat in the car (e.g. when carrying your child around in it, or putting the seat down somewhere). Never leave your child in the TAKATA MIDI (whether attended or not) on a raised, slanted or uneven surface, such as a table, a baby-changing table, steps or a ramp. [MIDI_016] Only use the TAKATA MIDI with original covers, AIRPADS and side crash pads. These are key safety components and have been developed specially for use in the seat. NOTE! Do not leave your child sitting in the TAKATA MIDI for too long. We recommend a limit of one to two hours. It is very important for muscle development that children regularly change their position. As such, you should also remove your child from the TAKATA MIDI when taking breaks. NOTE! The TAKATA MIDI should not be used for any more than six years after purchase. Plastics deteriorate generally over time, particularly when exposed to direct sunlight. This deterioration is not always visible to the naked eye, and can compromise the performance of the seat. Should you have any other queries as to the use of this product, please contact TAKATA customer services (see Section 8 – Service).

3. BASIC INSTRUCTIONS

CAUTION! Always place the TAKATA MIDI child car seat and the TAKATA ISOFIX BASE on a fl at, stable surface. CAUTION! Be careful that your fi ngers and other body parts do not get caught in any moving sections of the seat. TAKATA MIDI Adjusting the position of the inner padding and shoulder strap The inner padding and shoulder straps of the TAKATA MIDI should be adjusted to the size of your child, so as to provide maximum comfort and maximum protection in the case of an accident. These components can be set to six different positions, via a special adjustment mechanism. NOTE! If you need to adjust the inner padding and/or shoulder straps, fi rst ensure that the TAKATA MIDI is correctly installed in the vehicle. WARNING! Always ensure that the AIRPADS are positioned correctly in the inner pockets of the adjustable inner padding. Failure to observe this notice may seriously risk your child’s safety in the event of an accident. Step 1 – Unlock the adjustable inner padding [MIDI_017] Fully depress the slider to adjust the inner padding on the back of the TAKATA MIDI. Step 2 – Adjust and fasten the inner padding Keep the slider pressed down, and at the same time, slide the inner padding up or down, to adjust this and the shoulder straps to the size of your child. Then release the slider again. The slider is locked in place when the metal arms click into the slots on each side. CAUTION! Whenever you adjust the seat, check that the slider is locked into position again. To do this, gently try to move the slider up or down, without pushing it in. It may be necessary to adjust the inner padding further, according to your childʼs size. For further information on this, please see Section 5 – Securing your child (Step 1 – Adjusting and fastening the inner padding and strap). Loosening the straps and opening the buckle Before placing your child in the TAKATA MIDI or removing your child from it, loosen the straps and open the buckle. The TAKATA MIDI features a central lever that is used to loosen the straps. Step 1 – Unblock the straps [MIDI_018] To loosen the straps, pull the lever up and hold it in this position.19 Step 2 – Loosen straps At the same time, pull the shoulder straps gently forwards as far as possible. Step 3 – Open the buckle [MIDI_019] To open the buckle, press the red button on it, and remove the tongues. The two tongues are held together magnetically, and can be easily separated by pulling them apart.

Adjusting the support leg Step 1 – Fold out the support leg [MIDI_020] Take hold of the support leg on the bottom of the TAKATA ISOFIX BASE. Pull it out of the transportation position, and swing it out as far as it will go. When it reaches full extension, the support leg is locked into place by a spring. Step 2 – Unlock and adjust the support leg [MIDI_021] Press the button on the height adjustment mechanism as far in as possible, and slide the support leg up or down. When the desired position is reached, release the button and check that the support leg is locked in place. This is indicated by a click, and a green marking on the top of the button. WARNING! If the support leg is not set at the correct height, there is a risk of serious injury to the child or other passengers in the case of an accident. Step 3 – Fold in and lock the support leg [MIDI_022] To be able to fold in the support leg, you must fi rst position it in the second height setting from the top. Pull the support leg down as far as possible, against the pull of the spring. Then swing it towards the bottom of the base. To fi x it in place, you must press the support leg into the transportation position. If you hear a click, it is fi rmly in position. Adjusting the ISOFIX connectors The two ISOFIX connectors on the TAKATA ISOFIX BASE must be adjusted, according to the position of the ISOFIX points in the vehicle. Each of the connectors can independently be set to one of six different lengths, with the various settings indicated by fi gures 1 to 5 on the top of them. Setting six is obtained when the connectors are at full extension, and is indi- cated by the absence of any fi gure. Step 1 – Unlock the ISOFIX length adjuster [MIDI_023] Press the left-hand button on the ISOFIX length adjuster as far in as possible and hold it in position. The adjuster is positioned on the inner side of the TAKATA ISOFIX BASE. Step 2 – Adjust the ISOFIX connector At the same time, pull the left-hand ISOFIX connector, positioned on the outside of the TAKATA ISOFIX BASE, into the required position. Step 3 – Lock the ISOFIX length adjuster Release the button and connector, and check whether the latter is locked in place. This is indicated by a click, and a green marking on the button. NOTE! The two ISOFIX connectors must be adjusted inde- pendently. Repeat steps 1 to 3 for the right-hand connector. WARNING! [MIDI_024] When securing the TAKATA ISOFIX BASE in the vehicle, ensure that both ISOFIX connec- tors are set to the same position. To do this, check that the fi gures on the top of the connectors match up (or that both are blank). Failure to observe this notice may seriously risk your child’s safety, and the safety of other passengers, in the event of an accident. Step 4 – Unlock the ISOFIX connectors [MIDI_025] Unlock the left and right-hand ISOFIX connectors, by taking hold of the release sliders on each, and pulling them down towards the support leg. The connectors have been correctly unlocked if you can see a red marking on the top of each slider. If green markings are shown, the connectors are still locked in place. Releasing the rear connection hooks [MIDI_026] The TAKATA MIDI is attached to the TAKATA ISOFIX BASE via connection hooks at the front and rear. To free the TAKATA MIDI from the TAKATA ISOFIX BASE, you need only to release the rear hooks. The rear hooks unlock together, so you only need to push down one of the release elements on the exterior of the connection arms. The connection hooks have been correctly unlocked if you can see a red marking on the top of each release element. If green markings are shown, the hooks are still locked in place.

WARNING! [MIDI_009] Never use the TAKATA ISOFIX BASE on its own, or without properly securing the TAKATA MIDI. Failure to observe this notice may seriously risk your child’s safety, and the safety of other passengers. NOTE! Long-term use of the TAKATA ISOFIX BASE and TAKATA MIDI may result in wear and tear of the vehicle seat. Securing the TAKATA ISOFIX BASE Step 1 – Fold out the support leg Fold out the support leg as explained in Section 3 – Basic instructions (Adjusting the support leg), and ensure that it is properly locked in place. NOTE! Check the support leg is locked in place by lightly shaking it with your hand. Step 2 – Place on the vehicle seat [MIDI_027] Place the TAKATA ISOFIX BASE on the seat of the vehicle. Ensure that:

• The ISOFIX connectors are pointing to the back of the car seat.

• The support leg is pointing to the vehicle fl oor. Step 3 – Pull out the ISOFIX connectors [MIDI_023] Press in the button on the inner side of each rear connection arm as far as possible, and fully extend the connectors. Follow the instruction in

Section 3 – Basic instructions (Adjusting the ISOFIX

connectors). NOTE! The connectors have been fully extended when no fi gure is displayed on the top of them. Step 4 – Connect the ISOFIX system [MIDI_028] Point the open ISOFIX connectors on the TAKATA ISOFIX BASE towards the ISOFIX points of the vehicle. Slide the connectors into the vehicleʼs ISOFIX points, until each one clicks into place, and the green markings are visible on the release sliders. NOTE! [MIDI_029] If the vehicleʼs ISOFIX points are diffi cult to reach, use the feeder supplied to guide them out. This makes connecting the system much easier, and protects the seat cover. WARNING! Ensure that both ISOFIX connectors are fully secured to the vehicleʼs ISOFIX points. Failure to observe this notice may seriously risk your child’s safety, and the safety of other passengers. You can check the connectors are properly secured to the ISOFIX points, by lightly shaking the TAKATA ISOFIX BASE. Step 5 – Fit the base against the back of the vehicle seat [MIDI_030] Press the two buttons to adjust the length of the ISOFIX connectors, and push the TAKATA ISOFIX BASE until it sits fl ush against the seat back. WARNING! [MIDI_031] When fi xing the TAKATA ISOFIX BASE to the vehicle seat, ensure that both ISOFIX connectors are set correctly and to the same position. Check this by lightly shaking the TAKATA ISOFIX BASE, and check that the fi gures on the top of the connectors match up (or that both are blank). Failure to observe this notice may seriously risk your child’s safety. Step 6 – Adjust the support leg [MIDI_032] Set the height of the support leg, following the instructions in Section 3 – Basic instructions (Adjusting the support leg), so that its base lies on the vehicle fl oor. WARNING! Ensure that the support leg is locked into position, and that it lies fl ush against the fl oor. Failure to observe this notice may seriously risk your child’s safety, and the safety of other passengers. NOTE! Check the support leg is locked in place by gently pushing and pulling it. NOTE! If you notice that the TAKATA ISOFIX BASE can still be moved around on the vehicle seat, repeat all the steps in Section 4 – Use in the vehicle (Securing the TAKATA ISOFIX BASE), until the base is fi rmly secured to the vehicle seat.21 Securing the TAKATA MIDI in a backwards- facing position [MIDI_033] Step 1 – Check the TAKATA ISOFIX BASE WARNING! The TAKATA MIDI must only be secured via the TAKATA ISOFIX BASE. As such, ensure that the TAKATA ISOFIX BASE is attached fi rmly and correctly to the vehicle seat. If you notice that the TAKATA ISOFIX BASE can still be moved around, repeat all the steps in Section 4 – Use in the vehicle (Securing the TAKATA ISOFIX BASE). WARNING! [Airbag Warning] NEVER fi t the TAKATA MIDI in a backwards-facing position on the front seat with the airbag activated. There is a SERIOUS RISK OF INJURY OR DEATH, and it is therefore FORBIDDEN BY LAW. Depending on the vehicle, you may be able to deactivate the airbag yourself, or may need to contact your local dealer/garage for assistance. Step 2 – Lock the seat into the TAKATA ISOFIX BASE [MIDI_034] Turn the TAKATA MIDI against the direction of travel, and place it above the middle of the TAKATA ISOFIX BASE. Press the two connection bolts in the foot area of the TAKATA MIDI into the rear connection hooks of the TAKATA ISOFIX BASE. For guidance, use the arrows on the outside of the seat and on the rear connection arms of the TAKATA ISOFIX BASE. The bolts are properly locked into the rear connection hooks when each one clicks into place, and you can see a green marking on the top of each hookʼs release element. [MIDI_035] To secure the connection rod in the seat area of the TAKATA MIDI with the front connection hooks of the TAKATA ISOFIX BASE, press down from above on the back section of the TAKATA MIDI, until you hear a click. WARNING! Do not use the TAKATA MIDI if it is not correctly secured to the TAKATA ISOFIX BASE. It is properly locked in place when you can see a green marking on the top of each rear hookʼs release element. NOTE! [MIDI_036] Check the TAKATA MIDI is correctly secured to the TAKATA ISOFIX BASE, by gently shaking the seat in each direction. If the seat is not properly secured to the base, repeat Step 2 – Lock the seat into the TAKATA ISOFIX BASE until it is in the correct position. Securing the TAKATA MIDI in a forwards-facing position [MIDI_037] Step 1 – Check the TAKATA ISOFIX BASE WARNING! The TAKATA MIDI must only be secured via the TAKATA ISOFIX BASE. As such, ensure that the TAKATA ISOFIX BASE is attached fi rmly and correctly to the vehicle seat. If you notice that the TAKATA ISOFIX BASE can still be moved around, repeat all the steps in Section 4 – Use in the vehicle (Securing the TAKATA ISOFIX BASE). Step 2 – Lock the seat into the TAKATA ISOFIX BASE [MIDI_038] Turn the TAKATA MIDI so that it faces the direction of travel, and place it above the middle of the TAKATA ISOFIX BASE. Press the two connection bolts in the seat area of the TAKATA MIDI into the rear connection hooks of the TAKATA ISOFIX BASE. For guidance, use the arrows on the outside of the seat and on the rear connection arms of the TAKATA ISOFIX BASE. The bolts are properly locked into the rear connection hooks when each one clicks into place, and you can see a green marking on the top of each hookʼs release element. [MIDI_039] To secure the connection rod in the foot area of the TAKATA MIDI with the front connection hooks of the TAKATA ISOFIX BASE, press down from above on the seat section of the TAKATA MIDI, until you hear a click. WARNING! Do not use the TAKATA MIDI if it is not correctly secured to the TAKATA ISOFIX BASE. It is properly locked in place when you can see a green marking on the top of each rear hookʼs release element. NOTE! [MIDI_036] Check the TAKATA MIDI is correctly secured to the TAKATA ISOFIX BASE, by gently shaking the seat in each direction. If the seat is not properly secured to the base, repeat Step 2 – Lock the seat into the TAKATA ISOFIX BASE until it is in the correct position.

en22 Removing the TAKATA MIDI from the TAKATA ISOFIX BASE Step 1 – Release the rear connection hooks [MIDI_040] The rear hooks unlock together, so you only need to push down one of the release elements on the TAKATA ISOFIX BASE rear connection arms. At the same time, tilt the TAKATA MIDI forwards (in the direction of travel), so that the connection bolts of the seat come out of the rear connection hooks of the base. Step 2 – Free the seat from the front connection hooks and remove Free the connection rod of the TAKATA MIDI from the front hooks of the base by sliding the TAKATA MIDI backwards, against the direction of travel. You should now be able to lift the seat from the base, and remove it from your vehicle. Removing the TAKATA ISOFIX BASE Step 1 – Unlock the ISOFIX connectors [MIDI_025] Separate the connectors on the TAKATA ISOFIX BASE from the ISOFIX points in the vehicle, by moving the release slider on each connector forwards (in the direction of travel). The components have been separated if a red marking can be seen on the top of each connector. Step 2 – Retract the ISOFIX connectors Press the left-hand button on the ISOFIX length adjuster as far in as possible. The button is positioned on the inner side of the base. At the same time, push the left-hand connector back into the TAKATA ISOFIX BASE. The two ISOFIX connectors must be adjusted indepen- dently. Repeat step two for the right-hand connector. NOTE! The connectors have been fully retracted when all numbers fi gure is displayed on the top of them. Step 3 – Fold in the support leg and remove it Fold the support leg in, as described in Section 3 – Basic instructions (Adjusting the support leg). You should now be able to remove the base from your vehicle.

5. SECURING YOUR CHILD

NOTE! For safety reasons, children should always get in and out from the passenger side of the vehicle, or directly onto a sidewalk. Step 1 – Adjust and fasten the inner padding and straps [MIDI_018 + MIDI_019] Before sitting your child in the TAKATA MIDI, loosen and open the straps, as described in Section 3 – Basic instructions (Loosening the straps and opening the buckle), and move them out of the way. [MIDI_006 + MIDI_007] Once your child is sat in the seat, place the shoulder straps over the shoulders and the lap belt over your childʼs lap, taking care not to twist or tangle the straps. CAUTION! [MIDI_041] Check that the inner padding and shoulder strap connection are correctly positioned. The wings of the inner padding with the AIRPADS protect the head, and should therefore be positioned behind your childʼs head, and above the shoulders. The shoulder strap connections are correctly positioned for the:

[MIDI_042] TAKATA MIDI in a backwards- facing position if they are a little below your childʼs shoulders. If this is not the case, move the adjustable inner padding up or down accordingly.

[MIDI_043] TAKATA MIDI in a forwards-facing position if they are a little above your childʼs shoulders. If this is not the case, move the adjustable inner padding up or down accordingly. Step 2 – Close the belt buckle [MIDI_044 a + b] To secure the straps on the TAKATA MIDI child car seat, bring the two magne- tic belt tongues together again. Push the tongues fi rmly into the buckle, until you hear them click into place. WARNING! Before every journey, always ensure that the tongues and buckle are locked together. You can check this by pulling the tongues up, without pressing the red button on the buckle.23 Step 3 – Adjust the lap belt WARNING! Pull the lap belt down as far as possible, so that the lap area of your child is protected. If the lap belt runs across your child’s stomach, there is a risk of internal injuries in the event of an accident. Ensure that the cushion behind the buckle has not slipped out of place, so that it no longer protects your child against the buckleʼs plastic components. Step 4 – Tighten the straps [MIDI_045 a + b] To tighten the straps, pull the end of central pull strap forwards (not up or down). CAUTION! Ensure that the belt tension is correct by placing your fi ngers beneath the shoulder straps and lap belt of the TAKATA MIDI after tightening them. Step 5 – Check the side crash pads WARNING! [MIDI_041] Always ensure that the AIRPADS are positioned correctly in the inner pockets of the adjustable inner padding. Failure to observe this notice may seriously risk your child’s safety in the event of an accident. Step 6 – Check the size of the seat WARNING! [MIDI_008] Before every use, check that your childʼs head is fully covered by the side bolsters of the TAKATA MIDI, all the way to the top. If the head is not fully protected, your child is at greater risk in an accident. Once your child becomes too tall for the TAKATA MIDI, we recommend switching to the next seat up, the TAKATA MAXI. Checklist – securing your child: Please ensure that:

• the height of the inner padding and shoulder straps are adjusted to your child (as described in these instructions).

• the lap belt does not run over your childʼs stomach.

• the buckle and tongues are correctly secured.

• the straps fi t snugly around your child and are not twisted.

• your childʼs head is fully covered by the side bolsters of the TAKATA MIDI, all the way to the top.

• the AIRPADS are always positioned correctly in the inner pockets of the adjustable inner padding. Removing your child [MIDI_046 a - d] Before you can lift your child out of the TAKATA MIDI, you must loosen the straps and open the buckle. To do this, follow the instructions in

Section 3 – Basic instructions (Loosening the straps

and opening the buckle). You can then lift your child from the TAKATA MIDI.

6. CARE AND MAINTENANCE

Removing the covers Step 1 – Remove the shoulder straps [MIDI_047] To remove the covers, you must fi rst unhook the shoulder straps from the belt connection section of the pull strap, on the bottom of the TAKATA MIDI. [MIDI_048] Then pull the shoulder straps entirely out of the inner padding and shoulder pads. NOTE! You cannot pull the shoulder straps out of the inner padding by only pulling at the shoulder pads. Step 2 – Open the belt buckle [MIDI_049] Open the buckle, pull the tongues out, and lay the shoulder straps out of the way. Step 3 – Remove the inner padding [MIDI_050] Remove the inner padding from the back plate, by fi rst placing it in the highest position. Then pull the lower pouch on the rear of the padding down and away from the back plate. Following this, pull the inner padding up and away from the back plate. Step 4 – Remove the side crash pads (AIRPADS) WARNING! The AIRPADS in the adjustable inner padding are not washable and must be removed from the adjustable inner padding before washing. [MIDI_051] To do this, lie the inner padding down, with its front side on an even surface. You can then reach into the back through the opening of the cover. Remove the AIRPADS in the side wings of the padding, as shown in the illustration.

en24 Step 5 – Remove the cover After removing the inner padding, return the back plate to its lowest position. Fold out the plastic compo- nents around the edge of the cover. Now thread the straps and buckle out of the cover, and pull the whole cover away from the seat. Reattaching the covers To fully reattach all TAKATA MIDI covers, please follow the instructions for ”Removing the covers” in reverse. WARNING! [MIDI_052] After threading the shoulder straps back into the back plate, ensure they run over the two metal bolts. [MIDI_053] Similarly, check that the straps are not twisted or tangled in the belt connection section of the central pull strap on the bottom of the TAKATA MIDI. WARNING! [MIDI_054] Always ensure that the AIRPADS are positioned correctly in the inner pockets of the adjustable inner and that the strap system is fully functional and properly set-up. Check that the TAKATA MIDI has not been damaged. Should you have any queries on this matter, please contact TAKATA customer services. Failure to observe this notice may seriously risk your child’s safety in the event of an accident. Cleaning and care The covers of your TAKATA MIDI (the adjustable inner padding and seat cover) are removable and washable. NOTE! Always check the care instructions on the cover labels, to see whether or not they are machine washable. These instructions should take precedence over any others. WARNING! The AIRPADS in the adjustable inner padding are not washable and must be removed from the padding before washing. WARNING! After every wash, always ensure that the AIRPADS are positioned correctly in the inner pockets of the adjustable inner padding. Failure to observe this notice may seriously risk your child’s safety in the event of an accident. Plastic components can be cleaned with water or a mild soapy solution. To avoid the build-up of mold, store the TAKATA MIDI in a well-ventilated, dry place.

REGARDING DISPOSAL Please follow local regulations when disposing of TAKATA MIDI packaging and the seat itself, observing any information stated on the packaging and seat components regarding the materials.

As part of our efforts to continually improve our products, we welcome your feedback. Please send any comments on issues such as design, user-friendliness, materials and this instruction manual to TAKATA customer services at: service@takata-childseats.com Telephone: 00800 65432178 (8 a.m. to 6 p.m. CET daily)25
