USER MANUAL ZHI615G ZANUSSI

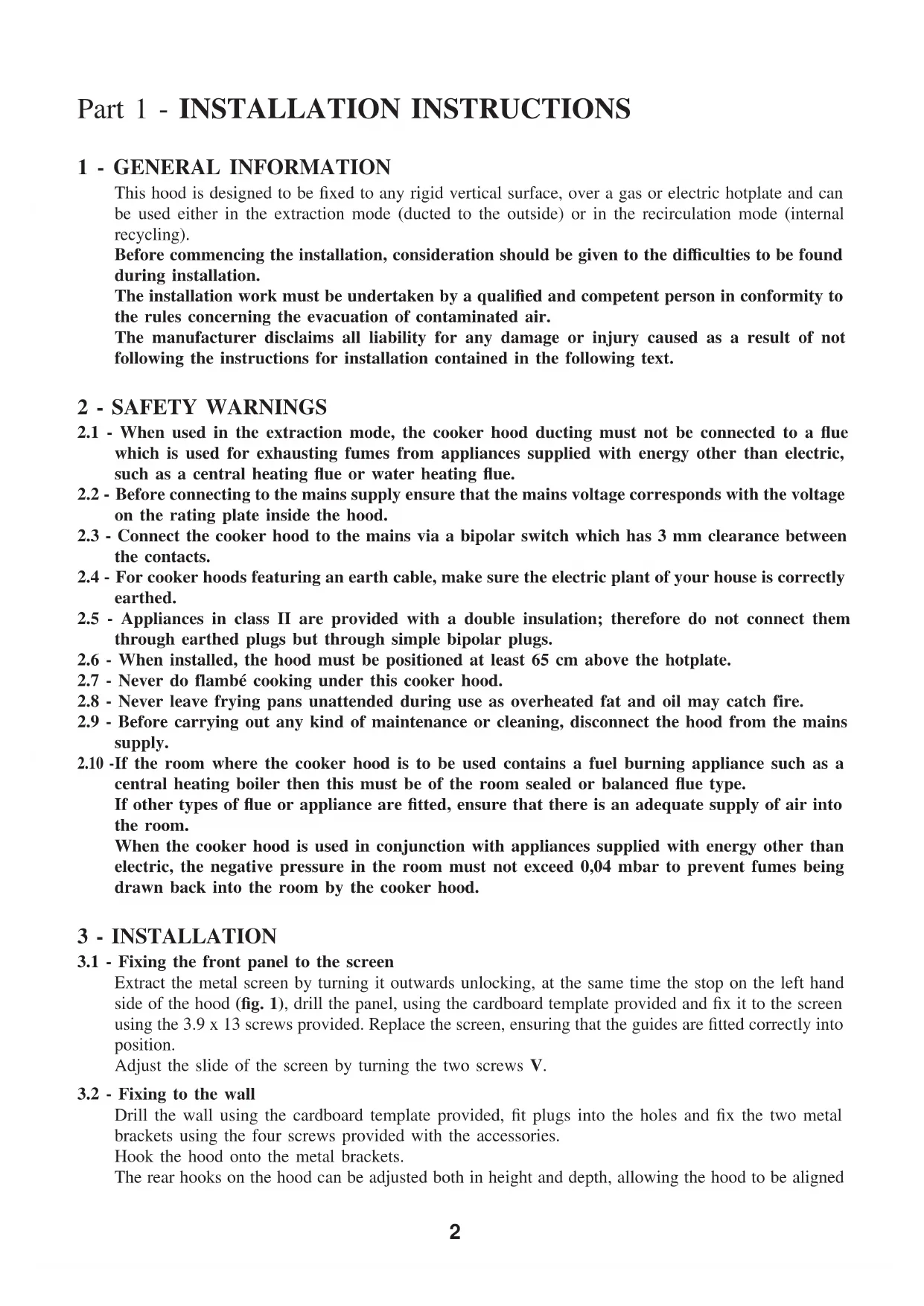

This hood is designed to be fixed to any rigid vertical surface, over a gas or electric hotplate and can be used either in the extraction mode (ducted to the outside) or in the recirculation mode (internal recycling). Before commencing the installation, consideration should be given to the difficulties to be found during installation. The installation work must be undertaken by a qualified and competent person in conformity to the rules concerning the evacuation of contaminated air. The manufacturer disclaims all liability for any damage or injury caused as a result of not following the instructions for installation contained in the following text.

2.1 - When used in the extraction mode, the cooker hood ducting must not be connected to a flue

which is used for exhausting fumes from appliances supplied with energy other than electric, such as a central heating flue or water heating flue.

2.2 - Before connecting to the mains supply ensure that the mains voltage corresponds with the voltage

on the rating plate inside the hood.

2.3 - Connect the cooker hood to the mains via a bipolar switch which has 3 mm clearance between

2.4 - For cooker hoods featuring an earth cable, make sure the electric plant of your house is correctly

2.5 - Appliances in class II are provided with a double insulation; therefore do not connect them

through earthed plugs but through simple bipolar plugs.

2.6 - When installed, the hood must be positioned at least 65 cm above the hotplate.

2.7 - Never do flambé cooking under this cooker hood.

2.8 - Never leave frying pans unattended during use as overheated fat and oil may catch fire.

2.9 - Before carrying out any kind of maintenance or cleaning, disconnect the hood from the mains

If the room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler then this must be of the room sealed or balanced flue type. If other types of flue or appliance are fitted, ensure that there is an adequate supply of air into the room. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

3.1 - Fixing the front panel to the screen

Extract the metal screen by turning it outwards unlocking, at the same time the stop on the left hand side of the hood (fig. 1), drill the panel, using the cardboard template provided and fix it to the screen using the 3.9 x 13 screws provided. Replace the screen, ensuring that the guides are fitted correctly into position. Adjust the slide of the screen by turning the two screws V.

3.2 - Fixing to the wall

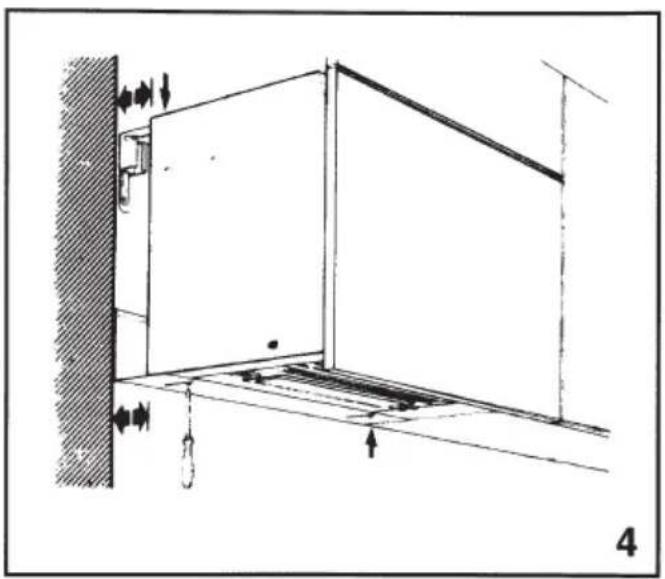

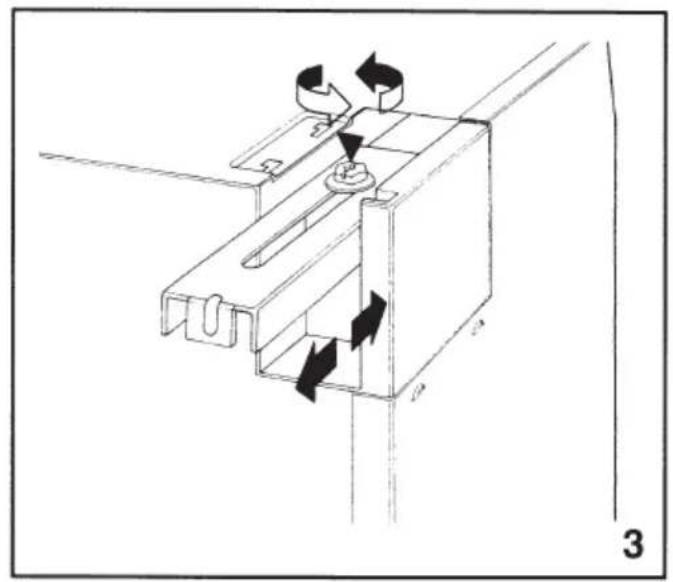

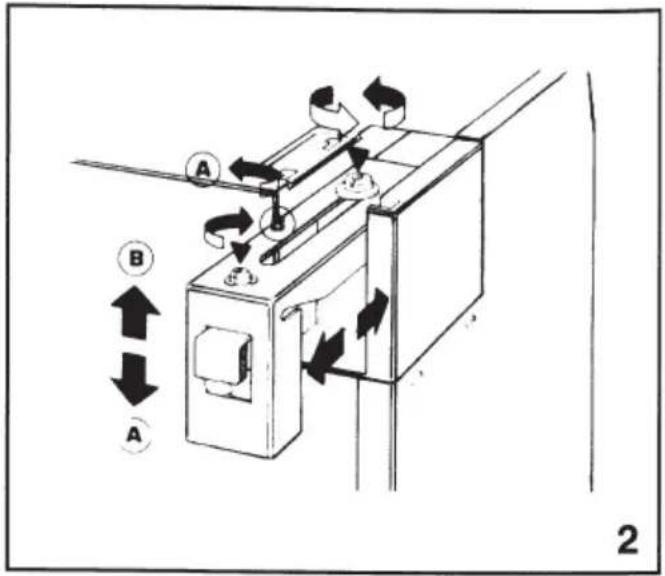

Drill the wall using the cardboard template provided, fit plugs into the holes and fix the two metal brackets using the four screws provided with the accessories. Hook the hood onto the metal brackets. The rear hooks on the hood can be adjusted both in height and depth, allowing the hood to be aligned3 with the cupboards on either side (fig. 2). In some models the rear hooks can only be adjusted horizontally (fig. 3), in any case, after hooking the hood to the wall it will always be necessary to adjust the depth of the metal spacer on the lower part of the hood (fig. 4).

3.3 - Fixing to cupboards on either side

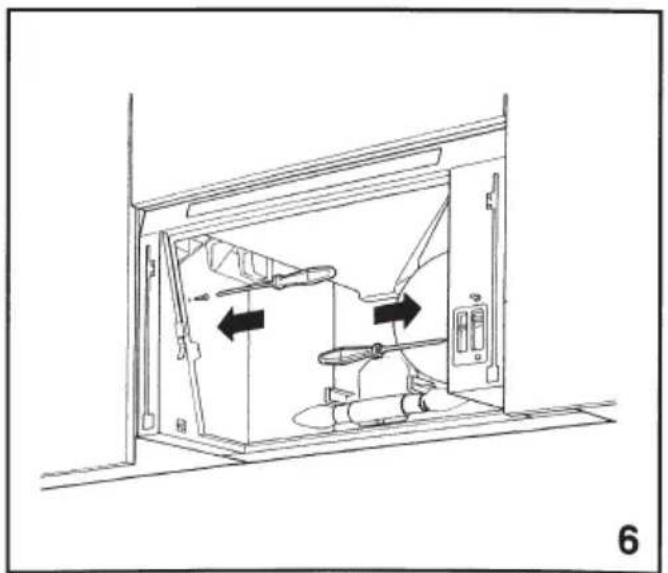

Drill the side cupboards using the cardboard template provided, remove the screen (see paragraph 3.1). Remove the ventilator grille (fig. 5), fix the hood to the cupboards using the 3.5 x 16 screws provided, screwing them from the inside (fig. 6).

3.4 - Ducting or recycling connection

1 - Ducting connection

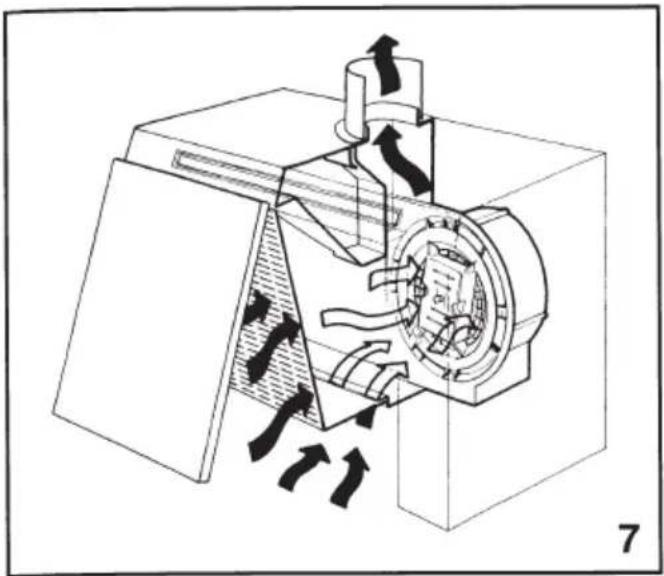

Kitchen fumes are ducted to the outside of the building through an outlet pipe (fig. 7). The outlet from the hood must be connected to external ducting by means of rigid or flexible pipes Ø 100 or 120 mm, to be fixed using suitable pipe connectors (not provided). Check whether or not there are active charcoal filters fitted in the hood: in the ducting version they should not be installed (see paragraph 3.3 part 2).

2 - Recycling connection

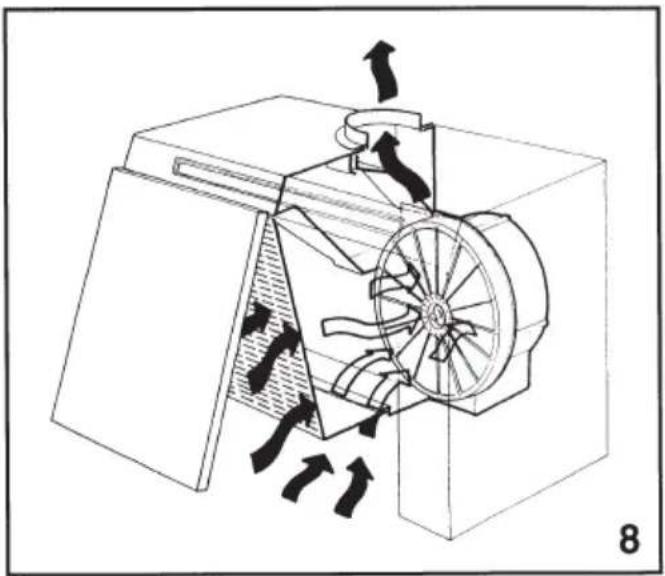

The air is filtered through the active charcoal filter and returned into the room through the hole in the top of the hood (fig. 8). Check that the active charcoal filters are fitted inside the hood (see paragraph 3.3, part 2).

3.5 - Electrical connection and working test

1 - The safety measures 2.2, 2.3, 2.4 and 2.5 of paragraph 2 are to be strictly observed.

2 - Once the electrical connection has been completed, check that the worktop illumination, motor and

speeds work properly.

It is most important that all the warnings shown in paragraph 2 of part 1 are strictly observed. Moreover, special attention must be paid to the following warnings during the use and maintenance of the cooker hood:

1.1 - The grease filters and the charcoal filters should be cleaned or replaced as recommended by the

manufacturer or more frequently if the hood is used consistently (more than 4 hours per day).

1.2 - When using a gas hob in connection with the cooker hood never leave the burners of the hob

uncovered while the hood is in use or when the pans have been removed. Switch off the gas before removing the pan or for just short periods and never leave the hob unattended.

1.3 - Always ensure that the appliance is kept at the correct intensity to prevent the flame from licking

round from the bottom of the pan; this will save energy and will avoid a dangerous concentration of heat.

1.4 - Always ensure that the appliance is used in accordance with the manufacturer’s instructions for

the removal of contaminated odours during cooking.4

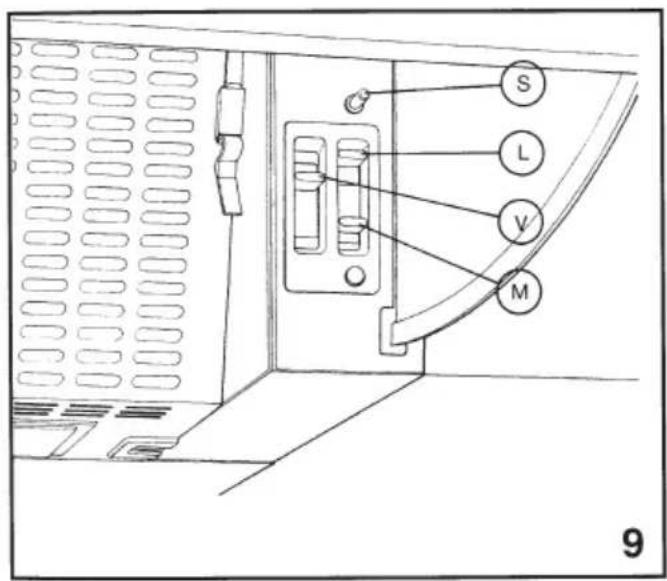

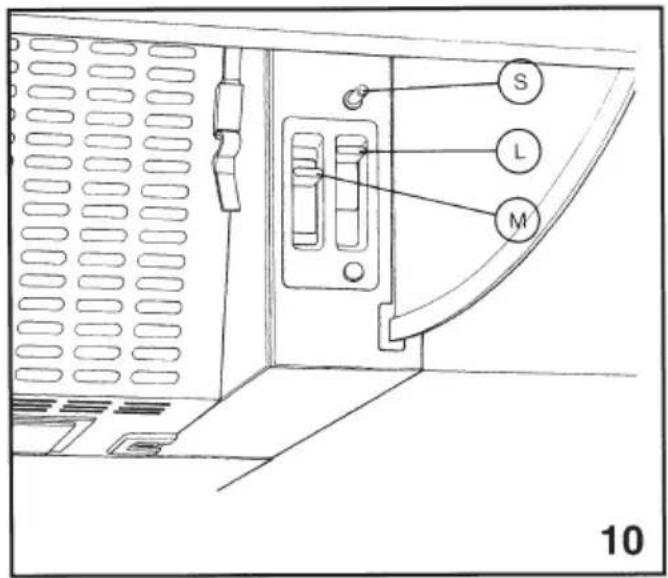

A microswitch S activated by movement of the front panel turns the lighting system on and off and activates switching on and off of the motor at the pre-selected speed. Control panel (3 switches) (fig. 9) SWITCH L = controls the worktop illumination SWITCH M = switches the motor on or off SWITCH V = controls the fan speed Control panel (2 switches) (fig. 10) SWITCH L = ontrols the worktop illumination SWITCH M = controls the power to the motor and the fan speed Working speeds: Position 1 = low speed, should be selected when simmering or using only one pan: the noise level is kept to the minimum. Position 2 = medium speed, should be selected for normal cooking. This speed offers the best ratio between air capacity and noise level. Position 3 = top speed, should be selected when frying or cooking food with strong odours, even for a long period.

Regular maintenance and cleaning will ensure good performance and reliability, while extending the working life of the hood. Special attentions should be paid to the grease filters and to the charcoal filters when the hood is used in the recirculation mode.

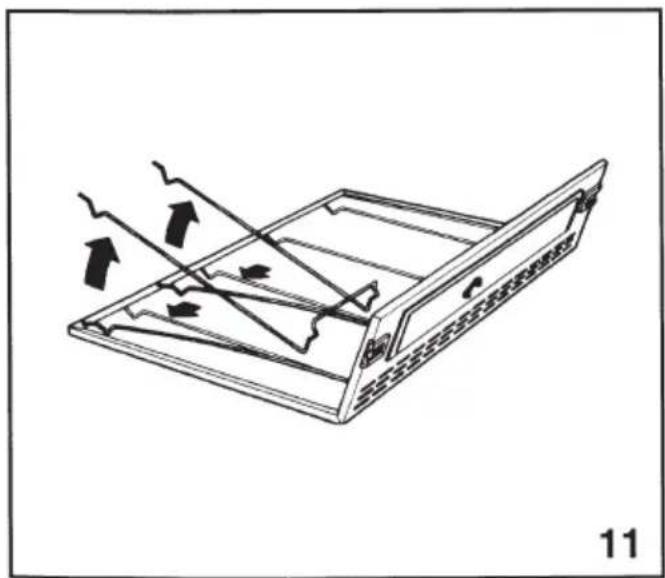

The metal grease filters should be cleaned every two months with normal usage and can be cleaned in a dishwasher or by hand using a mild detergent or liquid soap.

3.2 - Synthetic fibre filter

1 - This type of filter is printed with red dots. When the filter becomes saturated the red colour of the dots

will spread over the whole surface of the filter. At this point the filter has to be replaced. The saturated filter cannot be cleaned or regenerated.

In the recycling mode the charcoal filters absorb smells and odours. The charcoal filter cannot be washed or regenerated and should be replaced every 2 months or more frequently if the hood is used consistently.

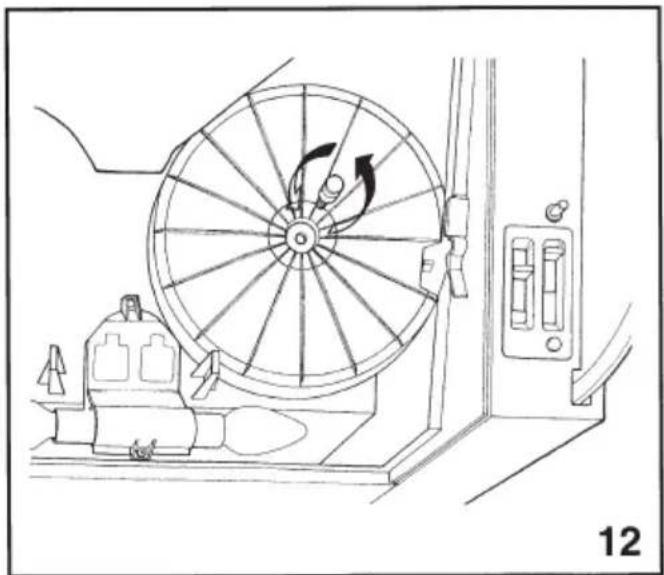

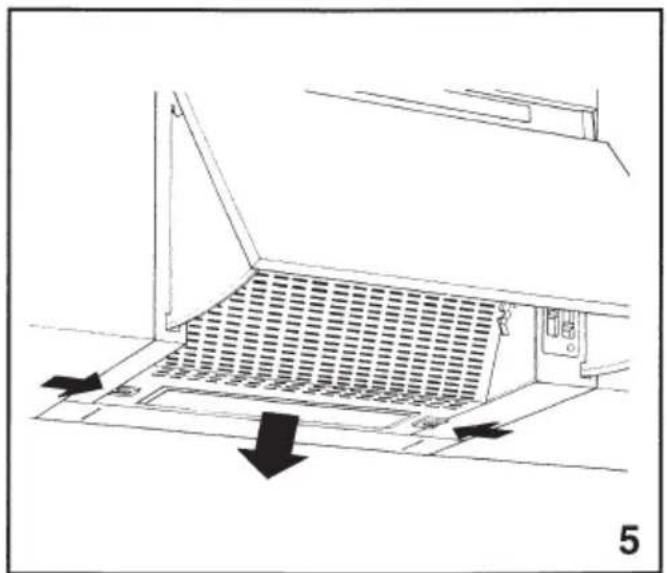

a - Open the metal grille pushing the knobs towards the centre while pulling downwards (fig. 5). b - Replace the charcoal filters by unscrewing the fixing knobs (fig. 12). c - Close the metal grille. ATTENTION - There could be a possible fire hazard if the filters are not replaced according to these instructions.5

a - Two 40W lamps ensure the worktop lighting. These lamps can be reached by removing the metal grille. b - Should the two lamps fail to work, open the metal grille and ensure they are correctly screwed into the holder. c - When changing the lamp, an identical replacement must be fitted to ensure the safe working of the cooker hood.

When cleaning the hood: - Never use a wet cloth or sponge, or running water; - Never use thinners or products containing alcohol, as they might damage the paintwork; - Never use abrasive cleaning materials, in particular when cleaning stainless steel surfaces. It is recommended to use a damp cloth and mild liquid household cleaner.6 1ère partie - INSTRUCTIONS POUR L’INSTALLATION
