Product Type	Waterproof Housing for Digital Camera
Brand	Panasonic
Model	LUMIX DMW-MCTZ20PP
Compatible Models	DMC-TZ20/DMC-ZS10, DMC-TZ19/DMC-ZS9, DMC-TZ18/DMC-ZS8
Water Resistance Depth	40 m (130 ft)
Material	Polycarbonate
Dimensions (L x H x D)	Approx. 150 mm x 94 mm x 103 mm (excluding protrusions)
Weight	Approx. 475 g (including diffuser)
Operating Temperature	0 °C to 40 °C
Seal	O-ring
Supplied Accessories	Diffuser, hand strap, weights (2), mounting screw, silica gel (5 pieces), grease tube, polyester storage bag, pre-installed O-ring
Available Spare Parts	Replacement O-ring (VMG1798), silica gel (VZG0371), grease (VZG0372), hand strap (VFC4190), weights (VXA8726), diffuser/lanyard (VYK4X94)
Main Functions	Underwater photography up to 40 m, access to all controls (zoom, shutter, mode, etc.), compatible INON external flash, underwater white balance
Care and Cleaning	Rinse with fresh water after use, dry in shade, apply grease to O-ring before each use, replace O-ring annually
Safety	Do not use beyond 40 m, check seal before each dive, remove O-ring before flying, do not use solvents or chemicals
General Information	Made of durable polycarbonate, user manual available in French as PDF

Frequently Asked Questions - LUMIX DMW-MCTZ20PP PANASONIC

How to check the seal of the housing before use?

Before installing the camera, submerge the closed (empty) housing in water for about 3 minutes. If bubbles appear, there is a leak. Check the O-ring and groove. After installing the camera, repeat the same test.

How to maintain the O-ring?

Remove the O-ring, clean it with a soft dry cloth, check for dirt, sand, hair, cracks. Apply a thin layer of the supplied grease (size of a grain of rice) evenly with your finger. Place it back in the groove avoiding twists.

What is the maximum depth I can reach with this housing?

The maximum depth is 40 meters (130 feet). Do not dive beyond, as the housing could be irreversibly damaged.

What to do if water leaks into the housing?

Stop using the housing immediately. Remove the camera, take out the battery (risk of hydrogen). Thoroughly dry the inside. Consult your dealer for inspection.

Can I use the housing without the supplied diffuser?

Yes, the diffuser is removable. It serves to soften light for underwater photos. You can remove it if you don't need it.

How to prevent condensation inside the housing?

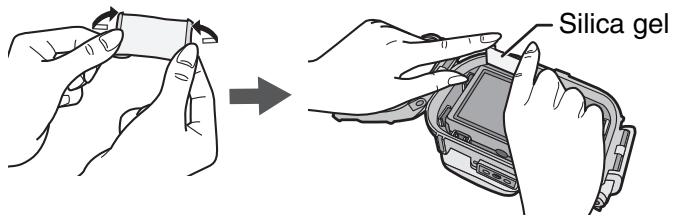

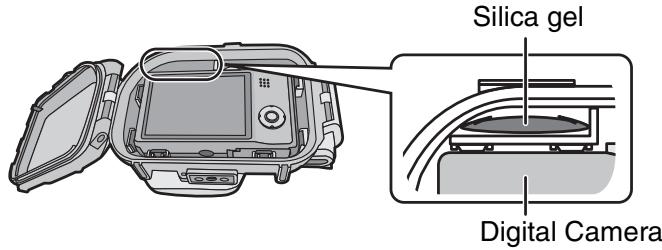

Use the supplied silica gel (desiccant). Place it inside the housing about 1 to 2 hours before diving. Make sure it is new and dry. Avoid sudden temperature changes.

Which products should not be used to clean the housing?

Do not use alcohol, gasoline, thinner, chemical detergents, anticorrosive products or commercial anti-fog products. Use only fresh water and a soft cloth.

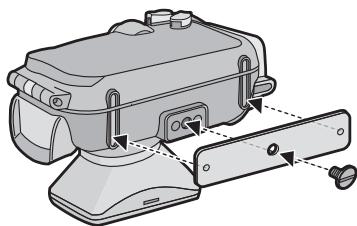

How to attach the buoyancy weights?

Align the protrusion of the weight with the tripod receptacle on the bottom of the housing. Use the supplied screw and a screwdriver to secure. Two weights can be stacked by aligning the notches.

When to replace the O-ring?

Replace the O-ring if it shows cracks, deformation, crushing, scratches, or if sand is embedded. It is recommended to change it every year, even if it looks good.

Can I use the camera's built-in flash underwater?

Yes, but the flash range is reduced underwater. Image corners may be cut or lighting uneven. A compatible INON external flash can improve results.

USER MANUAL LUMIX DMW-MCTZ20PP PANASONIC

Operating Instructions

Before connecting, operating or adjusting this product, please read the

instructions completely.

Ipeed noIb3ObaHHe m npOHTte, noXaIyIcTa, 3Tu nHCTpyKcIIO nONHOCTbIO.

Before Use 3
Accessories. 5
Handling and Care 6
Components 8
What is the O-ring? 9
Preparation-Setting the O-ring- 10
Preparation -Checking the Case is Waterproof- . . . . . 14
Preparation -Attaching the Digital Camera- 15
Taking Pictures 18
Tips for Taking Pictures in the Water 19
After Use 20
Cleaning and Storing 21
Caution for Use 21
Specifications 23

• This Marine Case is designed for a Panasonic Digital Camera.

You can enjoy taking pictures underwater at depths up to 40 m/130 feet.

• In the case of water leakage due to insufficient care, Panasonic is in no

way liable for damage to any products (digital camera, batteries, card etc.)

inside this Case, photography costs or any other expenses.

• Panasonic also offers no compensation for accidents resulting in injury or
  damage to property.
• Read the operating instructions for your digital camera.
• Before attaching the digital camera, submerge the case in water for

about 3 minutes or more to check that there is no water leakage.

About handling this Case

• Use under the following conditions.

Water depth: Up to 40 m/130 feet
- Ambient temperature: 0^ C to 40^ C / 32^ F to 104^ F

• Do not use the Case in water over 40^ / 104^ . The heat may damage the Case or cause water leakage.
• The Case is made of impact resistant polycarbonate however be careful when you are using it. It can be easily scratched when taking pictures in rocky places etc. and can be damaged by the impact if dropped etc. When travelling, pack the Case carefully to prevent any direct impact if it is dropped etc. and do not leave the digital camera in the Case. Only attach the digital camera to the case if you are transporting it a short distance such as from the airport to the diving spot. (You cannot reuse the material the Case was packed in at the time of purchase to transport it.)
• When boarding a plane, the change in atmospheric pressure may cause the inside of the Case to expand causing damage to the Case. Remove the O-ring before boarding a plane.

Insert the removed O-ring into the supplied exclusive polyester bag.

• Do not leave the digital camera in the Case for a long period of time in a car, a ship, exposed to direct sunlight etc. The Case is an airtight device so the temperature inside the Case will become very high and the digital camera may stop operating properly. Do not let the temperature inside the Case become too high.

Using the Case in high or low temperatures

• If you open or close the Case where it is humid or hot and then move to a place that is cold or dive underwater, condensation may appear inside the Case, the glass surface may become cloudy and the digital camera may be damaged.
• If you suddenly move the Case from a cold place or cold water to a warm place, the glass surface may become cloudy. Wait until the Case becomes close to the air temperature before taking pictures.

About preparation

• Do not open or close the Case where it may be splashed by water or sand may get in it. We recommend opening or closing the Case indoors.
• Replace the battery, card etc. and attach the digital camera indoors where there is little moisture.

• If you must open or close the Case at the diving spot to replace the battery or the card, be sure to follow the steps below.

• Select a place where the Case will not be splashed by water and sand will not get in it.

• Blow off any drops of water in the gap between the rear case and the front case and on the buckle. Thoroughly wipe off any remaining drops of water with a dry cloth.
• Thoroughly wipe off any drops of water on your body or hair.
• Be particularly careful about any water coming from the sleeves of your thermal suit.

• Do not touch the digital camera if your hands are wet from sea water. Wet a towel with fresh water and place it in a polyester bag beforehand. Use this towel to wipe off any drops of water or sand on your hands or body.

• This Case does not absorb shock. If you place a heavy object on the Case or cause shock to it, the digital camera may be damaged. Be careful when you are using the case.

When you first open the package, check that the Case and all the accessories are included and that there has been no damage to the Case or any of the accessories during distribution or transportation. If you find something unusual, consult your dealer before using the Case.

Do not use any accessories except those specified below.

	Replacement O-ring VMG1798 * In exclusive polyester bag * One has been attached to the unit in advance.		Silica Gel (Desiccant) (1 g/5 pieces) VZG0371
	Grease (for O-ring) VZG0372		Hand Strap VFC4190
	Weight (2), Weights attachment screw VXA8726
	Diffuser/String VYK4X94 ● You can remove this diffuser when not using it. Removing	Attaching Align with the mark on the back of the case and attach.

• Do not place the Case where it may fall.

• If the Case falls on your head or foot, it will injure you and cause the Case to malfunction.

• Never alter the Case.

• If water leaks into the digital camera because the Case was altered, the digital camera may be damaged beyond repair.

• If you continue to use the digital camera after water has leaked into it, this may cause a fire.

• Do not use the Case while scuba diving without proper training.

• You should only operate the Case while scuba diving if you have been properly trained and certified for this sport.

• Never place the Case, grease, silica gel or O-ring within the reach of infants.

• If any part of an infant's body is caught in the Case, it may cause an injury.

• Infants may accidentally swallow the grease, silica gel or O-ring.

• Consult a doctor immediately if you think an infant may have swallowed the grease, silica gel or O-ring.

• Do not hang the strap around your neck underwater.

• It may become wound around your neck causing suffocation or other serious injuries.

• Thoroughly wash any grease on your hands.

• Do not allow the grease on your hands to come into contact with your mouth or eyes.

• If water leaks into the case, stop using it immediately.

• This may cause an electric shock, burning or a fire.

• Consult your dealer.

• If anything abnormal occurs while using the Case underwater, please follow all necessary procedures and guidelines for decompressing when you ascend.

• If you ascend too quickly, you may get caisson disease.

• If smoke or abnormal heat, smells or sounds come from the Case, stop using it immediately.

• These may cause an electric shock, burning or fire.

• Remove the digital camera from the Case and then immediately remove the battery from the digital camera.

• Consult your dealer.

• Be careful when opening the Case after water leakage.

• The leaked water may blow out or the rear case may flip.

• Do not leave the Case where the temperature is high.

• The temperature inside the Case becomes very high particularly when it is exposed to direct sunlight on a beach, a ship etc. or when it is left in an airtight car in the summer. The heat may damage the Case or its inner parts.

• If a digital camera is attached to the Case, it may also be damaged.

• If you use the attached digital camera when the temperature inside the Case is very high, it may cause leakage, short-circuiting or insulation failure resulting in fire or malfunction.

• Do not handle the digital camera or the battery with wet hands.

• This may cause an electric shock or malfunction.

When taking pictures with the flash

• When taking pictures with the flash, the corners of the picture may be vignetted or the picture may not be lit evenly.
• When taking pictures with the flash, the available flash range is less underwater than on land.

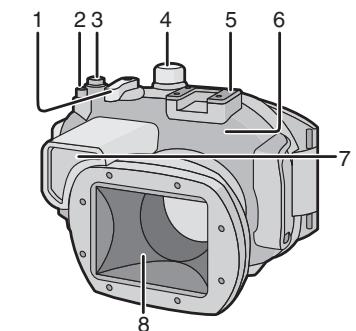

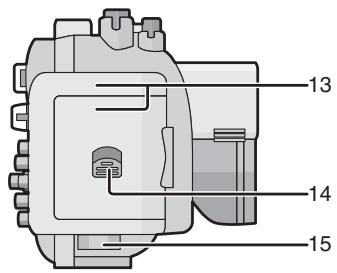

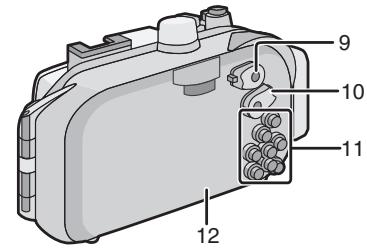

1. Zoom Lever
2. Motion Picture Button*1
   3.Shutter Button
3. Mode dial
4. Mounting shoe for INON Inc., external strobe*2
5. Front Case
6. Diffuser (supplied)
7. Front Glass

8. Camera ON/OFF Switch

9. [Rec]/[Playback] selector switch

10. Button operation section (Read the operating instructions of the digital camera for details about each button operation.)
11. Rear Case
12. Buckle
13. Lock Release Lever
14. Strap Eyelet (for attaching the supplied hand strap and diffuser)

*1 There is an operation button on the marine case that has multiple functions. Follow the button indication (function) on the digital camera when using the marine case.

This function may not be available depending on the camera used.

*2 This is a mounting shoe dedicated for an external strobe manufactured by INON Inc.

Please refer to INON Inc. regarding compatible strobe.

http://www.inon.co.jp/INON_WORLD_body.html

• The O-ring is a waterproofing packing used for underwater cameras, watches and diving equipment.
• The O-ring keeps the Case waterproof by sealing the gap between the rear case and the front case.

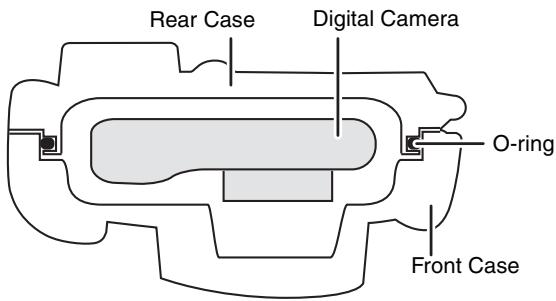

How the O-ring keeps the Case waterproof

The gum comes into contact with the sides of the Case making the Case waterproof and stopping water from entering from the gap.

When water pressure acts on the O-ring, the surface of the O-ring expands and the Case is sealed more tightly.

The O-ring prevents water leakage by coming into uniform contact with the sides of the Case. Therefore, good care of the O-ring is very important. Incorrect care of the O-ring may cause water leakage.

Be sure to set the O-ring before attaching a digital camera.

Thoroughly wash and dry your hands before handling the O-ring. Place the O-ring where there is no sand or dust.

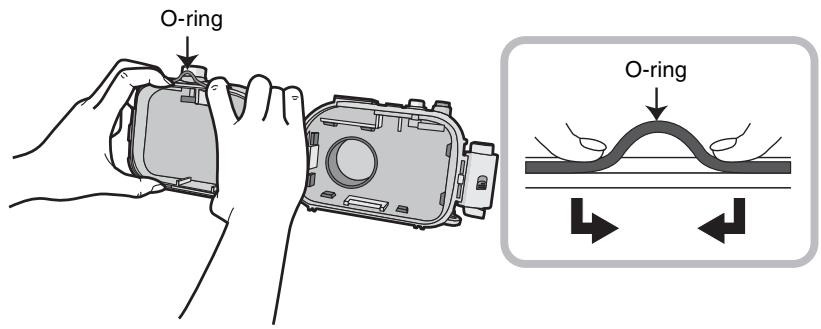

1 Loosen the O-ring with your fingers to remove it.

• Loosen part of the O-ring with the tips of two fingers and then lift the loosened part. Be careful not to scratch the O-ring with your fingernails.

Note

• Do not use a pointed object to remove the O-ring. This may scratch or damage the O-ring.

2 Check the O-ring.

• Check that there is no dirt, sand, hair, dust, salt crystals, lint or grease on the O-ring. If you find any of these, remove them with a soft, dry cloth.

Dirt

Sand

Hair

Dust

Salt

Lint
crystals

• There may be dirt on the O-ring that you cannot see. Check if there is any dirt by rubbing your finger over the O-ring.
• Be careful not to leave any fibers from the dry cloth on the O-ring when wiping it.
• Check that the O-ring is not ripped, twisted, squashed, frayed or scratched and that there is no sand sticking to it. Replace the O-ring in these cases.

Ripped

Twisted

Squashed

Frayed

Scratched

Sand

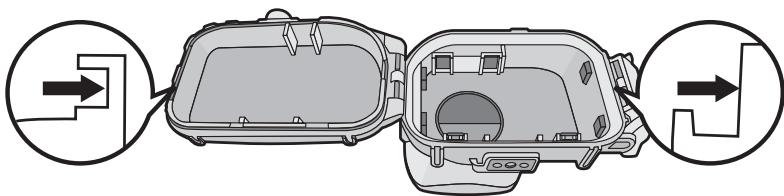

3 Inspect the O-ring groove.

• Grains of sand or hardened salt crystals may get into the O-ring groove. Remove them carefully with an air spray or a cotton swab. If you use a cotton swab, be careful not to leave any fibers from it in the O-ring groove.

• Inspect the front case groove as well as the rear case (side where O-ring is set) groove.

4 Apply the grease (supplied).

Apply O-ring grease to clean the surface of the O-ring and replenish the oil.

• Apply a rice-grain size of grease (supplied) evenly to the O-ring with the tip of your finger. (Do not apply the grease with paper or a cloth. The fibers from the paper or cloth may stick to the O-ring.)
• If there is too much grease on the O-ring, dirt and dust will stick to it causing water to leak in. Therefore, hold the O-ring between the balls of your finger and thumb and gently remove excess grease.
• By applying the O-ring grease thinly and evenly, the O-ring fits flexibly to the groove of the marine case and keeps it airtight.
• Use only the specified grease. If you use other types of grease, the surface of the O-ring may be damaged causing water leakage.

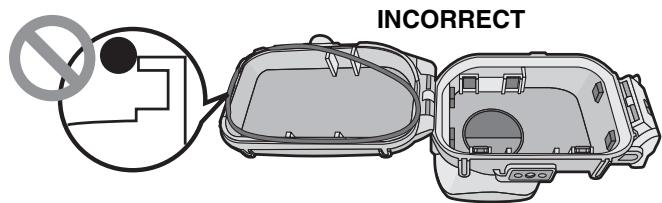

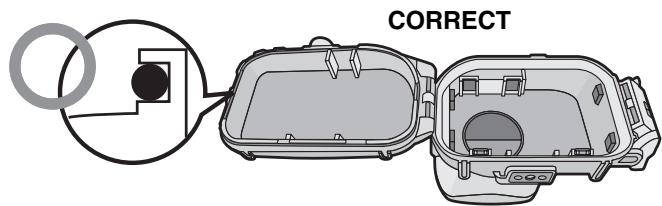

5 Fit the O-ring evenly into the O-ring groove.

Check the following:

• There is no dirt sticking to the O-ring.
  The O-ring has not come out.
  The O-ring is not twisted.
• The O-ring is not stretched too much.

6 Inspect the O-ring one last time.

Check the following one more time:

• There is no dirt sticking to the O-ring.
  The O-ring has not come out.
  The O-ring is not twisted.
• There are no scratches or squashed parts on the O-ring.

Thoroughly wipe any grease off your hands with a dry cloth. Afterwards wash thoroughly with fresh water.

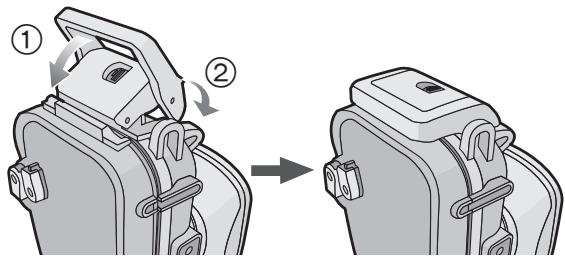

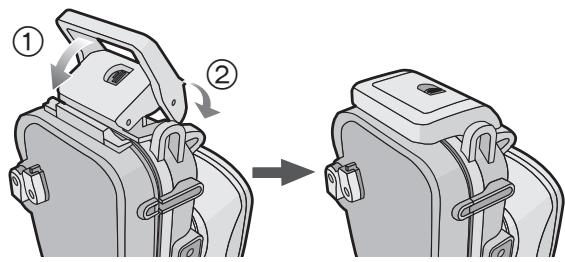

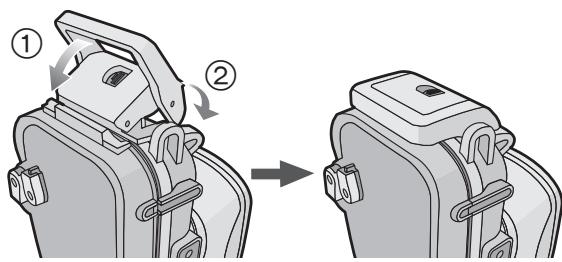

7 Close the buckle.

• Check that no foreign materials are sticking to the outer surface of the O-ring or the buckle on the front case and then close the Case.

Notes

• To keep the Case completely airtight, do not scratch the surface of the O-ring that comes into contact with the sides of the Case.
• Never use an O-ring that has been scratched or damaged by dirt etc. This will cause water leakage.
• Each time you use the Case, remove the O-ring and check that there is no dirt, sand, hair or other foreign materials in the O-ring groove and then apply a thin coat of grease (supplied). If you apply too much grease, dirt and the dust may stick to the O-ring causing water leakage.
• Be sure to bring a spare O-ring in case the O-ring that you are using becomes damaged or scratched.

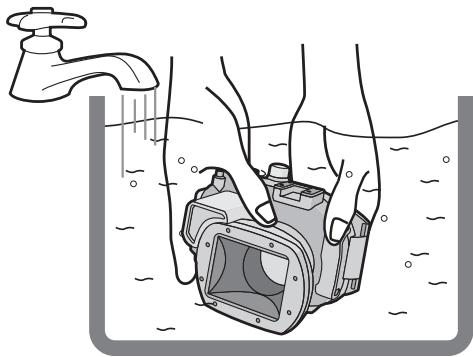

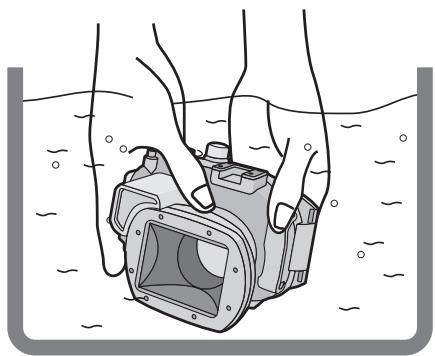

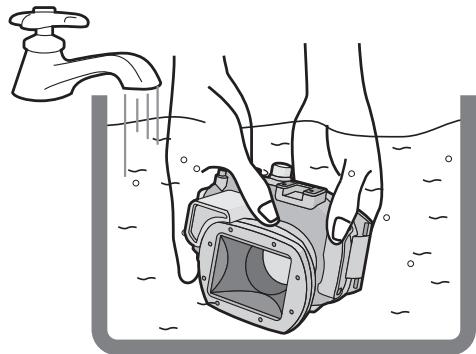

After setting the O-ring, check that no water leaks into the Case by submerging it in a water tank, bath tub etc. for more than about 3 minutes before attaching a digital camera.

• Do not use the Case in water over 40^ / 104^ . The heat may damage the Case or cause water leakage.

Carry out the same test after attaching the digital camera to the Case. (P15)

Notes

• If bubbles rise from the Case when it is submerged in water or there is water inside the Case when you take it out of the water, there is water leakage. In these cases, consult your dealer.
• If water leaks into the Case while you are using it and the digital camera is submerged in water, remove the battery immediately. Hydrogen gas can cause burning or explosion if there is a fire nearby.
• If you dive quickly while holding the Case or throw the Case from a ship into the sea, some water leakage may occur because of high pressure. This is not a malfunction of the Case. Always dive slowly into the water.
• The Case is designed to be used at a depth of up to 40m / 130 feet. If you dive deeper than 40m / 130 feet, part of the Case may be damaged beyond repair.
• When closing the Case, be careful that no foreign materials get caught between the O-ring and the O-ring groove. Even one strand of hair or one grain of sand can cause water leakage.

Read the notes on page 17 before attaching the digital camera.

Check that the ON/OFF Switch on the camera and the case is set to [OFF], and [Rec]/[Playback] selector switch is set to [O].

• Remove the strap from the digital camera.

1 Push ② up with your finger while sliding ① to open the buckle.

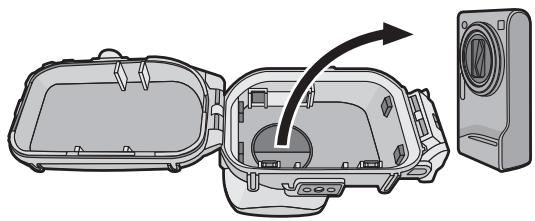

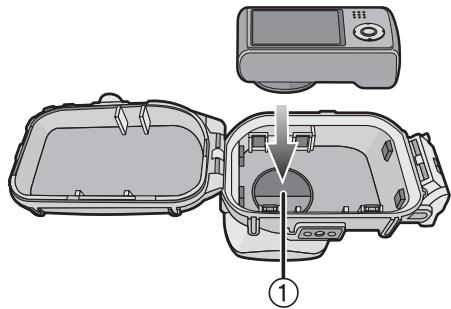

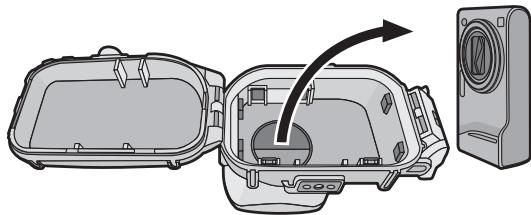

2 Attach the digital camera to the Case.

• Be careful not to catch the shading hood ①.

3 Insert the silica gel (supplied).

Always use new silica gel.

• When inserting the silica gel, bend it as shown in the illustration below and then insert it as far as possible. If you close the Case with the silica gel not fully inserted, the silica gel will get caught in the O-ring causing water leakage.

• If the air temperature is high and the water temperature is low, condensation may appear inside the Case. To prevent condensation, insert silica gel (supplied) inside the Case in advance. To prevent the Case from becoming fogged up, insert the silica gel about 1 to 2 hours before using the Case.

4 Close the buckle.

Check that the buckle is closed firmly. Do not insert the strap etc. in the buckle.

5 After you have attached the digital camera, check one more time that no water leaks into the Case. (P14)

Notes

• Be careful not to get the shading hood dirty with fingerprints etc.
• Check one more time that the O-ring is fitted evenly into the O-ring groove.
• Avoid opening or closing the Case where there is a lot of sand or dust and in humid or wet places.
• If there is a sudden change of humidity caused by moist air entering the Case, condensation may appear inside the Case.
• To prevent condensation, set the digital camera in as dry a place as possible. Also, check that the silica gel (supplied) is sufficiently dry before inserting.
• If sunscreen or suntan oil sticks to the Case, wash it off immediately with lukewarm water to prevent reduced waterproofness or discoloration.

If a digital camera with GPS function is attached to the marine case, failure of positioning or other major errors may occur due to interference in the reception of radio waves from the GPS satellite.

Attaching the weights

About using the weights

Attach the weights to adjust to the preferred buoyancy when using the marine case. Use them as necessary.

Refer to the following about buoyancy underwater.

① If you use the digital camera and the marine case only: They will float slowly in fresh water or seawater. (Plus buoyancy)
If you use the digital camera, the marine case and 1 weight: They will float even more slowly in fresh water or seawater than ① (Plus buoyancy)
③ If you use the digital camera, the marine case and 2 weights: They will sink slowly in fresh water or seawater. (Minus buoyancy)

How to attach the weights

If you use 1 weight, align the protruding part of the weight with the tripod receptacle on the marine case and then using a slotted screwdriver or similar, use the supplied weights attachment screw to attach to the tripod receptacle.

If you use 2 weights, align the projecting part of the second weight with the indented part of the first weight so that the weights do not overlap and then attach them to the tripod receptacle.

■ Be sure to check the following before entering the water Check the following before diving.

Is there sufficient remaining battery power?
Is there sufficient memory in the card?
Is the O-ring fitted evenly into the O-ring groove?
- Have you checked that no water leaks into the Case?
Is the buckle closed firmly?

Taking pictures

1 Turn the camera on.

Press ① to release the lock and then set to [ON].

Press ② to lock.

2 Display the scene mode menu and then set [Underwater].

• Read the operating instructions of the digital camera for details.

3 Aim the AF area on the LCD monitor at the subject you want to focus on.

4 Press [AF-L ] to focus.

• Press [AF-L] again to cancel.

5 Press the shutter button fully to take the picture.

Notes

• Before attaching the camera to the Case, we recommend setting the clock again. (Read the operating instructions of the digital camera for details.)
• If there are any particles floating in front of the camera, it may focus on them instead of the subject.
• If there are drops of water or dirt sticking to the front glass, you may not be able to focus properly. Be sure to wipe the front glass before taking pictures.

When the image is too bluish in the water

① Select [White Balance] from the [Rec] Mode menu.
② Press [DISP.] to display [WB Adjust].
③ Press [AF-L] to adjust the white balance.
④ Press [MENU/SET] to finish.

• You can also press the shutter button halfway to finish.

Select the best picture

Set the flash to [ ]

Using the Auto Bracket Function (For models with an Auto Bracket Function)

• Each time the shutter button is pressed, 3 pictures with different exposures are automatically recorded. You can select the desired picture from the 3 pictures.

Use Burst Mode

• When taking pictures of a fast-moving subject (a fish etc.), you can select your favourite picture after taking the pictures using Burst Mode.

Note

• WB fine adjustment (Underwater Mode) is also supported when recording motion pictures. (Compatible model: DMC-TZ20/DMC-ZS10)

The white balance can be adjusted according to water depth or preference.

For more information, read the operating instructions of the digital camera.

After you have finished taking pictures, follow the steps below.

1 Submerge the Case in fresh water for about 30 minutes or more without removing the digital camera to remove any salt crystals etc.

• Press all the operation buttons etc. on the Case to wash away any seawater. If the salt crystals are not removed from the buttons etc., they will harden and the buttons will become inoperable.
• Do not wash the Case with fast-running or pressurized water etc. as it may cause water leakage.

2 Wipe the water with a dry cloth that has no salt crystals sticking to it and then dry the Case completely.

• Do not dry the Case by exposing it to direct sunlight. This may discolor or damage the Case or may hasten deterioration of the O-ring.

3 Open the rear of the case to remove the digital camera.

4 Remove the O-ring from the Case and check that there is no dirt etc. in the O-ring groove.
5 Check that there are no scratches etc. on the O-ring while you are applying the grease.

Notes

Be careful when removing the digital camera from the Case so that it does not get wet.

• Remove the camera with clean hands. (Wash your hands with fresh water and then thoroughly dry them.)
• Thoroughly dry any moisture on your body or hair. (Be particularly careful about any water coming from the sleeves of your thermal suit.)
• When the weather or the sea is particularly bad, select a place where the digital camera will not get wet e.g. indoors or where there is a roof overhead.

Cleaning and Storing

1 Wash the outside of the Case with water.

• Wash the outside of the Case until it is clean. (P20)
• Confirm that the O-ring is set securely, be sure to close the Case, and then wash only the outside with water.
• Wipe off any dirt inside the Case with a wet, soft cloth.

Notes

• Do not wash the Case with high-pressure water as it may cause water leakage. Remove the digital camera before washing the Case with water.
• Do not leave the digital camera inside the Case when storing it.
• Detach the O-ring from the marine case and store so it will not dry. For details, please read page 22. When storing for a long period of time, insert in the supplied exclusive polyester bag after first removing the O-ring.
• To prevent the weights and weights attachment screw from rusting, detach after use and thoroughly remove any salt or water before storing.

Caution for Use

■ Handling of the O-ring

• Do not use alcohol, thinner or a chemical cleaning agent for cleaning the O-ring. This will cause damage to, or deterioration of, the O-ring.

• If you will not be using the Case for a long period of time, remove the O-ring from the O-ring groove, apply a thin coat of grease (supplied), place it in exclusive polyester bag and then store it in a cool, dark place to prevent the surface from being damaged. When you use the O-ring again, thoroughly check that it is not scratched, damaged or split.

• Use only the specified grease. If you use other types of grease, the surface of the O-ring may be damaged causing water leakage.

• The O-ring comes into contact with the sides of the Case making the Case waterproof. Do not knock, insert foreign materials (dirt, sand, hair etc.) or scratch the O-ring or sides of the Case.
• Use the tips of your fingers to remove the O-ring. Do not use a pointed object as it may scratch or damage the O-ring.
• After removing the O-ring from the rear case, wipe off any dirt, sand, hair or other foreign materials on it. Also wipe the O-ring groove and the inner sides of the front case which come into contact with the O-ring.
• Never use an O-ring that has been scratched or damaged by dirt etc. This will cause water leakage. Replace it with a new O-ring.
• After replacing the O-ring, when not in use for a long period of time, after attaching the digital camera or when replacing the battery, if the marine case is opened please thoroughly check the O-ring for damage or any cracks.

After checking, shut the marine case, immerse in water (a water tank or a bath tub) for approximately 3 minutes or more, then check that there are no water leaks. (P14)

• O-rings are consumable products. Although the lifespan of O-rings will depend on how well they are maintained, how often they are used and their storage conditions, we recommend replacing them every year even if you cannot see any scratches.

About maintenance

• Do not use the chemicals shown below for cleaning, rustproofing, defogging or repair. Using them directly or indirectly (with a chemical spray etc.) on the Case may cause it to crack.

Prohibited chemicals	Cautions
Volatile organic solvents/ Chemical cleansers	Do not clean the Case with volatile organic solvents such as alcohol, gasoline or thinner or with chemical cleansers. Clean it with fresh water or lukewarm water.
Anti-corrosives	Do not use anti-corrosives as the metal parts of the Case are made from stainless steel or brass. Clean it with fresh water.
Anticlouding agents	Do not use commercially available anticlouding agents. Be sure to use the silica gel indicated in these operating instructions.
Adhesives	Do not use adhesives for repair. If the Case needs to be repaired, consult your dealer.

• If grease sticks to the digital camera, wipe it off with a soft, dry cloth.
• When wiping the inside of the Case, only use a soft, dry cloth. Wipe the inside of the front glass with a soft, dry cloth before and after use to keep the glass clear.

■ About storage and inspection after use

Always take the digital camera out of the Case.
- Make sure that no dirt or dust is stuck to the O-ring.
- Thoroughly dry the Case at room temperature and then store it in a cool, dark place.
- We recommend that the Case be inspected about 3 years after purchase. This inspection involves dismantling and cleaning the Case, inspecting all the parts and repairing them if necessary and checking the waterproofness of the Case using the same hydrostatic test equipment that was used to check the waterproofness before purchase. The customer is responsible for all transportation costs.
- Do not dismantle any parts or use any accessories not specified in these operating instructions and do not alter the Case. If the Case does not work properly, consult your dealer.

Specifications

Compatible model:	DMC-TZ20/DMC-ZS10/DMC-TZ19/DMC-ZS9/DMC-TZ18/DMC-ZS8 (As of January 2011*)
Dimensions:	Approx. 150 mm (W)×94 mm (H)×103 mm (D) [5.91" (W)×3.70" (H)×4.06" (D)] (excluding the projecting parts)
Mass (Weight):	Approx. 475 g/1.047 lb (including the diffuser)
Material:	Polycarbonate
Waterproof construction:	O-ring sealing
Water resistant depth:	40 m/130 feet

• Refer to the operating instructions, catalogue, website etc. of the digital camera for the latest information on models that can be used.

Panasonic Consumer Electronics Company, Division of Panasonic Corporation of North America One Panasonic Way, Secaucus, NJ 07094

Panasonic Canada Inc. 5770 Ambler Drive, Mississauga, Ontario, L4W 2T3

Panasonic Canada Inc.

5770 Ambler Drive,

Mississauga, Ontario

L4W 2T3

[phone]

www.panasonic.ca

© Panasonic Corporation 2011

Imprimé au Japon

2 Controllare I'O-ring.

He BHOCTe 3MeHEnB cyTnp.

He naeBaTe peMeWoK Ha weo nO BODoN.

• Pemeok Moket HamotaTbca Ha IeIO N Bbl3BaTb yduweHne nn dpyrnecepbe3Hble TpaBmbl.

TuaTeIbHO CMbIaIe TcMa3Ky c pyK.

• He donyckaite nonadHnB pot nIIN B rna3a.

• Пи пonaдань Футлар Ворын Немедлесно рате erо Истпьзоваим.

-Поладане ВОны может Бызварь Злелктучески удap, пивец К BO3rogораню статы пиунов пожара.
- ObpaTnteScb KДиIepy.

• Ecπn BO3HKnHeNCnpaBHOCTn npn HcNoJIb3OBAHm nФyTJpa NOI BODo, npn BCnblITn CneDyIe BCEM npoceDypam n npabNlAm DeKOMnpecCnn.

CnIshKOM 6bICTpoe BCINblITne MOXET CTaTB IIpUHHOJ KECCOHHO 60Je3HN.

• Пи NOВЛЕни n3 Футлара dbIMa, ВьдeLEни 60ЛБшOrO КOLИЧECTBa TeNJa, ВьДeLEни HeOBыHOrO 3anaxa Ип NOВЛЕни HeOBыHOrO 3ByKa HemeДleHNo IpeKpaTnTe IcnoIb3OBaTb Футлар.

-Пересиelenные рпзнakIMOуТ ппвецКЗлктучecOMу ydapy, BO3rogарно Или пожар.
- HemeJenHNO BbInbTe UINpOByIO Kamepy N3 cyTnPa, a 3aTeM N3BnKeNtE 6bataeKy N3 KamepbI.
- 06patntecb K dunepy.

-Будte ocToPoJHbI npn OTKpbITnN cyTJIpa nocJe nOJaHaHnB Hero BOdbl.

He npikacaiTecb K cnpboBoi KaMepe nIIN K 6aTapeKe MOKpbIMn pyKamn.

KoIbUy He npuIInna rpa3b.
KoIbIO He BblJNo I3 Na3a.
KoIbIe He 6bIIO nepeKpyHeNo.
Ha yIyIIOHTHInTeJIbHOM KOJIbUe HeT UapAnHH JIN6O BMrTnH.

TsqatelbHo ydaInte cma3ky c pyK c nomoIbO cyXoI TkaHn, noCne chero TsqatelbHO BbIMOnTe pyKn BOdoi.

7 3aKpOInTe 3aUeJIky.

• Y6eIInTeCb,чTo Ha BHeIeH NeuBepxHOCt YuJIOTHTeJIbHorO KOJIbcaI Na H3aSeIke nepedHne yactu OTCyTCTByIOT yactuIzI 3aRpa3HeHnI, n3akpoIte cyTJrp.

PpmeaHnA

• Дяся обесенья понов reрmetуностуфтлра He царази Te nobepxhoctb yлnotHTeJIbHOrO KoIbca, KOTOPaH hXODITcB KOHTaKTe C TOpamN Chacteи Футлра.
  He noIb3yIeTcB KOJIbC0M C zapaHnAmN IIN IOBpeKdEHNrM. 3TO MOKeT npNBecTu K nonaDaHIO BODbl B cyTlAp.
• Пркайдом Испльзовани Футлара симпerte уллгнштелhoe кolyи убадитесь, чTo в пазе кольца нет граи, песka, BOLOС и дугх Инордых Матерпалов, a 3aTeM haheсITE TOHКИ СLOЛ CмАЗКIN (BXODIT B KOMПЛЕKT поставки).Еспн Hahectи boьшоe KOлчecTBО CмAZKIN, K yллOTнштельНOMY KOLьCU MOry TnpiJIINHyTb ГЯЗь И nbIJI, чTo рпИBEДТ K nonaDaHnIO BOДы B Футлар.
• Y6eIntecb, yTO y BAC ecTb 3aIacHOe yIIOTHInTeJIbHOe KOJIbIc Ho cIyuaH, ecNnCnOJIb3yeMOe KOJIbIc 6bydET NOBpeJKeHO nII NIOpaapanHO.

Iocne yctaHOBKn ynploTHnTeHbHOKoJIbca nepeD yCTaHOBKOI cnΦpOBoK KaMepbl npOBepbTe, YTO BOda He nonaJaET B φyTlAp, nOrpy3NB φyTlAp B 6aK C BODoB, BaHHy IInn DpyrHy oEMKocTb C BODoI npIMepHo Ha 3 MmHyTbI.

He nCnoIb3yIte yTnpB B OBe c Tempeatypo Bblie 40^ .Bbcokar TemepaTypa MoKeT npBecTn K NobpeXdeHIO yTnpa nn K nonpaHaHIO BObl B yTnp.

YcTaHOBnTe BCnbIiKy Ha [ ]

IcnoIb3ObaHnneФyHKuINaBTOMaTNUeCKoHacTPOKn 3HaueHIn 3KcNo3nCn（IJI MOJeJIe,OCHaUeHHbIXФyHKUeN aBTOMaTNUeCKo HacTPOKo 3HaueHIn 3KcNo3nCn）

1Iorpy3nte cyTnB npechyIO BDOy He MeHee Yem Ha 30 MmHyT, He BbIHMaI cHpOByIO Kamepy. 3TO Heo6xOIMo dJa ydaJIeHnKpIcTaIIOB cOnN I T.D.

• Чтобл CMыть морскую Body, нахмite BCE конки На Фуляpe.Еся Крпсталы соли He 6удут уданьс Kноки Дугин Зем entob, Крпсталы 3atвердевOT, И конки поетаHT pa60taH HopmaNBHO.
  He npombIbaIte cyTnR B 6bICTpo npTOUHOB OBe IIN B npTOUHO BOe C 6oJIbIaM HAnOpOM.3To MoKet npNBecTN K nonaDaHnIO BObl B cyTnR.

2 BbITpnte BOy cyxoi TKaHbIO, Ha KOTopoH Het KpuctaIIOB cONH, a 3aTEM cpa3y Jxe BBICyuNTe fpyTnRp.
He cyuHTe fpyTnep IO npIpaIMm COJneHbIMn LyaAMN.3TO MOKeT npVBecTN K obecuBceuBaHnIO nIN NOBpeKdEHNIO fpyTnepa N yckOpNTb CTapeHne yILOTHHTeJIbHOro KOJIba.
3 4To6bI BbIHyt cHpOByIO Kamepy, OTKpoTe 3aHIOU qAcTb fYrJaPa.

4 CHIMnTe yNtHnTeNbHoe KOJIbOc C yTnAp a Ny6eDnTecb, YTO B Na3e KOJbUca HET rP3n I dpynx IHOpOdHbIX qAcTHu.
5 HaheCHTe Cma3ky Ha yIIOTHnTeJIbHOe KOJIbOu I npOBepbTe, HET JN Ha KOLbUe cuaPAnH N dpyrnx NOBpeKdEHH.

■Примочаня

Будte ocToPoXHbI npu ydaJIeHn KaMepbI n3 ΦyTЯpa, YTO6bI BJIaRa He nonaja Ha KaMepy.

BbIbTe kamepy nuCTbIMn pykAm. (BbIMoITe pyKn IpeCHO BDOH n TuaTeJIbHO BbICyUHTe.)
TtataeBbHO BbIcyuHTe Bnary Ha TeIe N BOJocax. (Byte OcObeHNO OCTOpOXHbI, YTO6bI BOa He BblInlacb NpyKaBOB KcOTOMa IINoDBoHOrO PnaBaHn.)
- Пп плохи поюд Вьберп Te MeсTo, B KOTOpOM BlaRa He nonaTe Ha KaMepy, habpimEp, B NOMEseHn ИИ N PoD KpbISei.

OuncTkau xpaHeHne

1 PpomoiTe HapxHyo NobepxHocTb yTlaPa BDOi.

• DouNTa BbIMoTe HapyKHyIO NOBepxHocTb cyTnIpa. (P178)
• 乌6eHntecb,чTo yIyNtHTnBHe KOIbUO yCTaHOBNeHO HaIeXHo,3aKpOITe cyTJIrp,a 3aTeM npOMoIte erO TOnbKO cHapyKn BDOJ.
• Bbtpnte rpa3b BHytpn pfytnapc nomoIbIO BlaXHOI MrgKoi TkaH.

PpIMeuaHnA

He npombIbaIte cyTIpR B 6bIcTPOI npOTOH BOe INB npOTOH BOe C 60JIbIIM HAnOpOM. IpeE npOMbIbAHnEM cyTIpRA B BOe BbIbTe KaMepy.
- Пиханени Футлар He ocTablaIte B HEM KaMepy.
- OToCoeHNHTe yIIOTHnTeJIbHOe KOnIcO OT cyTnPa dIa IIOBDOHcBEmKIN XpaHInTe erO taKIM o6pa3OM, YTO6bl OHO He BbICoxJIo. CM. IOIpO6HyIO HnΦopMaquio Ha cTpaHnCe 180.

ПридлптеловхранениnomecntteКамеруВсeциальниразети n3 ПОИЗстара,КOTOPБI BXODIT B KOMПLEKT NOCTABKN,IpeДварптелбНСHЯ УПЛТНИТELьhoe KOЛьculo.

-Bo n36bexaHne o6pa3oBaHnI pKajBvHbI nocIe IcNoJIb3oBaHnI OTcoEINHTe rpy3a I BnHT dIy KpeIJIeHnI rpy3OB I TuaTeIbHO ydaJIte OCTaTKI cONI IN BOdy I nepeI xpaHeHnEM.

O6paueHne c ynpIoTHnTeIbHbIM KOJIbCuOM

He nCnoIb3yIte cnpT, pactBopnteIu IIN XmMueckne MOIOue CpeDCTBa dna OuchcKn yNlOthNTeIbHoro KOIbua. 3TN BeUecCTBa MOrYT Hahectn NOBpeKdEHHa YNlOHTnTeIbHOMy KOIbuy IIN yXHyDUnTb erO CBOiCTBa.
EcInn cyTnp He 6ydt nCnOlb3ObaTbCBA TeueHne dIINTeNbHoro BpeMeHN, n3BLeKNTe yNlOTHnTEbHOe KOIbIcIO I3 Na3a, HAnecHTe TOHKIN CLOI CMA3KN (BXODNT B KOMJIeKT NOCTABKN), NOMEcTIte KOJIbIO B CNEuaJIbHbI NApET I3 NOnIH3ctepa IN XpaHnTE B TEMHom pOxHaJHOM MeTe. 3TO npEodTbpATNT NOBpeXdHeNe NOBepxHOCTn KOJIbua. Ipeep NOBtOpHbIM nCnOlb3OBaHmE yNlOTHnTEbHOrO KOJIbua Nocne XpaHEnr TuaTeNbHO IpOBepeBtE, YTO6bl NOBepxHOcTB KOJIbua He ImeJa capanHH nn pa3pbIBOB.
- Ппмени Смаду Толбко указаногу Тида. Ппс И сальзовни Смаддугх Тинов улотнелове Кolyо может Быт b IOВрждев,чTo npBvedet K NonadahnIO BODI BФуТлар.
- YIJIOTHNTeBHOE KOJIbTO BXOJNT B KOHTaKT C TOUAMN YaCTeN cyTnJaPa, YEM obecneuBaETcB ODOHENPOHnuaemocT b cyTnJaPa. He yIapnTe, He IOnyckaIte nonaHaHn INHOpOJNbIX MaTePnAIOB (rp3n, neCkA, BOLOC n T.D.) n He cApanaIte yIJIOTHNTeBHOE KOJIbTO IIN TOUcbl YaCTe N cyTnJaPa.
- Chmamte yIyNtHTeHbOe KOIbIO KOHNKAMn NaIbceB. Ppr CHrTmN yIyNtHTeHbHO RO KOBua He NOLb3yITeCb 3aocTpEHbIMN ppeMeTaMn, NOCKoJIbKy OHN MOrTy NOpapaNaTb yIyNtHTeHbHOe KOIbIO.
- После сны улnotнелову кольca c 3аднй часуулару удалпесукolyца ряз,песк,волочи и дугne Инордье матералы.Крмс тoro,протрпет пад Кolyцa и BvyтpenHne nobepxhoctn nepeДнй часуулару,Контakтуюше с улnotнеловсьим Кolyцom.
He npIb3yItecB KOJIbC0M C uapaIIHAMN IIN NOBpeKJdEHNAIM. 3To MoKeT npIbECTn K IONaJaHIO BObl B cyTlAp. 3aMeHInTe yIIpOTHInTeIbHoe KOJIbTO HOBbIM.
- После замены уллOTинтELHOrO кOLьца, ecnNo ONo He NcIOnb3yETcra B TeUeHneДITeHBOBEmH,пocne HacTpoKи ZIcIpBoWКamepblnnp3aMeHeakKymIaTopa n T.П., ecnФуTлр ДЯ NOBBOHOn CBemKn OTkpblT, TuaTeHbHOe npOBepbTe yNlOTHTeJIbHOe KOLьцHa npEdmET OTCyTCTBna NOBpeXdHn Nln KaKnx-lIb6 TpeuINH. После поверки зakpoite ФуTлр ДЯ NOBBOHOn CBemKn, norgpy3nte ero BVBody (6ak C BOdo nIIBaHN) npi6Ibn3tEJIbHo Ha 3 MInHytbl NIn 6OJbWe, 3aTeM y6eIInTeCb,чTo BФуTлр He nonaDaET BoDA.(P172)
- YŋNIOTHNTeNbHbIe KOLbIa -3TO paCXOyEmbI 3IeMeENT. HecMOTpHaTo, yTO cPOK CnyKbIy YNJIOTHNTeNbHbIX KOJIe3aBNCIT OT yXoJa 3a HIMN, YaCTOTbI INx NcNoJIb3OBoHnI yCNOBm XpaHEnHn, yNJIOTHNTeNbHbIe KOLbIa peKOMeHN dyETcR MeHrTb KaJdbI rOd, dAxe eCIn Ha KOLbIax OTCyTCTByIOT zapanHbl.

yxoA

He nCnoIb3yIte nepeuHcJIeHHIe HNKe XHMUeCKne BeueCTBa IJn OoHCTKn, npEDoTBPaUeHn PkAaJIeHn, npEDoTBPaUeHn 3aNoTeBaHn IJn peMOHTa. HenocpeDCTBeHHoe IX HaHeceHne Ha yTJPp (C nOMOsbIO nyIbBepH3aTopa IIN dpYrIMM MeToDaMn) MoKET npNBecTN K NOABLeHIO TpeunH Na yTJIpe.
