USER MANUAL Silk Epil Lady Shaver 5328 BRAUN

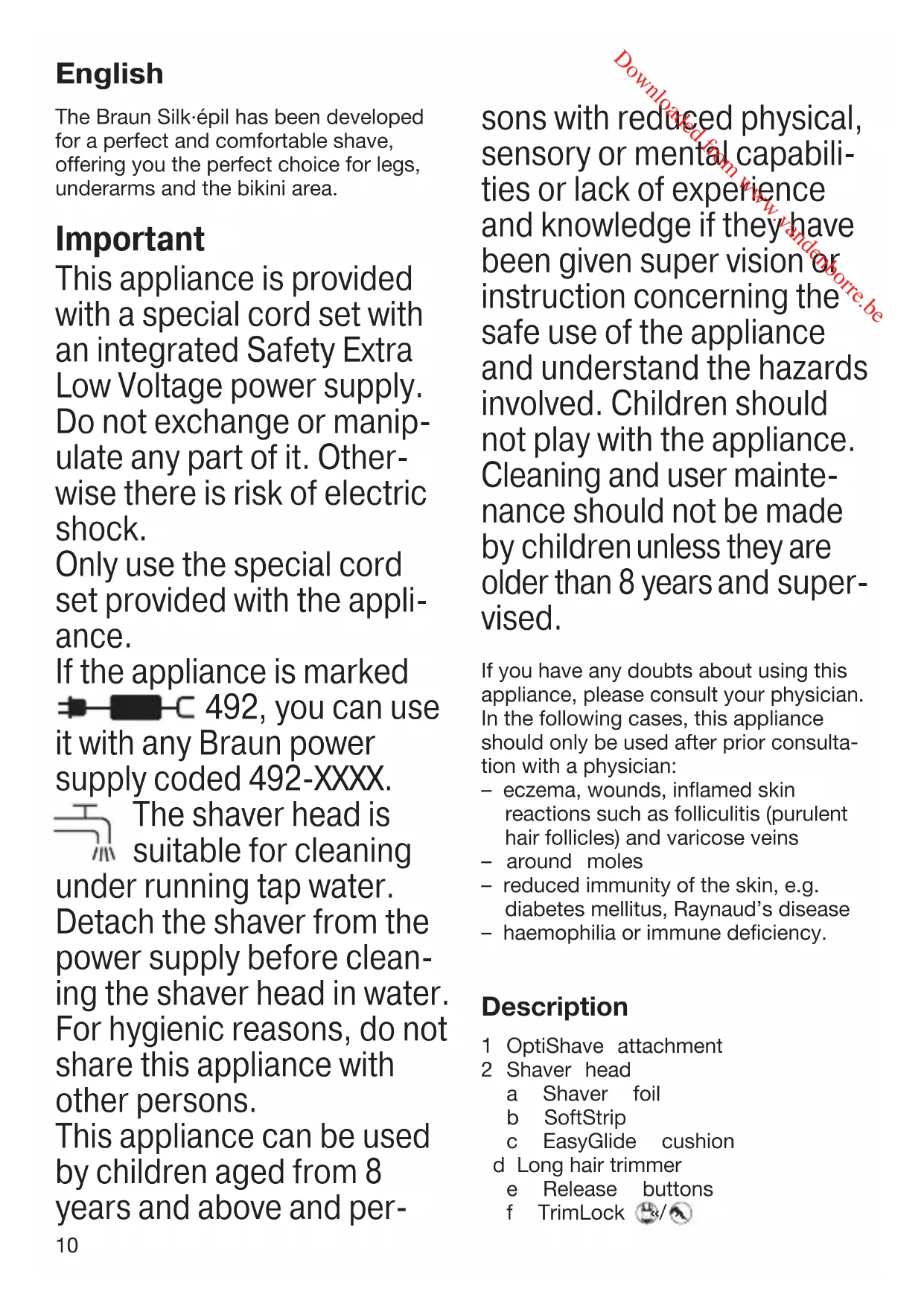

The Braun Silk-epil has been developed for a perfect and comfortable shave, offering you the perfect choice for legs, underarms and the bikini area.

Important

This appliance is provided with a special cord set with an integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is risk of electric shock.

Only use the special cord set provided with the appliance.

If the appliance is marked 492, you can use it with any Braun power supply coded 492-XXXX.

The shaver head is suitable for cleaning under running tap water. Detach the shaver from the power supply before cleaning the shaver head in water. For hygienic reasons, do not share this appliance with other persons.

This appliance can be used by children aged from 8 years and above and per

sons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning the safe use of the appliance and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be made by children unless they are older than 8 years and supervised.

If you have any doubts about using this appliance, please consult your physician. In the following cases, this appliance should only be used after prior consultation with a physician:

• eczema, wounds, inflamed skin reactions such as folliculitis (purulent hair follicles) and varicose veins
  around moles
• reduced immunity of the skin, e.g. diabetes mellitus, Raynaud's disease
• haemophilia or immune deficiency.

Description

1 OptiShave attachment
2 Shaver head

a Shaver foil
b SoftStrip
c EasyGlide cushion

d Long hair trimmer

e Release buttons

f TrimLock

3 Cutter block
4 On/off switch
5 Charging light
6 Exfoliation attachment (for use on legs only)

a Detachable exfoliation pad
b Push button for pad release

7 Bikini zone trim attachment
8 Special cord set

Charging

The best environmental temperature for charging is between 15^ and 35^ .

• Using the special cord set, connect the shaver to an electrical outlet with the motor switched off.
• When charging for the first time, leave the shaver to charge continuously for 4 hours. Subsequent charges will only take about 1 hour.
• The charging light (5) shows that the shaver is being charged. When the batteries are fully charged, the green light goes off. If it comes on again while connected to an electrical outlet, this indicates the shaver is recharging to maintain its full capacity.
• A full charge provides up to 40 minutes cordless operation depending on your hair type and usage behaviour. Frequent use of the exfoliation attachment will reduce the cordless operation time.
• Once the shaver is completely charged, discharge it through normal use. Then recharge to full capacity. Maximum battery capacity will only be reached after several charging/discharging cycles.
• Thanks to the convenient 2-way feature your Braun Silk-épil may also be used even if the rechargeable batteries are discharged, connecting it to an electrical outlet via the special cord set.

Shaving

For radiant skin, the Silk&Soft system captures even problem hairs, the integrated SoftStrip stretches the skin to ensure a closer reach and the floating shaver foil and the floating longhair trimmer hug the skin, all to ensure a perfectly close shave. For a gentle shave the EasyGlide cushion ensures smoother gliding and reduces skin irritation.

The additional OptiShave attachment (1) allows an extra close and comfortable shave of legs.

• Press and slide up the on/off switch to turn the shaver on. Make sure that the TrimLock is in the « 心 position.
• For optimum shaving results, place the OptiShave attachment onto the shaver head (A). It ensures perfect closeness and the optimum usage angle so that both, the shaver foil and the long hair trimmer are in contact with the skin.
• Move the appliance slowly against the direction of hair growth. Adjusting to the body contours, the long hair trimmer first raises all long hairs and cuts them off. Then the shaver foil follows to smooth away any stubble.
• If you have not shaved for a long period of time, remove the OptiShave attachment to allow a faster pre-cutting of longer hairs (B).
• Always ensure that both, the shaver foil and the long hair trimmer are in contact with the skin.

Shaving your legs with the exfoliation attachment

Instead of the OptiShave attachment, you may want to use the exfoliation attachment (6) that helps enhancing the general look of the skin surface thanks to its exfoliation pad. The exfoliation pad gently scrubs the skin to remove dead skin particles, thus revitalizing the skin and giving it a radiant lode.

Proceed as follows:

• Remove the OptiShave attachment (1) and replace it with the exfoliation attachment (6).
• When guiding the appliance slowly against the direction of hair growth, make sure that the long hair trimmer, the shaver foil and exfoliation pad are in contact with the skin.

Shaving and styling the underarm and bikini area

In these sensitive areas, make sure that you always shave on stretched skin in order to avoid injuries (B). Please take special care if the skin surface is uneven or provided with skin tags. Make sure not to touch them with the long hair trimmer.

Shaving the underarm and bikini area: Remove the OptiShave attachment for a perfect reach. Always stretch your skin when shaving.

Bikini area styling:

For trimming precise lines and contours, lock the long hair trimmer by sliding the TrimLock to the position (C1).

To trim hair to a uniform length, lock the long hair trimmer and place the bikini zone trim attachment (7) onto the shaver head (C2). For optimum results, move the appliance slowly against the direction of hair growth.

When you are finished

After shaving, you may want to smooth on a little body cream or lotion. However, avoid using irritating substances like deodorants with alcohol right away.

Cleaning

Cleaning the shaver head with the brush (D1)

• Press the release buttons to remove the shaver head. Tap the bottom of the

shaver head gently on a flat surface (not on the foil).

• Brush out the cutter block and the inside of the shaver head. However, do not clean the shaver foil with the brush as this may damage the foil.

Cleaning the shaver head under running water (D2)

• Press the release buttons to remove the shaver head.
• Rinse the shaver head and the cutter block separately under warm running water. A natural based soap may also be used provided it contains no particles or abrasive substances. Rinse off all foam.
• Leave the cutter block and the shaver foil to dry separately.

How to clean and maintain the exfoliation attachment

To clean the exfoliation attachment (6), first remove it (E), then thoroughly brush out the exfoliation pad (6a). From time to time, you may also clean it with soapy water. Let it dry before using it again.

Keeping your Braun Silk-épil in top shape

• The shaving parts need to be lubricated regularly every 3 months (F). If you clean the shaver head under running water, lubricate it after each cleaning.
  Apply some light machine oil or vaseline to the shaver foil and the metal parts of the long hair trimmer. Then remove the shaver head and also apply a tiny amount of vaseline as shown in picture section (F).
• The shaver foil and the cutter block are precision parts that wear out with time. To maintain optimum shaving performance, replace your foil and cutter block

when you notice a reduced shaving performance.

• Do not shave with a damaged foil or cord.
• How to replace the shaving parts Shaver foil: Press the release buttons to remove the shaver head. To remove the shaver foil, press the blue plastic frame (G). To mount a new one, insert it from inside the shaver head. Cutter block: To remove the cutter block, press and turn it 90^ (H1), then take it off. To put on a new cutter block, press it onto the cutter block holder and turn 90^ (H2).
• Replacements parts (shaver foil, cutter block, exfoliation pad) can be obtained from your retailer or Braun Customer Service Centres.

Preserving the rechargeable batteries

In order to maintain the optimum capacity of the rechargeable batteries, the shaver has to be fully discharged (by shaving) approximately every 6 months.

Then recharge the shaver to full capacity. Do not expose the shaver to temperatures higher than 50^ for extended periods of time.

Environmental notice

This product contains rechargeable

batteries. In the interest of protecting the environment, please do not dispose of the

product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country.

Subject to change without notice

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear and tear (e.g. shaver foil or cutter block) as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

Français

c MaIapakk EasyGlide

d Koftns maakpiow Tpixow

Only use the special cord set provided with the appliance. If the appliance is marked 492, you can use it with any Braun power supply coded 492-XXXX.

Only use the special cord set provided with the appliance. If the appliance is marked 492, you can use it with any Braun power supply coded 492-XXXX.

UTO, B CBOH OUepeB, OCBExKaET KOJy N DeJaET ee OcJIeNITeIbHO rJaIKoJ. BbINOHNTE cNeDyUOuNE dEiCTBnJ:

-СнHMnte hacaKy OptiShave (1)и 3aMeHnTe ee Ha hacaKy ДЯ пINHra n pa3rJaXBaHnKoKn (6).
- MeДлЕнно npOBODЯ 6pNTBOI npOTnB HApBaJIeHnRA poCTa BOJOC, y6eIN-TeCb, YTO TpIMMep IJIЯ DJIINHHbIX BOJOC, 6pNTBeHHaR CeTKa I NOdy-WeUka IJIЯ ПИINHra I pa3rJaXnBAHnRA KOxN COpNIKacAHTcR C KOKeJ.

БрNTbe NOДMbIшКами И В OБлаctн 6ИКHH,И COЗдaHHe HHTHMhIx npHuYeCOK

Ipn6pntbe 3Tnx yBCTBNTeHbIX yuaCTKOB TeLa BceIa HaTARnBaHTe KOxy, YTO6bl He npaHTbcB (B). BydbTe Oco6eHHO OCTOpOKHbI, eCNI NOBepx-HoCTb Koxn HepOBHaJn Ha HeJecTb PoDnHKn. He npkacaTecb K Hm Tpmm-Mepom DJIa DInHHbIX BOJOC.

БрптBE ПОДМышКамИВ OБлаctи 6ИКИН:

Bce npyrne Tpe6oBaHn, BkIIOUaTpe6oBaHn BO3MeUeHn y6bITKOB, NCKJIIOuAOTcR, eCNI Ha7aOTBeTCTBeHHOCTb He yCTaHOBJIeHa B 3aKOHHom nopJKe.

Peklamau, CBa3aHbIe c KOMMepueckm KOHTpaKTom C npOdaBcM He nOpaIOT IOd 3Ty rapaHTnIO.

Cnyu,HaKOTOpbIe rapaHTnHe pacnpocTpaHReTc:

• DepeKtbl, Bbl3BaHbIe fOpc-MaxKOpHbIMN O6CTOJTeJIbCTBaMn;
  -ИСПОЛьЗOBаHнeВпрссснHaJIbHbIXцЕЯx;
• HapyuheHne Tpe6oBaHn pyKOBoDCTBa NO 3KcPnyaTaun;
• HénpaBnIbHa yCTaHOBka HapjKeHnnaTaoUeN cETn (ecn n 3TO Tpe6yEtO);
  -BHeceHneTexHHueCKNXn3MeHeHn;
  -MexaHnueckne NOBpeKdEHHa;
• NOBpeKJdeHnI IO BnHe XHBOTHbIX, rpb3yHOB n HaceKOMbIX (B TOM YnCJIe CnyaH haxOxJdeHnI rpb3yHOB n HaceKOMbIX BHyTpN np6OpOB);
  -ДлЯ пиборов,работаюшх OT 6batapeek,-pa6oTa c HeNoDxOJaUIMN IJI NICTOUsEHHbIMN 6batapeiKaMn,IIO6bIe NOBpeJKeHnRA, Bbl3BaHHbIe NCTOUsEHHbIMN IJI N TeKyuImN 6batapeiKaMn (COBetyem NOlb3OBaTbcrTOJbKO IpeIoXpahEnHbIMN OT BblTeKaHnRA 6batapeiKaMn);
  -ДлгбпВ -СмгТаиллпрванная сETka.

BHMaHHe!OpnHaJIbHbIgapaHTnHbI TaONnoJexKNTn3bTnIO npi 6paueHN B cepBnCHbI ueHTp dJa rapaHTnHOpeMOHTa.Pocne npoBeJeHnpeMOHTa rapaHTnHBIM TaONHom 6yDet YBnTbc3aNoJIeHHbI opnHaJI JnCTa BblNOJIeHnpeMOHTa CO WtAMnOM cepBnCHOrO ueHTpa n PoOnCaHHbI NOTpe6nteJem NO pOnyuHnN u3peMOHTa. Tpe6yTe npocTabHeHn DaTbI BO3BpaTa n3peMOHTa, cPOK rapaHTn IPOndLeBaETcHa BpeMnaHXoXdEHNu3deJnB CepBnCHOM ceHTpe. B clyuae Bo3HKnHOBeHn CLOxHoCTeC BblIOJIeHnEM rapaHTnHOro nIN PocJerapaHTnHOro o6cLyXnBAHn npoc6ba coo6uata b 06 tOM B INΦopMaunOHnyo ClyXby CepBnca BRAUN no Telefohy 8 800 200 20 20 (3BOHok n3 PocCn 6ecPNaTHo).
