Product Type	Industrial USB 2.0 Hub
Brand	Tripp Lite (Eaton)
Model	U223-004-IND-1 (U223004IND1)
Number of Ports	4 USB 2.0 Type-A ports (downstream) + 1 USB 2.0 Type-B port (upstream)
USB Compatibility	USB 2.0 (480 Mbit/s), backward compatible with USB 1.x
Power Supply	3-pin terminal block or DC jack 9-36 V DC (adapter not included)
Current per Port	500 mA maximum
Protection	ESD +/-15 kV, fuse per port (upstream and downstream)
Upstream Connector	USB Type-B with locking screws
Housing Material	Metal (full metal chassis)
Dimensions (L x W x H)	158 x 80 x 32 mm
Operating Temperature	0 °C to 60 °C
Storage Temperature	-10 °C to 80 °C
Relative Humidity	5 to 90 % non-condensing
Mounting	Wall mount (kit included) or DIN rail mount (kit included)
Compatible Operating Systems	Windows XP/Vista/7/8/8.1/10 (32/64-bit), Linux 2.6.24+, Mac OS X 10.10.3+
Warranty	2 years (limited)
Certifications	CE, FCC
Cleaning and Maintenance	Unplug the device, clean with a soft dry cloth. Do not use liquids.
Safety	Do not use the terminal block and DC jack simultaneously. Not recommended for life-support devices.
Package Contents	Hub, USB A/B cable, wall mount kit, DIN rail mount kit, terminal block, manual

Frequently Asked Questions - U223004IND1 Tripp Lite

How to install the Tripp Lite U223004IND1 USB hub?

First, connect an external 9-36 V DC power supply to the terminal block or DC jack (adapter not included). Then connect the USB cable from the upstream port (Type-B) to your computer. The operating system will automatically detect the hub. USB devices connected to the downstream ports will then be recognized.

What power supply is needed?

Power supply is optional but recommended to ensure 500 mA per port. Use a 9-36 V DC source via the 3-pin terminal block or DC jack. Do not use both simultaneously.

Is this hub compatible with Windows 10?

Yes, it is compatible with Windows XP/Vista/7/8/8.1/10 (32 and 64-bit). No specific driver is required, the hub is automatically recognized.

Can I mount it on a DIN rail?

Yes, a DIN rail mounting kit is included in the package. You can also mount it on a wall using the provided wall mount kit.

What is the maximum transfer speed?

The hub supports up to 480 Mbit/s in High Speed mode (USB 2.0). It is backward compatible with USB 1.x devices (12 Mbit/s and 1.5 Mbit/s).

What to do if the power indicator does not light up?

Check that the external power supply is connected and the voltage is between 9 and 36 V DC. If the problem persists, test with another power source.

Does the hub protect against electrostatic discharge?

Yes, it provides ESD protection of +/-15 kV on all ports. Additionally, each port is protected by a fuse.

What cables are included?

The package includes a USB A/B cable with screw-lock connectors (upstream Type-B port). Device cables are not included.

Is this hub suitable for industrial use?

Yes, its robust metal housing, wide temperature range (0-60°C), and protections (ESD, fuses) make it ideal for industrial environments.

What to do in case of failure?

First consult the manual. If the problem persists, contact Tripp Lite support (Tripplite.Eaton.com). The product is warranted for 2 years against defects in materials and workmanship.

USER MANUAL U223004IND1 Tripp Lite

may differ from image.

EAT•N

Powering Business Worldwide

Introduction

This industrial USB 2.0 Hub offers a simple way to expand a system's current USB capability by providing 4 or 7 additional external USB 2.0 ports via a single USB 2.0 host connection. Fully compliant with USB 2.0 specifications, this hub is backward compatible with 1.x specifications to support older USB peripherals.

Features

• Backward compatible with USB 1.x specifications and devices
  • Supports high-speed (480 Mbps), full-speed (12 Mbps) and low-speed (1.5 Mbps) data transfer modes
  • Supports screw-locked USB 2.0 cable on all upstream and downstream USB ports
• Fuse protection on all upstream, downstream and power input ports
  • +/- 15KV ESD protection
  • Max 500mA per port
  • All-metal chassis for durability
• Includes terminal block for 9V to 36V DC power input for high-power devices

System Requirements

• Windows® XP/Vista/7/8/8.1/10 (32/64 bit)
• Linux 2.6.24 or later
  • Mac OS X 10.10.3 or later

2

Package Contents

• Industrial USB 2.0 Hub
- USB A/B Cable
- Wall Mounting Kit
• DIN Rail Mounting Kit
- Terminal Block
- User Manual

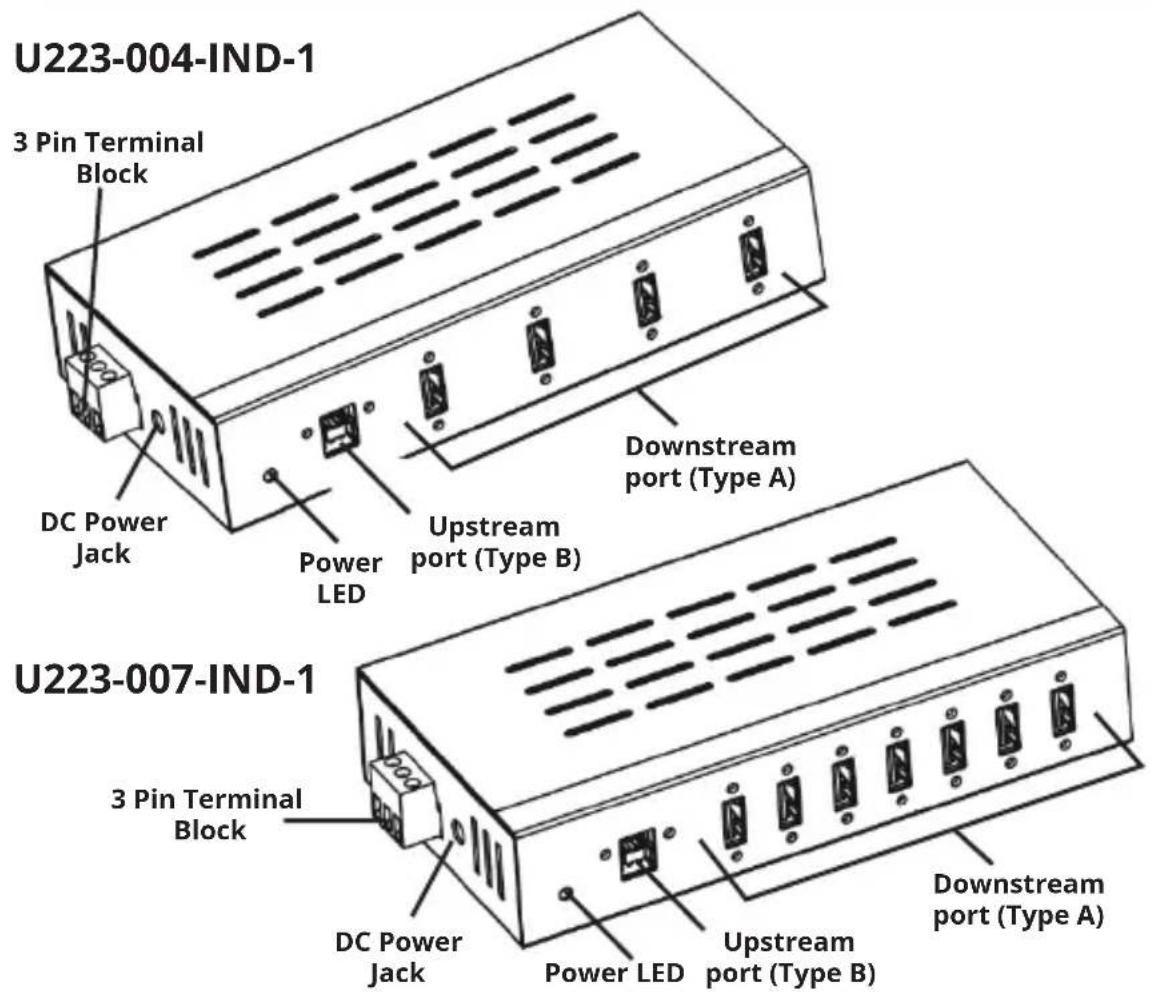

Hardware Description

Installation

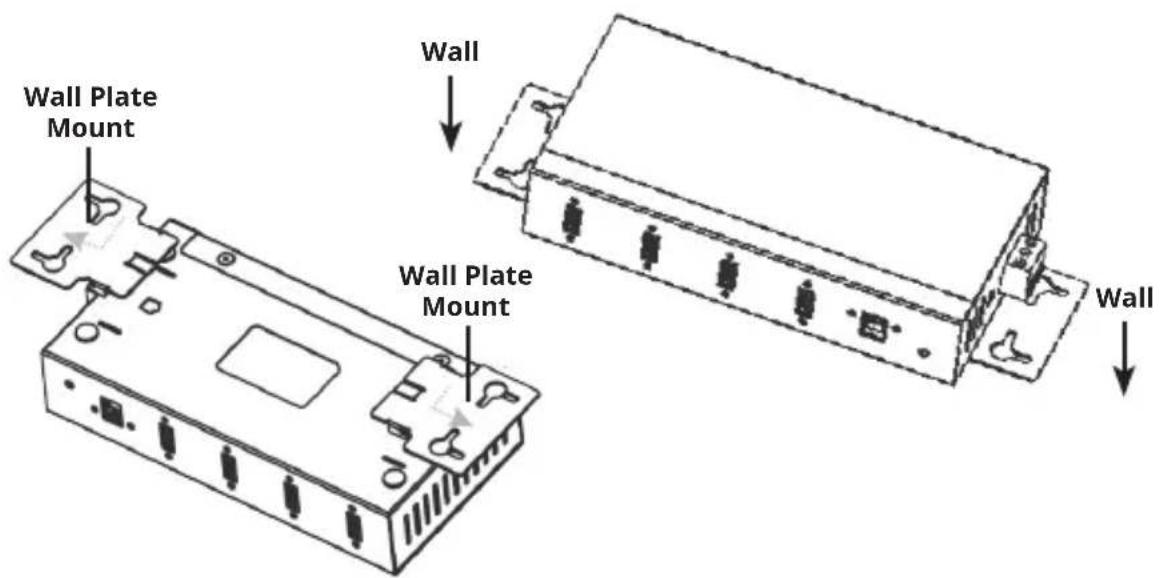

The industrial hub can be mounted on a wall, if desired. Use the included Wall Mounting Kit to mount the hub to the wall.

1 Connect a user-supplied power adapter to the USB Hub. The power LED should illuminate solid. Supplying power is optional; however, to ensure each USB port is fully powered, connecting external power is recommended

Note: The terminal block and DC jack power input SHOULD NOT be used simultaneously.

2 Connect the USB cable from the USB hub (Type-B port) to the host computer system.

③ The operating system will detect the hub immediately and install it automatically.

4 Once installation is complete, connected USB devices will be recognized by the hub.

Specifications

Item Description
Ports (4x) USB 2.0 (U223-004-IND-1)(7x) USB 2.0 (U223-007-IND-1)
ESD Protection 15kV ESD
Operating Temperature 32° to 140°F (0° to 60°C)
Storage Temperature 14° to 176°F (-10° to 80°C)
Relative Humidity 5 to 90% RH, Non-Condensing
Dimensions (L x W x H) 158 x 80 x 32 mm1.26 x 3.15 x 6.22 in.
Enclosure Material Metal
Regulatory Approvals CE/FCC

Warranty

2-YEAR LIMITED WARRANTY

We warrant our products to be free from defects in materials and workmanship for a period of two (2) years from the date of initial purchase. Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. Visit Tripplite.Eaton.com/support/product-returns before sending any equipment back for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, WE MAKE NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL WE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, we are not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

Warranty

FCC Notice, Class B

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications to this equipment not expressly approved by Eaton could void the user's authority to operate this equipment.

WEEE Compliance Information for Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Eaton, they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Warranty

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Eaton has a policy of continuous improvement. Specifications are subject to change without notice.
