CSD32USB - Phone charger Tripp Lite - Free user manual and instructions

Product Type	USB Charging and Synchronization Station for Smartphones
Brand	Tripp Lite
Model	CSD32USB
Number of USB Ports	32 USB-A Ports (Female)
Charge Current per Port	Up to 2.4 A (5 V)
Additional Ports	1 x USB-B (Computer Sync), 2 x USB Mini (Firmware Upgrade)
Sync Speed	USB 2.0 up to 480 Mbps
Dimensions (H x W x D)	374 x 600 x 483 mm
Unit Weight	28.2 kg
Rated Capacity (Supported Weight)	90.7 kg
Input Power	110-120 V, 8 A, 50/60 Hz
Total Output Power	5 V, 2.4 A max per port (160 W max total)
Operating Temperature	0° to 40°C
Operating Humidity	5 to 95% RH non-condensing
Housing Material	Metal (Steel)
Lockable Doors	Yes, two steel doors with 3-point locking and hasp for optional padlock
Wall Mountable	Yes, keyhole slots on back (M5 or 3/16 in bolts)
Desk Mountable	Yes, non-slip pads and mounting holes
Stacking of Cabinets	Possible up to 2 units (M6 x 20 mm screws not included)
Internal Shelves	2 removable shelves (16 devices each)
Warranty	2-year limited
Cleaning	Damp, lint-free cloth, unplugged

Frequently Asked Questions - CSD32USB Tripp Lite

How many devices can I charge simultaneously?

You can charge up to 32 smartphones simultaneously, each USB port providing up to 2.4 A.

Can I sync devices with a computer?

Yes, connect the station's USB-B port to a computer using the provided USB cable. Sync is supported via iTunes, Apple Configurator, or any compatible software.

What cables are recommended for Apple and Android devices?

For Apple, use USB to Lightning or 30-pin cables (Tripp Lite models M100-10N-BK). For Android, use USB-A to Micro-B cables (model U326-001-BK). Packs of 10 are available.

How do I mount the station to the wall?

Use the keyhole slots on the back. Attach M5 or 3/16 in bolts to the wall, then hang the station. Ensure the wall supports the total weight (station + devices). Visit www.triplite.com for more details.

Is it possible to stack two stations?

Yes, you can stack up to 2 units. Remove the bottom shelf of the upper station, align the mounting holes, and secure with 4 M6 x 20 mm screws (not included). Do not exceed 2 units.

What if the station does not turn on?

Check that the power cord is properly plugged into a 110-120 V outlet and that the right-angle plug is fully inserted. If the issue persists, contact Tripp Lite support.

How do I clean the charging station?

Unplug the station from the power outlet. Use a clean, damp, lint-free cloth to wipe the exterior. Do not use solvents or aerosols. Allow to dry before plugging back in.

Is the station theft-proof?

Yes, the steel doors lock with the provided keys (3-point locking). An optional padlock hasp can be installed for added security.

Can I update the station's firmware?

Yes, use a mini-USB cable (not included) connected to the upgrade port. Download the latest version from www.triplite.com/support.

What is the length of the power cables?

The manual does not specify the exact length, but the power cord has a 5-15P right-angle plug and access openings on each side for convenient routing.

USER MANUAL CSD32USB Tripp Lite

32-Port USB Charging Station for Smartphones

Model: CSD32USB

Table of Contents

1. Important Safety Instructions 2
2. Overview 2
3. Feature Identification 3
4. Setup 4

4.1 Powering the USB Charger/Hub Unit 4

4.2 Door Locks 4

1. 32-Port USB Charger/Hub 5

5.1 USB Charger/Hub Features 5
5.2 Connecting Smartphones 5 to the USB Charger/Hub
5.3 Connecting a Computer to the 5 USB Charger/Hub

1. Wall Mounting 6
2. Desktop Placement 6
3. Specifications 7
4. Storage, Service and Cleaning 8
   10.Warranty and Product Registration 8

Espanol 9

Français 17

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind.

You could also win an ISOBAR6ULTRA surge protector—a $100 value!

www.triplite.com/warranty

Manufacturing Excellence.

1. Important Safety Instructions

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that must be followed during the installation and operation of the product described in this manual. Failure to comply may invalidate the warranty and cause property damage or personal injury.

USB Charger/Hub Unit:

To remove the USB Charger/Hub unit from the supply mains, the power cord serves as a disconnect device.
If any of the following situations arise, schedule an appointment with a service technician to have your equipment inspected:

• The equipment has been exposed to moisture
  The equipment has been dropped and damaged

• The equipment shows obvious signs of breakage
  The equipment is not functioning properly or is not functioning according to the instructions described in this Owner's Manual

• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Charging Station Cabinet:

• Keep the charging station in a controlled indoor environment away from moisture, temperature extremes, flammable liquids and gasses, conductive contaminants, dust and direct sunlight.
• Leave adequate space around the charging station for proper ventilation. Do not block, cover or insert objects into the charging station's external ventilation openings.
• The charging station is extremely heavy. Use caution when handling the charging station. Do not attempt to unpack or mount it unassisted. Use a mechanical device such as a forklift or pallet jack to move the charging station in the shipping container.
• Do not place containers of liquid or stack items on the cabinet.
• Inspect the shipping container and the charging station for shipping damage. Do not use the charging station if it is damaged.
• Use caution when cutting packing materials. The charging station could be scratched, causing damage not covered by the warranty.
• Save all packing materials for later use. Repacking and shipping the charging station cabinet or equipment without the original packing materials may cause product damage that will void the warranty.

For Wall-Mount and Desktop Installations:

• Before mounting, first make sure that the wall surface can safely support the combined load of the charging station, equipment stored and all attached hardware and components.
• Always use suitable mounting means when installing to cinder block, concrete, drywall or wood studs.

2. Overview

Your charging station is an all-in-one solution for storing, charging and syncing for up to 32 smartphones. Your charging station can be conveniently mounted to walls, as well as used for stationary desktop installations. To prevent theft and device tampering, your charging station enclosure comes equipped with locking steel doors. A padlock has accessory (optional) attaches to the doors to provide an extra measure of protection.

3. Feature Identification

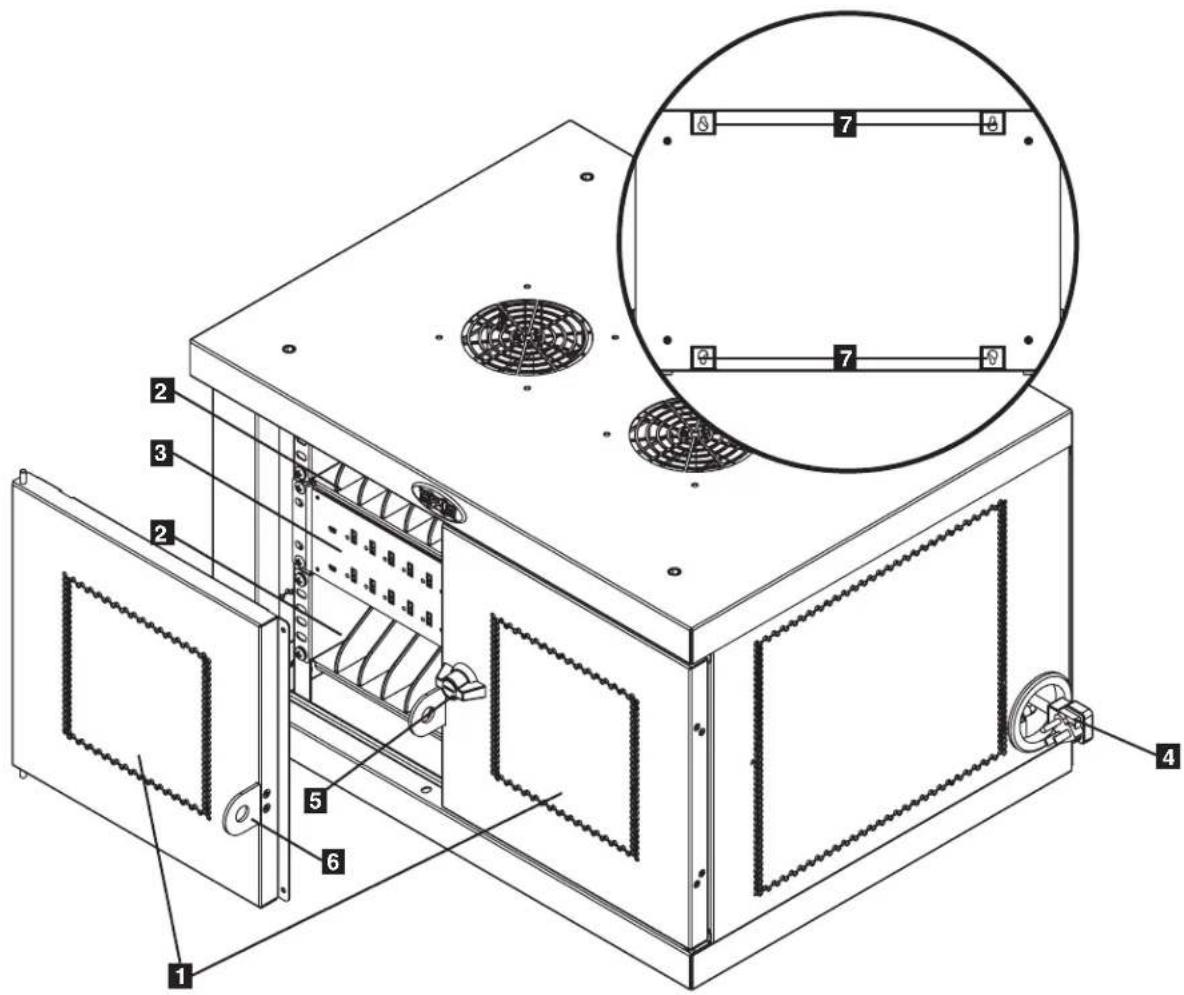

CSD32USB

1 Locking Split Doors
2 Storage Shelves (Holds up to 16 Devices Each.)
3 32-Port USB Charger/Hub Unit
4 Power Cord Access Holes with 5-15P Right-Angle Plug (1 Opening Located on Each Side.)
5 3-Point Lock
6 Padlock Hasp (Optional. Assembly Required, See Section 3.4 for More Information. Lock Not Included.)
7 Rear Panel with Keyhole Wall Mount Slots (See Section 6 for More Information)

Not Shown:

Keys

4. Setup

Caution! Read All Instructions andWarnings Before Installation!

Warning: Charging stations can be extremely heavy. Do not attempt to unpack or mount the charging station without assistance. Use extreme caution when handling the charging station and be sure to follow all handling and installation instructions. Do not attempt to install equipment without first stabilizing the charging station.

4.1 Powering the USB Charger/Hub Unit

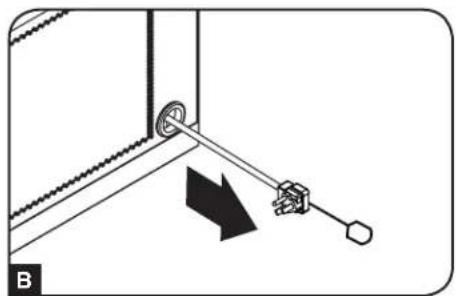

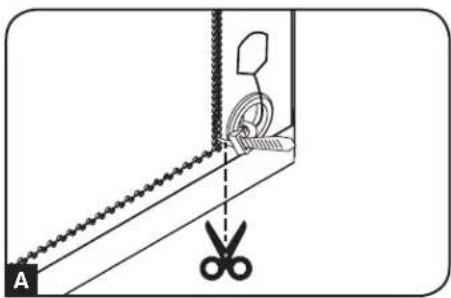

For convenient power connections, a tab is located on each side of the power cord access holes. To connect the USB charger/ hub, choose which side you would like to use to plug in to a power outlet, then cut the zip ties securing both tabs to the power cord access holes A. Pull the tab from the desired power cord access hole B for the cord and plug to extend outward.

4.2 Door Locks

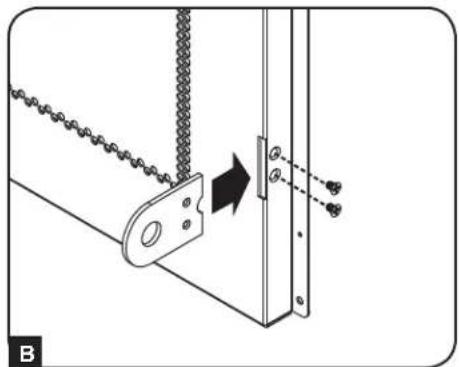

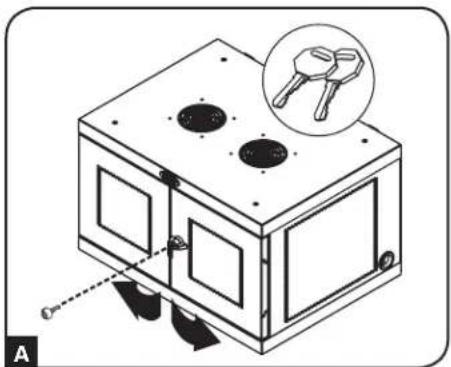

The split doors contain a lock that is accessible with the included keys A.

The included padlock hasp accessory can attach to the unit to provide an extra measure of protection. To attach the padlock hasp, use the included screws to secure the hasp to the door B. Repeat for the other door.

5. 32-Port USB Charger Hub

5.1 USB Charger/Hub Features

Professional-grade USB charger/hub charges and syncs up to 32 smartphones.
- Provides each USB port with an optimum charge level for a particular device (up to 2.4 amps).
- Allows syncing to be performed with any device designed for USB data communications, per compatible file management software.
- Syncs Apple® devices via iTunes® software or Apple Configurator.
- Mini-USB Firmware Upgrade Port enables future software upgrades to support newer devices.

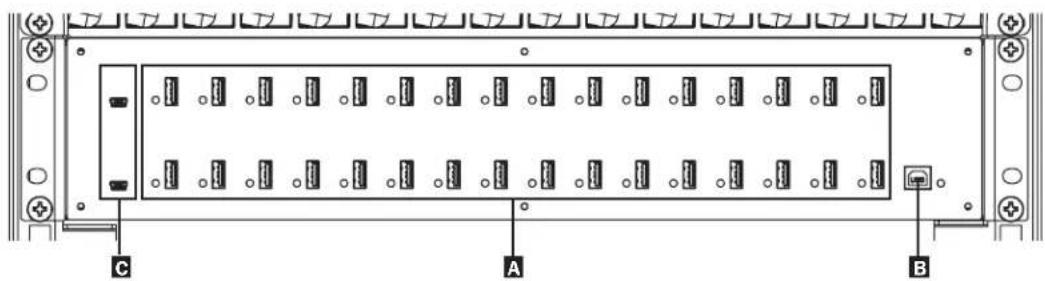

A 2.4A USB Device Ports with LED Indicator Lights (32 Total)

Computer Sync Port
6 Firmware Upgrade Ports

5.2 Connecting Smartphones to the USB Charger/Hub

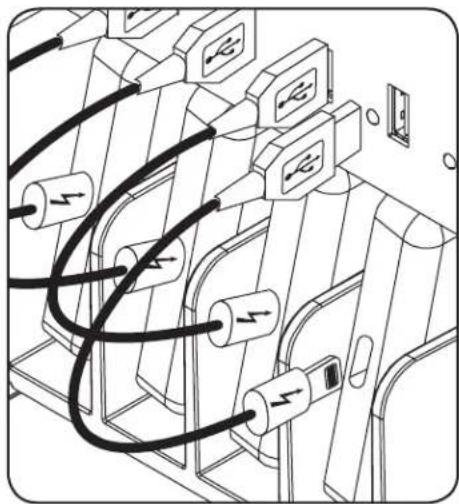

Using a user-supplied or device manufacturer's shielded USB cable, connect the USB cable to the smartphone to be charged. Repeat for all devices.

Tripp Lite offers individual and 10-pack cables for Apple devices using USB to 30-Pin or USB to Lightning™ cables, as well as individual and 10-pack cables for USB 3.0 or 2.0 devices using USB A (male) to 5-Pin Micro B (male) cables.

Cable Type	Individual Cable Model Number	10-Pack Cable Model Number
Apple USB to 8-Pin Lightning Connector, 10 in. M100-10N-BK	M100-10N-BK-10
USB 3.0 SuperSpeed A (Male) to 5-Pin Micro-B (Male), 1 ft. U326-001-BK U326-001-BK-10

Visit www.triplite.com for more information on our selection of premium USB cables.

5.3 Connecting a Computer to the USB Charger/Hub

In addition to device charging, the USB Charger/Hub is equipped with a hub function that syncs devices and their respective software applications via a connected computer. To enable the hub function, use the included USB cable to connect the USB-B connector into the unit's Computer Sync Port and the USB-A connector into a computer's USB port.

Note: When a computer connection is established and multiple devices are connected to the USB Charger/Hub, the charge rate will reduce during syncing and resume to the normal charge rate upon completion.

Note: The Firmware Upgrade Port requires a mini-USB connection (cable not included). To download the most recent firmware updates, go to www.triplite.com/support.

6. Wall Mounting

For wall mounting, you will need:

• Level
• Appropriate tools for wall mounting
• Appropriate hardware for wall mounting (not included)

Warning: Do not attempt to mount the charging station to the wall with any personal electronic devices inside.

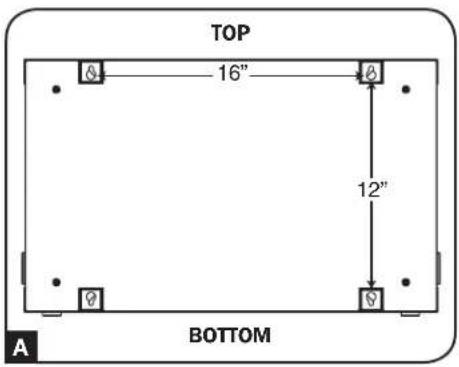

There are 4 keyhole cutouts on the charging station cabinet's rear panel. Each keyhole can accommodate an M5 or 3 / 16^ bolt. The keyhole sets are centered 16" apart horizontally and 12" vertically A.

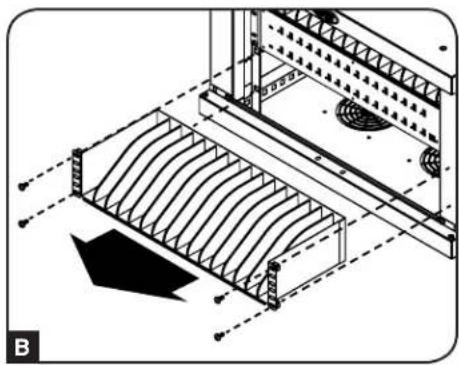

To mount the charging station, first remove the bottom shelf inside the cabinet B. Using a level and tape measure, measure to position your mounting area precisely. For the position where the top keyholes will be located, secure appropriate fasteners (not included) to the wall or supporting surface, then hang the charging station onto the hardware C. For an added measure of security, use appropriate fasteners and the bottom keyhole slots to secure the charging station cabinet to the wall D.

Note: The charging station must be installed by a qualified technician. Use suitable mounting means when installing to cinder block, concrete, drywall or wood studs. Warning: The supporting surface must be able to safely support the combined load of the charging station, equipment stored and all attached hardware and components. See Section 8. Specifications for more information on your model's weight and dimensions.

7. Desktop Placement

BOTTOM

WARNING: For desktop applications, always install the charging station in a structurally sound area with a level surface that is able to bear the weight of the charging station, all equipment that will be installed in the charging station and any other enclosures and/or equipment that will be installed nearby. Never attempt to lift or install the charging station without adequate help. See Section 8. Specifications for more information on the charging station's rated load capacity.

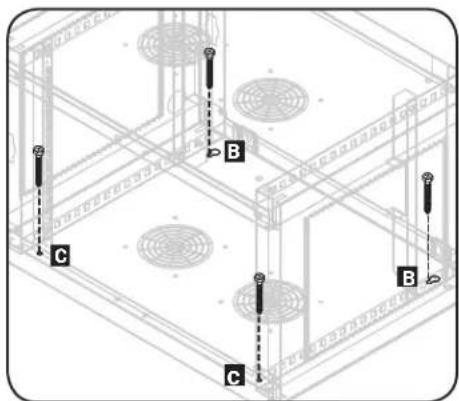

For an added measure of security, the cabinet can secure to a desktop. There are two keyhole cutouts located at the rear end of the bottom panel. Each keyhole can accommodate an M5 or 3/16" bolt. The bottom keyhole set is centered 18" (457 mm) apart horizontally and 14" (356 mm) vertically from the front mounting holes A.

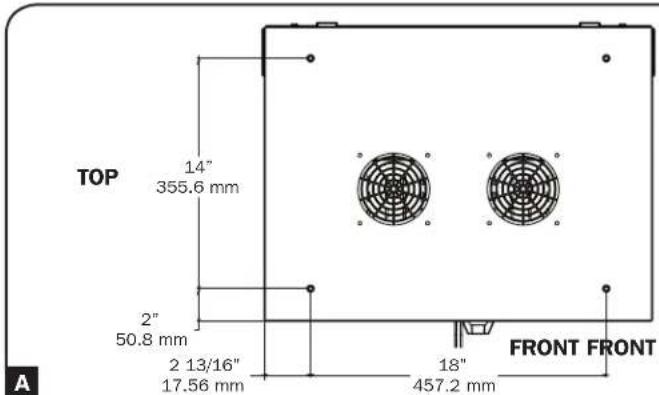

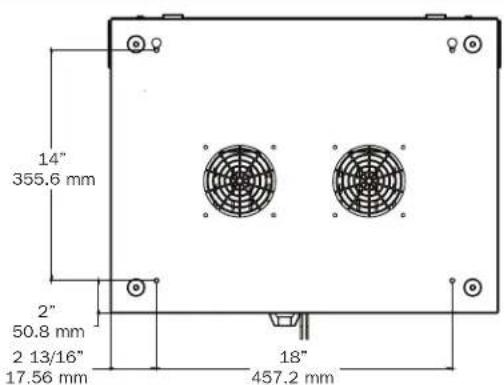

Using a tape measure, measure to position your mounting areas precisely. Use appropriate fasteners (not included) to attach the cabinet to the rear keyhole cutouts B and secure the charging station to the desktop with the front mounting holes C.

7. Desktop Placement

Stacking Charging Station Cabinets

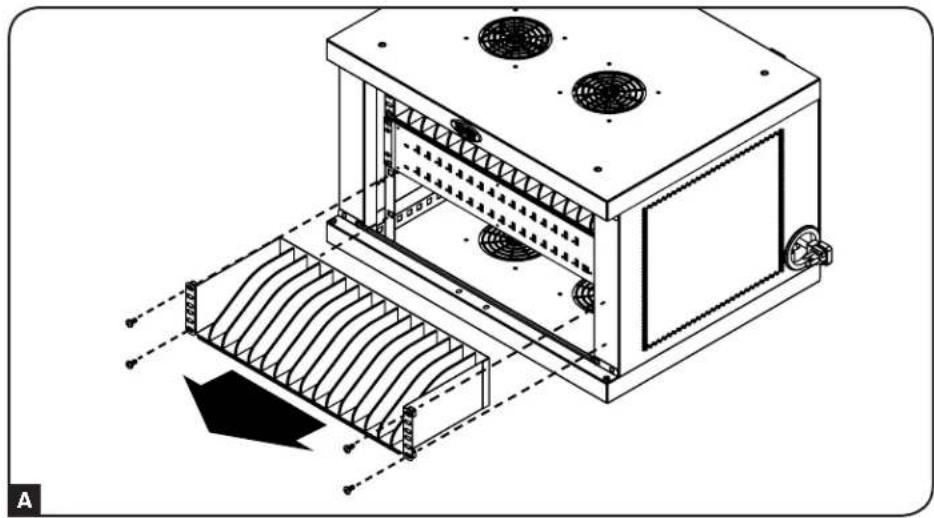

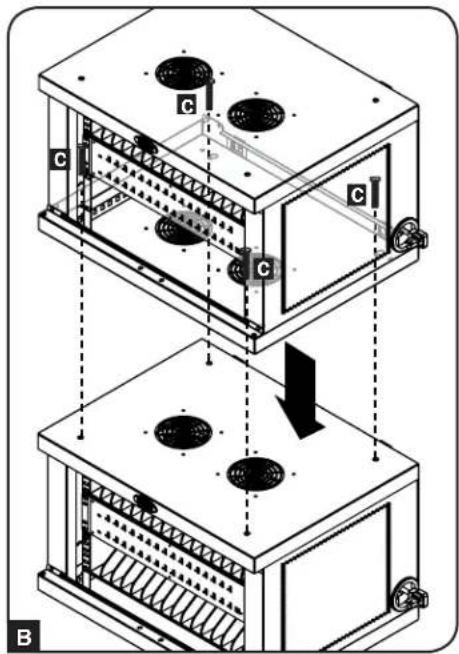

One charging station can be securely stacked onto another. First remove the bottom shelf inside the cabinet that will be placed on top A. Carefully place the top cabinet on top of the bottom cabinet, aligning the top cabinet's front mounting holes and rear keyhole cutouts with the bottom cabinet's threaded inserts located on the top panel B. To secure the two cabinets, use four (4) M6 x 20 mm screws (not included) C.

Caution! Do not stack more than one Charging Station Cabinet. Personal or property damage may result.

8. Specifications

Model CSD32USB
Dimensions (H x W x D) 14.7 x 23.63 x 19 in. / 3	74 x 600 x 483 mm
Unit Weight 62.11 lb. / 28.2 kg
Load Capacity* 200 lb. / 90.7 kg
Charger/Hub Ports 32 x USB Type-A (Female)	1 x USB Type-B (Female) 2 x USB Mini (Female)
Transmission Speed USB 2.0: Up to 480 Mbps
Power Requirement Input: 110-120V, 8A, 50/60	Hz Output: 5.0V, 2.4A Max (per USB port)
Operating Temperature 32° to 95°F / 0° to 32°C
Operating Humidity 5 to 95% RH, Non-Condensing
Enclosure Material Metal

*Full wall-mount load capacity requires a mounting surface capable of bearing the full load of the charging station and all connected components. Specifications may be subject to change without further notice.

9. Storage, Service and Cleaning

Storage

The enclosure should be stored in a controlled indoor environment away from moisture, temperature extremes, flammable liquids and gasses, conductive contaminants, dust and direct sunlight. Store the enclosure in its original shipping container if possible.

Service

The enclosure is covered by the limited warranty described in this manual. For more information, visit www.triplite.com/support.

Cleaning

Before cleaning, always power off the charging station by unplugging it from its AC source. Dampen a clean, lint-free cloth with water and wipe down the unit, as necessary. Allow the surface area to dry before plugging in the unit.

Note: Avoid using abrasive cloths, solvents or aerosol sprays to clean the charging station; doing so can damage the unit.

10. Warranty and Product Registration

2-Year Limited Warranty

Sell wth t i r t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t 0

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTY OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTYES, INCLUDING ALL WARRANTYES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCUSES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Product Registration

Visit www.triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!

• No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Regulatory Compliance Identification Numbers

For the purpose of regulatory compliance certifications and identification, your Tripp Lite product has been assigned a unique series number. The series number can be found on the product nameplate label, along with all required approval markings and information. When requesting compliance information for this product, always refer to the series number. The series number should not be confused with the marketing name or model number of the product.

FCC Notice, Class B

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user's authority to operate this equipment.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.

1111 W. 35th Street, Chicago, IL 60609 USA • www.triplite.com/support

1111 W. 35th Street, Chicago, IL 60609 USA www.triplite.com/support
