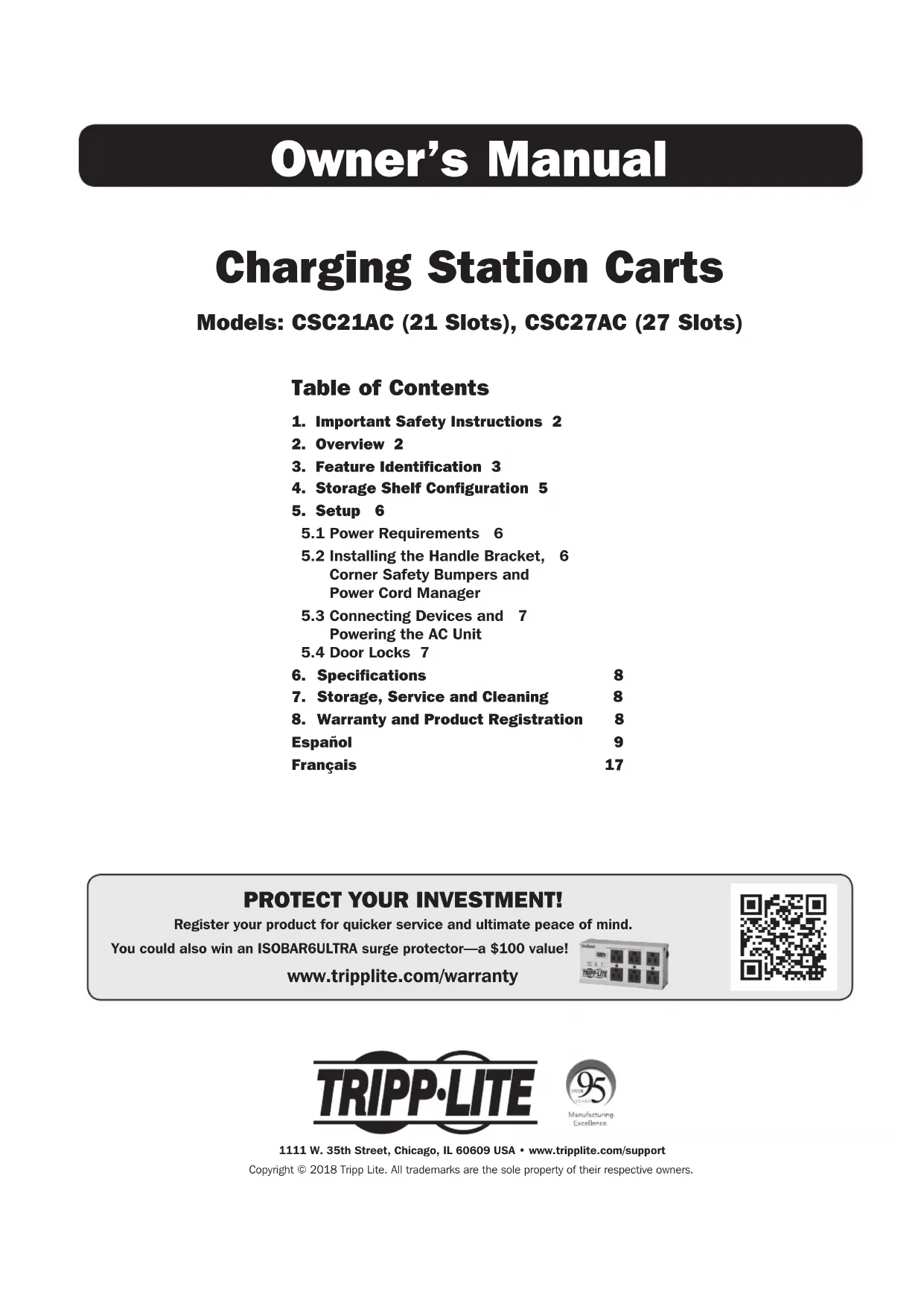

Español 9 Français 17 Charging Station Carts Models: CSC21AC (21 Slots), CSC27AC (27 Slots) Owner’s Manual 1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/supportCopyright © 2018 Tripp Lite. All trademarks are the sole property of their respective owners. PROTECT YOUR INVESTMENT! Register your product for quicker service and ultimate peace of mind. You could also win an ISOBAR6ULTRA surge protector—a $100 value! www.tripplite.com/warranty2

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that must be followed during the installation and operation of the product described in this manual. Failure to comply may invalidate the warranty and cause property damage or personal injury. AC Unit:

• Do not use a power adapter to connect the charging station to a power source. Use only the charging station’s AC plug to connect directly to the supply mains.

• To remove the AC unit from the supply mains, the power cord serves as a disconnect device.

• If any of the following situations arise, schedule an appointment to have your equipment inspected by a service technician:

• The equipment has been exposed to moisture

• The equipment has been dropped and damaged

• The equipment shows obvious signs of breakage

• The equipment is not functioning properly or is not functioning according to the instructions described in this Owner’s Manual

• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended. Charging Station Cabinet:

• Keep the charging station in a controlled indoor environment away from moisture, temperature extremes, flammable liquids and gasses, conductive contaminants, dust and direct sunlight.

• Leave adequate space around the charging station for proper ventilation. Do not block, cover or insert objects into the charging station’s external ventilation openings.

• The charging station is extremely heavy. Use caution when handling the charging station. Do not attempt to unpack the charging station unassisted. Use a mechanical device such as a forklift or pallet jack to move the charging station in the shipping container.

• Inspect the shipping container and the charging station for shipping damage. Do not use the charging station if it is damaged.

• Use caution when cutting packing materials. The charging station could be scratched, causing damage not covered by the warranty.

• Save all packing materials for later use. Repacking and shipping the charging station cabinet or equipment without the original packing materials may cause product damage that will void the warranty.

• The charging station includes four pre-installed casters.

• Always use the included handle when moving the charging station (see section 5.2 Installing the Handle Bracket Corner Safety Bumpers and Power Cord Manager for more information).

• When moving the charging station cabinet, always push it from behind; never pull it toward you.

• A rolling charging station can cause personal injury and property damage if not properly supervised. If rolling the charging station down a ramp is required, use extreme caution. Do not attempt to use ramps that have a slope grade greater than 12%. Your charging station is an all-in-one solution for storing and charging devices. With four pre-installed casters and an attachable, reversible handle accessory, your charging station is ideal for mobile applications. To prevent theft and device tampering, your charging station enclosure comes equipped with locking steel doors. A padlock hasp located on the front door provides an extra measure of security.3

3. Feature Identification

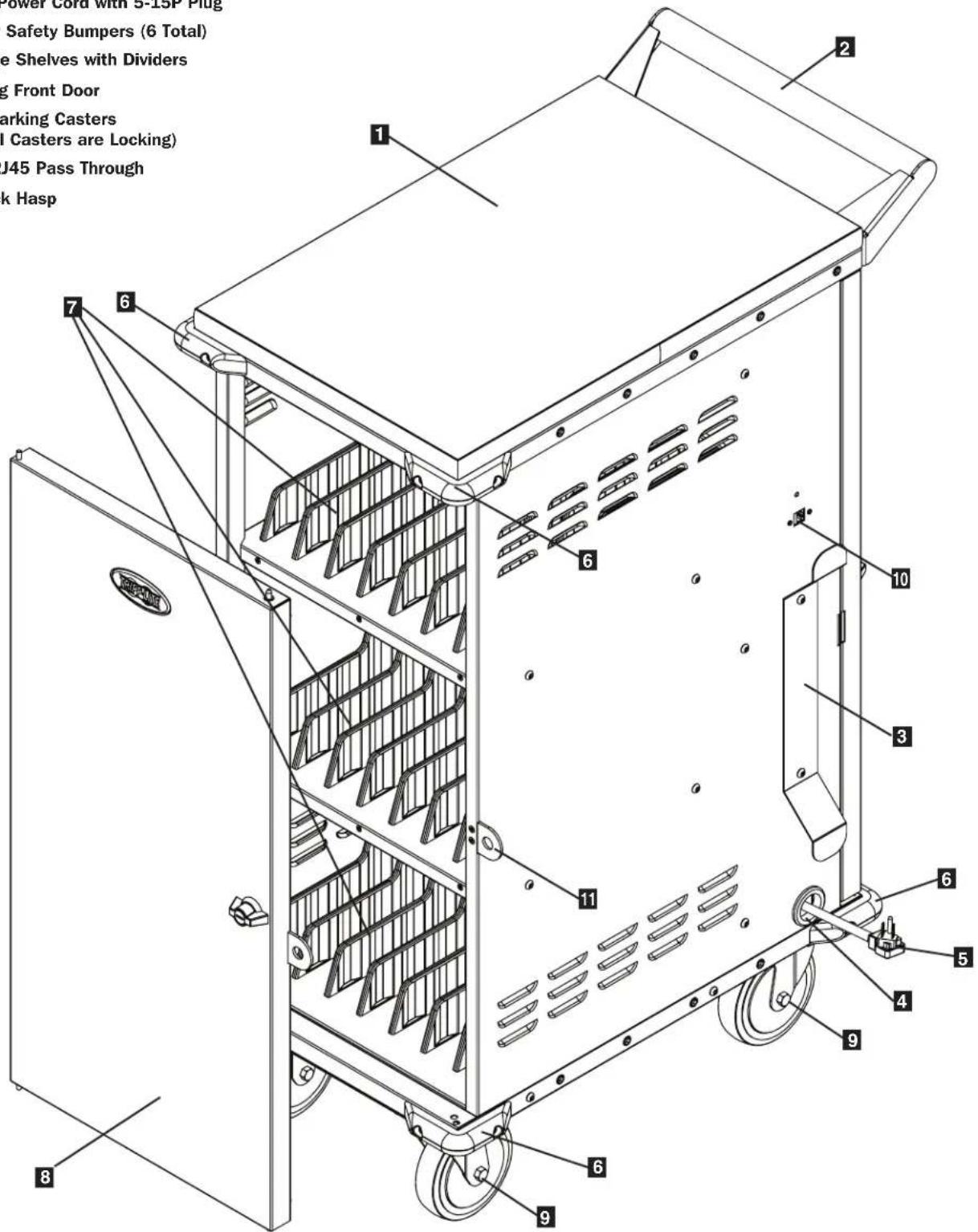

Laminate Desktop Surface

10 ft. Power Cord with 5-15P Plug

Storage Shelves with Dividers

Non-Marking Casters (Swivel Casters are Locking)

Padlock Hasp Included Accessory Hardware 10 x Hex Screws Hex Key Keys

3. Feature Identification

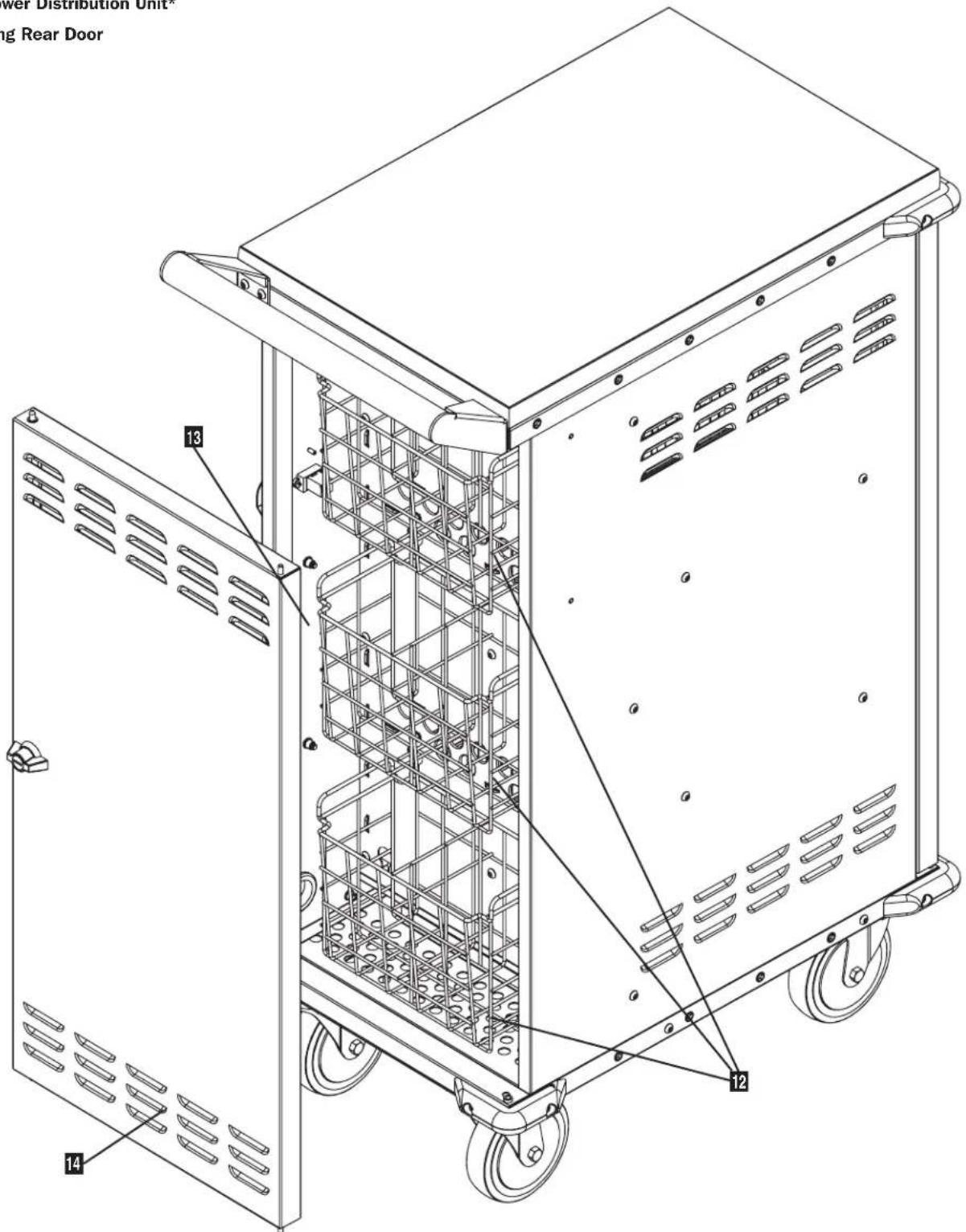

Locking Rear Door *For more information, refer to 5.4 Connecting Devices and Powering the AC Unit.

Front View Model Device Slots

Caution! Read All Instructions and Warnings Before Installation!

Warning: Charging stations can be extremely heavy. Do not attempt to unpack the charging station without assistance.

Follow the unpacking instructions document that shipped with this product before proceeding with setup. Use extreme caution when handling the charging station and be sure to follow all handling and installation instructions. Do not attempt to install equipment without first stabilizing the charging station.

5.1 Power Requirements

5.2 Installing the Handle Bracket, Corner Safety Bumpers and Power Cord Manager

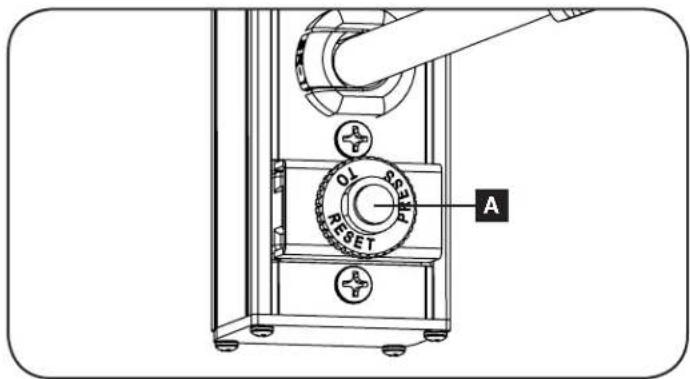

The charging station must be plugged into an AC outlet with a dedicated circuit. An AC outlet with a 20-amp (NEMA 5-20R) AC circuit is recommended for powering the charging station. The AC outlet used to power the charging station should not be shared. The total wattage of the charging station and all connected components should not exceed 1800 watts. The AC power distribution unit is protected by a 15-amp input breaker

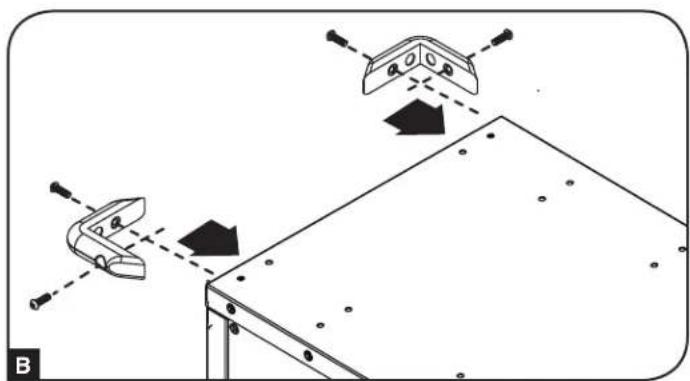

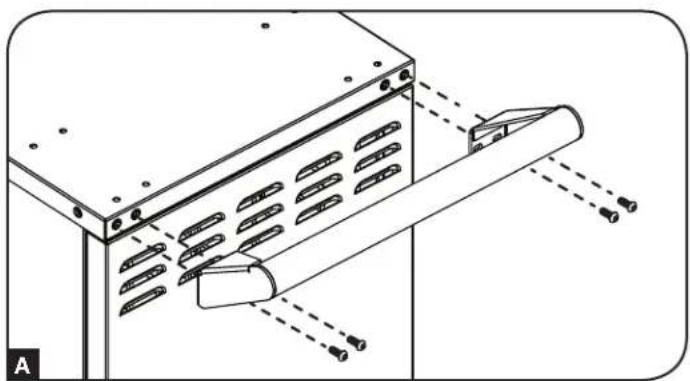

To install the handle bracket, choose a side on which to install the bracket (the same side as the cable access hole grommet and power cord manager is recommended). Using the included hex key tool and four (4) hex screws, secure the handle bracket to the charging station cabinet

. Then install the two top corner safety bumpers using four (4) hex screws (two per bumper)

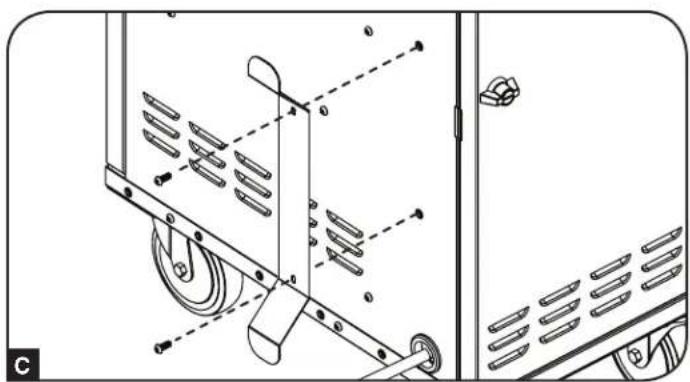

To install the cord manager, use two (2) hex screws to secure on the same side as the cable access hole grommet

5.3 Connecting Devices and Powering the AC Unit

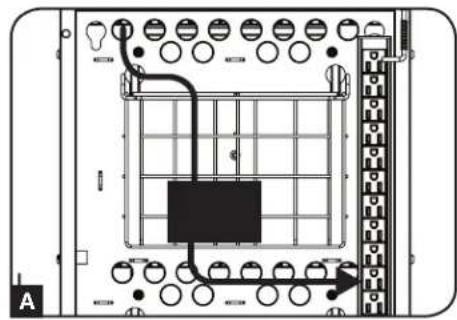

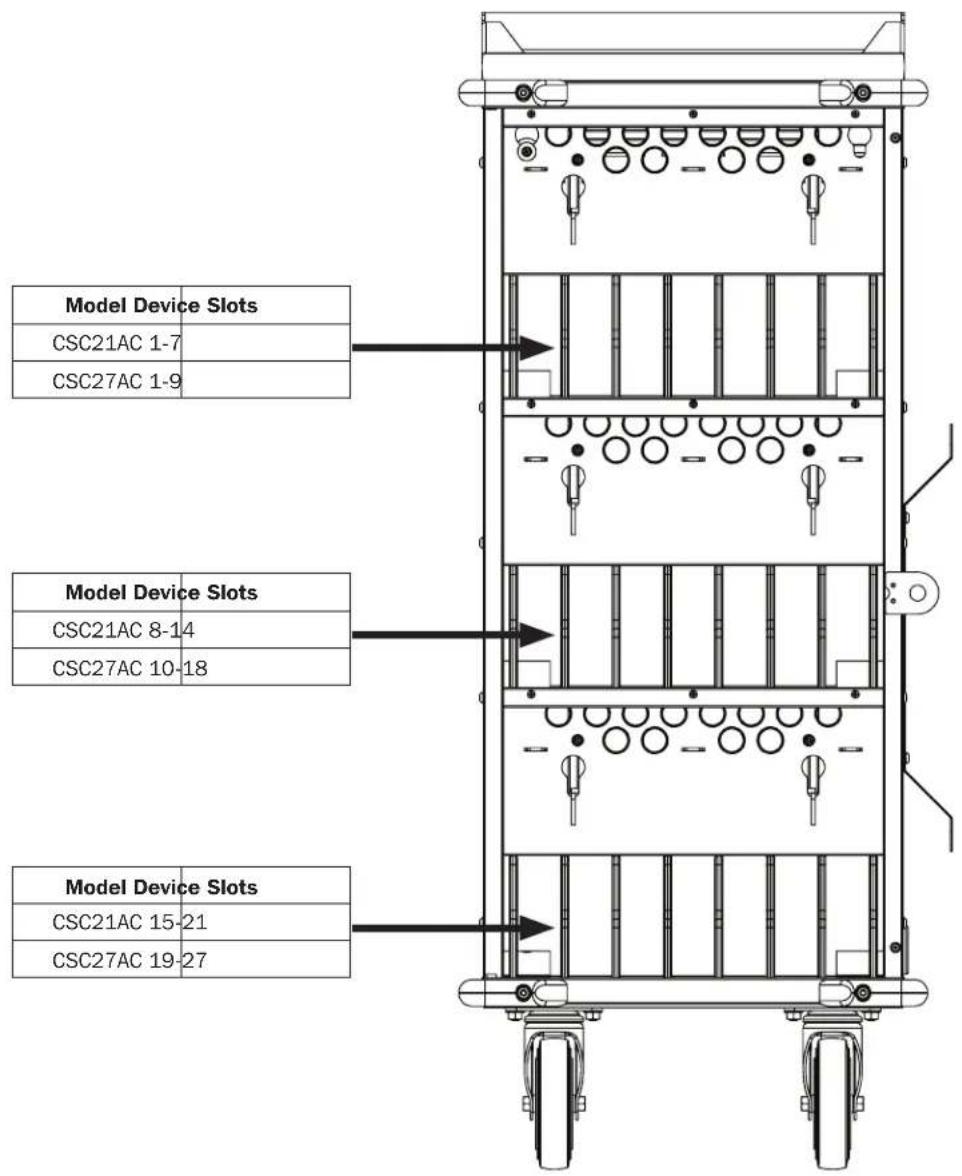

Your charging station contains three baskets, one for each shelf. To connect the device power bricks, place the bricks in the basket. Working one basket at a time, plug the power brick into an outlet on the AC power distribution unit, then run the device cable and connector through a device slot

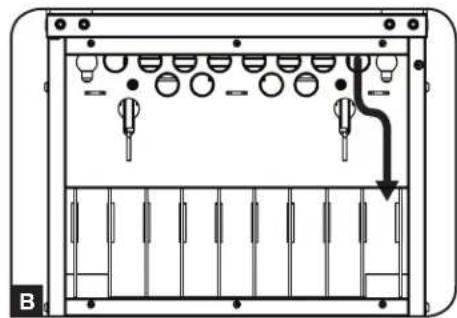

and into the overhead cable manager

. Repeat as needed for each slot. Note: Baskets are removable for easier power brick installation.

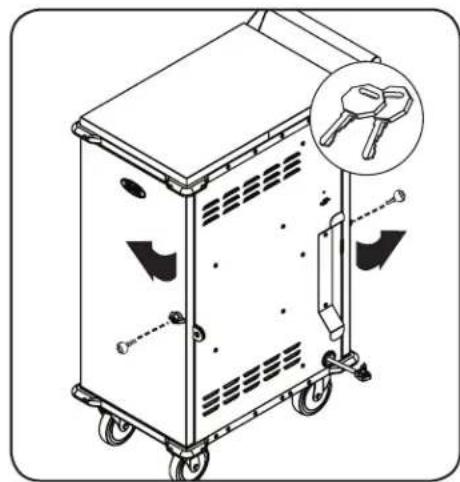

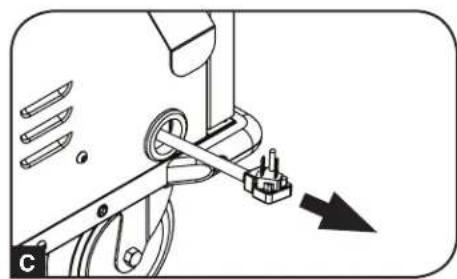

The doors contain a lock that is accessible with the included keys. The padlock hasp on the front door provides an extra measure of security against device theft. Connect all devices and place on their respective shelves. Once all devices are connected and stored, find the AC unit’s input plug and cable located in the charging station’s bottom compartment. The input plug extends through the cable access hole grommet located on the bottom of the charging station cabinet

. Plug the power cord into the nearest 3-prong, grounded wall outlet.

7. Storage, Service and Cleaning

Storage The enclosure should be stored in a controlled indoor environment away from moisture, temperature extremes, flammable liquids and gasses, conductive contaminants, dust and direct sunlight. Store the enclosure in its original shipping container if possible. Service The enclosure is covered by the limited warranty described in this manual. For more information, visit www.tripplite.com/support. Cleaning Before cleaning, always power off the charging station by unplugging it from its AC source. Dampen a clean, lint-free cloth with water and wipe down the unit, as necessary. Allow the surface area to dry before plugging in the unit. Note: Avoid using abrasive cloths, solvents or aerosol sprays to clean the charging station; doing so can damage the unit. 2-Year Limited WarrantySeller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 2 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion.THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.Product RegistrationVisit www.tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!** No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.Regulatory Compliance Identification NumbersFor the purpose of regulatory compliance certifications and identification, your Tripp Lite product has been assigned a unique series number. The series number can be found on the product nameplate label, along with all required approval markings and information. When requesting compliance information for this product, always refer to the series number. The series number should not be confused with the marketing name or model number of the product.FCC Notice, Class BThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user’s authority to operate this equipment.WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)• Send the new equipment back for recycling when this ultimately becomes wasteTripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.

8. Warranty and Product Registration

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support9 Índice
