U280010STCEE - Phone charger Tripp Lite - Free user manual and instructions

Product Type	10-Port USB Charging Station
Brand	Tripp Lite
Model	U280-010-ST-CEE
Dimensions (H x W x D)	26 x 238 x 118 mm
Weight	0.3 kg
External Power Supply (Input)	100-240 V, 50/60 Hz, 2.0 A
External Power Supply (Max Output)	12 V, 8 A
USB Output per Port	Up to 5 V, 2.4 A (BC1.2)
Number of Ports	10 USB-A Female Ports
Protections	Overheating, Overcurrent, Overload
Operating Temperature	5 to 35 °C
Storage Temperature	-20 to 50 °C
Relative Humidity	20% to 80%
Certifications	CE, FCC, RoHS, REACH, WEEE
Warranty	1 Year Limited
Storage Stands	Removable and Adjustable
Optional Accessories	USB Cables (Lightning, Micro-B, etc.) and Power Cords

Frequently Asked Questions - U280010STCEE Tripp Lite

How do I charge my devices with this charger?

Plug the included external power supply into a wall outlet, then connect your USB devices to the available ports. A single port provides up to 5 V 2.4 A.

How many devices can I charge at the same time?

You can charge up to 10 devices simultaneously, but the total power must not exceed 12 V 8 A (96 W). Beyond that, overcurrent protection activates.

Is this charger compatible with all smartphones?

Yes, it is compatible with any device that charges via USB (smartphones, tablets, etc.) thanks to the BC1.2 standard. Use a cable suitable for your device.

Can I use this charger abroad?

Yes, the external power supply accepts an input of 100-240 V (50/60 Hz). Just use a plug adapter compatible with the Schuko plug.

What if charging does not work?

Check that the power supply is plugged in and the blue LED is on. If ports cycle on and off, remove some devices to reduce total load below 96 W.

How do I maintain and clean the charger?

Unplug the device before cleaning. Use a soft, dry cloth. Do not use chemical or abrasive cleaners. Avoid moisture.

Which cables are recommended?

Tripp Lite offers various optional cables: USB to Lightning, Micro-B USB 2.0/3.0, Mini-B, and CEE power cords. Ensure they support at least 2.4 A.

Is the charger suitable for tablets?

Yes, each port delivers up to 2.4 A, which is sufficient for most tablets. For faster charging, check compatibility with your device.

How do I install the storage stands?

The stands are removable. Simply insert them into the slots on the front of the housing to hold your devices while charging. Adjust the number as needed.

What is the warranty for this product?

Tripp Lite offers a one-year limited warranty from the date of purchase, covering defects in materials and workmanship. Visit Triplite.Eaton.com for returns.

USER MANUAL U280010STCEE Tripp Lite

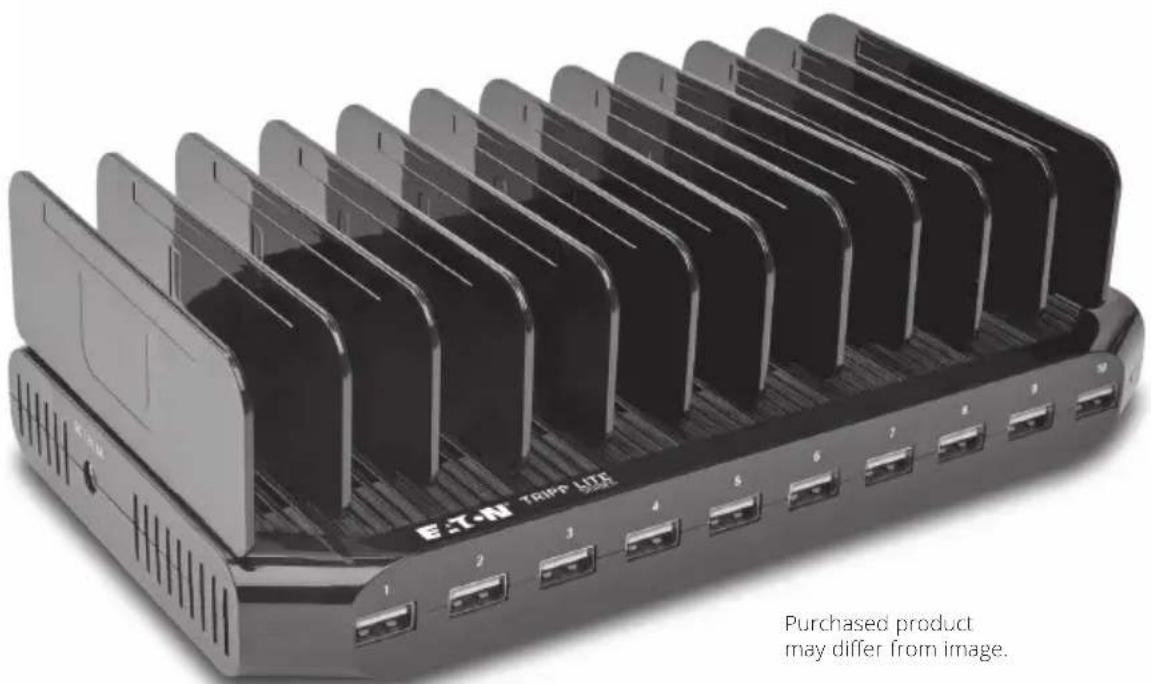

10-Port USB Charging Station with Adjustable Storage

Model:

U280-010-ST-CEE

Purchased product may differ from image.

Espanol 5

Français 9

Deutsch 13

Italiano 17

Product Features

• Charges and organizes up to 10 tablets, smartphones and other portable electronic devices
• Operates anywhere AC power is available—no computer required
• BC1.2-compliant, generating up to 5V 2.4A per port for charging battery-intensive devices
• Removable brackets adjust to accommodate number and size of devices being charged
• Protects against overheating, overcurrent and overcharging

Package Contents

U280-010-ST-CEE
- External Power Supply (Input: 100V-240V, 50/60 Hz; 2.0A Max Output: 12V 8A)
C5 to CEE 7/7 Schuko Power Cord, 0.9m
(14) Removable Storage Brackets
- Owner's Manual

Optional Accessories

M100-Series USB to Lightning™ Cables
M110-Series USB to Apple® 30-Pin Cables
P013-Series C5 to 5-15P Power Cords
P058-006 C5 to SCHUKO Power Cord
P060-006 C5 to BS-1363 UK Power Cord
- UR030-Series USB 2.0 5-Pin Mini-B Cables
- UR050-XXX-24G-Series* 0.2 mm² (24 AWG) USB 2.0 Micro-B Cable
- UR05C-Series 20 AWG USB Micro-B Charge-Only Cables
U326-Series USB 3.0 Micro-B Cables

*XX represents cable length, with cable models in 0.3 m (001), 0.9 m (003) and 1.8 m (006) lengths.

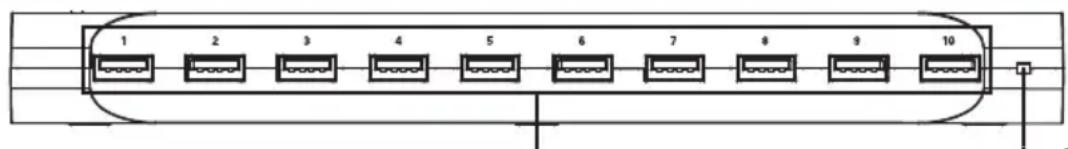

Front Panel

Power LED - Illuminates blue to indicate the unit is connected to a power source using the external power supply and receiving power.
USB Charging Ports - A single port provides a maximum of 5V 2.4A of power.

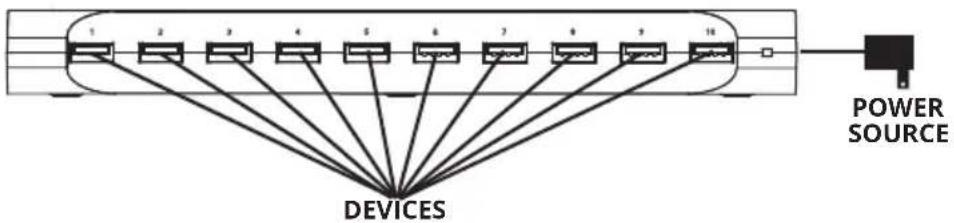

USB Charging

To charge your USB devices, simply connect the included external power supply between the U280-010-ST-CEE and a power source, then plug your devices into the available ports. A single port provides a maximum of 5V 2.4A of power.

Note: In the event that more power is being pulled than the U280-010-ST-CEE can provide, the unit's over-current protection will cause the USB ports to cycle on and off, preventing any of the connected devices from being charged. If this occurs, reduce the load by removing devices until the total load comes within the supported range.

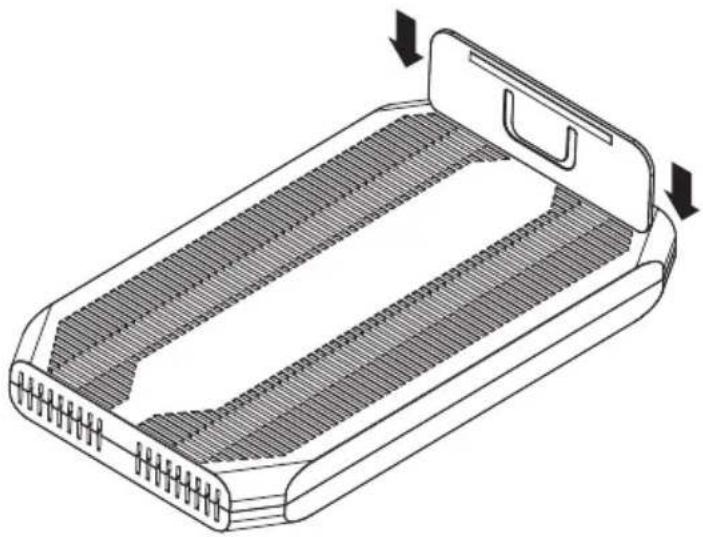

Removable Storage Brackets

Customize the unit's storage space according to the number and size of devices being charged. To install, simply insert a storage bracket into the desired slots.

Specifications

Item Description
Ports (x10) USB-A Female
External Power Supply Input: 100-240V, 50/60 Hz; 2.0A Max Output: 12V 8A
USB Output Capable of providing up to 5V 2.4A to a single port.
Operating Temperature 5° to 35°C
Storage Temperature -20° to 50°C
Relative Humidity 20% to 80%
Dimensions [H x W x D] 26 x 238 x 118 mm
Weight 0.3 kg
Regulatory Approvals CE, FCC, RoHS, REACH, WEEE

Warranty

1-Year Limited Warranty

We warrant our products to be free from defects in materials and workmanship for a period of one (1) year from the date of initial purchase. Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. Visit Tripplite.Eaton.com/support/product-returns before sending any equipment back for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, WE MAKE NO WARRANTYES, EXPRESS OR IMPLIED, INCLUDING WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL WE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, we are not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

WEEE Compliance Information for Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Eaton, they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Eaton has a policy of continuous improvement. Specifications are subject to change without notice.
