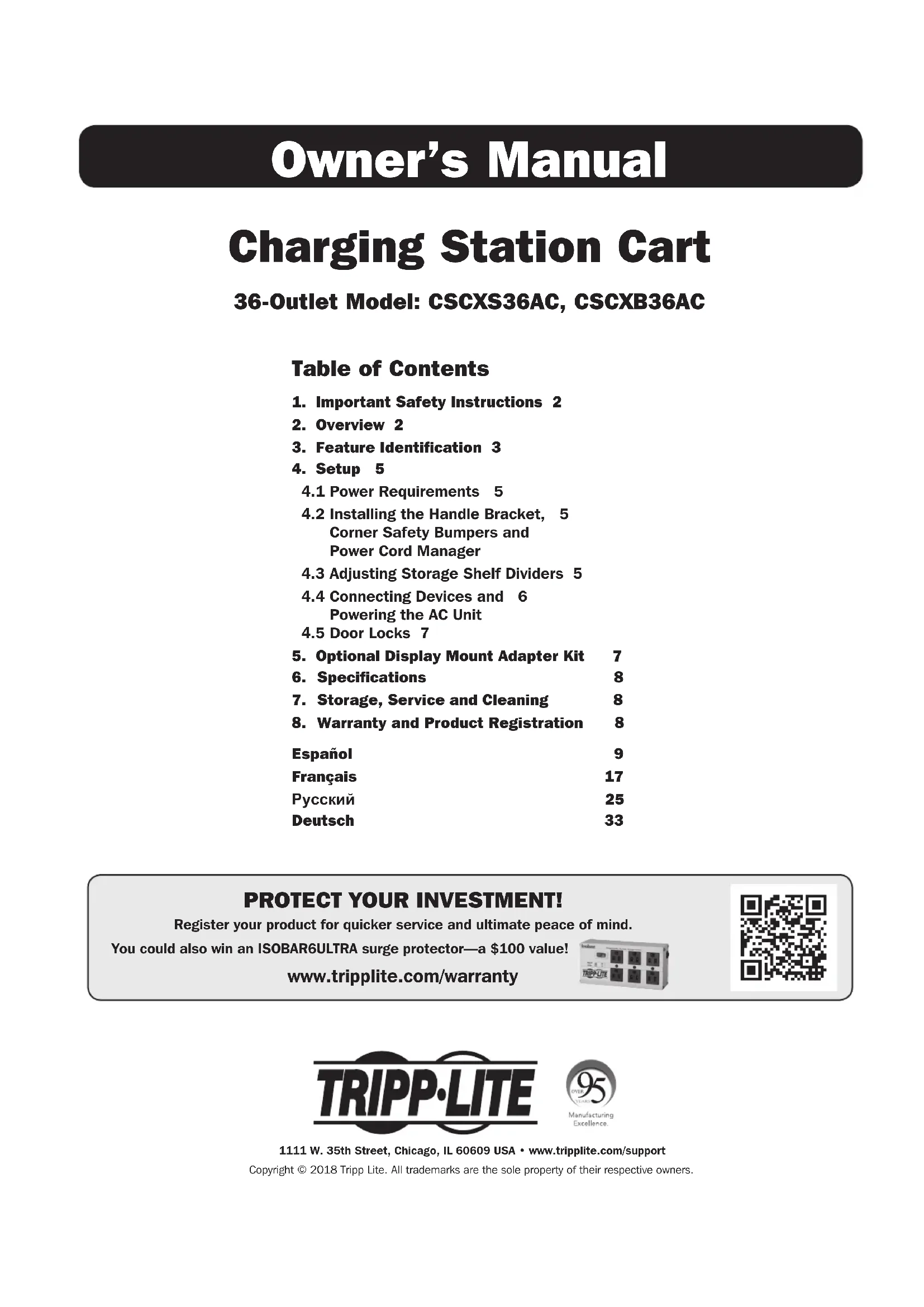

USER MANUAL CSCXS36AC Tripp Lite

Charging Station Cart

36-Outlet Model: CSCXS36AC, CSCXB36AC

Table of Contents

1. Important Safety Instructions 2
2. Overview 2
3. Feature Identification 3
4. Setup 5

4.1 Power Requirements 5
4.2 Installing the Handle Bracket, 5 Corner Safety Bumpers and Power Cord Manager
4.3 Adjusting Storage Shelf Dividers 5
4.4 Connecting Devices and 6 Powering the AC Unit
4.5 Door Locks 7

1. Optional Display Mount Adapter Kit 7
2. Specifications 8
3. Storage, Service and Cleaning 8
4. Warranty and Product Registration 8

Español 9

Français 17

Русский 25

Deutsch 33

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind.

You could also win an ISOBAR6ULTRA surge protector—a \$100 value!

www.tripplite.com/warranty

TRIPP·LITE

1. Important Safety Instructions

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that must be followed during the installation and operation of the product described in this manual. Failure to comply may invalidate the warranty and cause property damage or personal injury.

AC Unit:

• Do not use a power adapter to connect the charging station to a power source. Use only the charging station's AC plug to connect directly to the supply mains.
• To remove the AC unit from the supply mains, the power cord serves as a disconnect device.

• If any of the following situations arise, schedule an appointment to have your equipment inspected by a service technician:

• The equipment has been exposed to moisture
  • The equipment has been dropped and damaged
  • The equipment shows obvious signs of breakage

• The equipment is not functioning properly or is not functioning according to the instructions described in this Owner's Manual

- Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Charging Station Cabinet:

• Keep the charging station in a controlled indoor environment away from moisture, temperature extremes, flammable liquids and gasses, conductive contaminants, dust and direct sunlight.
• Leave adequate space around the charging station for proper ventilation. Do not block, cover or insert objects into the charging station's external ventilation openings.
• The charging station is extremely heavy. Use caution when handling the charging station. Do not attempt to unpack the charging station unassisted. Use a mechanical device such as a forklift or pallet jack to move the charging station in the shipping container.
• Inspect the shipping container and the charging station for shipping damage. Do not use the charging station if it is damaged.
• Use caution when cutting packing materials. The charging station could be scratched, causing damage not covered by the warranty.
• Save all packing materials for later use. Repacking and shipping the charging station cabinet or equipment without the original packing materials may cause product damage that will void the warranty.
• The charging station includes four pre-installed locking/swivel casters.
• Always use the included handle when moving the charging station (see section 4.2 Installing the Handle Bracket Corner Safety Bumpers and Power Cord Manager for more information).
• When moving the charging station cabinet, always push it from behind; never pull it toward you.
• A rolling charging station can cause personal injury and property damage if not properly supervised. If rolling the charging station down a ramp is required, use extreme caution. Do not attempt to use ramps that have a slope grade greater than 12% .

2. Overview

Your charging station is an all-in-one solution for storing and charging up to 36 devices. With four pre-installed locking/swivel casters and an attachable, reversible handle accessory, your charging station is ideal for mobile applications. To prevent theft and device tampering, your charging station enclosure comes equipped with locking steel doors.

3. Feature Identification

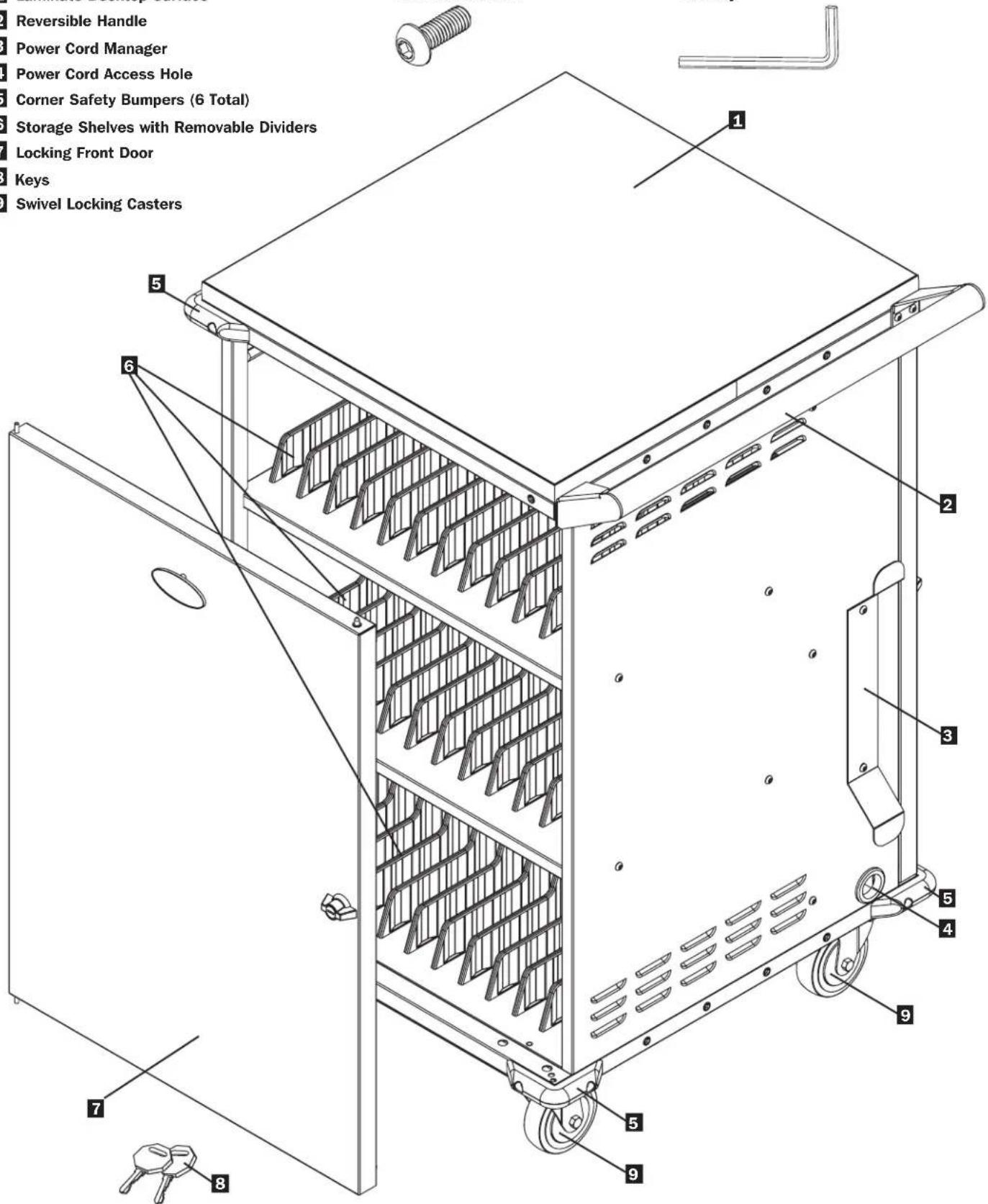

Front View

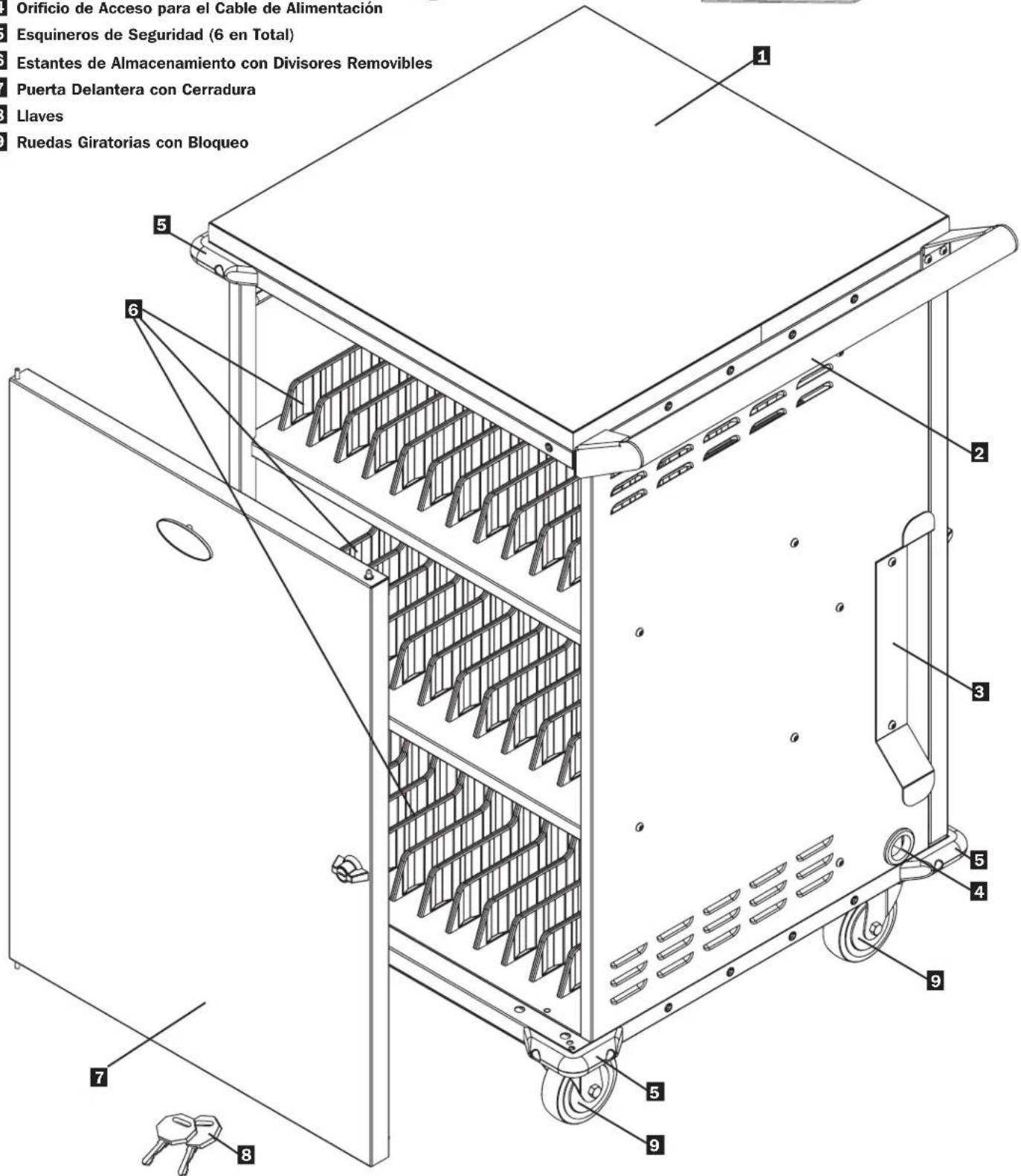

1 Laminate Desktop Surface
2 Reversible Handle
3 Power Cord Manager
4 Power Cord Access Hole
5 Corner Safety Bumpers (6 Total)
6 Storage Shelves with Removable Dividers
7 Locking Front Door
8 Keys
9 Swivel Locking Casters

Included Accessory Hardware
10 x Hex Screws
Hex Key

Reversible Handle Power Cord Manager Power Cord Access Hole Corner Safety Bumpers (6 Total) Storage Shelves with Removable Dividers Locking Front Door Keys Swivel Locking Casters

3. Feature Identification

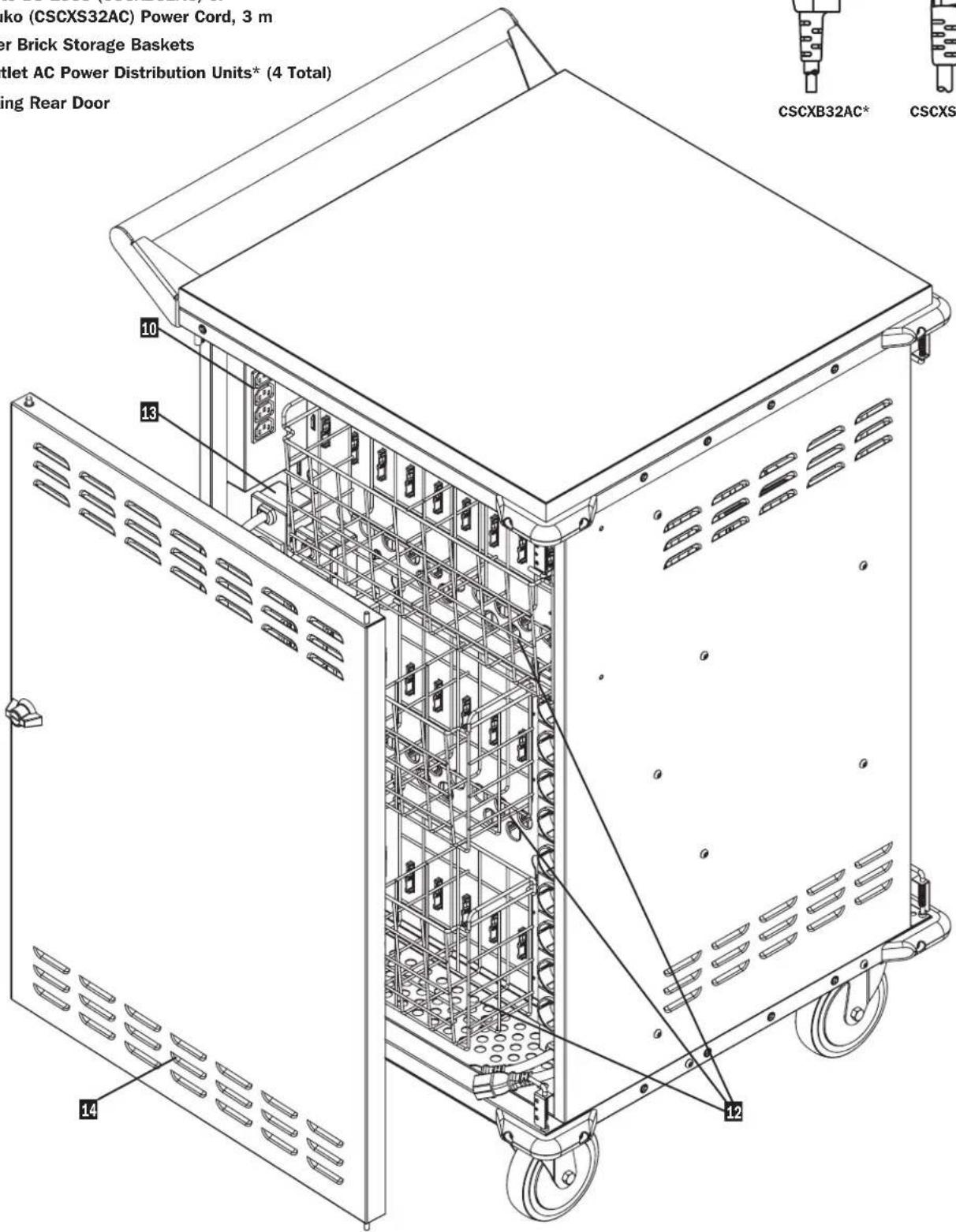

Rear View

10 Power Unit
11 C13 to BS 1363 (CSCXB32AC) or
Schuko (CSCXS32AC) Power Cord, 3 m
12 Power Brick Storage Baskets
13 9-Outlet AC Power Distribution Units* (4 Total)
14 Locking Rear Door

11

CSCXS32AC*

inko (CSCXS32AC) Power Cord, 3 m er Brick Storage Baskets tlet AC Power Distribution Units* (4 Total) ing Rear Door 10 13 14 12 CSCXB32AC* CSCXS

*Plug and outlet type will vary by model. For more information, refer to 4.4 Connecting Devices and Powering the AC Unit.

4. Setup

Caution! Read All Instructions and Warnings Before Installation!

Warning: Charging stations can be extremely heavy. Do not attempt to unpack the charging station without assistance. Follow the unpacking instructions document that shipped with this product before proceeding with setup. Use extreme caution when handling the charging station and be sure to follow all handling and installation instructions. Do not attempt to install equipment without first stabilizing the charging station.

4.1 Power Requirements

The charging station must be plugged into an AC outlet with a dedicated circuit.

4.2 Installing the Handle Bracket, Corner Safety Bumpers and Power Cord Manager

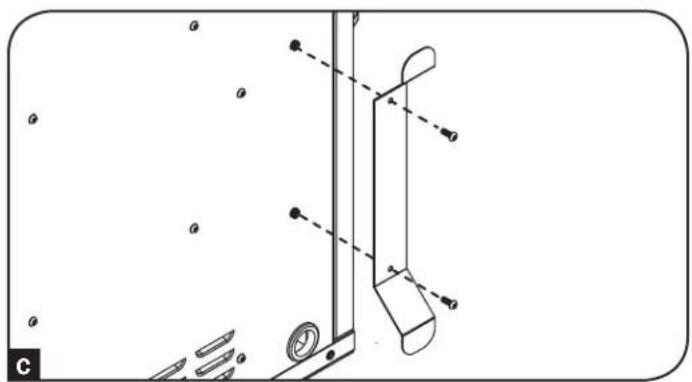

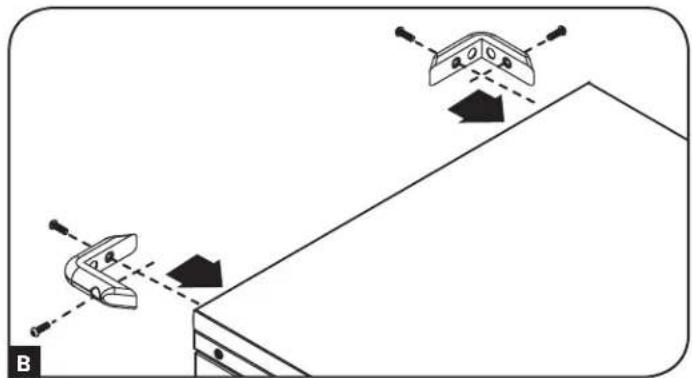

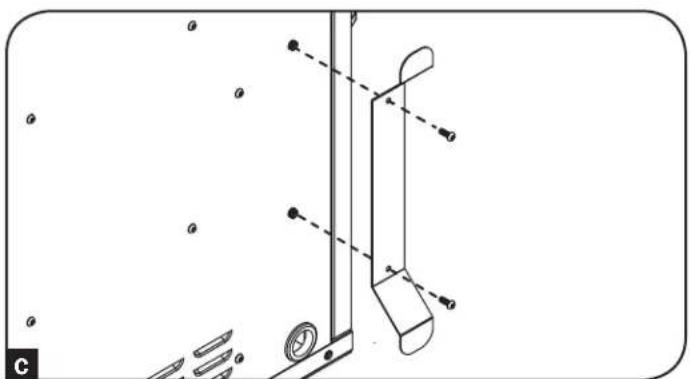

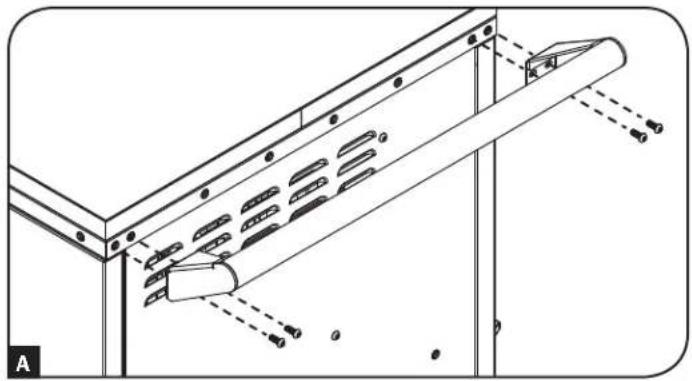

To install the handle bracket, choose a side on which to install the bracket (the same side as the cable access hole grommet and power cord manager is recommended). Using the included hex key tool and four (4) hex screws, secure the handle bracket to the charging station cabinet A. Then install the two top corner safety bumpers using four (4) hex screws (two per bumper) B. To install the cord manager, use two (2) hex screws to secure on the same side as the cable access hole grommet C.

Technical line drawing of a mechanical assembly with mounting brackets and a central component (no text or symbols)

Diagram showing two objects on a slope with directional arrows indicating motion or force (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

4.3 Adjusting Storage Shelf Dividers

Your charging station contains three non-removable storage shelves with adjustable dividers.

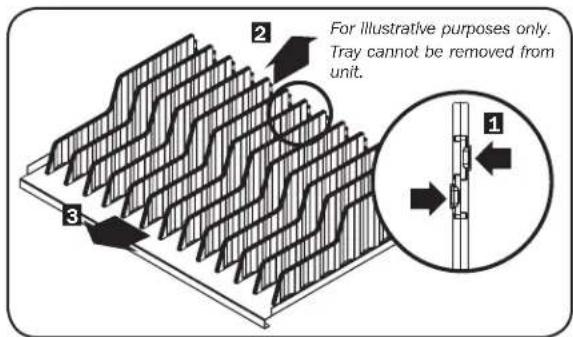

To remove or rearrange the dividers, first open the rear door. Then push in the two tabs securing the divider to the rear end 1, pull the divider up to disengage from the shelf tray 2, and pull out to remove 3. Repeat as necessary for additional shelf dividers.

For illustrative purposes only. Tray cannot be removed from unit. 1 2 3

4. Setup

4.4 Connecting Devices and Powering the AC Unit

Technical line drawing of an electrical enclosure with internal grid layout and external wall-mounted components (no text or symbols)

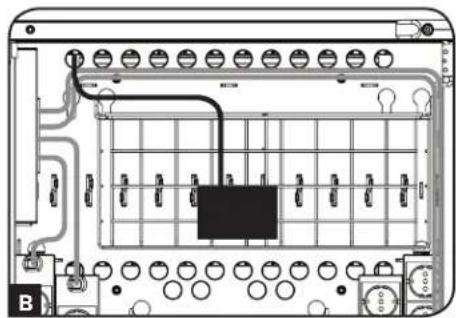

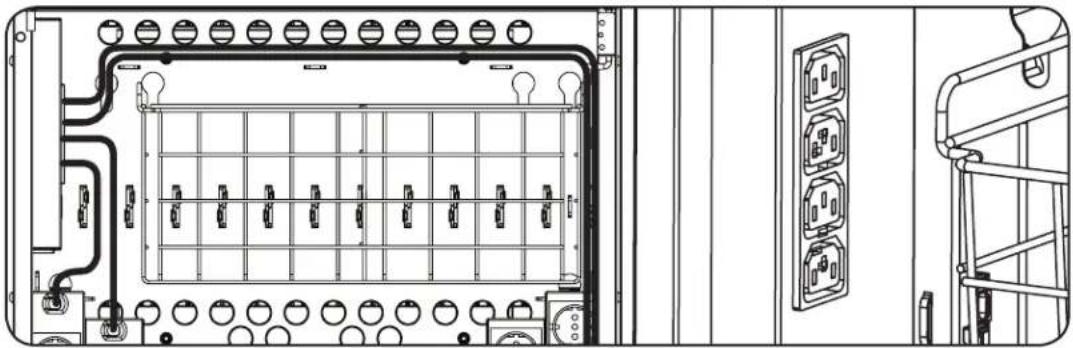

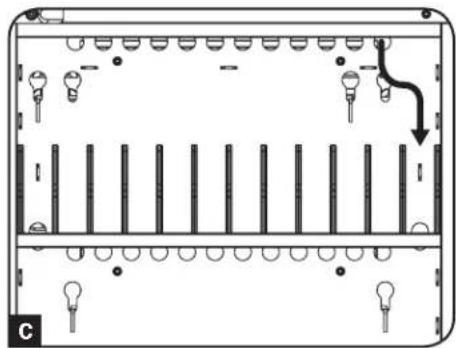

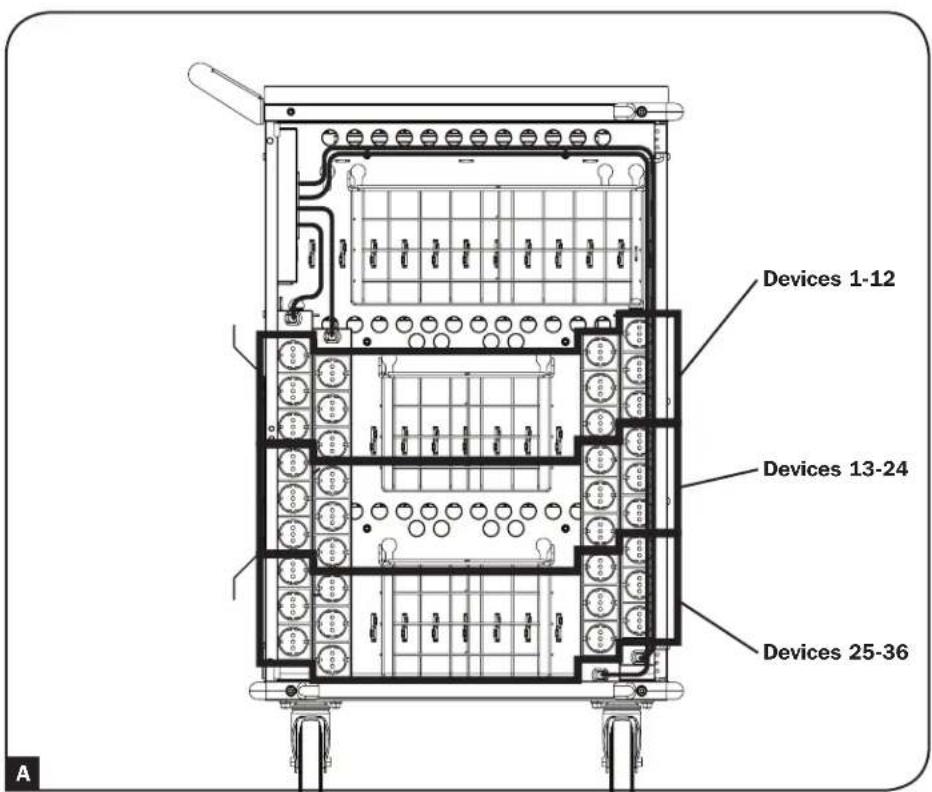

Your charging station contains three baskets A. To connect the device power bricks, place the bricks in the basket. Plug the power brick into an outlet on the AC charger unit B, then run the device cable and connector through a device slot C. Repeat as needed for each device.

Notes: Baskets are removable for easier power brick installation. If using fewer than 36 devices, you can adjust the number of shelf dividers for a particular shelf and zone. For more information, refer to 4.3 Adjusting Storage Shelf Dividers.

Devices 1-12 Devices 13-24 Devices 25-36 A

Technical diagram of an electronic device rear panel with grid layout and labeled ports (no readable text or symbols)

Plug and outlet type will vary by model.

Diagram of a rectangular electronic device with vertical bars and light bulbs, showing internal structure and a curved arrow indicating direction (no text or symbols)

Plug and outlet type will vary by model.

4. Setup

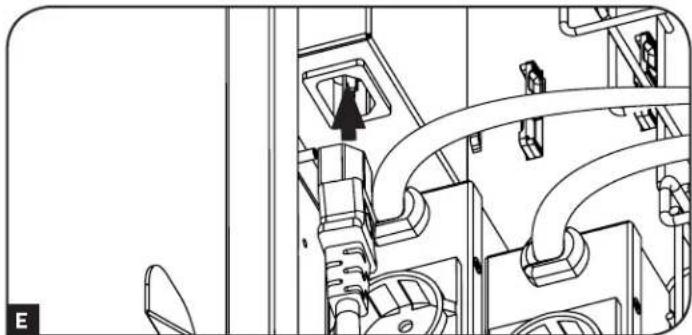

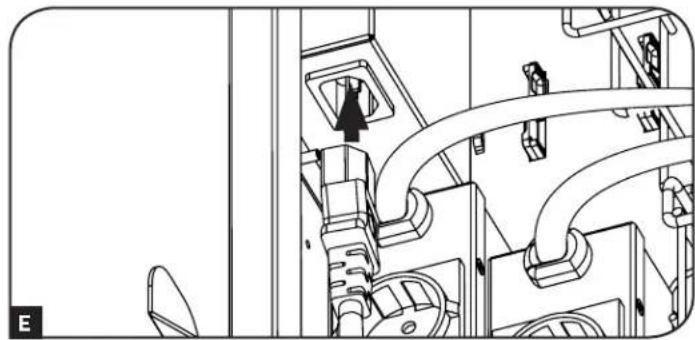

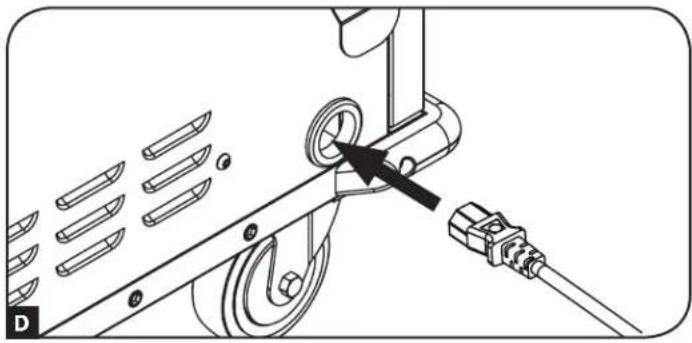

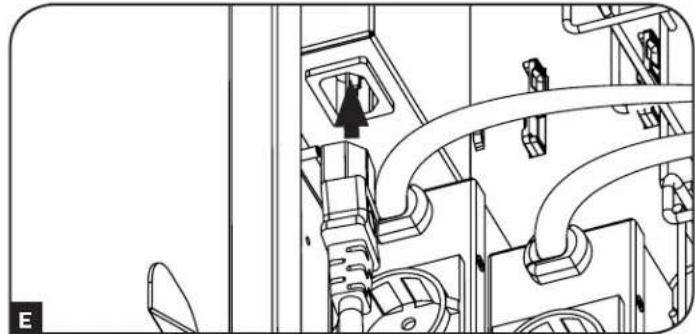

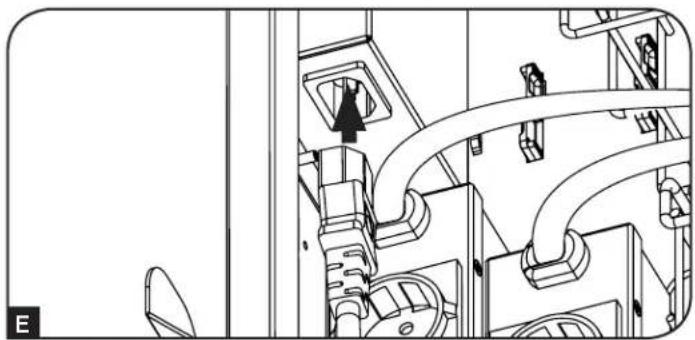

Connect all devices and place on their respective shelves. Once all devices are connected and stored, find the AC unit's input plug and cable located in the charging station's bottom compartment. Run the cable's C13 connector through the cable access hole D. Then insert the connector into the Power Unit located inside the rear of the charging station E.

Mechanical assembly diagram showing a lever mechanism with a connector and multiple tool pins (no text or symbols)

Technical line drawing of a mechanical assembly with pipes and components (no visible text or symbols)

4.5 Door Locks

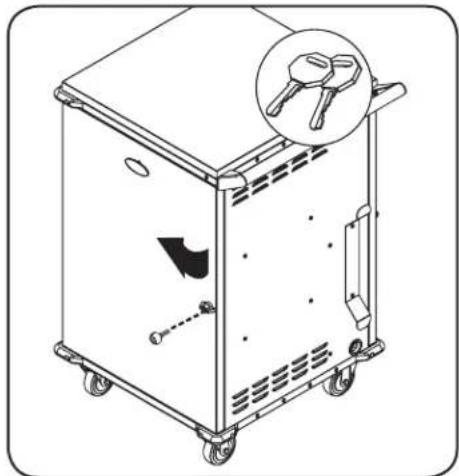

The doors contain a lock that is accessible with the included keys.

Line drawing of a mechanical device with a magnified inset showing two key holders (no text or symbols present)

5. Optional Display Mount Adapter Kit

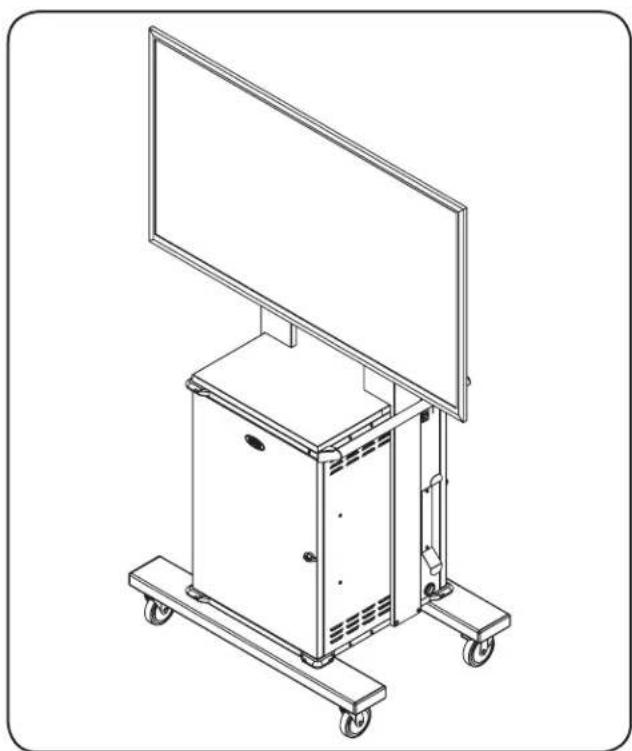

Add a television display to your charging station cart with an optional display mount adapter kit (model: CSC36DM). The adapter kit accommodates displays up to 60 inches and includes all installation hardware. For further installation instructions, refer to the CSC36DM Installation Guide.

Line drawing of a modular electronic device with wheels and a flat panel (no text or symbols)

6. Specifications

Cabinet Dimensions (H x W x D) 1094 x 661 x 733 mm
Unit Weight 50 kg
Load Capacity 113 kg
AC Receptacles CSCX36AC: 36 x Schuko CEE 7/7	CSCXB36AC: 36 x BS 1363
Power Requirement Input: 230V AC, 10A
Operating Temperature 0° to 40°C
Operating Humidity 5 to 95% RH, Non-Condensing

7. Storage, Service and Cleaning

Storage

The enclosure should be stored in a controlled indoor environment away from moisture, temperature extremes, flammable liquids and gasses, conductive contaminants, dust and direct sunlight. Store the enclosure in its original shipping container if possible.

Service

The enclosure is covered by the limited warranty described in this manual. For more information, visit www.tripplite.com/support.

Cleaning

Before cleaning, always power off the charging station by unplugging it from its AC source. Dampen a clean, lint-free cloth with water and wipe down the unit, as necessary. Allow the surface area to dry before plugging in the unit.

Note: Avoid using abrasive cloths, solvents or aerosol sprays to clean the charging station; doing so can damage the unit.

8. Warranty and Product Registration

2-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 2 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Product Registration

Visit www.tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Regulatory Compliance Identification Numbers

For the purpose of regulatory compliance certifications and identification, your Tripp Lite product has been assigned a unique series number. The series number can be found on the product nameplate label, along with all required approval markings and information. When requesting compliance information for this product, always refer to the series number. The series number should not be confused with the marketing name or model number of the product.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
