Brand	PANASONIC
Model	DMC-GM1LEF
Product Type	Interchangeable lens digital camera (LEICA DG SUMMILUX 15 mm/F1.7 ASPH. lens kit)
Lens Mount	Micro Four Thirds
Focal Length	f=15 mm (35 mm equivalent: 30 mm)
Maximum Aperture	F1.7
Minimum Aperture	F16
Optical Construction	9 elements in 7 groups (3 aspherical lenses)
Minimum Focusing Distance	0.2 m
Maximum Magnification	0.1× (35 mm equivalent: 0.2×)
Filter Diameter	46 mm
Total Weight (with lens, card and battery)	Approx. 319 g
Lens Weight Only	Approx. 115 g
Power Consumption (recording)	2.2 W
Power Consumption (playback)	1.5 W
Minimum Illumination	Approx. 5 lx (with i-Low, 1/25 s)
Flash Range (ISO AUTO)	0.5 m to 9.4 m
Battery Life (photos, CIPA standard)	Approx. 240 photos
Battery Life (video AVCHD/MP4)	Approx. 90 min
Battery Life (playback)	Approx. 160 min
Maintenance and Cleaning	Use a soft, dry cloth to clean the exterior. Refer to the instruction manual for detailed lens maintenance.
Safety	Do not expose to moisture or extreme temperatures. Use only the recommended battery and charger.
Spare Parts and Repairability	Spare parts available from the manufacturer. For repairs, contact a Panasonic authorized service center.

Frequently Asked Questions - DMC-GM1LEF PANASONIC

What type of battery is used and how to charge it?

The camera uses a rechargeable lithium-ion battery (model DMW-BLH7 for example). Charge it with the supplied charger. Refer to the instruction manual for details.

How to insert a memory card?

Open the memory card compartment cover on the bottom of the camera. Insert the card (SD/SDHC/SDXC) in the indicated direction until it clicks.

How to switch to manual focus (MF)?

Use the [AF/MF] switch on the lens. Set it to [MF] to activate manual focus. You can also adjust the focus mode in the camera menu.

How to install the supplied lens hood?

First remove the lens cap. Turn the decorative ring in the direction of the arrow to remove it. Align the mounting notch of the lens hood with the mark on the lens, then turn until it clicks. Refer to the manual for details.

How to adjust the aperture manually?

Turn the aperture ring on the lens. In Aperture Priority (A) or Manual (M) mode, the aperture value is controlled by the ring. If the ring is set to [A], the camera manages the aperture automatically.

What is the flash range?

The approximate range of the built-in flash is 0.5 m to 9.4 m when ISO setting is [ISO AUTO].

How many photos can be taken with a full charge?

According to CIPA standard, approximately 240 photos can be taken with the H-X015 lens. Video recording time is approximately 90 minutes in AVCHD or MP4.

Is this lens stabilized?

No, the H-X015 lens (LEICA DG SUMMILUX 15 mm/F1.7) does not have optical image stabilization. Use a tripod or enable in-body stabilization (if available) to reduce motion blur.

What is the minimum focusing distance?

The minimum focusing distance is 0.2 m from the lens distance reference line. The maximum magnification is 0.1× (35 mm equivalent: 0.2×).

How to clean the lens?

Use a soft, dry cloth (microfiber) to gently wipe the lens surface. For stubborn stains, use an optical cleaning solution. Never touch the lens with your fingers.

USER MANUAL DMC-GM1LEF PANASONIC

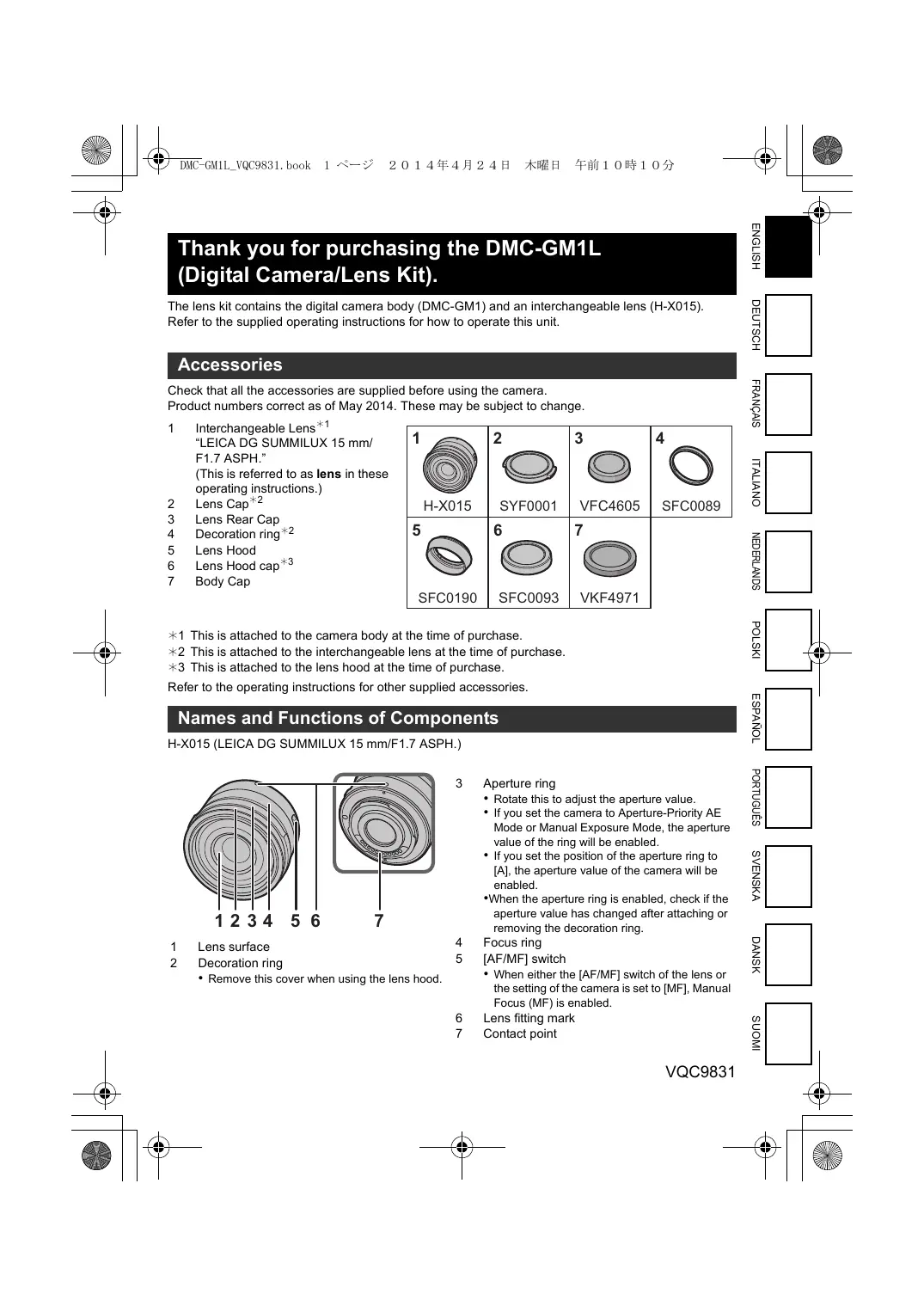

Thank you for purchasing the DMC-GM1L (Digital Camera/Lens Kit).

The lens kit contains the digital camera body (DMC-GM1) and an interchangeable lens (H-X015).

Refer to the supplied operating instructions for how to operate this unit.

Accessories

Check that all the accessories are supplied before using the camera.

Product numbers correct as of May 2014. These may be subject to change.

1 Interchangeable Lens*1

"LEICA DG SUMMILUX 15 mm/ F1.7 ASPH."

(This is referred to as lens in these operating instructions.)

2 Lens Cap*2
3 Lens Rear Cap
4 Decoration ring*2
5 Lens Hood
6 Lens Hood cap*3
7 Body Cap

1 H-X015	2 SYF0001	3 VFC4605	4 SFC0089
5 SFC0190	6 SFC0093	7 VKF4971

1 This is attached to the camera body at the time of purchase.
2 This is attached to the interchangeable lens at the time of purchase.
*3 This is attached to the lens hood at the time of purchase.

Refer to the operating instructions for other supplied accessories.

Names and Functions of Components

H-X015 (LEICA DG SUMMILUX 15 mm/F1.7 ASPH.)

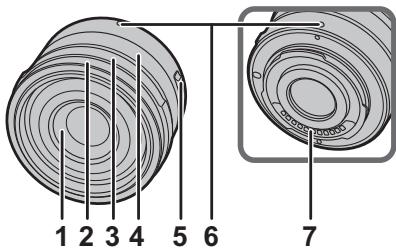

1 Lens surface
2 Decoration ring

• Remove this cover when using the lens hood.

3 Aperture ring

• Rotate this to adjust the aperture value.
• If you set the camera to Aperture-Priority AE Mode or Manual Exposure Mode, the aperture value of the ring will be enabled.
• If you set the position of the aperture ring to [A], the aperture value of the camera will be enabled.
• When the aperture ring is enabled, check if the aperture value has changed after attaching or removing the decoration ring.

4 Focus ring
5 [AF/MF] switch

• When either the [AF/MF] switch of the lens or the setting of the camera is set to [MF], Manual Focus (MF) is enabled.

6 Lens fitting mark
7 Contact point

Attaching the Lens Hood

Interchangeable Lens (H-X015)

• Before attaching the lens hood, make sure to remove the lens cap. The lens hood cannot be attached unless you remove the lens cap.

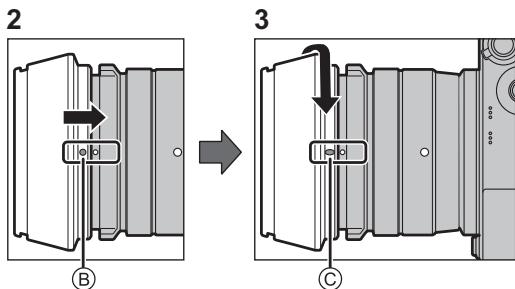

1 Rotate the decoration ring in the direction of the arrow to remove it.

2 Align the mounting index on the lens hood with the mark on the tip of the lens.
3 Rotate the lens hood in the direction of the arrow until it clicks into place, and align the stop position ⑥ on the lens hood with the index on the tip of the lens.

■ Attaching the decoration ring

• Before attaching the decoration ring, make sure to remove the lens cap.

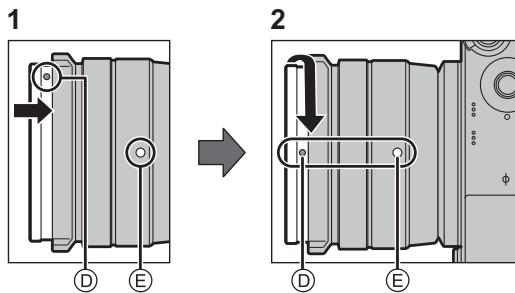

  1 Align the mounting position ① on the decoration ring with a position approximately 90^ away from the lens fitting mark E to fit the decoration ring into place.
  2 Rotate the decoration ring in the direction of the arrow to align the mounting position ① on the decoration ring with the lens fitting mark E.

Specifications

Power Consumption: When the interchangeable lens (H-X015) is used

2.2 W (When recording)

1.5 W (When playing back)

Minimum Illumination	Approx. 5 lx (when i-Low light is used, the shutter speed is 1/25th of a second)
Flash	Flash range: Approx. 0.5 m (1.6 feet) to 9.4 m (31 feet) (When [ISO AUTO] is set)
Mass	Approx. 319 g/0.70 lb [with the interchangeable lens (H-X015), card and battery]

Refer to the operating instructions for other specifications.

Interchangeable Lens (H-X015) "LEICA DG SUMMILUX 15 mm/F1.7 ASPH."

Focal length	f=15 mm (35 mm film camera equivalent: 30 mm)
Aperture type	7 diaphragm blades/circular aperture diaphragm
Maximum aperture	F1.7
Minimum aperture value	F16
Lens construction	9 elements in 7 groups (3 aspherical lenses)
Nano surface coating	Yes
In focus distance	0.2 m (0.66 feet) to ∞ (from the focus distance reference line)
Maximum image magnification	0.1× (35 mm film camera equivalent: 0.2×)
Optical Image Stabiliser	Not available
[AF/MF] switch	Available (Switching AF/MF)
Mount	"Micro Four Thirds Mount"
Angle of view	72°
Filter diameter	46 mm
Max. diameter	Approx. 57.5 mm (2.3 inch)
Overall length	Approx. 36 mm (1.4 inch) (from the tip of the lens to the base side of the lens mount)
Mass	Approx. 115 g (0.25 lb)

• LEICA is a registered trademark of Leica Microsystems IR GmbH. SUMMILUX is a registered trademark of Leica Camera AG. The LEICA DG lenses are manufactured using measurement instruments and quality assurance systems that have been certified by Leica Camera AG based on the company's quality standards.

Approximate operating time and number of recordable pictures

When the interchangeable lens (H-X015) is used

Recording still pictures (By CIPA standard in Programme AE Mode)
• Number of recordable pictures: Approx. 240 pictures • Recording time: Approx. 120 min
Recording motion pictures
[AVCHD] (Recording with picture quality set to [FHD/50])	• Recordable time: Approx. 90 min
	• Actual recordable time: Approx. 45 min
[MP4] (Recording with picture quality set to [FHD/25p])	• Recordable time: Approx. 90 min
	• Actual recordable time: Approx. 45 min
Playback
• Playback time: Approx. 160 min

1 Lensoppersvlak
2 Decorative ring
