Senior - Smartphone Konrow - Free user manual and instructions

Product type	Smartphone
Brand	Konrow
Model	Senior
Dimensions (approx.)	132 x 57 x 13 mm
Weight (approx.)	95 g
Display type	Color TFT
Screen size	2.4 inches
Screen resolution	240 x 320 pixels
Battery capacity	1200 mAh (typ.)
Charger	5 V / 500 mA
First charge	5 to 8 hours
SIM cards	Dual SIM (mini-SIM)
Memory card	MicroSD up to 8 GB
Network	GSM 900/1800 (2G)
Connectivity	Bluetooth, USB 2.0
FM radio	Yes, without headphones
Flashlight	Yes, LED
Assistance button	Yes
Camera	Rear, 0.3 MP (VGA)
Main functions	Calls, SMS, radio, flashlight, voice assistant, contacts, calendar, calculator
Maintenance	Clean with a soft dry or slightly damp cloth
Safety	SAR head: <2 W/kg, SAR body: <2 W/kg (at 5 mm)
Spare parts	Not provided by the manufacturer
Warranty	Limited manufacturer's warranty (see manual)
Box contents	Phone, battery, charger, USB cable, handsfree kit, charging station, manual

Frequently Asked Questions - Senior Konrow

How to insert the SIM card into the Konrow Senior?

Turn off the phone, remove the back cover and battery. Insert the SIM card into the designated slot (SIM1 or SIM2) respecting the insertion direction. Replace the battery and back cover. Warning: inserting or removing the SIM card must be done with the phone turned off.

How to charge the battery of the Konrow Senior?

You can charge the battery by connecting the USB cable to the phone and then the power adapter to a socket, or by using the provided charging station. The first charge must last 5 to 8 hours. Use only the supplied charger.

How to turn the phone on and off?

To turn on, press the Power button for 3 seconds. To turn off, also press the same button for 3 seconds. You can also put it in standby by pressing briefly.

How to lock and unlock the keypad?

To unlock: press the Unlock button at the top left then the * key. To lock: press the Menu button then the * key. You can set a password in the security settings.

How to use the SOS function (emergency call)?

The emergency call function allows calling a predefined number without entering the PIN code. Consult the SOS section of the menu to configure the number. In case of emergency, press the dedicated button.

How to listen to FM radio without headphones?

The Konrow Senior is equipped with an FM radio working without headphones thanks to a built-in antenna. In the radio interface, use the directional keys to search for stations. Press key 5 for play/pause.

How to activate the flashlight?

The LED flashlight is activated via the dedicated button (Flashlight and Radio/MP3 button) on the keypad. It works even when the phone is off. Press the button to turn on or off.

How to insert a MicroSD memory card?

Turn off the phone, remove the back cover and battery. Insert the MicroSD card (max 8 GB) into the designated slot. Replace the battery and back cover. Warning: insertion or removal requires complete shutdown.

What is the maximum supported memory card capacity?

The Konrow Senior supports MicroSD cards up to 8 GB maximum. Use a card of this capacity to store photos, videos and music.

What to do if I forget the lock password or PIN code?

If you forget the password, the device may be permanently blocked. Write down your password in a safe place. The warranty does not cover this issue. No reset can solve it. Contact customer service for assistance.

USER MANUAL Senior Konrow

Simplified declaration of conformity 39

7 13:37 2018 Mobile Deverrouiler Konrow 1 2 3 4 5 6 konrow

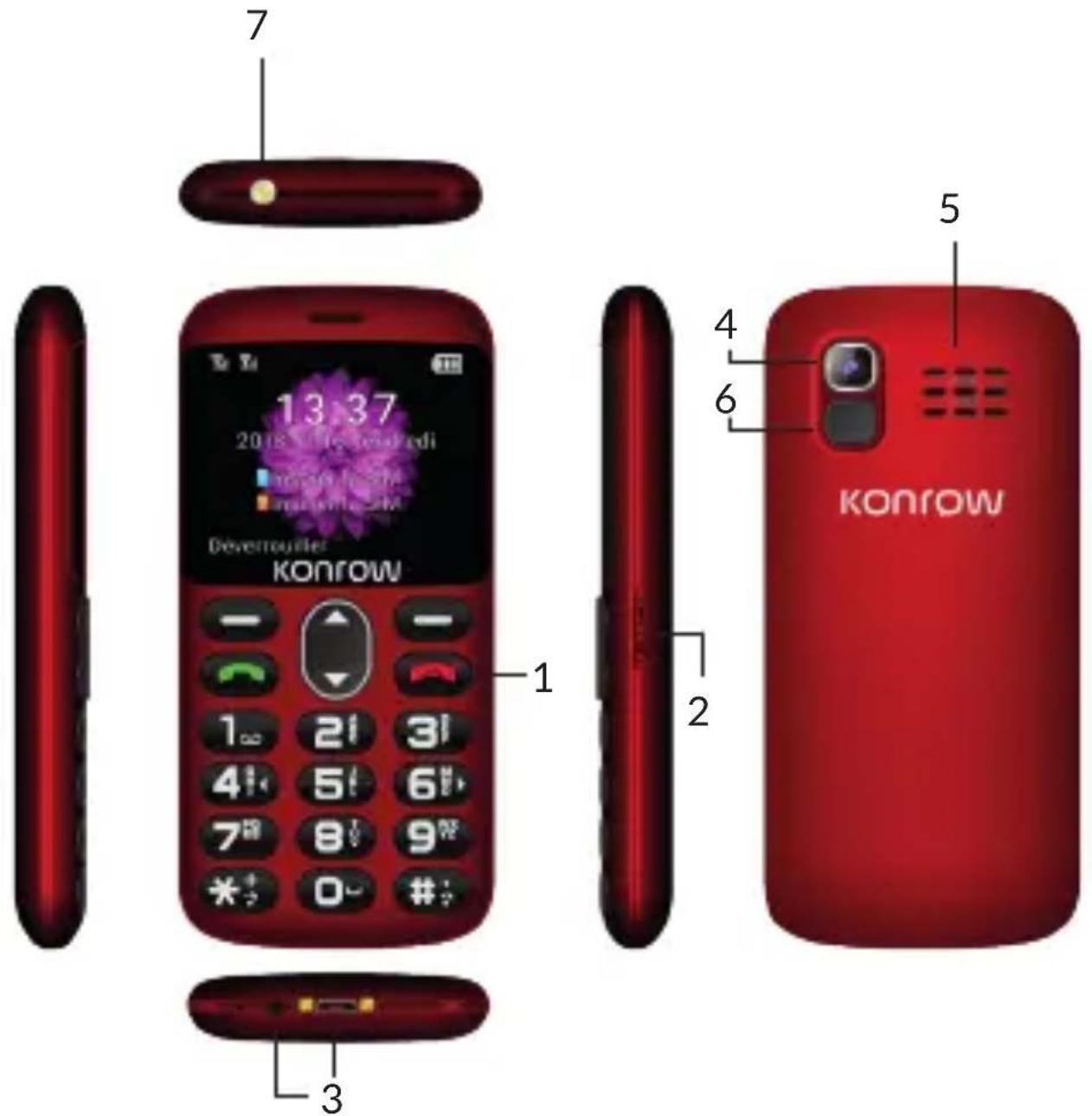

EN	1. ON/OFF button	5. Speakers
	2. Torch and Radio / MP3 button	6. Assistance button
	3. USB port and Jack plug	7. Torch
	4. Rear cameras

for purchasing SENIOR mobile phone. You will find all the information regarding the use of this cellphone in this guide.

CAUTION : The packaging materials, such as the adhesive tape, plastic film, string and labels are not part of this product.

GIFTBOX CONTENT :

• 1 Mobile phone • 1 User guide
• Dock station
  • 1 Mains adaptor / USBable • 1 Headset

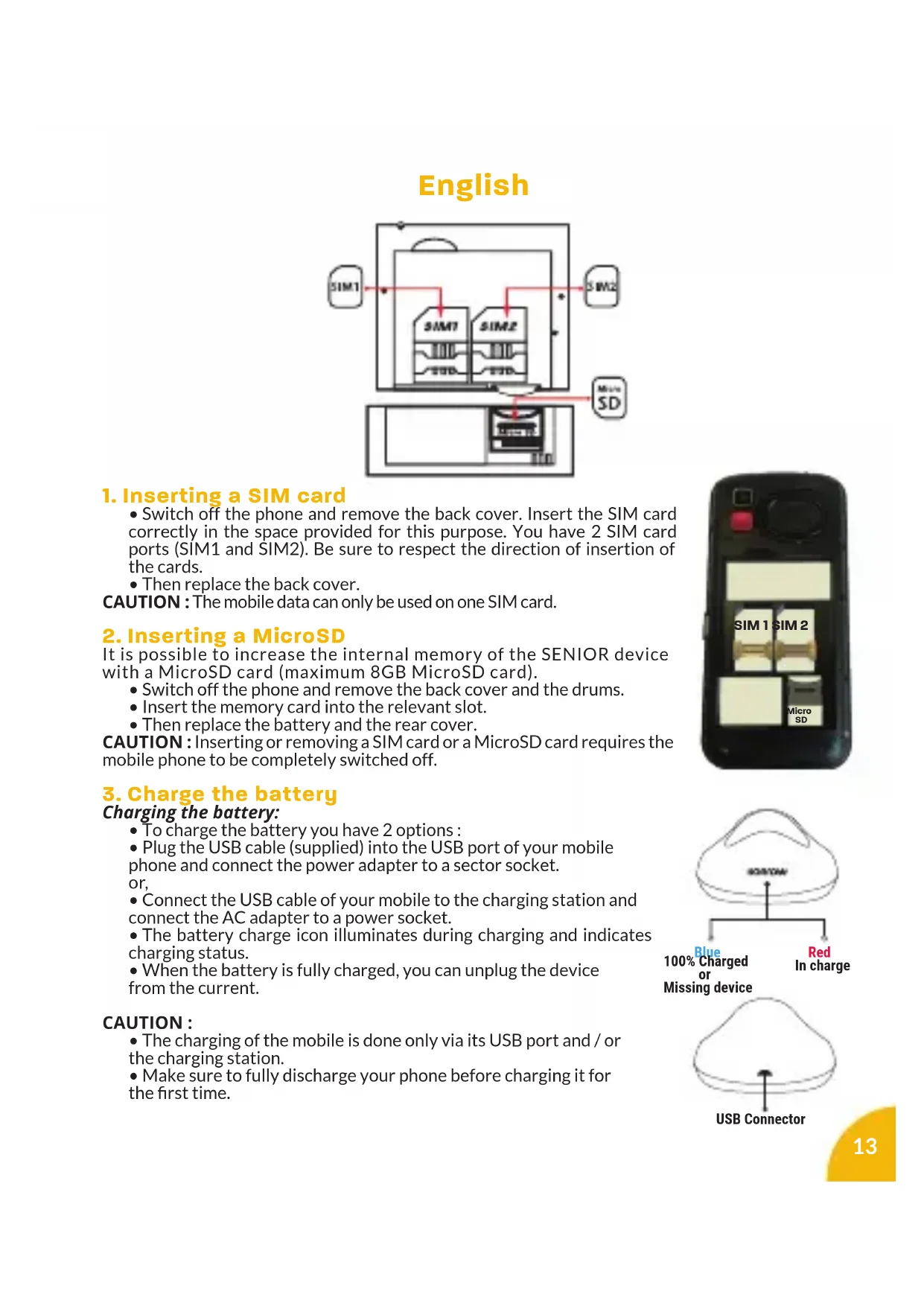

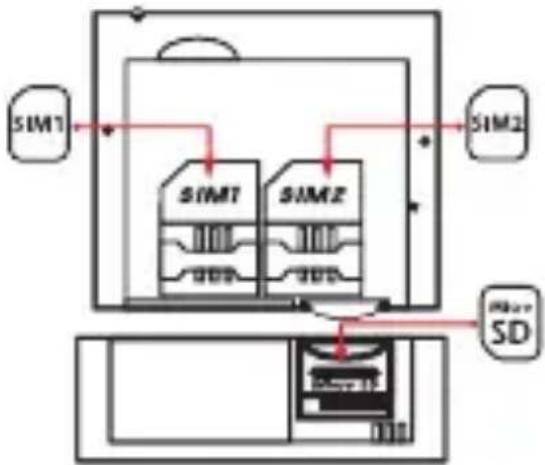

1. Inserting a SIM card

• Switch off the phone and remove the back cover. Insert the SIM card correctly in the space provided for this purpose. You have 2 SIM card ports (SIM1 and SIM2). Be sure to respect the direction of insertion of the cards.
• Then replace the back cover.

CAUTION : The mobile data can only be used on one SIM card.

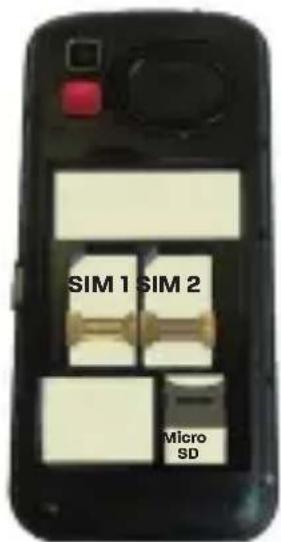

2. Inserting a MicroSD

It is possible to increase the internal memory of the SENIOR device with a MicroSD card (maximum 8GB MicroSD card).

• Switch off the phone and remove the back cover and the drums.
• Insert the memory card into the relevant slot.
• Then replace the battery and the rear cover.

CAUTION : Inserting or removing a SIM card or a MicroSD card requires the mobile phone to be completely switched off.

3. Charge the battery

Charging the battery:

• To charge the battery you have 2 options:
- Plug the USB cable (supplied) into the USB port of your mobile phone and connect the power adapter to a sector socket. or,
- Connect the USB cable of your mobile to the charging station and connect the AC adapter to a power socket.
- The battery charge icon illuminates during charging and indicates charging status.
- When the battery is fully charged, you can unplug the device from the current.

CAUTION :

• The charging of the mobile is done only via its USB port and / or the charging station.
• Make sure to fully discharge your phone before charging it for the first time.

SIM 1 SIM 2 Micro SD

605/04W Blue 100% Charged or Missing device Red In charge

USB Connector

- The battery must be charged for at least 5 to 8 hours during the first charge.

Note: You can use the device when it is being charged. In this case, the battery may take longer to charge fully.

Precautions to be observed for the charging of the battery :

• To charge the battery, use only the adapter sector provided with your device. Do not use any other power supplies or electrical devices.
• The sector socket to which the appliance is connected must be installed near the equipment and should always be easily accessible.
• Always wait at least 5 seconds after turning off the device before restarting it. Switching the device off and back on immediately may damage the electrical circuits.
• Do not disassemble the battery. Do not throw the battery into fire or water. Do not load the battery if the ambient temperature exceeds 45^ .
• For repair or replacement of the battery, contact a technician qualified.
• Battery life depends largely on how you use it. Do not expose the battery to temperatures below 0^ or above 50^ . Its operation could be altered.
• Significant electromagnetic interference or electrostatic discharge may cause malfunction or loss of data. If the device does not work correctly, reset the smartphone or unplug the adapter outlet area, and then reconnect it.

4. Switching the mobile phone on and off

To switch the mobile phone on, press the On/Off button located on the mobile phone keypad for 3 seconds.

If the mobile phone is switched on, press for less than a second on the button to put the device into standby mode. Press it again to leave standby mode.

To switch off the mobile phone, press the On/Off button for 3 seconds until a menu appears, then touch the Off button and confirm.

5. Locking/unlocking SIM cards

Your SENIOR is a dual SIM mobile, it allows you to call with two subscriptions from the same device. There are two slots for two SIM cards.

• When you start your mobile, it will invite you to enter successively the PIN code of your two SIM cards. (SIM1 then SIM 2).
• The emergency call feature allows you to call a number without having to enter the PIN code.

6. Locking/unlocking the phone

To unlock the keyboard :

- Press the Unlock button at the top left and then press the button * (star).

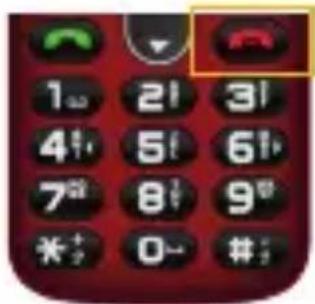

To lock the keyboard :

- Press the Menu button at the top left and press the button * (star). You can set the screen lock by adding a password.

CAUTION : Forgotten or lost password, PIN code blocks your mobile phone. In case of forgetting or loss, the product warranty does not happen for such negligence. Indeed, even a reset does not can not solve this problem. As a precaution, write down your password.

PASSWORD:

7. Making and receiving calls

NOTE : It is impossible to make or receive a call on the two SIM cards at the same time. For example, if you are on a call on the SIM 1 line, those trying to contact you on SIM 2 will automatically be diverted to voicemail.

Making a call :

• Dial the number of your choice and press the button.
• Choose SIM card 1 or SIM 2, then press ok to launch a call.
• Once the call has been launched, press the arrows to adjust the volume of the call.
• When you want to end a call, press the button.

Receiving a call :

• When a call is received, press the button.
• When you want to end a call, press the button.

General Settings

1. Profiles

This function allows you to switch your mobile in different modes: general, silent, meeting, or outside.

2. Phone settings

• Time & date : Set the time, set the date, set the date format, the time format and update the time settings.
• Schedule power on/off: Program the ignition or extension of the mobile.
  • Language : Select the display language for the mobile phone.
• Preference Input Methods: Enable or disable automatic word input when entering an SMS.
  • Display: Change the display settings of the screen,
  • Dedicated keys : Change the shortcuts of the directional keys.
  • Flight mode : Disconnect the device from the network.

3. Security Settings

This function allows you to change the mobile lock settings.

4. Dual SIM settings

This function allows you to choose SIM1 or SIM 2.

5. Connectivity

Allow to configure the APNs.

6. Factory Settings

You can cancel the settings you have set. The default security password is the 1122.

Bluetooth

You can enable Bluetooth via the Menu button.

- Press the menu button and scroll down until you see the icon.

- Press ok and press On or Off

- Press the menu button and scroll down until you see the icon. - Press ok and press On or Off

Once Bluetooth is activated, the icon appears on your screen.

You can transfer data, such as music, to any other device using the Bluetooth. Find the device and receive / transfer the data. The data received is automatically saved in the directory.

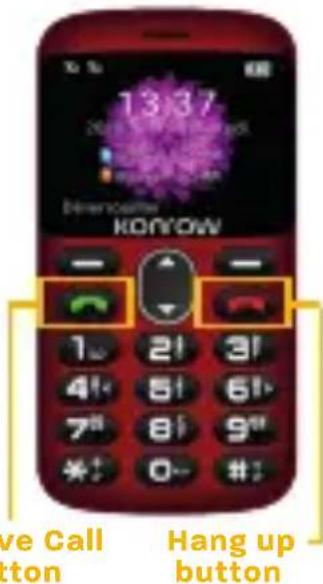

13:37 KOROW 121 31 416 61 61 78 81 91 0-# #: #ve Call button Hang up button

Note : to limit your exposure to electromagnetic fields, we will recommend turning off Bluetooth when it is no longer used.

SOS

The emergency call feature allows you to configure and call an emergency number.

Contacts

You can add and edit contacts.

Messages

You can create a text or multimedia message, access the inbox, drafts, box, sent messages and you can also create predefined messages in this interface. An SD card is required for receiving MMS (photos / videos). You can also when entering an SMS, change the input method by pressing the button #. If the SMS memory is full, a flashing message icon will appear at the top of the screen. the screen. To receive SMS messages normally, you need to delete some existing SMS.

Call Log

Access your call history. You can reject and block a number once it has been entered in the black list of blocked numbers. You can also enable or disable the automatic callback.

Camera

The phone has a camera that supports photography functions. In the capture interface, position the phone to aim using the camera and press the OK button to take pictures. Photos will be saved in the memory card. However, an SD card is required for storage of your photos.

Image Viewer

You can see all the pictures stored in the memory card. Press the buttons direction to select them and use the left soft button to edit the images. Press the Back button at the top right to return to the previous interface.

Alarm

You can set five alarms with this function.

Applications

1. Talking Mobile

This function allows you to enter the numbers that you enter or receive.

2.Calendar

Once you access this menu, there is a monthly calendar that will allow you to keep a trace important appointments, etc. Days with an event will be marked.

3.Calculator

The calculator can add, subtract, multiply and divide.

4.File Manager

The phone supports the memory card. The capacity of the memory card is at maximum 8 GB. You can use the file manager to manage the different directories and files on the memory card.

Select this option to enter the root directory of the memory. The root directory can list default folders, new folders, and user files. When the mobile phone is turned on for the first time or when you have not changed the phonebook, the root directory contains the default folders only.

FM Radio

You can use the app as a traditional FM radio with search channels automatic registered. You do not need headphones as an antenna. In the interface FM radio, use the left or right arrow button to search for channels manually, press the 5 button to play / pause the process of reading the string current.

Multimedia

1. Audio Player

You can use this function to play audio files. By pressing the direction, you can control the playback process of the audio player: play / pause (button OK), previous / next song (left or right arrow button), fast forward (press and hold down the right arrow key)

and rewind (press and hold the left arrow button). In the audio player interface, you can press * and # to control the volume.

2. Video Recorder

This function allows you to record videos. In the capture interface, press the OK button to capture the video clip. An SD card is required for storing your videos.

3. Video Player

You can use this function to play video files. By pressing the buttons direction, you can control the playback process of the audio player: play / pause (button OK), previous / next video (direction button up or down). In the reader interface video, you can press * and # to control the volume.

4. Sound Recorder

The phone supports AMR, MP3 and AAC formats.

Torch

The phone has an LED torch that also works the mobile off.

Deutch

SOTOW Blue 100% Charged or Missing device Red In charge USB Connector

Organizer 1. Talking Mobile

100% charged Blue 100% charged or Red In charge

Missing device

Simple line drawing of a cloud with a vertical arrow pointing upward (no text or symbols)

USB Connector

BELANGRIJK :

13:37 KONYOW

Warning symbol with a sine wave inside a triangle (no text or numbers)

Safety and care information

Read these instructions carefully.

Charging the battery

Always wait at least 5 seconds after switching off the device before restarting it. Switching the device off and then back on again immediately may damage the electrical circuits.

Do not disassemble the battery. Do not dispose of batteries in fire or water. Do not charge the battery if the room temperature is below 0^ C or exceeds 45^ C. For all repairs or to replace the battery, consult a qualified technician. The lifetime of the battery depends largely on how you use it. To recharge the battery, only use the mains adaptor supplied with your device. Do not use any other power supply or electrical device.

The power socket to which the device is connected must be near the equipment and must always be easily accessible. The power cord must be placed so that it will not be stepped on or crushed particularly at the outlet, where it is plugged in or where it is connected to the device.

Do not overload the power socket. Use the power supply only as indicated. Disconnect this device during electrical storms or when not in use for an extended period. Do not touch the power cord with wet hands and do not pull on the charger to disconnect it.

This charger is for indoor use only.

Only use adapter as per below:

Manufacturer name : Konrow

Manufacturer address : 150 Avenue des Chartreux, 13004 Marseille FRANCE

Model Name : SENIOR

Rated Input: AC 100-240V\~50/60Hz

Rated Output: 5V = 500mA

Hearing

Prolonged use of this music player at full power may damage the user's hearing. In order to prevent these risks it is recommended not to listen at high volume levels for long periods.

While driving

In France, in accordance with Article R412-5-1 of the French Highway Code, drivers are not permitted to use hand-held phones nor the use of a device or a hands-free kit capable of distracting the attention whilst the vehicle is moving. The penalty for non-compliance with this article is a fine and point penalty on your driving licence.

NOTE: this legislation applies only in France. During trips abroad, please refer to the legislation in place in the country you are/go.

According to each environment

Do not use your device in certain locations such as aircraft, hospitals, service stations and professional garages or while driving a vehicle. The electromagnetic waves from the device can disrupt the performance of electronic devices used in these locations.

We recommend that you switch off your device or switch it to flight mode in these locations to avoid interference.

Warning symbol with a sine wave inside a triangle, indicating sound or audio hazard.

If you use an electronic implant (pacemakers, insulin pumps, neurostimulators, etc), please keep a distance of 15cm between the device and your electronic implant.

Do not expose the device to direct sunlight or other source of extreme heat or cold. Operating temperature: -10^ and 40^ .

Risk of fire or electric shock

Do not expose this device to rain or moisture. Do not expose the product to water droplets or to splashes and do not place any object filled with liquid, such as a vase, on the device. Do not use the product near flammable or explosive materials.

Device to handle with care

Do not exert excessive pressure on the screen and do not put objects on it. This could damage the screen. Do not drop the device. Do not expose the device to shocks, friction or impact.

Operating guidelines

Maintaining the device

Keep the device away from all metal objects (coins, keys, etc). Clean only with a soft cloth (dry or slightly damp).

Do not attempt to disassemble the device; it would no longer be covered by the warranty. Use only the spare parts/accessories specified by the manufacturer. Refer to a qualified person for any repairs. After any service or repair carried out on this product, ask the technician to perform a safety check.

Prevent data loss

Significant electromagnetic interference or electrostatic discharge may cause malfunction or loss of data. If the device is not working properly, restart the device or unplug the mains adaptor from the power socket then plug it in again. In order to prevent data loss, remember to make a (computer or paper) back-up of information saved on the device.

Recycling

The symbol shown here and on the product means that the product is classed as Electrical or Electronic Equipment and should not be disposed with other household or commercial waste at the end of its working life.

The Waste Electrical and Electronic Equipment (WEEE) Directive (2012/19/EU) has been put in place to recycle products using best available recovery and recycling techniques to minimise the impact on the environment, treat any hazardous substances and avoid the increasing landfill.

Product disposal instructions for residential users:

If you no longer use the device, remove and dispose of the battery, as well as the device, in compliance with the local recycling procedures. For more information please contact your local authority or the retailer where the product was purchased.

Product disposal instructions for business users:

Business users should contact their suppliers and check the terms and conditions of the purchase contract and ensure that this product is not mixed with other commercial waste for disposal.

Specific Absorption Rate "SAR" - Exposure to radio frequency

Your device is designed and produced to comply with European authorities for exposure to radiofrequencies.

The SAR (Specific Absorption Rate) of devices quantifies the maximum level of exposure of the user to electromagnetic waves for normal use at the ear and use close to the body. European legislation stipulates that the SAR must not exceed 2W/kg averaged over 10g of tissue.

The value of the SAR is determined on the basis of the highest level of radio frequencies emitted during laboratory tests.

The actual value of the SAR during use of the device is lower than this level.

The value of the SAR of the device can vary according to the following factors: how far/close the device is to a relay antenna, use of accessories and others.

NOTE: The SAR value may vary, depending on national reporting and testing requirements and the network band.

Advice to reduce the level of exposure to radiation:

Please use your device where reception is good to reduce the quantity of radiation received (avoid using in an underground car park or when travelling (train or car)).

A reception icon indicates the quality of reception on your device. A 4-bar display means that reception is good.

Use of a hands-free kit also allows the level of exposure to be reduced.

When using a hands-free kit, pregnant women should keep the device away from their abdomen and teenagers should keep the device away from their lower abdomen.

If you have any problem :

Please contact the after-sales service on the contact page of our website: www.konrow.com

Made in China

2018 Konrow.

If unresolved problem, contact your retailer.

The Konrow supplier warranty is valid for normal use of the device as defined in the instructions. This warranty excludes damage caused by external circumstances.

Specifically, the warranty does not apply if the device is damaged as a result of a bump or drop, an operating error, a connection that does not comply with these instructions, lightning, a surge, or inadequate protection against heat, humidity or freezing temperatures.

The warranty is applicable only in metropolitan France.

The warranty does not cover:

- User manuals or applications, settings, content or data of any kind.

- Normal usury of the product (screens, batteries and camera).

- Damage to the product due to misuse, including in particular those caused by objects, a pressure drop.

- Any use of the label with the precautions outlined in the manual.

- Defects caused to the product with another product connected or used with an accessory or software not provided by Konrow.

- Any damage to the battery.

- The product or its accessories if it has been disassembled or modified in any way.

- Any unidentifiable product by serial number or IMEI number(s). If its elements have been removed, altered or defaced, the warranty does not apply.

- Damage done to the product caused by exposure to moisture, conditions that extreme heat or cold, corrosion, oxidation, with any liquid whatsoever

- Any damage to SIM player(s) or SIM MicroSD reader.

- The legal warranty for hidden defects applies in compliance with Articles 1541 et seq. of the French Civil Code.

konrow

10, D-32825 Blomberg, Germany.

Téléphone: [phone]

Fax: [phone]

CE

01/01/2019 Maurice Haddad / CEO

Simplified declaration of conformity

We, Konrow - 150 Avenue des Chartreux - 13004 Marseille - FRANCE,

hereby declare that the Smartphone SENIOR complies with the essential requirements of the RED Directive 2014/53/UE :

The Full declaration of conformity is available in the following link :

http://www.konrow.com/download/Declaration_de_conformite/SENIOR/Declaration_of_conformity_full.pdf

The complete informations about the device can be found in the different sections below:

Battery and manufacturer informations	On the back of the device (integrated battery location)
Device serial number	On the back of the device (integrated battery location)
IMEI	On the back of the device (integrated battery location)

The procedure of Declaration of conformity RED was conducted under the supervision of the following organisation:

PHOENIX TESTLAB Königswinkel

10, D-32825 Blomberg, Germany.

Téléphone: [phone]

Fax: [phone]

01/01/2019 Maurice Haddad / CEO

Date (Name and signature of the duly authorised person)

French regulation require that the SAR does not exceed the maximum value of 2W/kg on 10g of tissue. The device complies with radio frequency regulations when the device is used at the ear and at a distance of 5mm from the body.

03/12/2018
