USER MANUAL AirPure AP 1.1 BLAUPUNKT

natural_image Three black cylindrical devices with visible internal components and a small display screen (no text or symbols on the devices themselves)

Enjoy it.

EN - Operating Instructions

text_image AIRPURE AP 1.1 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

BLAUPUNKT AirPure AP 1.1 - Enjoy it. - 1

text_image 10 11 037 价 ...... 13 12

Funktionen

text_image 037 ARPURE AP 11
text_image ARPURE AP 11
text_image APPURE AP 13
text_image AFFURE AP 1.1

Filterwechsel

natural_image Illustration of a hand holding a cylindrical object with a rotating arrow indicating rotation (no text or symbols)
natural_image Line drawing of a hand holding a cylindrical object with a ring, no text or symbols present
natural_image Illustration of a hand holding a vial with a dropper, and another hand pouring liquid into a container (no text or symbols)
natural_image Illustration of a hand holding a cylindrical object with circular arrows indicating rotation (no text or symbols)

Safety Notes

  • Do not clean or spill liquids or flammable solvents on the device.
  • Clean with soft cloth only. Disconnect AirPure before cleaning.
  • Handle with care. Do not drop. Keep it away from electric & magnetic area.
  • Keep AirPure free of any object obstructing the air flow.
  • Do not let children play with air purifier.
  • Do not operate the device while driving.
  • Use the power cable provided only.

Disclaimer

In no event shall Blaupunkt be liable for any direct, indirect, punitive, incidental, special consequential damages to property or life and whatsoever arising out of or connected with the use or misuse of our products. USA & CANADA: This product is not intended for sale in the United States and Canada. If purchased in the U.S. or Canada, this product is purchased on as-is basis. No warranty, whether expressed or implied is provided in the U.S. or Canada.

BLAUPUNKT AirPure AP 1.1 - Disclaimer - 1

text_image AIRPURE AP 1.1 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

BLAUPUNKT AirPure AP 1.1 - Disclaimer - 2

text_image 10 11 037 价 .... 13 12

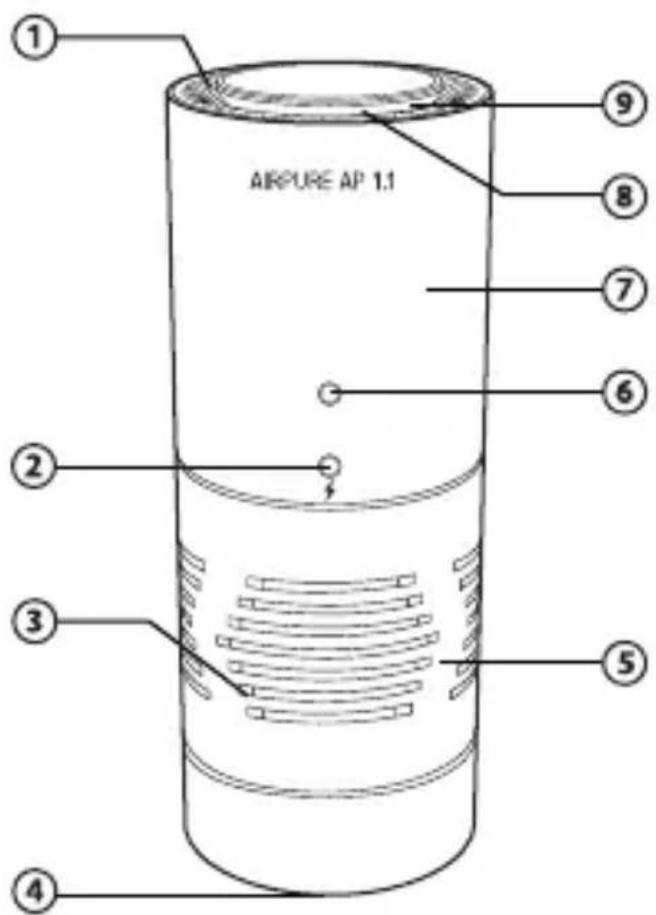

Functions

  1. Air Outlet
  2. Power Supply Port
  3. Air Inlet
  4. Bottom Cover
  5. APF1 Filter (Pre Filter, HEPA Filter, Activated Carbon Filter)
  6. Aroma Holder
  7. PM2.5 Sensor
  8. Turbo Fan
  9. Buzzer

  10. Ultraviolet Germicidal Lamp

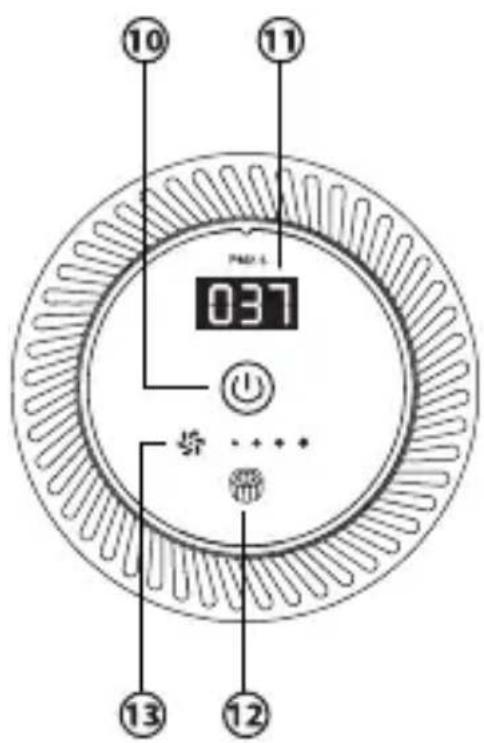

  11. Touch Control (Power Button and Fan Speed Control)

  12. PM2.5 Indicator
  13. Filter Replacement Reminder
  14. Fan Speed Indicator

SPECIFICATIONS

• Indicator Display : PM2.5 Level, Filter Replacement Reminder, Auto/Manual Fan Speed
• Pre-packed with Blaupunkt AirPure Filter (APF1)
• Noise Level : ≤35dB
• Fan Type : Double inlet DC Turbo Fan
• HEPA Filter Grade : H11
• Ultraviolet Wavelength : 253.7nm
• Applicable for space : 5m³-11m³
• Input Voltage : 5V
- Current: 1A
• Power: <5W
• Dimensions: 71mm x 195mm
- Net Weight: 425g
• Accessories: USB Power Cable

TROUBLESHOOTING

If any of the following problem occur, please resort to Troubleshooting for the possible solutions. Consult Blaupunkt authorized dealer if problem persist.

ProblemsPossible CausesSolutions
Air purifier does not power onAir purifier is not connected to a power supply.Ensure the USB cable is properly connected to USB power supply ports and air purifier's power input.
Airflow is significantly reducedExceed filter replacement cycle.Replace with new filter.
Unusual noise while operatingFilter is not fitted properly.Refer to operation instruction for correct filter replacement steps.

Air Purifier

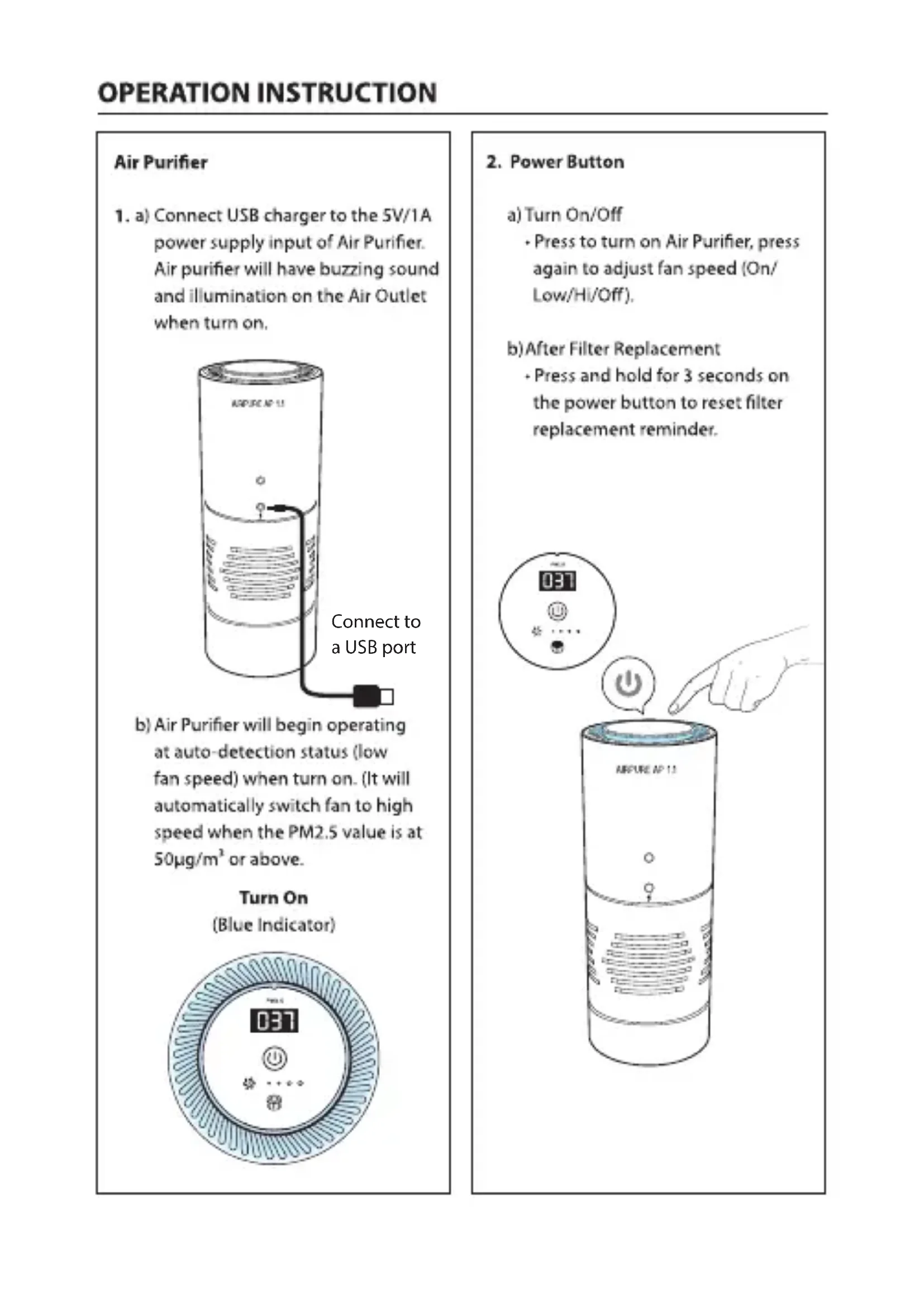

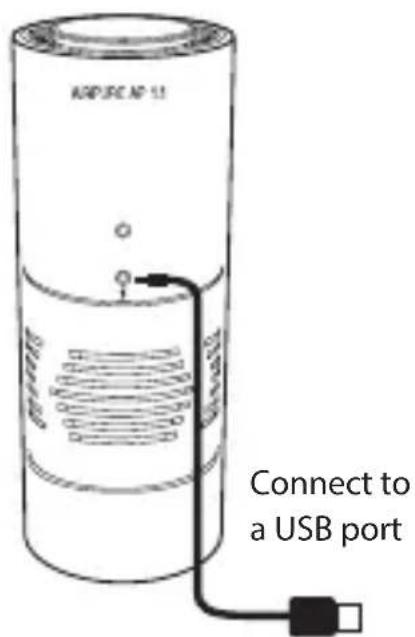

  1. a) Connect USB charger to the 5V/1A power supply input of Air Purifier. Air purifier will have buzzing sound and illumination on the Air Outlet when turn on.

BLAUPUNKT AirPure AP 1.1 - Air Purifier - 1

text_image ARD/RCN 1.1 Connect to a USB port

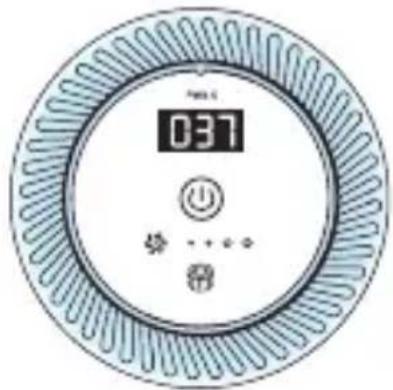

b) Air Purifier will begin operating at auto-detection status (low fan speed) when turn on. (It will automatically switch fan to high speed when the PM2.5 value is at 50 g/m^3 or above.

Turn On
(Blue Indicator)
BLAUPUNKT AirPure AP 1.1 - Air Purifier - 2

text_image 037 + - + + +

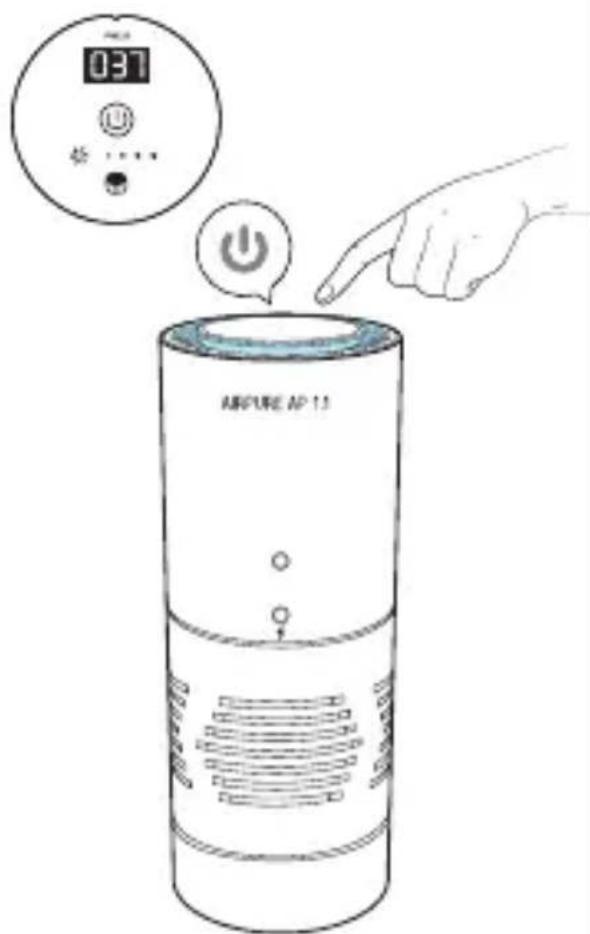

2. Power Button

a) Turn On/Off

- Press to turn on Air Purifier, press again to adjust fan speed (On/Low/Hi/Off).

b) After Filter Replacement

- Press and hold for 3 seconds on the power button to reset filter replacement reminder.

BLAUPUNKT AirPure AP 1.1 - Power Button - 1

text_image 037 ARPURE AP 13
  1. The colour of the indicator will change according to PM2.5 Value

a) PM2.5 Value: 0 to 50μg/m³

Good Air Quality
(Blue Indicator)
BLAUPUNKT AirPure AP 1.1 - Power Button - 2

text_image ARPURE AP 11

b) PM2.5 Value : 51 to 99μg/m³

Average Air Quality
(Green Indicator)
BLAUPUNKT AirPure AP 1.1 - Power Button - 3

text_image APPURE AP 1.1

c) PM2.5 Value: 100 to 999μg/m³

Bad Air Quality
(Red Indicator)
BLAUPUNKT AirPure AP 1.1 - Power Button - 4

text_image AIRPURE AP 1.1

Filter Replacement

  1. Unscrew the bottom cover.

BLAUPUNKT AirPure AP 1.1 - Filter Replacement - 1

natural_image Illustration of a hand holding a cylindrical object with a curved arrow indicating rotation (no text or symbols)

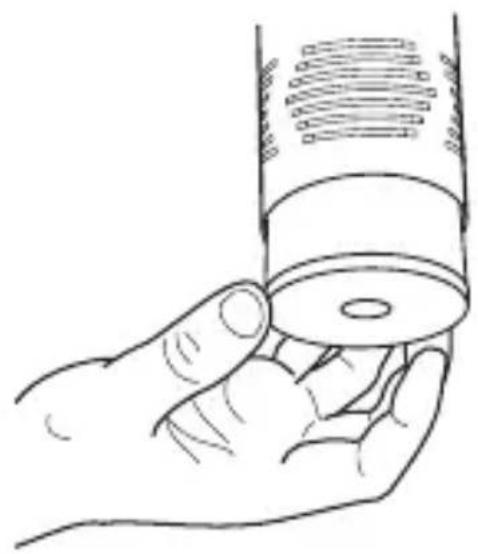

  1. Remove the dirty filter and replace it with the new filter.

BLAUPUNKT AirPure AP 1.1 - Filter Replacement - 2

natural_image Line drawing of a hand holding a cylindrical object with a ring, no text or symbols present

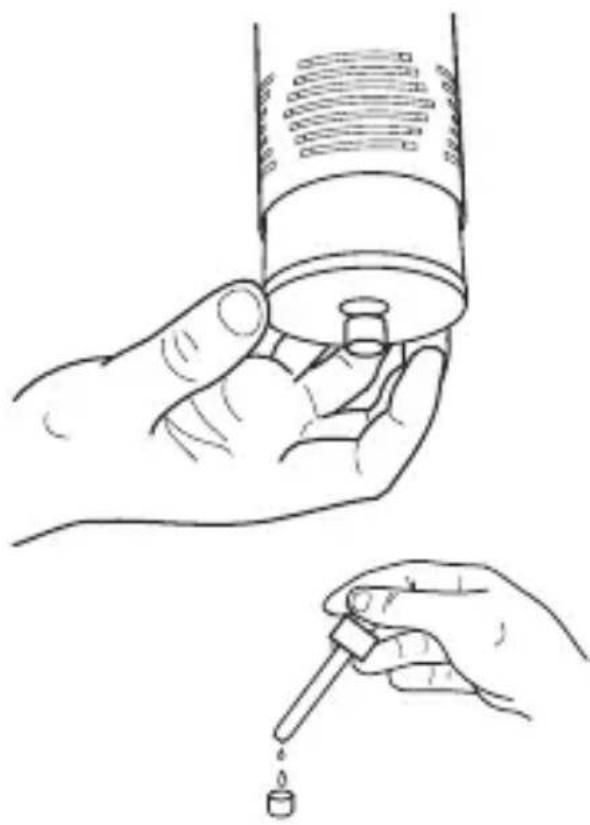

  1. Optional: Drop essential oil (not included) on the aroma holder.

BLAUPUNKT AirPure AP 1.1 - Filter Replacement - 3

natural_image Line drawing of a hand holding a vial with a dropper, and another hand holding a dropper with a flame (no text or symbols)

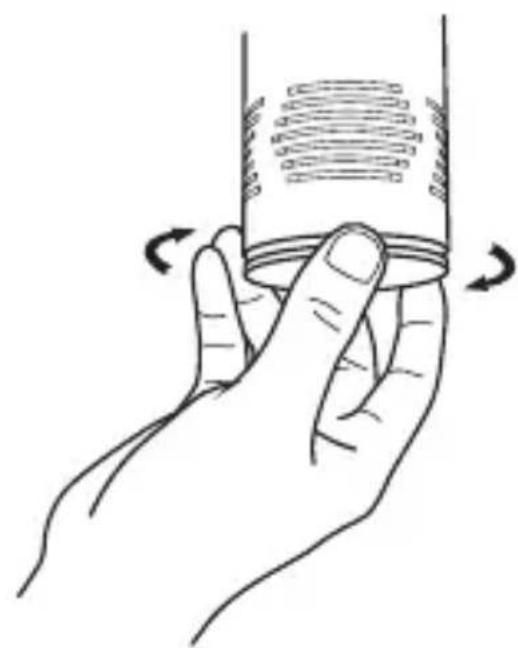

  1. Screw the bottom cover tightly before begin operating the Air Purifier.

BLAUPUNKT AirPure AP 1.1 - Filter Replacement - 4

natural_image Illustration of a hand holding a cylindrical object with rotational arrows indicating motion (no text or symbols)
text_image AIRPURE AP 1.1 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

BLAUPUNKT AirPure AP 1.1 - Filter Replacement - 5

text_image 10 11 037 价 ...... 13 12

Funkcje

text_image 037 ARPURE AP 11
text_image ARPURE AP 11
text_image APPLE AP 13
text_image AFFURE AP 1.1

Wymiana filtra

natural_image Illustration of a hand holding a cylindrical object with a rotating arrow indicating rotation (no text or symbols)
natural_image Line drawing of a hand holding a cylindrical object with a ring, no text or symbols present
natural_image Illustration of a hand holding a vial with a dropper, and another hand pouring liquid into a container (no text or symbols)
natural_image Illustration of a hand holding a cylindrical object with two curved arrows indicating rotational motion (no text or symbols)
text_image AIRPURE AP 1.1 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

BLAUPUNKT AirPure AP 1.1 - Wymiana filtra - 1

text_image 10 11 037 价 ...... 13 12

Funktioner

text_image 037 ARPURE AP 11
text_image AIRPURE AP 11
text_image APPURE AP 13
text_image AFFURE AP 1.1
natural_image Illustration of a hand holding a cylindrical object with a curved arrow indicating rotation (no text or symbols)
natural_image Line drawing of a hand holding a cylindrical object with a ring, no text or symbols present
natural_image Illustration of a hand holding a vial with a dropper, and another hand pouring liquid into a container (no text or symbols)
natural_image Illustration of a hand holding a cylindrical object with rotational arrows indicating motion (no text or symbols)
text_image AIRPURE AP 1.1 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

BLAUPUNKT AirPure AP 1.1 - Funktioner - 1

text_image 10 11 037 价 ...... 13 12

Funciones

text_image 037 ARPURE AP 11
text_image ARPURE AP 11
text_image APPURE AP 13

c) Valor de PM2,5: 100 a 999 g/m3

text_image AFFURE AP 1.1
natural_image Illustration of a hand holding a cylindrical object with a rotating arrow indicating rotation (no text or symbols)
natural_image Line drawing of a hand holding a cylindrical container with a ring (no text or symbols)
natural_image Illustration of a hand holding a vial with a dropper, and another hand pouring liquid from a small container (no text or symbols)

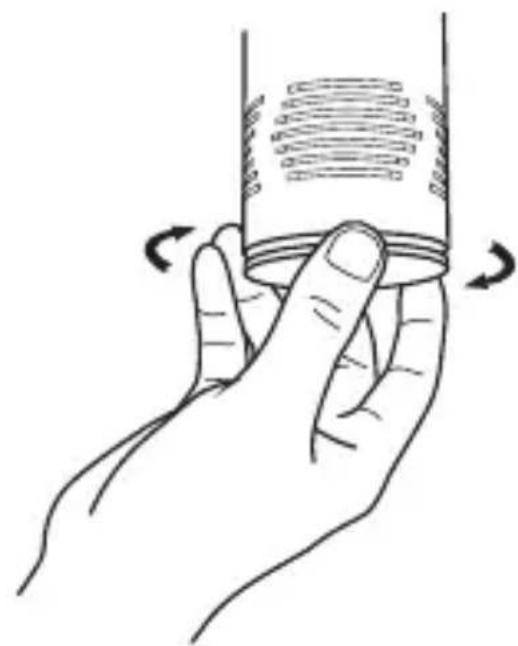

  1. Apriete firmemente la tapa inferior antesdeponerenmarchael purificadordeaire.

BLAUPUNKT AirPure AP 1.1 - Funciones - 1

natural_image Illustration of a hand holding a cylindrical object with rotational arrows indicating motion (no text or symbols)
text_image AIRPURE AP 1.1 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

BLAUPUNKT AirPure AP 1.1 - Funciones - 2

text_image 10 11 037 # 价 ...... ⑬ ⑫ ⑬

Fonctions

text_image 037 ARPURE AP 11
text_image ARPURE AP 11
text_image AFFURE AP 1.5
text_image AFFURE AP 1.1
natural_image Illustration of a hand holding a cylindrical object with a rotating arrow indicating rotation (no text or symbols)
natural_image Line drawing of a hand holding a cylindrical object with a ring, no text or symbols present
natural_image Illustration of a hand holding a vial with a dropper, and another hand pouring liquid into a container (no text or symbols)
natural_image Illustration of a hand holding a cylindrical object with two curved arrows indicating rotational motion (no text or symbols)
text_image AIRPURE AP 1.1 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

BLAUPUNKT AirPure AP 1.1 - Fonctions - 1

text_image 10 11 037 价 ...... 13 12

Funzioni

text_image 037 ARPURE AP 11
text_image ARPURE AP 11

a) Valore PM2,5: da 51 a 99 g / m^3

text_image AFFURE AP 1.5

c) Valore PM2,5: da 100 a 999 g / m^3

text_image AFFURE AP 1.1
natural_image Illustration of a hand holding a cylindrical object with a rotating arrow indicating rotation (no text or symbols)
natural_image Line drawing of a hand holding a cylindrical object with a ring, no text or symbols present
natural_image Illustration of a hand holding a vial with a dropper, and another hand pouring liquid into a container (no text or symbols)
natural_image Illustration of a hand holding a cylindrical object with rotational arrows indicating motion (no text or symbols)
text_image AIRPURE AP 1.1 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

BLAUPUNKT AirPure AP 1.1 - Funzioni - 1

text_image 10 11 037 # 价 ...... ⑬ ⑫ ⑬

Functions

text_image 037 ARPURE AP 11
text_image ARPURE AP 11
text_image APPURE AP 1.1
text_image AFFURE AP 1.1

Filtervervanging

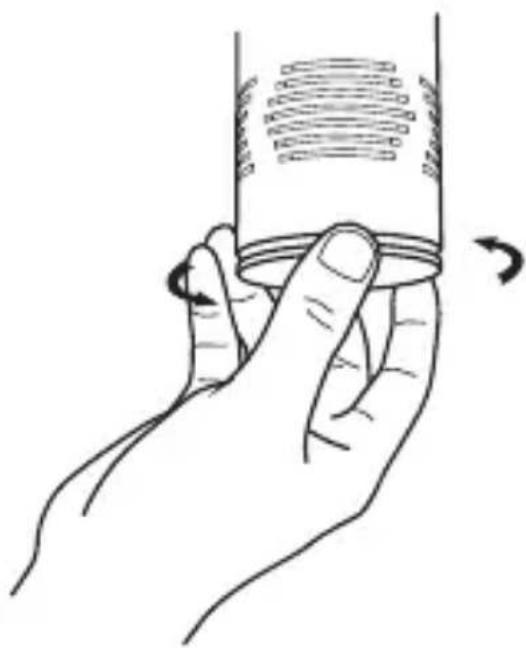

  1. Schroef de bodemafdekking los.

BLAUPUNKT AirPure AP 1.1 - Filtervervanging - 1

natural_image Illustration of a hand holding a cylindrical object with a rotating arrow indicating rotation (no text or symbols)
natural_image Line drawing of a hand holding a cylindrical container with a ring of contents (no text or symbols)

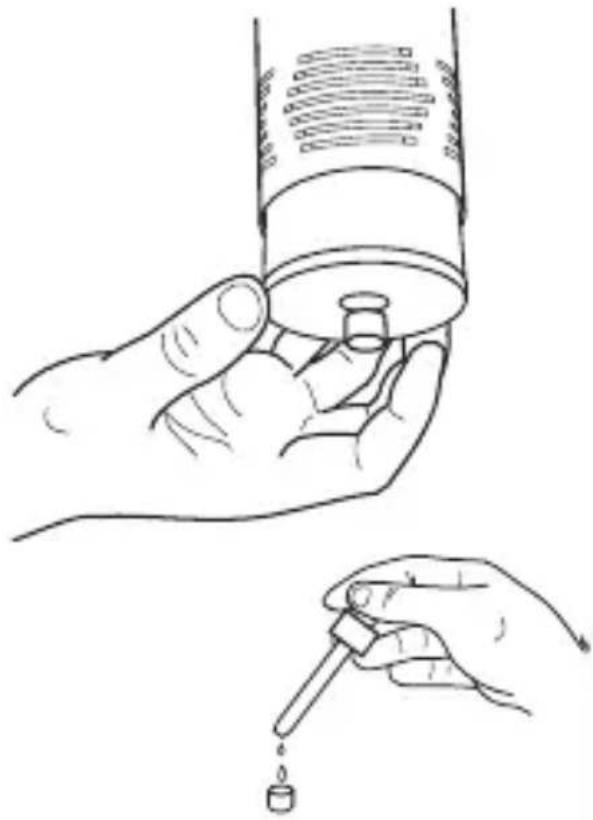

  1. Optioneel: Giet de etherische olie (nietinbegrepen)inhet geurreservoir.

BLAUPUNKT AirPure AP 1.1 - Filtervervanging - 2

natural_image Illustration of a hand holding a vial with a dropper, and another hand pouring liquid into a container (no text or symbols)
natural_image Illustration of a hand holding a cylindrical object with rotational arrows indicating motion (no text or symbols)

BLAUPUNKT AirPure AP 1.1 - Filtervervanging - 3
