AirPure AP 2.0 - Air purifier BLAUPUNKT - Free user manual and instructions

Product Type	Air Purifier
Brand	Blaupunkt
Model	AirPure AP 2.0
Suitable Room Area	Up to 28 m²
Clean Air Delivery Rate (CADR)	200 m³/h
Filtration System	Pre-filter, HEPA H13, Activated Carbon
Fan Speeds	3 Manual Speeds + Auto Mode
Noise Level (Min/Max)	25 / 50 dB
Power Supply	AC 220-240V, 50Hz
Power Consumption	32 W max
Timer Function	1-8 Hours
Filter Replacement Indication	Yes
Display	Touch Control Panel with LED Indicators
Dimensions (W x D x H)	210 x 210 x 430 mm
Weight	3.2 kg
Cleaning and Maintenance	Clean pre-filter every 2 weeks with a vacuum cleaner
Filter Replacement Schedule	HEPA filter every 6-12 months depending on usage
Spare Parts Available	Yes, replacement filters (model AP 2.0)
Safety Features	No ozone emission, short circuit protection
Included in the Box	AirPure AP 2.0 unit, user manual, power adapter

Frequently Asked Questions - AirPure AP 2.0 BLAUPUNKT

How often should I replace the HEPA filter?

The HEPA filter should generally be replaced every 6 to 12 months depending on usage and air quality. If you use the air purifier continuously or in a polluted environment, you may need to replace it more frequently. The filter replacement indicator will alert you when it is time.

How do I clean the air purifier?

Regular cleaning is essential. The pre-filter should be cleaned every two weeks using a vacuum cleaner or a soft brush. Wipe the exterior with a damp cloth. The HEPA filter is not washable and must be replaced at the end of its life.

What room size is suitable for the AirPure AP 2.0?

The AirPure AP 2.0 is designed for rooms up to 28 m² (about 300 sq ft). For optimal performance, place it in the center of the room and keep doors and windows closed while operating.

Can it remove odors and smoke?

Yes, the AirPure AP 2.0 uses an activated carbon filter to effectively absorb household odors, cooking smells, and cigarette smoke. Combined with the HEPA filter, it captures particles such as dust, pollen, and pet dander.

Is it safe to run continuously?

Yes, the air purifier is designed for continuous operation. It has low power consumption and automatic safety cutoff in case of overheating. However, we recommend turning it off when you leave the house for extended periods to save energy.

How noisy is it in operation?

The noise level ranges from 25 dB on the lowest speed to 50 dB on the highest. At night, you can use the sleep mode or the lowest speed for quiet operation, ideal for bedrooms.

Does it have a timer function?

Yes, the AirPure AP 2.0 includes a timer that can be set from 1 to 8 hours. You can program it to turn off automatically after a certain period, which helps save energy and is convenient at night.

What does the auto mode do?

In auto mode, the air purifier uses its internal sensors to monitor the air quality and automatically adjusts the fan speed. When the air quality is poor, it increases the speed; when clean, it reduces speed to maintain efficiency with minimal noise.

How do I know when the filter needs replacement?

The device has an indicator light that will turn on or flash when the HEPA filter reaches its lifespan limit. You can also check the filter's condition physically. Always reset the timer after replacing the filter.

Is the HEPA filter washable?

No, the HEPA filter is not washable. Washing it can damage the fibers and reduce effectiveness. Only the pre-filter can be vacuumed. The HEPA filter must be replaced when dirty or at the recommended interval.

USER MANUAL AirPure AP 2.0 BLAUPUNKT

CAUTIONS STRUCTURE & FUNCTIONS

Safety Notes

• Do not clean or spill liquids or flammable solvents on the device.
- Clean with soft cloth only. Disconnect AirPure before cleaning.
• Handle with care. Do not drop. Keep it away from electric & magnetic area.
- Keep AirPure free of any object obstructing the air flow.
• Do not let children play with air purifier.
• Do not operate the device while driving.
• Use the power cable provided only.
• Do not wash the filter.

This manual may be updated from time to time without any notice.

Disclaimer

In no event shall Blaupunkt be liable for any direct, indirect, punitive, incidental, special consequential damages to property or life and whatsoever arising out of or connected with the use or misuse of our products.

USA & CANADA: This product is not intended for sale in the United States and Canada. If purchased in the U.S. or Canada, this product is purchased on as-is basis. No warranty, whether expressed or implied is provided in the U.S. or Canada.

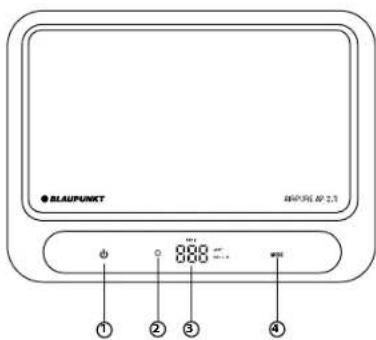

Functions

1. Touch Control (Power Button)
2. Filter Replacement Reminder
3. PM 2.5 Indicator
4. Fan Speed Control
5. Centrifugal Fan
6. APF2 (Pre Filter, HEPA Filter, Activated Carbon Filter)
7. PM 2.5 Sensor

SPECIFICATION

• Indicator Display : PM 2.5 Level, Filter Replacement Reminder, Auto/ Manual Fan Speed
• Pre-packed with Blaupunkt AirPure Filter (APF2)
Noise Level: 55dB
• Fan Type : Centrifugal Fan
• HEPA Filter Grade: H13
• Applicable for Space: 5m³ - 10m³
• Input Voltage: 5V
- Current:1A
Power: <7W
• Dimensions : 200 x 150 x 55mm
Net Weight:500g
• Accessories : 4m USB Power Cable, Car Charger, Car Headrest Holder, Anti Slip Mat

TROUBLESHOOTING

If any of the following problem occur, please resort to Troubleshooting for the possible solutions. Consult Blaupunkt authorized dealer if problem persist.

Problems	Possible Causes	Solutions
Air purifier does not power on	Air purifier is not connected to a power supply.	Ensure the USB cable is properly connected to USB power supply ports and air purifier's power input.
Airflow is significantly reduced	Exceed filter replacement cycle.	Replace with new filter.
Unusual noise while operating	Filter is not fitted properly.	Refer to operation instruction for correct filter replacement steps.

1. Connect USB charger to the 5V/1A power supply input of Air Purifier. Air purifier will have buzzing sound and blue illumination when turn on.

2. Power Button

a) Turn On/Off
- Press to manually turn on Air Purifier, press again to manually turn off.

b) After Filter Replacement

- Press and hold for 5 seconds on the power button to reset filter replacement reminder.

3. MODE Button

• The fan speed of air purifier can be adjusted by pressing "MODE" button (Auto/L/H). * Auto : Smart fan will adjust fan speed according to air quality
  * L: Low fan speed * H: High fan speed

1. Remove the cover of air purifier.

1. Remove the dirty filter and replace it with the new filter (APF2).

Designed and engineered by Blaupunkt Competence Centre 1 331 19 006 32 02
