AirPure AP 1.0 - Air purifier BLAUPUNKT - Free user manual and instructions

Product Type	Air Purifier
Brand	Blaupunkt
Model	AirPure AP 1.0
Dimensions (W x D x H)	20 x 20 x 30 cm
Weight	2.5 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	30 W (max)
Air Flow Rate (CADR)	150 m³/h
Coverage Area	Up to 25 m²
Filter Type	HEPA H13 + Activated Carbon Pre-filter
Filter Replacement Indicator	Yes
Fan Speeds	3 speeds + Auto mode
Timer	1-8 hours
Noise Level	25 - 50 dB (depending on speed)
Auto Shut-Off	Yes (via timer)
Safety Features	Overheat protection, tip-over switch
Maintenance	Clean pre-filter every 2 weeks; replace HEPA filter every 6-12 months
Spare Parts Availability	Filters and remote control (if applicable) available online
Warranty	2 years

Frequently Asked Questions - AirPure AP 1.0 BLAUPUNKT

How often should I replace the HEPA filter?

The HEPA filter should be replaced every 6 to 12 months, depending on usage and air quality. The filter replacement indicator will alert you when it's time.

Can I wash the HEPA filter?

No, the HEPA filter is not washable. Only the pre-filter can be cleaned with a vacuum or rinsed with water. Replace the HEPA filter when dirty.

What is the coverage area of the AirPure AP 1.0?

It is designed for rooms up to 25 m² (approximately 270 sq ft) for optimal performance.

Does the purifier have an auto mode?

Yes, it features an auto mode that adjusts fan speed based on the air quality detected by the built-in sensor.

How noisy is the device?

Noise levels range from 25 dB (low speed) to 50 dB (high speed), which is comparable to a quiet conversation.

Can I use the purifier while sleeping?

Yes, you can use the sleep mode or lowest fan speed for quiet operation. The display can be dimmed if needed.

Does it remove odors and smoke?

Yes, the activated carbon pre-filter helps reduce odors, smoke, and volatile organic compounds (VOCs).

How do I clean the purifier?

Unplug the device, remove the front cover, and vacuum or wipe the pre-filter. The exterior can be cleaned with a damp cloth. Do not use harsh chemicals.

Is there a remote control included?

The package includes a remote control for convenient operation from a distance.

What is the power consumption?

The maximum power consumption is 30 W, making it energy-efficient for continuous use.

USER MANUAL AirPure AP 1.0 BLAUPUNKT

• Do not clean or spill liquids or flammable solvents on the device.
• Clean with soft cloth only. Disconnect AirPure before cleaning.
• Handle with care. Do not drop. Keep it away from electric & magnetic area.
• Keep AirPure free of any object obstructing the air flow.
• Do not let children play with AirPure.
• Do not operate the device while driving.
• Use the power adapter provided only.

Disclaimer

• Blaupunkt is not liable for any loss or damage caused or resulting from unauthorized disassembly or modification to the product.
• In no event shall Blaupunkt be liable for any direct, indirect, punitive, incidental, special consequential damages, to property or life, improper storage, whatsoever arising out of or connected with the use or misuse of our products.
• USA & CANADA: Products not intended for sales in the United States and Canada. If purchased in the U.S or Canada, this product is purchased as-is. No warranty, expressed or implied is provided in the U.S. and Canada.
• Operation temperature: 0 - 50°C Storage temperature: -20 - 60°C

AirPure AP 1.0

Removes up to 99% of viruses, bacteria and hazardous smokes and chemical pollutants.

3-layer Filtering System

Pre Filter removes big particles such as pet hairs, dust & dirt.

HEPA Filter removes particles >2.5μm such as viruses, bacteria & hazardous smokes.

Activated Carbon Filter removes volatile organic compounds such as formaldehyde, toluene, hydrogen sulfide, chlorobenzene and other chemical pollutants.

Ultraviolet Light

The UV germicidal lamp emits 253.7nm wavelength of UV rays that can kill bacteria & viruses.

Aromatherapeutic

A small white aroma holder available inside the filter can be filled with essential oil (not included) to improve the driving journey.

Filter Replacement

Users are advised to replace filter once every 6-month or less (subject to location's air quality and usage frequency).

Easy Installation

Place the device in vehicle's cup holder, plug in the DC USB cable and turn it on.

Includes

AirPure DC 5V1A AP 1.0 USB

Cable

Specification

• Filter Replacement : HEPA (PM2.5), Activated Carbon
• Ultraviolet Wavelength : 253.7nm
• Applicable Area : 5m3 - 10m3
- Noise Level: ≤35dB
• Power Rating : <5W
• Power Supply : USB DC 5V/1A
• Accessories : USB DC Charger
- Weight: 406g
• Dimension : 71mm x 182mm

• Connect USB port to power supply.

• Red light will turn on to indicate AirPure is on Standby mode after connecting to USB port.

• Press the power button on top of the AirPure to start operating it.

• The UV light function gets activated when AirPure is turned on.
• Press the power button again to turn off the AirPure.

1

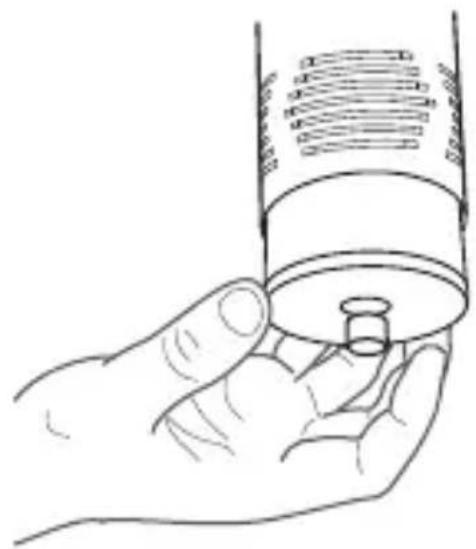

Unscrew the bottom cover.

2

Remove the dirty filter and replace it with new filter.

(Every new filter comes with aroma holder.)

3

Optional : Drop essential oil (not included) on the aroma holder

4

Screw the bottom cover tightly before begin operating

Scan for filter info
