USER MANUAL Savoy EC311 KRUPS

6a AUTO START FUNCTION 6b KEEP WARM

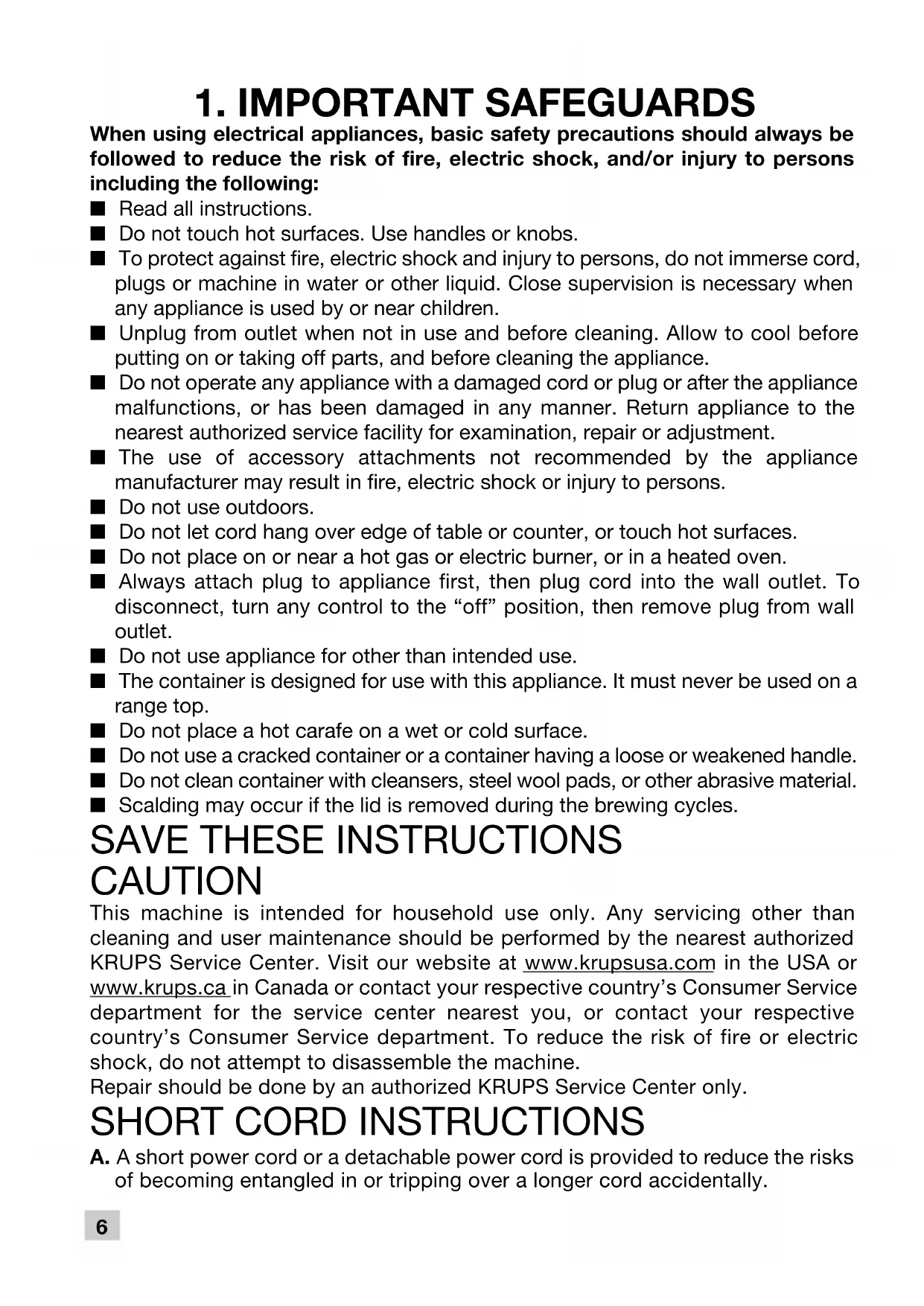

KR_CAFETIERE_SAVOY_EC311_NC00134935_NAFTA.qxp_Mise en page 1 04/07/2016 11:35 Page51. IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons including the following: ■ Read all instructions. ■ Do not touch hot surfaces. Use handles or knobs. ■ To protect against fire, electric shock and injury to persons, do not immerse cord, plugs or machine in water or other liquid. Close supervision is necessary when any appliance is used by or near children. ■ Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance. ■ Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment. ■ The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons. ■ Do not use outdoors. ■ Do not let cord hang over edge of table or counter, or touch hot surfaces. ■ Do not place on or near a hot gas or electric burner, or in a heated oven. ■ Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to the “off” position, then remove plug from wall outlet. ■ Do not use appliance for other than intended use. ■ The container is designed for use with this appliance. It must never be used on a range top. ■ Do not place a hot carafe on a wet or cold surface. ■ Do not use a cracked container or a container having a loose or weakened handle. ■ Do not clean container with cleansers, steel wool pads, or other abrasive material. ■ Scalding may occur if the lid is removed during the brewing cycles.

SAVE THESE INSTRUCTIONS

CAUTION This machine is intended for household use only. Any servicing other than cleaning and user maintenance should be performed by the nearest authorized KRUPS Service Center. Visit our website at www.krupsusa.com in the USA or www.krups.ca in Canada or contact your respective country’s Consumer Service department for the service center nearest you, or contact your respective country’s Consumer Service department. To reduce the risk of fire or electric shock, do not attempt to disassemble the machine. Repair should be done by an authorized KRUPS Service Center only.

SHORT CORD INSTRUCTIONS

A. A short power cord or a detachable power cord is provided to reduce the risks of becoming entangled in or tripping over a longer cord accidentally.

KR_CAFETIERE_SAVOY_EC311_NC00134935_NAFTA.qxp_Mise en page 1 04/07/2016 11:35 Page6B. Longer detachable power cords or extension cords are available and may be used if care is exercised in their use. C. If a long detachable power cord or an extension cord is used:

1) the marked electrical rating of the detachable power cord or extension cord

should be at least as great as the electrical rating of the appliance.

2) If the appliance is of the grounded type, the extension cord should be a

grounding type 3-wire cord.

3) the longer cord should be arranged so that it will not drape over the counter

where it can be pulled on by children or tripped over accidentally. The appliance may have a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in anyway.

ADDITIONAL SAFETY INSTRUCTIONS

■ This appliance is not designed to be used by children or people without knowledge or experience with the product, unless they are supervised or given prior instructions concerning the use of the appliance by someone responsible for their safety. ■ Burns can occur from touching hot plate, hot water or steam. Exercise caution. ■ All machines are subject to stringent quality control. Practical tests using machines taken at random are conducted and this may explain any slight marks or coffee residue showing prior to use. ■ Do not pour liquids other than water and descaling solutions specified in this manual into the water tank. ■ Protect the machine against humidity and freezing. ■ Do not pour water into the appliance if it is still hot. ■ Always place your coffee maker on a flat, stable, heat resistant work surface away from water splashes and any external sources of heat. ■ Never place your carafe or your insulated pot in a microwave oven, in a dishwasher or on a stove top. ■ Never put your hand inside the insulated pot. ■ Do not use the carafe or the insulated pot without the lid. ■ Do not use the thermal carafe if the glass inner part inside is broken. If the glass inner part of the carafe is broken, pieces of glass can transfer to your cup. ■ In the interest of improving products, KRUPS reserves the right to change specifications without prior notice. ■ A short power supply cord is provided to reduce the hazards resulting from becoming entangled in or tripping over a long cord. ■ This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

1- When you plug in the coffee maker for the first time, "1:00 pm" will start flashing on the display. Set the

time by pressing the H button (k) to set the hour and the MIN button (l) to set the minutes. Wait a few seconds, the time is set once it stops flashing on the screen. Fig. 2.

2- You can change or reset the time whenever you wish by pressing and holding the BREW button (m)

then adjusting the time by pressing H for the hours and MIN for the minutes. Wait a few seconds, the time is set once it stops flashing on the screen. NB: Your clock is now set and will continue to show the time, even when your machine is in standby mode. Fig. 3. If the machine is unplugged or there is a power failure, the clock will revert back to 1:00 pm. Repeat the instructions above to reset the clock. ■ Before using your coffee maker for the first time, run a cycle without coffee to rinse the circuit. Fill the water tank to the maximum level and start a cycle by pressing the brew button (m). IMPORTANT : Your machine has been designed to work with cold or water at room temperature only. ■ Open the coffee maker lid (b). Fig. 4. ■ Fill the carafe (g) with cold or water at room temperature, then pour it into the water tank (c) Fig. 5. The number of cups is shown by the water level indicator (d). Do not exceed 12 cups. Fig. 6. ■ Place the carafe (g) with its lid onto the warming plate (h) making sure that it is properly positioned so as to activate the coffee pouring mechanism. Fig. 7. ■ We recommend removing the filter holder with the filter before adding the ground coffee. If you accidentally pour ground coffee into the water tank, do not start the cycle. Clean the tank, otherwise the coffee may block the water circuit. ■ Add 1 KRUPS spoon (o) of ground coffee per cup. Do not exceed 12 spoons (2 ounces). Fig. 10. ■ Make sure that the filter holder (i) is inserted. Fig. 8. Insert the permanent filter (j) or a #4 paper filter into the filter holder (i). If using a paper filter, make sure it is fully opened and properly positioned in the filter holder. Figs. 9a and 9b. ■ Close the lid (b). ■ Press the brew button (m). A light next to the BREW button (m) will come on to show that the coffee maker has started the brew cycle. The machine will beep once it starts. Fig. 11.

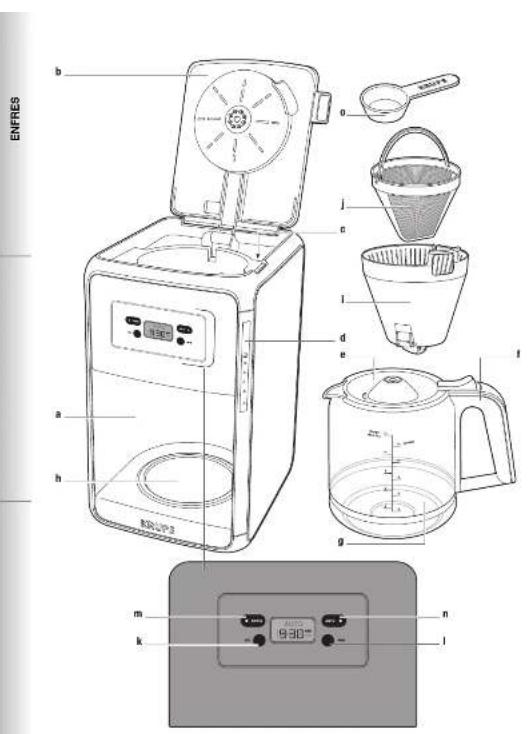

Body of the appliance

Permanent filter (avoids paper filters)

■ Once the brewing cycle has finished, the keep warm function will switch on automatically. ■ At the end of the keep warm, your machine will beep 3 times and the brew button (m) will turn off. ■ You can turn off the machine at any time during the brew cycle by simply pressing the brew button (m). The brew button light will also turn off. The machine will beep 3 times. There will still be hot liquid in the filter even when the brew cycle has finished. Wait a few minutes for the rest of the liquid to drip through into the carafe before removing the filter. NB: - The amount of coffee in the carafe at the end of the cycle is less than the amount of water poured into the tank because about 10% is absorbed by the ground coffee and the filter. - There is an overflow hole on the back of the water tank. If you add too much water, it will leak out of this hole. - Clean the permanent filter between each use or use a new paper filter. CAUTION: - To avoid any overflow, the carafe must be properly positioned on the warming plate of the coffee maker, otherwise it could cause hot water or hot coffee to overflow. - The coffee maker becomes very hot during the brew cycle. Please handle with care. - Do not place the carafe in the microwave. 6a – AUTO START FUNCTION Programming the auto-start settings. ■ Check that the time shown on the clock is correct. If not, follow the instructions in section 3. SETTING THE CLOCK ■ Press the AUTO button (n). The AUTO icon will appear on the screen. Fig. 14. ■ Adjust the time by pressing H for the hours and MIN for the minutes. Fig. 15. 2 options for setting the auto-start time: ■ The time is set by pressing the AUTO button (n) again: the program is taken into account, the light next to the AUTO button switches on and the AUTO icon appears on the display. Fig. 16. ■ The time is automatically set after a few seconds: in this case, the time is taken into account but the auto-start program is not activated. To launch the auto- start program, press the AUTO button (n) twice. ■ To cancel an auto-start, press the BREW button (m). 6b – KEEP WARM TIME ■ The keep warm function lasts for 2 hours. ■ At the end of the cycle, press BREW to cancel the keep warm function. ■ To remove the used coffee grounds, remove the filter and the filter holder from the coffee maker. Fig. 12 et 13. ■ Do not clean the machine if it is still hot. ■ Wash the removable filter holder and the permanent filter in warm soapy water. The carafe can go in the dishwasher. ■ Clean the coffee maker using a soft cloth or damp sponge. Never use harsh detergents or abrasive cleaners on any part of the coffee maker. ■ For stubborn stains, use a cloth moistened with white vinegar. ■ Do not immerse the machine in water or place it under a running faucet. CAUTION: Do not place the carafe in the microwave. Do not put the other parts of the coffee maker in the dishwasher.

KR_CAFETIERE_SAVOY_EC311_NC00134935_NAFTA.qxp_Mise en page 1 04/07/2016 11:35 Page910 ■ Why descale? - Limescale naturally builds up in your coffee maker. Descaling helps to maintain your coffee maker so that it lasts longer and offers constantly high coffee quality over time. Limescale can permanently alter the performance of your machine. Malfunctions linked to scaling are not covered by the warranty if the product is returned. ■ When to descale? - The descaling frequency depends on the hardness of the water and the number of brew cycles. If you notice the following signs: longer cycle time, excessive steaming, more noise at the end of the cycle, stopping mid- cycle, your machine needs descaling. - Your coffee maker should be descaled around once a month depending on the hardness of the water. How to descale your KRUPS coffee maker ■ Use the KRUPS descaling solution®, or 17 fl. oz of white vinegar diluted in 17 fl.oz of cold or water at room temperature, or 1.5 oz of citric acid diluted in 17 fl. oz until complete dissolution of crystals. Fig. 17. ■ Pour the solution into the water tank (without coffee). Fig. 18. Start the cycle by pressing BREW (m). Half way through the cycle, switch off the machine and leave to stand for one hour. After one hour start the second half of the cycle. Fig. 19. ■ Run 2 full 12 cups cycles with water and no coffee to rinse the machine. Fig. 20. ■ Repeat if necessary. ■ Coffee makers which work badly or stop working due to a lack of descaling are not covered by the warranty.

PROBLEM SOLUTION The coffee does not brew or the appliance does not turn on. ■ Make sure the appliance is well connected to a working outlet and that it is in the "ON" position. ■ The water tank is empty. ■ There is a power outage. ■ Unplug the machine, then plug it back in. ■ The clock should be reprogrammed after a power outage. ■ The automatic stop feature has turned off the appliance. Turn off the appliance and then turn it back on to make more coffee. For more information, please consult the "Making Coffee" section. The appliance seems to leak. ■ Make sure the water tank has not been filled beyond the maximum limit. Brewing takes a long time. ■ It may be time to descale the appliance. ■ Several minerals can accumulate in the coffee maker's circuitry. Regular descaling of the machine is recommended. This may need to be done more often depending on the hardness of your water. For more information, please consult the "Descaling" section. CAUTION: do not take the appliance apart. KR_CAFETIERE_SAVOY_EC311_NC00134935_NAFTA.qxp_Mise en page 1 04/07/2016 11:35 Page1011

If your appliance does not always work properly, call customer service in your country. The filter basket overflows or the coffee flows too slowly. ■ The coffee maker needs cleaning. ■ There is too much coffee. We recommend using one measuring spoon or one soup spoon of ground coffee per cup. ■ The ground coffee is too fine (e.g., ground coffee for espresso won't work in a drip coffee maker). ■ There is ground coffee lodged between the paper filter and the filter holder. ■ The paper filter is not opened properly or is not well placed. ■ Rinse the filter holder before inserting the paper filter so it will adhere to the damp walls of the filter basket. ■ Be sure you have not inserted a paper filter at the same time as the permanent filter. ■ There is more than one paper filter in the filter holder. ■ Make sure the filter basket is pushed down all the way. The coffee tastes bad. ■ Clean the coffee maker. ■ The ground coffee is not right for your coffee maker. ■ The proportion of coffee and water is not sufficient. Adjust to suit your taste. ■ The quality and freshness of the coffee is not the best. ■ The water is of poor quality. The coffee does not flow. ■ See if there is water in the water tank. ■ The coffee flow system may be obstructed. You may clean it simply by rinsing with water. The time is not correct (there is a time difference). ■ The timer is synchronized and depends on your electrical network. If there is a time difference, we recommend that you program the time once a week to be sure it is correct. KR_CAFETIERE_SAVOY_EC311_NC00134935_NAFTA.qxp_Mise en page 1 04/07/2016 11:35 Page1112 : www.krups.com This product is repairable by KRUPS during and after the warranty period. Accessories, consumables and end-user replaceable parts can be purchased, if locally available, as described on the KRUPS internet site www.krups.com. The Warranty This product is guaranteed by KRUPS (company address and details included in the country list of the KRUPS International Warranty) against any manufacturing defect in materials or workmanship for a period of 2 years starting from the initial date of purchase. The international manufacturer's warranty by KRUPS is an extra benefit which does not affect consumer's Statutory Rights. The international manufacturer’s warranty covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labor. At KRUPS’s choice, a replacement product may be provided instead of repairing a defective product. KRUPS’s sole obligation and your exclusive resolution under this warranty are limited to such repair or replacement. Conditions & Exclusions The international KRUPS warranty only applies within the warranty period and for those countries listed in the Country List attached and is valid only on presentation of a proof of purchase. The product can be taken directly in person to an authorized service center or must be adequately packaged and returned, by recorded delivery (or equivalent method of postage), to a KRUPS authorized service center. Full address details for each country’s authorized service centers are listed on KRUPS website (www.krups.com) or by calling the appropriate telephone number as set out in the Country List to request the appropriate postal address. KRUPS shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. This warranty will not cover any damage which could occur as a result of misuse, negligence, failure to follow KRUPS instructions, use on current or voltage other than as stamped on the product, or a modification or unauthorized repair of the product. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following: - using the wrong type of water or consumable - ingress of water, dust or insects into the product - scaling (any de-scaling must be carried out according to the instructions for use) - mechanical damages, overloading - damages or bad results due to wrong voltage or frequency - accidents including fire, flood, thunderbolt, etc - professional or commercial use - damage to any glass or porcelain ware in the product

This warranty does not apply to any product that has been tampered with, or to damages incurred through improper use and care, faulty packaging by the owner or mishandling by any carrier. The international KRUPS warranty applies only for products purchased in one of the countries listed, and used for domestic purposes only in one of the countries listed on the Country List. Where a product purchased in one listed country and then used in another listed country: a) The international KRUPS warranty does not apply in case of non conformity of the purchased product with the local standards, such as voltage, frequency, power plugs, or other local technical specifications. b) The repair process for products purchased outside the country of use may require a longer time if the product is not locally sold by KRUPS. c) In cases where the product is not repairable in the new country, the international KRUPS warranty is limited to a replacement by a similar product or an alternative product at similar cost, where possible. Consumer Statutory Rights This international KRUPS warranty does not affect the statutory rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This warranty gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from State to State or Country to Country. The consumer may assert any such rights at his sole discretion. KR_CAFETIERE_SAVOY_EC311_NC00134935_NAFTA.qxp_Mise en page 1 04/07/2016 11:35 Page1314 PAGE
