USER MANUAL UH005G MAKITA

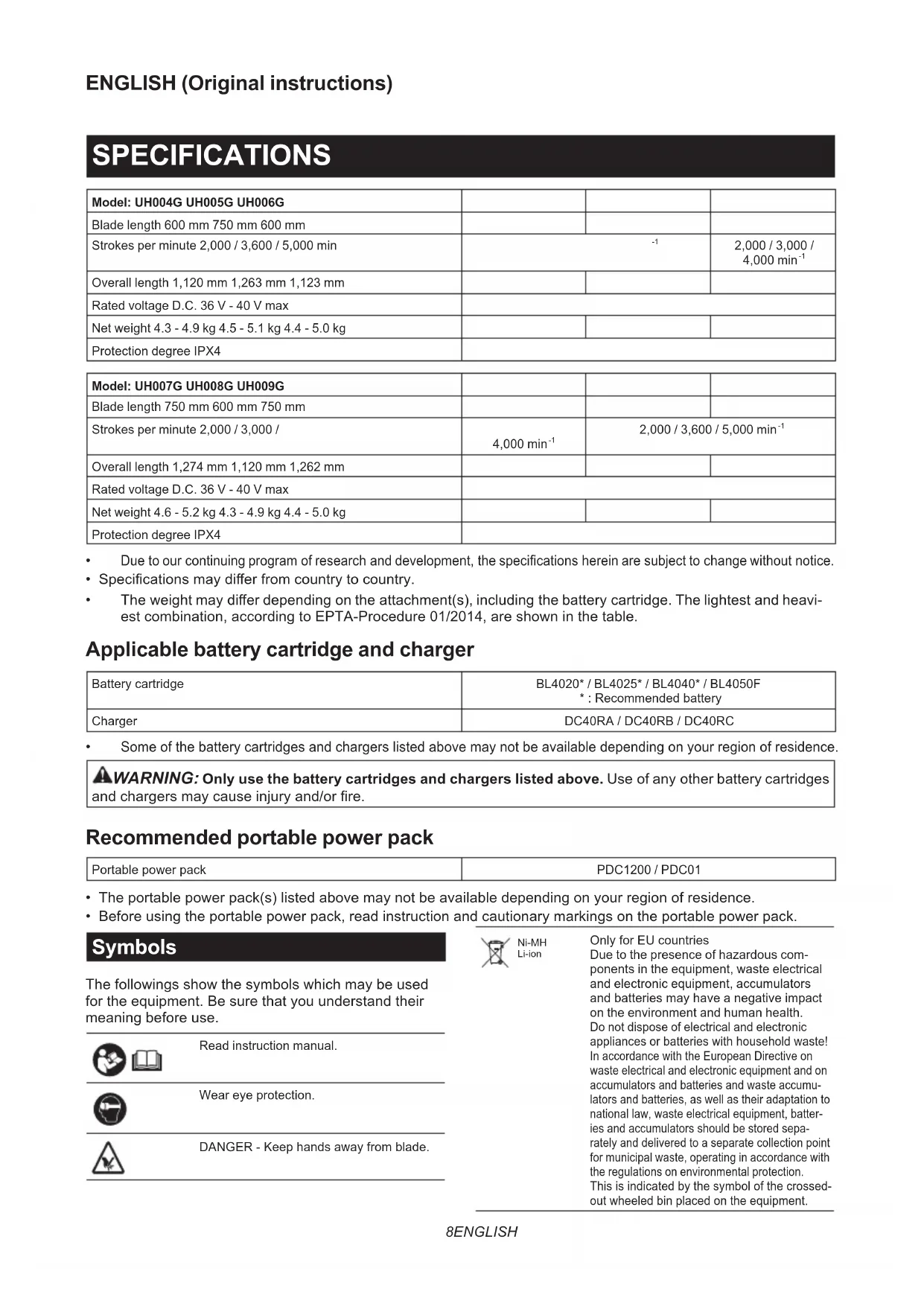

Due to our continuing program of research and development, the specications herein are subject to change without notice.

• Specications may di󰀨er from country to country.

• The weight may di󰀨er depending on the attachment(s), including the battery cartridge. The lightest and heavi- est combination, according to EPTA-Procedure 01/2014, are shown in the table. Applicable battery cartridge and charger Battery cartridge BL4020* / BL4025* / BL4040* / BL4050F

• : Recommended battery Charger DC40RA / DC40RB / DC40RC

Some of the battery cartridges and chargers listed above may not be available depending on your region of residence.

WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges

and chargers may cause injury and/or re. Recommended portable power pack Portable power pack PDC1200 / PDC01

• The portable power pack(s) listed above may not be available depending on your region of residence.

• Before using the portable power pack, read instruction and cautionary markings on the portable power pack. Symbols The followings show the symbols which may be used for the equipment. Be sure that you understand their meaning before use. Read instruction manual. Wear eye protection. DANGER - Keep hands away from blade. Ni-MH Li-ion Only for EU countries Due to the presence of hazardous com- ponents in the equipment, waste electrical and electronic equipment, accumulators and batteries may have a negative impact on the environment and human health. Do not dispose of electrical and electronic appliances or batteries with household waste! In accordance with the European Directive on waste electrical and electronic equipment and on accumulators and batteries and waste accumu- lators and batteries, as well as their adaptation to national law, waste electrical equipment, batter- ies and accumulators should be stored sepa- rately and delivered to a separate collection point for municipal waste, operating in accordance with the regulations on environmental protection. This is indicated by the symbol of the crossed- out wheeled bin placed on the equipment.9 ENGLISH Intended use The tool is intended for trimming hedges. Noise Applicable standard : EN62841-4-2 Model Sound pressure level Sound power level

(dB(A)) Uncertainty K (dB(A)) UH004G 85 3 96 3 UH005G 86 3 97 3 UH006G 81 3 92 3 UH007G 81 3 92 3 UH008G 82 3 93 3 UH009G 83 3 94 3 NOTE: The declared noise emission value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another. NOTE: The declared noise emission value(s) may also be used in a preliminary assessment of exposure.

WARNING: Wear ear protection.

WARNING: The noise emission during actual use of the power tool can di󰀨er from the declared val-

ue(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety measures to protect the operator that are based on an estimation

of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). Vibration The vibration total value (tri-axial vector sum) determined according to EN62841-4-2: Model Front handle Rear handle ah (m/s

) Uncertainty K (m/s

) Uncertainty K (m/s

UH004G 2.9 1.5 2.5 or less 1.5 UH005G 3.1 1.5 2.7 1.5 UH006G 3.0 1.5 2.5 or less 1.5 UH007G 3.4 1.5 3.1 1.5 UH008G 3.1 1.5 2.5 or less 1.5 UH009G 3.2 1.5 2.5 1.5 NOTE: The declared vibration total value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another. NOTE: The declared vibration total value(s) may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission during actual use of the power tool can di󰀨er from the declared

value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety measures to protect the operator that are based on an estimation

of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). EC Declaration of Conformity For European countries only The EC declaration of conformity is included as Annex A to this instruction manual.10 ENGLISH SAFETY WARNINGS General power tool safety warnings

WARNING: Read all safety warnings, instruc-

tions, illustrations and specications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, re and/or serious injury. Save all warnings and instruc- tions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. Cordless Hedge Trimmer Safety Warnings

1. Keep all parts of the body away from the blade.

Do not remove cut material or hold material to be cut when blades are moving. Blades continue to move after the switch is turned o󰀨. A moment of inattention while operating the hedge trimmer may result in serious personal injury.

2. Carry the hedge trimmer by the handle with the

blade stopped and taking care not to operate any power switch. Proper carrying of the hedge trimmer will decrease the risk of inadvertent start- ing and resultant personal injury from the blades.

3. When transporting or storing the hedge trim-

mer, always t the blade cover. Proper handling of the hedge trimmer will decrease the risk of personal injury from the blades.

4. When clearing jammed material or servicing

the unit, make sure all power switches are o󰀨 and the battery pack is removed or discon- nected. Unexpected actuation of the hedge trim- mer while clearing jammed material or servicing may result in serious personal injury.

Hold the hedge trimmer by insulated gripping surfaces only, because the blade may contact hidden wiring. Blades contacting a "live" wire may make exposed metal parts of the hedge trimmer "live" and could give the operator an electric shock.

6. Keep all power cords and cables away from

cutting area. Power cords or cables may be hid- den in hedges or bushes and can be accidentally cut by the blade.

Do not use the hedge trimmer in bad weather con- ditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning. Additional Safety Instructions Preparation

1. Check the hedges and bushes for foreign

objects, such as wire fences or hidden wiring before operating the tool.

2. The tool must not be used by children or

young persons under 18 years of age. Young persons over 16 years of age may be exempted from this restriction if they are undergoing training under the supervision of an expert.

3. First-time users should have an experienced

user show them how to use the tool.

4. Use the tool only if you are in good physical

condition. If you are tired, your attention will be reduced. Be especially careful at the end of a working day. Perform all work calmly and carefully. The user is responsible for all damages to third parties.

5. Never use the tool when under the inuence of

alcohol, drugs or medication.

6. Work gloves of stout leather are part of the

basic equipment of the tool and must always be worn when working with it. Also wear sturdy shoes with anti-skid soles.

7. Before starting work check to make sure that

the tool is in good and safe working order. Ensure guards are tted properly. The tool must not be used unless fully assembled. Operation

1. Hold the tool rmly with both hands when

2. The tool is intended to be used by the operator

at ground level. Do not use the tool on ladders or any other unstable support.

DANGER - Keep hands away from blade. Contact with blade will result in serious personal injury.

4. Do not use the tool in the rain or in wet or

very damp conditions. The electric motor is not waterproof.

5. Make sure you have a secure footing before

6. Do not operate the tool at no-load

7. Immediately switch o󰀨 the tool and remove the

battery cartridge if the shear blades should come into contact with a fence or other hard object. Check the blades for damage, and if damaged, replace the blades immediately.

8. Before checking the shear blades, taking care

of faults, or removing material caught in the shear blades, always switch o󰀨 the tool and remove the battery cartridge.

9. Never point the shear blades to yourself or

10. If the blades stop moving due to the stuck of

foreign objects between the blades during operation, switch o󰀨 the tool and remove the battery cartridge, and then remove the foreign objects using tools such as pliers. Removing the foreign objects by hand may cause an injury for the reason that the blades may move in reac- tion to removing the foreign objects.

11. Avoid dangerous environment. Don't use the

tool in damp or wet locations or expose it to rain. Water entering the tool will increase the risk of electric shock.

12. When you use the tool on muddy ground, wet

slope, or slippery place, pay attention to your footing.

13. Avoid working in poor environment where

increased user fatigue is expected.

14. Do not use the tool in bad weather where visi-

bility is limited. Failure to do so may cause fall or incorrect operation due to low visibility.11 ENGLISH

15. Do not submerge the tool into a puddle.

Do not leave the tool unattended outdoors in the rain.

17. When wet leaves or dirt adhere to the suc-

tion mouth (ventilation window) due to rain, remove them.

18. Do not use the tool in the snow.

Electrical and battery safety

1. Avoid dangerous environment. Don't use the

tool in dump or wet locations or expose it to rain. Water entering the tool will increase the risk of electric shock.

2. Do not dispose of the battery(ies) in a re.

The cell may explode. Check with local codes for possible special disposal instructions.

Do not open or mutilate the battery(ies). Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.

Do not charge battery in rain, or in wet locations.

5. Do not charge the battery outdoors.

6. Do not handle charger, including charger plug,

and charger terminals with wet hands.

7. Do not replace the battery with wet hands.

8. Do not replace the battery in the rain.

9. Do not wet the terminal of battery with liquid

such as water, or submerge the battery. Do not leave the battery in the rain, nor charge, use, or store the battery in a damp or wet place. If the terminal gets wet or liquid enters inside of bat- tery, the battery may be short circuited and there is a risk of overheat, re, or explosion.

10. After removing the battery from the tool or

charger, be sure to attach the battery cover to the battery and store it in a dry place.

11. If the battery cartridge gets wet, drain the

water inside and then wipe it with a dry cloth. Dry the battery cartridge completely in a dry place before use. Maintenance and storage

1. Switch o󰀨 the tool and remove the battery

cartridge before doing any maintenance work.

2. When moving the tool to another location,

including during work, always remove the battery cartridge and put the blade cover on the shear blades. Never carry or transport the tool with the blades running. Never grasp the blades with your hands.

3. Clean the tool and especially the shear blades

after use, and before putting the tool into stor- age for extended periods. Lightly oil the blades and put on the blade cover.

4. Store the tool with the blade cover on, in a dry

room. Keep it out of reach of children. Never store the tool outdoors.

5. Do not dispose of the battery(ies) in a re. The

cell may explode. Check with local codes for possible special disposal instructions.

6. Do not open or mutilate the battery(ies).

Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.

7. Do not charge battery in rain, or in wet

8. Do not wash the tool with high pressure water.

9. When washing the tool, do not let water enter

the electrical mechanism such as battery, motor, and terminals.

10. Perform inspection or maintenance in a place

where rain can be avoided.

11. After using the tool, remove the adhered dirt

and dry the tool completely before storing. Depending on the season or the area, there is a risk of malfunction due to freezing.

12. When storing the tool, avoid direct sunlight

and rain, and store it in a place where it does not get hot or humid. SAVE THESE INSTRUCTIONS.

WARNING: DO NOT let comfort or familiarity

with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. Important safety instructions for battery cartridge

1. Before using battery cartridge, read all instruc-

tions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

2. Do not disassemble or tamper the battery

cartridge. It may result in a re, excessive heat, or explosion.

3. If operating time has become excessively

shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.

4. If electrolyte gets into your eyes, rinse them

out with clear water and seek medical atten- tion right away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:

(1) Do not touch the terminals with any con- ductive material. (2) Avoid storing battery cartridge in a con- tainer with other metal objects such as nails, coins, etc. (3) Do not expose battery cartridge to water or rain. A battery short can cause a large current ow, overheating, possible burns and even a breakdown.

6. Do not store and use the tool and battery car-

tridge in locations where the temperature may reach or exceed 50 °C (122 °F).

7. Do not incinerate the battery cartridge even if

it is severely damaged or is completely worn out. The battery cartridge can explode in a re.

8. Do not nail, cut, crush, throw, drop the battery

cartridge, or hit against a hard object to the battery cartridge. Such conduct may result in a re, excessive heat, or explosion.

9. Do not use a damaged battery.12 ENGLISH

10. The contained lithium-ion batteries are subject

to the Dangerous Goods Legislation require- ments. For commercial transports e.g. by third parties, forwarding agents, special requirement on pack- aging and labeling must be observed. For preparation of the item being shipped, consult- ing an expert for hazardous material is required. Please also observe possibly more detailed national regulations. Tape or mask o󰀨 open contacts and pack up the battery in such a manner that it cannot move around in the packaging.

11. When disposing the battery cartridge, remove

it from the tool and dispose of it in a safe place. Follow your local regulations relating to disposal of battery.

12. Use the batteries only with the products

specied by Makita. Installing the batteries to non-compliant products may result in a re, exces- sive heat, explosion, or leak of electrolyte.

13. If the tool is not used for a long period of time,

the battery must be removed from the tool.

14. During and after use, the battery cartridge may

take on heat which can cause burns or low temperature burns. Pay attention to the han- dling of hot battery cartridges.

15. Do not touch the terminal of the tool imme-

diately after use as it may get hot enough to cause burns.

16. Do not allow chips, dust, or soil stuck into the

terminals, holes, and grooves of the battery cartridge. It may result in poor performance or breakdown of the tool or battery cartridge.

17. Unless the tool supports the use near

high-voltage electrical power lines, do not use the battery cartridge near a high-voltage elec- trical power lines. It may result in a malfunction or breakdown of the tool or battery cartridge.

18. Keep the battery away from children.

SAVE THESE INSTRUCTIONS. CAUTION: Only use genuine Makita batteries. Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing res, personal injury and damage. It will also void the Makita warranty for the Makita tool and charger. Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely

discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life.

Charge the battery cartridge with room tempera- ture at 10 °C - 40 °C (50 °F - 104 °F). Let a hot battery cartridge cool down before charging it.

4. When not using the battery cartridge, remove

it from the tool or the charger.

5. Charge the battery cartridge if you do not use

it for a long period (more than six months). FUNCTIONAL DESCRIPTION CAUTION: Always be sure that the tool is switched o󰀨 and the battery cartridge is removed before adjusting or checking function on the tool. Installing or removing battery cartridge CAUTION: Always switch o󰀨 the tool before installing or removing of the battery cartridge. CAUTION: Hold the tool and the battery car- tridge rmly when installing or removing battery cartridge. Failure to hold the tool and the battery cartridge rmly may cause them to slip o󰀨 your hands and result in damage to the tool and battery cartridge and a personal injury. ► Fig.1: 1. Red indicator 2. Button 3. Battery cartridge To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge. To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Insert it all the way until it locks in place with a little click. If you can see the red indicator as shown in the gure, it is not locked completely. CAUTION: Always install the battery cartridge fully until the red indicator cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you. CAUTION: Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is not being inserted correctly. Indicating the remaining battery capacity Press the check button on the battery cartridge to indi- cate the remaining battery capacity. The indicator lamps light up for a few seconds. ► Fig.2: 1. Indicator lamps 2. Check button Indicator lamps Remaining capacityLighted O󰀨 Blinking75% to 100%50% to 75%25% to 50%0% to 25%Charge the battery.The battery may havemalfunctioned.13 ENGLISH NOTE: Depending on the conditions of use and the ambient temperature, the indication may di󰀨er slightly from the actual capacity. NOTE: The rst (far left) indicator lamp will blink when the battery protection system works. Tool / battery protection system The tool is equipped with a tool/battery protection system. This system automatically cuts o󰀨 power to the motor to extend tool and battery life. The tool will automatically stop during operation if the tool is placed under one of the following conditions: ► Fig.3: 1. Caution lamp Caution lamp Status Color On Blinking Green Overload Red (tool) / (battery) Overheat Red Over discharge Overload protection If the tool or battery is overloaded by entangled branches or other debris, the tool automatically stops and the caution lamp starts blinking in green. In this situation, turn the tool o󰀨 and stop the application that caused the tool to become overloaded. Then turn the tool on to restart. NOTICE: Depending on the usage conditions, the tool is automatically turned o󰀨 without any indication if the tool is overloaded by entangled branches or debris. In this case, switch o󰀨 the tool and remove the battery cartridge, and then remove entangled branches or debris using tools such as pliers. After removing the branches or debris, install the battery cartridge and turn on the tool again. Overheat protection for tool or battery If the tool or battery cartridge is overheated, the tool stops automatically. When the tool is overheated, the caution lamp lights up in red. When the battery cartridge is overheated, the caution lamp blinks in red. Let the tool and/or battery cool down before turning the tool on again. Overdischarge protection When the battery capacity becomes low, the tool stops automatically and the caution lamp starts blinking in red. If the tool does not operate even when the switches are operated, remove the battery cartridge from the tool and charge it. Angle setting of the handle CAUTION: Always make sure that the handle is locked in the desired position before operation. CAUTION: Do not pull down the lever to unlock the handle while pulling the switch trigger. Do not pull the switch trigger while pulling down the lever and turning the handle. Failure to do so may cause a malfunction of the tool. You can set the angle of the handle to 0°, 45°, or 90° to the left or right. To change the angle of the handle, turn the handle while pulling down the lever, and then release the lever. ► Fig.4: 1. Lever Power switch action

For your safety, this tool is equipped with lock-o󰀨 lever which prevents the tool from unintended starting. NEVER use the tool if it runs when you simply press the switch lever and pull the switch trigger without pressing the lock- o󰀨 lever. Return the tool to our authorized service center for proper repairs BEFORE further usage.

WARNING: NEVER tape down or defeat pur-

pose and function of lock-o󰀨 lever.

Before installing the battery car- tridge on the tool, always check to see that the switch trigger and switch lever actuate properly and return to the "OFF" position when released. Operating a tool with a switch that does not actuate properly can lead to loss of control and serious personal injury. CAUTION: Never put your nger on the switch when carrying. The tool may start uninten- tionally and cause injury. NOTICE: Do not pull the switch trigger hard with- out pressing the lock-o󰀨 lever. This can cause switch breakage. Press the main power button to turn on the tool. To turn o󰀨 the tool, press and hold the main power button until the speed indicators go o󰀨. ► Fig.5: 1. Main power button NOTE: The caution lamp brinks if the switch trigger is pulled under unoperatable conditions. The caution lamp blinks if you turn on the main power switch while holding down the lock-o󰀨 lever and the switch trigger. NOTE: This tool employs the auto power-o󰀨 function. To avoid unintentional start up, the main power switch will automatically shut down when the switch trigger is not pulled for a certain period after the main power switch is turned on. To prevent the switch trigger from being accidentally pulled, a lock-o󰀨 lever is provided. To start the tool, depress the lock-o󰀨 lever, and then press the switch lever and pull the switch trigger. Release the switch trigger to stop. ► Fig.6: 1. Switch lever 2. Lock-o󰀨 lever 3. Switch trigger14 ENGLISH Speed adjusting You can select the tool speed by tapping the main power button. Each time you tap the main power button, the level of speed will change. ► Fig.7: 1. Speed indicator 2. Main power button For UH004G/UH005G/UH008G/UH009G Indicator Mode Stroke speed High 5,000 min

Reverse button for debris removal

If the entangled branches or debris can- not be removed by the reverse function, switch o󰀨 the tool and remove the battery cartridge, and then remove the entan- gled branches or debris using tools such as pliers. Failure to switch o󰀨 the tool and remove the battery cartridge may result in serious personal injury from accidental start-up. Removing the entangled branches or debris by hand may cause an injury, since the shear blades may move in reaction to removing them. This tool has a reverse button to change the direction of shear blades movement. It is only for removing branches and debris entangled in the tool. To reverse the shear blades movement, tap the reverse button when the shear blades have stopped, then press the switch lever and pull the switch trigger while press- ing the lock-o󰀨 lever. The speed indicators start blink- ing, and the shear blades move in reverse direction. To return to regular movement, release the trigger and wait until the shear blades stop. ► Fig.8: 1. Speed indicator 2. Reverse button NOTE: If the entangled branches or debris cannot be removed, release and pull the switch trigger until they are removed. NOTE: If you tap the reverse button while the shear blades are still moving, the tool comes to stop and to be ready for reverse movement. Electronic function The tool is equipped with the electronic functions for easy operation.

• Constant speed control The speed control function provides the constant rotation speed regardless of load conditions.

• Electric brake This tool is equipped with an electric brake. If the tool consistently fails to quickly stop the shear blades after releasing the switch trigger, have the tool serviced at Makita Authorized Service Center.

• Accidental re-start preventive function Even if you install the battery cartridge while pulling the switch trigger, the tool does not start. To start the tool, rst release the switch trigger, and then pull the switch trigger. ASSEMBLY CAUTION: Always be sure that the tool is switched o󰀨 and the battery cartridge is removed before carrying out any work on the tool. CAUTION: When replacing the shear blades, always wear gloves so that your hands do not directly contact the blades. NOTICE: When replacing the shear blades, do not wipe o󰀨 grease from the gear and crank. Installing or removing the shear blades CAUTION: Attach the blade cover before removing or installing the shear blades. You can install 600 mm or 750 mm shear blades to your tool.

Place the tool upside down, and then remove 6 bolts. ► Fig.9: 1. Bolt

2. Remove the cover and the plate.

► Fig.10: 1. Cover 2. Plate NOTE: The plate may remain on the cover.

3. Remove the rod and the bearing.

► Fig.11: 1. Rod 2. Bearing NOTE: The rod may remain on the cover.

4. Remove 2 bolts, the felt pad and the sleeves, and

then remove the shear blades. ► Fig.12: 1. Felt pad 2. Bolt 3. Sleeve 4. Shear blades

5. Remove the blade cover.

6. Attach the blade cover to the new shear blades.

7. Adjust the crank so that 2 holes are lined up on

the alignment line. ► Fig.13: 1. Hole 2. Alignment line15 ENGLISH

8. Align the protrusions on the shear blades vertically

at the same position. ► Fig.14: 1. Protrusion

9. Attach the felt pad to the shear blades.

Insert the protrusion on the shear blades to the small hole on the rod, then align the position of the felt pad with the holes on the tool, and then attach new sleeves. ► Fig.16: 1. Protrusion 2. Small hole 3. Sleeve 4. Felt pad NOTICE: Apply a small amount of grease to the inner periphery of the hole of the rod. NOTICE: Be careful not to lose the sleeves.

11. Align the holes on the shear blades with the holes

on the tool, and then tighten 2 bolts to x the shear blades. ► Fig.17: 1. Bolt 2. Hole

12. Attach the bearing and the rod.

► Fig.18: 1. Rod 2. Small hole 3. Bearing NOTICE: Apply a small amount of grease to the inner periphery of the small hole of the rod. NOTICE: Make sure that the protrusion on the shear blades ts in the small hole on the rod.

13. Attach the plate.

► Fig.19: 1. Protrusion 2. Plate NOTICE: Make sure that the protrusion on the shear blades ts in the hole on the plate.

14. Attach the cover, and then tighten 6 bolts.

► Fig.20: 1. Bolt 2. Cover NOTICE: If the shear blades do not move smoothly, the shear blades are not engaged with the rods properly. Install the shear blades again. NOTICE: If the parts other than the shear blades such as the rods are worn out, ask Makita Authorized Service Centers for parts replacement or repairs. Installing or removing the chip receiver Optional accessory CAUTION: When installing or removing the chip receiver, always wear gloves so that your hands do not directly contact the shear blades. NOTICE: For UH004G/UH005G/UH006G/UH007G The blade cover cannot be installed if the chip receiver is installed on the tool. Before carrying or storing the tool, uninstall the chip receiver, and then install the blade cover to avoid blade exposure. NOTICE: For UH004G/UH005G/UH006G/UH007G Be sure to remove the blade cover before install- ing the chip receiver. The chip receiver gathers discarded leaves and makes clean-up afterward much easier. It can be installed on either side of the tool.

1. Hook the claws of the chip receiver to the shear

blades. ► Fig.21: 1. Claw

2. Align the holes on the chip receiver with the

screws on the shear blades, and then attach the chip receiver to the shear blades securely. ► Fig.22: 1. Hole NOTICE: Make sure that the chip receiver does not overlap the branch catcher. ► Fig.23: 1. Branch catcher To remove the chip receiver, press the levers to release the hooks. ► Fig.24: 1. Lever NOTICE: Never try to remove the chip receiver by an excessive force with its hooks locked to the shear blades. OPERATION

WARNING: Keep hands away from shear

blades. CAUTION: Avoid operating the tool in very hot weather as much as practicable. When operat- ing the tool, be careful of your physical condition. CAUTION: Be careful not to accidentally contact a metal fence or other hard objects while trimming. The shear blades may break and cause an injury. CAUTION: Be careful not to allow the shear blades to contact the ground. The tool may recoil and cause an injury. CAUTION: Overreaching with a hedge trim- mer, particularly from a ladder, is extremely dangerous. Do not work while standing on anything wobbly or inrm. NOTICE: Do not attempt to cut branches thicker than 10 mm in diameter with the tool. Cut branches to 10 cm lower than the cutting height using branch cutters before using the tool. ► Fig.25: (1) Cutting height (2) 10 cm NOTICE: Do not cut down dead trees or similar hard objects. Doing so may damage the tool. NOTICE: Do not trim the grass or weeds while using the shear blades. The shear blades may become tangled in the grass or weeds. Hold the tool with both hands, press the switch lever and pull the switch trigger while pressing the lock-o󰀨 lever, and then move it forward. ► Fig.2616 ENGLISH For basic operation, tilt the shear blades toward the trimming direction and move it calmly and slowly at the speed rate of 3 to 4 seconds per meter. ► Fig.27 To cut a hedge top evenly, tie a string at the desired height and trim along it. ► Fig.28 If the chip receiver is attached to the shear blades, it gathers discarded leaves and makes clean-up after- ward much easier. ► Fig.29 To cut a hedge side evenly, cut from the bottom to top. ► Fig.30 When trimming to make a round shape (trimming box- wood or rhododendron, etc.), trim from the root to the top for a beautiful nish. ► Fig.31 MAINTENANCE CAUTION: Always be sure that the tool is switched o󰀨 and the battery cartridge is removed before attempting to perform inspection or maintenance. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. Cleaning the tool Clean the tool by wiping o󰀨 dust with a dry cloth or one dipped in soapy water and wrung out. NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. Shear blade maintenance Before the operation or once per hour during operation, apply low-viscosity oil (machine oil, or spray-type lubri- cating oil) to the shear blades. ► Fig.32 After operation, remove dust from both sides of the shear blades with a wired brush, wipe it o󰀨 with a cloth and then apply low-viscosity oil (machine oil, or spray- type lubricating oil) to the shear blades. ► Fig.33 NOTICE: Do not wash the shear blades in water. Doing so may cause rust or damage to the tool. NOTICE: Dirt and corrosion cause excessive blade friction and shorten the operating time per battery charge. Storage The hook hole in the tool bottom is convenient for hang- ing the tool from a nail or screw on the wall. Attach the blade cover to the shear blades so that the blades are not exposed. Store the tool out of the reach of children. Store the tool in a place not exposed to moisture or rain. ► Fig.34: 1. Hole Grinding the shear blades NOTICE: If the shear blades have considerably deformed by grinding, replace the shear blades with new ones.

1. Install the battery cartridge to the tool.

2. Turn on and start the tool so that the upper blade

and lower blade are positioned alternately. ► Fig.35

3. Turn o󰀨 the tool and remove the battery cartridge

4. Remove the screw, and then remove the branch

catcher. ► Fig.36: 1. Screw 2. Branch catcher

5. Set the angle of a le to 45° (for UH004G/

UH005G/UH008G/UH009G) or 50° (for UH006G/ UH007G), and grind the upper blade from 3 directions with the le. ► Fig.37: (1) File (2) 45° or 50° CAUTION: Before grinding the shear blades, make sure that the tool is switched o󰀨 and the battery cartridge is removed from the tool.

6. Place the tool upside down, and then remove the

burrs from the shear blades with the dressing stone. ► Fig.38: 1. Dressing stone

7. Set the angle of the le to 45° (for UH004G/

UH005G/UH008G/UH009G) or 50° (for UH006G/ UH007G), and grind the lower blade from 3 directions with the le.

8. Return the tool to normal position, and then

remove the burrs from the shear blades with the dress- ing stone.

9. Attach the branch catcher by tightening the screw.

Grease lubrication Interval of lubrication: Every 50 operating hours

1. Remove the bolt from the hole for lubrication.

2. Remove the cap from the grease vessel. Align the

outlet of the grease vessel with the hole on the cover, and then press the outlet of the grease vessel onto the hole. ► Fig.40: 1. Grease vessel 2. Hole

3. Apply the grease to the tool (Approximately 5 g as

4. Remove the grease vessel.

5. Tighten the bolt.17 ENGLISH

TROUBLESHOOTING Before asking for repairs, conduct your own inspection rst. If you nd a problem that is not explained in the manual, do not attempt to dismantle the tool. Instead, ask Makita Authorized Service Centers, always using Makita replace- ment parts for repairs. State of abnormality Probable cause (malfunction) Remedy Motor does not run. Battery cartridge is not installed. Install the battery cartridge. Battery problem (under voltage) Recharge the battery. If recharging is not e󰀨ective, replace battery. The drive system does not work correctly. Ask your local authorized service center for repair. Motor stops running after a little use. Battery's charge level is low. Recharge the battery. If recharging is not e󰀨ective, replace battery. Overheating. Stop using of tool to allow it to cool down. Tool does not reach maximum RPM. Battery is installed improperly. Install the battery cartridge as described in this manual. Battery power is dropping. Recharge the battery. If recharging is not e󰀨ective, replace battery. The drive system does not work correctly. Ask your local authorized service center for repair. Shear blades do not move: stop the machine immediately! Foreign objects are caught between the shear blades.

1. Use the reverse button.

2. Switch o󰀨 the tool and remove the battery car-

tridge, and then remove the foreign objects using tools such as pliers. The drive system does not work correctly. Ask your local authorized service center for repair. Abnormal vibration: stop the machine immediately! Shear blades are broken, bent or worn. Replace the shear blades. The drive system does not work correctly. Ask your local authorized service center for repair. Shear blades and motor cannot stop: Remove the battery immediately! Electric malfunction. Remove the battery and ask your local authorized service center for repair. OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specied in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regard- ing these accessories, ask your local Makita Service Center.
