Delisia EB 8680 - Kitchen appliance GRUNDIG - Free user manual and instructions

Product type	Egg cooker
Brand	Grundig
Model	Delisia EB 8680
Power supply	220-240 V~, 50-60 Hz
Power	400 W
Capacity	7 eggs (estimated)
Cooking functions	Soft, medium, hard
Included accessories	Graduated water cup 140 ml with egg piercer
Housing material	Plastic, stainless steel (heating plate)
Safety features	Dry-run protection, automatic shut-off
Cleaning and maintenance	Clean with water-vinegar mixture for descaling
Usage type	Domestic
Dimensions (approx.)	20 x 15 x 15 cm
Weight (approx.)	0.5 kg
Cable length	Approx. 80 cm
Color	White (estimated)

Frequently Asked Questions - Delisia EB 8680 GRUNDIG

How to use the Grundig Delisia EB 8680 egg cooker?

Fill the water cup to the desired marking (140 ml max), pour the water into the water tank. Pierce a small hole on the top of each egg using the provided needle, place the eggs in the compartment with the hole facing up. Close the lid, plug in the appliance, and press the power button. The appliance stops automatically when the water has evaporated.

How to clean the egg cooker?

Unplug the appliance and let it cool down. Clean the parts with a damp cloth. For descaling, use a mixture of half water, half white vinegar in the water tank, run the appliance, then rinse thoroughly.

What to do if the appliance does not turn on?

Check that the plug is properly connected and the power button is pressed. Make sure there is enough water in the water tank. If the problem persists, contact customer service.

How long does it take to cook eggs?

Cooking time depends on the desired doneness and the amount of water. Generally, with 140 ml of water, allow about 10-15 minutes for soft-boiled eggs, 15-20 minutes for medium-boiled eggs, and 20-25 minutes for hard-boiled eggs.

Can I use the appliance without water?

No, the appliance is equipped with dry-run protection, but it should never be used without water. This could damage the appliance.

How to pierce the eggs correctly?

Use the needle located at the bottom of the water cup to pierce a small hole on the top of the egg (the wider part). Then place the egg in the compartment with the hole facing up. This prevents the shell from cracking during cooking.

What to do if a lot of steam escapes?

This is normal; the steam vent is designed to release steam. Never cover the vent and keep hands away to avoid burns.

Is the appliance suitable for children?

The appliance can be used by children aged 8 years and above under supervision. Children should not play with the appliance. Cleaning should not be performed by children under 8 years of age without supervision.

How to know if the eggs are cooked?

The appliance turns off automatically when all the water has evaporated. You can also carefully open the lid to check the consistency of the egg. Use gloves to avoid burns.

Where to find spare parts?

Contact Grundig customer service or an authorized dealer. Accessories like the water cup or lid can be ordered separately.

USER MANUAL Delisia EB 8680 GRUNDIG

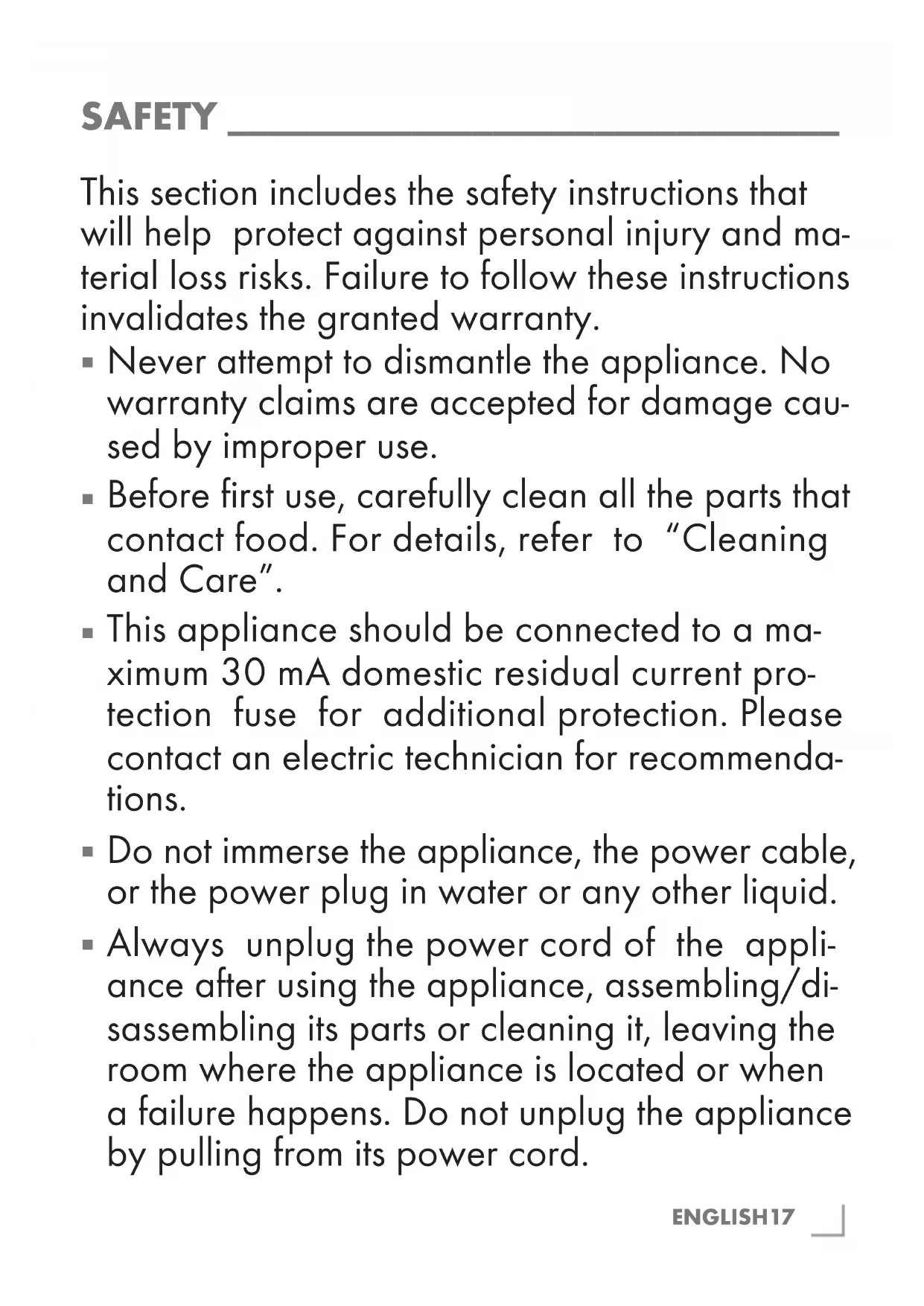

This section includes the safety instructions that will help protect against personal injury and material loss risks. Failure to follow these instructions invalidates the granted warranty.

• Never attempt to dismantle the appliance. No warranty claims are accepted for damage caused by improper use.
  Before first use, carefully clean all the parts that contact food. For details, refer to "Cleaning and Care".
• This appliance should be connected to a maximum 30mA domestic residual current protection fuse for additional protection. Please contact an electric technician for recommendations.
• Do not immerse the appliance, the power cable, or the power plug in water or any other liquid.

• Always unplug the power cord of the appliance after using the appliance, assembling/disassembling its parts or cleaning it, leaving the room where the appliance is located or when a failure happens. Do not unplug the appliance by pulling from its power cord.

• Do not squeeze or bend the power cord of the appliance or do not rub it against the corners in order not to damage it. Keep away the power cord from hot surfaces and open flame.

• Do not use an extension with the appliance.
• Never use the appliance if the power cable or the appliance itself is damaged.
• GRUNDIG Small Domestic Appliances comply with the valid safety standards, for this reason, if this appliance is damaged, it or its power cord should be repaired or replaced by its seller, a service agent or authorized service personnel having the similar qualifications.
• Make sure that there is no danger that the power cord could be accidentally pulled or that someone could trip over it when the appliance is in use.
• Appliance should always be installed with its power cord in an easily accessible manner.

• Never use this appliance with damp or wet hands.

• Never operate any component of this appliance on or near a gas range, hot plate or hot surfaces such as a heated oven or do not place them on these surfaces.

• Use the appliance only with its accessories supplied with it.
• Always use your appliance on a balanced, flat, clean and dry surface.
• Never cover the steam hole on the transparent cover; make sure that it is not closed.
• Always keep the appliance out of the reach of children.

• This appliance can be used by children at age 8 and above and by people who have reduced physical, sensory or mental capabilities or by people who lack experience and information, on the condition that they are supervised and informed about safe use of the appliance and the risks involved. Children should not play with the appliance. Cleaning and user maintenance procedures should not be performed by children unless they are 8 or supervised by an older person.

• Keep the appliance out of the reach of children under age 8.

• Caution: Avoid injuries that might be caused by the egg needle.
• Make sure that the plug has dried before using the appliance again. You need to remove the connector before cleaning the appliance.
• Keep the appliance and the power cable out of the reach of children.

• The instructions must contain the following. This appliance is intended to be used for household purposes in places such as:

• Shops, offices and personnel kitchens in other working environments,

• Farmhouses,
• By customers in hotels, motels and other residential places,

• Places for sleep and breakfast.

• Make sure that the surfaces of the appliance and the heater plate are cold before touching it.

Dear Customer,

Congratulations on your purchase of GRUNDIG Egg Boiler EB 8680.

Please read the following instructions carefully in order to enjoy the use of your product with the Grundig quality for many years.

Controls and parts

See the figure on page 3.

A Egg rack
B Cover
Water box / Heater baseplate
D Body
E On/Off-Cooking button
F Cable winding bay
Steam outlet hole
Water box with measure and needle (140 ml)

Settings

Your appliance has the following settings:

Medium cooked
Medium well cooked
Overcooked

This product has been produced in environmentally-friendly, state-of-the-art facilities

Tips

• Add 140ml water with measuring cup into water box.
  In order to avoid the eggshell rupture, first use the egg needle at the bottom of the measuring cup to break through the top of the egg, punch a small hole, the hole end of the egg is placed upwards, and then place the egg on the egg rack.
  Put the boiled egg into cold water quickly to make it easier to peel the shell. Serve hot and taste better.

Caution

Please use the same voltage as the rating label.
Please use a power source with protective grounding for personal safety.
- Do not put the egg boiler in the vicinity of inflammable and explosive articles or in the humid, high-temperature environment to avoid fault and danger.
- When the egg boiler is working, steam will come out from the upper cover, and the body part shall not be close to the steam mouth to avoid burns, and the steam mouth shall not be covered to avoid accidents and product failure.

• When the egg boiler is working, the upper cover temperature is higher, please do not touch to avoid scalding. If there is a lack of water in the egg boiler and enter the dry heat protection, do not touch the water box to avoid scalding.
• Keep the power cord plug dry at all times. Do not use wet hands to plug and pull the cord plug.
• Do not move the egg boiler while it is working.
  There is a sharp egg needle that punctures the egg shell at the bottom of the marking, which needs to be properly guaranteed.

Note

Wait for 15 minutes for the appliance to cool down before using it again.

Cleaning and care

Caution

• Never use gasoline, solvents, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

Note

If there is limescale or similar stains on the heater baseplate, you can clean it with a mixture of half water and half vinegar. You can use potable water to minimize these stains.

Storage

If you do not intend to use the appliance for a long time, please store it carefully.
Please make sure that the appliance is unplugged, completely cold and dry.
- Do not wind the power cord around the appliance.
Store the appliance in a cool and dry place.
Make sure the appliance is kept in a place out of the reach of children.

Compliance with the WEEE Directive and Disposing the Waste Product

This product does not include harmful or prohibited materials specified in the "Regulation for Supervision of the Waste Electric and Electronic Appliances" issued by the Ministry of Environment and Urbanisation.

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device

must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Packaging information

Package of the product is made of recyclable materials in accordance with our national legislation. Do not

dispose the package waste with the domestic wastes or other types of wastes, take them to the collection points which are recommended by the local authorities.

Technical data

Power supply: 220-240 V\~, 50-60 Hz

Power: 400 W

Rights to make technical and design changes are reserved.
