USER MANUAL Nespresso Vertuo Evoluo DELONGHI

Nespresso Vertuo is an exclusive system creating the perfect Coee and Espresso, time after time. Nespresso Vertuo machines are equipped with the unique Centrifusion

ASSISTANCE VIDEOS ARE AVAILABLE ON WWW.NESPRESSO.COM - VISIT THE “MACHINES” SECTION. ASSISTANCE VIDÉO DISPONIBLE SUR LE SITE WWW.NESPRESSO.COM - VOUS RENDRE À LA PAGE DES MACHINES IMPORTANT SAFEGUARDS When using electrical appliances, important safeguards should always be followed, including the following:

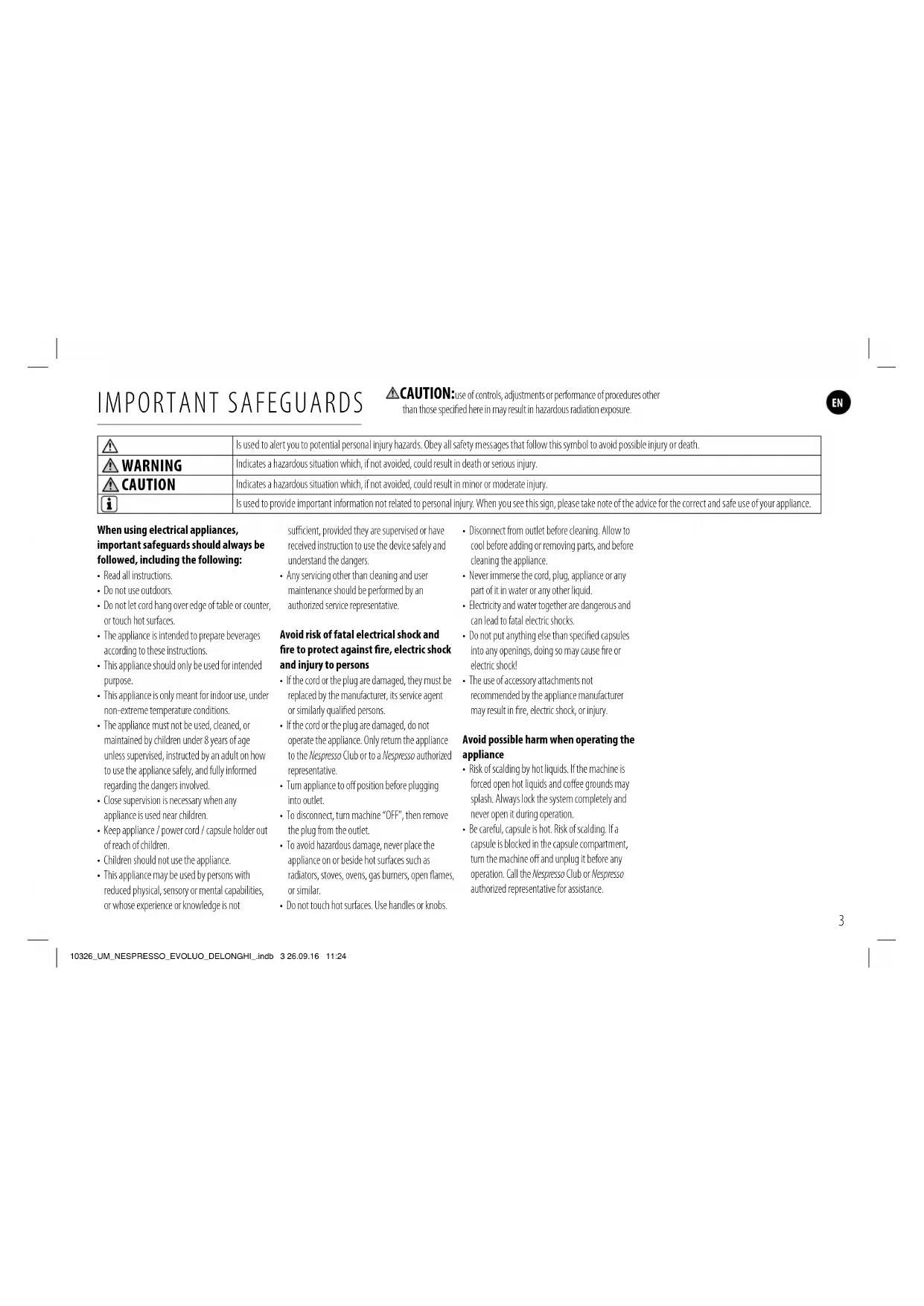

• Read all instructions.

• Do not use outdoors.

• Do not let cord hang over edge of table or counter, or touch hot surfaces.

• The appliance is intended to prepare beverages according to these instructions.

• This appliance should only be used for intended purpose.

• This appliance is only meant for indoor use, under non-extreme temperature conditions.

• The appliance must not be used, cleaned, or maintained by children under 8 years of age unless supervised, instructed by an adult on how to use the appliance safely, and fully informed regarding the dangers involved.

• Close supervision is necessary when any appliance is used near children.

• Keep appliance / power cord / capsule holder out of reach of children.

• Children should not use the appliance.

• This appliance may be used by persons with reduced physical, sensory or mental capabilities, or whose experience or knowledge is not sucient, provided they are supervised or have received instruction to use the device safely and understand the dangers.

• Any servicing other than cleaning and user maintenance should be performed by an authorized service representative. Avoid risk of fatal electrical shock and re to protect against re, electric shock and injury to persons

• If the cord or the plug are damaged, they must be replaced by the manufacturer, its service agent or similarly qualied persons.

• If the cord or the plug are damaged, do not operate the appliance. Only return the appliance to the Nespresso Club or to a Nespresso authorized representative.

• Turn appliance to o position before plugging into outlet.

• To disconnect, turn machine “OFF”, then remove the plug from the outlet.

• To avoid hazardous damage, never place the appliance on or beside hot surfaces such as radiators, stoves, ovens, gas burners, open ames, or similar.

• Do not touch hot surfaces. Use handles or knobs.

• Disconnect from outlet before cleaning. Allow to cool before adding or removing parts, and before cleaning the appliance.

• Never immerse the cord, plug, appliance or any part of it in water or any other liquid.

• Electricity and water together are dangerous and can lead to fatal electric shocks.

• Do not put anything else than specied capsules into any openings, doing so may cause re or electric shock!

• The use of accessory attachments not recommended by the appliance manufacturer may result in re, electric shock, or injury. Avoid possible harm when operating the appliance

• Risk of scalding by hot liquids. If the machine is forced open hot liquids and coee grounds may splash. Always lock the system completely and never open it during operation.

• Be careful, capsule is hot. Risk of scalding. If a capsule is blocked in the capsule compartment, turn the machine o and unplug it before any operation. Call the Nespresso Club or Nespresso authorized representative for assistance. Is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious injury. CAUTION Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. Is used to provide important information not related to personal injury. When you see this sign, please take note of the advice for the correct and safe use of your appliance. CAUTION: use of controls, adjustments or performance of procedures other than those specied here in may result in hazardous radiation exposure. 10326_UM_NESPRESSO_EVOLUO_DELONGHI_.indb 3 26.09.16 11:24FR

OTHER SAFEGUARDS When using electrical appliances, important safeguards should always be followed:

• The important safeguards are part of the appliance. Read the important safeguards provided with the appliance carefully prior to rst use. Keep them in a place where you can nd and refer to them in the future.

• Protect the appliance from direct sunlight, water splash and humidity.

• THIS APPLIANCE IS DESIGNED FOR DOMESTIC USE ONLY.

• Close supervision is necessary when the appliance is used by or near children.

• Children shall not play with the appliance.

• The manufacturer accepts no responsibility for and the warranty will not apply to any commercial use, inappropriate handling or use of the appliance, damage resulting from use for other purposes, faulty operation, non- professional repairs or failure to comply with the instructions. Avoid risk of fatal electrical shock and re to protect against re, electric shock and injury to persons

• In case of emergency: immediately remove the plug from the power outlet.

• Only plug the appliance into suitable, easily accessible, grounded outlets. Make sure that the voltage of the power source is the same as that specied on the rating plate. The use of an incorrect voltage or frequency of electricity voids the warranty.

• The appliance must only be connected after installation.

• Do not pull the cord over sharp edges, clamp it or allow it to hang down.

• Keep the cord away from heat and moisture.

• If an extension lead is required, use only a grounded power cord with a conductor cross- section with matching input 16 AWG (1.3 mm

• Always place the appliance on a horizontal, stable, hard, even surface that does not allow for water accumulation under the machine.

• The surface must be resistant to heat and uids, like water, coee, descaler or similar.

• Disconnect the appliance from the power outlet when not in use for a long period of time.

• Disconnect by pulling out the plug; do not pull on the cord itself to avoid damage.

• Never touch the cord with wet hands.

• Never put the appliance or part of it in a dishwasher.

• Do not open the appliance. Hazardous voltage inside!

• Do not dismantle the appliance. Avoid possible harm when operating the appliance

• Never leave the appliance unattended during operation.

• Do not use the appliance if it is damaged or not operating perfectly. Immediately remove the plug from the power outlet.

• Contact the Nespresso Club or Nespresso authorized representative for examination, repair or adjustment.

• A damaged appliance can cause electric shocks, burns and re.

• Do not put ngers under coee outlet; risk of scalding.

• Do not insert ngers into capsule compartment when machine head is closing; risk of injury.

• Do not put ngers into the capsule compartment or capsule shaft; risk of injury!

• Water could ow around a capsule when not perforated by the blades and damage the appliance.

• Be careful not to injure yourself on sharp points or trap your ngers when reaching inside the machine.

• Beware of hot liquids when reaching inside the machine.

• Never use a damaged or deformed capsule.

• Always ll the water tank with fresh potable water.

• Do not overll water tank.

• Empty water tank if the appliance will not be used for an extended time (holidays, etc.).

• Replace water in water tank when the appliance is not operated during a weekend or a similar period of time.

• Do not use the appliance without a cup placed at the suitable cup support level and ensure the cup support is in place after any usage, to avoid spilling any liquid on surrounding surfaces.

• Do not use any strong cleaning agent or solvent cleaner.

• Use a damp cloth and mild cleaning agent to clean the surface of the appliance.

• Do not use a steam or pressure cleaner to clean the appliance. This will damage the appliance and may create a life-threatening hazard.

• Do not pour water or other liquids into the brewing unit.

• Keep appliance, capsules and accessories out of reach of children.

• This appliance is designed for Nespresso Vertuo coee capsules available exclusively through the Nespresso Club or your Nespresso authorized representative.

• All Nespresso appliances pass stringent controls.

• Reliability tests under practical conditions are randomly performed on selected units. Some units can therefore show traces of previous use.

OTHER SAFEGUARDS SAVE THESE INSTRUCTIONS Pass them on to any subsequent user. This Instruction Manual is also available as a PDF le at nespresso.com Short cord instructions

• Use the power cord supplied with the device in an unmodied form. It is important for user safety that the appliance is only used with a suitably grounded electrical supply. a) A short power supply cord or detachable power supply cord is to be provided to reduce risks resulting from becoming entangled in or tripping over a longer cord. b) Extension cords are available and may be used if care is exercised in their use. c) If a long detachable power cord or extension cord is used:

1) The marked electrical rating or the

detachable power cord or extension should be at least as great as the electrical rating of the appliance.

2) The appliance is grounded and only grounded

extension cord should be used (type 3-wire cord).

3) The longer cord should be arranged so that it

will not dangle over the countertop or tabletop, where it can be pulled on by children or tripped over.

• The appliance has a grounded plug (two blades and one round pin) .

• To reduce the risk of electric shock, this plug is intended to t into a grounded outlet only one way.

• If the plug does not t fully into the outlet, reverse the plug.

• If it still does not t, contact a qualied electrician.

• Do not attempt to modify the plug in any way. Descaling

• Nespresso descaling agent, when used correctly, helps to ensure the proper functioning of your machine over its lifetime and that your coee experience is as perfect as on the rst day. For instructions on how to descale, consult the section “Descaling” in this user manual. 10326_UM_NESPRESSO_EVOLUO_DELONGHI_.indb 6 26.09.16 11:24FR

1. Rinse and clean the water tank

before lling it only with fresh potable water. Put the water tank in place.

2. Ensure the capsule container, a cup and the cup support (if

necessary for the selected cup size) are in place. For your safety, operate the machine only with cup and capsule container in position.

6. Place a container of at least 12.5 oz./0.4 l under the coee

3. Plug the machine into the outlet.

the machine is ready.

4. Turn the machine “ON” by pushing the button. The

button will gradually illuminate as the machine heats up in approximately 15 seconds.

8. Press the button 3 times within 2 seconds to start cleaning and

let the cleaning procedure complete automatically. It will take less than 2 minutes before a ow comes out. The procedure consists of 3 cycles of pumping water in, internal cleaning and water owing from the outlet to complete.

9. This operation may take up to 5 minutes. The procedure can be stopped at any time by pushing the

button. The button will go to steady light. In case you want to resume the cleaning process, push the button again. To brew a coee, insert a capsule, then close, lock the machine by turning the lever left and push the button.

7. Close the machine if open and lock the machine by turning the

lever left to the lock symbol on the machine head.

1. Fill the water tank with

fresh potable water.

the machine head completely.

capacity under the coee outlet. Risk of scalding may occur due to overowing.

the machine is ready.

2. Turn the machine “ON” by

3. Lights will blink for

approximately 15 seconds while the machine is heating up.

6. The cup support has 4 posi-

tions and can be temporarily removed to accommodate various cup sizes.

5. The factory settings and

recommended cup sizes are: 14 oz./414 ml for Alto, 7.77 oz./230ml for Coee, 1.35 oz./40ml for Espresso.

9. This machine operates with Nespresso

6. The cup support has 4 posi-

tions and can be temporarily removed to accommodate various cup sizes.

the bottom. Be careful not to injure yourself on sharp points or trap your ngers when reaching inside the machine.

12. Push the button to start the coee preparation. It will

take some time before the coee ow comes out (due to barcode reading and coee pre-wetting).

15. Turn the lever to the right and

11. Close the head and lock the machine by turning the lever

left to the lock symbol on the machine head.

coee, push the button and push again to stop when desired volume is reached.

until desired volume is reached.

4. Water volume level is now

stored for the capsule size used for the programming.

PROGRAMMING THE WATER VOLUME/

PROGRAMMATION DU VOLUME D’EAU

1. The programming is specic to each capsule size, Alto, Coee or

Espresso. Cup sizes can be reprogrammed from 0.3 oz./10 ml to 17 oz./500 ml.

2. Open the machine head; Insert the capsule blend you want to

program; Close the head; Lock the machine.

2. Close the head. Leave the

lever in “UNLOCKED” position.

1. Open the machine head and

within 3 seconds. The button will blink slowly 5 times to conrm reset is done.

5. Reclose the head and turn

lever left until “LOCKED” position.

while replugging the power cord and then release the button.

1. Empty the water tank and

2. Place a container under the

4. Open the machine head and

7. Machine turns “OFF”

automatically when machine is empty.

CLEANING/NETTOYAGE The machine has a predened cleaning procedure that can be launched at user discretion. Oce use: Daily cleaning. La machine comporte une procédure de nettoyage prédénie que l’utilisateur peut lancer en tout temps. Usage au bureau: Nettoyage quotidien. 3. Open the machine head and let the used capsule be ejected. Empty and rinse the capsule container.3. Ouvrir la partie supérieure de la machine; la capsule usagée est expulsée automatiquement. Vider et rincer le collecteur de capsules.2. Rinse the cup support. Place a container of at least 13.5 oz./0.4 l under coee outlet.2. Rincer le suppport de tasse. Placer un récipient d’au moins 0.4 l/13.5 oz. sous l’orice de sortie du café.1. Rinse and clean the water tank before lling it with fresh potable water. Put the water tank in place.1. Rincer et nettoyer le réservoir avec de l’eau potable. Le remplir avec de l’eau potable à température ambiante. Remettre le réservoir en place.

6. The procedure can be stopped at any time by pushing the button. The button will go to a steady light. In

case you want to resume the cleaning process, push the button again. To brew a coee, open the head and insert a capsule, then close, lock the machine by turning the lever left and push the button.

6. La procédure peut être arrêtée à tout moment en appuyant sur le bouton, qui va arrêter de clignoter.

Si vous voulez reprendre le processus de nettoyage, appuyez de nouveau sur le bouton. CAUTION: do not use any strong or abrasive cleaning agent or solvent cleaner. Do not put in a dishwasher. Never immerse the appliance or part of it in water. Clean the coee outlet regularly with a clean damp cloth. Please use only clean tools for cleaning the machine. ATTENTION: ne pas utiliser de solvants ou de produits nettoyants puissants ou abrasifs. Ne pas mettre au lave-vaisselle. Ne jamais immerger la machine ou ses pièces dans l’eau. Nettoyer régulièrement la sortie café avec un linge propre doux et humide. Utiliser uniquement des outils propres pour nettoyer la machine.4. Close the head and turn lever left until “LOCKED” position. 4. Fermer la machine et tourner la poignée jusqu’à la position «VERROUILLÉE».

5. Push the button 3 times within 2 seconds. The button will blink quickly during the procedure.

It will take less than 2 minutes before a ow comes out. The cleaning procedure will run automatically for 5 minutes. The procedure consists of 3 cycles of pumping water in/internal cleaning/water owing from outlet to complete.

5. Appuyer sur le bouton à 3 reprises dans un intervalle de 2 secondes. Le bouton va commencer à clignoter

5. Fill the water tank with 1 unit of Nespresso descaling liquid

and add 17 oz./0.5 l of water.5. Mettre 0.5 l/17 oz. d’eau dans le réservoir et ajouter la solution détartrante Nespresso.6. To enter the descaling mode, hold the button for at least 7 seconds. 6. Pour lancer la procédure de détartrage, maintenir le bouton pendant au moins 7 secondes.7. The button will start blinking rapidly. You now have 45 seconds to conrm you want to enter descaling mode. 7. Le bouton commence à clignoter très rapidement. Vous avez 45 secondes pour conrmer la poursuite du détartrage.

9. Lock the machine by turning the lever left to the lock symbol on the machine head and unlock by

turning right. Hold the button again for at least 7 seconds in “UNLOCKED” position.

9. Verouiller la machine en tournant la poignée vers la gauche (selon indication sur la partie supérieure

11. To start descaling, lock the

machine by turning the lever left and push the button. The machine will stop automatically when complete.

the water tank and cup support thoroughly.

15. To exit the descaling mode,

hold the button for at least 7 seconds.

blinking rapidly and become steady.

17. Descaling is completed. Allow

the machine to dry for 10 minutes before using it.

18. The machine is now ready for use.

18. La machine est maintenant prête à l’emploi.

13. Fill the water tank with fresh

potable water and put it back in place on the machine.

automatically when complete. The procedure can be stopped at any time by pushing the button.

7.9 in* 12.2 in 12.3 in

➔ The machine has turned “OFF” automatically; push the button or “UNLOCK” the machine. ➔ Check the outlet, plug, voltage, and fuse.

2. No coee, no water.

➔ Check that the water tank is lled. ➔ Check that a fresh capsule is inserted in correct position, that the lever is properly locked and push the button to start. ➔ Descale if necessary. ➔ Open the machine head and let the capsule be ejected. Then perform a cleaning as per cleaning section.

3. Coee is not hot enough.

➔ Preheat cup with hot water from the tap. ➔ Descale if necessary.

4. The machine doesn’t start and has

light steady on. If blinking, see next points. ➔ Check that lever is properly locked. ➔ If you want to brew a Coee or Espresso, check that a fresh capsule is inserted in correct position, that the lever is properly locked and push the button to start. ➔ If you are cleaning, descaling or emptying the system, check that no capsule is inserted then close, lock the machine and push the button to start one of these operations.

5. The machine doesn’t start and light

blinks alternately; 1 blink and 1 pause. ➔ Fill the water tank and push button to start. ➔ Check that lever is properly locked.

6. Light blinks while machine is running.

➔ If coee is owing normally, this indicates the machine is working properly. ➔ If only water is owing, the machine is executing a user request for either cleaning, descaling or emptying the system. Refer to the corresponding paragraph in this user manual. ➔ If there is no intention to clean, descale, or empty the system, then push the button to stop the machine. If the machine is still blinking, exit descaling mode by holding the button for at least 7 seconds or refer to next section. ➔ If problem persists, call the Nespresso Club.

7. Light blinks and machine is not

running. ➔ It will take some time before the coee ow comes out (due to barcode reading and pre-wetting the coee). ➔ Check that a fresh capsule is inserted in correct position, that the lever is properly locked and push the button to start. ➔ Fill the water tank and push button to start. ➔ Turn the machine to “OFF mode” by pushing the button for 3 seconds and then push it again to turn the machine “ON”. Now wait approximately 20 minutes to allow the machine to cool down after extensive use. ➔ If the machine doesn’t turn “OFF” then exit descaling mode by pushing the button for at least 7 seconds.

8. Light blinks alternately 2 blinks and

1 pause continuously. Machine is not running. ➔ During regular Coee/ Espresso preparation : 1) Unlock the lever and open the machine head to check that a fresh undamaged capsule is inserted in the correct position;

2) Check that the lever is in “LOCKED” position 3) Check that the water tank is lled.

➔ During Descaling, Emptying and Cleaning: 1) Check that capsule is ejected 2) Check that the lever is in “LOCKED” position. ➔ During Programming Volume: 1) Check if a capsule has been well inserted 2) Please refer to the corresponding chapter. ➔ If problem persists:

1. Unlock the lever and open machine head.

2. Replace capsule (if needed).

3. Disconnect powercord from the outlet and plug the machine back into outlet after

4. Close the head and press the button to turn “ON” and press again to start brewing.

If problem persists, call the Nespresso Club. TROUBLESHOOTING

9. Leakage or unusual coee ow.

➔ Check that the water tank is well positioned.

10. Machine turns to “OFF” mode.

➔ To save energy the machine will turn o after 9 minutes of non-use. ➔ See paragraph on “Energy Saving Concept”.

11. Light alternately blinking 3 times

and then steady on. ➔ Descaling needed: machine can be operated when alert appears only a few times after this alert before descaling becomes necessary.

12. Coee grounds in the cup.

9. Leakage or unusual coee ow.

➔ Check that the water tank is well positioned.

10. Machine turns to “OFF” mode.

➔ To save energy the machine will turn o after 9 minutes of non-use. ➔ See paragraph on “Energy Saving Concept”.

11. Light alternately blinking 3 times

and then steady on. ➔ Descaling needed: machine can be operated when alert appears only a few times after this alert before descaling becomes necessary.

12. Coee grounds in the cup.

7.9 in* 12.2 in 12.3 in
