USER MANUAL Magnifica S ECAM21.117.B DELONGHI

Instructions for use. Keep these instructions

Visit www.delonghi.com

for a list of service centers near you.

ELECTRIC CHARACTERISTICS

120 V\~60 Hz 1450 W

MACHINE À CAFÉ

Exterior view of a DeLonghi coffee maker with two glass cups (no text or symbols visible)

A1 A2 A3 A4 B1 B2 B3 B5 B7 B4 B6 A5 A11 C1 C2 C3 C4 A6 A7 A8 A9 A10 C5 C6 C7 C8 C9 A12

IMPORTANT SAFEGUARDS

When using electrical machines, basic safety precautions should always be followed, including the following:

• Read all instructions.
• Use this machine only as described in this instruction manual.

As with any electrical machine, the instructions aim to cover as many situations as possible. Caution and common sense should be used when operating and installing this machine.

• To protect against fire, electrical shock and personal injury, do not immerse cord, plug or machine in water or other liquid.
• Never allow the machine to be used by children.
• Unplug from the outlet when not in use and before cleaning. Allow to cool before fitting or taking off parts, and before cleaning the machine.
• Do not operate with a damaged cord or plug, or after the machine malfunctions, or has been damaged in any manner. Return the machine to the nearest authorized service facility for examination, repair or adjustment.
• The use of accessory attachments or spare parts not recommended by the machine manufacturer may result in fire, electrical shock or personal injury.
• Do not use outdoors.
• Do not let the cord hang over the edge of the table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electrical burner, or in a heated oven.
• Plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use the machine for other than the intended use. This machine is to be utilized for domestic use only. Any other use is to be considered improper and therefore, dangerous.

WARNING: To reduce the risk of fire or electric shock, do not remove the exterior of the unit or the cover. Don't attempt to repair or modify the machine, doing so will void the warranty. Repair should be done by authorized service personnel only!

SAVE THESE INSTRUCTIONS

THIS PRODUCT IS FOR HOUSEHOLD USE ONLY

SHORT CORD INSTRUCTIONS

• A short power cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.
• Longer, detachable power supply cords or extension cords are available and may be used if care is exercised in their use.
• If an extension cord is used, the marked electrical rating should be at least as great as the electrical rating of the machine. If the machine is provided with 3-wire, grounding type cord, the extension should be a GROUNDING TYPE 3 - WIRE CORD. The longer cord should be arranged so that it will not drape over the counter-top or table top where it can be pulled on by children or tripped over.
• Your product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

1. DESCRIPTION

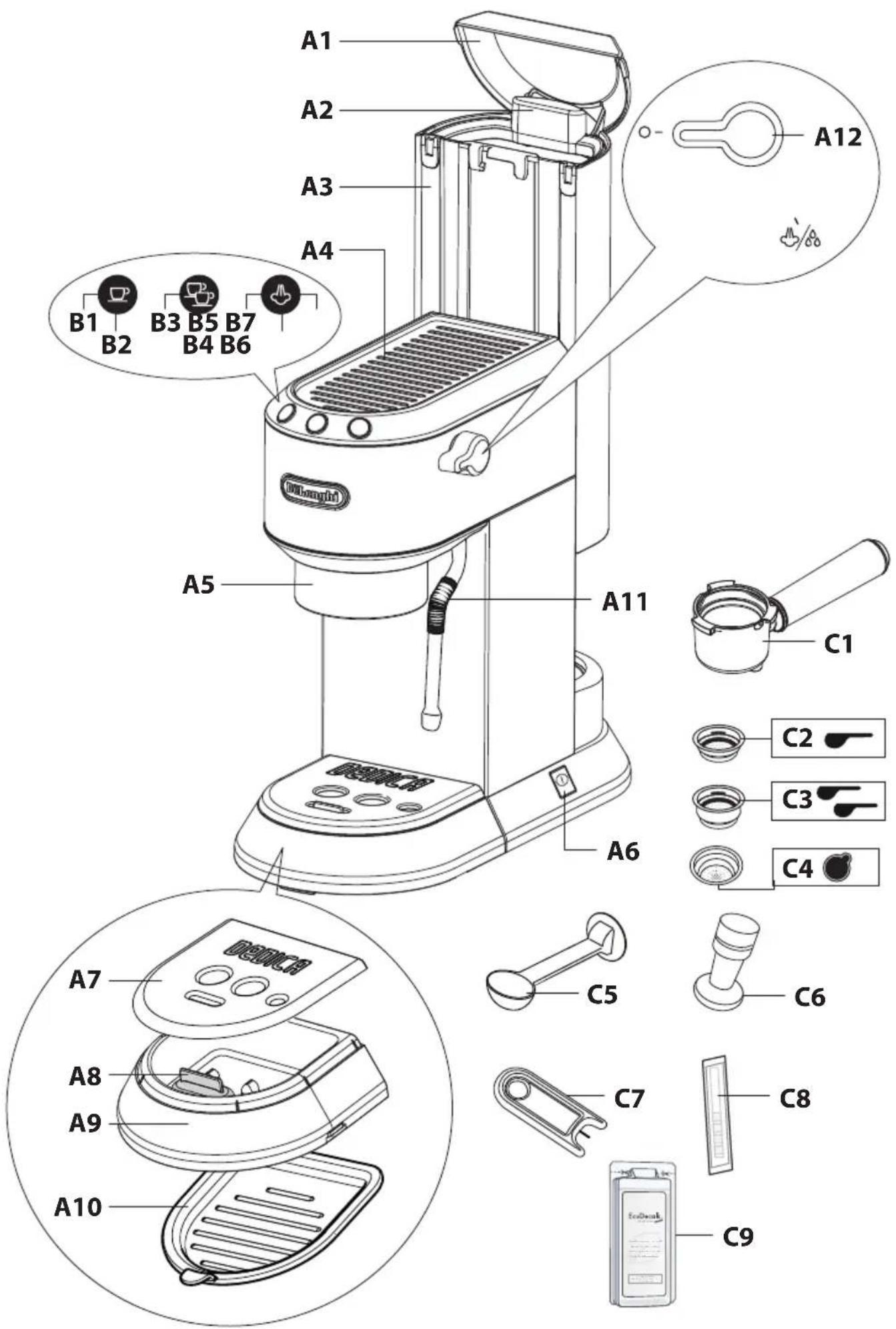

1.1 Description of appliance - A

A1. Water tank lid
A2. Tank extraction handle
A3. Water tank
A4. Cup warmer
A5. Brewing unit
A6. ON/OFF switch
A7. Cup tray
A8. Drip tray full indicator
A9. Drip tray
A10. Mugs or glasses tray
A11. Steam wand
A12. Steam dial

1.2 Description of control panel - B

B1. One cup button
B2. ON light on button (white)
B3. Two cups button
B4. ON light on button (white)
B5. Steam button
B6. ON light on button (white)

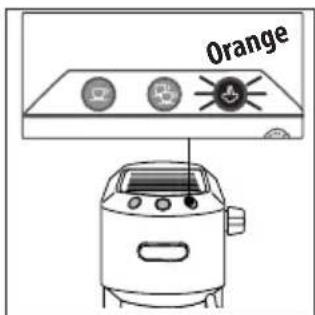

B7. Descale light (orange)

1.3 Description of accessories - C

C1. Portafilter
C2. 1 cup filter ( symbol under filter)
C3. 2 cup filter ( symbol under filter)
C4. Pod filter ( ● bol under filter)
C5. Measuring scoop/presser
C6. Tamper
C7. Cleaning needle
C8. Water hardness test
C9. Descaler

1.4 Recommended optional accessories

Visit Delonghi.com for more information.

Water hardness filter

EAN: 8004399327252

2. PREPARING YOUR MACHINE FOR FIRST USE

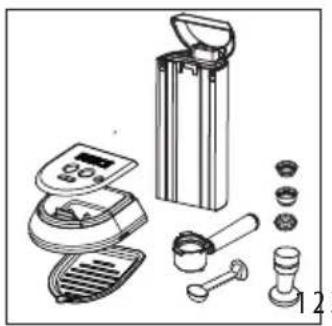

Exploded view of a kitchen appliance with labeled parts including a refrigerator, washing machine, and accessories (no text or symbols visible)

Illustration of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

MAX

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

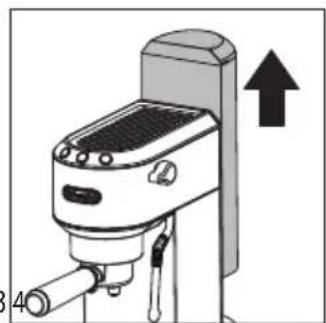

1. Wash and dry all accessories (including water tank (A3)) with warm water and mild detergent.

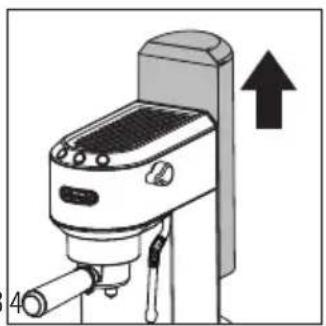

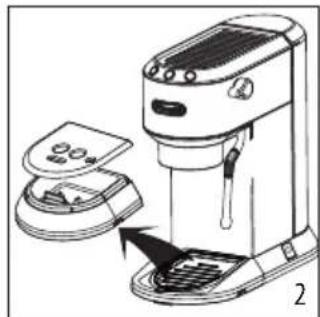

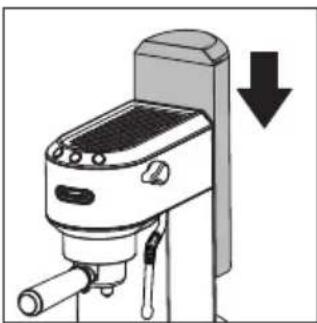

2. Extract the tank by pulling it upwards.

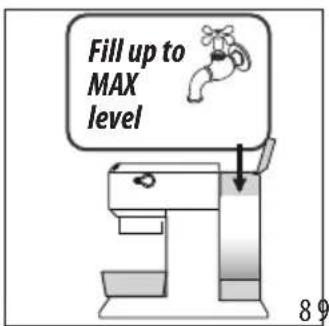

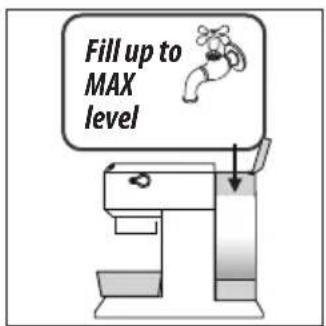

3. Open the lid and fill the tank with fresh clean water, taking care not to exceed the MAX level.

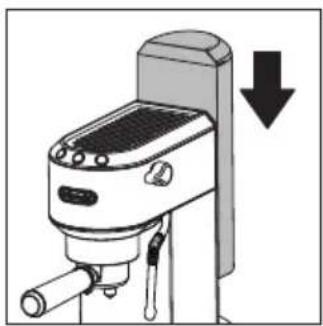

4. Put the tank back in the machine, pressing lightly to open the valves located on the bottom of the tank.

PREPARING YOUR MACHINE FOR FIRST USE

56

Illustration of a toaster with three air conditioner units above it, no text or symbols present.

Line drawing of a kitchen appliance with a toaster and two control buttons above (no text or symbols)

INSERT CLOSE 1 2

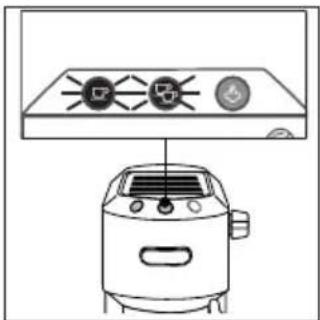

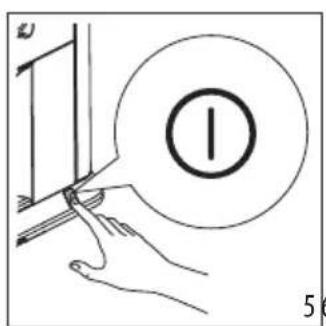

1. Turn the machine on by pressing the ON/OFF switch (A6).

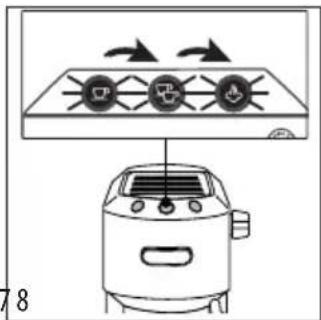

2. The machine performs a self-diagnosis cycle, indicated by sequential flashing of the three buttons.

3. The an lights flash to indicate the machine is heating up. When the lights stop flashing and remain on steadily, the machine is ready for rinse.

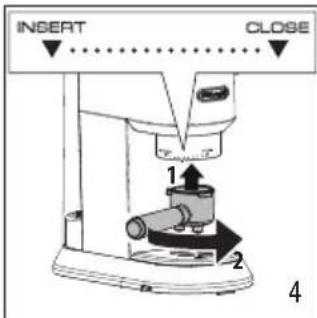

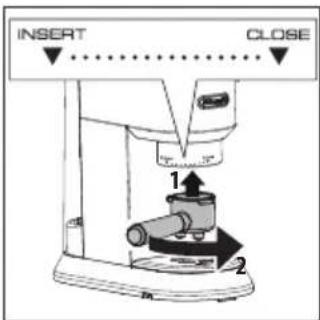

4. Attach the portafilter to the machine aligning the portafilter handle with "INSERT", then turning the handle to the right until it is aligned in the "CLOSE" position.

Line drawing of a coffee maker with a side bowl and handle (no text or symbols)

Illustration of a kitchen appliance with a hand placing a button onto a tray, next to a toaster (no text or symbols)

Illustration of a coffee maker with a glass bowl and water droplets, no text or symbols present

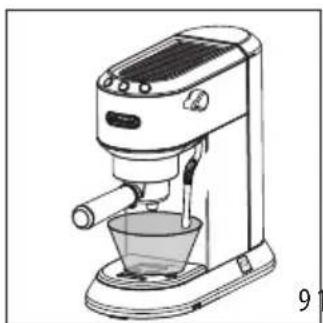

1. Place a container with a minimum capacity of 500 ml (17 fl oz) under the brewing unit (A5) and steam wand (A11).

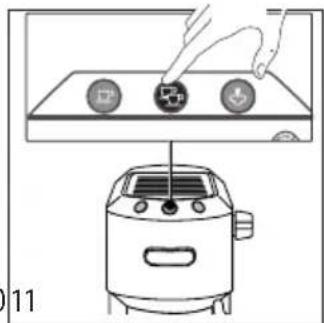

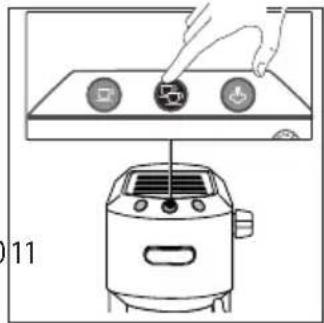

2. Press the Union. Repeat this operation 5 times.

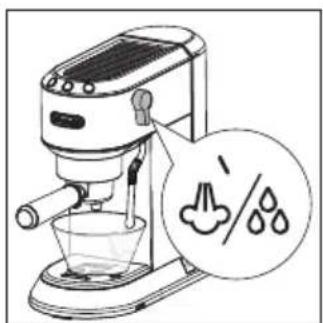

3. Turn the hot water/steam dial to the 🏠/💡 position and deliver to empty the water tank; then turn the knob to the 0 position. This is to purge the steam circuit before frothing or steaming your milk.

Please note:

• Never operate the machine without water in the tank or without the tank.
• It is normal for there to be water in the space under the tank. This should therefore be dried regularly with a clean sponge.

3. HOW TO MAKE ESPRESSO COFFEE

Technical line drawing of a mechanical component with multiple inset views showing internal components (no text or symbols)

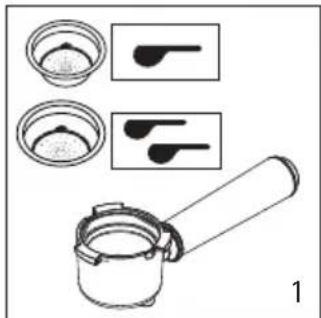

1. Place the coffee filter (C2) for single espresso or (C3) for double espresso in the portafilter (C1).

Illustration of a hand pouring liquid into a container with a tool (no text or symbols)

1. Fill the coffee filter with ground coffee. Make sure that you are using a fine grind, specific for espresso.

Diagram illustrating a cooking step with a hammer, checkmark, and stopwatch, labeled with number 3

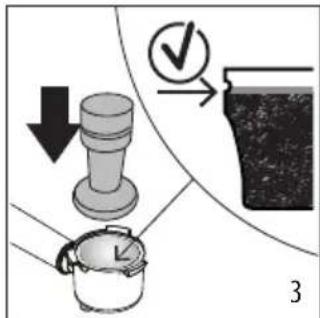

1. Distribute the pre-ground coffee evenly and press with the tamper (C6). Make sure the coffee is at the recommended dose level after tamping. You may need to add some coffee.

INSERT CLOSE 1 2 4

1. Remove any excess coffee from the rim of the portafilter and attach the portafilter to the machine.

Line drawing of a coffee maker with a cup and side arm, no text or symbols present

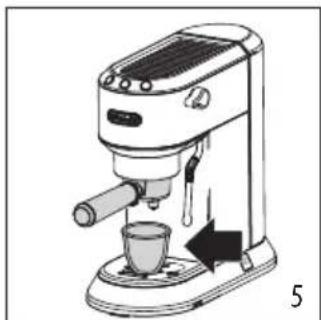

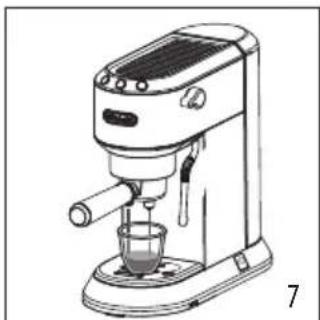

1. Place the cup or cups under the portafilter spouts.

Illustration of a kitchen setup with a toaster and three digital kitchen units on a tray (no text or symbols)

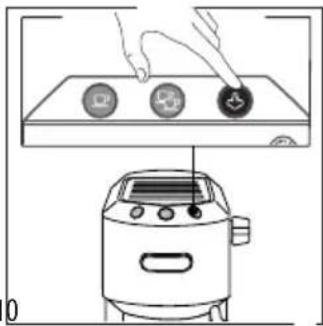

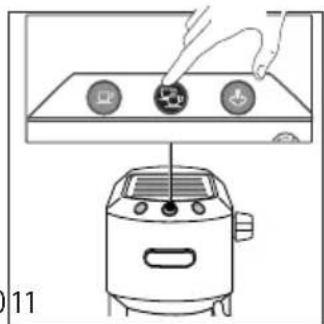

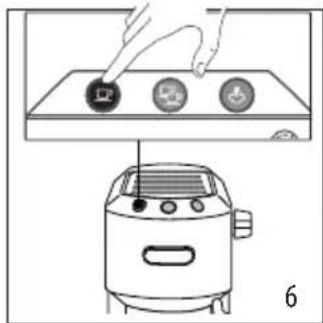

1. Make sure the lights corresponding to the coffee buttons are on, then press the

Line drawing of a coffee maker with a glass cup and side arm (no text or symbols)

1. The machine proceeds to make the coffee and delivery is interrupted automatically.

INSERT CLOSE 1 2 8

1. To remove the portafilter, turn the handle from right to left.

coffee button.

Please note:

• Before filling the coffee filter with pre-ground coffee, make sure there are no coffee residues left in the filter from the last time you made coffee.
• While the machine is making coffee, delivery can be interrupted at any moment by pressing the coffee button pressed previously.
• At the end of delivery (within 3 seconds), to increase the amount of coffee in the cup, press and hold the coffee button pressed previously. Delivery is automatically interrupted after a few seconds.
• To avoid splashes, never remove the portafilter while the machine is delivering coffee. Always wait for a few seconds after delivery.

3.1 Tamping the coffee:

Correct pressing of the pre-ground coffee is essential to obtain a correctly extracted espresso.

- If you press too lightly or unevenly, the coffee will be delivered quickly and will be weak and under-extracted

3.2 Tips for a hotter coffee

• You are recommended to warm the cups before making coffee by rinsing them with a little hot water.
• Attach the portafilter (C1) to the machine with the filter (C2) or (C3) in place but without adding coffee. Using the same cup as will later be used to make the coffee, press the 1 cup button and deliver hot water into the cup to heat it.
• Raise the infusion temperature in the settings menu (see section "9. Menù settings").
• Rest the cups you will be using on the cup warmer (A4) which becomes hot during operation.

4. HOW TO MAKE ESPRESSO COFFEE USING PODS

Technical line drawing of a mechanical component with three views: top view, side view, and close-up (no text or symbols)

1. Place the filter for coffee pods (C4) in the portafilter.

Diagram of a mechanical device with a handle and lever, showing a downward arrow indicating process (no text or symbols present)

1. Insert the pod, centring it as far as possible on the filter. Always follow the instructions on the pod pack to position the pod on the filter correctly.

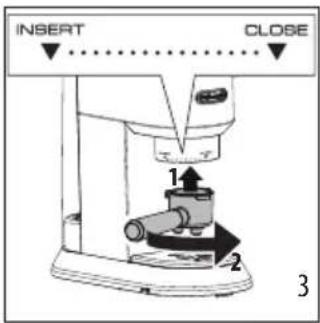

INSERT CLOSE 1 2 3

1. Attach the portafilter to the machine.

Line drawing of a coffee maker with a cup and lever, no text or symbols present

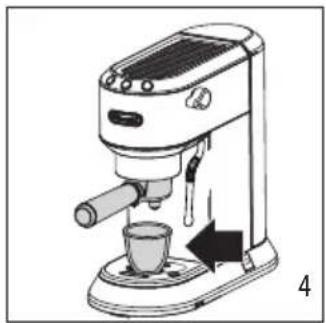

1. Place the cup under the portafilter spouts.

Diagram showing a kitchen setup with a tray, three buttons, and a toaster, labeled with numbers 1 and 5.

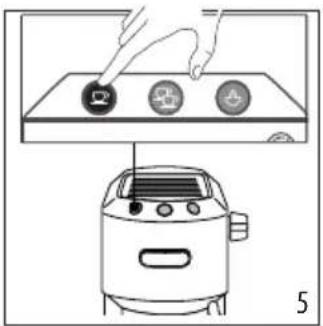

1. Make sure the lights corresponding to the coffee buttons are on, then press the 📄 button.

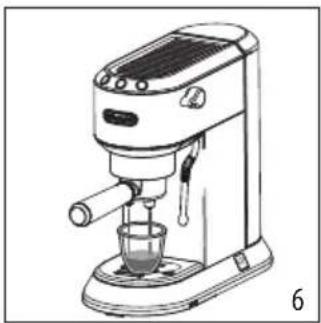

Line drawing of a modern espresso machine with a glass cup and lever (no text or symbols)

1. The machine proceeds to make the coffee and delivery is interrupted automatically.

INSERT CLOSE 1 2 7

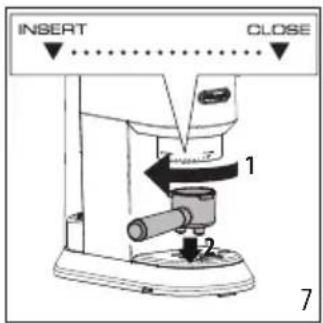

1. To remove the portafilter, turn the handle from right to left.

4.1 Choose the pods

Use pods conforming to the ESE standard, indicated on the pack by the corresponding symbol.

The ESE standard is a system accepted by leading pod producers and enables espresso

coffee to be prepared simply and cleanly.

Please note:

- When using pods, you can brew 1 cup of coffee only.

- While the machine is making coffee, delivery can be interrupted at any moment by pressing the coffee button pressed previously.

- At the end of delivery (within 3 seconds), to increase the amount of coffee in the cup, press and hold the coffee button pressed previously. Delivery is automatically interrupted after a few seconds.

- To avoid splashes, never remove the portafilter while the machine is delivering coffee. Always wait for a few seconds after delivery.

• See section "3.2 Tips for a hotter coffee".

5. PROGRAMMING THE QUANTITIES OF COFFEE IN THE CUP

The machine is set by default to automatically deliver standard quantities. To change these quantities, proceed as follows:

Line drawing of a coffee maker with a cup and lever, no text or symbols present

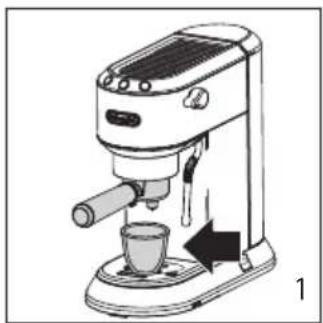

1. Place one or two cups under the portafilter spouts.

Diagram showing a kitchen setup with a hand pressing down on a grater and a second image of a toaster.

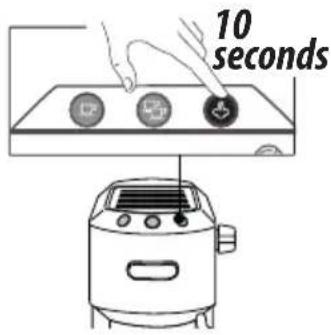

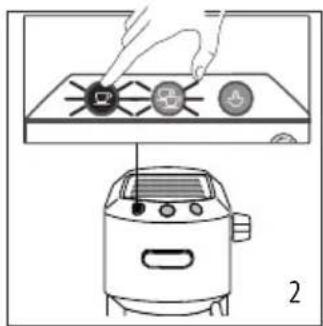

1. Press and hold the button you want to programme ( [icon]

Line drawing of a coffee maker with a glass cup and side arm (no text or symbols)

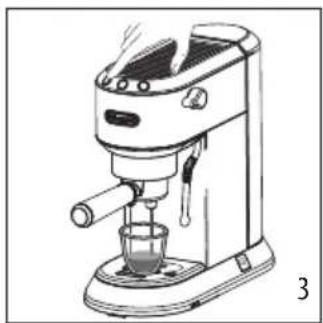

1. The coffee maker starts delivering coffee and the other coffee button flashes to indicate that the machine is in programming mode.

Illustration of a kitchen appliance with a digital display and control buttons (no text or symbols)

1. Once the required quantity of coffee has been delivered into the cup, release the button. Delivery stops and the light flashes to indicate that the quantity has been saved correctly.

	Default quantity	Programmable quantity
	35 ml(1.18 fl oz)	from ≈15 to ≈90 ml(from ≈0.51 to ≈3.04 fl oz)
	70 ml(2.37 fl oz)	from ≈30 to ≈180 ml(from ≈1.01 to ≈6.09 fl oz)

6. MAKING CAPPUCCINO

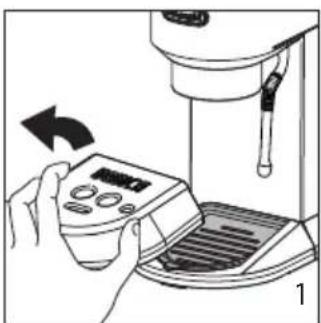

Illustration of a hand using a digital coffee machine to press or install a tray (no text or symbols visible)

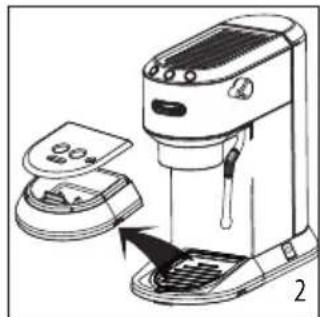

1. To use tall glasses, remove the drip tray (A9) and stand the glasses on the glasses tray (A10)

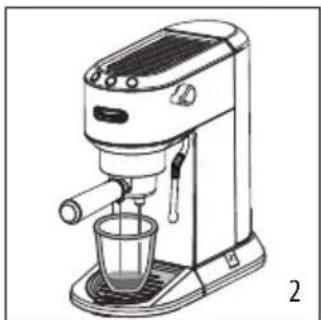

Line drawing of a coffee maker with a cup and side arm (no text or symbols)

1. Prepare the espresso coffees as described in the previous sections, using sufficiently large cups.

5°C 3

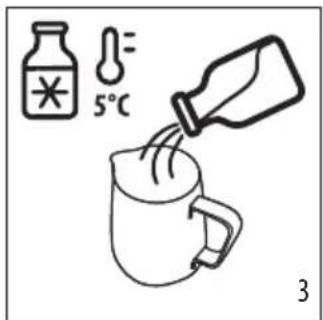

1. Fill a milk pitcher with fresh cold milk. Milk will up to triple in volume.

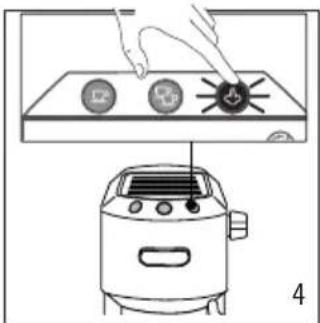

Diagram showing kitchen setup with a toaster and three kitchen items on a tray, labeled with number 4

1. Press the

The light flashes. When the light comes steady, the appliance is ready to deliver steam.

Tips for best results:

• Recommended milk quantity for cappuccino: 100 ml/ 3.5 fl oz.
• For a denser more even froth, you must use milk at refrigerator temperature (about 5°C/41°F).

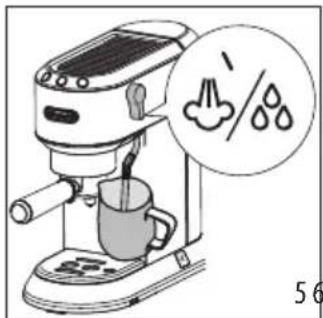

• When steam is ready, before frothing milk, position an empty container under the frother and open the dial for a few seconds to eliminate any air left in the circuit. Close the dial again and proceed.

Illustration of a coffee maker with a cup and a hand gesture, no text or symbols present

Simple line drawing of a beaker with a curved tube and arrow, no text or symbols present.

1. Place the milk pitcher under the steam wand (A11): immerse the frother and turn the dial to the position.

2. To make the froth, put the nozzle on the surface of the milk and air will catch by the mixing of milk and steam.

Simple line drawing of a pitcher with a downward arrow indicating compression or lifting (no text or symbols)

1. Keep the steam nozzle just on the surface, careful not to make big bubbles by letting too much air in.

Simple line drawing of a coffee mug with a swirling arrow, no text or symbols present

1. Insert the steam nozzle just under the milk: this create a vortex.

2. Once the desired temperature is reached, turn the steam knob off and wait till steam stops completely before removing the milk pitcher

3. Pour the frothed milk into the cups containing the espresso coffee prepared previously. The cappuccino is ready. Sweeten to taste and if desired, sprinkle the froth with a little cocoa powder.

Please note:

• To prepare more than one cappuccino, first make all the coffees then at the end prepare the frothed milk for all the cappuccinos.
- To exit the steam function, press any button. The and - you's flash to indicate that the Cooling Cycle is required.
- You should not deliver steam for more than 60 seconds.

Cleaning the steam wand

1. After every use, remove with a soft damp cloth any milk residues from the steam wand. For perfect cleaning, we recommend Eco Multi-Clean: it ensures hygiene by removing milk proteins and fats and can be used to clean the whole machine.
2. Use the steam for a deeper cleaning.
3. Wait that the steam wand cool down and open the hole of the nozzle with the cleaning needle (C7).

Illustration of a hand holding a tool or device with a curved handle (no text or symbols visible)

Diagram showing a hand holding a tool with a magnified circular icon containing percentage symbols, likely indicating a measurement or percentage.

Diagram of a mechanical component with a curved pipe and a bracket, no text or symbols present

6.1 Cooling Cycle

After having used the steam wand and exited the steam function, the two lights 📄 on the front of the machine will flash simultaneously indicating that the boiler needs to be cooled off in order to reach the precise espresso brewing temperature. Simply proceed as follows:

• place a container under the cappuccino maker;
• open the steam dial to deliver steam and hot water: the ●t flashes;
• when both lights ( and ) flash the boiler is cool: close the steam dial. (when the boiler is cool, the pump stops operating and no more water is delivered).

The coffee maker is now ready for use.

Diagram of a micrometer with labeled parts and a magnified view showing the magnified view of the device's size.

E O- 2

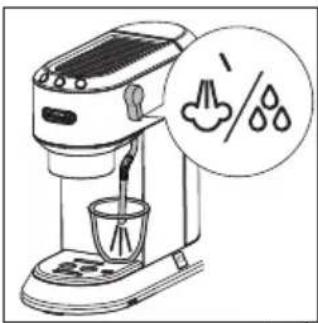

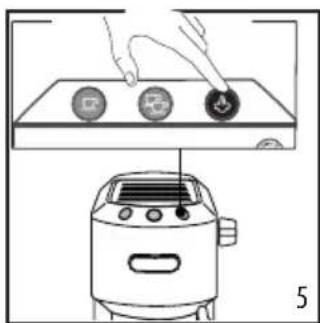

7. MAKING HOT WATER

Line drawing of a coffee maker with a cup and side panel (no text or symbols)

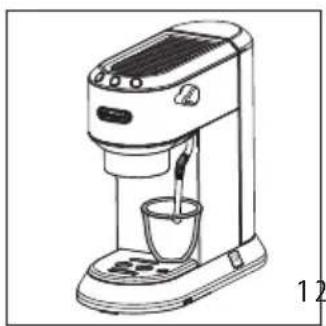

1. Place a container under the steam wand.

Line drawing of a kitchen appliance with three control buttons above a toaster (no text or symbols)

1. Wait for the coffee lights to come on steadily.

Line drawing of a coffee maker with a cup and lid, showing liquid droplets (no text or symbols)

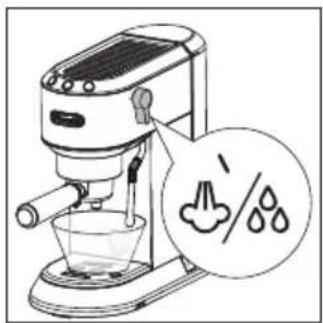

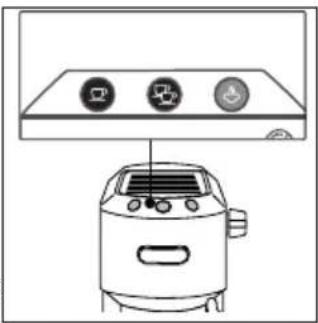

1. Turn the dial to the position. Hot water is delivered from the steam wand.

You should not deliver hot water for more than 60 seconds.

1. To stop hot water delivery, close the dial.

8. MEASURING WATER HARDNESS

The descaling alarm is displayed after a period of time established according to water hardness. The machine can also be programmed according to the hardness of the water supply in the various regions. Softer water requires less frequent descaling.

1. Remove the indicator paper from its packaging.
2. Immerse the paper completely in a glass of water for about one second.

Illustration of a hand washing a faucet into a glass with liquid, no text or symbols present

Simple line drawing of a hand holding a stick with motion lines indicating movement (no text or symbols)

1. Remove the strip from the water and shake lightly. After about a minute, 1, 2, 3, or 4 red squares appear, depending on the hardness of the water. Each square corresponds to one level.

Total Hardness Test Hardness
	Soft
	Medium
	High

See instructions in section "9. Menù settings" to set the machine.

9. MENÙ SETTINGS

1. Enter the menu
	Press and hold the on for 10 seconds until the three buttons flash in sequence:
...→
2. Set the machine
Infusion temperatureThis temperature refers to the water inside the thermoblock. This differs from the temperature of the beverage in the cup or the temperature measured when the beverage comes out from the portafilter spouts.	Presslowtemperature
	PressMediumtemperature
	Presshightemperature
Water hardness	Pressoftwater
	PressMediumwater
	Presslighwater
Auto-off	Pressminutes
	Press30 minutes
	Presshours
3. Exit the menu
Exit the settings menu by waiting for 15 seconds.Please note:The setting is automatically confirmed and it is highlighted by a quick flashing of the light relative to the selection.If no selections are made for 15 seconds, the machine automatically exits programming and is ready for use again.

11. DEFAULT VALUES (RESET)

This resets all menu settings and programmed quantities back to the default values.

To reset the default values, proceed as follows:

1. Position the steam spout over the drip tray;
2. Enter the settings menu;
3. Turn the steam dial to the position;
4. Press the button. The three lights flash simultaneously to confirm that the original settings have been restored.
5. The an lights fl indicate that the steam dial must be closed again (○symbol).

When the steam dial has been closed, the machine is ready for use.

12. CLEANING THE MACHINE

The following parts of the machine must be hand cleaned regularly:

• the drip tray (A9)
  • the coffee filters (C2), (C3) and (C4);
  • the brewing unit (A5);
• the water tank (A3);
• the steam wand (A11) as described in section “‘Cleaning the steam wand’”;

Important!

• None of the components or accessories is dishwasher safe.
- Do not use solvents, abrasive detergents or alcohol to clean the coffee machine.
- Do not use metal objects to remove encrustations or coffee deposits as they could scratch metal or plastic surfaces.
- If the machine is not used for more than one week, before using it again, we strongly recommend you perform a rinse cycle as described in section "2. Preparing your machine for first use".

Danger!

• While cleaning, never immerse the coffee maker in water. It is an electrical machine.
• Before cleaning the outside of the machine, turn it off, unplug from the main socket and allow to cool.

12.1 Cleaning the drip tray

Important!

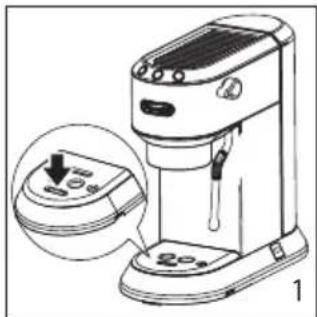

The drip tray is fitted with a level indicator (red) showing the level of water it contains. Before the indicator protrudes from the cup tray (fig. 1), the drip tray must be emptied and cleaned otherwise the water may overflow the edge and damage the machine, the surface it rests on or the surrounding area.

Illustration of a coffee maker with a control panel and a close-up view of its base (no text or symbols)

Illustration of a coffee machine with a tray and lid, showing mechanical components (no text or symbols)

1. Remove the drip tray (A9) (fig. 2).
2. Remove the cup tray (A7), empty the water and clean the drip tray with a cloth, then reassemble the drip tray. Extract the mugs or glasses tray (A10), clean with water, dry and put back in the machine;
3. Put the drip tray back in place.

12.2 Cleaning the coffee filters

The coffee filters are designed to obtain the best possible coffee crema. For best results, the filters must always be clean and free from all coffee residues.

After using the appliance, always rinse the filters under abundant running water (fig. 3), pushing the perforated filter to make sure it is always correctly inserted in its housing (fig.4);

Simple line drawing of a faucet with a water level indicator (no text or symbols)

Illustration of a hand holding a circular object with a downward arrow, no text or symbols present

make sure the hole underneath (shown in fig. 5) is free from all residues.

Diagram showing a hand inserting a spiral into a target, with three circular insets depicting different types of genetic symbols.

If still dirty, and in any case always at least once a month, clean the coffee filters thoroughly:

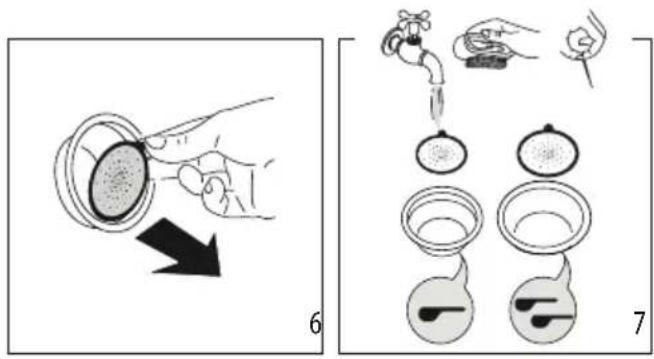

1. Extract the perforated filter by pulling the tab (fig. 6).

Diagram illustrating a hand holding a water tap with a magnified view of the water being held, labeled with parts 6 and 7.

1. Rinse the filters under running water (fig. 7).
2. Make sure the holes are not clogged. If necessary, clean with a pin (fig. 5-7).
3. Dry all the components with a cloth.
4. Put the perforated filter back in the housing and press as far as it will go (fig. 4).

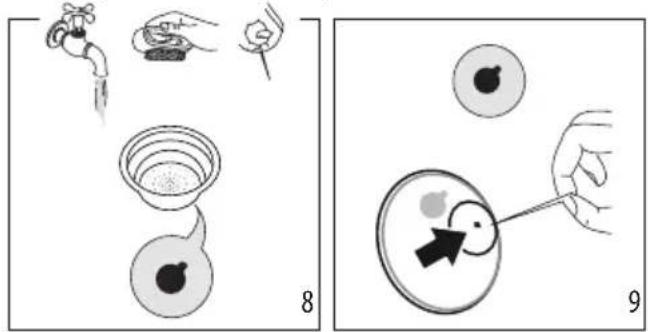

Pod filter

Rinse under running water. Make sure the holes are not clogged. If necessary, clean with a pin (figs. 8 - 9).

Illustration showing two-step food preparation steps: water tap, bowl with dipping sauce, and apple being inserted into a bowl.

12.3 Cleaning the brewing unit

After every 200 coffees, rinse the brewing unit by delivering about 0.5 l of water from the brewing unit (press the coffee button without using ground coffee).

12.4 Other cleaning operations

1. Do not use solvents or abrasive detergents to clean the coffee maker. Use a soft damp cloth only.

2. Clean the portafilter cup.

12.5 Cleaning the water tank

1. Clean the water tank regularly (about once a month) and whenever you replace the water softener filter (if present) with a damp cloth and a little mild washing up liquid;
2. Remove the filter (if present) and rinse with running water;
3. Put the filter (if provided) back in the machine, fill the tank with fresh water and replace the tank:
4. (If water filter is present)) Deliver about 100 ml of water.

13. DESCALING

≈25

Minutes

EcoDecalk mini 100 ml C/3,40 fl.oz.

• Before use, read the instructions and the labelling on the descaler pack.
• It is important to use De'Longhi descaler only. Using unsuitable descaler and/or performing descaling incorrectly may result in faults not covered by the manufacturer's guarantee.
• Descaler could damage delicate surfaces. If the product is accidentally spilt, dry immediately.
  • IF PRESENT, REMOVE THE WATER SOFTENER FILTER.

Orange

Descale the machine when the orange light on the ton flashes.

Setting the water hardness (see Section 8) will increase (harder water) or decrease (softer water) the frequency of the need to descale the machine.

Line drawing of a modern hand mixer device with control panel and base (no text or symbols)

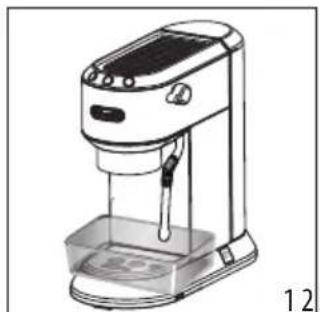

1. Make sure the portafilter is not attached and position a container under the hot water spout and brewing unit

+ up to MAX level

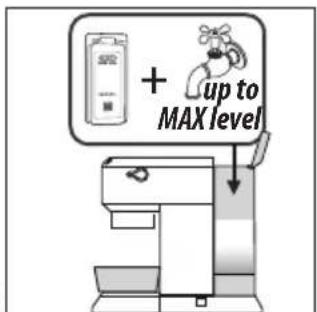

1. Fill the tank with the descaler solution, obtained by diluting the descaler provided with water (fill the water tank up to the MAX level).

10 seconds

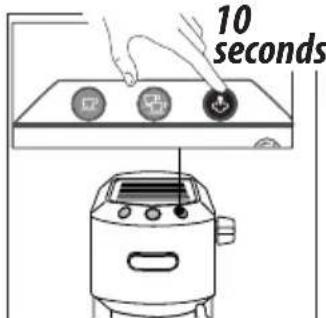

1. Press and hold the button for 10 until the three flash in sequence

seconds buttons

Illustration of a digital water dispenser with a hand gesture and droplet symbol (no text or labels)

1. Turn the steam dial to the

position.

Diagram showing a kitchen appliance with three buttons and a toaster, labeled with number 5

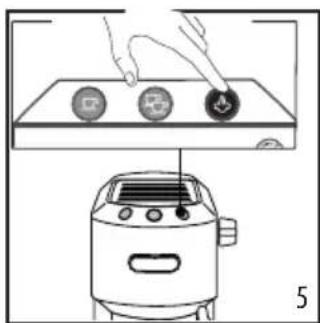

1. Press the but to start descaling

2. The descale programme starts and the descaler liquid comes out of the steam wand and brewing unit. The descale program removes limescale deposits from inside the appliance by automatically performing a series of rinses and pauses until the tank is empty.

Please note:

During descaling, to clean the brewing unit, close the steam dial from time to time to deliver small quantities of descaler from the brewing unit.

Delivery stops and the orange 📄t continues to flash, indicating that descaling is still underway.

This indicates that it is necessary to proceed with rinsing: see next steps.

Metallic mechanical component with a circular drain-like feature, no visible text or symbols

1. Empty the container used to collect the descaler solution and replace it empty.

Fill up to MAX level

1. The machine is now ready for rinsing through with clean water. Extract the water tank, empty, rinse under running water, fill with fresh water up to the MAX level and put back in the machine.

Diagram showing a kitchen setup with three circular icons above a tray and a toaster, likely illustrating a cooking or cleaning process.

1. Make sure the steam dial

is in the position, then press the

button to start rinsing. During rinsing, to clean the brewing unit, close the steam dial from time to time to deliver small quantities of water from the brewing unit.

Fill up to MAX level

1. Make a second rinse from step 7 to 9 inserting the water filter hardness (if previously installed).

2. When the water tank is empty, the orange light goes out and

descaling is complete. The

1. Close the steam dial turning it to 0 position.

2. Fill the water tank with fresh water.

Now the appliance is ready to use.

Please note

14. EXPLANATION OF LIGHTS

Lights Operation Explanation of lights
	The ON/OFF button is turned on The machine performs a self-diagnosis cycle, indicated by sequential flashing of the lights
	When the machine is turned on Flashing lights: the machine is heating up to make coffee Lights on steadily: the machine is ready to make coffee
	Steam dial open Flashing lights: close the steam dial
	Cleaning & Cooling Cycle required Activate	the Cleaning & Cooling Cycle as described in section “6.1 Cooling Cycle”.
→

Lights Operation Explanation of lights
			The tank is empty or the machine will not make coffee	The lights flash rapidly. See the section “2. Preparing your machine for first use”
			The steam function is required Flashing light: the machine is heating up to deliver steamLight on steadily: the machine is ready to deliver steam
orange		flashing	The machine needs descaling Descale the machine, the operation is complete when the goes off.

15. TROUBLESHOOTING

Problem Cause Solution
No espresso coffee is delivered No water in the tank Fill the tank
		The holes in the portafilter are clogged Clean the portafilter spout holes
		The filter is clogged of the perforated filter is missing
		The tank has been inserted incorrectly and the valves on the bottom are not open
		Limescale in the water circuit Descale as described in section “13. Descaling”
The espresso coffee drips from the edges of the portafilter rather than the holes	The portafilter has been inserted incorrectly or is dirty	Attach the portafilter correctly and rotate firmly as far as it will go
	The espresso boiler gasket has lost elasticity or is dirty	Have the espresso boiler gasket replaced by Customer Services
	The holes in the portafilter spouts are blocked	Clean the portafilter spout holes
	The filter is clogged or the perforated filter is missing	Clean as described in section “12.2 Cleaning the coffee filters”
The portafilter cannot be attached to the machine	Too much coffee has been placed in the filter	Use the measure supplied and make sure you are using the correct filter for the type of preparation
→
The coffee crema is too light (delivered from the spout too fast)	The pre-ground coffee is not pressed down firmly enough	Press the pre-ground coffee more firmly
	There is not enough pre-ground coffee Increase the quantity of pre-ground coffee
	The pre-ground coffee is too coarse Use only pre-ground coffee for espresso coffee makers
	The wrong type of pre-ground coffee is being used	Change the type of pre-ground coffee
The coffee crema is too dark (delivered from the spout too slowly)	There is not enough pre-ground coffee Reduce the quantity of pre-ground coffee
	The espresso coffee outlet is blocked Clean as described in section “12.3 Cleaning the brewing unit”
	The filter is blocked Clean as described in section “12.2 Cleaning the coffee filters”
	The pre-ground coffee is too fine	Use only pre-ground coffee for espresso coffee makers
	The pre-ground coffee is too fine or damp Use pre-ground coffee for espresso coffee makers only and make sure it is not too damp
	Limescale in the water circuit Descale as described in section “13. Descaling”
After delivering coffee, the filter remains attached to the brewing unit		Insert the portafilter again, deliver coffee, then remove the portafilter
The machine will not make any drink and all the lights flash for a few seconds	No water in the tank Fill the tank with water
	The tank has been inserted incorrectly and the valves on the bottom are not open	Press the tank down lightly to open the valves on the bottom
	The brewing unit is clogged Clean as described in section “12.3 Cleaning the brewing unit”
	The filter is clogged Clean as described in section “12.2 Cleaning the coffee filters”
	Limescale in the water circuit Descale as described in section “13. Descaling”
The machine does not function and all the lights flash		Disconnect the machine immediately and contact authorised Customer Services.
No milk froth is formed when making cappuccino	Milk not cold enough Always use milk at refrigerator temperature
	Frother dirty Clean as described in section “Cleaning the steam wand”
	Limescale in the water circuit Descale as described in section “13. Descaling”

CONSIGNES DE SÉCURITÉ IMPORTANTES

Exploded view diagram of a handwashing machine with labeled parts (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

MAX —

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Illustration of a toaster with three air conditioner units above it, no text or symbols present.

Line drawing of a kitchen appliance with a toaster and control panel (no text or symbols)

INSERT CLOSE 1 2

Line drawing of a modern espresso machine with a glass cup and side arm (no text or symbols)

Diagram showing a kitchen appliance with three buttons and a hand adjusting the tray, labeled with page number 11.

Illustration of a coffee maker with a cup and lid, accompanied by a thought bubble showing steam drop symbols (no text or labels)

Technical illustration of a mechanical device with three inset views showing different components (no text or symbols)

Illustration of a hand pouring liquid into a container with a tool (no text or symbols)

Diagram illustrating a cooking step with a hammer, checkmark, and stopwatch, labeled with number 3

Line drawing of a coffee maker with a cup and side arm, showing mechanical components and a directional arrow (no text or symbols)

Illustration of a kitchen setup with a toaster and three digital kitchen buttons above a tray (no text or symbols)

Line drawing of a coffee maker with a side arm and cup (no text or symbols)

Technical line drawing of a mechanical component with three views: top view, side view, and close-up (no text or symbols)

Diagram of a mechanical device with a handle and lever, showing a downward arrow indicating process (no text or symbols present)

Line drawing of a coffee maker with a cup and lever, showing no text or symbols

Diagram showing a kitchen setup with a grater and three circular buttons above it, labeled with number 5.

Line drawing of a coffee maker with a glass bowl and side arm (no text or symbols)

Illustration of a coffee maker with a cup and lever, showing no text or symbols

Illustration showing a kitchen setup with a grater and a toaster, no text or symbols present

Line drawing of a coffee maker with a glass cup and side arm (no text or symbols)

Illustration of a kitchen appliance with a digital display and three circular icons above it (no text or symbols)

Illustration of a hand using a digital coffee machine to press or install a tray (no text or symbols visible)

Line drawing of a coffee maker with a cup and side arm (no text or symbols)

Diagram showing kitchen setup with a toaster and three kitchen items on a tray, labeled with number 4

Illustration of a coffee maker with a hand gesture and water drop symbols, labeled '56' at bottom right.

Simple line drawing of a beaker with a curved tube and liquid inside, no text or symbols present.

Simple line drawing of a pitcher with liquid and a downward arrow (no text or symbols)

Simple line drawing of a coffee mug with a swirling arrow, no text or symbols present

Illustration of a hand holding a medical device with a tool, labeled '1' (no text or symbols on the device itself)

Diagram showing a hand washing clothes with a magnified circular label containing percentage symbols, likely indicating a safety or health indicator.

Diagram of a mechanical component with a curved pipe and a bracket, labeled with number 3 (no text or symbols on the diagram itself)

Illustration of a coffee machine with a bug icon and a mouthpiece, accompanied by a percentage symbol (no text or labels present)

O- 2

7. FAIRE DE L'EAU CHAUDE

Line drawing of a coffee maker with a cup and side panel (no text or symbols)

Line drawing of a kitchen appliance with three control buttons above a toaster (no text or symbols)

Line drawing of a coffee maker with a cup and lid, showing liquid droplets (no text or symbols)

Illustration of a hand washing a faucet into a glass with liquid, no text or symbols present

Simple line drawing of a hand holding a stick with motion lines indicating movement (no text or symbols)

Illustration of a coffee maker with a control panel and a close-up view of its lid (no text or symbols)

Illustration of a coffee machine with a tray and lid, showing internal components (no text or symbols)

Simple line drawing of a faucet with water flowing from a circular sink (no text or symbols)

Illustration of a hand holding a circular object with a downward arrow, no text or symbols present

Diagram showing a hand inserting a spiral into a target with arrows, alongside two circular diagrams labeled with symbols.

Diagram illustrating a water tap and its corresponding water drop mechanism, labeled with parts 6 and 7.

Diagram illustrating a food preparation step with labeled steps and a magnified view showing the food being inserted into a bowl.

Line drawing of a modern coffee maker with a stand and base (no text or symbols)

+ up to MAX level

10 seconds

Illustration of a digital water dispenser with a hand gesture and droplet symbol (no text or labels)

Diagram showing a kitchen setup with three circular objects on a tray and a toaster, labeled with number 5.

Metallic mechanical component with a circular drain-like feature, no visible text or symbols

Fill up to MAX level

Diagram showing a kitchen setup with three circular buttons and a toaster, illustrating the process of adding a button to a digital display.

Fill up to MAX level

Exploded view diagram of a handwashing machine with labeled parts (no text or symbols present)

Diagram of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

MAX —

Diagram of a mechanical device with a downward arrow indicating force or direction (no text or symbols present)

Illustration of a toaster with three rotary switches above it, no text or symbols present.

Line drawing of a kitchen appliance with a toaster and control panel (no text or symbols)

INSERT CLOSE 1 2

Line drawing of a modern espresso machine with a glass cup and lever (no text or symbols)

Diagram showing a kitchen appliance with a hand pressing a button onto a tray, and a toaster on the side.

Illustration of a coffee maker with a cup and water droplets, no text or symbols present

3. CÓMO HACER CAFÉ ESPRESSO

Technical line drawing of a mechanical component with multiple inset views showing internal components (no text or symbols)

Illustration of a hand pouring liquid into a container with a tool (no text or symbols)

Diagram illustrating a cooking step with a hammer, checkmark, and stopwatch, labeled with number 3

Illustration of a coffee maker with a cup and lever, no text or symbols present

Illustration of a kitchen setup with a hand placing three round objects onto a tray, and a toaster on a stand (no text or symbols)

Line drawing of a coffee maker with a cup and stand (no text or symbols)

4. CÓMO HACER CAFÉ ESPRESSO CON CÁPSULAS

Technical line drawing of a mechanical component with three views: top view, side view, and bottom view (no text or symbols)

Diagram of a mechanical device with a handle and lever, showing a downward arrow indicating process (no text or symbols present)

Line drawing of a coffee maker with a cup and lever, showing no text or symbols

Diagram showing a kitchen setup with a hand pressing down on a tray and a toaster, labeled with icons and number 5.

Line drawing of a coffee maker with a glass cup and side arm (no text or symbols)

Line drawing of a coffee maker with a cup and side arm, no text or symbols present

Illustration of a kitchen setup with a grater and a hand placing food items on a tray (no text or symbols)

Line drawing of a coffee maker with a side arm and base (no text or symbols)

Illustration of a kitchen appliance with a digital display and three circular buttons above it (no text or symbols)

Illustration of a hand using a digital coffee machine to press or install a tray (no text or symbols visible)

Line drawing of a coffee maker with a cup and side arm (no text or symbols)

Diagram showing a kitchen setup with a grater and three kitchen items, labeled with numbers 4 and 5.

Illustration of a coffee maker with a cup and steam pipe, accompanied by a thought bubble showing sweat drop symbols (no text or labels)

Simple line drawing of a beaker with a tube and liquid inside, no text or symbols present.

Simple line drawing of a pitcher with a downward arrow, no text or symbols present

Illustration of a beaker pouring liquid with a swirling arrow, symbolizing fluid flow (no text or symbols)

Illustration of a hand holding a medical or surgical instrument (no text or symbols visible)

Diagram showing a hand holding a tool with a magnified circular icon containing percentage symbols, likely indicating a measurement or percentage.

Diagram of a mechanical component with a curved pipe and a bracket, labeled with number 3 (no text or symbols on the diagram itself)

Por favor observe:

Illustration of a coffee machine with a spiderweb and a cup, accompanied by a magnified view of its contents (no text or symbols present)

Line drawing of a coffee maker with cups and a cup, no text or symbols present

7. PREPARAR AGUA CALIENTE

Line drawing of a coffee maker with a cup and side panel (no text or symbols)

Line drawing of a kitchen appliance with three control buttons above a toaster (no text or symbols)

Illustration of a coffee maker with a water drop symbol and a droplet icon, indicating water drop behavior.

Illustration of a hand pouring liquid from a faucet into a glass with a straw (no text or symbols)

Simple line drawing of a hand holding a stick with motion lines indicating movement (no text or symbols)

Illustration of a modern coffee maker with a close-up of its control panel (no text or symbols visible)

Line drawing of a coffee machine with a tray and lid, showing mechanical components (no text or symbols)

Simple line drawing of a faucet with a water level, no text or symbols present

Illustration of a hand holding a circular object with a downward arrow, no text or symbols present

Diagram showing a hand inserting a spiral into a target with arrows, alongside two circular icons labeled with symbols.

Diagram illustrating a water tap and its corresponding water drop mechanism, labeled with parts 6 and 7.

Diagram illustrating a food preparation step with labeled steps and a magnified view showing the food being injected into a bowl.

Line drawing of a modern coffee maker with a stand and base (no text or symbols)

+ up to MAX level

10 seconds

1. Mantenga pulsado el

Illustration of a digital water dispenser with a hand gesture and a magnified droplet symbol (no text or labels)

1. Gire el dial de vapor a la

Diagram showing a kitchen appliance with three buttons and a toaster, labeled with number 5

1. Pulse el botón pa

Metallic mechanical component with a circular dial indicator (no text or symbols visible)

Fill up to MAX level

Diagram showing a kitchen setup with three kitchen items and a toaster, labeled with icons for food preparation.

Fill up to MAX level
