USER MANUAL GPA1 KRUPS

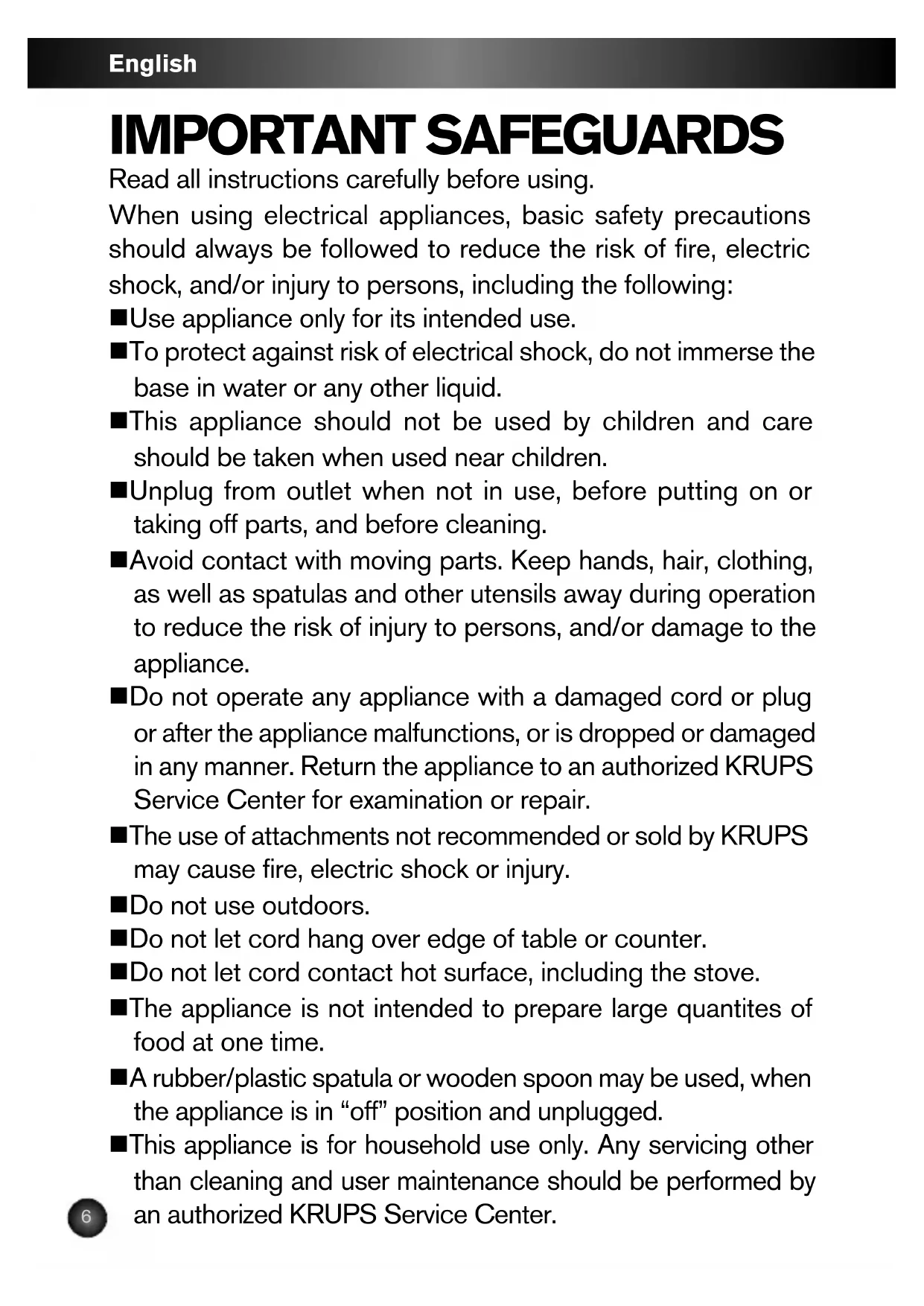

IMPORTANT SAFEGUARDS Read all instructions carefully before using. When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following: Use appliance only for its intended use. To protect against risk of electrical shock, do not immerse the base in water or any other liquid. This appliance should not be used by children and care should be taken when used near children. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. Avoid contact with moving parts. Keep hands, hair, clothing, as well as spatulas and other utensils away during operation to reduce the risk of injury to persons, and/or damage to the appliance. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return the appliance to an authorized KRUPS Service Center for examination or repair. The use of attachments not recommended or sold by KRUPS may cause fire, electric shock or injury. Do not use outdoors. Do not let cord hang over edge of table or counter. Do not let cord contact hot surface, including the stove. The appliance is not intended to prepare large quantites of food at one time. A rubber/plastic spatula or wooden spoon may be used, when the appliance is in “off” position and unplugged. This appliance is for household use only. Any servicing other than cleaning and user maintenance should be performed by an authorized KRUPS Service Center. IFU_KR_MIXER_GPA-1-3_NAFTA_2550699-02_Mise en page 1 12/04/12 17:12 Page6English To reduce the risk of injury, never place cutting blade on base without first putting bowl properly in place. Be certain cover is securely locked in place before operating appliance. To reduce the risk of fire or electric shock, do not operate any heating appliance beneath the mounted unit. Do not mount the storage bracket/unit over or near any portion of a heating or cooking appliance or a sink or basin. When mixing liquids, especially hot liquids, use a tall container or make small quantities at a time to reduce spillage. Keep hands and utensils out of the container while blending to prevent the possibility of severe injury to persons or damage to the unit. A scraper may be used but must be used only when the unit is not running. Blades are sharp, handle carefully. SAVE THESE INSTRUCTIONS CAUTION This appliance complies with applicable technical rules and standards at the time of manufacture. Do not leave the appliance within reach of children. The blades supplied with this appliance are sharp, young children or severely disabled persons should always be supervised when using this appliance. An electrical appliance is not a toy and should be kept out of reach of children. This appliance is intended for household use only. Do not use it for commercial purposes. Any servicing other than cleaning and user maintenance should be performed by the nearest authorized KRUPS Service Center.

Check voltage to be sure that the voltage indicated on the rating label matches your voltage. Do not immerse the appliance in water or any other liquid. ■ To reduce the risk of fire or electric shock, do not remove the base. No user serviceable parts inside. Repairs should be done by an authorised KRUPS Service Center only. Never clean with harsh or abrasive cleaners or sponges. Clean using gentle dishwashing liquid and warm water. Dry all parts carefully before next use. Do not place or use the appliance on hot surfaces such as stoves, hotplates, or near open gas flames. Do not unplug the unit by pulling on the cord. Instead grasp plug and pull to disconnect. Only use the appliance on a stable working surface away from water splashes.

SHORT CORD INSTRUCTIONS

A. We do not recommend using an extension cord with this device. B. If an extension cord is absolutely necessary,

1) the marked electrical rating of the extension cord should

be at least as great as the electrical rating of the machine,

2) the longer cord should be arranged so that it will not

drape over the counter top or table top where it can be pulled on by children or tripped over. C. This machine has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way. In the interest of improving products, Krups reserves the right to change specifications without prior notice. IFU_KR_MIXER_GPA-1-3_NAFTA_2550699-02_Mise en page 1 12/04/12 17:12 Page8English DESCRIPTION USER INSTRUCTIONS ■ Before first use, wash the blender shaft and all attachments with warm water and gentle dishwashing liquid. Rinse and dry carefully before using. Note the blender base cannot be immersed in water. CAUTION: Blades are extremely sharp. Handle with care. USING THE BLENDER SHAFT: Insert the blender shaft (E) into the base (A) , it will click in place - fig.1

The blender shaft is ideal to prepare a wide range of foods including sauces, soups, cocktails, milkshakes, fresh mayonnaise, salad dres- sings, batters, and baby foods. To avoid splashing, always start with the blender shaft blades immer- sed in the food, then plug in the blender and press the power button to turn on (B) . Use the speed selection dial (C) to set the desired speed, which will also be displayed on the LCD screen (C2)

For even blending of foods, move the shaft around in a circular motion and raise and lower the shaft blades. After use, unplug the blender, then press the eject button (D) to remove the shaft from the base.

Speed selection dial

Graduated beaker (28 oz.)

USING THE WHISK: Attach the whisk (G) to the whisk attachment (F) , then slide the whisk attachment onto the base (A) until you hear the click - fig.2 . The whisk is ideal to prepare pancake or waffle batters, whip egg whites, or whip cream. Plug in the blender, then press the start button. Use the speed se- lection dial (C) to set the desired speed, which will also be displayed on the LCD screen (C2)

Always unplug the appliance before pressing the eject button to re- move the whisk accessory. USING THE MINI CHOPPER: Before using the mini chopper: First remove the plastic cover from the blades (I2) then carefully slide the blade assembly on the axis of the bowl (I3). CAUTION! Blades are very sharp, handle with care. Add food to the bowl, distributing evenly inside the bowl. Replace the bowl lid (I1) and then attach the base to the bowl lid - fig.4

Plug in the blender, then press the power button (B) . Use the speed selection dial (C) to set the desired speed, which will also be dis- played on the LCD screen (C2) . The mini chopper accessory is ideal to chop small amounts of herbs, nuts, breadcrumbs, condiments, or meats. For best results, do not fill the bowl more then 2/3 full.

To avoid spillage when blending or whipping, do not fill the mini chop- per bowl more than 2/3 full. As a minimum, foods should cover the blender shaft blades. Remove bones and cartilage from meats before adding to the bowl. IFU_KR_MIXER_GPA-1-3_NAFTA_2550699-02_Mise en page 1 12/04/12 17:12 Page10English When blending hot foods, always remove the cookware from the heat source then blend off heat. Allow boiling hot foods to cool before adding to the bowl. Do not blend foods or liquids hotter than 175°F. For fibrous foods such as leeks, celery, or asparagus, pause to clean the blender shaft regularly during use. Cut fruits and remove seeds and pits before blending fruits. Do not use to process hard foods such as coffee beans, ice cubes, grains, or chocolate. Do not use the blender shaft or whisk in the mini-chopper bowl. When processing large quantities of foods, process in batches and pause for one minute in between batches to avoid overheating the motor. RECIPES

Mayonnaise: use blender shaft for 10 seconds at speed 5. Add one egg yolk, 1 tablespoon of mild mustard, 1 tablespoon wine vinegar, salt and pepper to the graduated beaker. Start blending and then gradually drizzle in 1 cup oil while moving the shaft up and down for even blending. Pancake batter: use whisk for 60 seconds at speed 2. Blend together 1-3/4 cups flour, pinch of salt, 2 cups cold milk, 3T melted butter and 3 eggs. Whipped cream: use whisk for 2 minutes at speed 4 Blend together ¾ cup whipping cream and 2 teaspoons granulated sugar. IFU_KR_MIXER_GPA-1-3_NAFTA_2550699-02_Mise en page 1 12/04/12 17:12 Page11English

CLEANING CAUTION: Blades are extremely sharp. Handle with care. Always unplug the blender and remove the shaft from the base before cleaning. The base and powercord should not be immersed in water or other li- quids, or placed under running water. Wipe clean with a damp cloth or sponge and dry carefully. The base, whisk attachment, and mini chopper lid cannot be washed in the dishwasher. The blender shaft, whisk, graduated beaker, blade assembly, and mini chopper bowl can all be washed in the top rack of the dishwasher. To avoid food stains, wipe the blender shaft clean after each use. If the plastic parts become discoloured by foods such as carrots, food stains may be removed by rubbing with a cloth soaked in vegetable oil. STORAGE Use the wall mount to keep your blender handy for use. To install, drill two holes 3.1 inches apart and then use the screws to attach the wall mount to the solid concrete wall or identification solid wall. Do not mount the storage bracket/unit over or near any portion of a heating or cooking appliance or a sink or basin. Mini chopper Pulse on speed 6 to obtain desired results. Almonds (3/4 cup) – 15 seconds Crackers (3/4 cup) – 10 seconds Parsley (2/3 cup) – 5 seconds Cooked, cubed ham (1 cup) – 8 seconds Onion, quartered (1-1/2 cups) – 6 seconds IFU_KR_MIXER_GPA-1-3_NAFTA_2550699-02_Mise en page 1 12/04/12 17:12 Page12English MANUFACTURER'S WARRANTY : www.krups.com With a strong commitment to the environment, most of Krups products are repairable during and after the warranty period. Before returning any defective products to the point of purchase, please call Krups consumer service directly at the phone number below for repair options. Your help to sustain the environment is appreciated! The Warranty This product is guaranteed by Krups for a period of 2 years against any manu- facturing defect in materials or workmanship, starting from the initial date of pur- chase. The manufacturer's warranty by Krups is an extra benefit which does not affect consumer's Statutory Rights. The Krups warranty covers all costs related to restoring the proven defective pro- duct so that it conforms to its original specifications, through the repair or repla- cement of any defective part and the necessary labor. At Krups’s choice, a replacement product may be provided instead of repairing a defective product. Krups’s sole obligation and your exclusive resolution under this warranty are limi- ted to such repair or replacement. Conditions & Exclusions The Krups warranty only applies within USA, Canada & Mexico, and is valid only on presentation of a proof of purchase. The product can be taken directly in per- son to an authorized service centre or must be adequately packaged and returned, by recorded delivery (or equivalent method of postage), to a Krups authorized ser- vice centre. Full address details for each country’s authorized service centre are listed on the Krups website (www.krups.com ) or by calling the appropriate tele- phone number listed below to request the appropriate postal address. Krups shall not be obliged to repair or replace any product which is not accom- panied by a valid proof of purchase. This warranty will not cover any damage which could occur as a result of misuse, negligence, failure to follow Krups instructions, use on current or voltage other than as stamped on the product, or a modification or unauthorized repair of the product. It also does not cover normal tear and wear, maintenance or replacement of consumable parts, and the following: -using the wrong type of water or consumable -scaling (any de-scaling must be carried out according to the instructions for use); -ingress of water, dust or insects into the product; -mechanical damages, overloading -damages or bad results due to wrong voltage or frequency -accidents including fire, flood, lightning, etc -professional or commercial use -damage to any glass or porcelain ware in the product

This warranty does not apply to any product that has been tampered with, or to da- mages incurred through improper use and care, faulty packaging by the owner or mishandling by any carrier. The Krups manufacturer's warranty applies only for products purchased and used in USA, Canada & Mexico. Where a product purchased in one country and then used in another one: a) The Krups guarantee duration is the one in the country of usage of the pro- duct, even if the product was purchased in another listed country with dif- ferent guarantee duration. b) The Krups guarantee does not apply in case of non conformity of the pur- chased product with the local standards, such as voltage, frequency, power plugs, or other local technical specifications. c) The repair process for products purchased outside the country of use may require a longer time if the product is not locally sold by Krups. d) In cases where the product is not repairable in the new country, the Krups guarantee is limited to a replacement by a similar product or an alternative product at similar cost, where possible. Consumer Statutory Rights This Krups manufacturer's warranty does not affect the statutory rights a consu- mer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This warranty gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from State to State or Country to Country or Province to Province. The consumer may assert any such rights at his sole discretion. Additional information Accessories, Consumables and end-user replaceable parts can be purchased, if locally available, as described in Krups internet site. : www.krups.com CANADA GROUPE SEB CANADA 345 Passmore Avenue Toronto, ON M1V 3N8 MEXICO Groupe SEB MÉXICO, S.A. de C.V. Goldsmith 38 Desp. 401, Col. Polanco Delegacion Miguel Hildalgo 11 560 Mexico D.F. U.S.A. GROUPE SEB USA 2121 Eden Road Millville, NJ 08332 1-800-418-3325 (01800) 112 83 25 800-526-5377 IFU_KR_MIXER_GPA-1-3_NAFTA_2550699-02_Mise en page 1 12/04/12 17:12 Page14Français
