GN 5011 - Hand blender KRUPS - Free user manual and instructions

Product type	Hand blender
Brand	Krups
Model	GN 5011
Power	800 W
Speed	Variable with 2 speeds + turbo
Bowl capacity (max)	1.5 L
Shaft material	Stainless steel
Handle material	ABS plastic
Cable length	1.2 m
Weight	1.5 kg
Dimensions (L x W x H)	40 x 7 x 7 cm
Power supply	220-240 V, 50-60 Hz
Included accessories	Blending shaft, whisk, measuring beaker (1.5L)
Main functions	Blend, emulsify, purée, soups, smoothies
Care and cleaning	Shaft and whisk dishwasher safe
Safety	Automatic shutdown in case of overheating, non-slip foot
Spare parts and repairability	Available on Krups website, repairability index 7.5/10
Warranty	2 years

Frequently Asked Questions - GN 5011 KRUPS

How to clean the Krups GN 5011 hand blender?

The blending shaft and whisk are removable and dishwasher safe. The handle can be cleaned with a damp cloth.

Can I blend hot foods with this blender?

Yes, the Krups GN 5011 can handle hot foods, but do not immerse it in boiling oil. Allow foods to cool slightly before blending.

What is the power of the Krups GN 5011?

It has a power of 800 W with variable speed and a turbo function for efficient blending.

How to use the turbo function?

Press the turbo button on the handle for instant maximum speed, ideal for hard foods.

Is the whisk included in the box?

Yes, the Krups GN 5011 comes with a whisk for egg whites and creams, as well as a 1.5 L measuring beaker.

Is this hand blender suitable for smoothies?

Yes, the Krups GN 5011 is perfect for smoothies thanks to its power and measuring beaker. Blend directly in the provided beaker.

How to avoid splashes when blending?

Fully immerse the blending shaft in the liquid before starting and use the deep measuring beaker provided. Blend at low speed initially.

Can I use the blender without the measuring beaker?

Yes, you can use the hand blender in any suitable container, but be careful not to splash.

What to do if the blender stops during use?

The blender has an overheat protection. Let it cool for about 15 minutes before using again.

Where to find spare parts for the Krups GN 5011?

Spare parts (blending shaft, whisk, beaker) are available on the official Krups website and from authorized dealers.

USER MANUAL GN 5011 KRUPS

DESCRIPTION

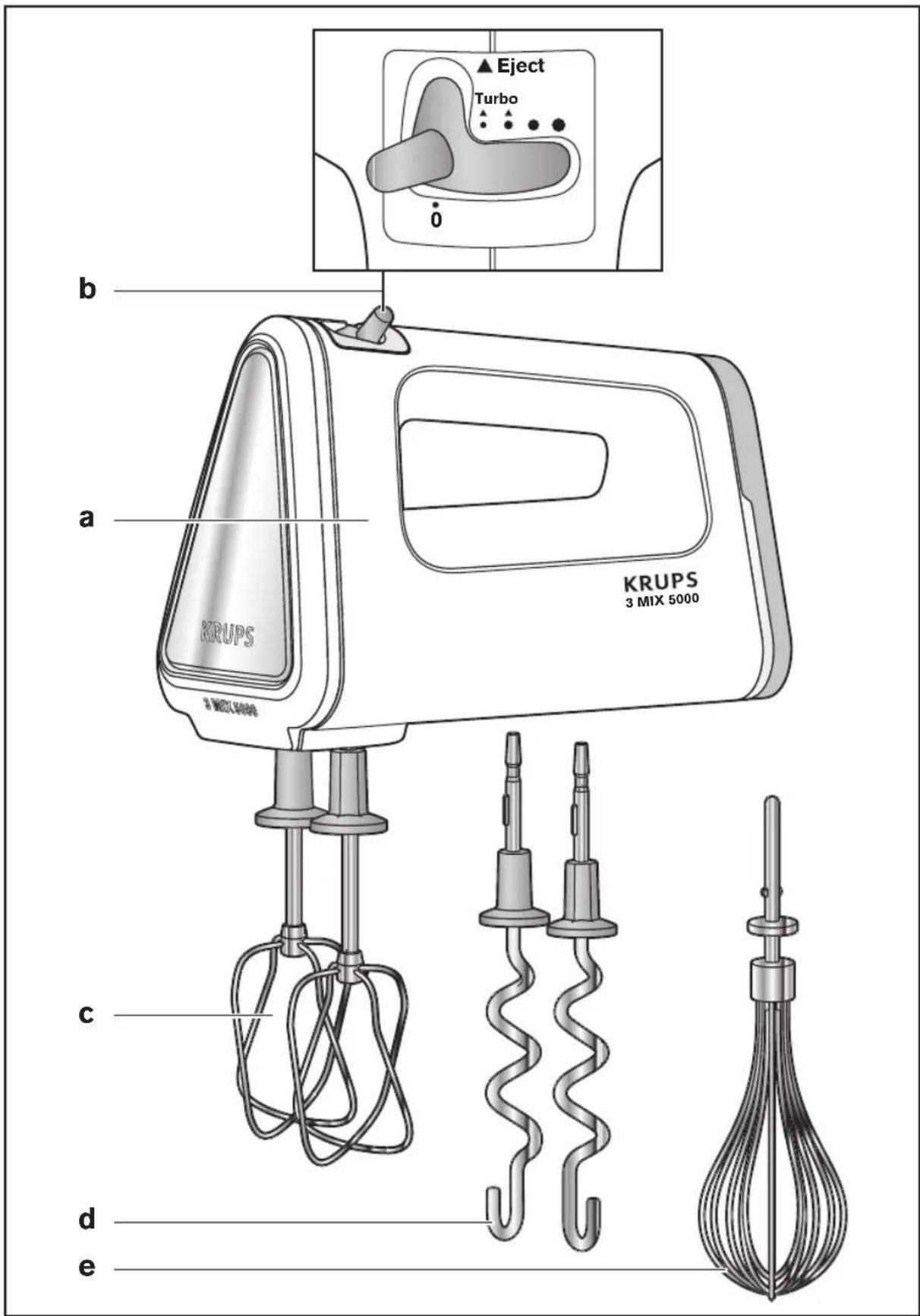

a Body of the appliance b Speed selector and beater eject switch c Beaters d Dough hooks e Balloon whisk (certain models only)

IMPORTANT SAFETY INFORMATION

Read carefully the instructions for use before using the appliance for the first time: failure to comply with the instructions for use exempts Krups from any liability.

This appliance was not designed to be used by persons (including children) whose physical, sensorial or mental capacities are reduced or by persons lacking experience or knowledge, unless such persons have received supervision or instruction on the use of the appliance from a person responsible for their safety. Make sure children do not play with the appliance. ■ Before plugging this appliance into the outlet, check that the voltage of your appliance matches that of your electric system. Failure to do so may cause damage to the appliance or injury to the user.

Any plugging error will cancel the product warranty.

• Your appliance was designed only for an indoor household use. ■ To avoid electric shocks, never use the appliance with damp hands or on a wet or damp surface. Avoid getting the electric parts of the appliance wet and do not immerse them into water by any means. In order to avoid injuries, this appliance should not be used by children or by any other person who did not read these instructions for use. ■ Unplug your appliance immediately after use, during cleaning or in case of power failure. ■ Do not use the appliance if it malfunctions or is damaged. In such cases, contact a Krups authorised service station (See list below). ■ Turn off the appliance and unplug it before changing its accessories or before touching its moving parts. ■ Any maintenance operation other than cleaning and everyday care by the client should be performed by a Krups authorised service station. ■ Do not immerse the appliance, its power cord or its plug into water or any other liquid. ■ Do not leave the power cord hanging in the reach of children. ■ The power cord should be kept away from the hot parts of your appliance or from sources of heat or sharp edges at all times. In order to avoid negating your product guarantee do not attempt to disassemble or repair the appliance yourself or by resorting to any other non-qualified person. Take your appliance to an authorised after sale service station. In order to avoid malfunction of the appliance and injury to the user, do not carry or unplug the appliance by pulling on the power cord. ■ Do not use the appliance if the power cord or the plug become damaged. In order to avoid any risk, have them replaced by a Krups authorised service station (see list below). ■ For your safety, only use accessories and movable parts manufactured by Krups and specially designed for your appliance. In order to avoid electric shocks, make sure that your fingers do not come into contact with the plug prongs while you plug in or unplug the appliance.

English

■ Do not leave the appliance running or plugged in when you move away, even for a few moments, especially in the presence of children. ■ Do not plug any other appliances into the same outlet with the help of adapters, to avoid any power surges that may damage your appliance or cause injuries. Do not use an extension cord without making sure it is in proper condition. For your safety, this appliance was designed in compliance with the following provisions and regulations in force: - Low Voltage Directive - Electromagnetic Compatibility - Environment - Food contact materials.

■ Do not touch the beaters, the dough hooks, or the balloon whisk (certain models only) while the appliance is running. Do not let long hair, scarves, etc. hang above the running accessories.

■ Always unplug the appliance if left unsupervised before assembly, disassembly, or cleaning.

■ Do not connect accessories with different functions at the same time.

PRECAUTIONS FOR USE

■ Always make sure the speed selector switch is on position "0" before plugging in the appliance. ■ To avoid injuries, ensure that your hair, clothing, or other objects do not come into contact with the moving parts of the appliance. ■ Do not touch the beaters or the dough hooks while the appliance is plugged in, and do not insert any object (knife, fork, spoon, etc.) into the holes, to avoid injuries to yourself or others or damage to the appliance. You may use a spatula only when the appliance is turned off. To avoid damage to the appliance, do not place the appliance and its accessories into the freezer, conventional oven, or microwave oven. ■ The beaters and dough hooks are designed for food processing. Do not use them to mix other products.

START-UP

■ Before using your appliance for the first time, remove the accessories from their packaging and wash them in warm water. ■ Dry thoroughly.

USE

■ Make sure the speed selector switch (b) is on position "0" (fig. 1). ■ Insert the shafts of the beaters (c), the dough hooks (d), or the balloon whisk (certain models only) (e) into the specially designed holes. The balloon whisk (certain models only) can be inserted into either the left or right hole of the appliance.

Once inserted, the two beaters should have the same length. When they are properly fixed and inserted, you will hear a "click".

■ Plug in the appliance. According to the quantity of food to be processed, place the ingredients into an appropriate container (preferably a deep bowl or tumbler). ■ Immerse the beaters into the food before turning on the appliance to avoid splatters. ■ Turn on the appliance with the speed selection switch (b), first on speed 1, then speed 2, and then speed 3 as the processed food gets thicker and thicker (fig. 3).

Your appliance is equipped with a Turbo switch that enables you to reach maximum speed with just one push of the switch (fig. 4).

Do not keep the appliance running on maximum or "turbo" speed for more than 10 minutes when using the beaters or more than 4 minutes 30 seconds when using the dough hooks.

Turn off the appliance before removing the beaters from the processed food (in this way you will avoid splatters). Return the speed selector switch to position "0" (fig. 5). Unplug the appliance. Remove the beaters, the dough hooks or the balloon whisk (certain models only) by pressing the eject button (b) (fig. 5).

CLEANING

Unplug the appliance. Make sure you always eject the beaters, the dough hooks or the balloon whisk (certain models only) before cleaning (fig. 5). Clean the beaters, the dough hooks or the balloon whisk (certain models only) immediately after use so as to avoid residue of egg or oil mix sticking to or drying up on the accessories. You may clean the beaters, the dough hooks or the balloon whisk (certain models only) by using a sponge and some washing up liquid. You may also clean them in a dishwasher. Clean the body of the appliance with a damp sponge only and dry thoroughly. Do not wash the appliance in the dishwasher by any means. Do not use abrasive sponges or objects containing metal parts. Do not immerse the body of the appliance into water by any means (fig. 6).

English

TIPS

RECIPE	ACCESSORIES	MAXIMUM QUANTITY	SPEED
CHANTILLY	BEATERS 250 g UHT double or whipping cream.		1min30 on speed 1 + 1min30 on speed 2
BEATEN EGG WHITES	BEATERS 4 egg whites + pinch of salt.		Move gradually from speed 1 to speed 3 for 2 minutes
MAYONNAISE	BEATERS	1 egg yolk, 1 teaspoon of mustard, 1 teaspoon of vinegar, salt, pepper, 250ml of oil.	1min30 on speed 1 + 1min30 on speed 2
BREAD DOUGH	DOUGH HOOKS	1 kg strong white bread flour, dried yeast (quantity as directed on packet), 20g of salt, 600 ml lukewarm water.	4 min30 on speed 4
GERMAN BREAD DOUGH	DOUGH HOOKS	250 g strong white bread flour, 550g of rye flour, coriander, hot pepper, caraway, 100 g sour dough bread starter (not available in all countries), 2 teaspoons of salt, 1 pack of dried yeast (quantity as directed on starter packet), 1 teaspoon of sugar, 0.5 litre lukewarm water.	4 min30 on speed 4

ENVIRONMENTAL PROTECTION

Help us protect the environment!

Your appliance contains a large number of reusable or recyclable materials. Take it to a recycling centre so that it may be properly processed.
