USER MANUAL IAN 277941 Livarno Lux

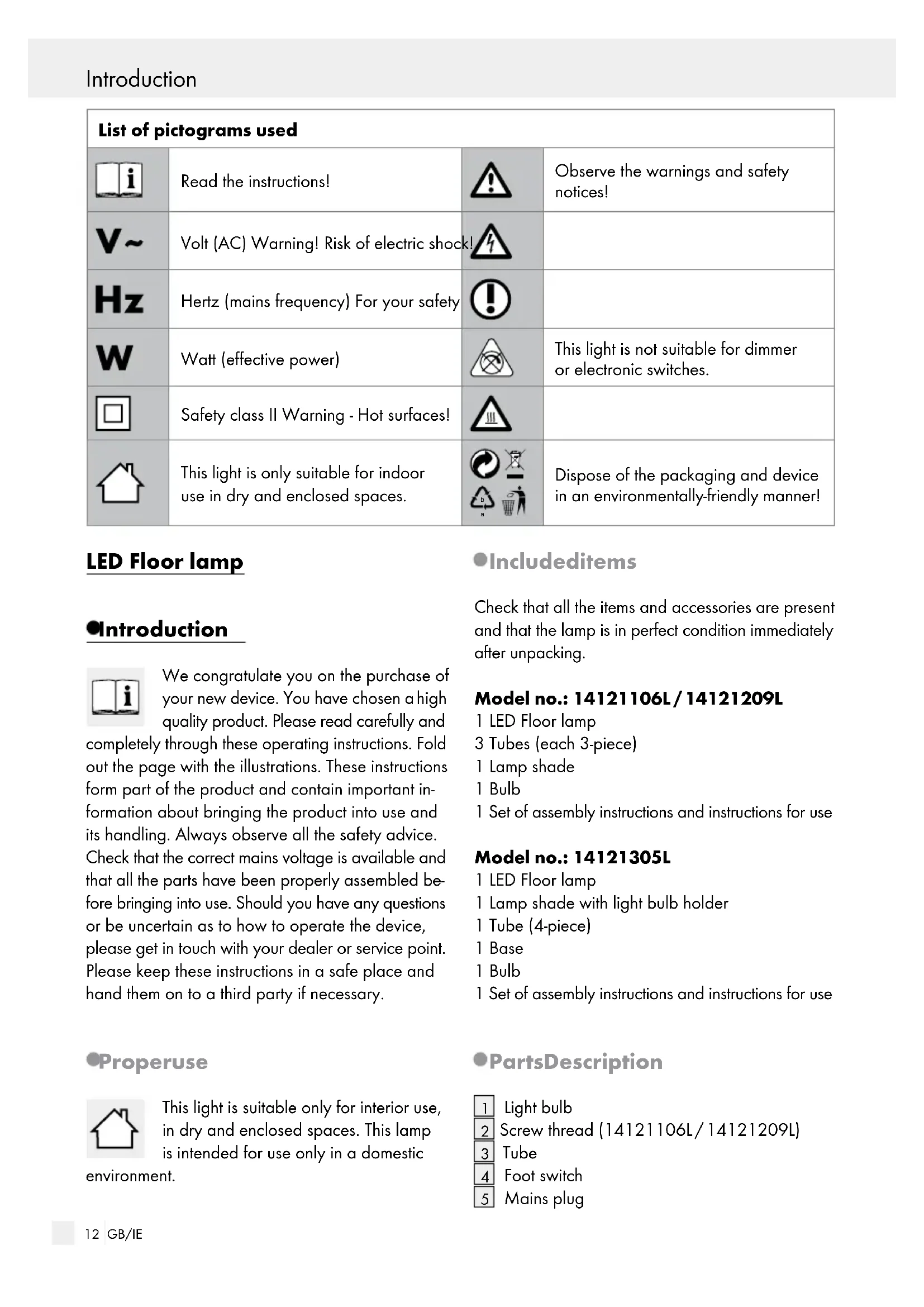

Dispose of the packaging and device in an environmentally-friendly manner! LED Floor lamp Introduction We congratulate you on the purchase of your new device. You have chosen a high quality product. Please read carefully and completely through these operating instructions. Fold out the page with the illustrations. These instructions form part of the product and contain important in- formation about bringing the product into use and its handling. Always observe all the safety advice. Check that the correct mains voltage is available and that all the parts have been properly assembled be- fore bringing into use. Should you have any questions or be uncertain as to how to operate the device, please get in touch with your dealer or service point. Please keep these instructions in a safe place and hand them on to a third party if necessary. Proper use This light is suitable only for interior use, in dry and enclosed spaces. This lamp is intended for use only in a domestic environment. Included items Check that all the items and accessories are present and that the lamp is in perfect condition immediately after unpacking. Model no.: 14121106L / 14121209L 1 LED Floor lamp 3 Tubes (each 3-piece) 1 Lamp shade 1 Bulb 1 Set of assembly instructions and instructions for use Model no.: 14121305L 1 LED Floor lamp 1 Lamp shade with light bulb holder 1 Tube (4-piece) 1 Base 1 Bulb 1 Set of assembly instructions and instructions for use Parts Description

Locating screw (14121305L)

Lamp socket (14121305L) Technical Data Model no.: 14121106L / 14121209L / 14121305L Operating voltage: 230–240 V∼ 50 Hz Rated power: 7 W Protection class: II / Safety Safety advice The right to claim under the guarantee shall be rendered invalid in respect of damage caused by the non-observance of these operating instructions! No liability is accepted for consequent damage! No liability is accepted for damage to property or persons caused by improper handling or non- observance of the safety advice! To avoid danger to life from electric shock Every time before connecting the lamp the mains, check it and the mains lead for damage. Never use your light if you find it is damaged in any way. A damaged light bulb means your life is at risk from electric shock. If there is any damage, repairs to be carried out or other problems related to the light bulb, please contact the service centre or a qualified electrician. In order to prevent hazards, if the outer flexible cable of this lamp becomes damaged it may only be replaced by the manufacturer, a service repre- sentative of the manufacturer or a similar speciali st! Before assembly, ensure that the mains voltage available corresponds to the operating voltage necessary of the light (see “Technical Data“). Never let the lamp come into contact with water or other liquids. Always unplug the light from the mains prior to assembly, disassembly, cleaning or if the light will not be used for extended periods. Never open or insert anything into electrical fittings or equipment. Doing this sort of thing can lead to a serious danger to life from electric shock. To avoid danger of fire and injury CAUTION! RISK OF INJURY! Check bulbs for damage immediately after unpacking. Do not fit defective bulbs into the light. If they are, contact the service point for a replacement.

CAUTION! RISK OF BURNS DUE TO

HOT SURFACES! Ensure the lamp has been switched off and allowed to cool before you touch it. In this way you will avoid the danger of burns. Bulbs give off a lot of heat around the top of the lamp. Do not cover the light or the mains plug with objects. Excessive heat can result in a fire. Never leave the lamp operating unattended. Do not allow the lamp or the packaging materials to lie around unattended. Plastic film or bags, Styrofoam etc. can turn into dangerous toys for children. ATTENTION! Do not look into the LED from a close distance during operation. Do not look at the LED with an optical instrument (e.g. magnifier). This light is not suitable for dimmer or electronic switches. Working safely Install the light so that it is protected from moisture and dirt. Prepare carefully before assembly and allow yourself enough time. Lay out all the individual components and additional tools or materials required so that you can see and reach them.14 GB/IE Safety / Initial use Care and cleaning / Disposal / Warranty and Service Remain alert at all times and always watch what you are doing. Always proceed with caution and do not assemble the lamp if you cannot concentrate or feel unwell. In order to disconnect the lamp completely from the power supply, the mains plug

must be removed from the socket. Initial use Assembling the light Model no.: 14121106L / 14121209L Connect the sections of the tube

and screw in place. Note: Be sure to screw in the tubes

as far as possible so that the light is stable. Repeat this process with all sections of the tube

Assemble the lamp head by screwing the tubes

one after the other onto the screw thread

Note: Be sure to screw in the tubes

as far as possible so that the light is stable. Use a clean, lint-free cloth to insert the bulb

clockwise into the lamp socket. Plug the mains plug

into a properly in- stalled socket. Verify it is seated correctly. Model no.: 14121305L Note: Remove the transport locks from the tubes

Please ensure that you pull the cable during assembly slowly through the tube

Connect the individual sections of tube

one another and screw into place in an anti- clockwise direction. Be careful not to damage the cable in the inside of the lamp. Screw the tube

clockwise onto the base

Remove the lamp ring

from the lamp socket

onto the lamp socket

and screw it tightly using the lamp ring

Use a clean, lint-free cloth to insert the bulb

clockwise into the lamp socket

into a properly installed socket. Verify it is seated correctly. Your light is now ready to use. Switching the light on / off Use the foot switch

to turn the LED light on and off. Adjusting the lamp

CAUTION! RISK OF BURNS DUE TO

HOT SURFACES! Allow the lamp to cool down completely. Model 14121305L: Bring the lamp arm into the desired position

changes position, retighten the locating screw

All models: The lamp head for all models can be moved up or down. Changing the bulb

from the socket. CAUTION! RISK OF BURNS DUE TO HOT

URFACES! Allow the light to cool down comple tely. Only replace the lamp after it has completely cooled off. Use a clean, lint-free cloth when replacing the bulb

Twist the defective bulb

anti-clockwise out of the bulb socket. Only use LED bulbs with a maximum output of 7 W and E27 base. Insert the new bulb

into the bulb socket and turn it clockwise to tighten it. Ensure that it is positioned correctly. Plug the mains plug

into the socket again.15 GB/IE Safety / Initial use Care and cleaning / Disposal / Warranty and Service Care and cleaning RISK OF ELECTRIC SHOCK! First pull the mains plug

out of the mains socket. CAUTION! RISK OF BURNS DUE TO HOT SURFACES! First allow the lamp to cool completely. RISK OF ELECTRIC SHOCK! For electrical safety reasons, never clean the lamp with water or other fluids nor immerse it in water. Do not use any solvents, petrol or similar. This would cause damage to the light. Always use a dry, fluff-free cloth for cleaning. Plug the mains plug

into the socket again. Disposal The packaging is made entirely of recy- clable materials, which you may dispose of at local recycling facilities. The Green Dot is not valid for Germany.
