USER MANUAL HA 0707 SEVERIN

Black SEVERIN HUG CNE electric toothbrush with adjustable jaw and wire (no text or symbols visible)

HS 0707

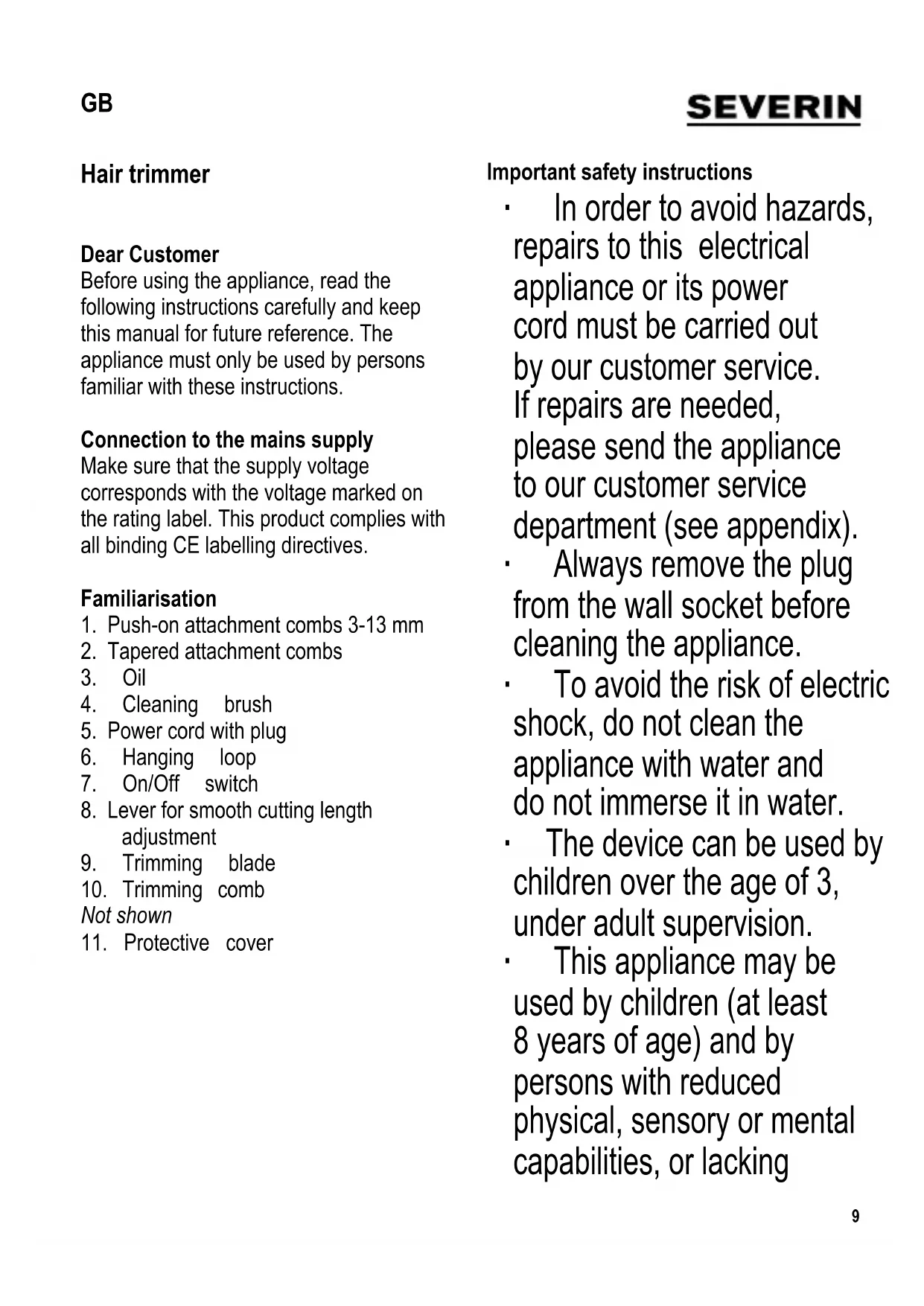

GB Instructions for use

FR Mode d'emploi

Before using the appliance, read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with all binding CE labelling directives.

Familiarisation

1. Push-on attachment combs 3-13 mm

2. Tapered attachment combs

3. Oil

4. Cleaning brush

5. Power cord with plug

6. Hanging loop

7. On/Off switch

8. Lever for smooth cutting length adjustment

9. Trimming blade

10. Trimming comb

Not shown

1. Protective cover

Important safety instructions

- In order to avoid hazards, repairs to this electrical appliance or its power cord must be carried out by our customer service. If repairs are needed, please send the appliance to our customer service department (see appendix).

• Always remove the plug from the wall socket before cleaning the appliance.

• To avoid the risk of electric shock, do not clean the appliance with water and do not immerse it in water.

- The device can be used by children over the age of 3, under adult supervision.

- This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking

experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.

• Children must not be permitted to play with the appliance.

- Cleaning and user maintenance may not be carried out by children without supervision.

- The appliance and its power cord must be kept well away from children under 3 at all times.

- Caution: Keep any packaging materials well away from children – these are a potential source of danger, e.g. of suffocation.

Caution: Do not use the appliance near a bath or a washbasin with water in, or any other receptacle containing water.

- Caution: Protect the appliance from

moisture and splashing water and do not operate it with wet hands.

- If the appliance is used in a bathroom, the presence of water represents a danger even if the appliance is switched off. Therefore, always remove the plug from the wall socket after use.

Additional protection is offered by fi tting an earth-leakage circuit-breaker with a rated tripping current not exceeding 30 mA into your home installation. Please consult a qualifi ed electrician.

- Before the appliance is used, the main body as well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance.

- Always switch off and remove the plug from the wall socket after use, as well as

- in cases of malfunction, and - during cleaning.

- When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.

- Caution: the trimming blade is extremely sharp; to prevent injuries, ensure that at all times during use the blade does not touch the skin.

- Do not operate the appliance without supervision.

- No responsibility is accepted if damage results from improper use, or if these instructions are not complied with.

- Do not use the appliance on pets or other animals.

Use

Cutting length fi ne adjustment

The side adjusting lever allows smooth fi ne-adjustment of the cutting length from approx. 1 to 1.6 mm, even during operation.

Trimming heads

The push-on combs provided extend the range of the cutting length. Fit the required head attachment onto the trimming comb, pushing it firmly down until it is heard locking into place.

After use, release the attachment at the back and lift it off.

Trimming heads 3-13 mm

The trimming heads provided allow for cutting lengths of 3, 6, 9 and 13 mm.

Tapered trimming heads

The tapered trimming heads are designed for cutting the hair while avoiding a 'stepped' effect.

In this way, the hair above the ears is cut shorter, while remaining longer towards the top of the head.

Operation

• Before cutting, the hair should be clean and thoroughly combed first.
• When cutting longer hair, use a push-on comb or cut hair above a normal comb.
  • Always start with the largest push-on comb, as this will help you to get a feel for cutting the hair to the desired length.
• For shorter hair-cuts, follow-up with a smaller push-on comb or without any comb attachment.
• Insert the plug into a wall outlet and turn the appliance on.
• Cut from bottom to top with the trimming comb lying against the head; lead the appliance upwards through the hair, moving it gradually away from the head at the same time.
• The tapered trimming heads are designed for cutting the hair around the ears while avoiding a ‘stepped’ effect. For the right side of the head, the attachment marked ‘Right Taper’ should be used; for the opposite side use the one marked ‘Left Taper’. Start trimming from the back of the head and cut the hair against its natural direction of growth towards the temples.
• For a shaped cut, reverse the appliance and shorten the hair from top to bottom without a push-on comb.
  • Always switch off after use and remove the plug from the wall socket.

Care and Cleaning

• It is essential to switch off the unit and remove the plug from the wall socket before cleaning and oiling.
• To avoid the risk of electric shock, the appliance must not be immersed in liquid or even allowed to come into contact with liquid.
• Do not use abrasives or harsh cleaning solutions.
• If necessary, the housing may be wiped with a dry, lint-free cloth.

Trimming comb and trimming blade

• After each use, use the cleaning brush to remove the hair between the trimming comb and the trimming blade.
• After cleaning, and also after the appliance has been used for approx. 20 minutes, put a few drops of acid-free oil between the trimming comb and the trimming blade and then switch the appliance briefly on to ensure that the oil is well and evenly distributed. Regular oiling will guarantee good cutting performance over a long period and thus a long service life.
- When the appliance is not in use, put the protective cover over the trimming comb.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials

which can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.
