USER MANUAL Senso Touch 3D RQ1252 PHILIPS

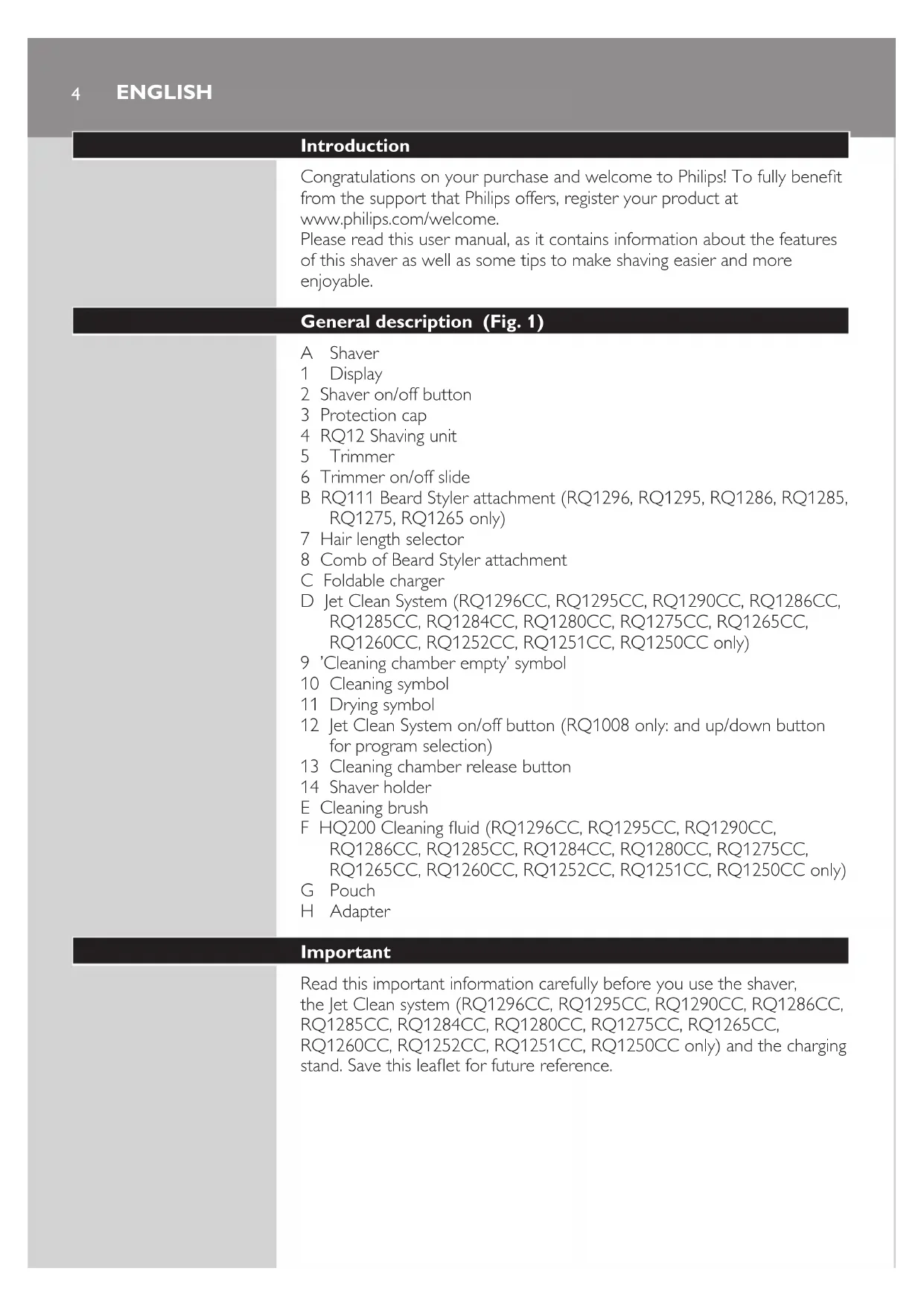

Introduction Congratulations on your purchase and welcome to Philips! To fully benet from the support that Philips offers, register your product at www.philips.com/welcome. Please read this user manual, as it contains information about the features of this shaver as well as some tips to make shaving easier and more enjoyable. General description (Fig. 1) A Shaver 1 Display 2 Shaver on/off button 3 Protection cap 4 RQ12 Shaving unit 5 Trimmer 6 Trimmer on/off slide B RQ111 Beard Styler attachment (RQ1296, RQ1295, RQ1286, RQ1285, RQ1275, RQ1265 only) 7 Hair length selector 8 Comb of Beard Styler attachment C Foldable charger D Jet Clean System (RQ1296CC, RQ1295CC, RQ1290CC, RQ1286CC, RQ1285CC, RQ1284CC, RQ1280CC, RQ1275CC, RQ1265CC, RQ1260CC, RQ1252CC, RQ1251CC, RQ1250CC only) 9 ’Cleaning chamber empty’ symbol 10 Cleaning symbol 11 Drying symbol 12 Jet Clean System on/off button (RQ1008 only: and up/down button for program selection) 13 Cleaning chamber release button 14 Shaver holder E Cleaning brush F HQ200 Cleaning uid (RQ1296CC, RQ1295CC, RQ1290CC, RQ1286CC, RQ1285CC, RQ1284CC, RQ1280CC, RQ1275CC, RQ1265CC, RQ1260CC, RQ1252CC, RQ1251CC, RQ1250CC only) G Pouch H Adapter Important Read this important information carefully before you use the shaver, the Jet Clean system (RQ1296CC, RQ1295CC, RQ1290CC, RQ1286CC, RQ1285CC, RQ1284CC, RQ1280CC, RQ1275CC, RQ1265CC, RQ1260CC, RQ1252CC, RQ1251CC, RQ1250CC only) and the charging stand. Save this leaet for future reference. ENGLISH5 Danger - Keep the adapter dry. Warning - The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation. - The shaver, the Jet Clean system and the charging stand are not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of these appliances by a person responsible for their safety. - Children should be supervised to ensure that they do not play with the shaver, the Jet Clean system and the charging stand. - Always unplug the shaver before you clean it under the tap. Caution - Never immerse the Jet Clean system or the charging stand in water nor rinse it under the tap. - Never use water hotter than 80°C to rinse the shaver. - Do not use the shaver, Jet Clean system, adapter, charging stand or any other part if it is damaged, as this may cause injury. Always replace a damaged adapter, charging stand or part with one of the original type. - Only use the Jet Clean system with the original HQ200 Jet Clean solution. - Always place the Jet Clean system on a stable, level and horizontal surface to prevent leakage. - When the Jet Clean system is ready for use, do not move it to prevent leakage of cleaning uid. - The Jet Clean system thoroughly cleans but does not disinfect your shaver, therefore do not share the shaver with others. - Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance. - Water may leak from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver. Compliance with standards - This shaver is waterproof and complies with the internationally approved safety regulations. It is suitable for use in the bath or shower and for cleaning under the tap. For safety reasons, the shaver can therefore only be used cordlessly. - The shaver and the Jet Clean system comply with all applicable standards and regulations regarding exposure to electromagnetic elds. General - The adapter is equipped with an automatic voltage selector and is suitable for mains voltages ranging from 100 to 240 volts. - The adapter transforms 100-240 volts to a safe low voltage of less than 24 volts. - Maximum noise level: Lc = 69dB(A) ENGLISH 56 The display Note: Before you use the shaver for the rst time, remove the protective foil from the display. The various shaver types have different displays, which are shown in the gures below. - RQ1296, RQ1295, RQ1290, RQ1286, RQ1285, RQ1280 - RQ1275, RQ1265, RQ1261, RQ1260 - RQ1273, RQ1252, RQ1251, RQ1250 Charging - Charging takes approx. 1 hour. RQ129x, RQ128x - When the shaver is charging, the minutes indication ashes. - The shaving minutes increase until the shaver is fully charged. - Quick charge: When the shaver contains enough energy for one shave, the display shows 5 minutes in red. RQ127x, RQ126x, RQ125x Note: The displays of the various shaver types look different, but the charging lights work in the same way. - When the shaver is charging, rst the bottom charging light ashes, then the second charging light, and so on until the shaver is fully charged. - Quick charge: When the shaver contains enough energy for one shave, the bottom charging light alternately ashes orange and white. MINUTES LEFT MINUTES LEFT MINUTES LEFT MINUTES LEFT ENGLISH67 Battery fully charged RQ129x, RQ128x - When the battery is fully charged, the minutes indication lights up continuously. After approx. 30 minutes, the display automatically switches off again. Note: The shaver is equipped with an intelligent self-learning system that monitors the shaver’s energy consumption and converts the remaining battery capacity into shaving minutes. The energy consumption and therefore the remaining number of shaving minutes depend on your skin and beard type and your shaving behaviour (e.g. the use of shaving gel). If the number of shaving minutes of the fully charged shaver is less than 60 minutes, this is completely normal and does not mean that the battery capacity of the shaver has diminished. RQ127x, RQ126x, RQ125x Note: The displays of the various shaver types look different, but the charging lights work in the same way. - When the battery is fully charged, all charging lights light up continuously. After approx. 30 minutes, the display automatically switches off again. Battery low RQ129x, RQ128x - When the battery is almost empty (when there are only 5 or fewer shaving minutes left), the minutes indication starts to ash. - When you switch off the shaver, the shaving minutes continue to ash for a few more seconds. You hear a beep when there are no shaving minutes left. RQ127x, RQ126x, RQ125x Note: The displays of the various shaver types look different, but the charging lights work in the same way. - When the battery is almost empty (when there are only 5 or fewer shaving minutes left), the bottom charging light ashes orange. - When you switch off the shaver, the bottom charging light continues to ash orange for a few seconds. MINUTES LEFT MINUTES LEFT MINUTES LEFT MINUTES LEFT ENGLISH 78 Remaining battery capacity RQ129x, RQ128x - The remaining battery capacity is indicated by the number of shaving minutes shown on the display. RQ127x, RQ126x, RQ125x Note: The displays of the various shaver types look different, but the charging lights work in the same way. - The remaining battery capacity is indicated by the ashing charging lights. Clean shaver For optimal shaving performance, we advise you to clean the shaver after every use. Note: The displays of the various shaver types look different, but show the same symbol. - The tap symbol ashes to remind you to clean the shaver. Replace shaving unit For maximum shaving performance, we advise you to replace the shaving unit every two years. Note: The displays of the various shaver types look different, but show the same symbol. - To remind you to replace the shaving unit, the appliance is equipped with a replacement reminder which is activated automatically after approx. two years. The replacement reminder is repeated at 9 successive shaves(RQ128x, RQ127x, RQ126x, RQ125x only) or until you reset the shaver. Travel lock (RQ128x, RQ127x, RQ126x, RQ125x only) You can lock the shaver when you are going to travel. The travel lock prevents the shaver from being switched on by accident. Note: The displays of the various shaver types look different, but show the same symbol. MINUTES LEFT MINUTES LEFT
