IAN 331788 - Watch AURIOL - Free user manual and instructions

Product type	Wristwatch
Brand	Auriol
Model	IAN 331788
Case dimensions (diameter)	Approximately 40 mm
Case thickness	Approximately 10 mm
Strap width	Approximately 20 mm
Total weight	Approximately 80 g
Power supply	1 SR626SW battery
Display	Analog (hands)
Main functions	Time display, date display, rotating bezel
Water resistance	5 bars (50 meters)
Case material	Stainless steel
Strap material	Metal (stainless steel)
Glass type	Mineral (estimate)
Clasp	Deployant buckle with safety
Strap adjustment	Removable links with tool provided
Package contents	1 watch with battery, 2 extra links, 1 assembly/disassembly tool, 1 user manual
Care and cleaning	Clean with a soft, dry cloth (eyeglass cloth type)
Safety	Do not let young children play with the watch or batteries
Batteries	Use a SR626SW battery, respect polarity, do not recharge
Warranty	3 years from date of purchase
After-sales service	Contact customer service by phone or email (see manual)
Manufacturer	digi-tech gmbh, Valterweg 27A, DE-65817 Eppstein, Germany
Country of origin	China (estimate)

Frequently Asked Questions - IAN 331788 AURIOL

How to set the time and date on my Auriol IAN 331788 watch?

Gently pull the crown out to the second notch (resistance point). Turn it to set the time. Then push the crown back to the first notch and turn to change the date. Finally, push the crown back against the case.

How to adjust the rotating bezel?

The rotating bezel of your Auriol IAN 331788 watch turns manually. Use it to measure time intervals or as a reference.

How to shorten the metal strap?

Use the provided assembly/disassembly tool. Open the clasp, place the watch face down, locate the links marked with an arrow. Secure the strap in the tool at the pin, turn the screw to push the pin out, remove it, then take out the desired link(s). Reinsert the pin by turning the screw in the opposite direction.

Is my watch water resistant?

Yes, your Auriol IAN 331788 watch is water resistant up to 5 bars (50 meters). It withstands splashes and rain, but is not suitable for diving.

How to maintain my watch?

Clean it with a soft, dry cloth, like for glasses. Avoid contact with chemicals.

What type of battery does the watch use and how to change it?

The watch uses a SR626SW battery. Battery replacement should be done by a watchmaker to avoid damaging the case and seals.

What to do if the battery is depleted or has leaked?

In case of leakage, avoid contact: wear gloves, rinse thoroughly with clean water if contact occurs and consult a doctor. Immediately remove the depleted battery from the watch.

Is the watch suitable for children?

Yes, under supervision. The watch can be used by children aged 8 and up if they have received the necessary instructions. Batteries must be kept out of reach of young children.

How to get spare parts or have my watch repaired?

Contact the after-sales service indicated in the manual. The 3-year warranty covers material and manufacturing defects, but not normal wear or damage from improper use.

Where to dispose of the watch at the end of its life?

Do not throw the watch in household waste. Take it to a collection point for electrical and electronic equipment. Used batteries must be recycled separately.

USER MANUAL IAN 331788 AURIOL

Usage and safety instructions

ONTRE

Batteriewechsel (SR626SW)

Table of contents. 8

Introduction. 9

Intended use -9

Scope of delivery. 9

Important safety information important safety information 9

Important safety information for users 9

Important safety information for the batteries. 9

Time and date setting. 10

Turning bezel. 10

Band shortening for the models 1 + 2. -10

Water resistance. 11

Cleaning instructions. 11

Replacement of battery (SR626SW) -11-

Disposal 11

Disposal of the electronic device 11

Disposal of the batteries 11

Recycling. 12

Waste disposal 12

digi-tech gmbh warranty -12

Warranty conditions. 12

Warranty period and defects liability 12

Scope of the warranty. 12

Warranty claim procedure 13

Service. 14

Supplier. 14

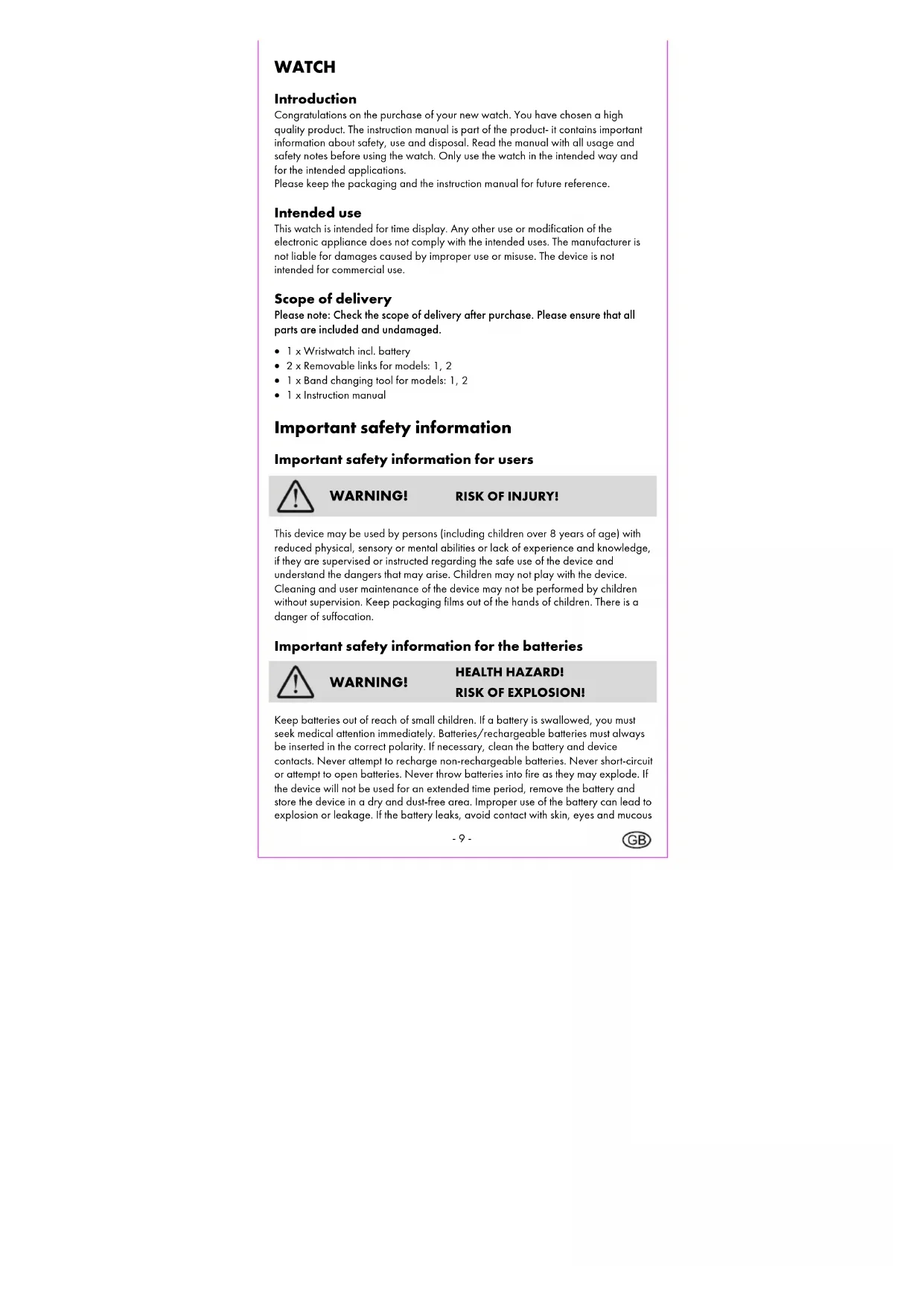

WATCH

Introduction

Congratulations on the purchase of your new watch. You have chosen a high quality product. The instruction manual is part of the product- it contains important information about safety, use and disposal. Read the manual with all usage and safety notes before using the watch. Only use the watch in the intended way and for the intended applications.

Please keep the packaging and the instruction manual for future reference.

Intended use

This watch is intended for time display. Any other use or modification of the electronic appliance does not comply with the intended uses. The manufacturer is not liable for damages caused by improper use or misuse. The device is not intended for commercial use.

Scope of delivery

Please note: Check the scope of delivery after purchase. Please ensure that all parts are included and undamaged.

• 1 x Wristwatch incl. battery
• 2 × Removable links for models: 1, 2
• 1 × Band changing tool for models: 1, 2
• 1 x Instruction manual

Important safety information

Important safety information for users

WARNING!

RISK OF INJURY!

This device may be used by persons (including children over 8 years of age) with reduced physical, sensory or mental abilities or lack of experience and knowledge, if they are supervised or instructed regarding the safe use of the device and understand the dangers that may arise. Children may not play with the device. Cleaning and user maintenance of the device may not be performed by children without supervision. Keep packaging films out of the hands of children. There is a danger of suffocation.

Important safety information for the batteries

WARNING!

HEALTH HAZARD! RISK OF EXPLOSION!

Keep batteries out of reach of small children. If a battery is swallowed, you must seek medical attention immediately. Batteries/rechargeable batteries must always be inserted in the correct polarity. If necessary, clean the battery and device contacts. Never attempt to recharge non-rechargeable batteries. Never short-circuit or attempt to open batteries. Never throw batteries into fire as they may explode. If the device will not be used for an extended time period, remove the battery and store the device in a dry and dust-free area. Improper use of the battery can lead to explosion or leakage. If the battery leaks, avoid contact with skin, eyes and mucous

-9.

membranes. Use gloves. If you are exposed to battery acid, rinse the affected areas with plenty of clean water and immediately seek medical attention. Remove discharged batteries from the device as they present an increased risk of leakage.

Time and date setting

To set the time, carefully pull the crown out all the way. Turn the crown clockwise or counter clockwise to set the time. Carefully press the crown back in halfway to the case. The date can be set by turning the crown. To finish the setting press the crown back in all the way.

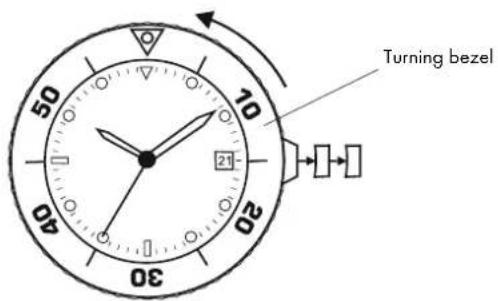

Turning bezel

2-LD5230-1

Band shortening for the models 1 + 2

Band shortening can be accomplished by removing links. Open the band clasp safety and open the clasp. The band is held to the clasp by a spring bar. Image 1. Compress and remove the spring bar by using a pointed tool. Now place the watch face down on a soft surface. Image 2. The links that can be removed are marked with an arrow. Image 3. Place the band in the band changing tool in such a way that the pointed end of the tool points directly at the metal rod. Turn the screw in the direction of the arrow until the metal rod is pushed out a small distance. The rod can now be pulled out (using pliers if necessary). The strap can now be taken disassembled. Remove as many links as necessary using this method. Reinsert the rod in the opposite direction of the arrow and push it back into the band. The strap and clasp can now be reassembled.

A replacement tip for the tool is included in the bottom of the tool.

An instructional video is available for online viewing at the following URL: http://specials.lidl.com/videos/nou9nohN/ ..or simply scan the following QR code:

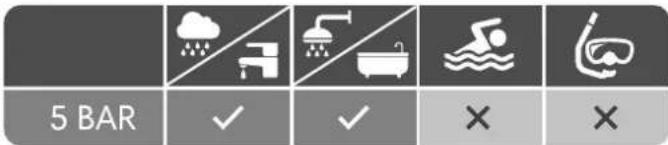

Water resistance

Water resistant up to 5 bar. The bar value specifies the atmospheric overpressure which is applied during testing (DIN 8310).

Cleaning instructions

Clean the wristwatch with a soft, dry and lint-free cloth. A glasses cleaning cloth is ideal.

Replacement of battery (SR626SW)

Battery replacements must be performed by an expert to avoid damaging the case or gaskets.

Disposal

This device and all the packaging materials are recyclable. Please dispose of them separately for better waste handling. You can find out about disposal options for your product by contacting your municipality.

Please take note of the marking of packaging material when separating waste materials. They are marked with abbreviations (a) and numbers (b) with the following meanings: 1-7 plastics / 20-22: paper and cardboard / 80-98: composite materials.

Disposal of the electronic device

This wristwatch must not be disposed of in the normal household waste.

In the interest of the environment, when your device has reached the end of its usefulness, do no throw it in the normal household trash. Dispose of it in the proper and correct way. You can find out about collection sites and their business hours from your public administration. PI adhere to applicable requirements.

Disposal of the batteries

Defective or spent batteries/rechargeable batteries must be recycled in accordance with directive 2006/66/EC and its revisions. Return batteries, rechargeable batteries or the device at the available collection sites.

-11

Improper disposal of batteries / rechargeable batteries causes environmental damage!

Batteries / rechargeable batteries may not be disposed of in normal household waste. They may contain toxic heavy metals and are subject to hazardous waste treatment. The chemical symbols of the heavy metals are as follows: Cd = Cadmium, Hg = Mercury, Pb = lead. Therefore, please dispose of spent batteries / rechargeable batteries at a communal collection site.

Recycling

The product packaging consists of recyclable materials. Please dispose of them properly at the available collection sites.

Waste disposal

Dispose of the packaging in an environmentally responsible fashion. Please note the marking of the different packaging materials and separate them if applicable.

digi-tech gmbh warranty

This wristwatch includes a 3 year warranty starting on the day of purchase. In case of defects of this wristwatch you have, by law, certain rights regarding the vendor of the watch. These rights are not changed by the warranty which is described in the following paragraphs.

Warranty conditions

The warranty duration starts on the date of purchase. Please keep the original receipt in a safe place. The receipt is needed as a proof of purchase. If a defect occurs in the wristwatch within 3 years, the wristwatch will be repaired or replaced (according to our choice) free of charge. This warranty requires that, within the 3 year warranty period, the wristwatch and the receipt can be made available to us along with a short written description of the defect and when it occurred. If the defect is covered by the warranty, you will receive the repaired wristwatch or a new watch. Repair or replacement does not cause the warranty period to restart.

Warranty period and defects liability

The warranty period is not increased by the defect liability. This also applies to repaired or replaced parts. If defects are noticed at the time of purchase they must be reported immediately upon unpacking the item. Paid repair may be available after the end of the warranty period.

Scope of the warranty

The wristwatch was manufactured according to strict quality guidelines and was carefully inspected before delivery. The warranty does not include parts that experience normal wear and tear and can thus be seen as wear parts or fragile parts that are damaged. Examples include Switches, Batteries or parts made of glass.

This warranty becomes void if the wristwatch is damaged, is not used in the recommended way or is improperly repaired.

For proper use of the wristwatch all instructions in this manual must be adhered to exactly. Use of the wristwatch in a way that is discouraged in the manual must be avoided.

The wristwatch is not intended for commercial use. Abusive or improper use, excessive force and changes that are made by non-authorized repair centers will void the warranty.

Warranty claim procedure

To ensure that your call is processed in a fast and efficient manner please note the following directions:

• Have your receipt (as proof of purchase) and the article number (331788_1907) handy.
• The article number can be found on the type label, an engraving, the front page of the manual (bottom left) or a sticker on the back side or bottom side of the case.
  In case defects occur, please first contact the service center (see below) by phone or email.

Visit www.lidl-service.com to download this and many other manuals, product videos and software.

With this QR-Code you can reach the Lidl-Service-Site (www.lidl-service.com) directly and you can open your manual by entering the article number [331788_1907].

Service

Please note that the following address is not a service address. Please first contact the service address (see above).

Name: digi-tech gmbh

Street: Valterweg 27A

Town: DE-65817 Eppstein

Country:GERMANY

Leverantiebepaling 23
