USER MANUAL Eolo Mini Touch AR5R05T ARDES

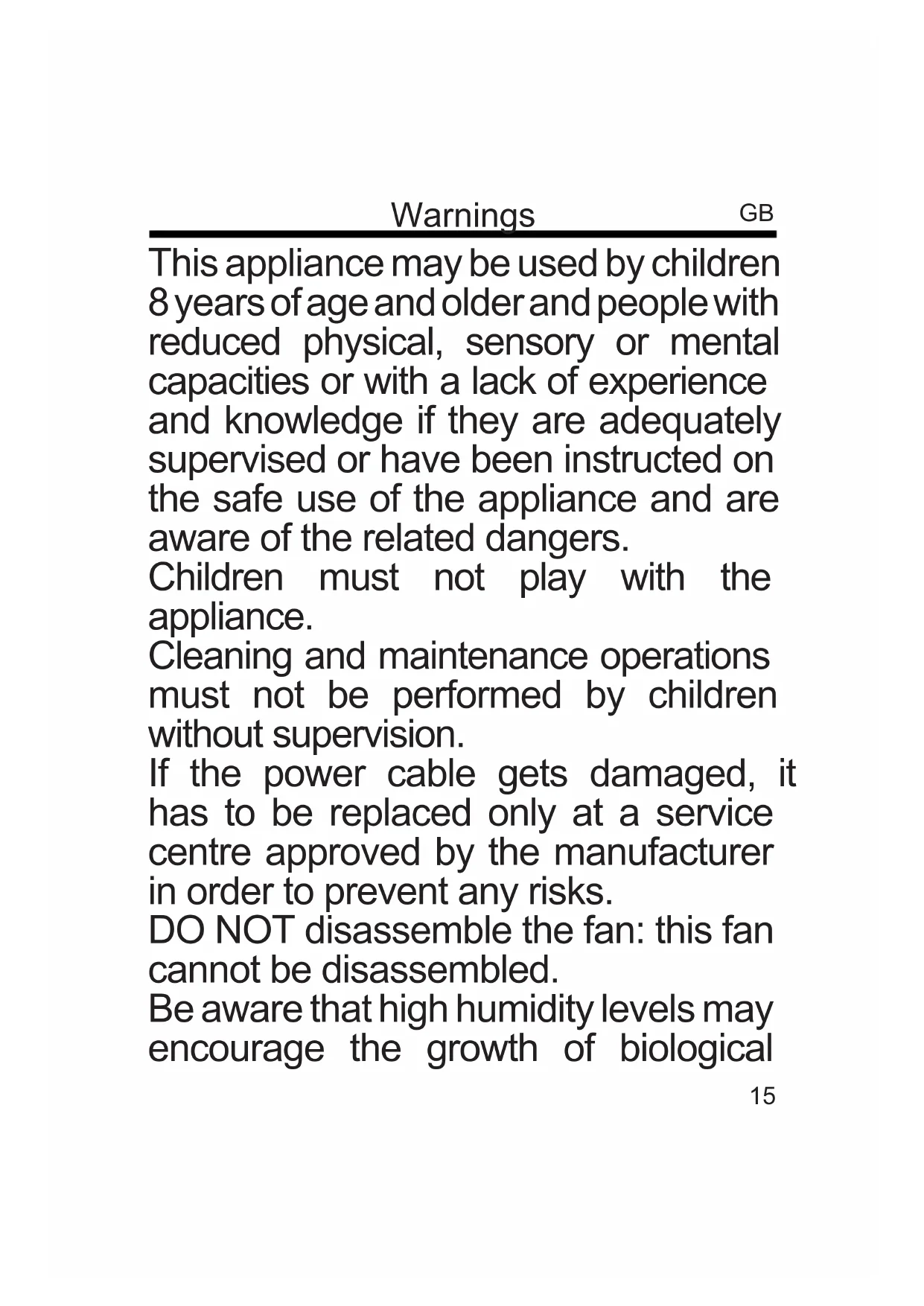

Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.

2. Do not allow children to replace batteries.

3. Always insert batteries correctly with regard to polarity (+ and -)

marked on the battery and the equipment.

4. Do not short-circuit batteries.

5. Do not charge batteries.

6. Do not force discharge batteries.

7. Do not mix new and used batteries or batteries of di󰀨erent types or

8. Exhausted batteries should be immediately removed from

equipment and properly disposed of.

9. Do not heat batteries

10. Do not weld or solder directly to batteries.

11. Do not dismantle batteries.

12. Do not deform batteries.

13. Do not dispose of batteries in re.

14. A lithium battery with a damaged container should not be exposed

16. Store unused batteries in their original packaging away from

metal objects. If already unpacked, do not mix or jumble batteries.

17. Remove batteries from equipment if it is not to be used for an

extended period of time unless it is for emergency purposes.

18. Clean the battery contacts and also those of the equipment prior to

battery installation.

19. In case of leak from batteries, avoid any contact with it; in case of

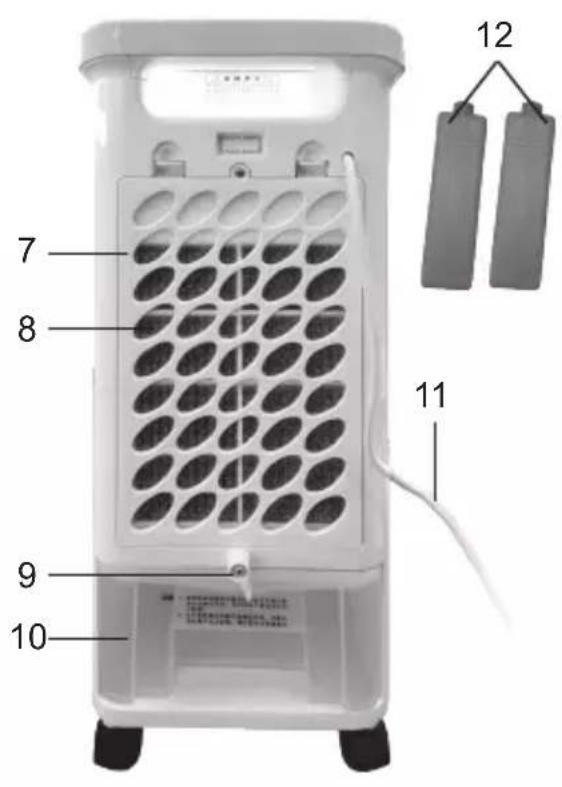

contact, wash the a󰀨ected part with water and seek medical attention.20 Take out the product from the giftbox and insert the wheels by pushing them inside the 4 holes placed on the bottom of the product. Fill the water tank:

• Rotate the knob in horizontal position and pull out the water tank (Attention: the water tank cannot be opened completely).

• Fill the water tank with cold and clean demineralized water. Make sure that water level is between “Min” minimum level and “Max” Instructions for use

• To increase the cool e󰀨ect insert the ice box in the water tank. Before use ice box, they must be lled by water and put in the refrigerator until they are completely frozen.

• Close tha water tank. ATTENTION!

• Make sure the product is unplugged from the mains before lling or refelling the water tank.

• Only use water in the water tank. Do not add any chemicals, oils or other additives.

• Only use cold demineralized water in the water tank (previously boiled) or distilled water.

• Make sure the water level in the water tank is between minimum level (indicated by “Min”) and maximum level (indicated by “Max”). Place the unit on a rm level surface and plug it into a socket. The unit will emit a short “BIP” sound indicating that power is supplied. For your convenience the unit can be operated by using control panel in the main body or by using remote control included. Control panel Remote control A. On/O󰀨 B. Speed C. Wind modes D. Timer E. Swing F. Cooler A B

ABCDEF indicator lights22 Batteries Remote control is supplied with battery inside (CR2025 type, 3V); remove the transparent sheet from the battery cover before use remote control. When the battery is over, it must be replaced with the same type. To remove battery, follow the drawing on the back of remote control. ON/OFF Button (A):

• Press On/O󰀨 button one time to activate the fan. The unit will start to operate and lower speed and the 1a indicator light will illuminate on the display.

• Press On/O󰀨 button when unit is on to turn it o󰀨. SPEED Button (B):

• Press Speed button when unit is on to select the desired air speed: low, medium or high. The selected speed is indicated by indicator light on the display: 1a (low speed), 1b (medium speed), 1c (high speed). WIND MODES Button (C):

• When the unit is operating, you can select the desired wind mode: natural mode (indicator light number 3 will be on in the display), sleeping mode (indicator light number 4 will be on in the display) or normal mode (both indicators light 3 and 4 will be o󰀨 in the display). TIMER Button (D):

• When the unit is operating, you can set the timer to switch the fan o󰀨 automatically after the set time. Press Timer button repeatedly to select the desired time period in half hours increments from 0,5 hours to 7,5 hours. The related indicator light (0,5H, 1H, 2H, 4H) will illuminate on the control panel. When all the indicator light are o󰀨 means that timer is not setted and the unit will continuously work until you switch o󰀨 Indicator lights 1a. Low speed light 1b. Middle speed light 1c. High speed light

• Press Swing button when the unit is operating to activate the automatic left/right oscillation of vertical louvres. The “7” indicator light will illuminate on the control panel. Press again Swing button to deactivate the automatic swing; “7” indicator light will turn o󰀨 on the control panel. COOLER Button (F):

• By remote control: press Cooler button when the unit is operating to activate the evaporative cooling function.

• By control panel: when unit is operating press Cooler (F) button one time to activate the evaporative cooling function. This function use water so make sure about water level in the water tank before turn on this function. The ice boxes provided increase the cool e󰀨ect: before use, ll them with water and put in the refrigerator until they are completely frozen. After that insert the frozen ice boxes in the water tank making sure that water level is under maximum level allowed. When this function is activated, the “6” indicator light is on in the display. To deactivate the evaporative cooling function:

• By remote control: press Cooler button to deactivate the evaporative cooling function.
