USER MANUAL AR5R11 ARDES

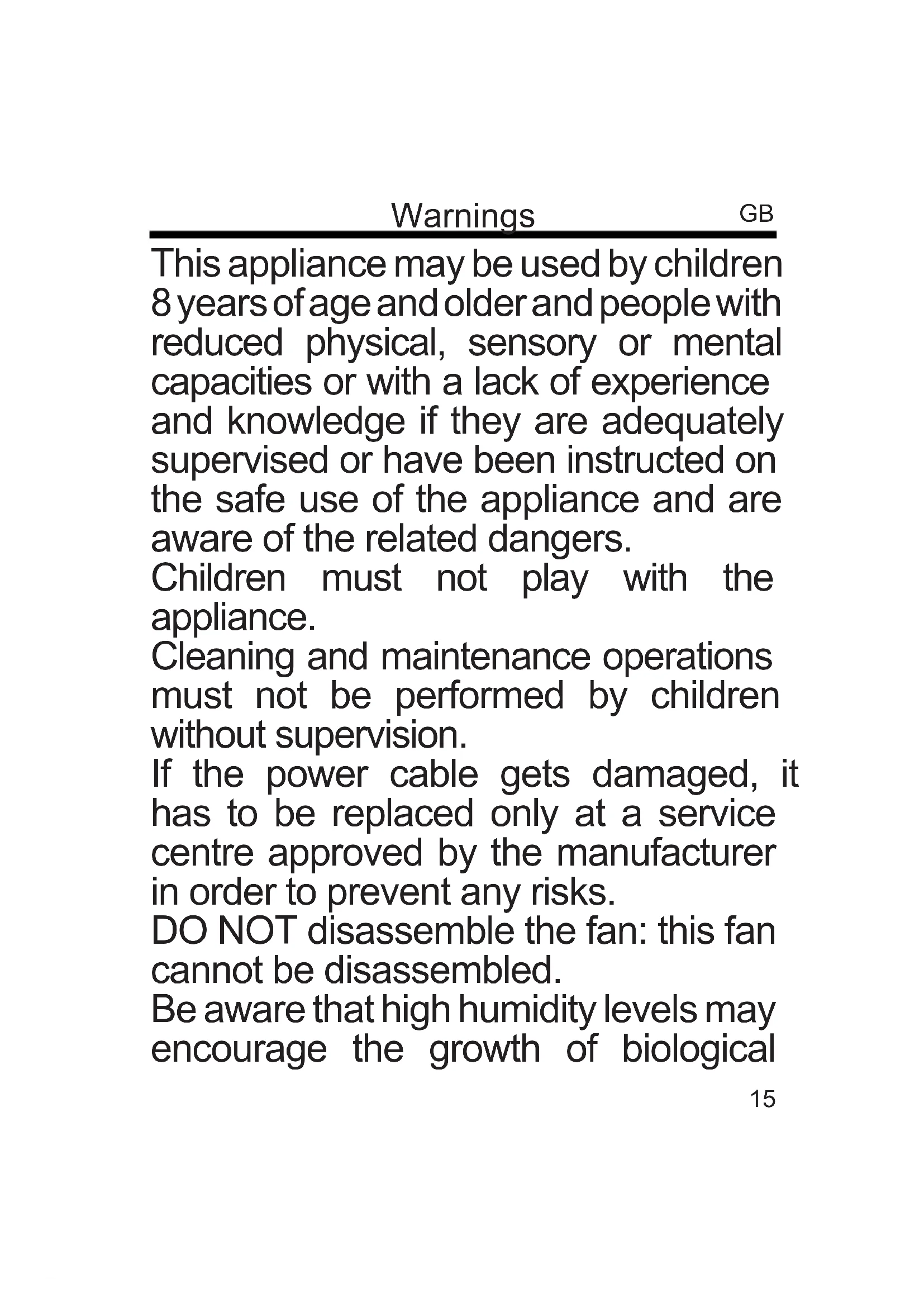

Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.

2. Do not allow children to replace batteries.

3. Always insert batteries correctly with regard to polarity (+ and -)

marked on the battery and the equipment.

4. Do not short-circuit batteries.

5. Do not charge batteries.

6. Do not force discharge batteries.

7. Do not mix new and used batteries or batteries of di󰀨erent types or

8. Exhausted batteries should be immediately removed from

equipment and properly disposed of.

9. Do not heat batteries

10. Do not weld or solder directly to batteries.

11. Do not dismantle batteries.

12. Do not deform batteries.

13. Do not dispose of batteries in re.

14. A lithium battery with a damaged container should not be exposed

16. Store unused batteries in their original packaging away from

metal objects. If already unpacked, do not mix or jumble batteries.

17. Remove batteries from equipment if it is not to be used for an

extended period of time unless it is for emergency purposes.

18. Clean the battery contacts and also those of the equipment prior to

battery installation.

19. In case of leak from batteries, avoid any contact with it; in case of

contact, wash the a󰀨ected part with water and seek medical attention.20 Take out the product from the giftbox and insert the wheels by pushing them inside the 4 holes placed on the bottom of the product. Fill the water tank:

• Rotate the knob in horizontal position and pull out the water tank (Attention: the water tank cannot be opened completely).

• Fill the water tank with cold and clean demineralized water. Make sure that water level is between “Min” minimum level and “Max” maximum level.

• To increase the cool e󰀨ect insert the ice box in the water tank. Before use ice box, they must be lled by water and put in the refrigerator until they are completely frozen. Instructions for use GB Technical informations GB

3. Remote control holder

• Make sure the product is unplugged from the mains before lling or refelling the water tank.

• Only use water in the water tank. Do not add any chemicals, oils or other additives.

• Only use cold demineralized water in the water tank (previously boiled) or distilled water.

• Make sure the water level in the water tank is between minimum level (indicated by “Min”) and maximum level (indicated by “Max”).

• Change the water in the tank frequently. Place the unit on a rm level surface and plug it into a socket. The unit will emit a short “BIP” sound indicating that power is supplied and the indicator light (1) will be on on the control panel. For your convenience the unit can be operated by using control panel in the main body or by using remote control included. Control Panel Remote control ABCDE A B

Batteries Remote control is supplied with battery inside (CR2025 type); remove the plastic sheet from the battery cover before use remote control. When the battery is over, it must be replaced with the same type following the drawing on the back of remote control. ON/OFF Button (A):

• Press On/O󰀨 button one time to activate the fan. The unit will show the ambient temperature in °C and will start to operate at minimum speed (indicator light 2 will be on in the control panel).

• Press On/O󰀨 button when unit is on to turn it o󰀨. SPEED Button (B):

• Press Speed button when unit is on to select the desired air speed: minimum (indicator light 2), medium (indicator light 3) or maximum (indicator light 4). TIMER Button (C):

• When the unit is operating, you can set the timer to switch the fan o󰀨 automatically after the set time. Press Timer button repeatedly to select the desired time period in one hour increment from 1 hours to 12 hours. The hours of setted timer are indicated on the display (indicator light 8). If the timer function is activated, the indicator light 9 will be on in the control panel. To deactivate timer function press this button till the indicator light 8 will show 00 or turn the fan o󰀨 manually. SWING Button (D):

• Press swing button when the unit is operating to activate the automatic left/right oscillation of vertical louvres. The “Swing” indicator light (5) will illuminate on the control panel. Press again swing button to deactivate the automatic swing. COOLER Button (E):

• When unit is operating press cooler button one time to activate the evaporative cooling function. If this function is activated, the indicator light 6 will turn on in the control panel.

• This function use water so make sure about water level in the water tank before turn on this function.

• The ice boxes provided increase the cool e󰀨ect: before use, ll them with water and put in the refrigerator until they are completely frozen. After that insert the frozen ice boxes in the water tank making sure that water level is under maximum level allowed.

• To deactivate this function press again cooler button. If the evaporative cooling function is deactivated the unit work as a fan.23 Maintenance

Before carrying out routine cleaning, switch o󰀨 the fan and disconnect mains power. For external cleaning use a soft and dry cloth. DO NOT dip the device in water, or splash it with any other liquids. DO NOT use solvents or any other chemical products for cleaning it. When you do not use it, after cleaning it, store the fan in a dry place. DAILY CLEANING To reduce bacteria and scale residues, empty the water tank every day after use and dry it with a soft and clean cloth. Cleaning the anti-dust lter: push the clip placed on the top part of anti-dust lter and remove it from the appliance by pulling it out. Clean it with water and replace on the appliance when dry. Fix the anti-dust lter on its position. Cleaning the cooling pad: Remove anti-dust lter as mention above and then the cooling pad. Clean the cooling pad under the water and put it inside the unit. Attention: the cooling pad and the anti-dust lter must be replaced in the appliance before turn it on. Cleaning of the water tank: Pull out the water tank (Attention: the water tank cannot be opened completely) and clean it with a soft damp cloth. If the water tank is particularly dirty use a mild soap that must be rinsed carefully. On the bottom of the water tank there is a small plastic stopper that can be removed. To completely empty the water tank place a container underneath the plastic stopper and gently remove the plastic stopper so that the water can drain out. Attention: before store the fan at the end of the season is necessary completely empty the water tank and dry it. Clean even the anti-dust lter and cooling pad and make sure they are completely dry before replace them in the unit. IONIZER button (F):

• When unit is operating press ionizer button one time to activate ionizer function; the related indicator light (7) will turn on in the control panel.
