AR4H03 - Electric hot water bottle ARDES - Free user manual and instructions
Find the device manual for free AR4H03 ARDES in PDF.
| Product type | Electric hot water bottle |
| Brand | Ardes |
| Model | AR4H03 |
| Power supply | Mains 220-240 V ~ 50/60 Hz |
| Number of heat levels | 6 (positions 1 to 6) |
| Automatic shut-off | After 90 minutes of operation |
| Recommended preheating | 10 minutes in position 6 before use |
| Removable and washable cover | Yes, machine washable according to label instructions |
| Control unit | Do not immerse, clean with a slightly damp cloth |
| Cushion maintenance | Wash rarely, dry completely before use, do not dry clean |
| Safety | Overheating protection; do not use by children aged 0-3 years |
| Use by children | From 3 to 8 years under supervision with minimum setting; from 8 years possible with instructions |
| Prolonged use | Set to position 1 to avoid burns; do not fall asleep with the device on |
| Error symbols | P: check connections; E: cushion fault |
| Included accessories | Power cable with control unit |
| Warranty | 2 years from date of purchase |
| Recycling | Do not dispose of with household waste, take to a recycling center (WEEE) |
Frequently Asked Questions - AR4H03 ARDES
User questions about AR4H03 ARDES
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Electric hot water bottle in PDF format for free! Find your manual AR4H03 - ARDES and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AR4H03 by ARDES.
USER MANUAL AR4H03 ARDES
This appliance is not intended for medical use in hospitals.
This appliance must not be used by persons insensitive to heat and other very vulnerable persons who are unable to react to overheating. Children under the age of three are not to use this appliance due to their inability to react to overheating.
The appliance can be used by children older than 3 years and younger than 8 years under supervision and with the control device always set to minimum temperature value.
This appliance may be used by children 8 years of age and older and people with reduced physical, sensory or mental capacities or with a lack of experience and knowledge if they are adequately supervised or have been instructed on the safe use of the appliance and are aware of the related dangers.
Children must not play with the appliance.
Cleaning and maintenance must not be performed by children unless they are under supervision.
Do not use if damp or wet.
Use the equipment only with the type of control device indicated on the equipment itself.
If the appliance is likely to be used in continuous use or for an extended period, for instance by the user falling asleep, controls should be adjusted to position 1 in order to avoid burns on the skin.
Anyway, do not falling asleep while the appliance is working.
Prolonged application with the equipment adjusted on high setting may cause burns on the skin.
When storing the appliance, allow it to cool down before folding.
Do not place items on top of the appliance while in storage to prevent it from becoming creased or misshapen.
Store the appliance in its original packaging in a clean, dry location when not in use. Do not place heavy items on top of it.
The pad does not require special maintenance. Just check it, the flex and the control regularly for any signs of wear or damage. If you notice any such signs or if the appliance has been misused, take it to a service centre for an inspection before using it again.
If the power cable gets damaged, it has to be replaced only in a service centre approved by the manufacturer, in order to avoid a hazard.
The cable and the control unit of the appliance can give rise to risks of entanglement, strangulation, tripping or treading if not correctly arranged. The user shall make sure that excess ties and electric cords shall be arranged in a safe way.
To clean the appliance, refer to the MAINTENANCE chapter.
Expectant mothers, people who suffer from diabetes and people who carry pacemakers must consult their doctor before using this appliance.
The appliance has been designed and manufactured to operate as a heating pad. Any other use is considered inappropriate and therefore dangerous.
After removing the packaging, check the appliance for any signs of damage. In case of visible damage, do not use it and contact a qualified technician.
Keep all parts of the packaging out of the reach of children. This appliance is not a children's toy: it is an electrical device and must be treated with the necessary caution.
Before connecting the appliance, make sure that the power supply voltage matches the indication on the data plate.
If the plug and socket are not compatible, replace the socket with a suitable type, applying to skilled people.
Do not use adapters or extension cables which do not meet current safety standards or that exceed the current carrying capacity limits.
When you don't use the appliance disconnect it from the power supply. Do not tug on the power cable or the appliance itself to remove the plug from the socket.
The use of any electrical appliance requires that a number of basic rules are observed, namely:
- Never touch the appliance with wet or humid hands.
- Do not use the appliance when barefoot.
- Do not leave the appliance exposed to weathering (rain, sunlight).
- Do not subject it to rough handling.
The power cable should be extended to its full lenght to avoid over heating.
In the event of a breakdown, operating anomaly, tripped fuse or tripped protective thermal fuse, unplug the appliance immediately and contact an authorized service centre; do not attempt to repair the appliance yourself.
For the sake of safety, never open the pad or the control: there are no parts inside that require servicing.
Do not place the control unit near sources of heat. Do not cover the control unit or place it on top of the appliance while it is in use.
The device must not be subjected to the weight of the body, but it must always be applied to the painful area.
Do not use the appliance out of doors.
Instructions for use
Connect the power cord plug to the heating pad and then plug the heating pad into the mains socket.
Turn on the heating pad by pressing the ON-OFF key and keeping it pressed for a few seconds. The device will turn on automatically in position 3.
To change the heating position, press the TEMP key repeatedly until you reach the desired level, which can be set from 1 to 6.
Please set preheating at the highest tap "6" position 10 minutes before using, then set the desired temperature.
In case of long operating period, set position 1 in order to avoid any overheating.
c. After 90 minutes the heating pad switches off automatically.
If symbol P appears on the display, check for proper cable connection of both the panel and the mains socket, while if the symbol E appears, it means that the heating pad is broken.
Press on/off key for 3 seconds to shut off when you stop to use it.
Maintenance
Disconnect the plug from the socket and let the appliance cool down well before cleaning it.
The control unit must be cleaned with a soft, slightly damp cloth.
Do not use substances, liquids or excessively dampened cloths because any infiltrations could damage the appliance beyond repair.
NEVER IMMERSE THE CONTROL UNIT IN WATER.
The heating panel and the cover can be washed. Before washing, remove the control unit and follow the instructions below which are also provided on the appliance (see WARNINGS section).
Do not wash the panel too frequently as it may get damaged.
Do not store or use the device before it is completely dry.
Do not dry-clean or use chemical solvents. They might damage the appliance and make it unsafe to use.
Terms and Conditions
The guarantee is valid for 24 months.
This guarantee applies only if it has been duly filled in and is submitted with the receipt showing the date of purchase.
The guarantee covers the replacement or repair of parts making up the appliance which were faulty at source due to manufacturing faults.
After the guarantee has expired, the appliance will be repaired against payment.
The manufacturer declines any responsibility for damage to persons, animals or property due to misuse of the appliance and failure to observe the directions contained in the instructions.
Limits
All rights under this guarantee and any responsibility on our part will be voided if the appliance has been:
- mishandled by unauthorized persons
- improperly used, stored or transported.
The guarantee does not cover damage to the outward appearance or any other that does not prevent regular operation.
If any faults should be found despite the care taken in selecting the materials and in creating the product, or if any information or advice are required, please contact your local dealer.
PACKAGING
In order to respect the environment, packaging material must be disposed of properly in accordance with separate collection.
Check local regulations.
USER INFORMATION
“Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)”, pertaining to reduced use of hazardous substances in electrical and electronic equipment, as well as to waste disposal”.
The symbol of the crossed-out wheelie bin on the equipment or on its g indicates that the product must be disposed of separately from other the end of its service life.
The user must therefore take the dismissed equipment to suitable separate collection centres for electrical and electronic waste.
For more details, please contact the appropriate local authority.
Suitable segregated collection of the equipment for subsequent recycling, treatment or environmentally-friendly disposal helps prevent damage to the environment and to human health, and encourages the re-use and/or recycling of the materials that make up the equipment.
Abusive disposal of the product by the user shall result in the application of administrative fines in accordance with the laws in force.
MODE D'EMPLOI - THERMOPHORE
INSTRUCTIONS IMPORTANTES. À CONSERVER POUR TOUT AUTRE CONSULTATION.
Avvertissements
FR

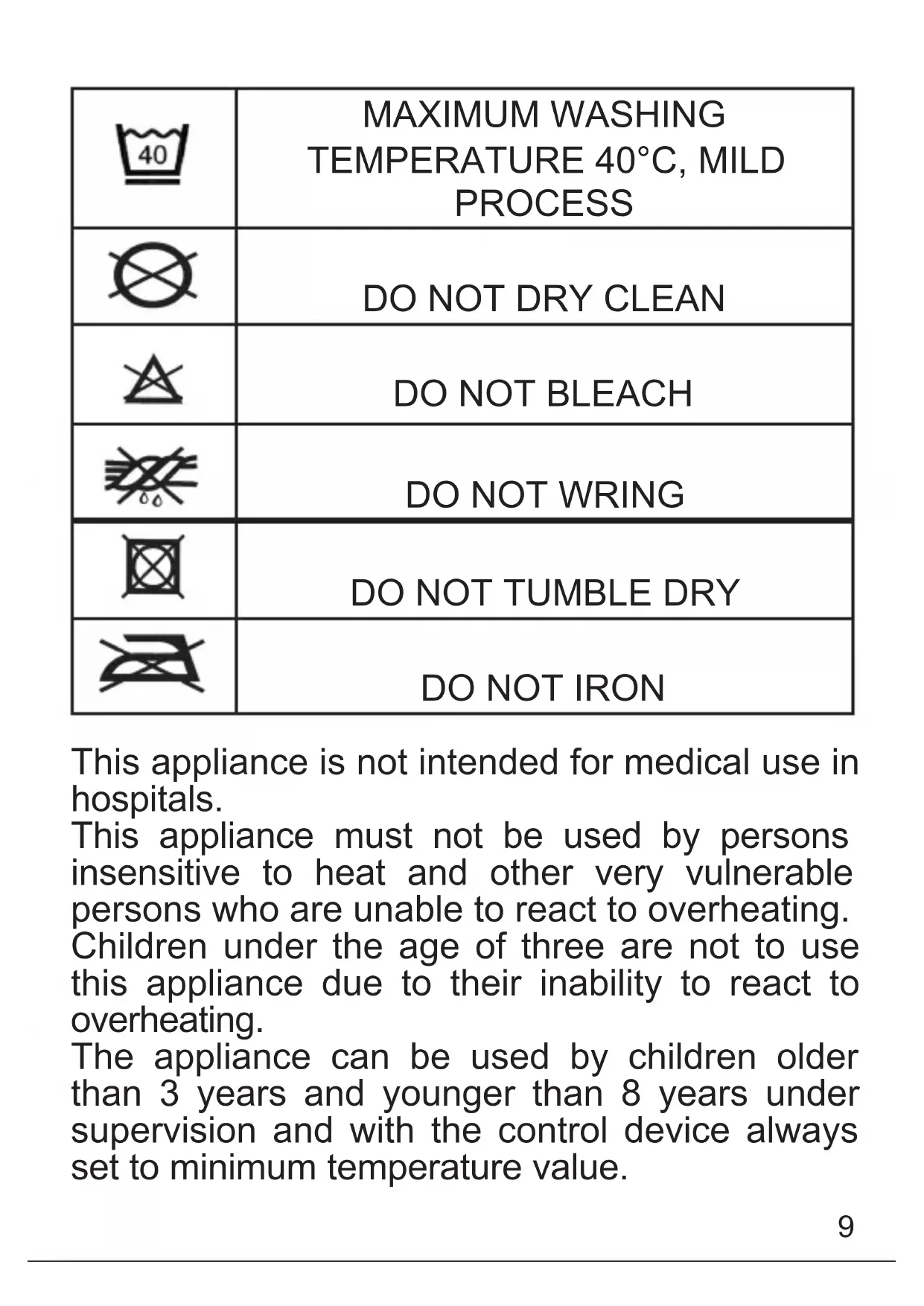

 | NE PAS UTILISER QUAND IL EST PLIÉ. NE PAS UTILISER QUAND IL EST FROISSÉ. |
 | NE PAS INSÉRER DES ÉPINGLES. |
 | NE PAS UTILISER 0-3 ANS |
 | LIRE SOIGNEUSEMENT LES MODE D'EMPLOI |
 | LAVABLE EN MACHINE EN CYCLE DÉLICAT 40 °C |
 | NE PAS NETTOYER A SEC |
 | NE PAS UTILISER D'EAU DE JAVEL |
 | NE PAS ESSORER |
 | NE PAS SECHER EN SECHEUSE |
 | NE PAS REPASSER |
