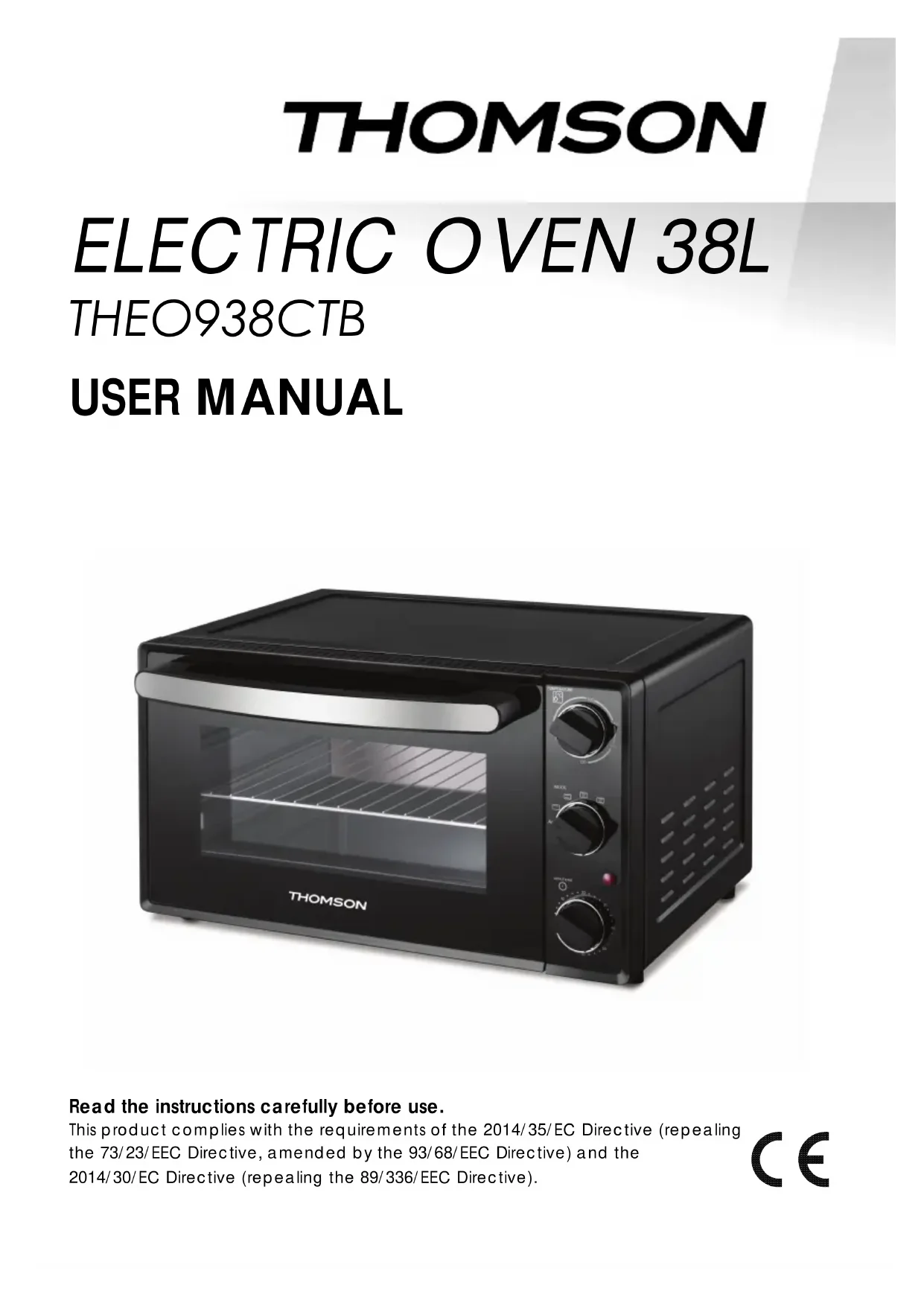

USER MANUAL THEO938CTB THOMSON

THEO938CTB USER MANUAL Read the instructions carefully before use. This product complies with the requirements of the 2014/35/EC Directive (repealing the 73/23/EEC Directive, amended by the 93/68/EEC Directive) and the 2014/30/EC Directive (repealing the 89/336/EEC Directive). CEEN-

This appliance operates at high temperatures and can cause burns. Do not touch the metal parts.

Do not touch hot surfaces without gloves or protection.

Do not let the appliance operate when it is unattended or at the reach of children. This appliance must be used by adults.

Do not use an extension cord to connect the appliance.

Place the appliance on a stable surface and not allow the power cord to dangle.

Make sure that the mains voltage corresponds to the rating indicated on the appliance - AC only.

Do not use or plug in your appliance if: - the power cord is defective or damaged; - the appliance has been dropped; orEN-

- it shows visible signs of damage or malfunction.

Do not disassemble the appliance yourself.

Do not operate the unit near flammable material or close to a heat source such as electric hob or gas stove.

This appliance is designed for domestic and indoor use only. Any usage for commercial purpose, improper use or failure to comply with the operating instructions shall void the warranty.

Unplug the appliance from the mains when not in use and before cleaning.

Allow the appliance to cool before cleaning.

Do not use the appliance outdoor.

Never move the appliance during use.

Provide adequate space around the oven for ventilation during use. Make sure that there is free space at the front and on both sides of the appliance.EN-

Do not obstruct air inlets and outlets.

Turn off your oven correctly after each use.

This appliance must be installed in accordance with the national wiring rules.

The temperature of the door, the outer surface and the accessible surfaces may be high when the oven is operating.

Keep the appliance and its cord out of reach of children less than 8 years old.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and userEN-

maintenance shall not be made by children without supervision.

You should supervise children in order to ensure they do not play with the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

This appliance is not designed to be operated by means of external timer or remote control system.

When operating the oven, keep at least 12 cm of space on all sides of the oven to allow for adequate air circulation.

To disconnect, turn any control to “off”, then remove plug from wall outlet. Always hold the plug, but never pull the cord.

Regarding the instructions for cleaning surfaces in contact with food, thanks to reference to the sectionEN-

The accessible surface may become hot during use

This logo indicates that the area where it is located can become very hot while the appliance is in operation. This logo for food contact use IMPORTANT

• Never immerse the plug or appliance in water or any other liquid.

• Never install the appliance in corners or under flammable materials such as curtains, drapes, cupboards, etc. ANY CLAIMS ON THIS PRODUCT SHOULD BE MADE TO YOUR RETAILER OR ITS CUSTOMER SERVICE. ALL REPAIRS MUST BE CARRIED OUT BY THE MANUFACTURER, ITS SERVICE AGENT, YOUR RETAILER’S CUSTOMER SERVICE OR A SIMILARLY QUALIFIED

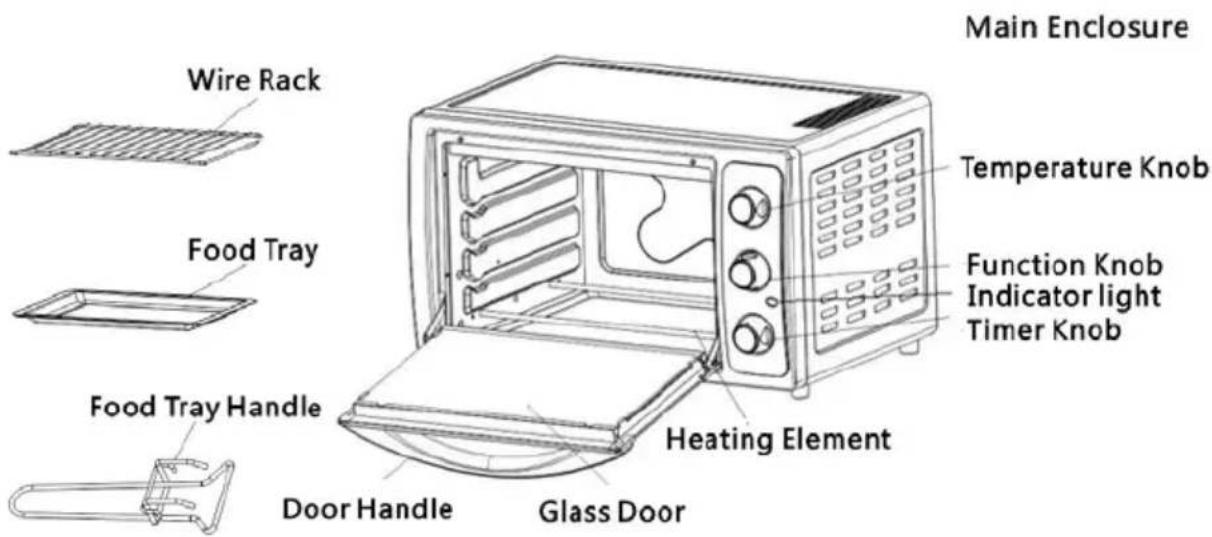

Feature: Knob: Temperature Knob, Function Knob and Timer Knob, Wire Rack: For toasting, baking, and general cooking in casserole dishes and loading food tray. Food Tray: For use in broiling and roasting various foods that contain water or will release water or oil during cooking.

WARNING : respect the direction of insertion of the grid and the maximum

authorized weight of 7 pounds. Door handle: Cool handle to avoid any scald. Glass Door: Transparent tempered glass allows you to view the cooking process conveniently.EN-

- Remove all packing materials from the appliance. - Take all the accessories (rack, tray) out of the appliance. - Wipe the oven and accessories with a damp cloth and then dry them. - Fully unwind the power cord. Then plug it into an electrical outlet. - Set the function selector to - Set the thermostat knob to 230°C. - Set the t imer knob to 15 minutes in order to operate the oven empty (without food or accessory) during this period. ATTENTION: The oven may emit a slight odor and some smoke when it is used for the first time. This is normal and will stop very quickly. Make sure that the appliance operates in a well ventilated place.USING YOUR OVEN

• Tips For baking and grilling, it is advisable to always preheat the oven to the desired cooking temperature in order to achieve perfect cooking.

Place the drip tray under the baking rack to avoid fat from dripping onto the heating elements and the bottom of the oven.

If the food to be cooked is oily or greasy, you can use two sheets of aluminum foil. Place one on the drip tray and cover the food with the other sheet. This helps prevent oil and grease splashing on the oven walls during cooking.

• Traditional Cooking This function automatically initiates upper and lower heating.

Place griddle in lower position.

Set function selector at

Set cooking temperature with thermostat button.

Set cooking time with timer button.

Wait until oven reaches temperature set, and then put food in.

Should cooking be finished before end of time set, turn timer button manually to “0”.

• Cooking with fan assist function This function is ideal combined with using your oven for traditional cooking or keeping warm. Actually, fan function circulates heat in oven and thus allows you to grab and rapidly cook red meat, poultry and fish, making sure they are tender, succulent and juicy.

Place griddle in lower position.

Set function selector at

Set cooking temperature with thermostat button.

Set cooking duration with timer button.

Wait until oven reaches temperature set, then put the food in.

Should cooking be finished before end of time set, turn timer button manually to “0”.

Warning: The weight of the food which is put on the Food Tray/wire Rack

cannot be over 7 pounds. The food cannot concentrate on one side of the Food Tray/Grill Rack, you would better try you best to make the food put on the Food Tray/Wire Rack evenly） EN-11EN-

MAINTENANCE AND CLEANING

- Allow your oven to cool completely before cleaning. Unplug from wall socket. - Griddle, drip pan and grease collection tray can be cleaned in the normal way eithe r by hand or in dishwasher. - Always use a damp sponge to clean external surfaces. Do not use abrasive substances, because they might damage the coating. Take care no water or detergent leaks into oven through air holes located on its surface. - Never immerse oven in water or any other liquid. - When cleaning inside, never use corrosive substances (spray detergents) and never scrape surfaces with sharp or pointed objects. - If appliance is not kept in a good state of cleanliness, its surface may be damaged, which would negatively affect its life and lead to a dangerous situation. Oven should be cleaned regularly and any food residue should be removed. Removing and cleaning grease collection tray - Remove and clean grease collection tray by pulling its handle. - Wash in soapy water and leave to dry. - Never use abrasive substances. - Replace grease collection tray.EN-

220-240 V~ 50 Hz 2000W 38L 100°C – 230°C Disposal and Environmental Protection If you want to dispose of your electrical appliance as it needs to be replaced or is no longer used, think about protecting the environment. Consult local authorities for environmental friendly ways for waste disposal. This logo affixed to the product indicates that is an appliance of which the waste processing falls within the framework of the 2012/19/EC Directive of 4 July 2012, on Waste Electrical and Electronic Equipment (WEEE)

The presence of hazardous substances in electrical and electronic equipment may have potential effects on the environment and human health in the reprocessing cycle of the product. Thus, at the end of the life of this appliance, it should not be disposed of with unsorted household waste. As a consumer, your role is crucial in the cycle of reuse, recycling and other forms of recovery of electrical and electronic equipment. Waste reception center and collection facilities are implemented at your disposal by local communities (recycling facilities) and distributors. You have the responsibility to use the selective waste collection systems at your disposal. WE DECLINE ANY LIABILITY FOR DEFECTS DUE TO IMPROPER USE OF THE APPLIANCE AND DAMAGE CAUSED BY SERVICE OR REPAIR MADE BY A THIRD PARTY OR DUE TO INSTALLATION OF UNAUTHORIZED PARTS.EN-

The guarantee will be cancelled if the nameplate and / or serial number of the product are removed. THOMSON is a trademark of Technicolor SA used under license by SCHNEIDER CONSUMER GROUP. This product is imported by

SCHNEIDER CONSUMER GROUP

12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE The warranty does not cover the wear parts of the product, nor the problems or damage resulting from: (1) surface deterioration due to normal wear and tear of the product; (2) defects or deterioration due to contact with liquids and corrosion caused by rust or the presence of insects; (3) any incident, abuse, misuse, alteration, disassembly or unauthorized repair (4) improper maintenance, improper use concerning the product or connection to an incorrect voltage; (5) any use of accessories not supplied or not approved by the manufacturer.HORNO ELÉCTRICO - 38 L THEO938CTB
