USER MANUAL THEO219C THOMSON

12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCEELECTRIC OVEN 19L THEO219C USER MANUAL Read the instructions carefully before use. This product complies with the requirements of Directive 2014/35/EU (repealing Directive 73/23/EEC as amended by Directive 93/68/EEC) and 2014/30/EU (repealing Directive 89/336/EEC).EN-2 SAFETY INSTRUCTIONS

• This device operates with high temperatures that can cause burns, do not touch the exposed metal parts.

• Do not touch surfaces warm without gloves or protection.

• Do not let operate the device unattended or within the reach of children. This device must be used by responsible adults.

• Do not use extension cord to connect the device.

• Place the device on a stable surface and do not hang the wire.

• Check that the voltage corresponds to that indicated on the unit - ac only.

• Do not use never plug your device if:EN-3 - Its cord is defective or damaged, - The product has been dropped, - It shows signs of damage or malfunctions.

• Never disassemble the device yourself.

• Do not operate the machine near flammable materials or near an external heat source such as hot plates or gas stove.

• This device is intended for household and indoor use. Any professional use, inappropriate or not in accordance to the instruction manual does not bind the liability or warranty of the manufacturer and the distributor.

• It should unplug by When not using the product or before cleaning.EN-4

• Allow to cool before cleaning.

• Do not use the device outside the home.

• Do not move the device when in use.

• Use the unit with sufficient space around it. Be sure to leave a space in front and on the left or right side of the unit.

• Do not block the air intakes or the outlets.

• After using the machine, be sure to turn off your device after use

• This device must be installed in accordance with national installation rules.

• The temperature of the door, the outer surface and accessible surfaces may be high when operating

• Keep the iron and cord out of reach of children under 8 years at its power or cooling.

• This unit can be used by children over 8 years and by people withEN-5 physical, sensory or mental capabilities, or lack of experience or knowledge, if they have been given, through d a person responsible for their safety, of supervision or instruction concerning use of the appliance. Never let a child play with the device. The cleaning and maintenance manipulations should not be made by children unless they are older than 8 years and remain under surveillance.

• T his device is intended to be used in domestic applications.

• It should supervise children to ensure they do not play with the device.

• If the power cable is damaged it must be replaced by the manufacturer, its after sales service or similarly qualified persons to avoid a hazard.

• This device is not designed to be used by means of an externalEN-6 timer or a remote control system.

• During use of the oven, ensure that there is a void space of 12 cm minimum around the oven to allow for proper air flow.

• To disconnect, turn all buttons to their off position and disconnect the plug from the wall outlet. always grasp the plug, never pull the power cord.

• This device is not intended to be operated by means of an external timer or a remote control system. This logo for food contact useEN-7 IMPORTANT

• Never immerse the plug or appliance in water or any other liquid.

• Never place the unit in corners or under highly flammable materials such as curtains, draperies, cabinets ... etc It is strictly forbidden to replace you own the power cable. If this one is damaged it must be replaced by the manufacturer, its customer service person or similar qualification to avoid a hazard. If your device falls do it considered by a professional putting before power. Internal damage may represent a risk of accident. Any claim on your product must be with your dealer or its store after sales. All repairs must be done by the manufacturer its customer service. The customer service store your dealer or qualification person like t o avoid dangerous.EN-8

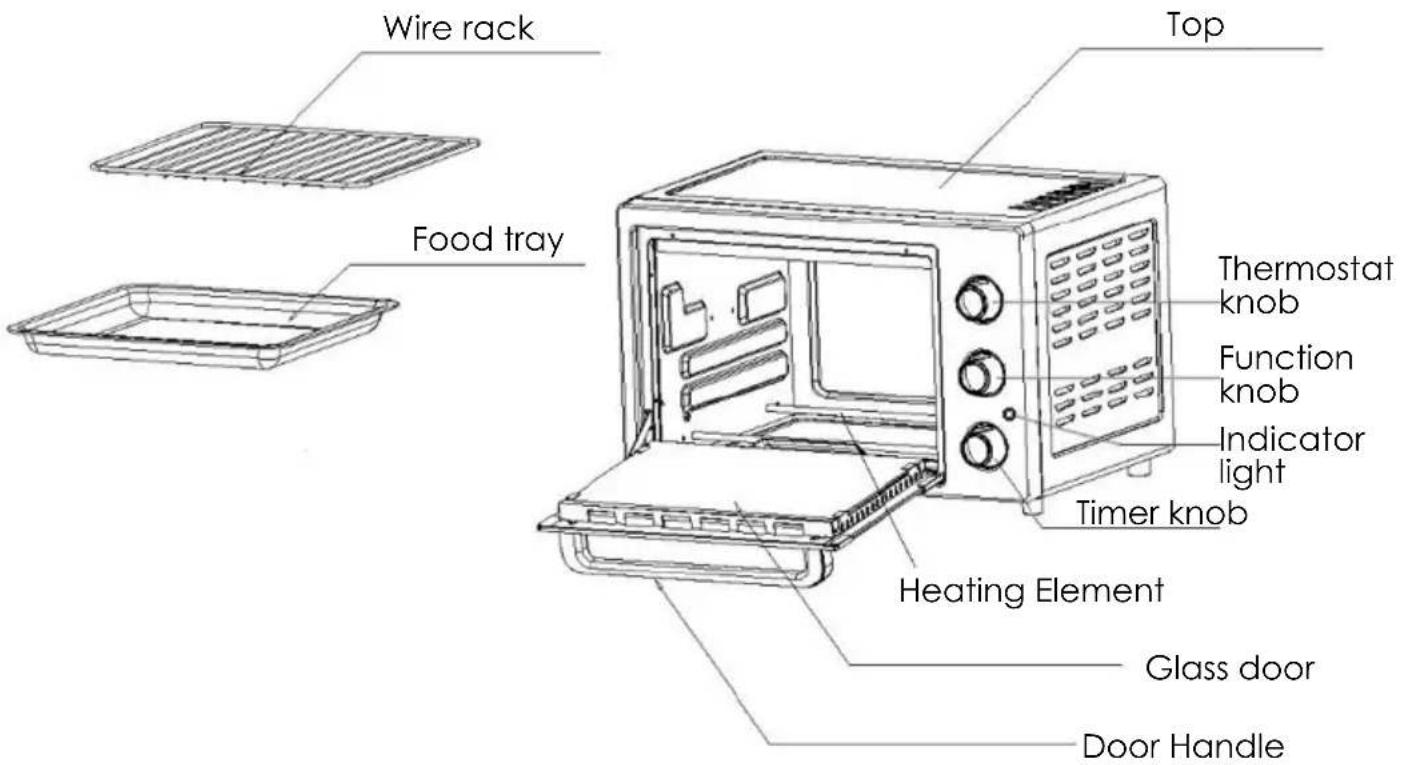

GETTING TO KNOW YOUR OVEN

Wire rack Food tray Top Thermostat knob Function knob Indicator light Timer knob Heating Element Glass door Door Handle Feature : Knobs: thermostat knob, function knob and the timer knob. Wire rack : For toasting, baking, and general cooking in casserole dishes and loading food tray.

WARNING: Respect the direction of insertion of the grid and the

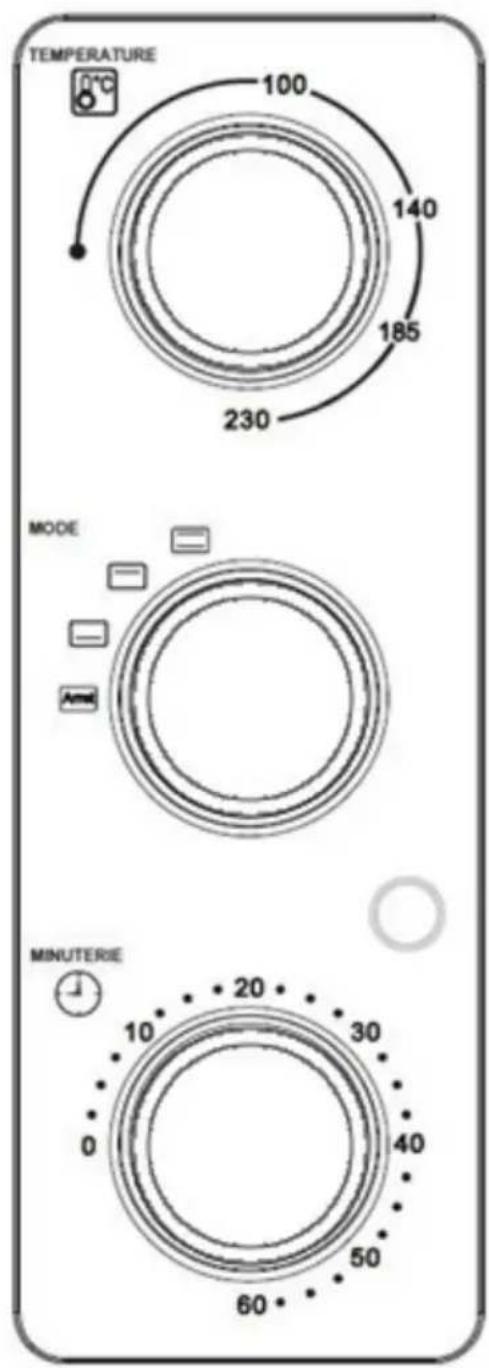

maximum authorized weight of 4.85 pounds. Food tray : For use in broiling and roasting various foods that contain water or will release water or oil during cooking. Door handle: Cool handle to avoid any scald. Glass door : Transparent tempered glass allows you to view the cooking process conveniently.EN-9 CONTROL PANEL Timer knob: The button must always be set to "0" when the oven is not in use. Turn the knob clockwise to the desired time (60 minutes max.), the count down starts automatically. Function knob: Select the mode of operation. : Upper heating : Lower heating : Upper heating + Lower heating Thermostat knob: The temperature range is until 230 ° C. Set the desired temperature according needs.EN-10

Remove all packaging of the appliance.

Remove all accessories (rack, tray) of the appliance.

Wipe the oven and its accessories with a damp cloth and then dry.

Fully unwind the power cord, then plug it into an electrical outlet.

Set the thermostat to 230 ° C.

Set the timer knob over 15 minutes to operate the vacuum oven (without food or accessory) during this time. CAUTION: The oven may emit a slight odor and some smoke when it is used for the first time. This is normal and will stop very quickly. Make sure that the appliance operates in a well ventilated place.

• Advice For baking or grilling, it is best to always preheat the oven to the des ired cooking temperature to obtain a perfect cooking.

Place the drip tray under the baking rack to prevent fat from dripping on the resistance and the bottom of the oven.

If the food to be cooked are oily or greasy, use two sheets of aluminum foil. Place one on the drip tray and cover food with each other. This prevents oil splashes and fat during cooking.

• Traditional cooking This function automatically activates the upper and lower resistance.

Place the rack in lowest position.

Set the cooking temperature with the thermostat knob.

Set the cooking time with the timer knob.

Wait until the oven has reached the set temperature, then insert the food.

If cooking is completed before the end of the set cooking time, manually turn the timer knob to "0".EN-11

Let cool completely your oven before cleaning. Unplug the power cord from the wall outlet.

The grill, the pan and the drip tray can be cleaned like other utensils, either by hand or in the dishwasher

Always use a damp sponge to clean the outer surfaces. Avoid using abrasive products that could damage the coating. Ensure that water or soap does not penetrate inside the oven through the ventilation holes on the top of the oven.

Never immerse the oven in water or other liquids.

To clean the interior walls, not use any corrosive products (spray detergents) and never scrape the walls with sharp objects.

If the equipment is not maintained in a good state of cleanliness, its surface could deteriorate and affect so inexorable lifetime of the device and lead to a dangerous situation. The oven should be cleaned regularly and any deposit of food must be removed. Remove and clean the greasy drip tray

Remove greasy drip tray by pulling the handle of it.

Wash with soap and water and allow to dry.

If you want to dispose of your electrical appliance as it needs to be replaced or is no longer used, think about protecting the environment. Consult local authorities for environmental friendly ways for waste disposal. This logo affixed to the product indicates that is an appliance of which the waste processing falls within the framework of the 2012/19/EC Directive of 4 July 2012, on Waste Electrical and Electronic Equipment (WEEE). The presence of hazardous substances in electrical and electronic equipment may have potential effects on the environment and human health in the reprocessing cycle of the product. Thus, at the end of the life of this appliance, it should not be disposed of with unsorted household waste. As a consumer, your role is crucial in the cycle of reuse, recycling and other forms of recovery of electrical and electronic equipment. Waste reception center and collection facilities are implemented at your disposal by local communities (recycling facilities) and distributors. You have the responsibility to use the selective waste collection systems at your disposal. Defects due to failure of the unit and damage repair intervention or made by any third party or due to the installation parts that are not original not covered by responsibility of the provider.EN-13 The warranty does not cover product wear parts, nor problems or damage resulting from: (1) surface deterioration due to normal wear and tear of the product; (2) defects or deterioration due to contact with liquids and corrosion caused by rust or the presence of insects; (3) any incident, abuse, misuse, alteration, disassembly or Unauthorized repair; (4) improper maintenance, improper use concerning the product or connection to an incorrect voltage; (5) any use of accessories not supplied or not approved by the manufacturer. The warranty is void if the elimination of plate and / or the product serial number. THO MSON is a trademark of Technicolor SA used under license by SCHNEIDER CONSUMER GROUP. This product is imported by
