USER MANUAL MT350 BLACK & DECKER

(Original instructions)3 ENGLISH (Original instructions)

A BIntended use Your BLACK+DECKER MT350 multi-purpose tool has been designed for a wide range of DIY applications. Using the drill/screwdriver head (MTDD6), this tool is intended for screwdriving applications and for drilling in wood, metal and plastics. This tool is intended for consumer use only. Your BLACK+DECKER charger has been designed for charging BLACK+DECKER batteries of the type supplied with this tool. Safety instructions General power tool safety warnings Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents. b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c. Prevent unintentional starting. Ensure the switch is in the o-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

ENGLISH (Original instructions)d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b. Do not use the power tool if the switch does not turn it on and o. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may aect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations dierent from those intended could result in a hazardous situation.

a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Additional power tool safety warnings Warning! Additional safety warnings for drills and impact drills

• Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.

• Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.

• Hold power tool by insulated gripping surfaces when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock

• Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.

ENGLISH (Original instructions)• Before drilling into walls, floors or ceilings, check for the location of wiring and pipes.

• Avoid touching the tip of a drill bit just after drilling, as it may be hot.

• The intended use is described in this instruction manual. The use of any accessory or attachment or performance of any operation with this tool other than those recommended in this instruction manual may present a risk of personal injury and/or damage to property. Safety of others

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concernin use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance. Residual risks Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use etc. Even with the application of the relevant safety regulations and the implementation of safety devices, certain residual risks can not be avoided. These include:

• Injuries caused by touching any rotating/moving parts.

• Injuries caused when changing any parts, blades or accessories.

• Injuries caused by prolonged use of a tool. When using any tool for prolonged periods ensure you take regular breaks.

• Impairment of hearing.

• Health hazards caused by breathing dust developed when using your tool (example:- working with wood, especially oak, beech and MDF.) Vibration The declared vibration emission values stated in the technical data and the declaration of conformity have been measured in accordance with a standard test method provided by EN 60745 and may be used for comparing one tool with another. The declared vibration emission value may also be used in a preliminary assessment of exposure. Warning! The vibration emission value during actual use of the power tool can dier from the declared value depending on the ways in which the tool is used. The vibration level may increase above the level stated. When assessing vibration exposure to determine safety measures required by 2002/44/EC to protect persons regularly using power tools in employment, an estimation of vibration exposure should consider, the actual conditions of use and the way the tool is used, including taking account of all parts of the operating cycle such as the times when the tool is switched o and when it is running idle in addition to the trigger time. Labels on tool The following pictograms are shown on the tool: Warning! To reduce the risk of injury, the user must read the instruction manual. Electrical safety This tool is double insulated; therefore no earth wire is required. Always check that the power supply corresponds to the voltage on the rating plate.

• If the supply cord is damaged, it must be replaced by the manufacturer or an authorised BLACK+DECKER Service Centre in order to avoid a hazard. Features This tool includes some or all of the following features.

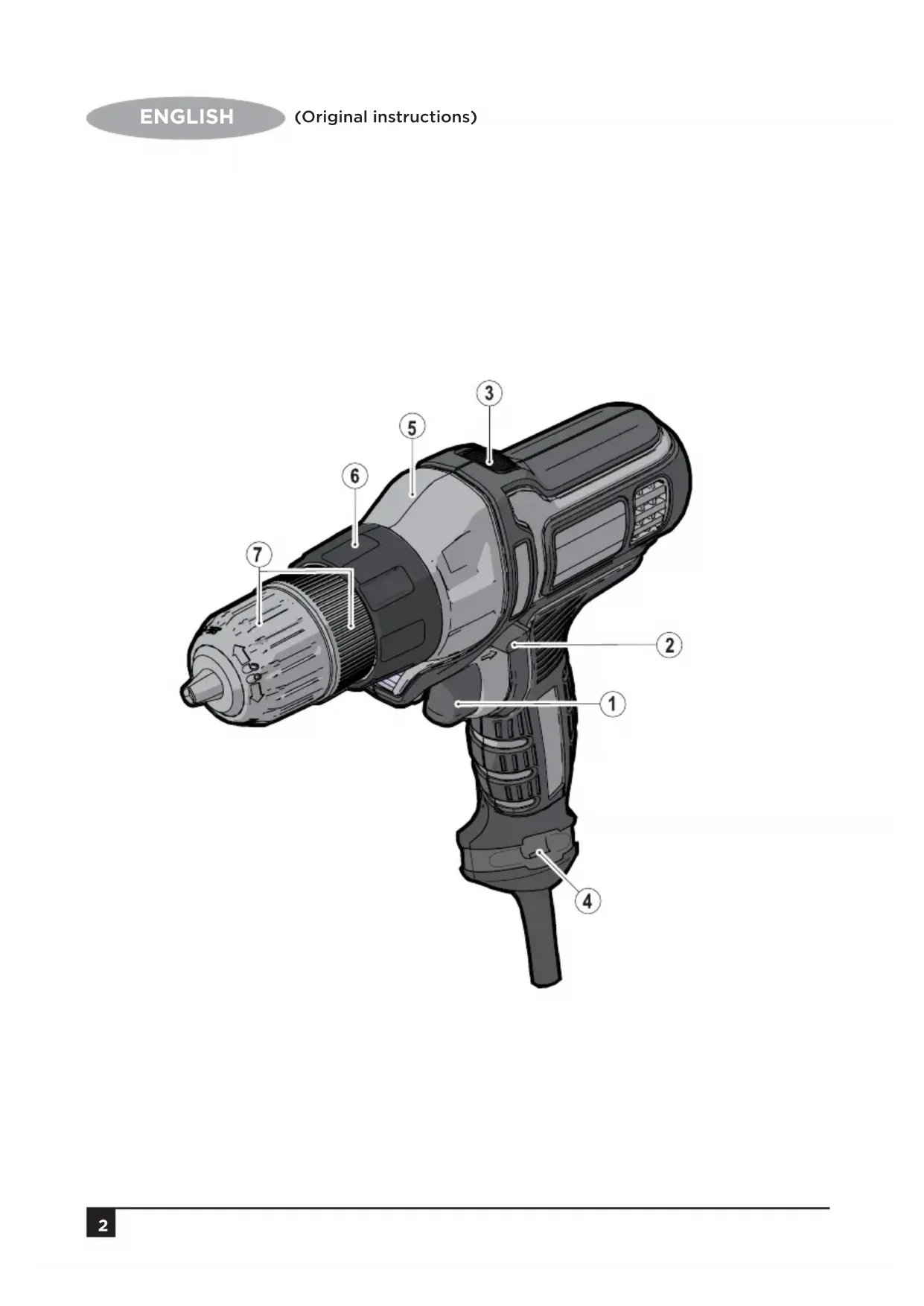

3. Head release button

5. Drill/screwdriver head (MTDD6)

6. Torque adjustment collar

Assembly Warning! Before assembly, make sure that the tool is switched o and unplugged. Fitting and removing tool heads (fig. A) Warning! Care must be taken when fitting and removing heads. Moving parts may become hot during use.

• Lock the tool by setting the forward/reverse slider (2) to the centre position.

• To remove a tool head, depress the head release button (3) and take the head o the tool.

• To fit a tool head, line it up with the tool as shown and push it onto the tool until it snaps into place. Fitting and removing a drill bit or screwdriver bit The drill/screwdriver head is fitted with a keyless chuck to allow for an easy exchange of bits.

• Lock the tool by setting the forward/reverse slider (2) to the centre position.

• Open the chuck (7) by turning the front part clockwise with one hand while holding the rear part with the other.

• Insert the bit shaft into the chuck (7).

• Firmly tighten the chuck (7) by turning the front part anti-clockwise with one hand while holding the rear part with the other.

• To remove the screwdriver bit from the bit holder, lift the bit from the recess.

• To store the screwdriver bit, firmly push it into the holder. Use Warning! Let the tool work at its own pace. Do not overload. Warning! Before drilling into walls, floors or ceilings, check for the location of wiring and pipes. Selecting the torque or drill position (fig. B) This tool is fitted with a collar to set the torque for tightening screws.

• For drilling, set the collar (6) to the drilling position by aligning the symbol with the marking (6).

• For screwdriving, set the collar to the desired setting.

• If you do not yet know the appropriate setting, proceed as follows: - Set the collar (6) to position 1. - Tighten the first screw. - If the clutch ratchets before the desired result is achieved, increase the collar setting and continue tightening the screw. Repeat until you reach the correct setting. Selecting the direction of rotation (fig. C) For drilling and tightening screws, use forward (clockwise) rotation. For loosening screws or removing a jammed drill bit, use reverse (counterclockwise) rotation.

• To select forward rotation, push the forward/reverse slider (2) to the left.

• To select reverse rotation, push the forward/reverse slider to the right.

• To lock the tool, set the forward/reverse slider into the centre position. Drilling/screwdriving

• To switch the tool off, release the variable speed switch.

ENGLISH (Original instructions)ENGLISH

(Original instructions) Hints for optimum use Drilling

• Always apply a light pressure in a straight line with the drill bit.

• Just before the drill tip breaks through the other side of the workpiece, decrease pressure on the tool.

• Use a block of wood to back up workpieces that may splinter.

• Use spade bits when drilling large diameter holes in wood.

• Use HSS drill bits when drilling in metal.

• Use masonry bits when drilling in soft masonry.

• Use a lubricant when drilling metals other than cast iron and brass.

• Make an indentation using a centre punch at the centre of the hole to be drilled in order to improve accuracy. Screwdriving

• Always use the correct type and size of screwdriver bit.

• If screws are difficult to tighten, try applying a small amount of washing liquid or soap as a lubricant.

• Always hold the tool and screwdriver bit in a straight line with the screw. Accessories The performance of your tool depends on the accessory used. BLACK+DECKER and Piranha accessories are engineered to high quality standards and designed to enhance the performance of your tool. By using these accessories you will get the very best from your tool. Maintenance Your BLACK+DECKER corded/cordless appliance/tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning. Warning! Before performing any maintenance on corded/cordless power tools:

• Switch off and unplug the appliance/tool.

• Or switch off and remove the battery from the appliance/tool if the appliance/tool has a separate battery pack.

• Or run the battery down completely if it is integral and then switch off.

• Regularly clean the ventilation slots in your appliance/tool/charger using a soft brush or dry cloth.

• Regularly clean the motor housing using a damp cloth. Do not use any abrasive or solvent-based cleaner.

• Regularly open the chuck and tap it to remove any dust from the interior (when fitted). Technical data MT350 (Type 1) Voltage V

0-700 Max. torque Nm 20.5 Chuck capacity mm 10 Weight kg 1.6 Max. drilling capacity Steel mm 10 Wood mm 25 Level of sound pressure according to EN 60745: Sound pressure (L

Screwdriving without impact (a

ENGLISH (Original instructions) Protecting the environment Separate collection. This product must not be disposed of with normal household waste. Should you find one day that your BLACK+DECKER product needs replace- ment, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection. Separate collection of used products and packaging allows materials to be recycled and used again. Reuse of recycled materials helps prevent environmen- tal pollution and reduces the demand for raw materials. Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product. BLACK+DECKER provides a facility for the collection and recycling of BLACK+DECKER products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf. You can check the location of your nearest authorised repair agent by contacting your local BLACK+DECKER office at the address indicated in this manual. Alternatively, a list of authorised BLACK+DECKER repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com. EC declaration of conformity MACHINERY DIRECTIVE Multi-purpose Tool MT350 BLACK+DECKER declares that these products described under "technical data" are in compliance with: 2006/42/EC, EN 60745-1:2009 + A11:2010, EN 60745-2-1:2010, EN 60745-2-2:2010 BLACK+DECKER declares that the product including the alternative accessory head as described below are in compliance with: These products also comply with Directive 2004/108/EC (until 19/04/2016) 2014/30/EU (from 20/04/2016) and 2011/65/EU. For more information, please contact BLACK+DECKER at the following address or refer to the back of the manual. The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of BLACK+DECKER. R.Laverick Engineering Manager BLACK+DECKER Europe, 210 Bath Road, Slough, Berkshire, SL1 3YD United Kingdom

ENGLISH (Original instructions) Guarantee Black + Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. If a Black + Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, BLACK+DECKER guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to make sure of the minimum inconvenience to the customer unless:

• The product has been used for trade, professional or hire purposes.

• The product has been subjected to misuse or neglect.

• The product has sustained damage through foreign objects, substances or accidents.

YOUR NAME/ YOUR ADDRESS POSTCODE
